The 1 Spool Hydraulic Valve from the SD18 Series is a high-performance valve designed for efficiency and precision in various industrial applications. With a rated flow of 120 L/min and a maximum pressure of 315 bar, this monoblock valve offers reliable and efficient fluid control.
| Seri SD18 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 160 L/menit (42,2 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G1/2, G1, SAE 16 |
| Port Keluar | G1, SAE 16 |
| Ukuran Port | G1, SAE 16 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |

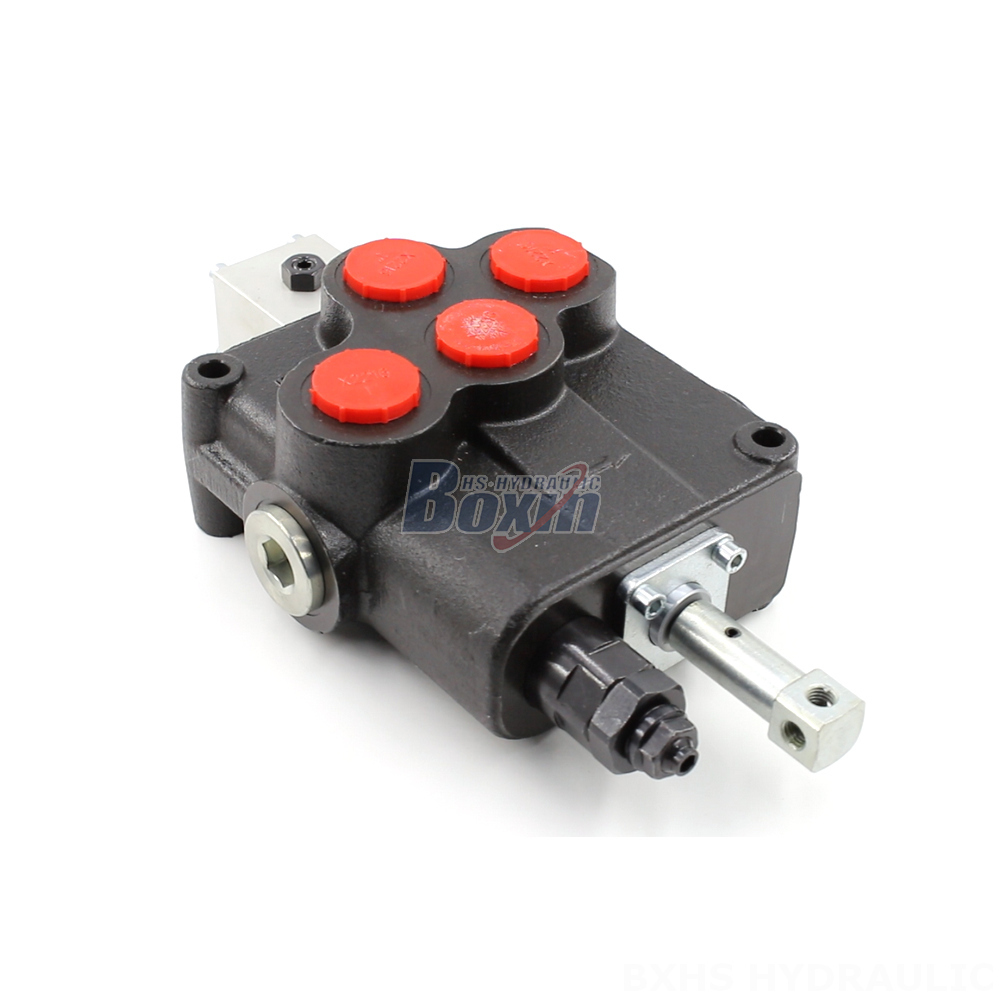

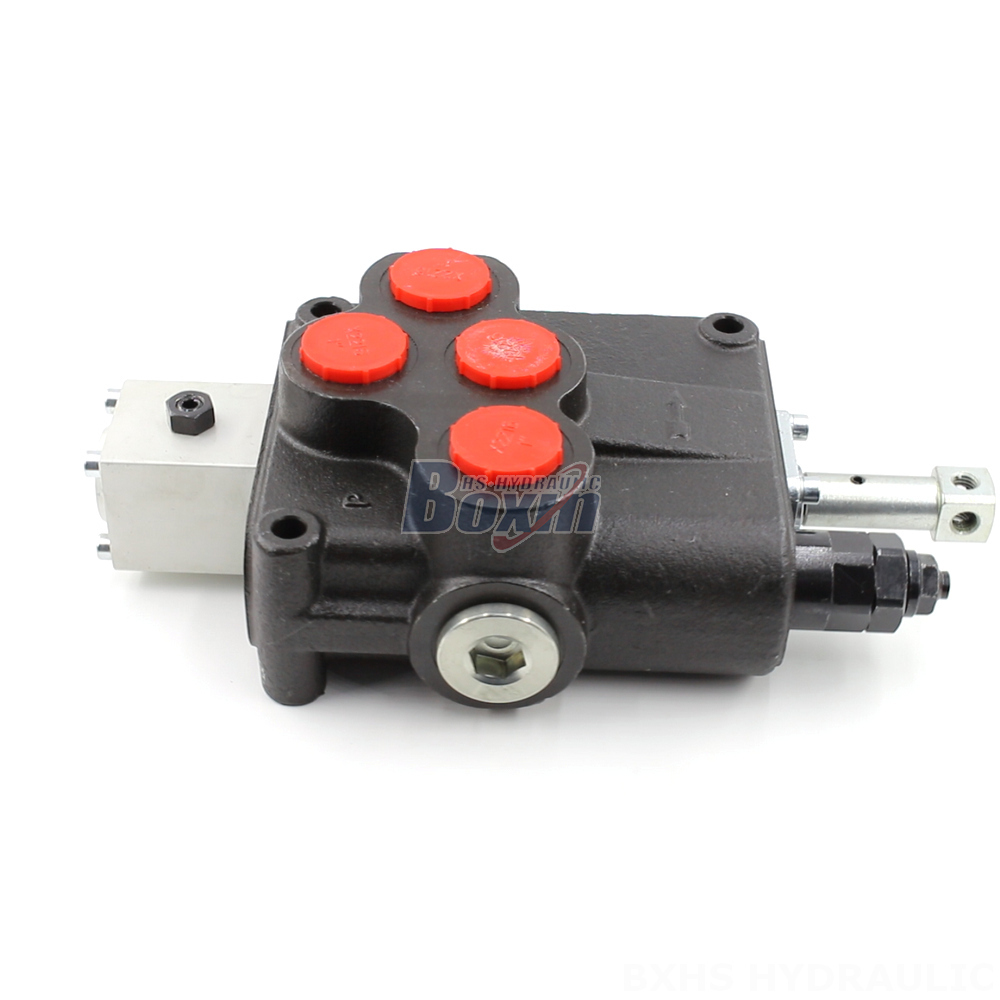

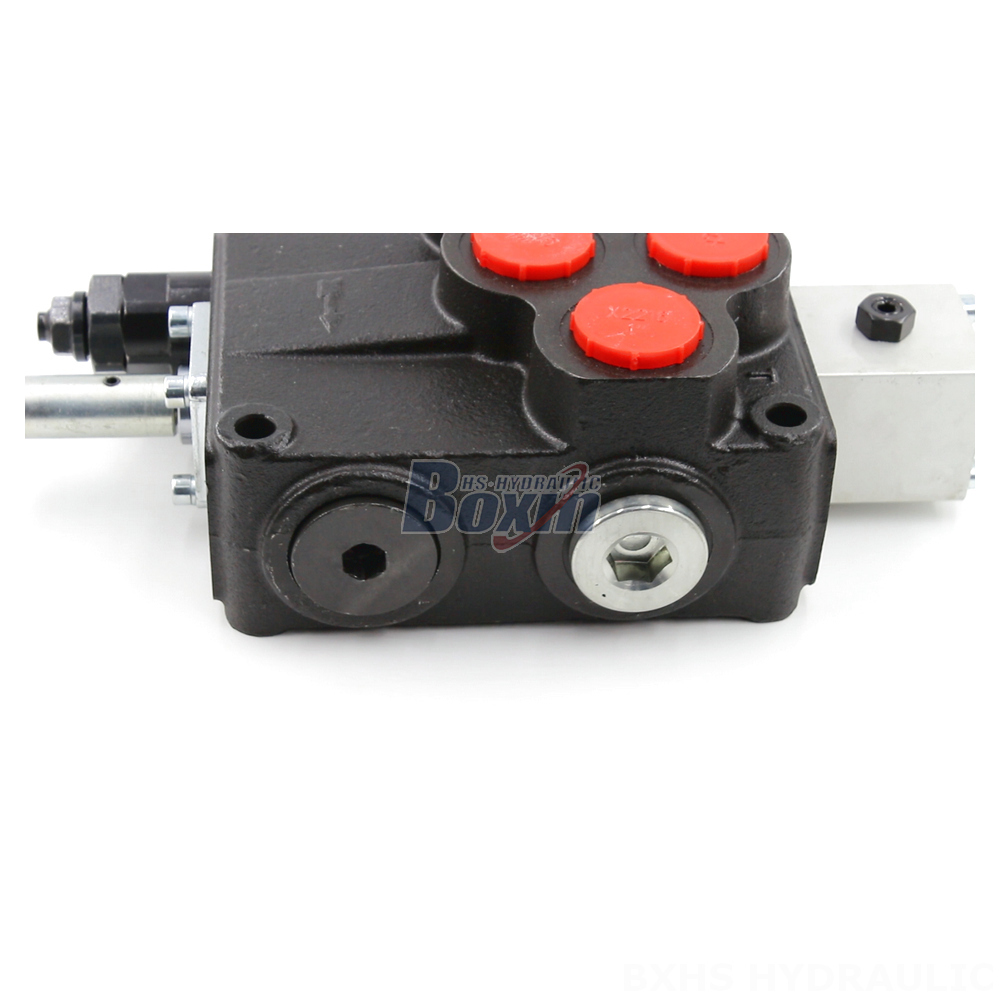

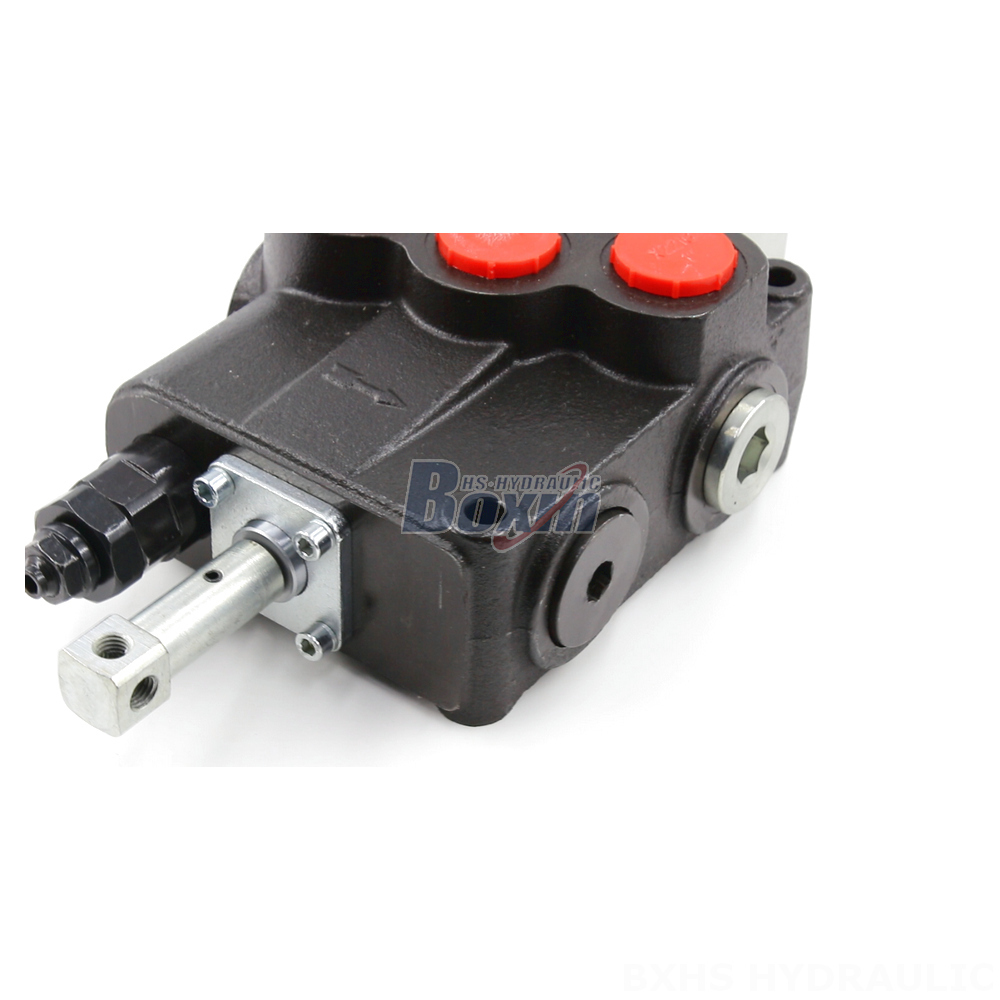

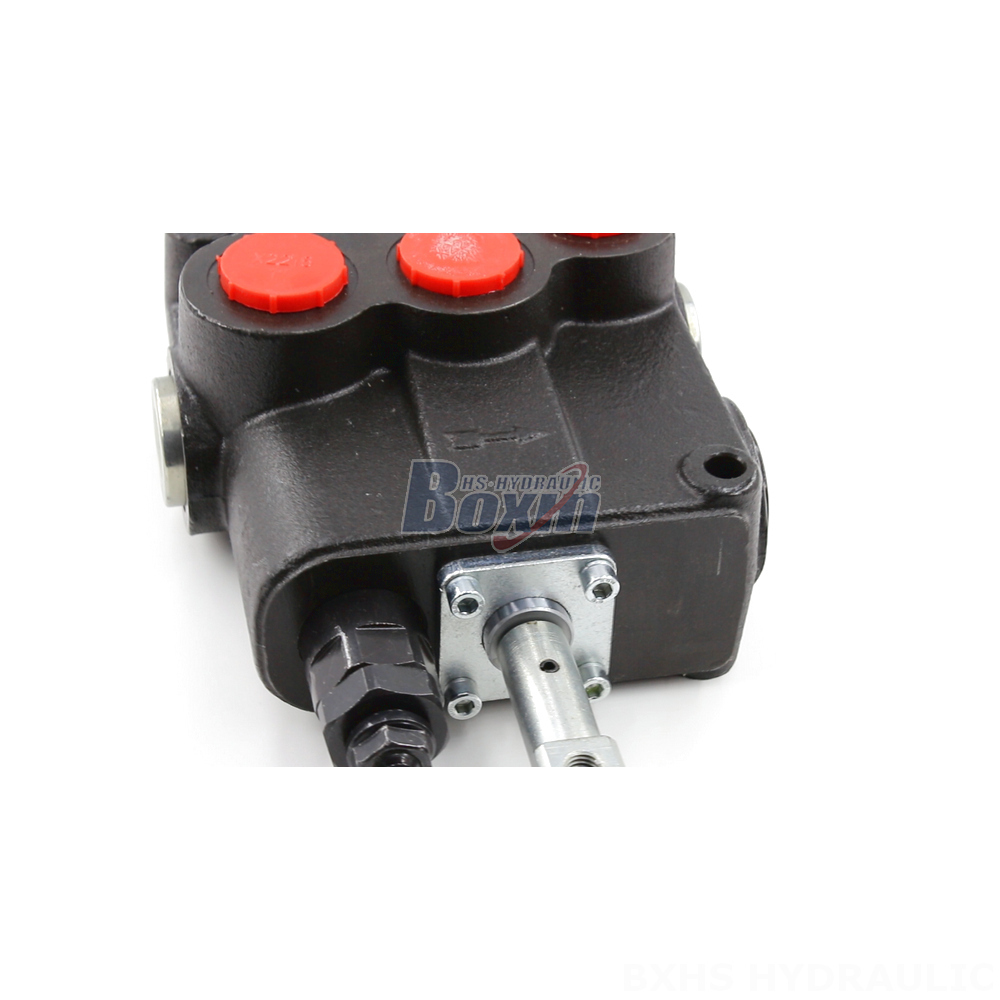

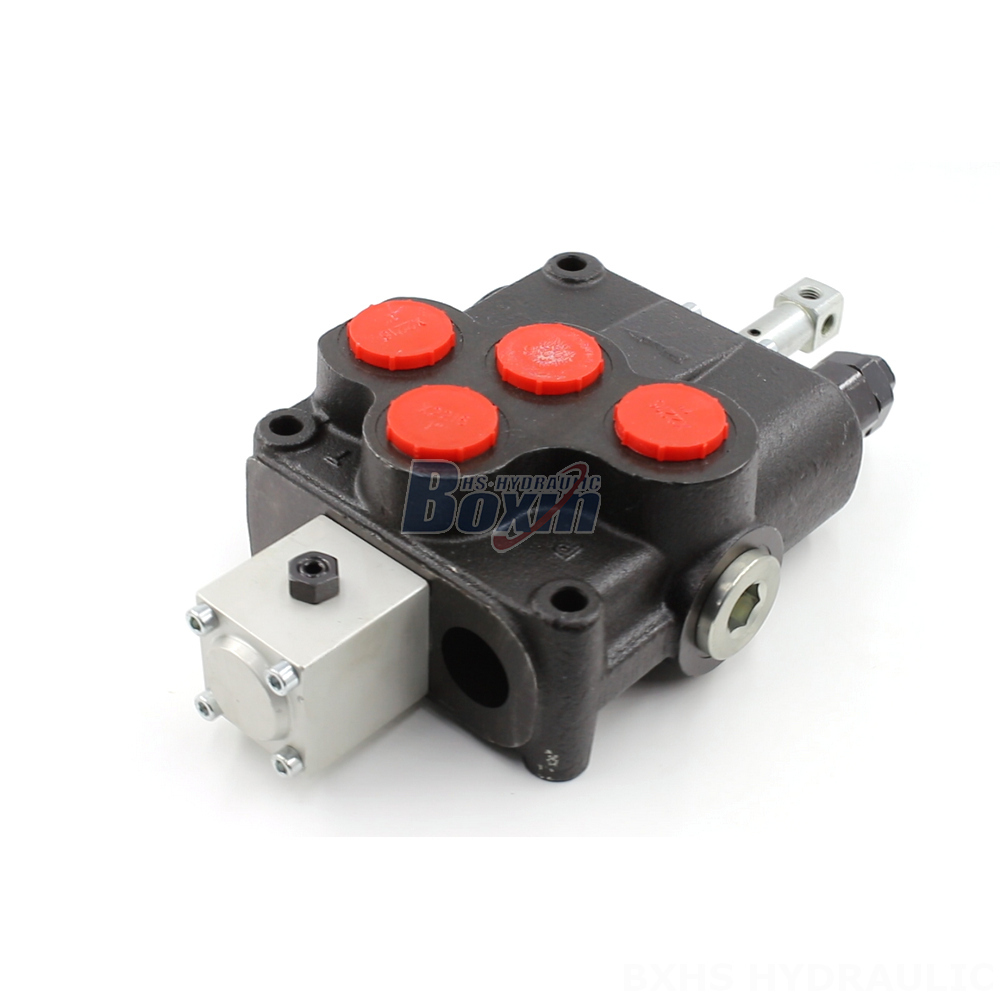

**1 Spool Hydraulic Valve | SD18 Model | Engineered for Efficiency & Precision**
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F), -40°C to +60°C (-40°F to +140°F)
**Spool:** 1 Spool
**Series:** SD18 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, BACKHOE, SEEDING MACHINE, HARVESTER, BALER, SKIP LOADER, WOOD SPLITTER
This hydraulic valve is ideal for applications requiring precise flow and pressure control, such as material handling equipment, construction and earth-moving machinery, agricultural vehicles, and industrial vehicles. It features a robust and compact design, making it suitable for harsh operating conditions.
