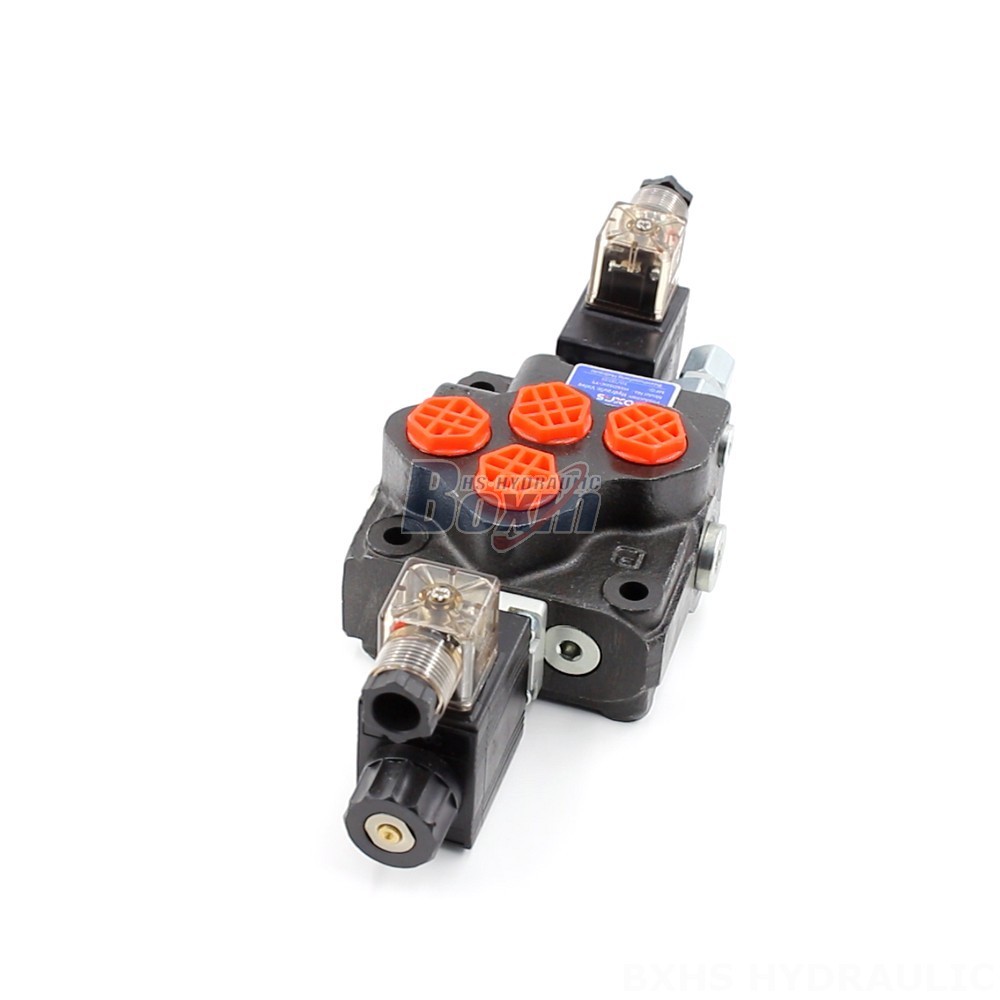

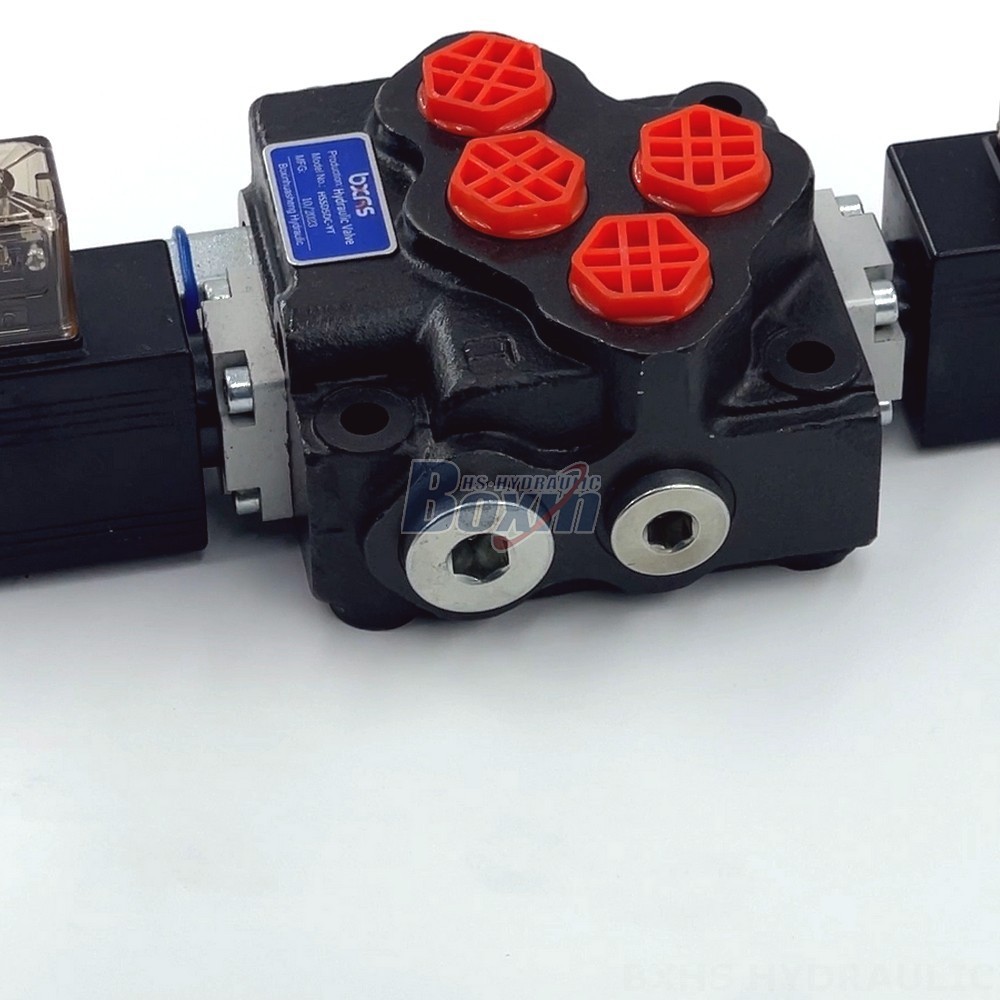

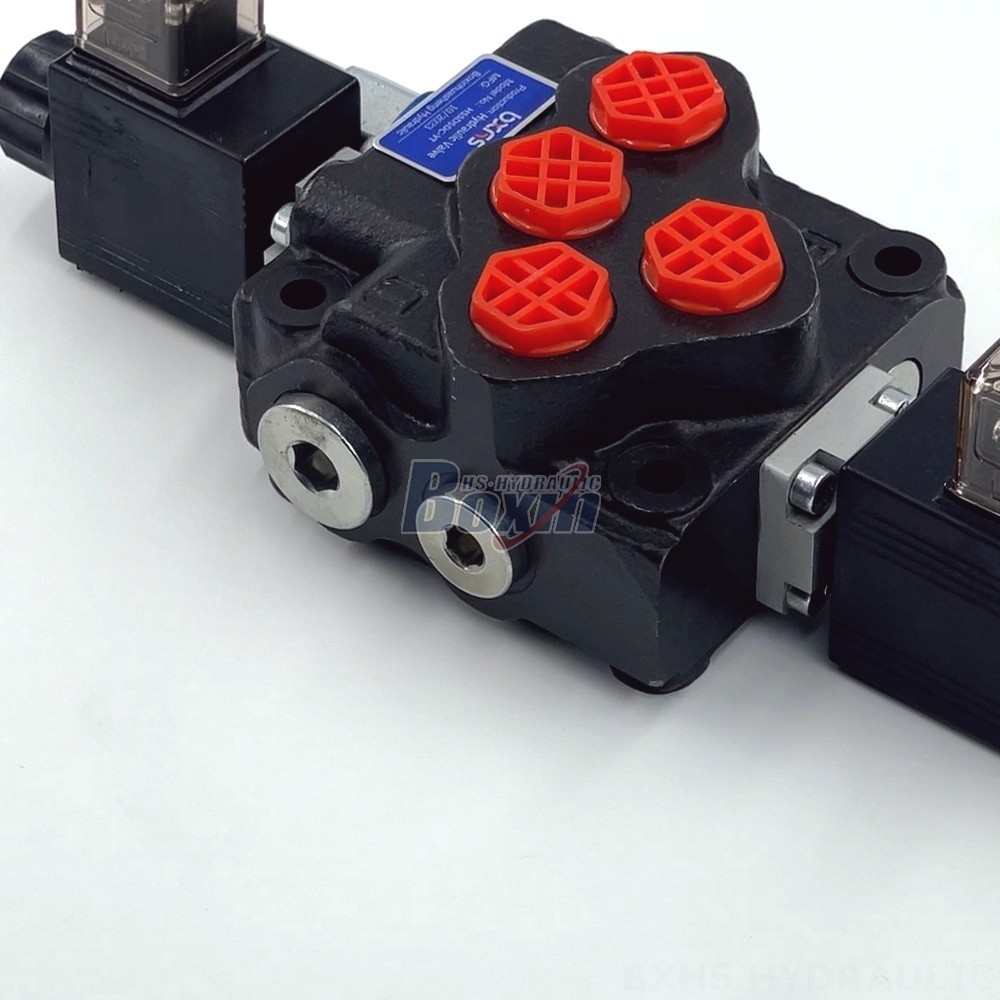

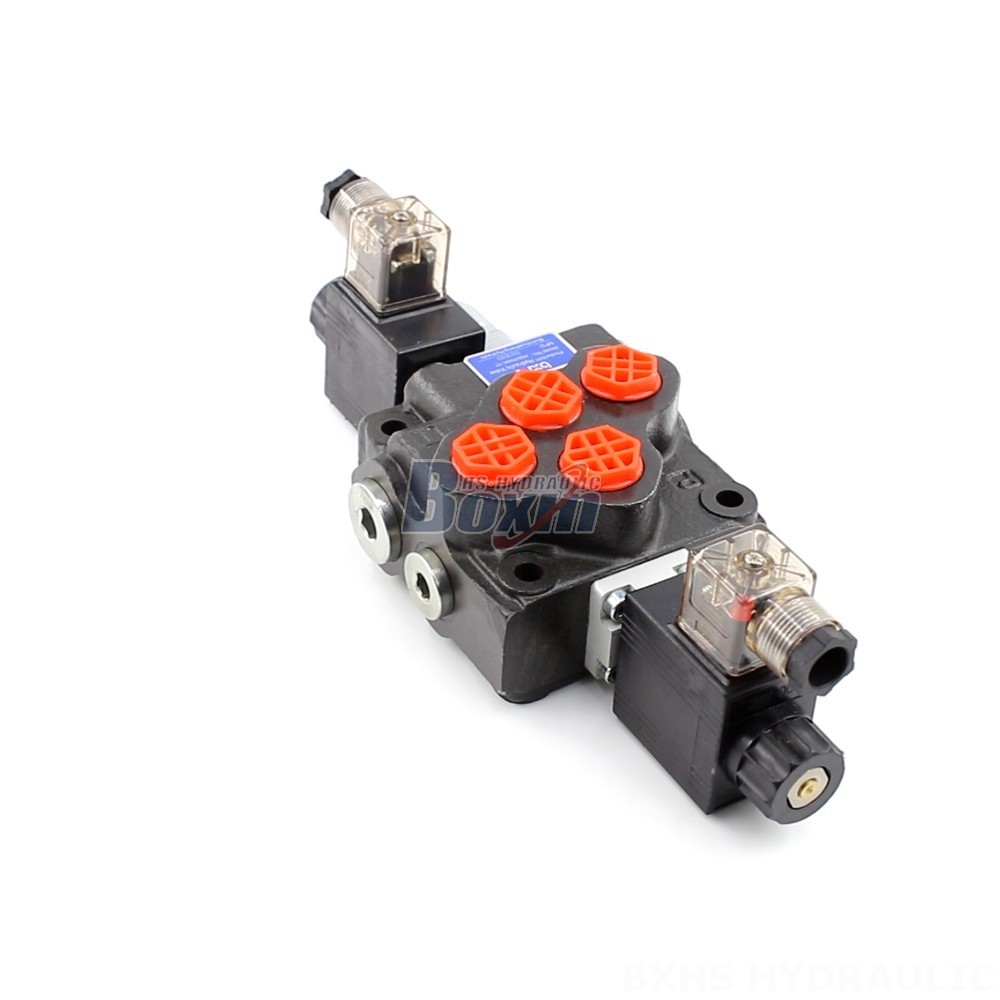

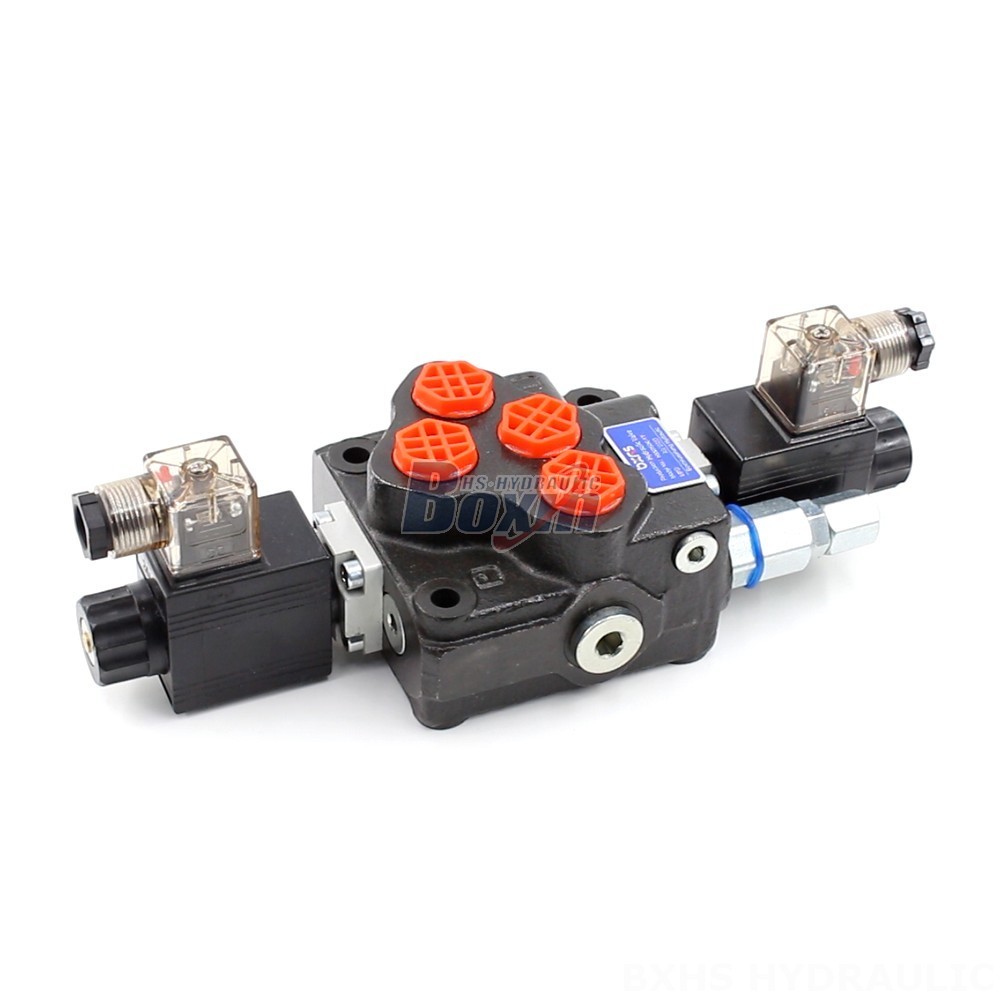

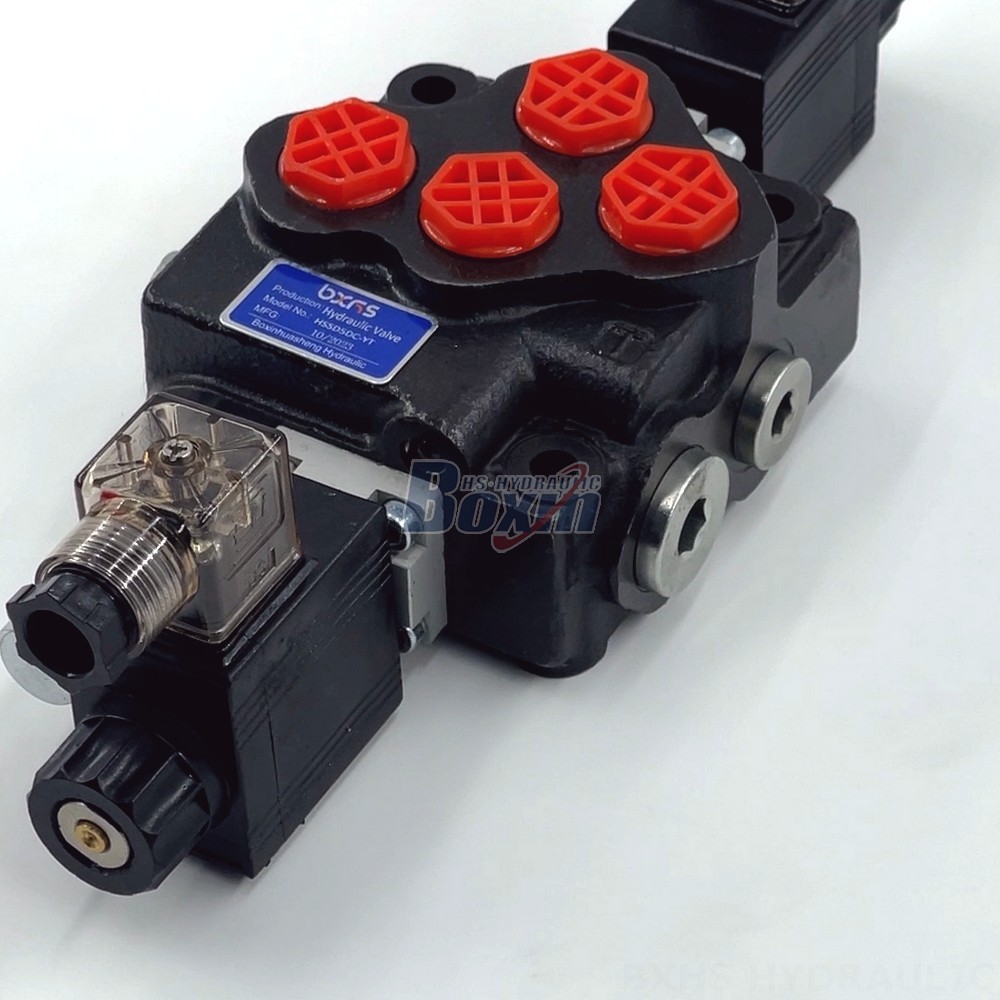

The SD5 Series Solenoid Valve Wood Splitter 1-Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a variety of applications, including construction, material handling, and agriculture. It features a compact design, high flow rate, and durable construction, making it an ideal choice for demanding applications.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This SD5 Series Solenoid Valve Wood Splitter is a 1-Spool Monoblock Directional Valve with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi). It is suitable for use with hydraulic fluids with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can operate in ambient temperatures ranging from -40°C to +60°C (-40°F to +140°F). This valve is ideal for use in a variety of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. It is available for wholesale and OEM orders, allowing you to customize it to meet your specific needs. With its high performance and reliability, this valve is sure to meet your demanding hydraulic system requirements.
