Produksi & Pengiriman
Waktu Produksi 15-30 Hari

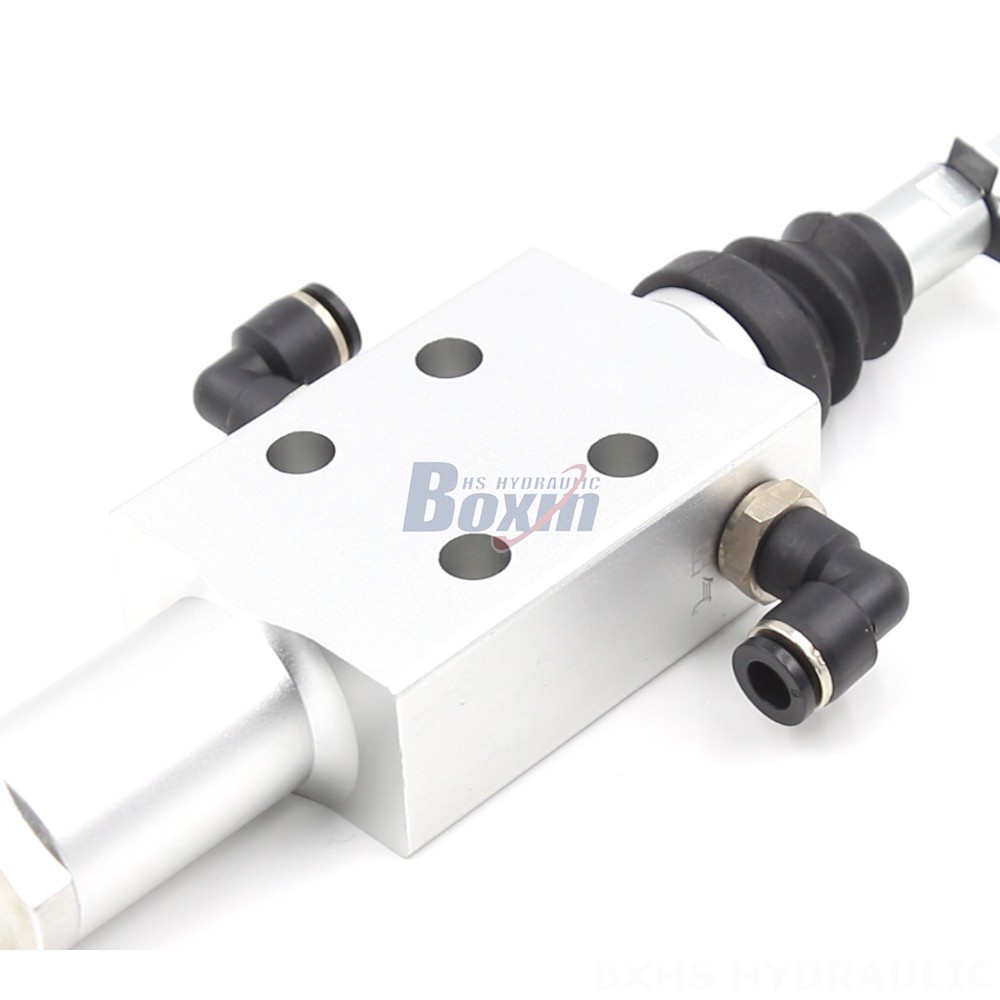

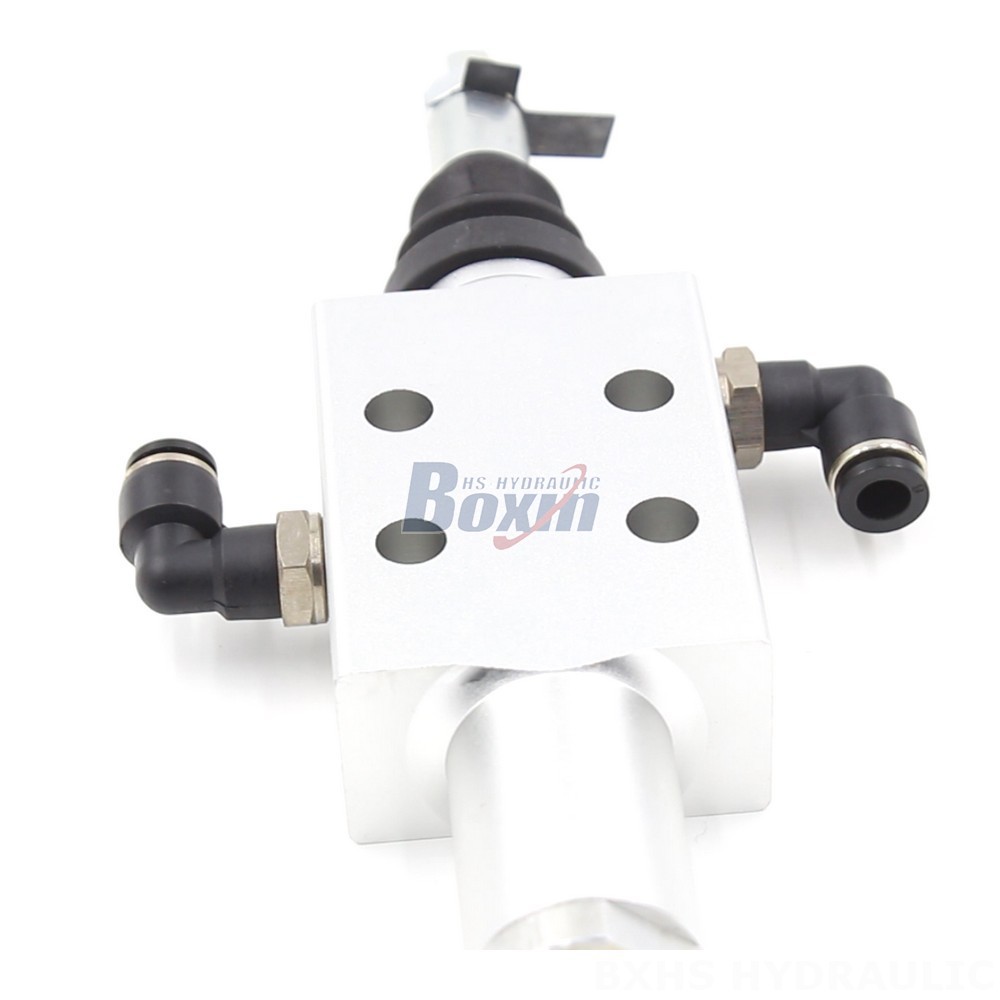

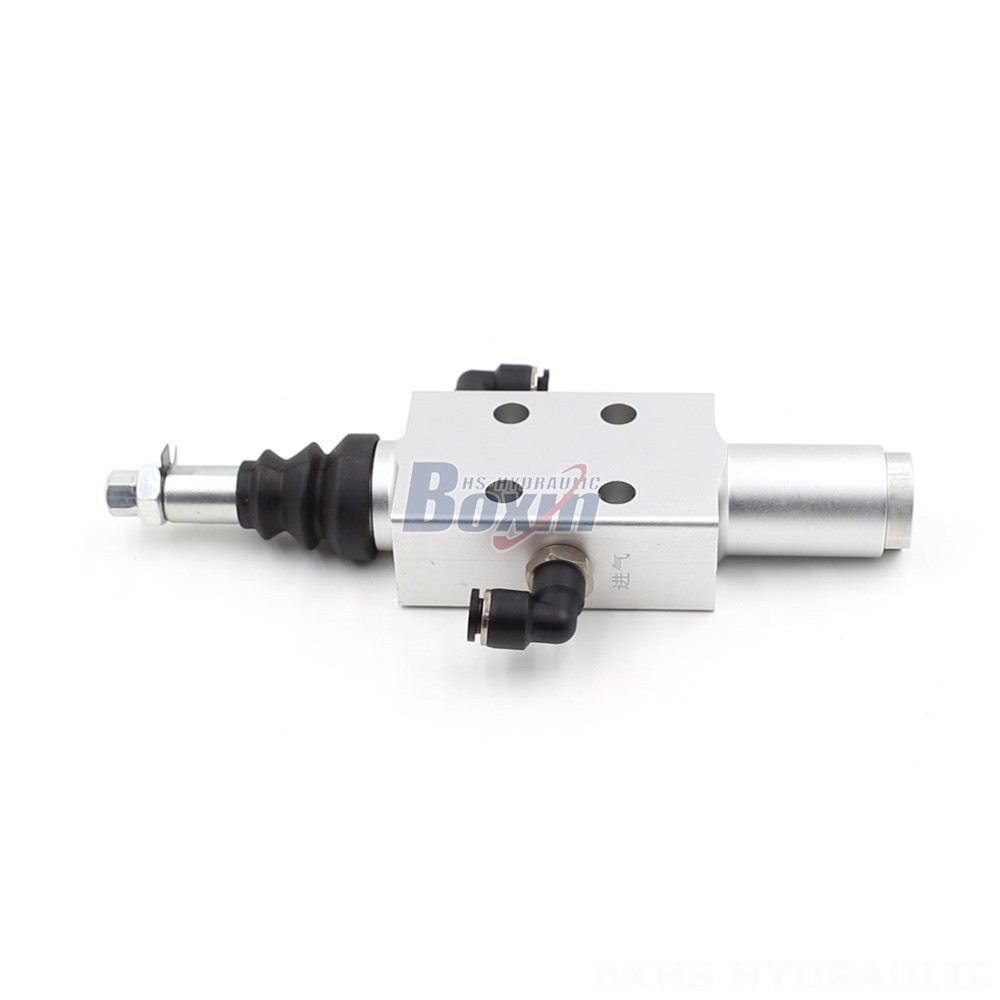

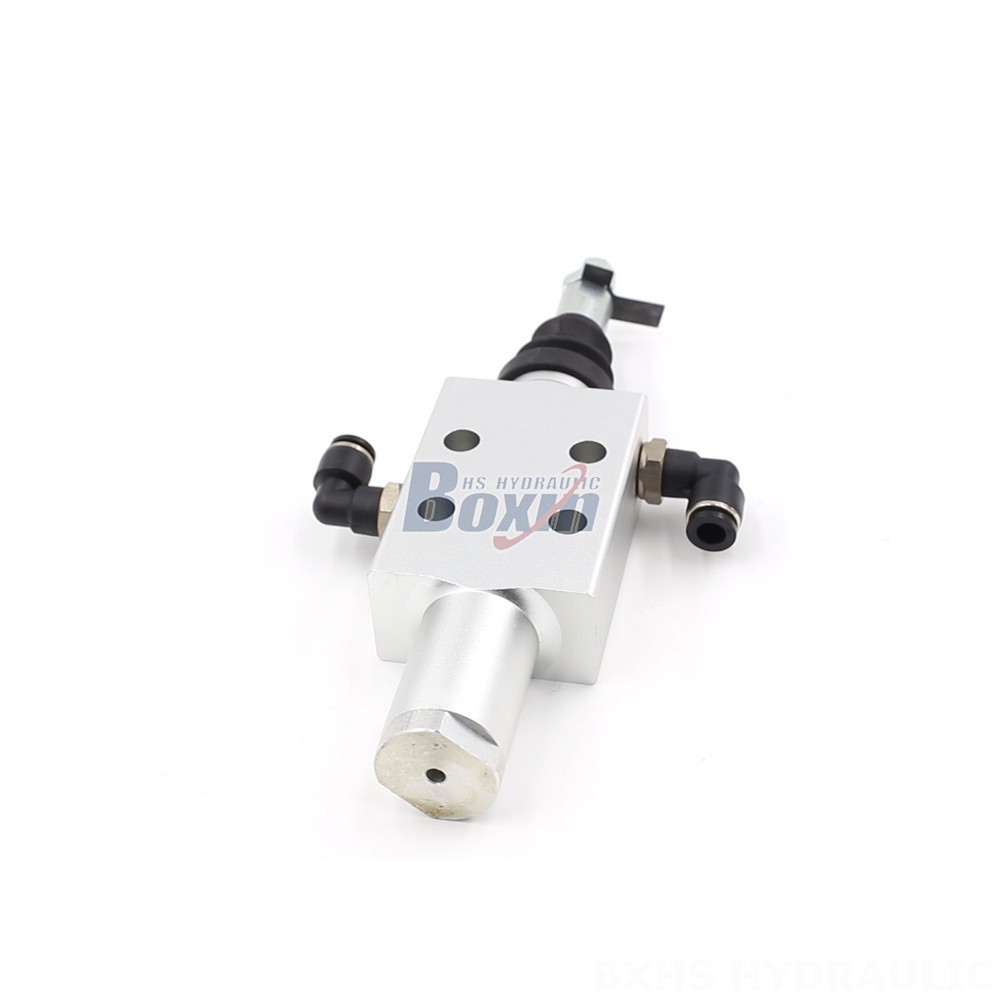

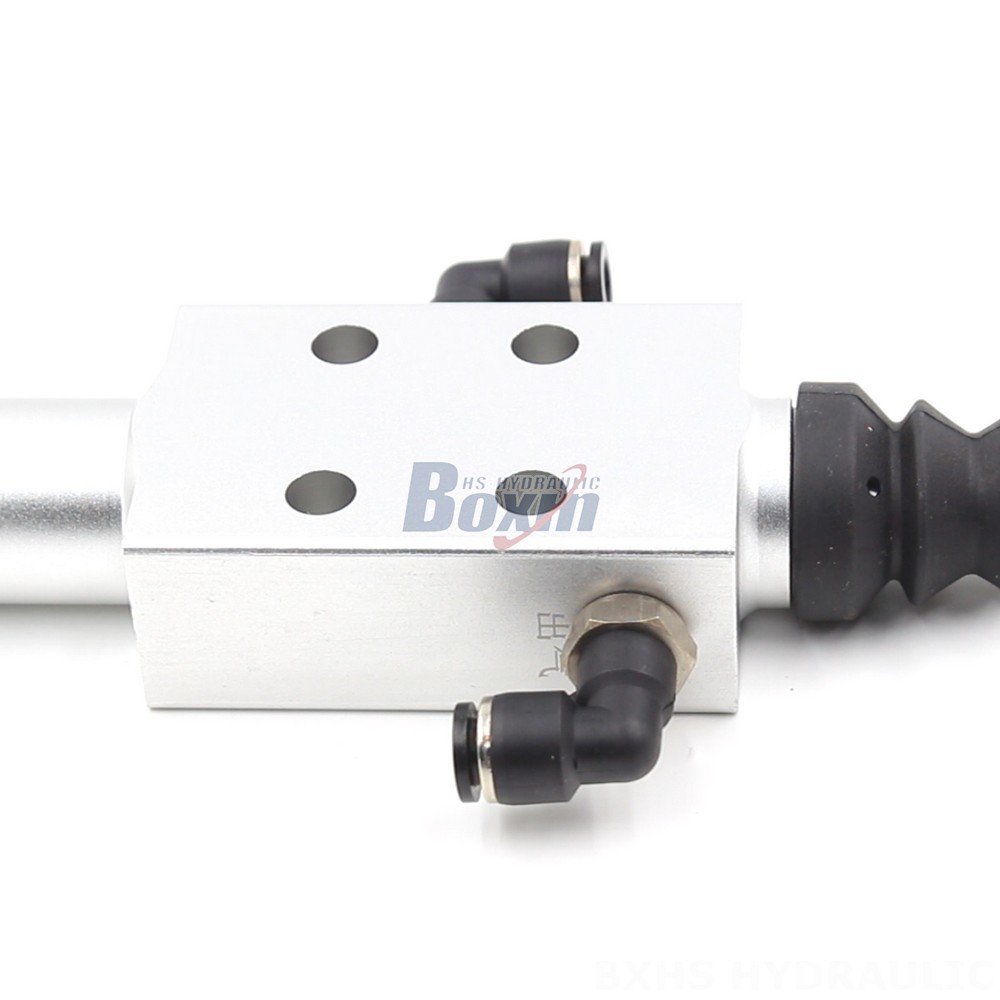

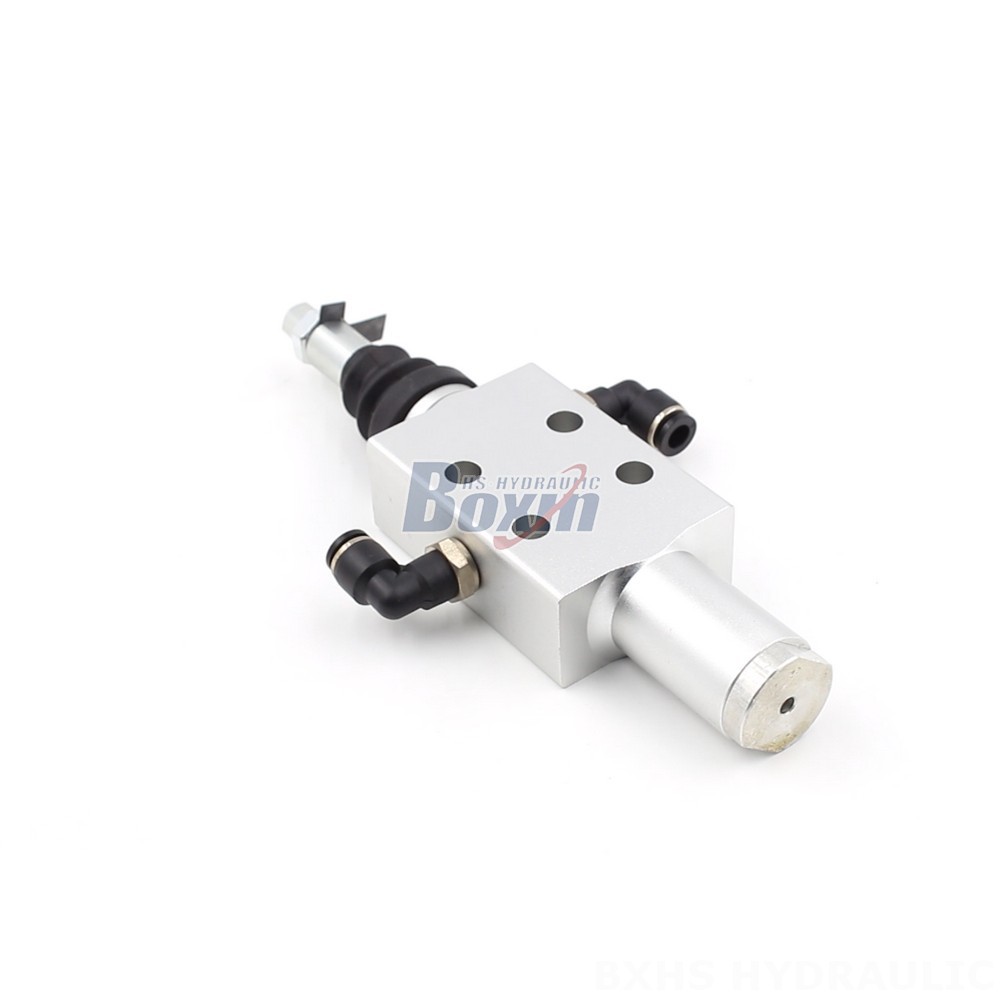

The XQF Series Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve is a reliable and efficient solution for various applications, including construction, material handling, and agriculture. It features a monoblock design, 1 spool, and a maximum pressure of 200 bar (2900 psi).
| Seri XQF Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Pneumatik |
| Spul | 1 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 50 L/menit (13,2 US gpm) |
| Tekanan Maksimum | 200 bar (2900 psi) |
| Port Masuk | G1/4 |
| Port Keluar | G1/4 |
| Ukuran Port | G1/4 |
This high-performance XQF Series Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve is designed for demanding applications in construction, material handling, and agriculture. Featuring a robust monoblock structure, it offers exceptional reliability and efficiency. Its pneumatic control provides precise and responsive operation. With a single spool configuration and a maximum pressure rating of 200 bar (2900 psi), this valve is capable of handling various hydraulic functions. Its wide operating viscosity range (12-400 mm²/s) ensures optimal performance across diverse environments. The valve is also built to withstand extreme temperatures, operating flawlessly between -40°C to +60°C (-40°F to +140°F). The XQF Series is designed for compatibility with various equipment, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and sprayers.
