Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1215 Pandangan Mencari Produk Ini

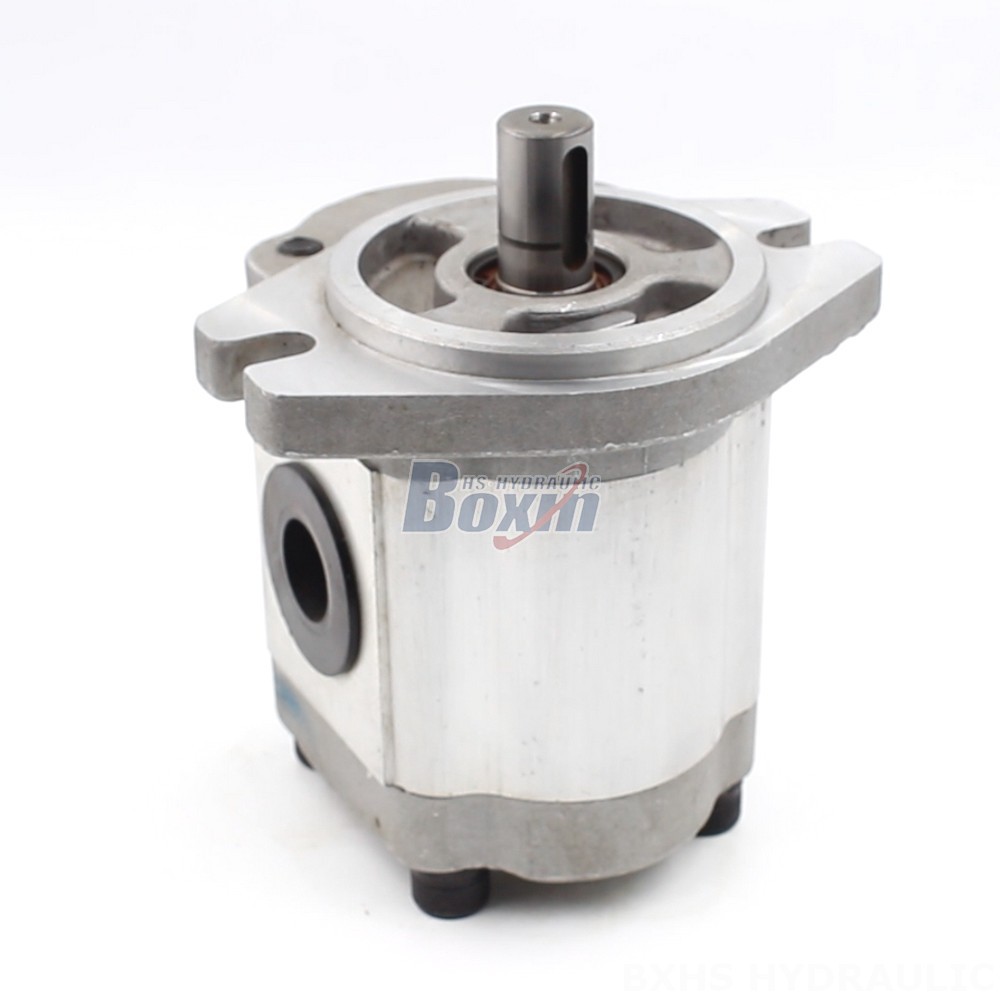

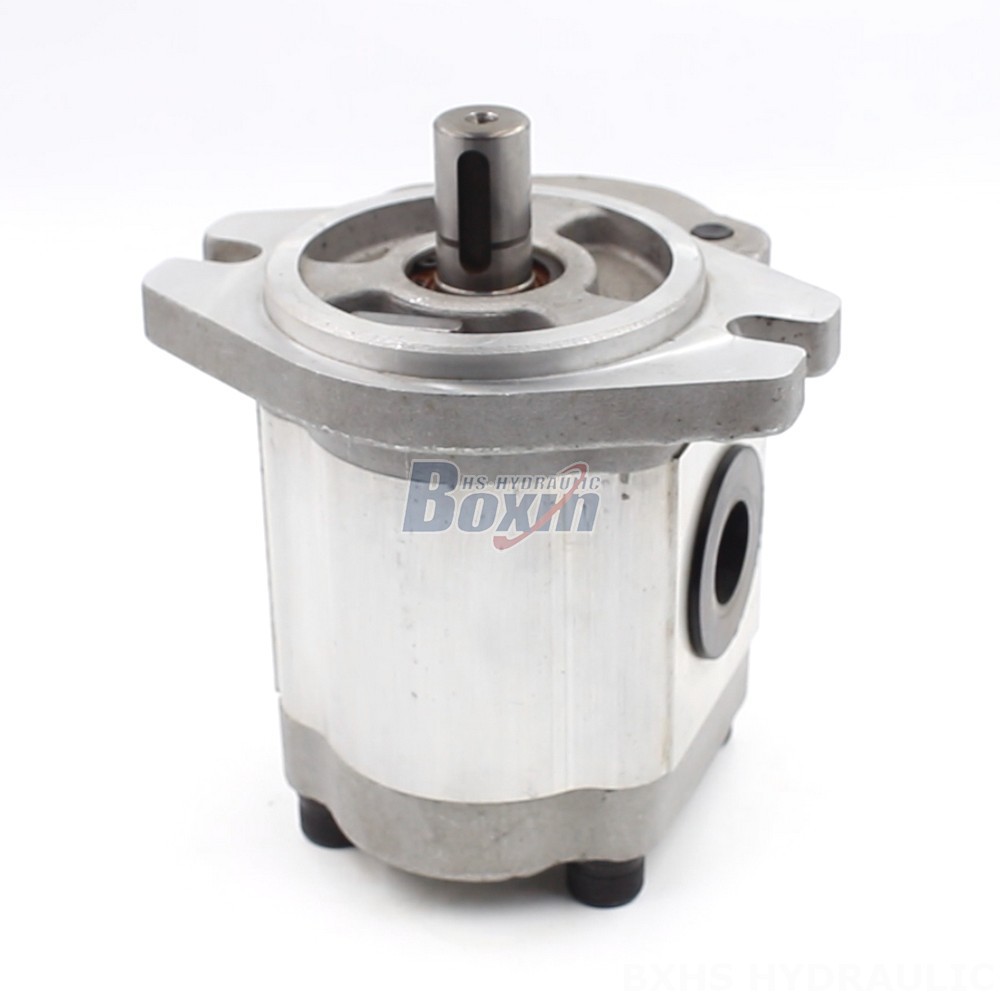

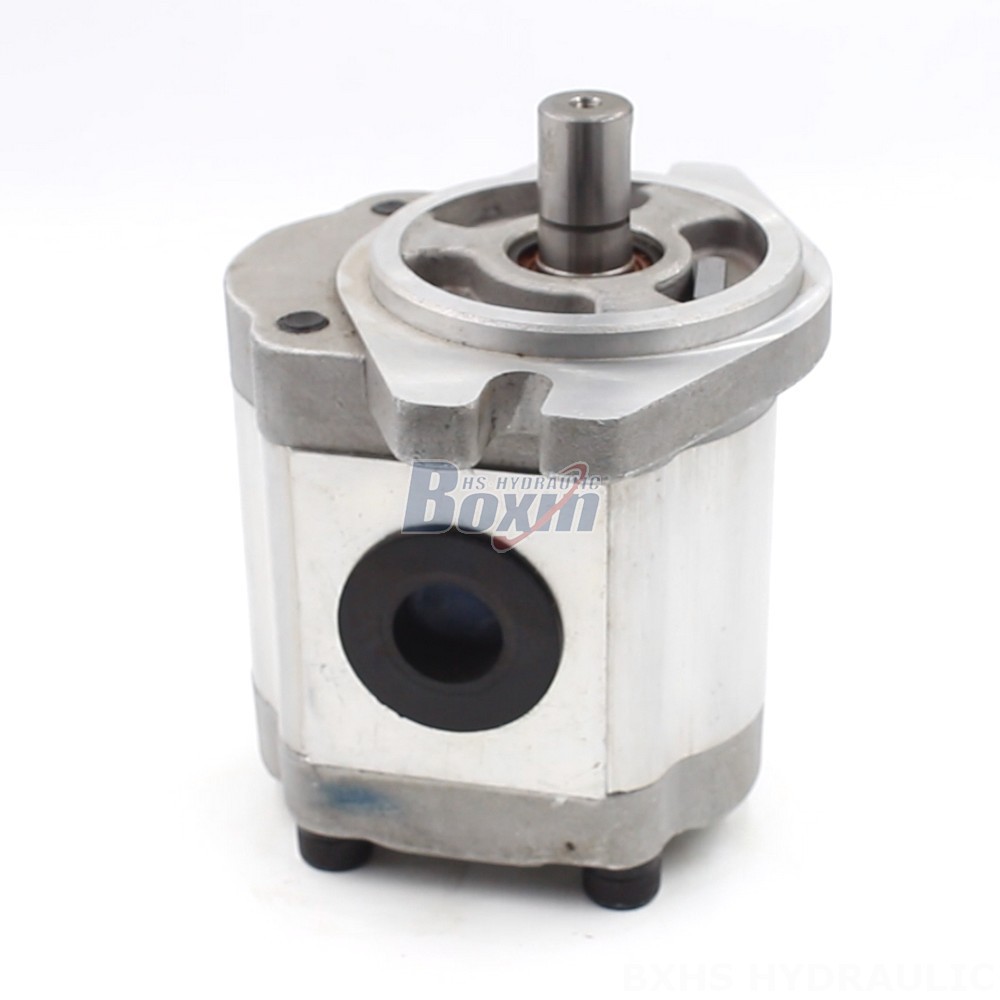

This 16 cc/rev Hydraulic Gear Pump is engineered for precision and power, offering reliable performance in a wide range of applications including material handling, construction, agriculture, and industrial vehicles.
| Seri CBHS-FL3 Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 10 cc/putaran, 4 cc/putaran, 20 cc/putaran, 16 cc/putaran, 14 cc/putaran, 6 cc/putaran |
| Tekanan Terukur | 20 MPa (2900 psi) |
| Tekanan Maksimum | 25 MPa (3625 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 3000 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam), R: Kanan ( searah jarum jam) |
| Bahan | Aluminium |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Flange Oval-A |
| Tipe Poros | H: Spline Persegi Panjang, X: Spline Involute, P: Kunci Biasa |

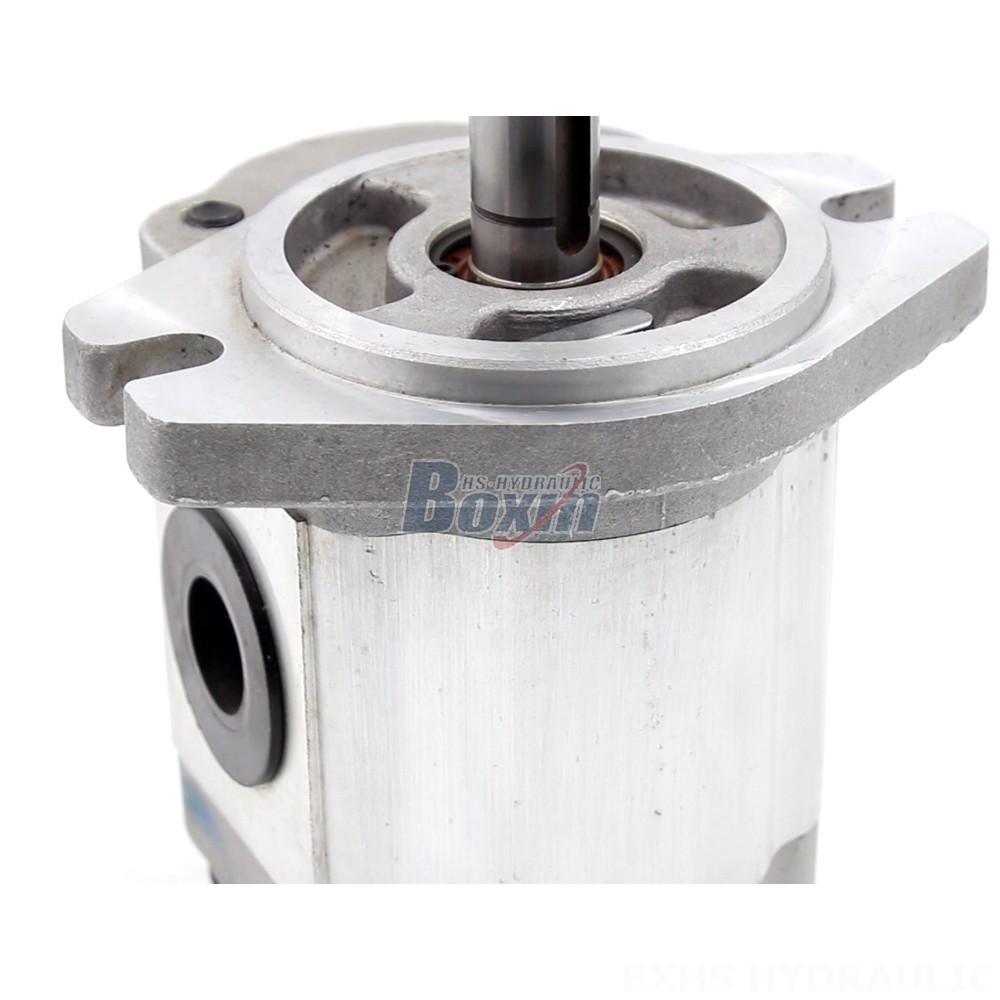

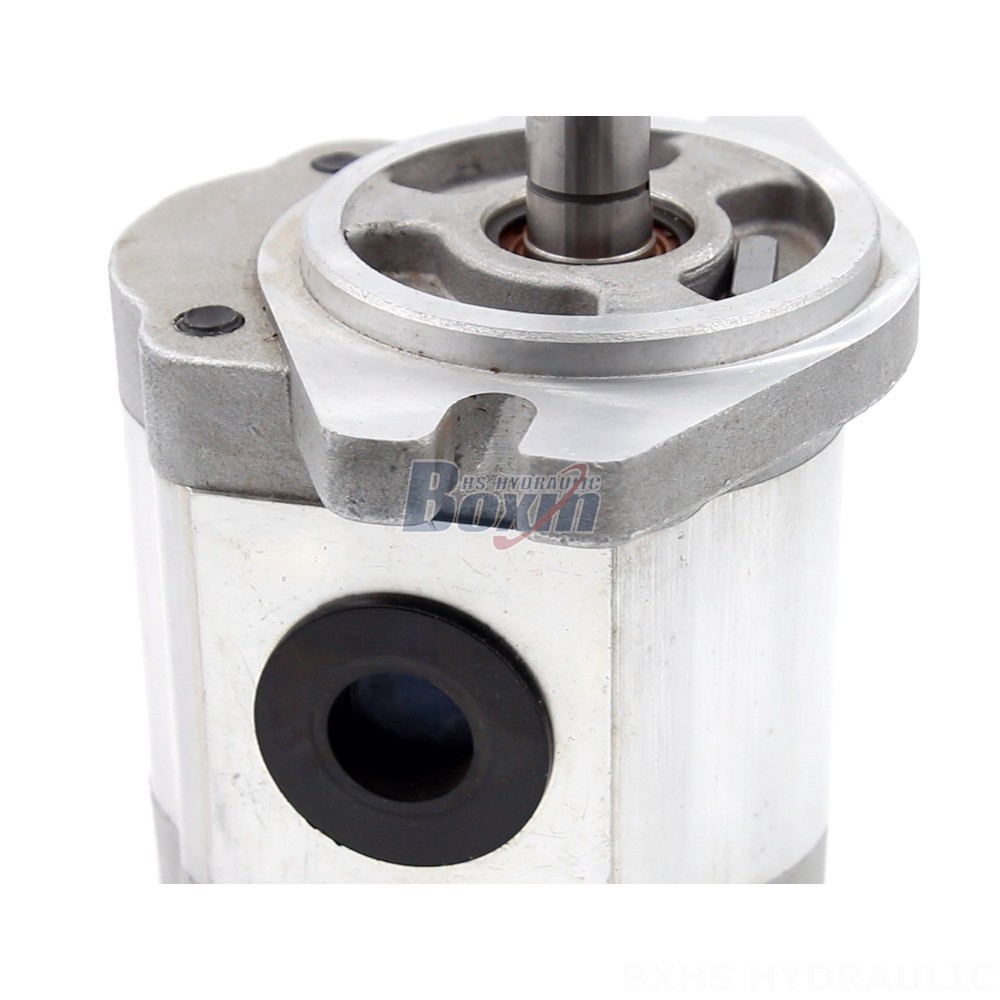

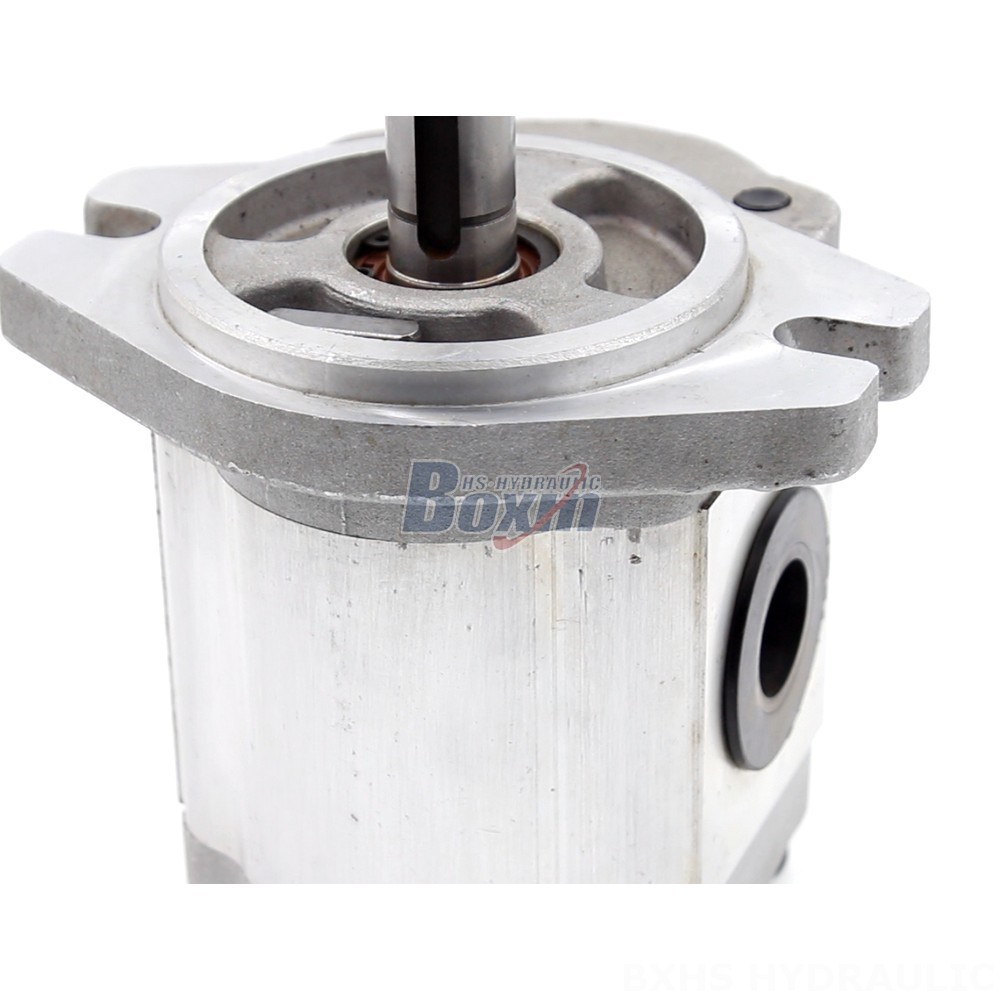

The CBHS-FL3 Series 16 cc/rev Hydraulic Gear Pump features a robust internal gear design, constructed from aluminum with an A-Oval flange and plain key shaft. It delivers a rated pressure of 20 MPa (2900 psi) at a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump is suitable for various applications, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors, front-end loaders, harvesters, balers, and sprayers.
