Produksi & Pengiriman
Waktu Produksi 15-30 Hari

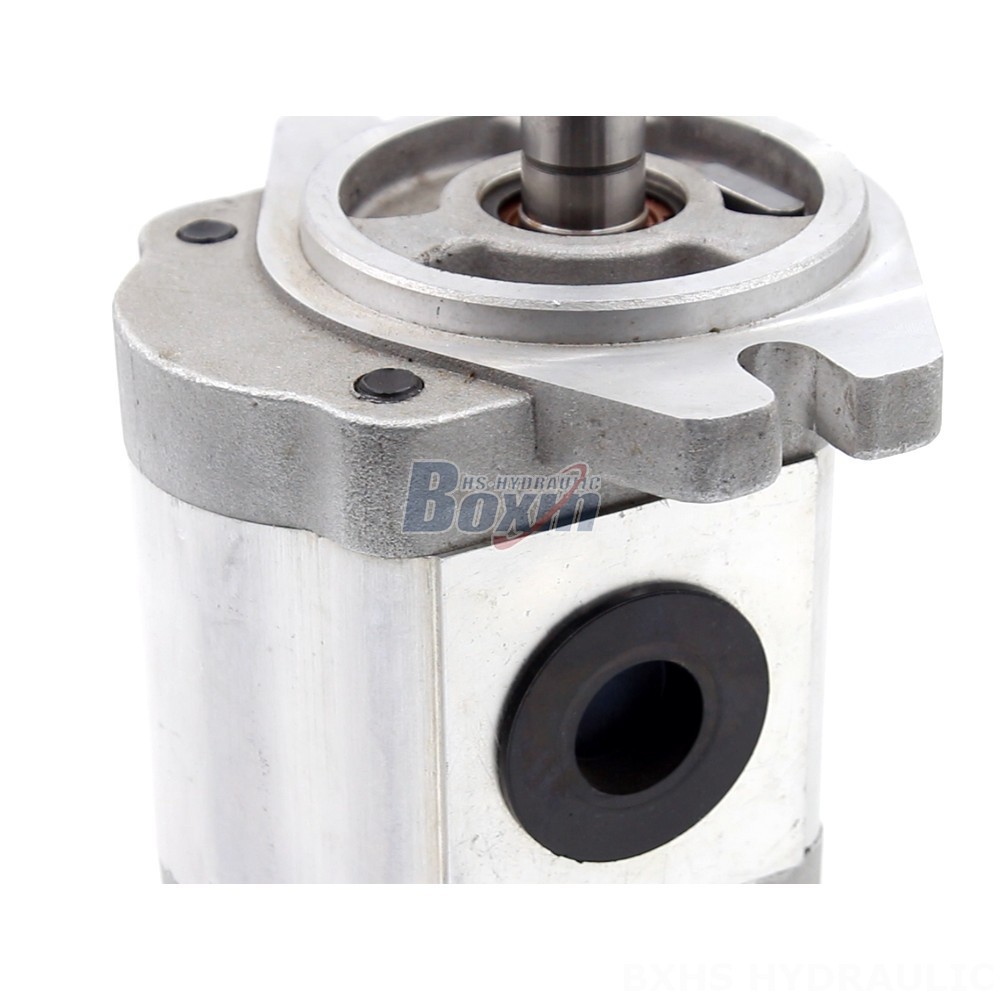

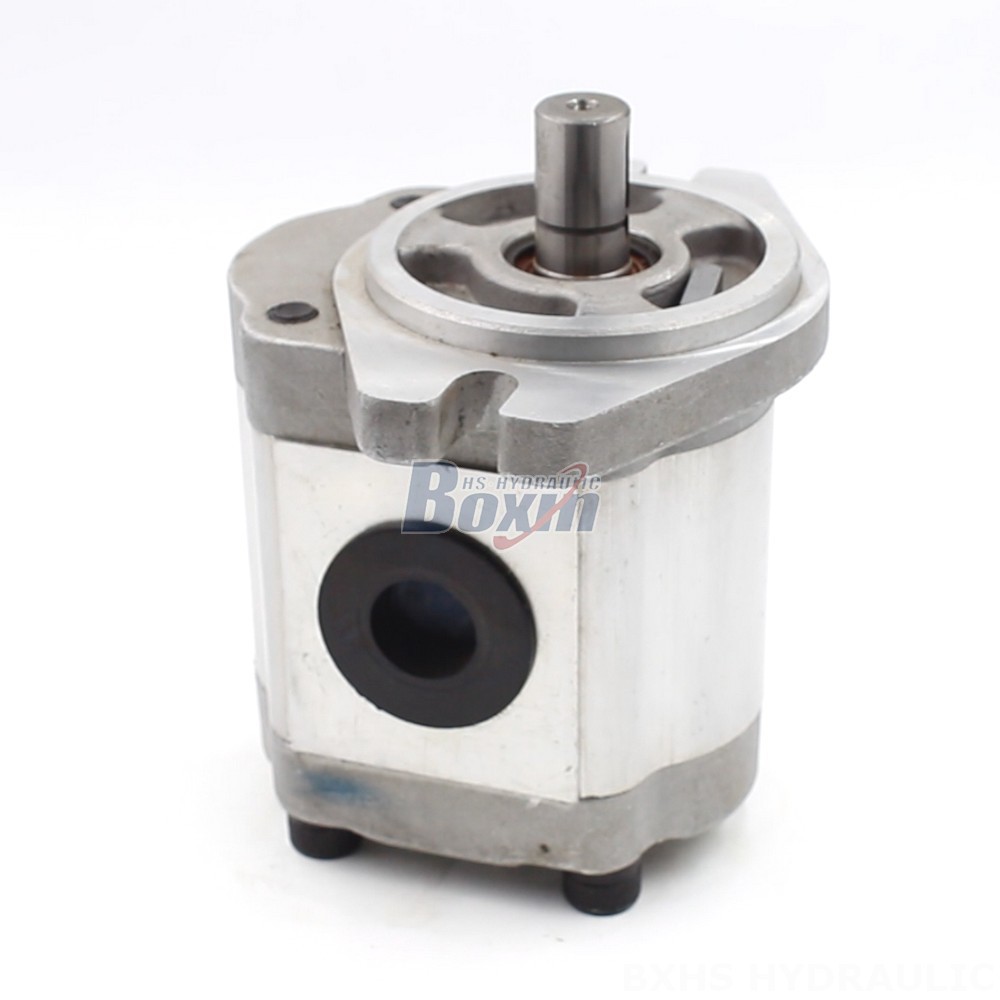

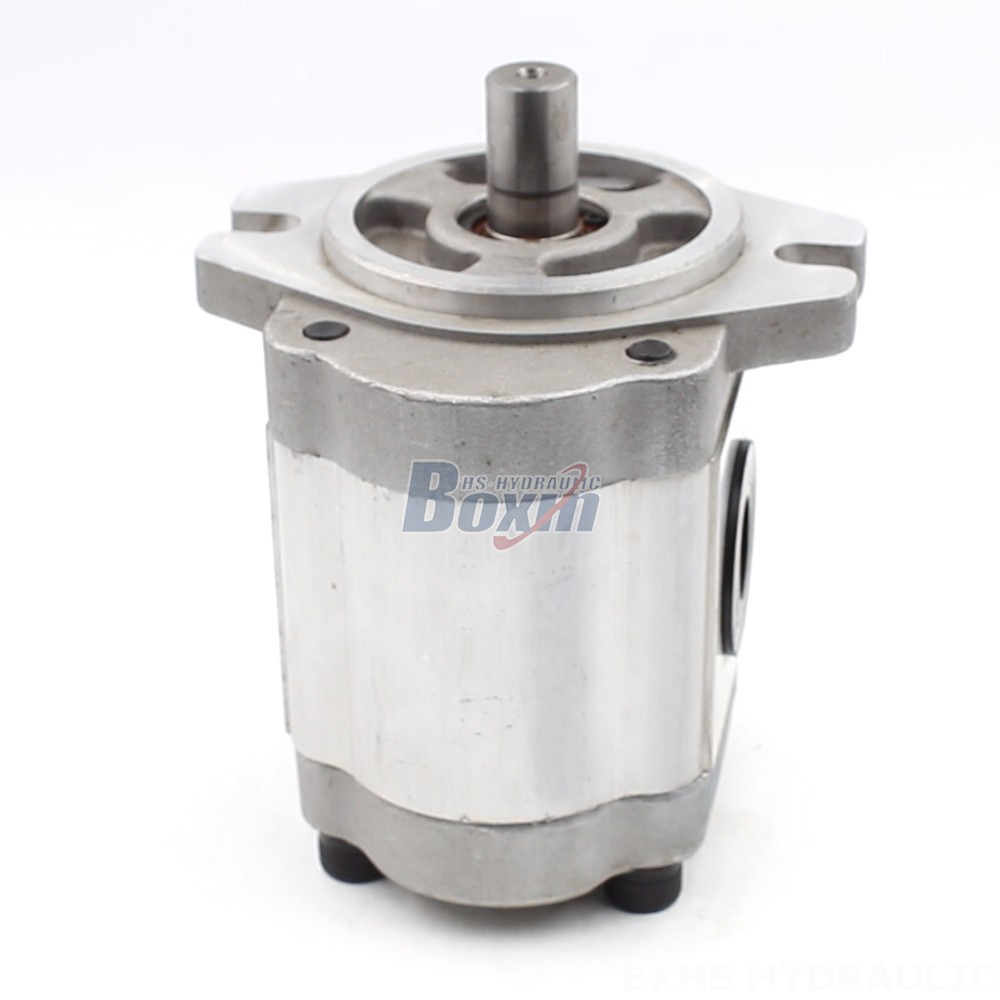

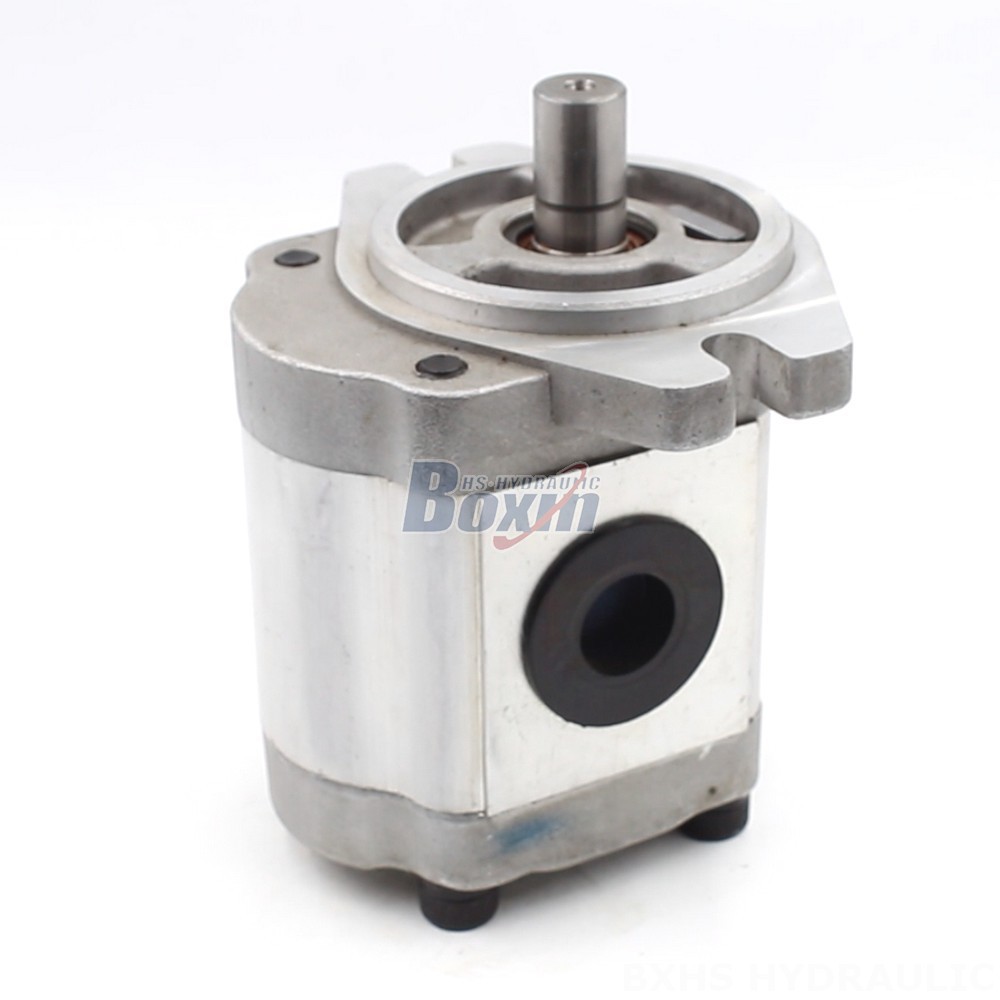

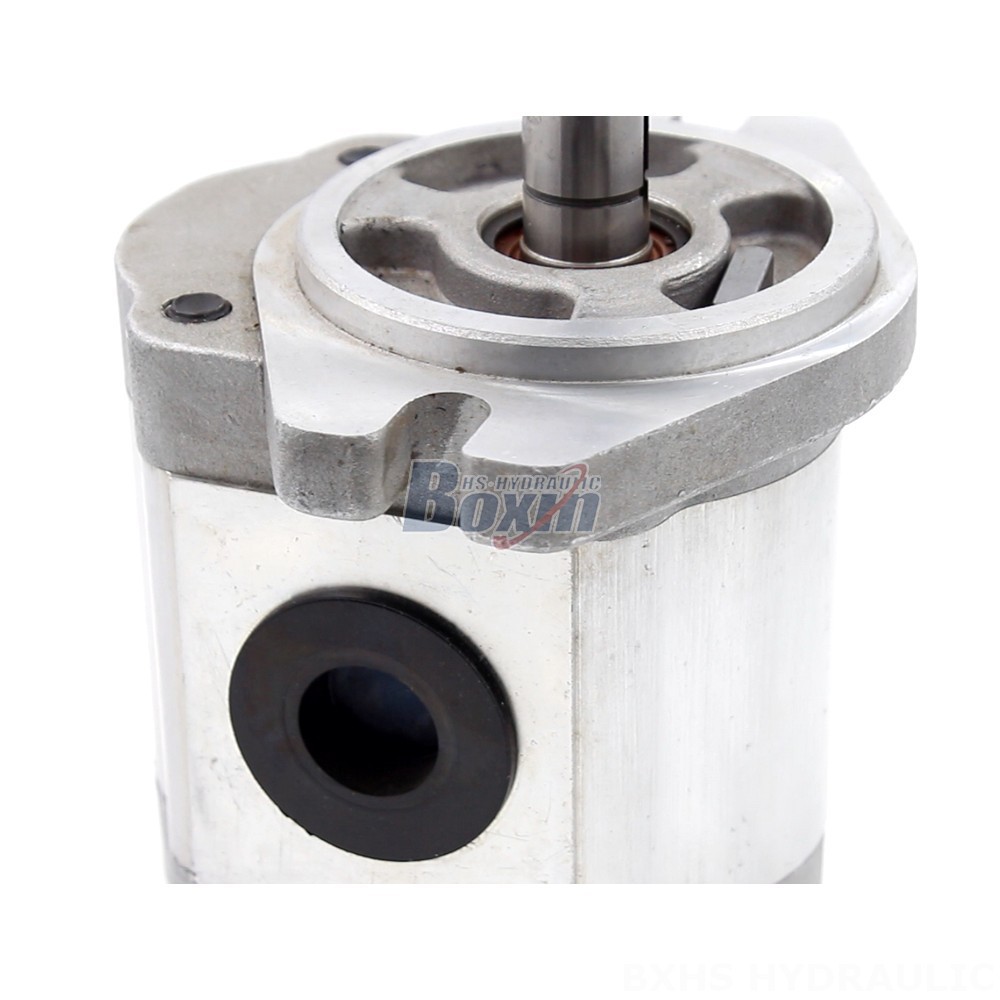

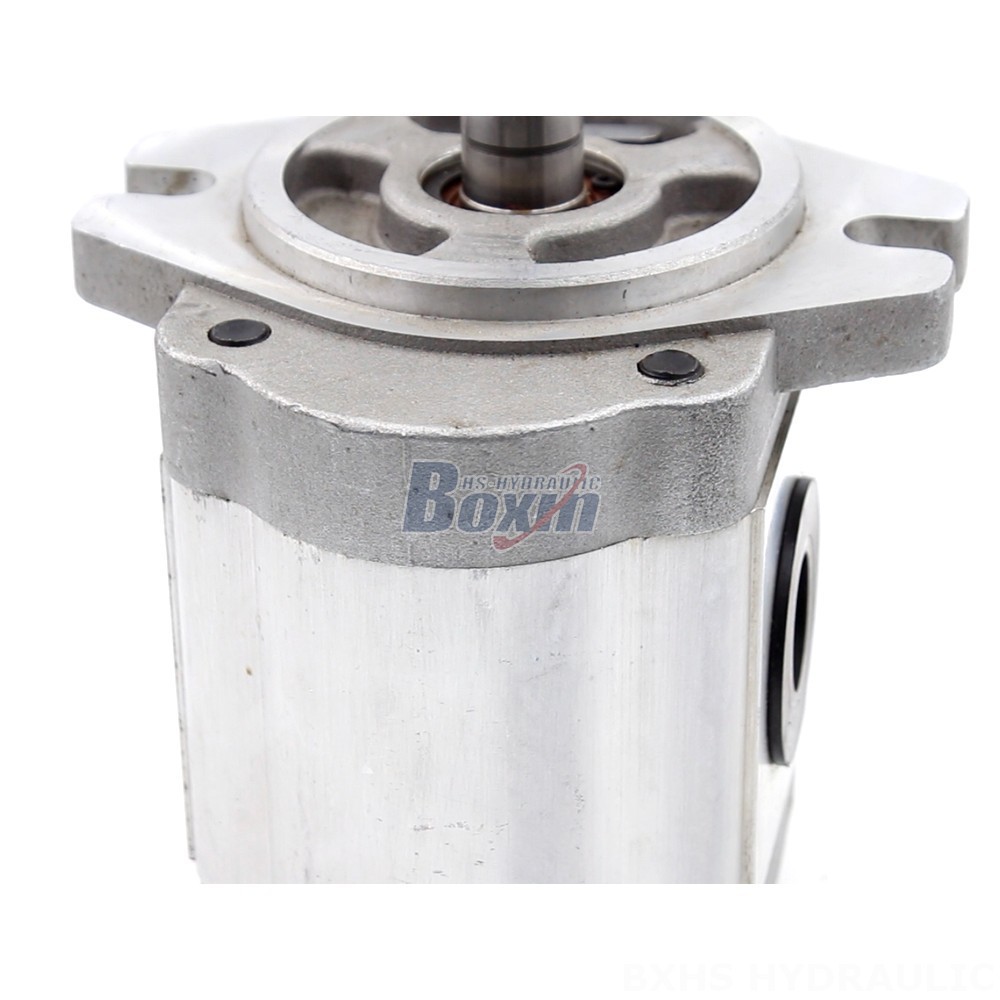

This 16 cc/rev hydraulic gear pump is designed for high-performance applications in construction, agriculture, and material handling. It features a durable aluminum construction, high pressure rating, and customizable options to meet your specific needs. The pump is suitable for various equipment types, including forklifts, telehandlers, skid steer loaders, and more.
| Seri CBHS-FL3 Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 10 cc/putaran, 4 cc/putaran, 20 cc/putaran, 16 cc/putaran, 14 cc/putaran, 6 cc/putaran |
| Tekanan Terukur | 20 MPa (2900 psi) |
| Tekanan Maksimum | 25 MPa (3625 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 3000 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam), R: Kanan ( searah jarum jam) |
| Bahan | Aluminium |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Flange Oval-A |
| Tipe Poros | H: Spline Persegi Panjang, X: Spline Involute, P: Kunci Biasa |
This 16 cc/rev hydraulic gear pump is a heavy-duty, high-performance solution for various applications. It boasts a 20 MPa (2900 psi) rated pressure and a 2000 r/min rated speed, with a maximum speed of 3000 r/min. This pump features a robust internal gear design, constructed from aluminum for long-lasting durability. Its A-Oval flange and plain key shaft provide flexible mounting options. The CBHS-FL3 Series pump is specifically designed for use in material handling, construction and earth moving, agriculture, and industrial vehicles. This makes it a versatile option for a wide range of equipment types, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini- and midi- excavators, tractors and front-end loaders, harvesters, balers, and sprayers.
