Produksi & Pengiriman
Waktu Produksi 15-30 Hari

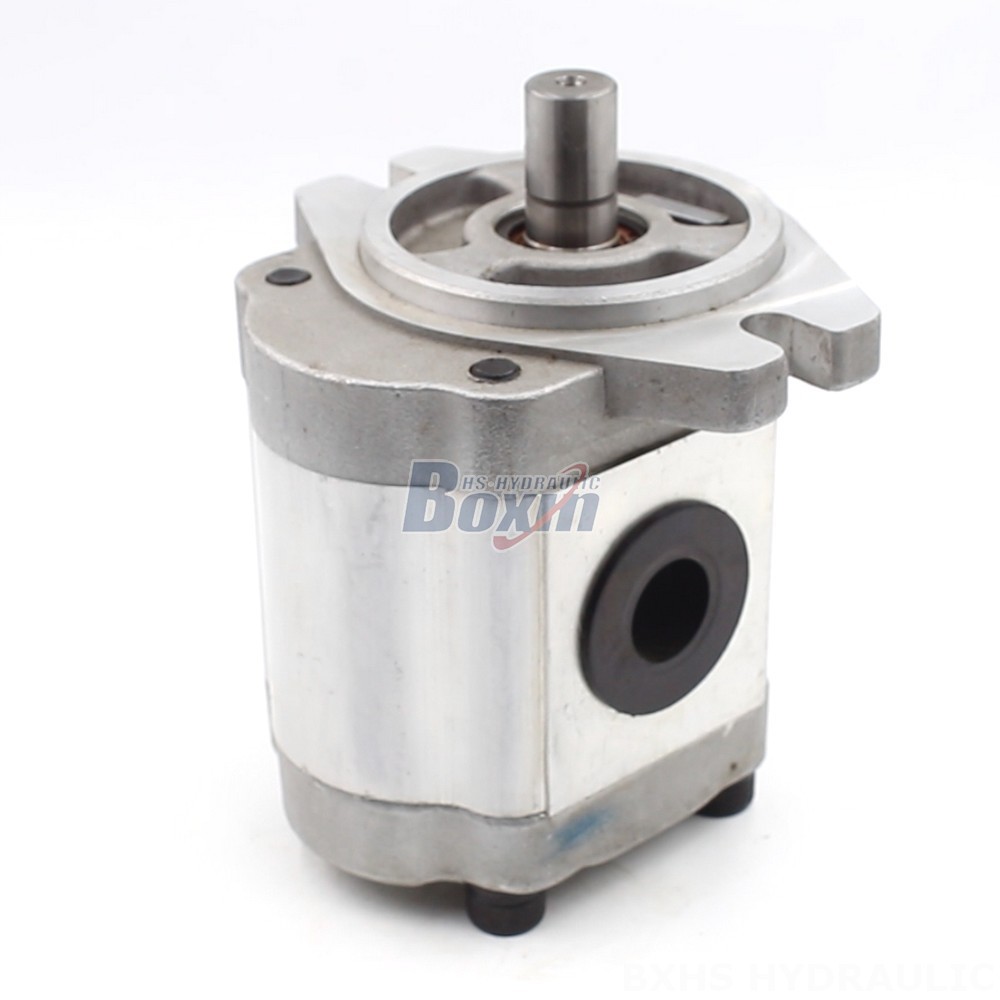

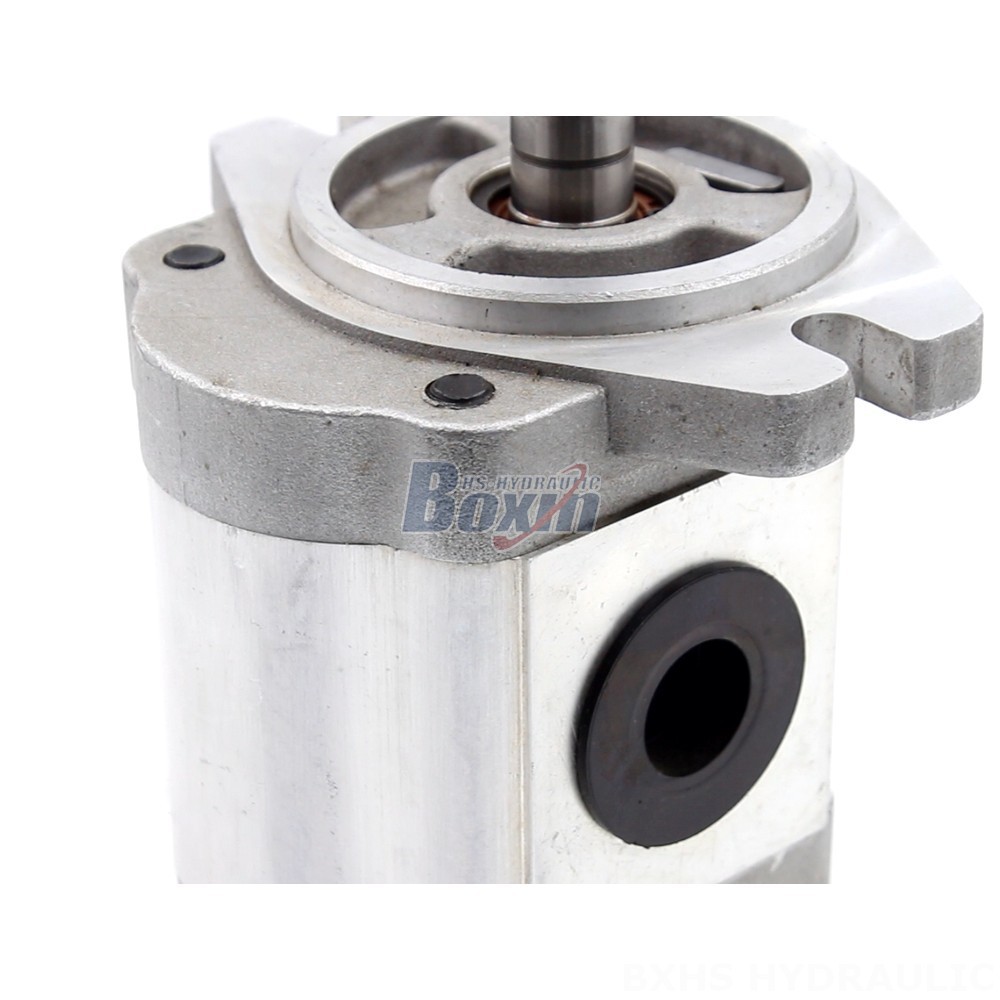

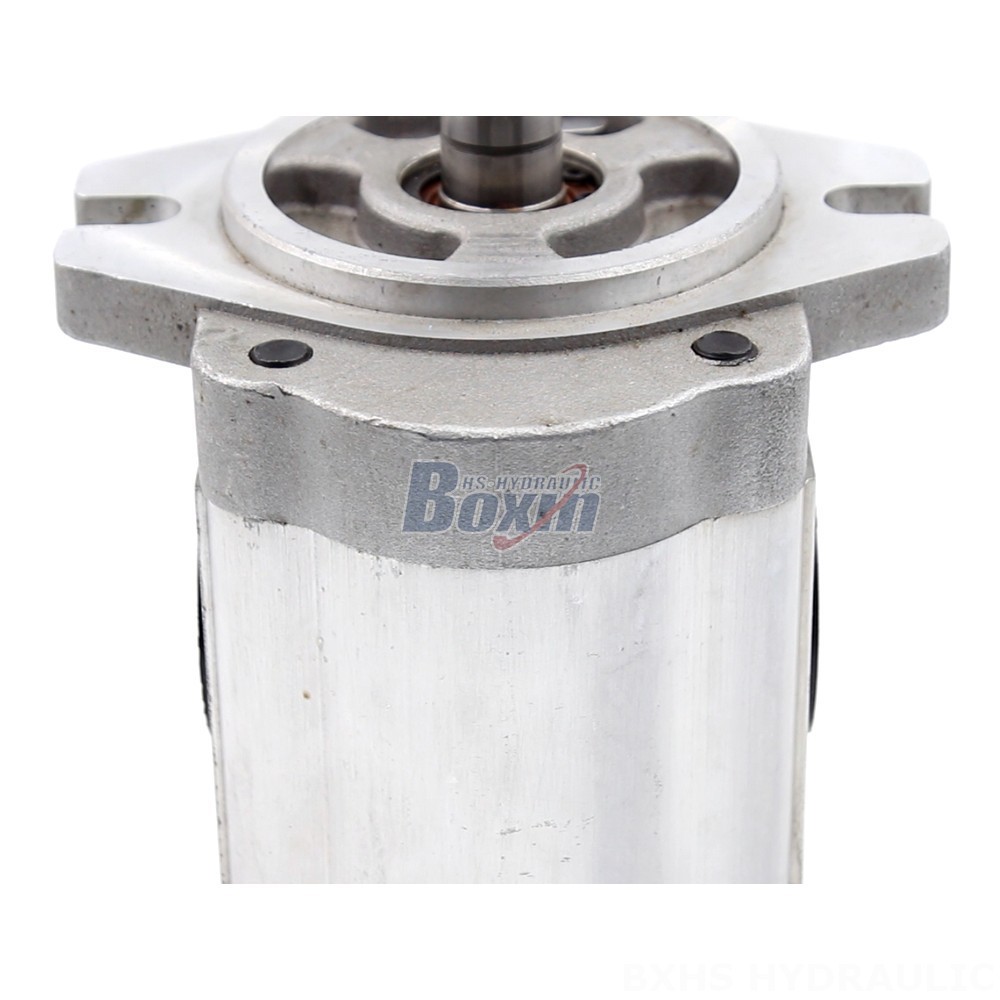

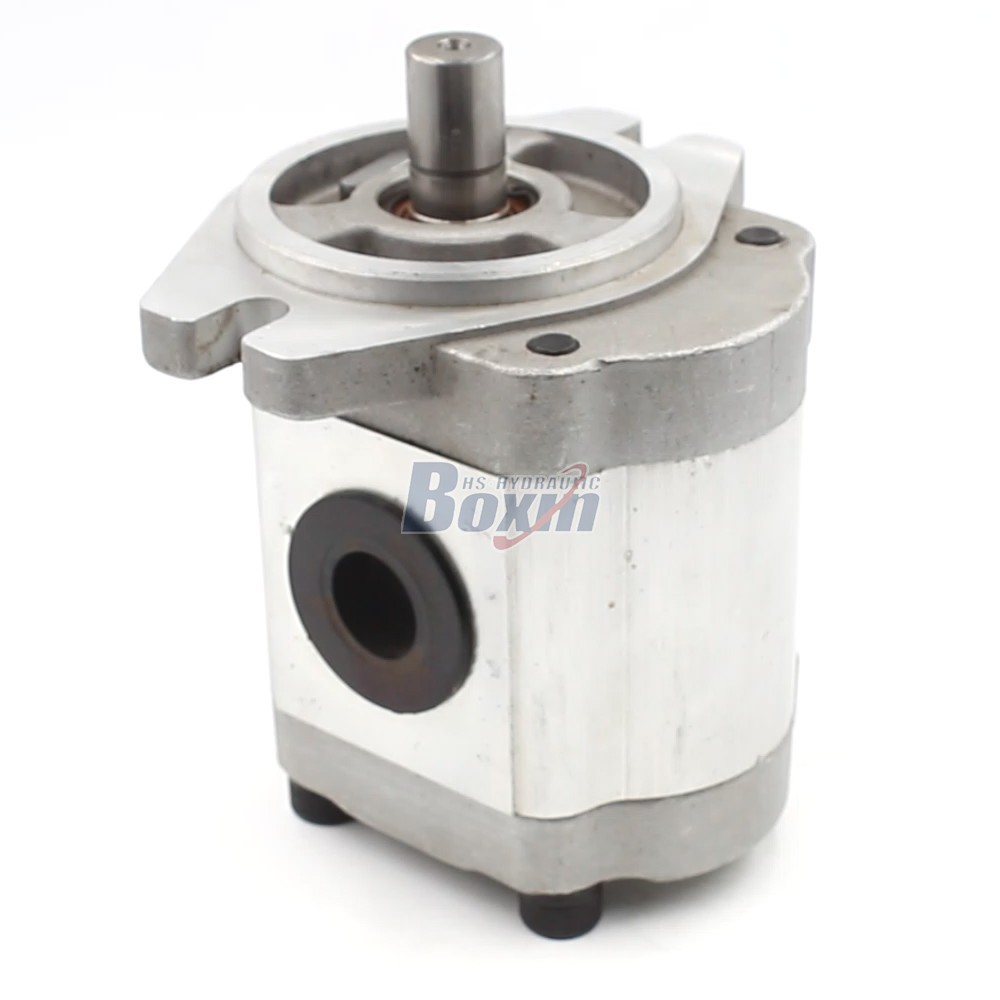

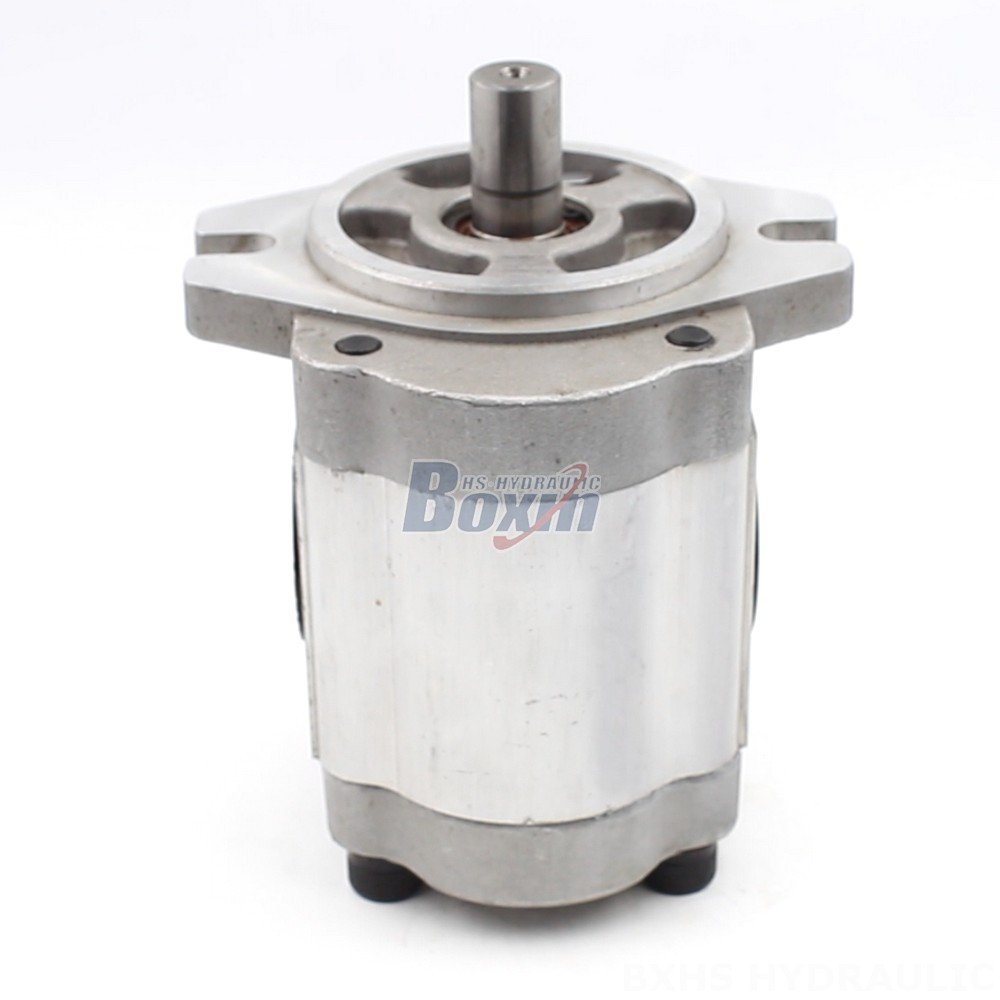

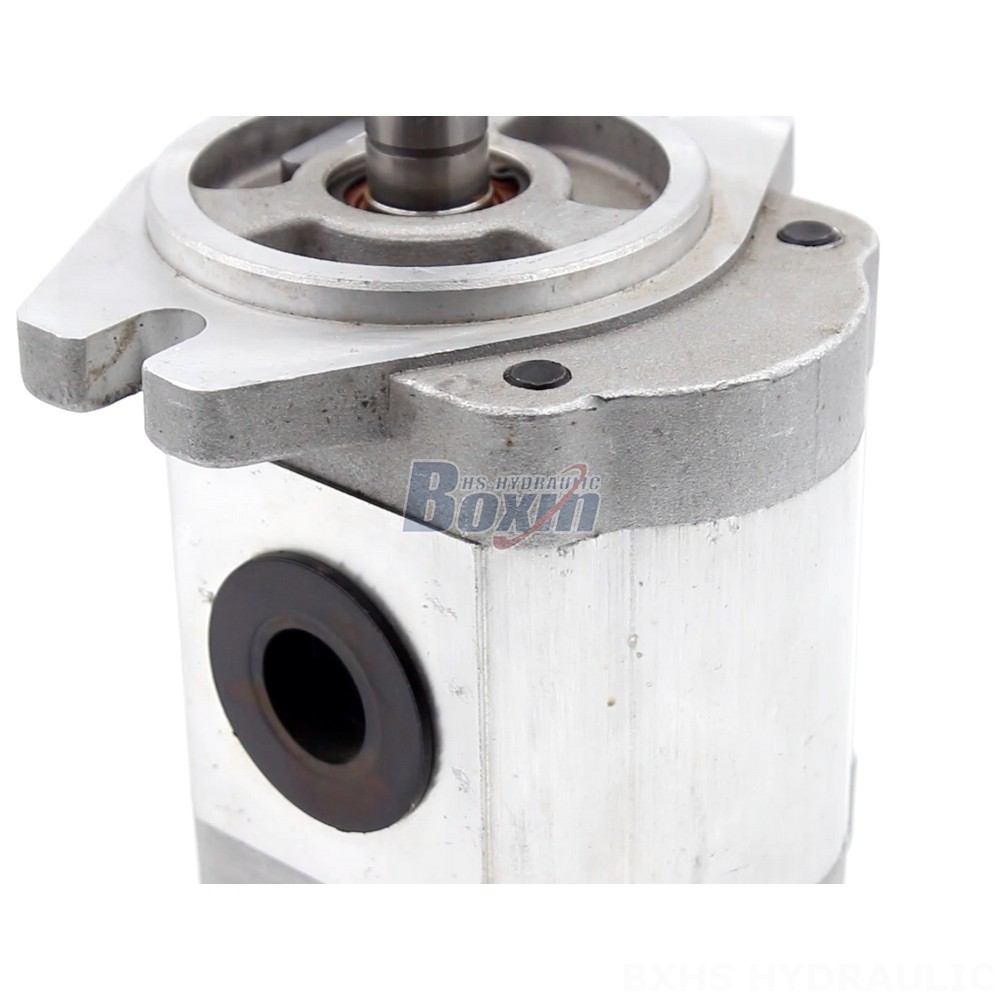

This is a 16 cc/rev hydraulic gear pump with a displacement of 10 cc/rev, rated pressure of 20 MPa (2900 psi), and rated speed of 2000 r/min. It is available in left and right rotation configurations, features an internal gear pump design, and is constructed from aluminium. This pump is suitable for a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles.
| Seri CBHS-FL3 Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 10 cc/putaran, 4 cc/putaran, 20 cc/putaran, 16 cc/putaran, 14 cc/putaran, 6 cc/putaran |
| Tekanan Terukur | 20 MPa (2900 psi) |
| Tekanan Maksimum | 25 MPa (3625 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 3000 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam), R: Kanan ( searah jarum jam) |
| Bahan | Aluminium |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Flange Oval-A |
| Tipe Poros | H: Spline Persegi Panjang, X: Spline Involute, P: Kunci Biasa |
This high-performance 16 cc/rev hydraulic gear pump is designed for demanding applications in material handling, construction, earth moving, agriculture, and industrial vehicles. It boasts a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump is available in both left (counter-clockwise) and right (clockwise) rotation configurations, and features an internal gear pump design for reliability and efficiency. Constructed from robust aluminium, the pump is equipped with an A-Oval flange and a plain key shaft type. It belongs to the CBHS-FL3 series, known for its durability and performance. This pump is ideal for use in forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors and front-end loaders, harvesters, balers, and sprayers. As a global supplier, we offer manufacturing, OEM, ODM, private labeling, and customization services to meet specific customer requirements.
