Produksi & Pengiriman
Waktu Produksi 15-30 Hari
5346 Pandangan Mencari Produk Ini

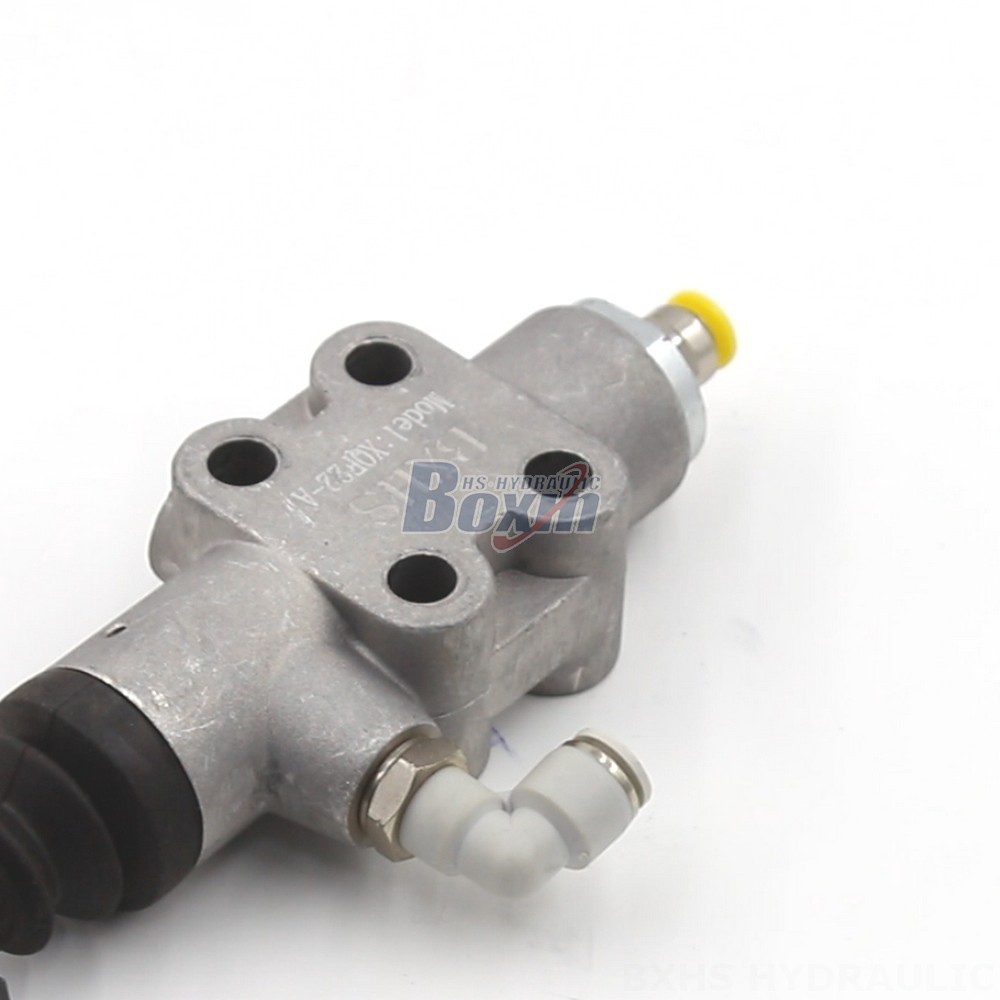

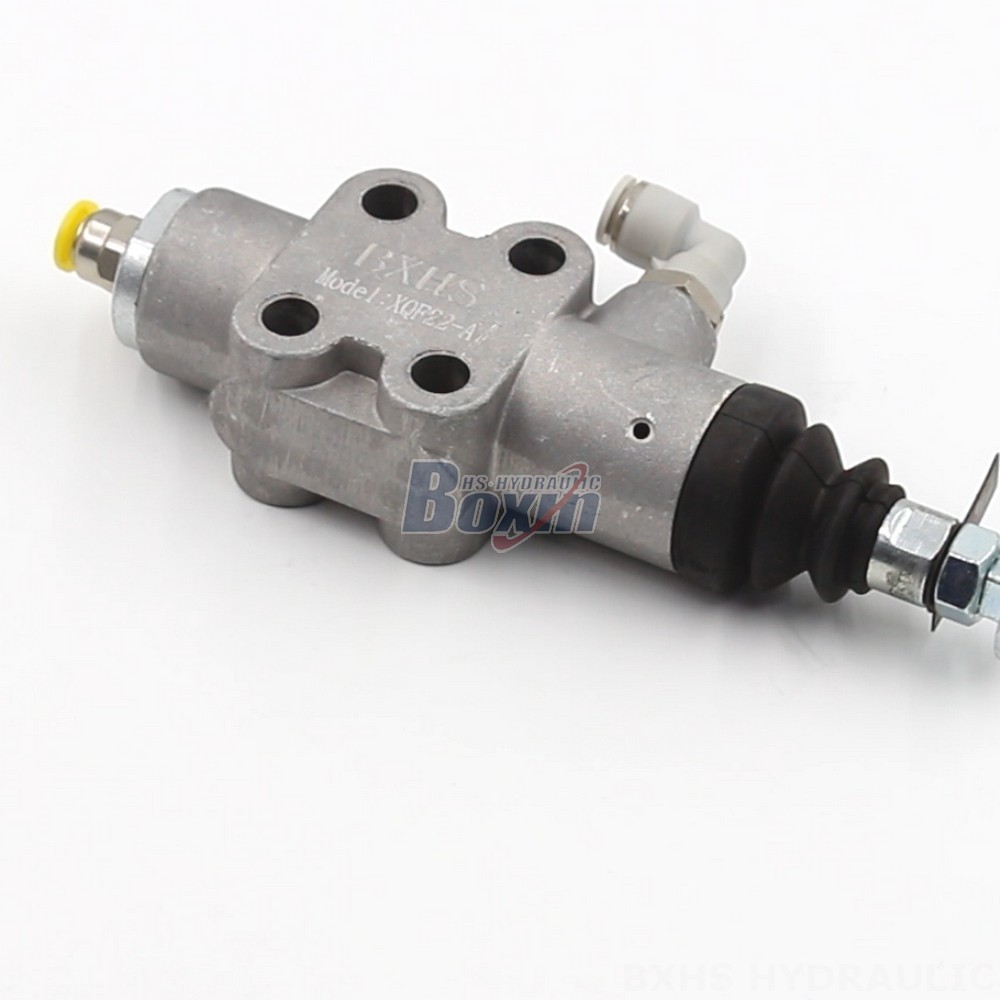

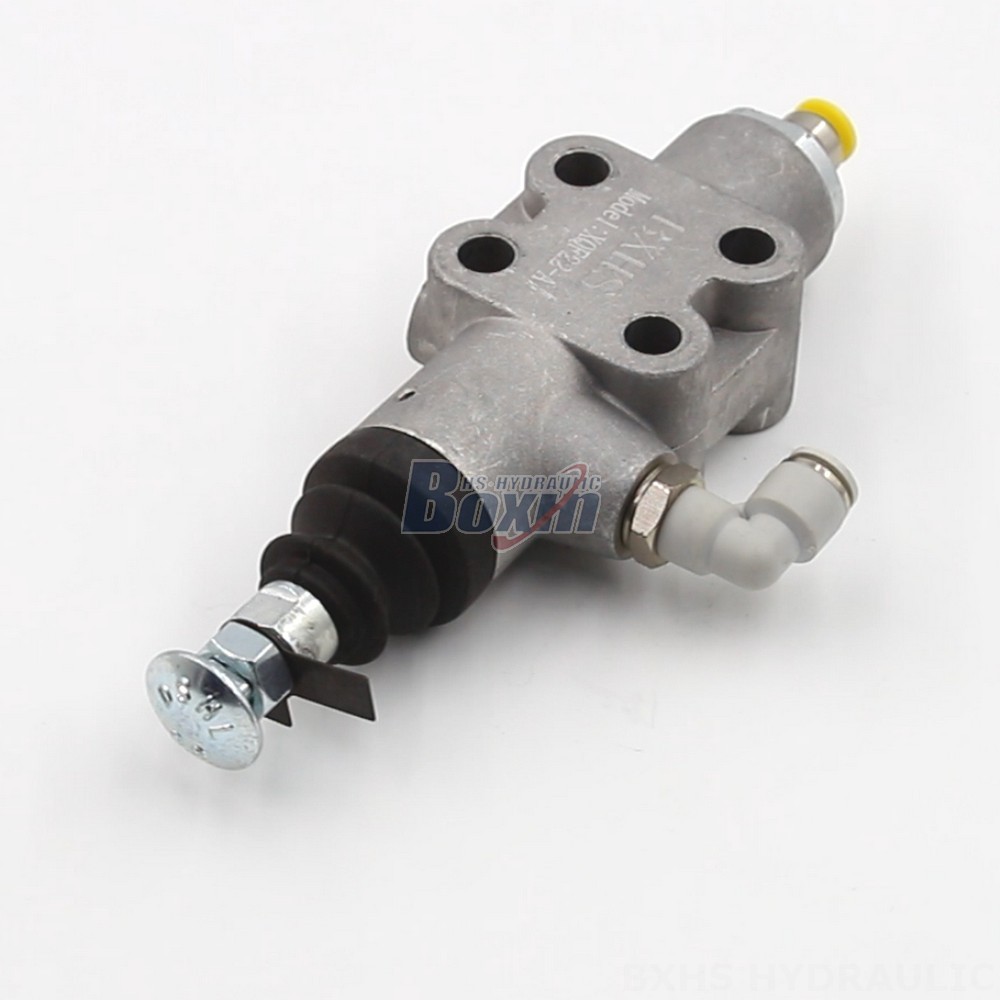

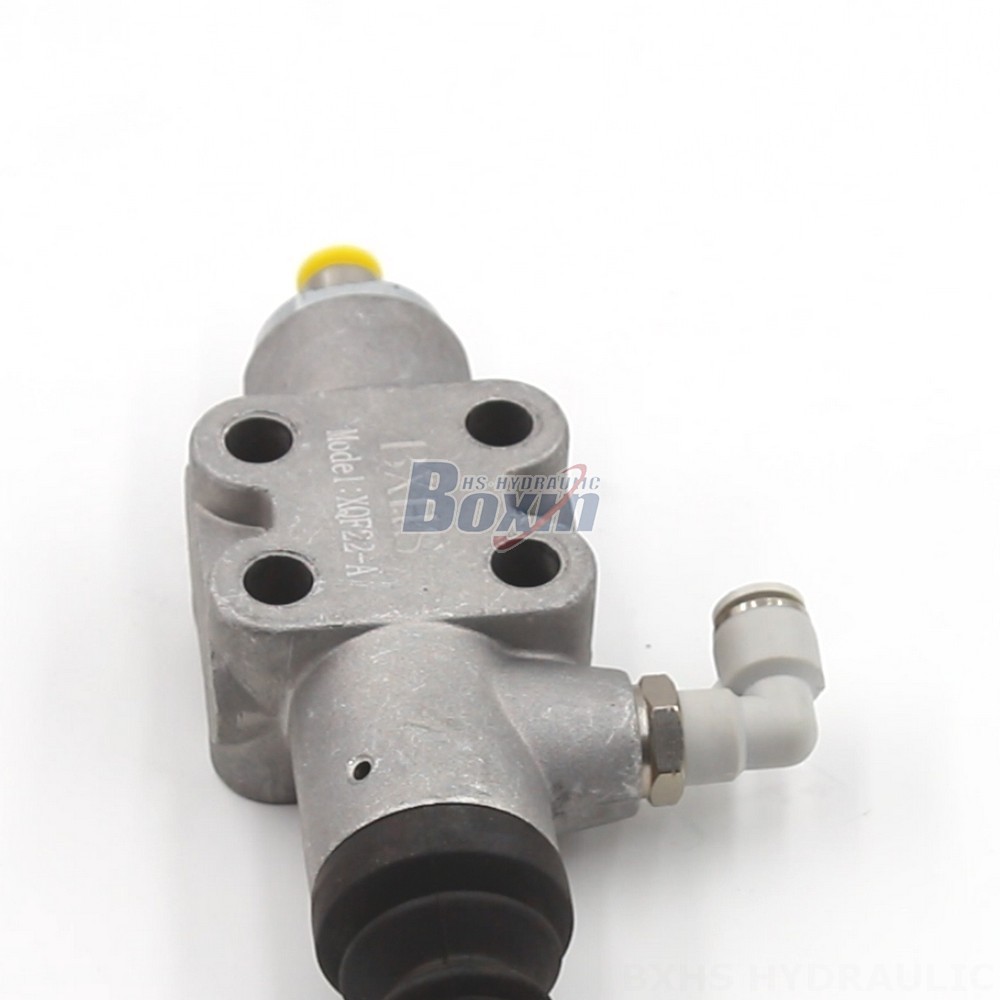

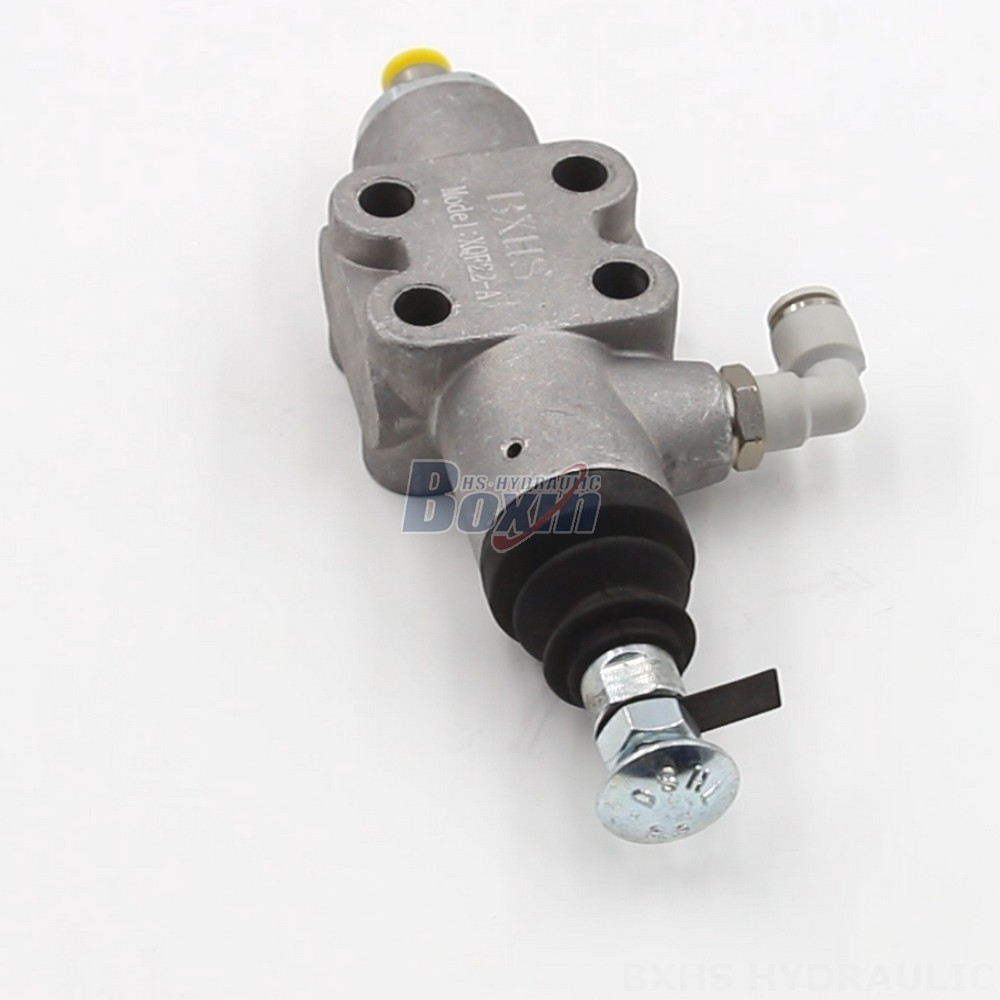

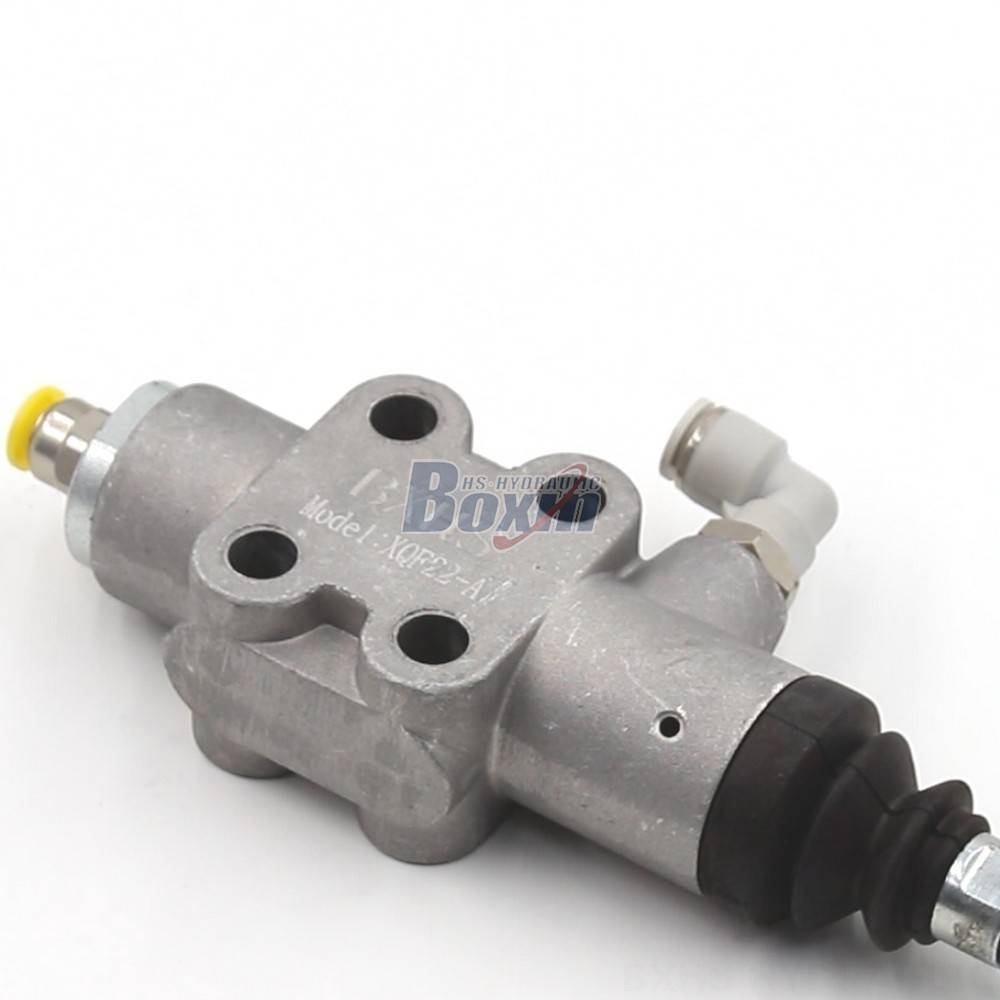

The XQF22-A Model 2-Position, 2-Way Pneumatic Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 60 L/min and a maximum pressure of 200 bar, it is suitable for even the most demanding applications. The valve's operating viscosity range of 12 - 400 mm²/s and ambient temperature range of -40°C to +60°C make it suitable for use in a variety of environments.
| Seri XQF Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Pneumatik |
| Spul | 1 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 50 L/menit (13,2 US gpm) |
| Tekanan Maksimum | 200 bar (2900 psi) |
| Port Masuk | G1/4 |
| Port Keluar | G1/4 |
| Ukuran Port | G1/4 |
The XQF22-A Model 2-Position, 2-Way Pneumatic Valve is a versatile and reliable valve that is ideal for use in a wide range of industrial applications. Its high flow rate and maximum pressure make it suitable for even the most demanding applications, while its wide operating viscosity range and ambient temperature range make it suitable for use in a variety of environments. The valve's single spool design ensures smooth and reliable operation, and its XQF22-A Series construction ensures durability and long service life.
