Produksi & Pengiriman
Waktu Produksi 15-30 Hari
981 Pandangan Mencari Produk Ini
The DCV200 Model 2-Spool Electro-hydraulic Valve is a high-performance valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. It features a control method of electro-hydraulic, a section of 2 section, a max pressure of 350 bar (5100 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt).
| Seri DCV200 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 200 L/menit (52 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
| Port Keluar | G1, M33×2.0, SAE 16, 1 NPT |
| Ukuran Port | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |

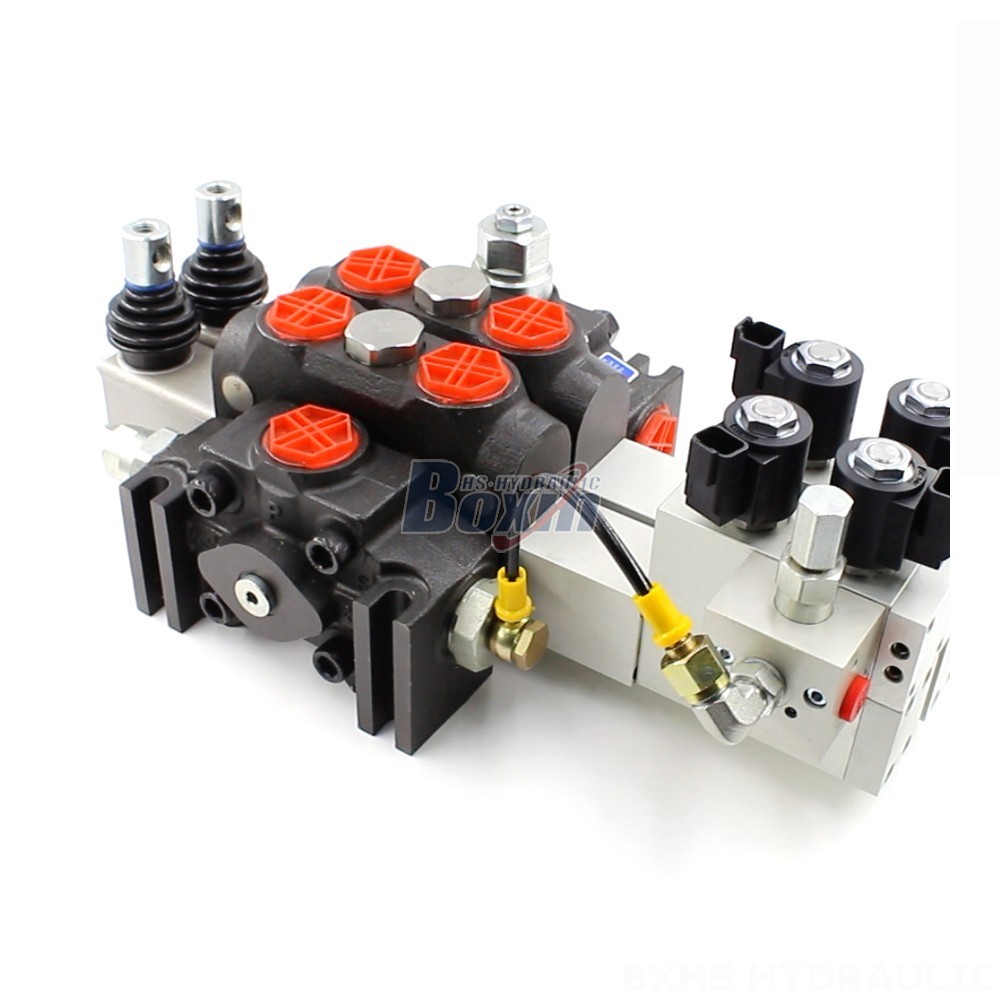

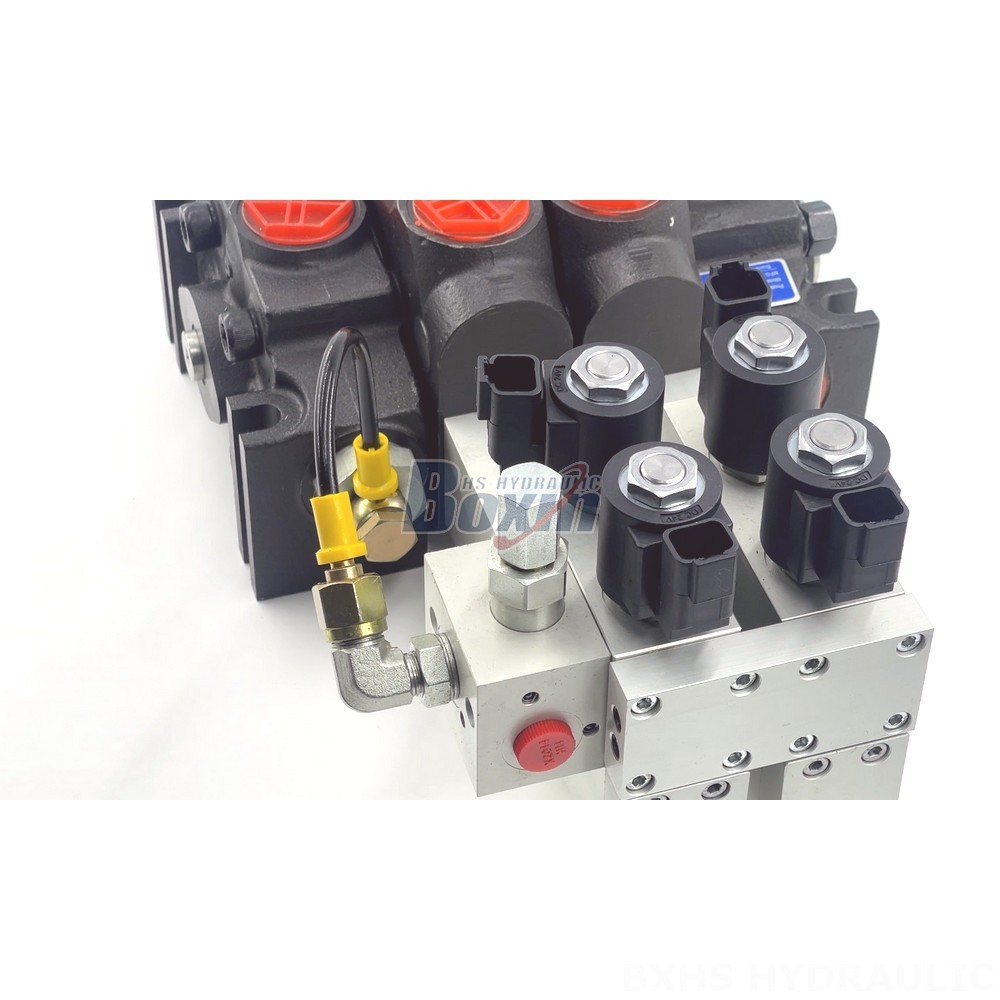

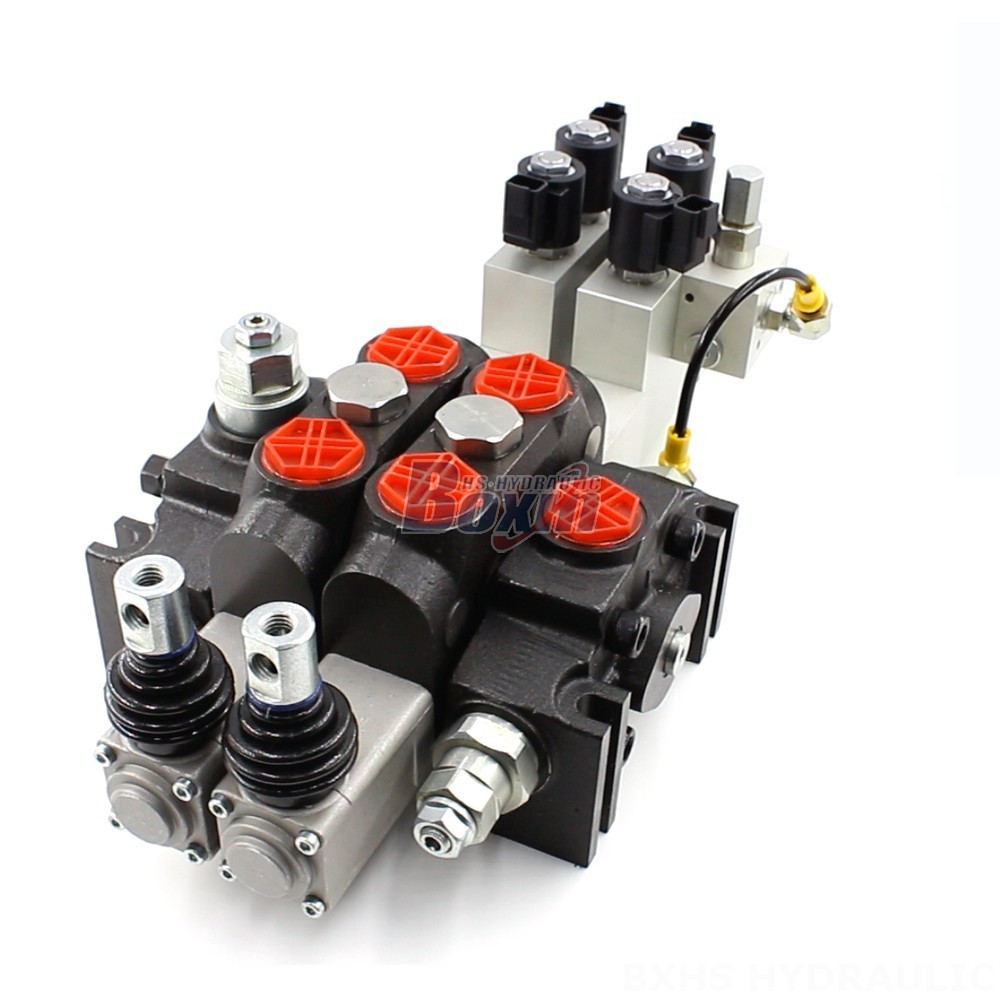

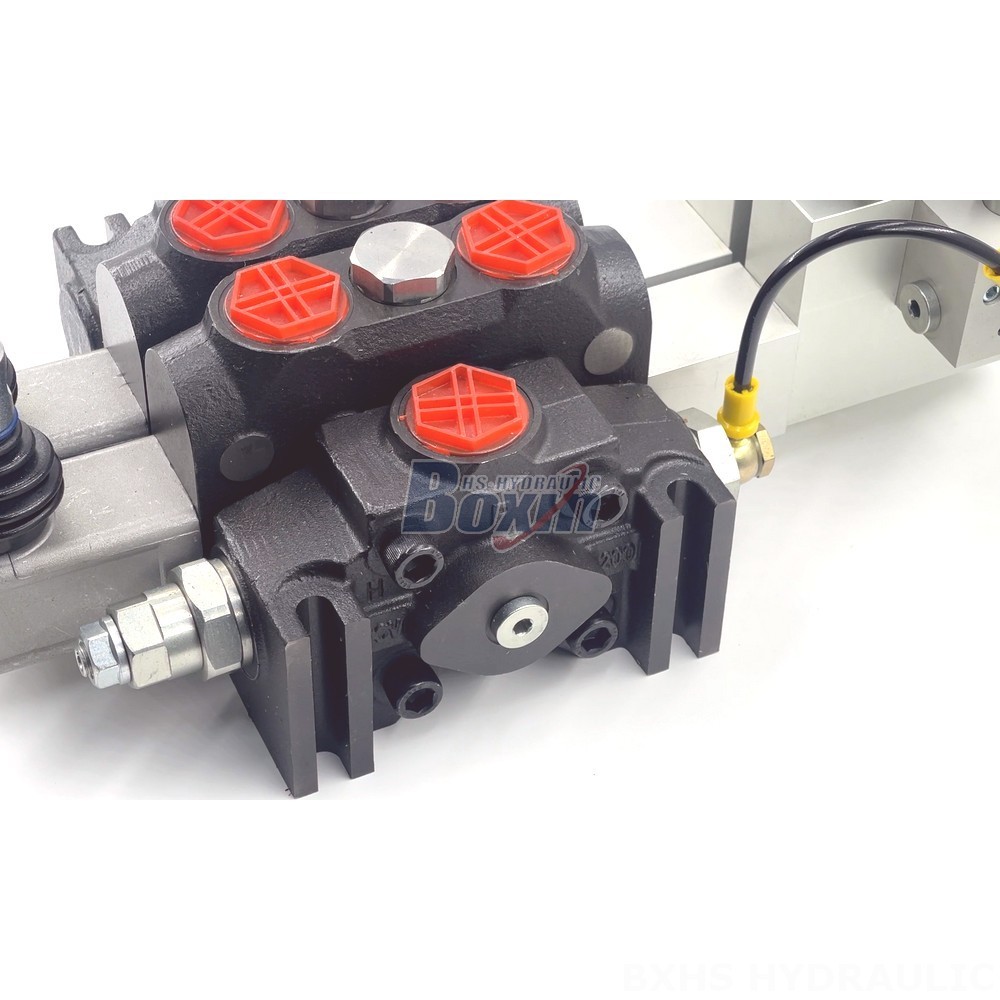

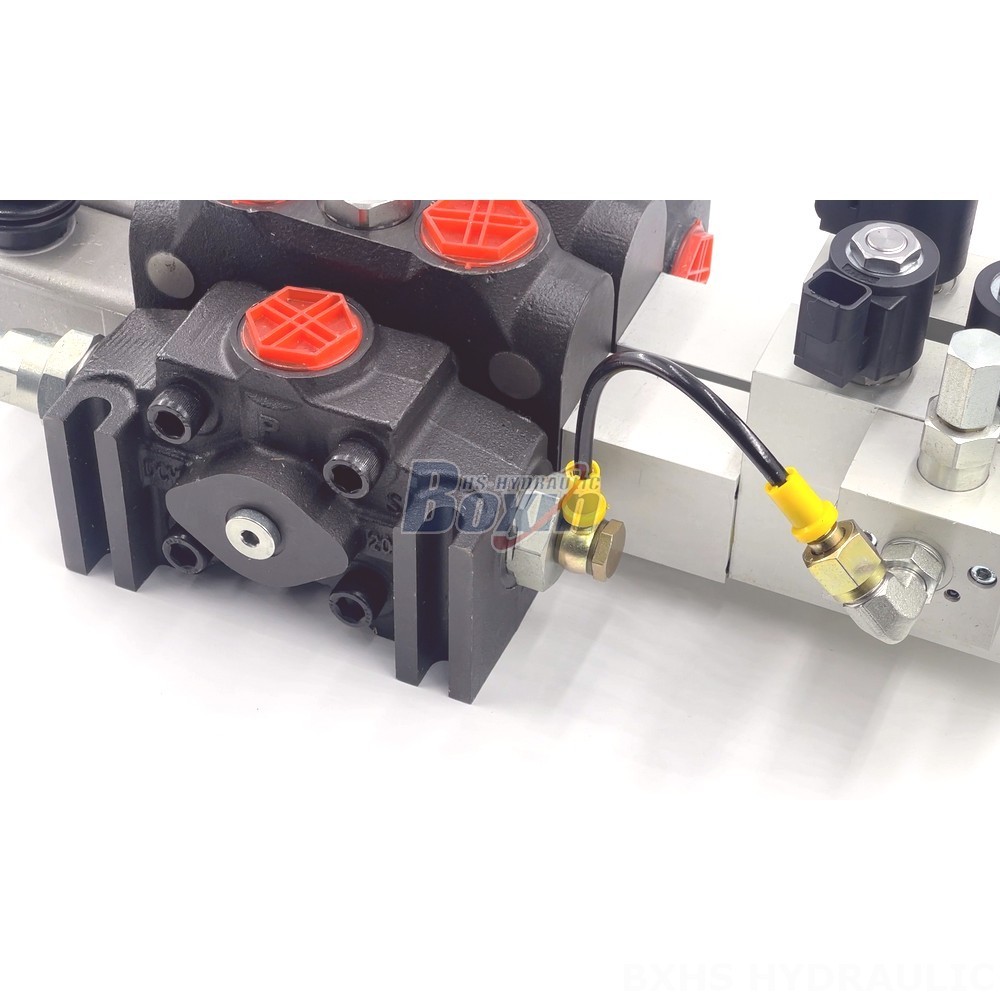

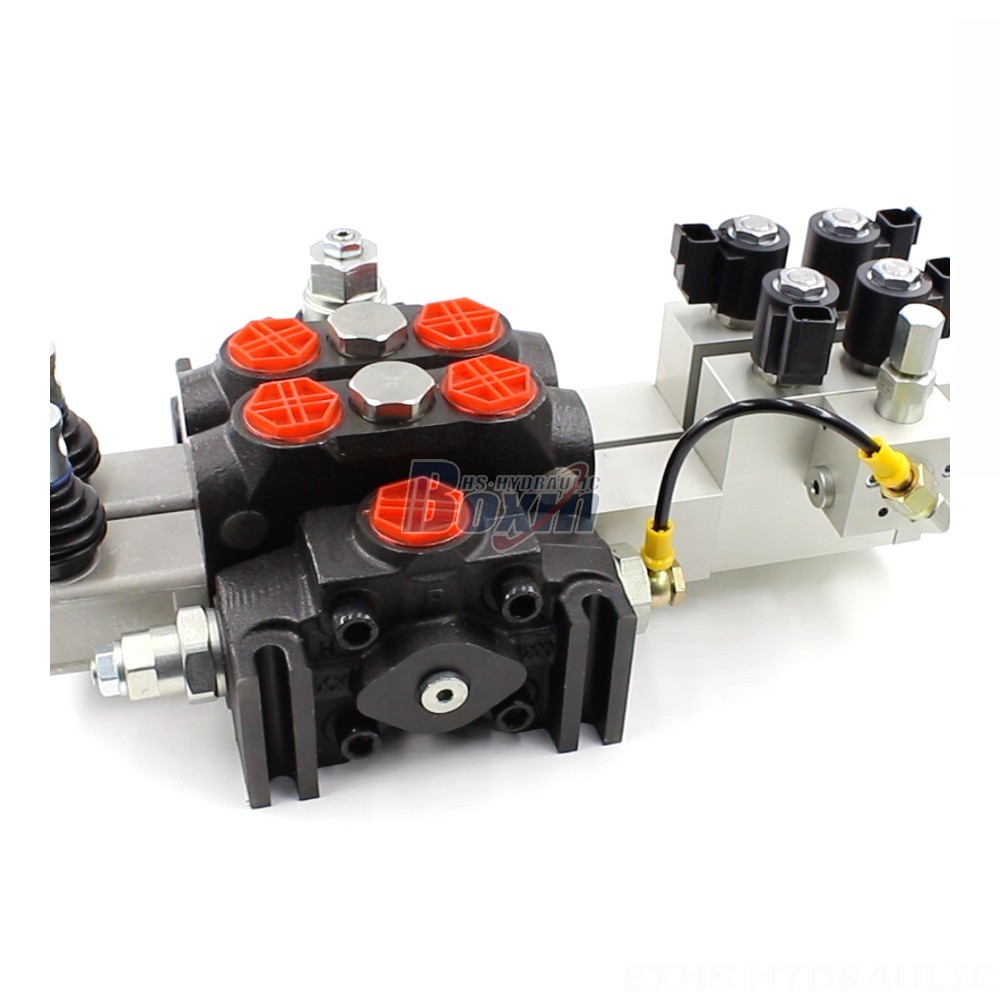

**2-Spool Electro-hydraulic Valve | DCV200 Model | Factory Direct & Customizable**
The DCV200 Model 2-Spool Electro-hydraulic Valve is a high-performance valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles.
**Key Features:**
* Control Method: Electro-hydraulic
* Section: 2 Section
* Max Pressure: 350 bar (5100 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 2 Spool
* Series: DCV200 Series
**Application Areas:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Models:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* TELEHANDLER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
