Produksi & Pengiriman
Waktu Produksi 15-30 Hari
974 Pandangan Mencari Produk Ini

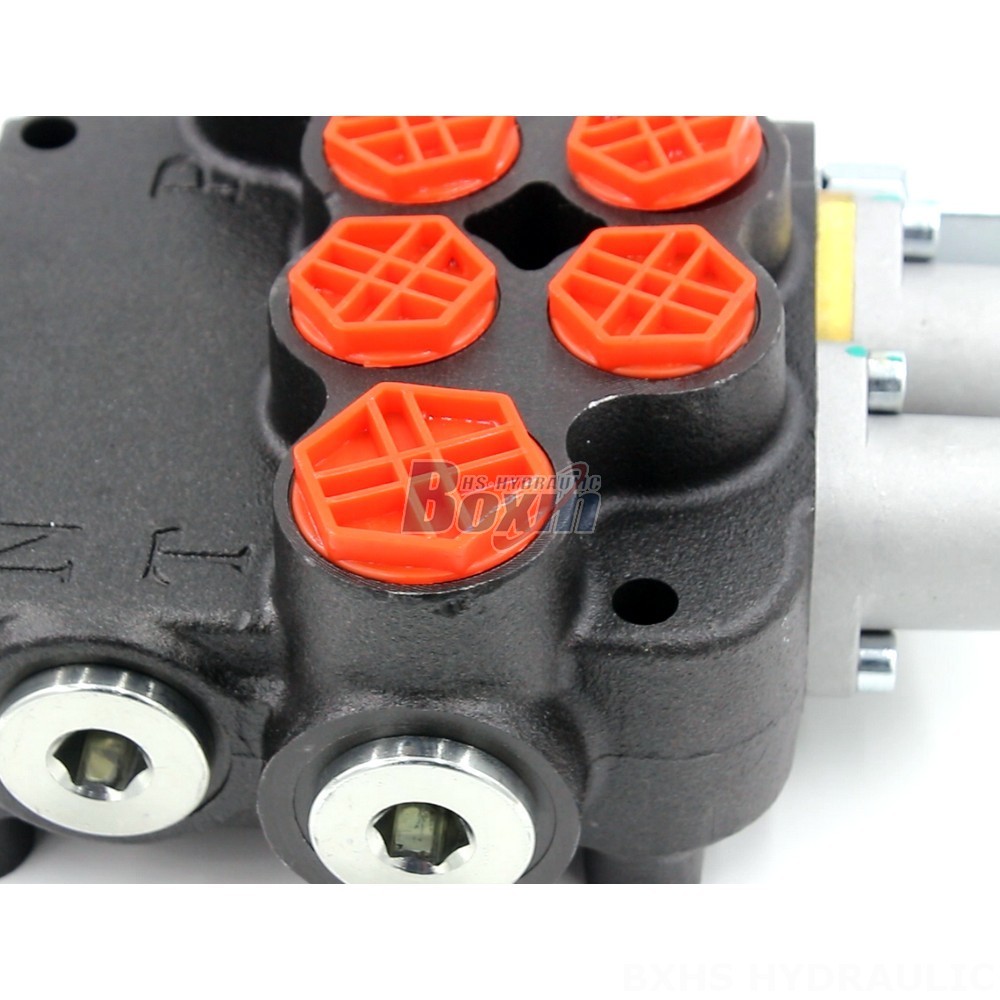

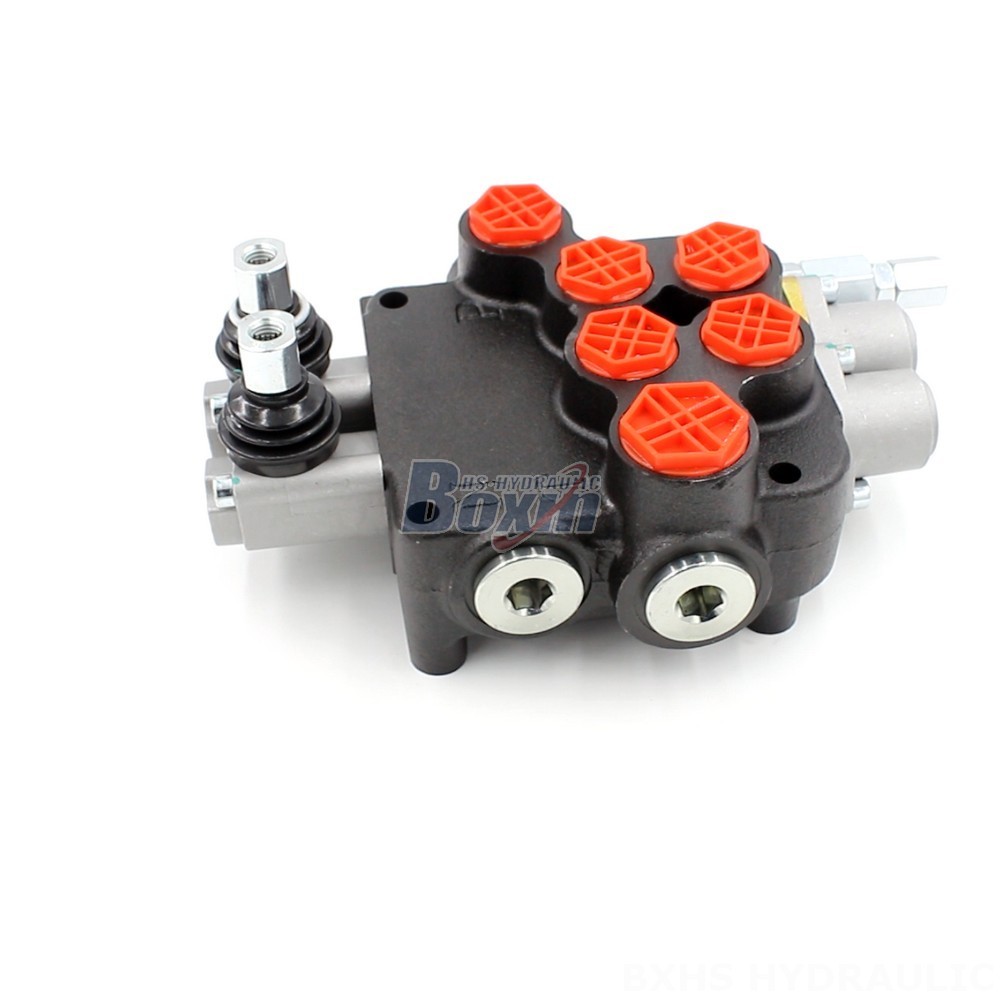

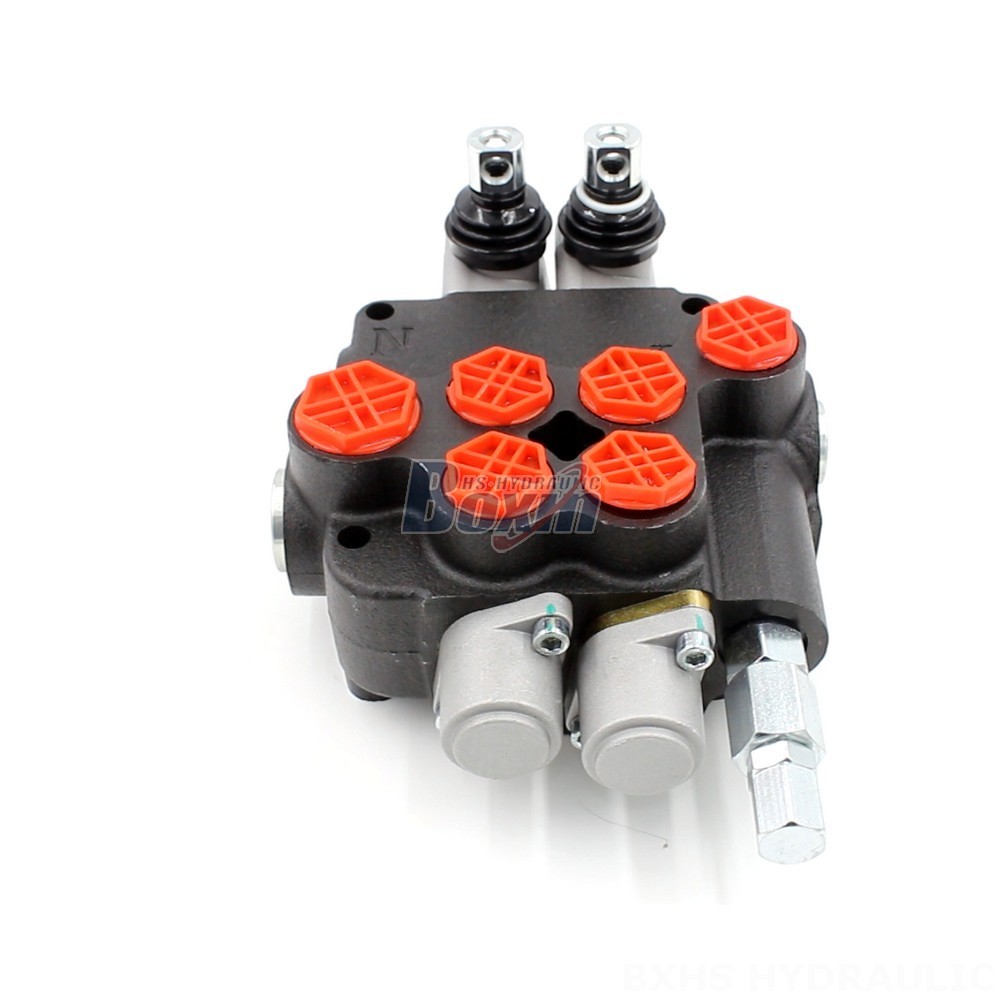

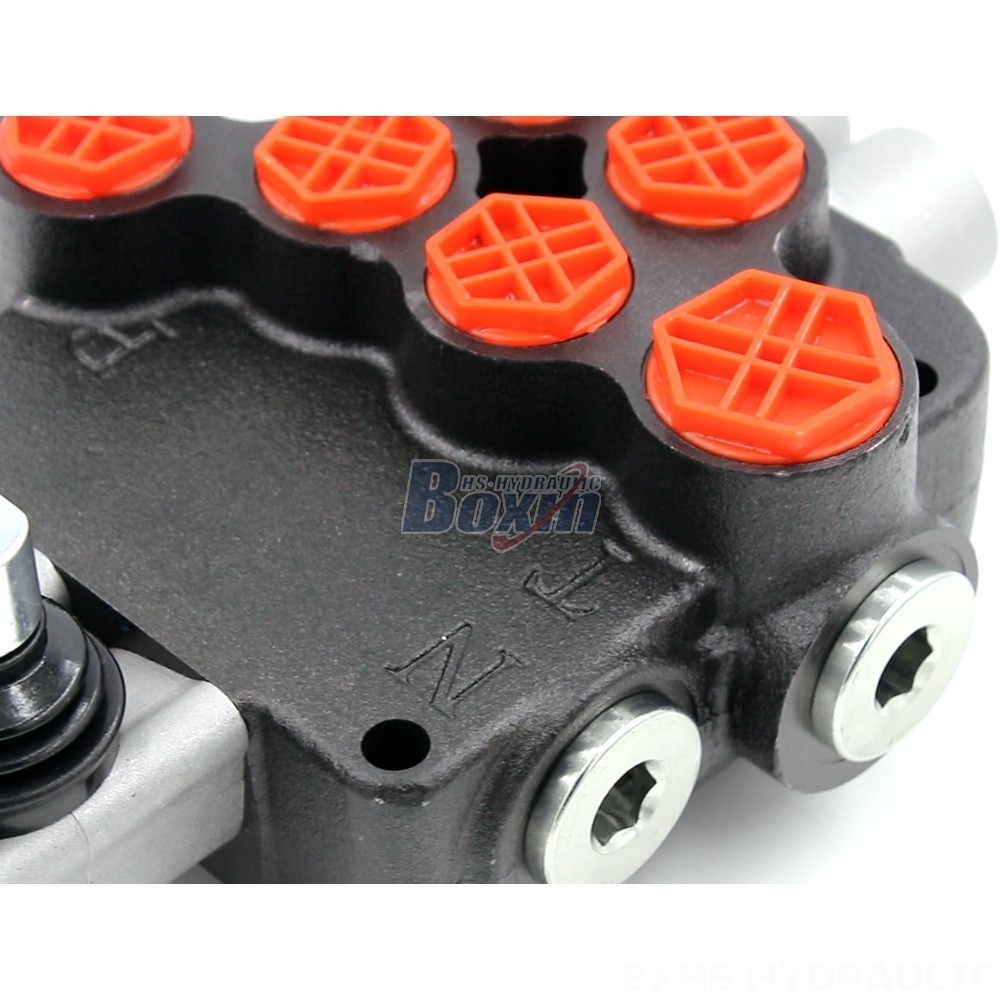

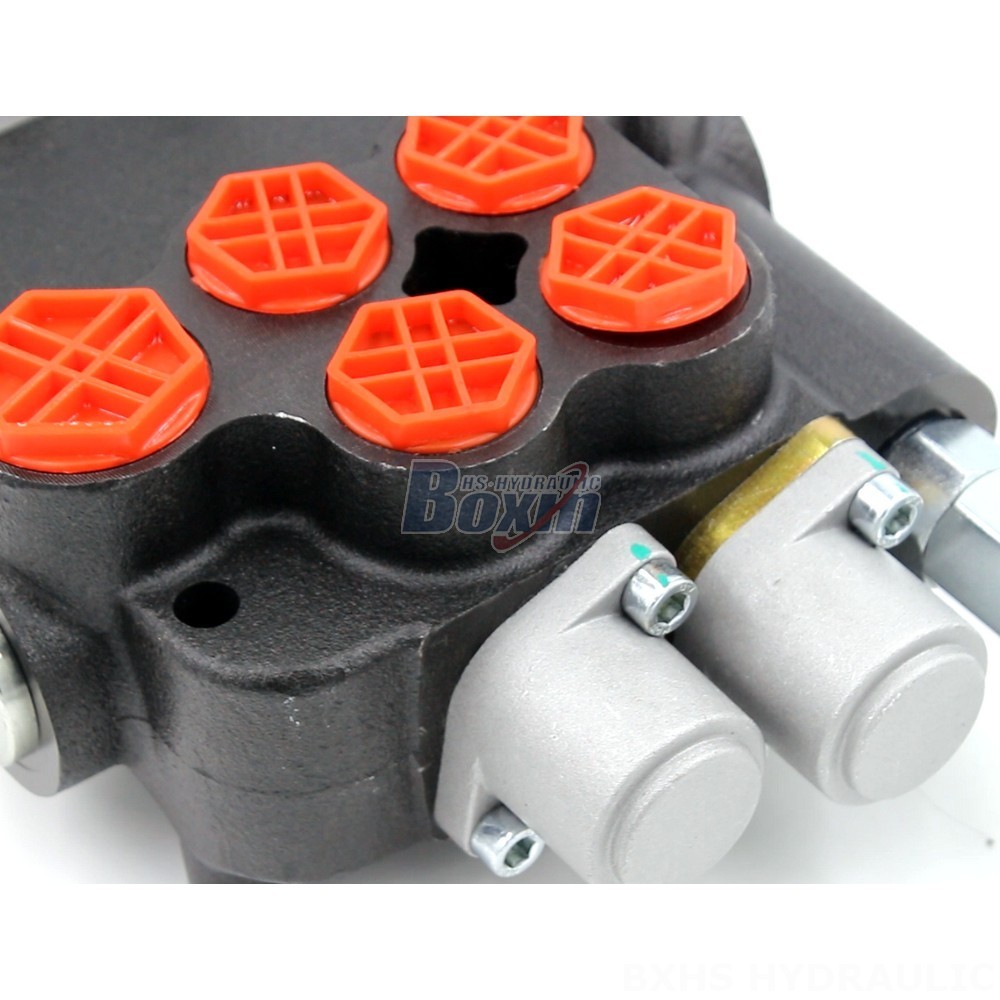

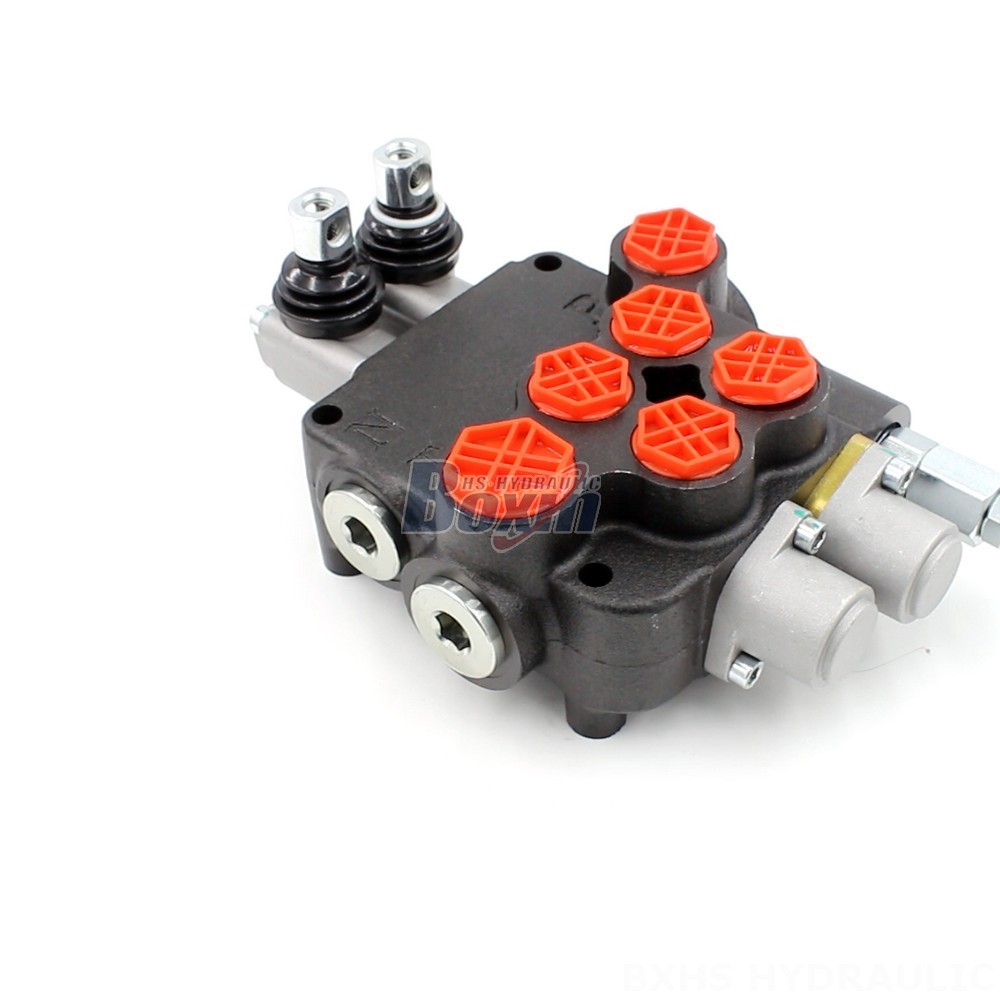

The P80-G12-G34-2OT 2-Spool Hydraulic Directional Valve is a manually controlled, monoblock valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. It is designed for use in a variety of applications including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**2-Spool Hydraulic Directional Valve | P80-G12-G34-2OT | Factory Direct & Customizable**
**Product Features**
* Manual control
* Monoblock valve
* 80 L/min rated flow
* 250 bar maximum pressure
* 15 - 75 mm²/s operating viscosity range
* -40°C to +80°C ambient temperature range
**Applications**
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
**Applicable Models**
* Telehandler
* Forklift
* All terrain crane
* Stacker
* Aerial platform
* Motor grader
* Compact wheel loader
* Wheel loader
* Backhoe loader
* Harvester
* Bale wrapper
* Seeding machine
