Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1008 Pandangan Mencari Produk Ini

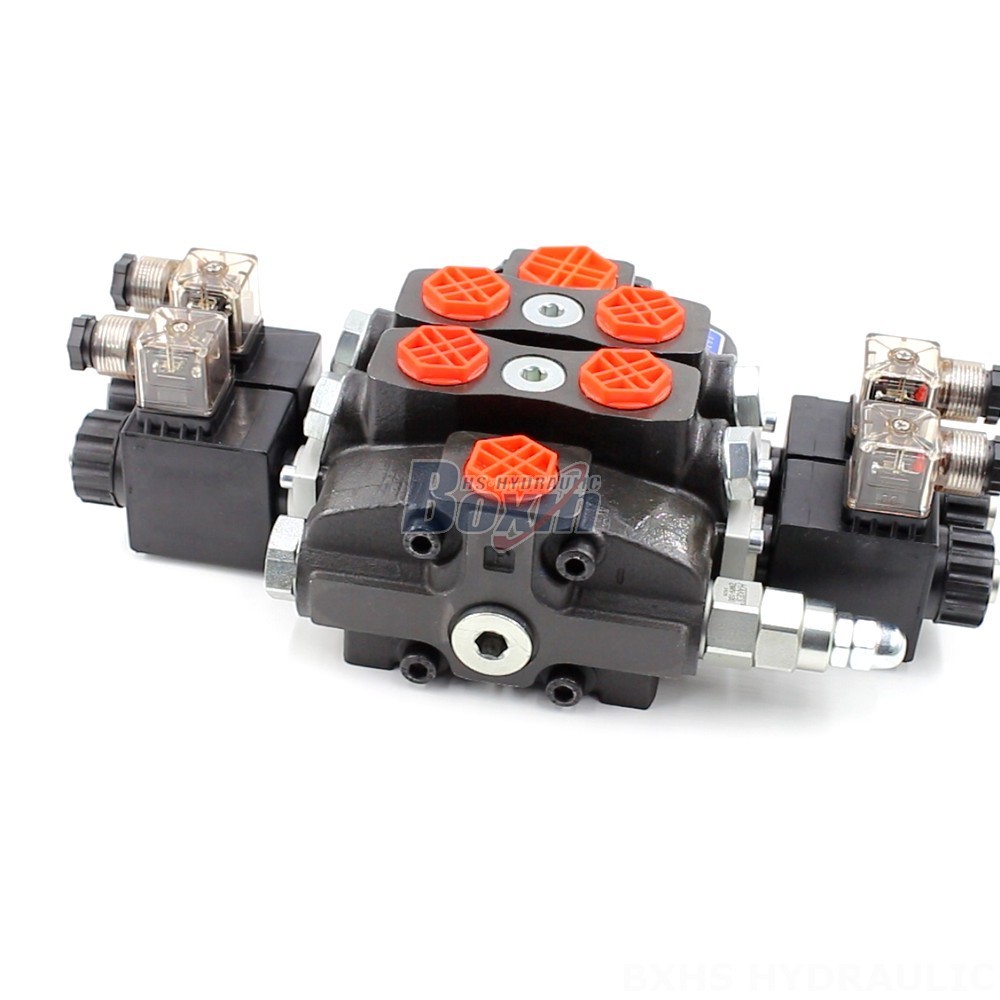

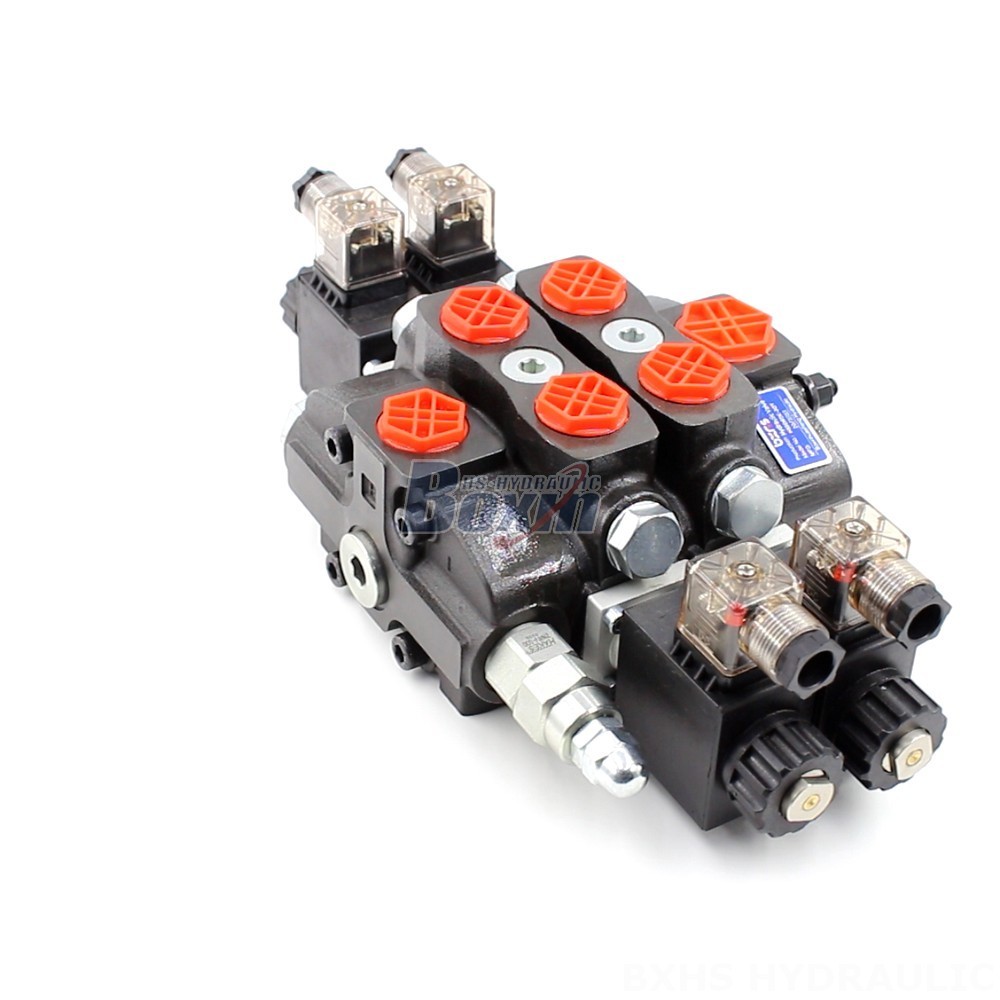

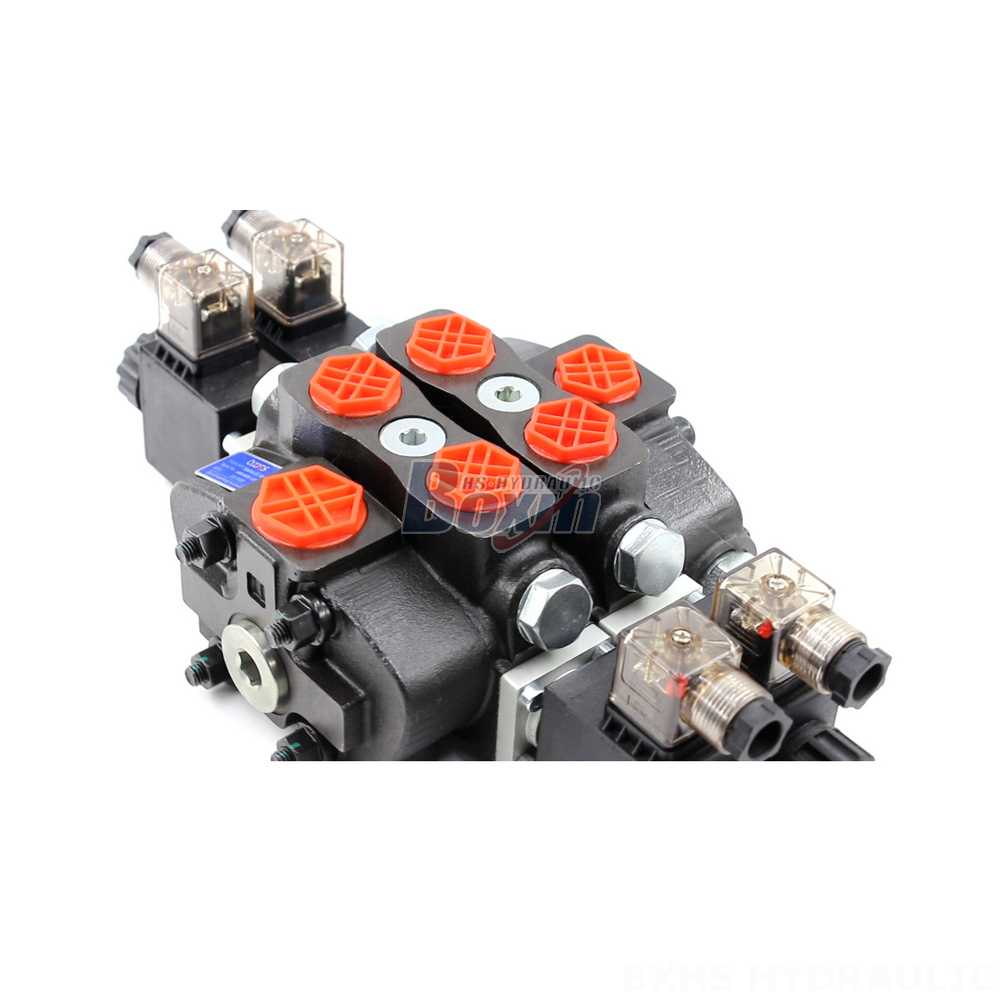

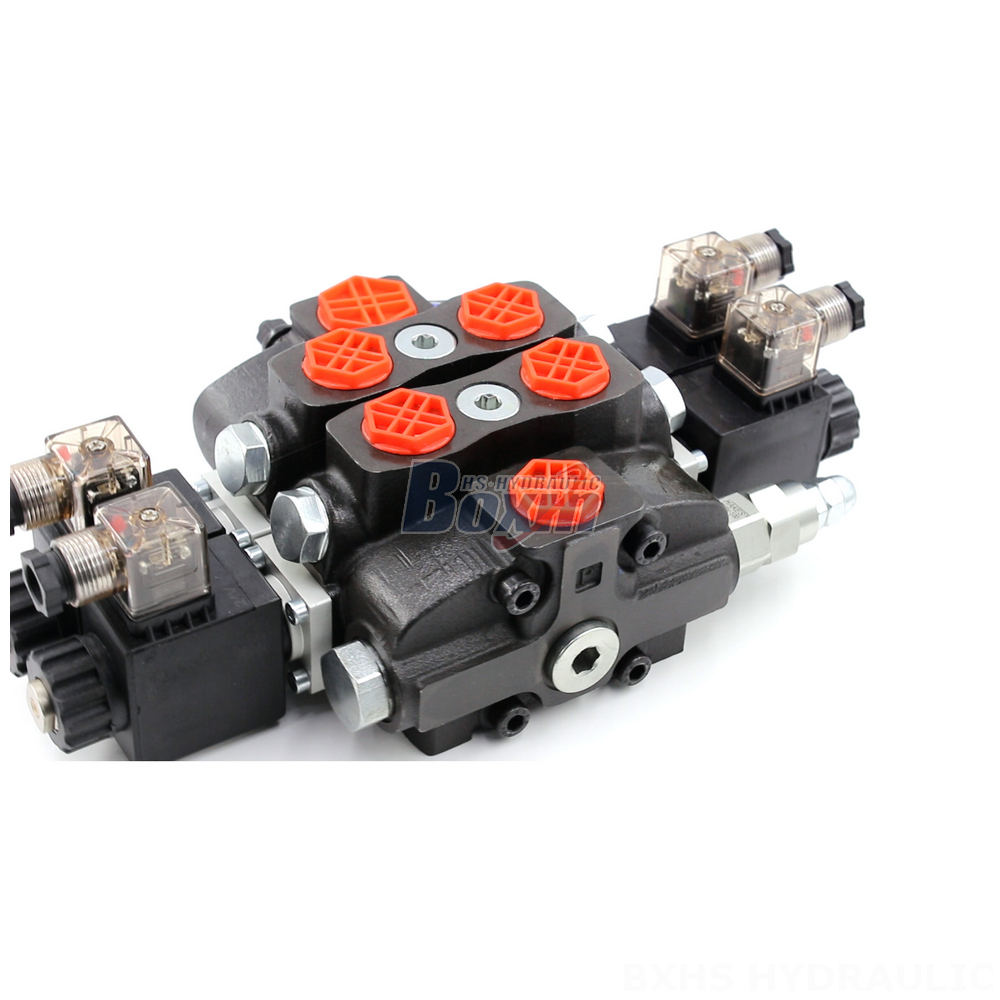

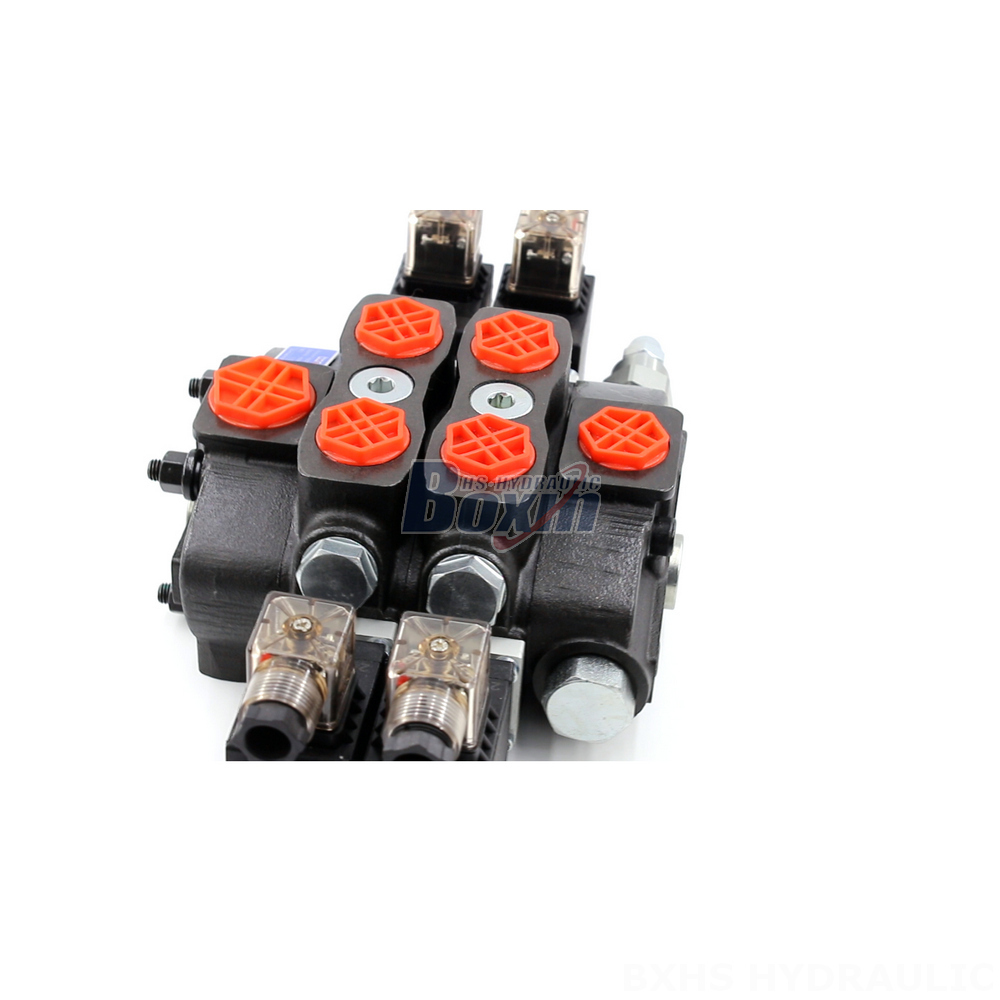

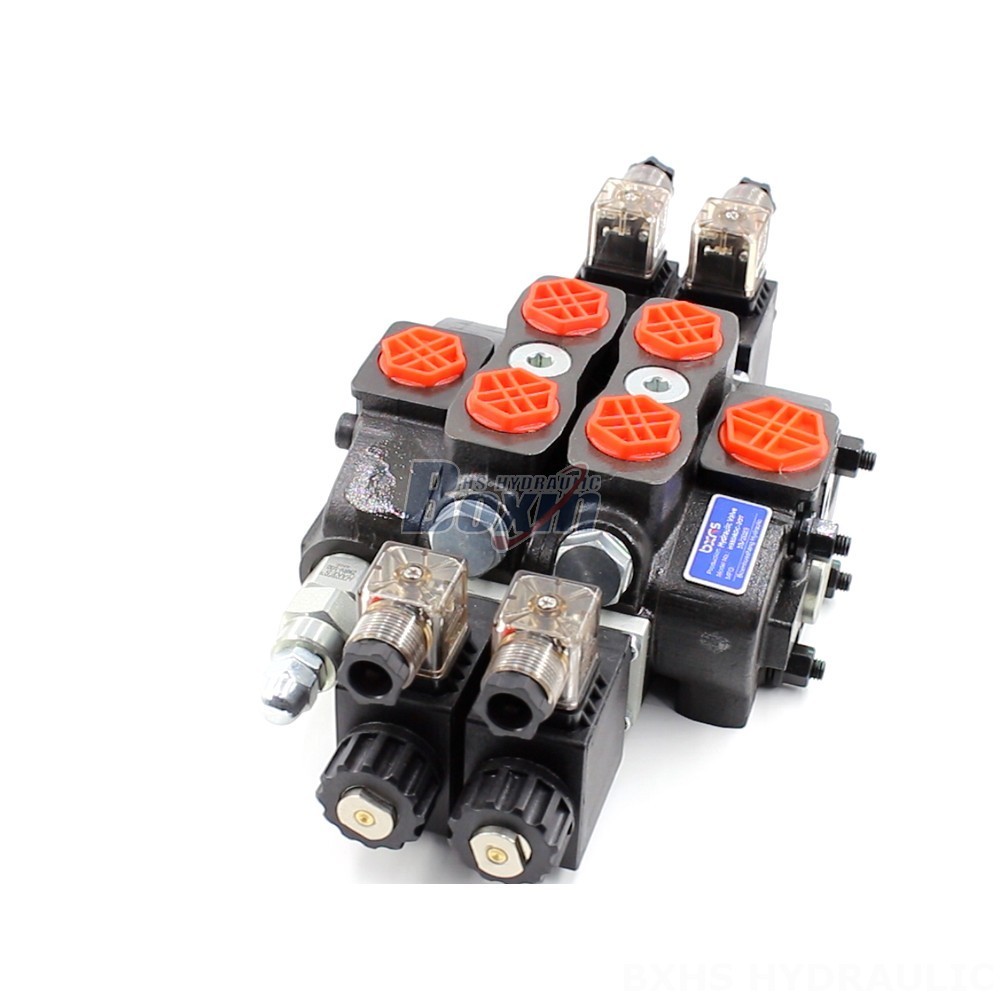

2-Spool Hydraulic Solenoid Valve | SD8 Model | Factory Direct & Customizable. This valve is designed for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |
**2-Spool Hydraulic Solenoid Valve | SD8 Model | Factory Direct & Customizable**
The SD8 series 2-spool hydraulic solenoid valve is a high-performance valve that is designed for use in a variety of applications. This valve is manufactured to the highest quality standards and is backed by our satisfaction guarantee.
**Features:**
* 2-spool design
* Solenoid control
* Rated flow: 90 L/min (23.8 US gpm)
* Max pressure: 350 bar (5100 psi)
* Operating viscosity range: 12 - 400 mm²/s (12 cSt to 400 cSt)
* SD8 series
* Factory direct & customizable
**Applications:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Models:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
