Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1135 Pandangan Mencari Produk Ini

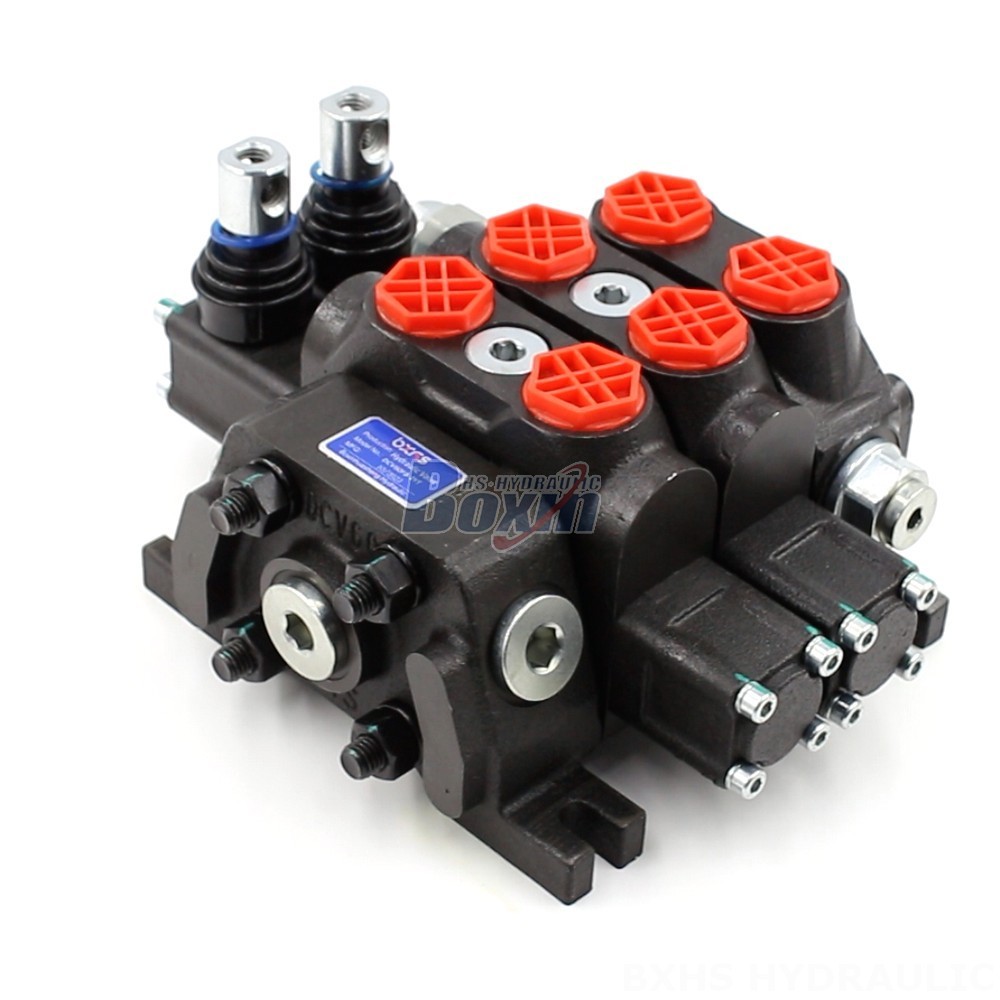

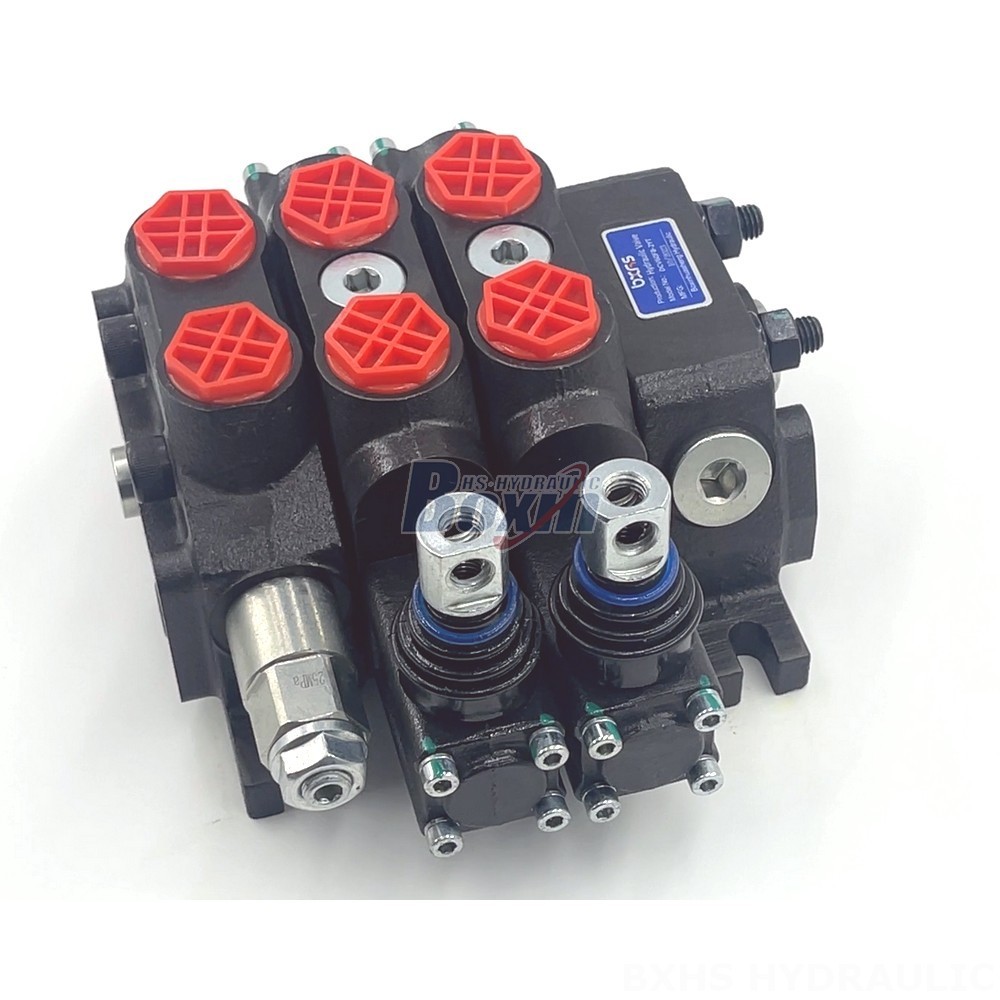

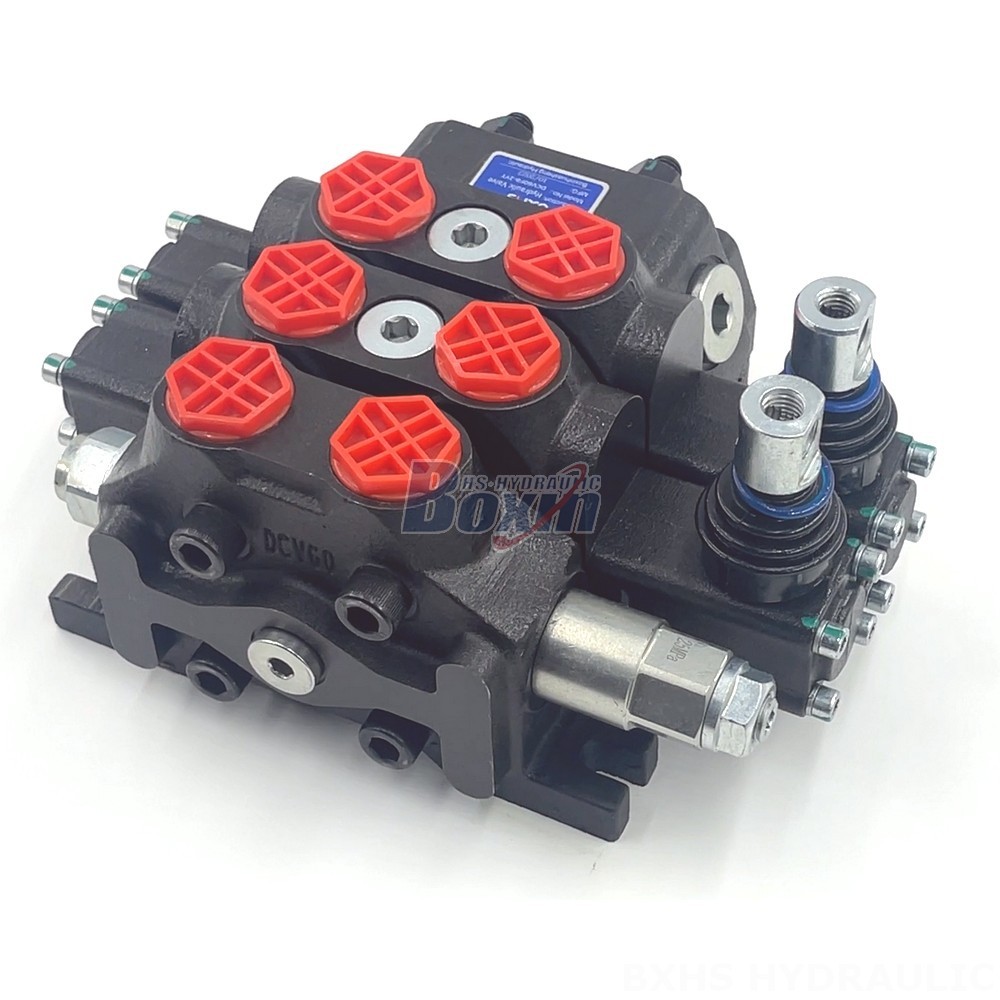

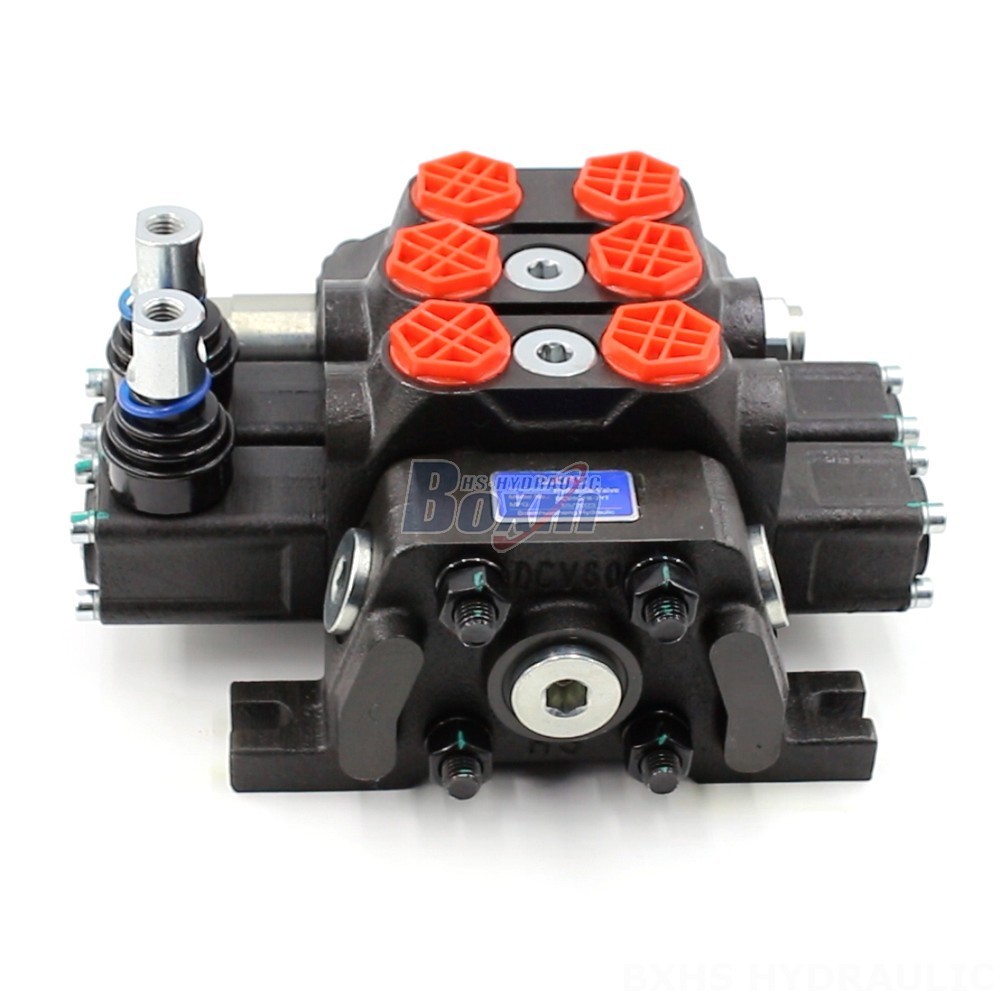

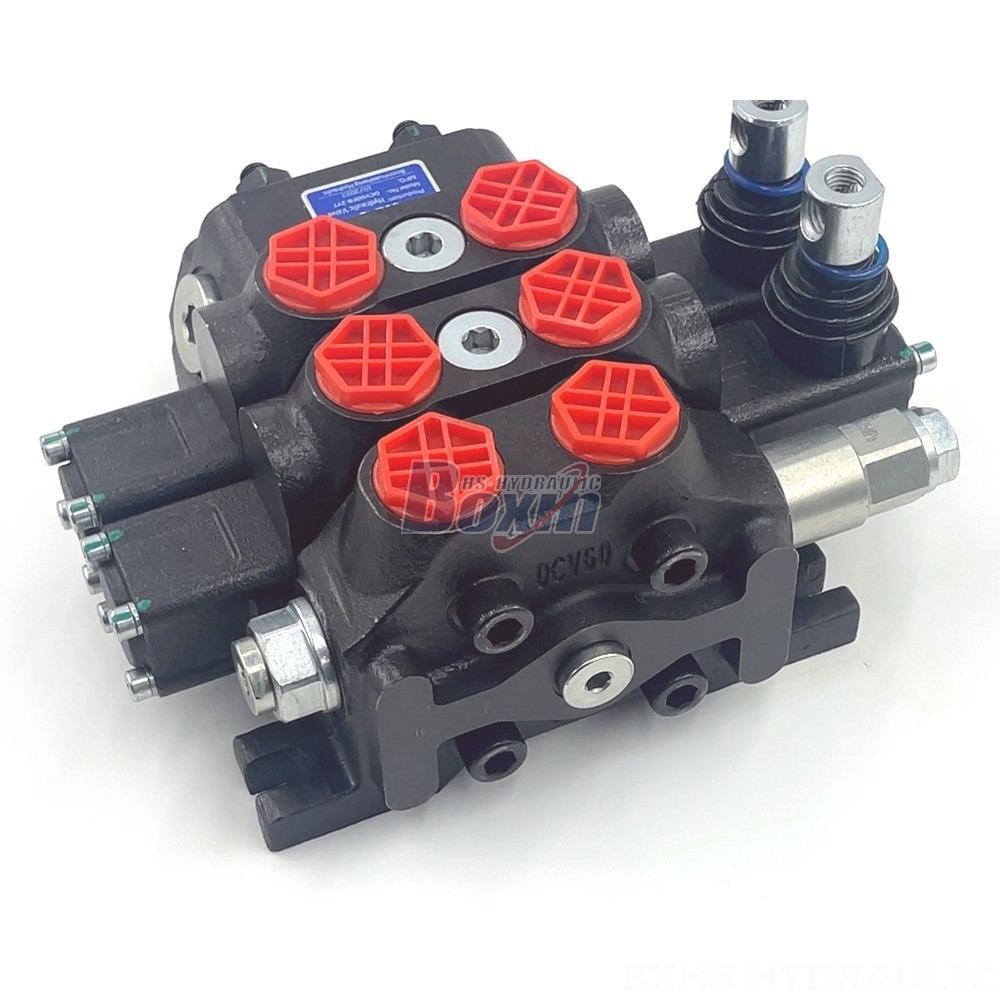

The DCV60 Series Hydraulic Control Banks are high-performance 2-spool manual control valves designed for use in a variety of material handling, construction, agricultural, and industrial applications. These valves offer a rated flow of 60 L/min and a maximum pressure of 350 bar, making them suitable for demanding applications.
| Seri DCV60 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi), 350 bar (5100 psi) |
| Port Masuk | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
The DCV60 Series Hydraulic Control Banks are factory direct and customizable, offering a wide range of options to meet specific application needs. These sectional valves feature a 2-spool design with manual control for precise operation. The valves are rated for a flow rate of 60 L/min (15.8 US gpm) and a maximum pressure of 350 bar (5100 psi). The DCV60 series is designed for use in a wide range of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
