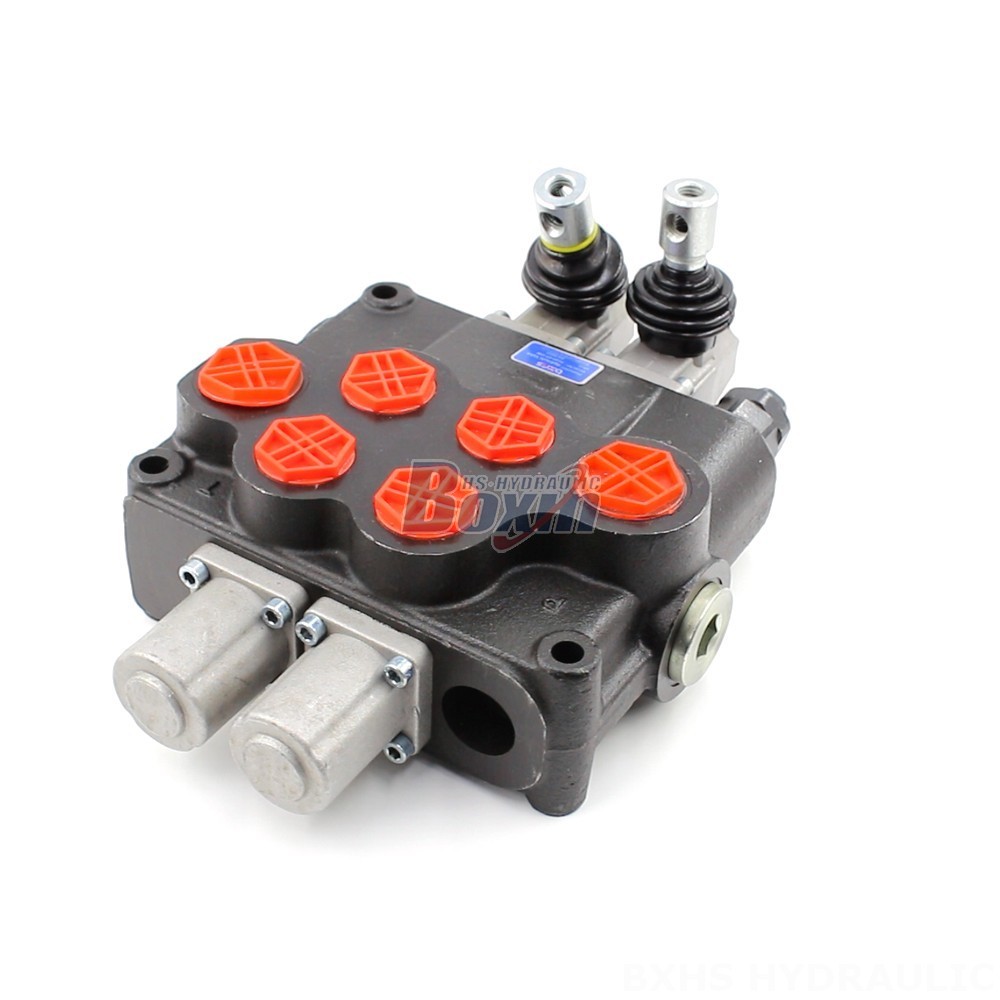

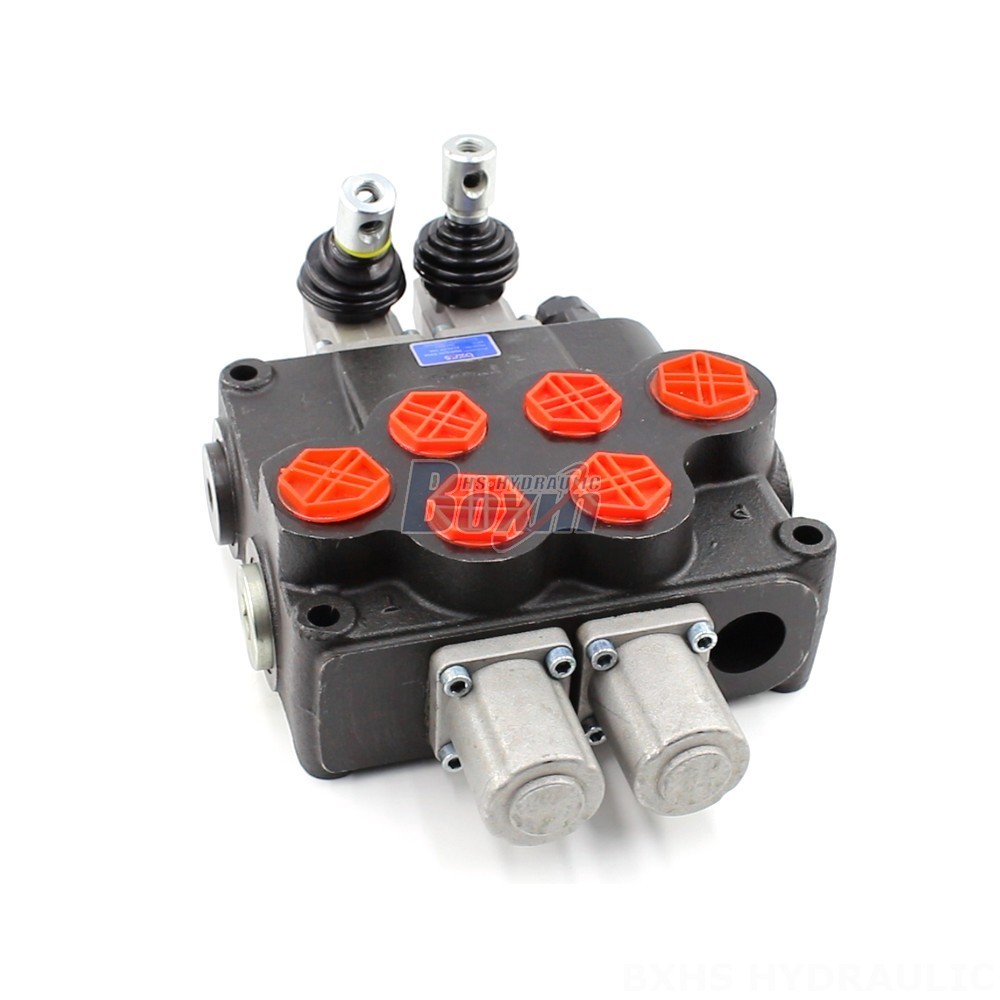

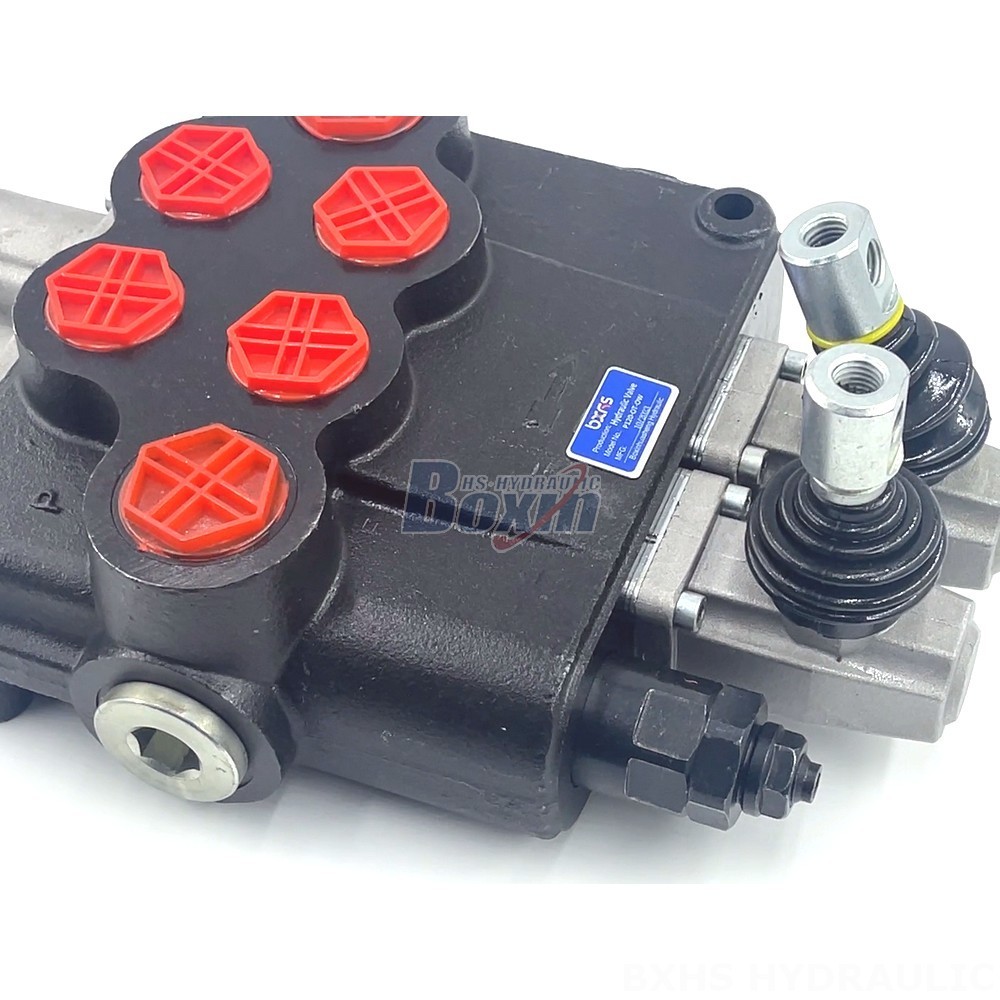

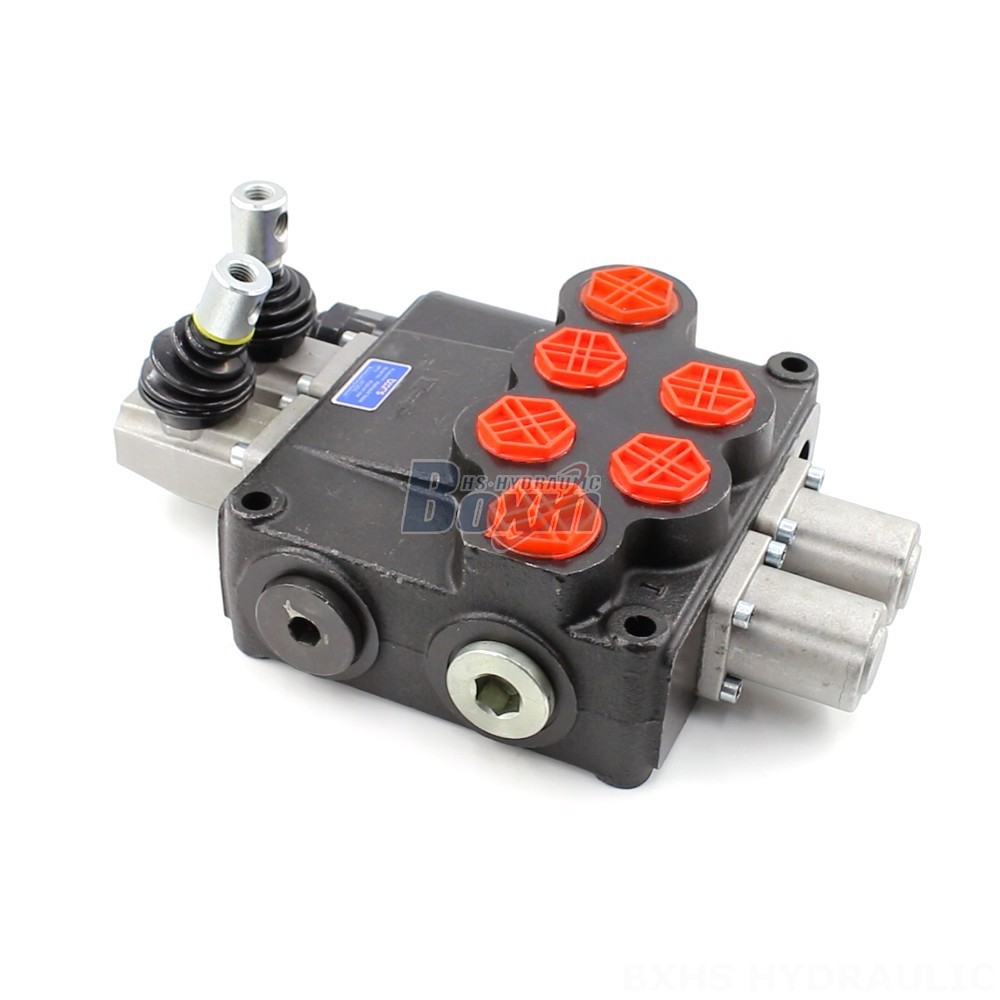

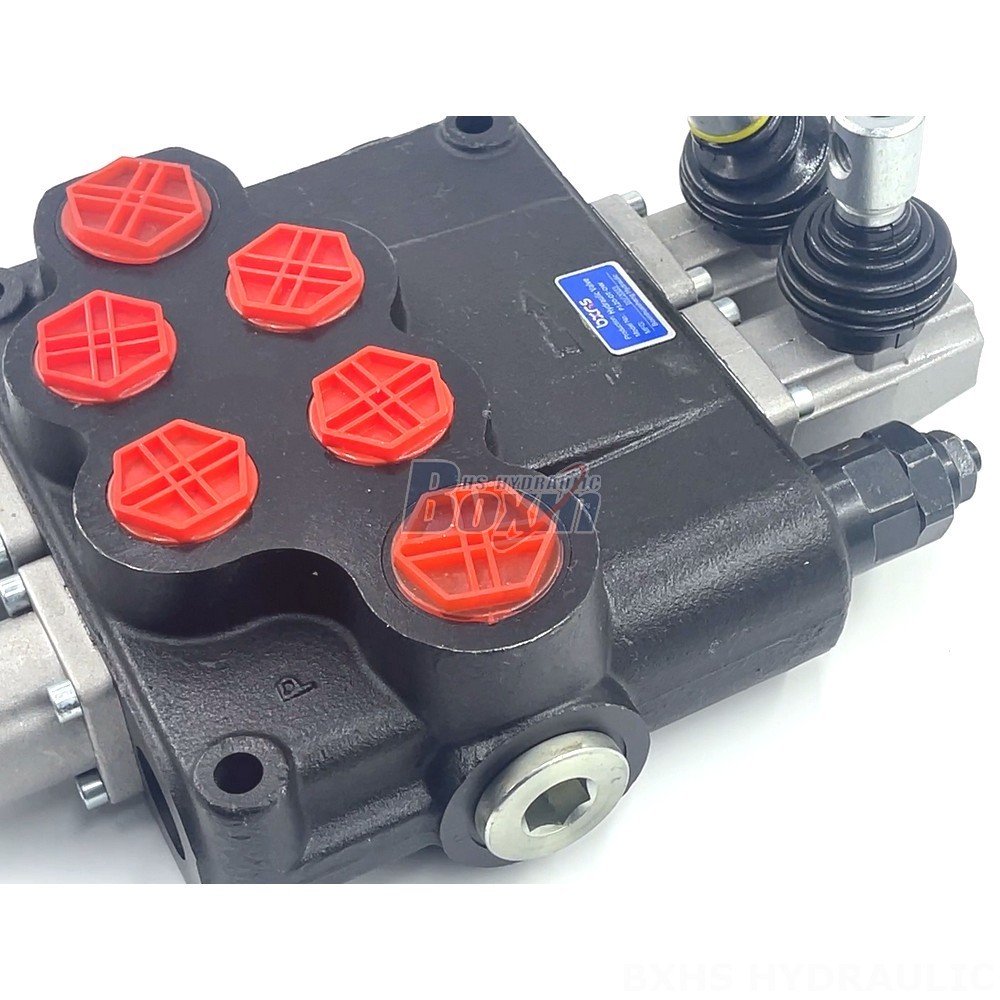

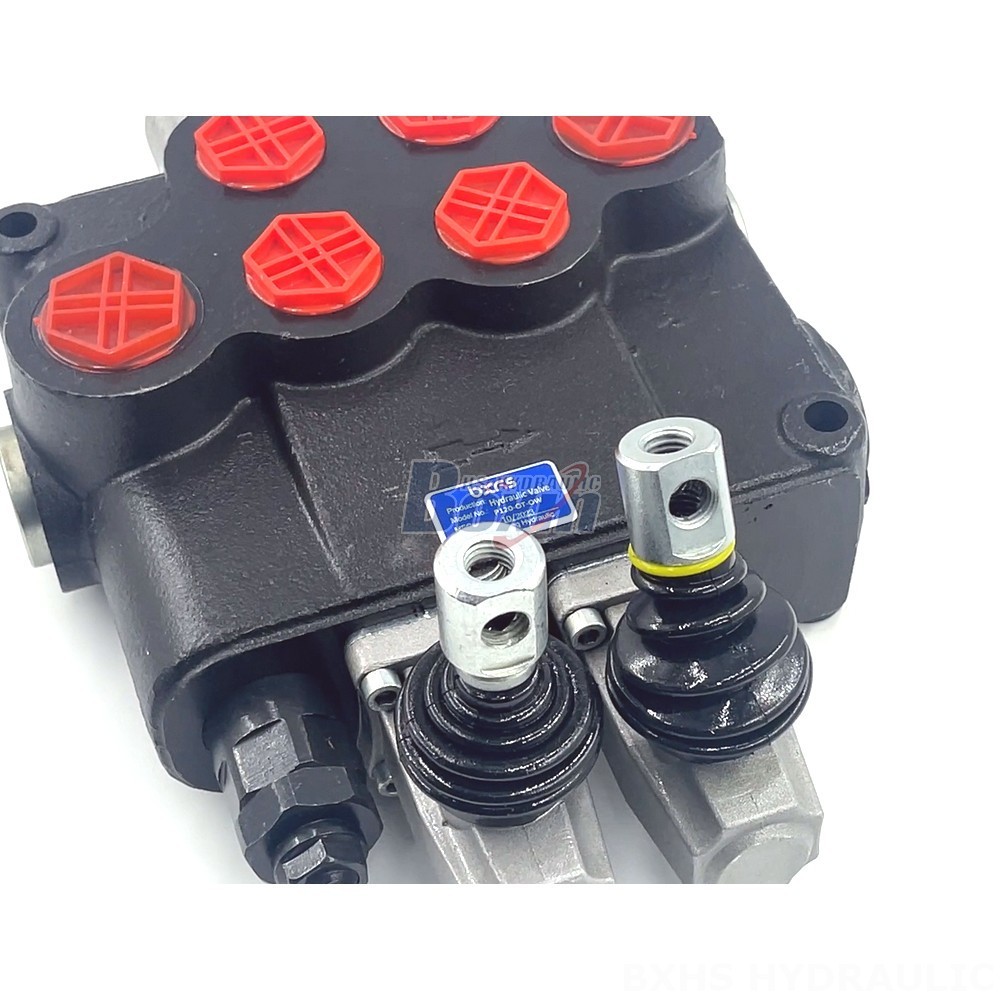

The P120 Series Hydraulic Multi-way Valve is a 2-spool, monoblock valve designed for construction, material handling, and industrial applications. With a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi), it's ideal for demanding tasks.
| Seri P120 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 120 L/min (31,7 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Port Keluar | G1, SAE 16, 1 NPT, M36×2 |
| Ukuran Port | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
This robust Hydraulic Multi-way Valve offers manual control, a 2-section design, and a reliable monoblock structure. Featuring a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi), it is suitable for various applications like telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve operates in a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and withstands ambient temperatures from -40°C to +80°C (-40°F to +176°F).
