2 Spool Hydraulic Valve P80-G34-2OT

Metode Kontrol:Buku Panduan

Spul:2 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G3/4

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:26*18*11

Kelas kotor:8.00 kg

Ketersediaan: Tersedia

1129 Pandangan Mencari Produk Ini

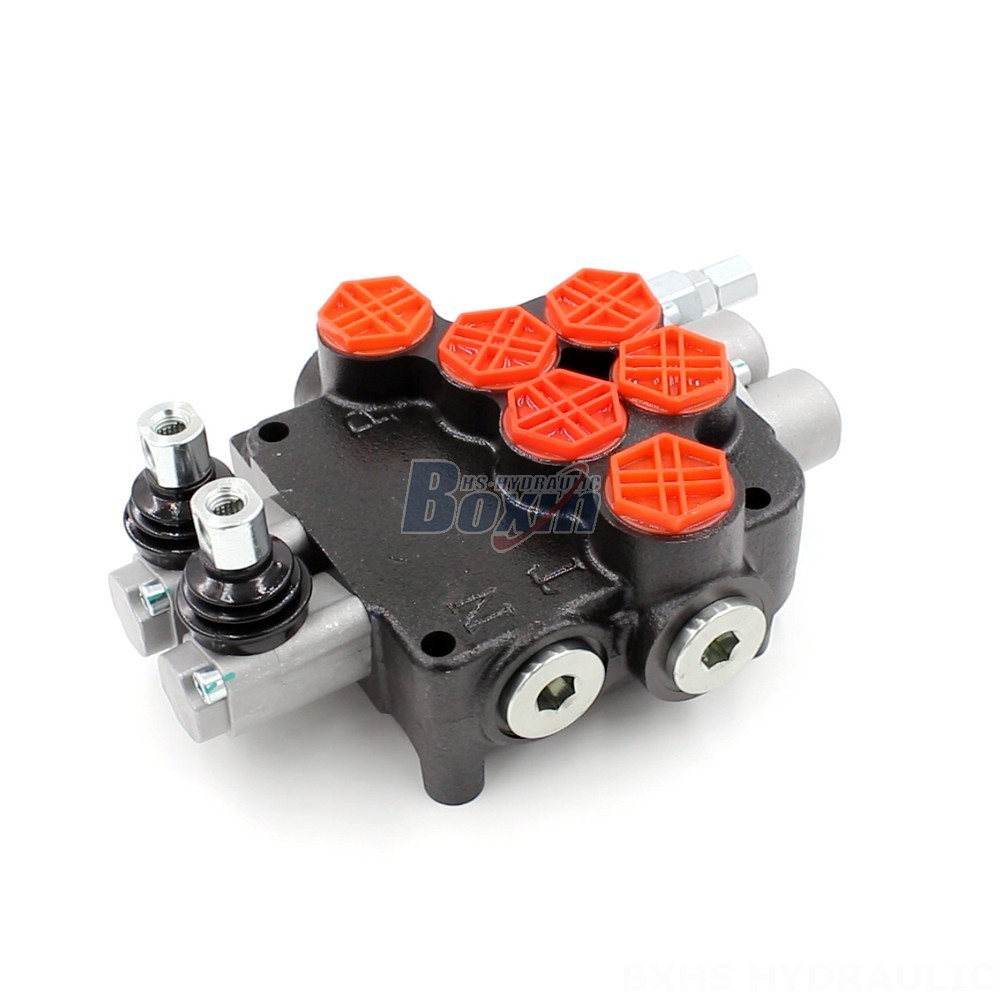

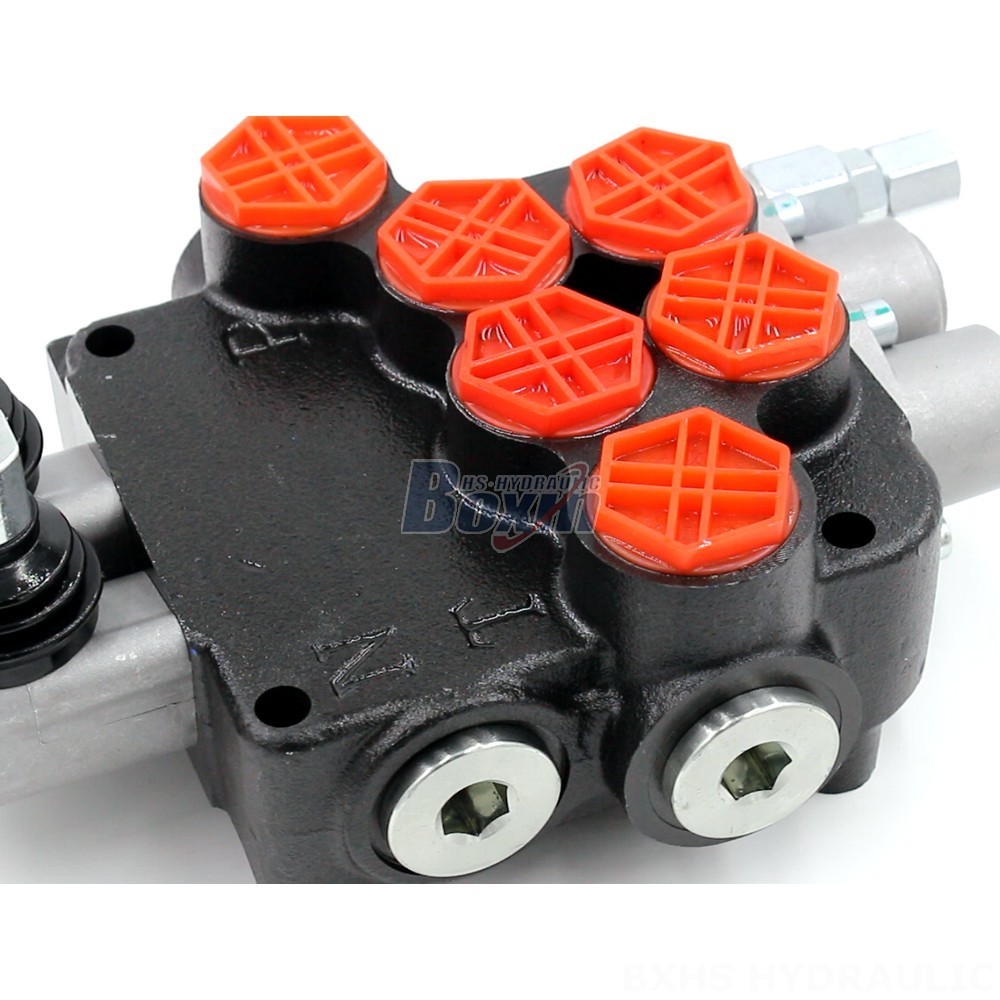

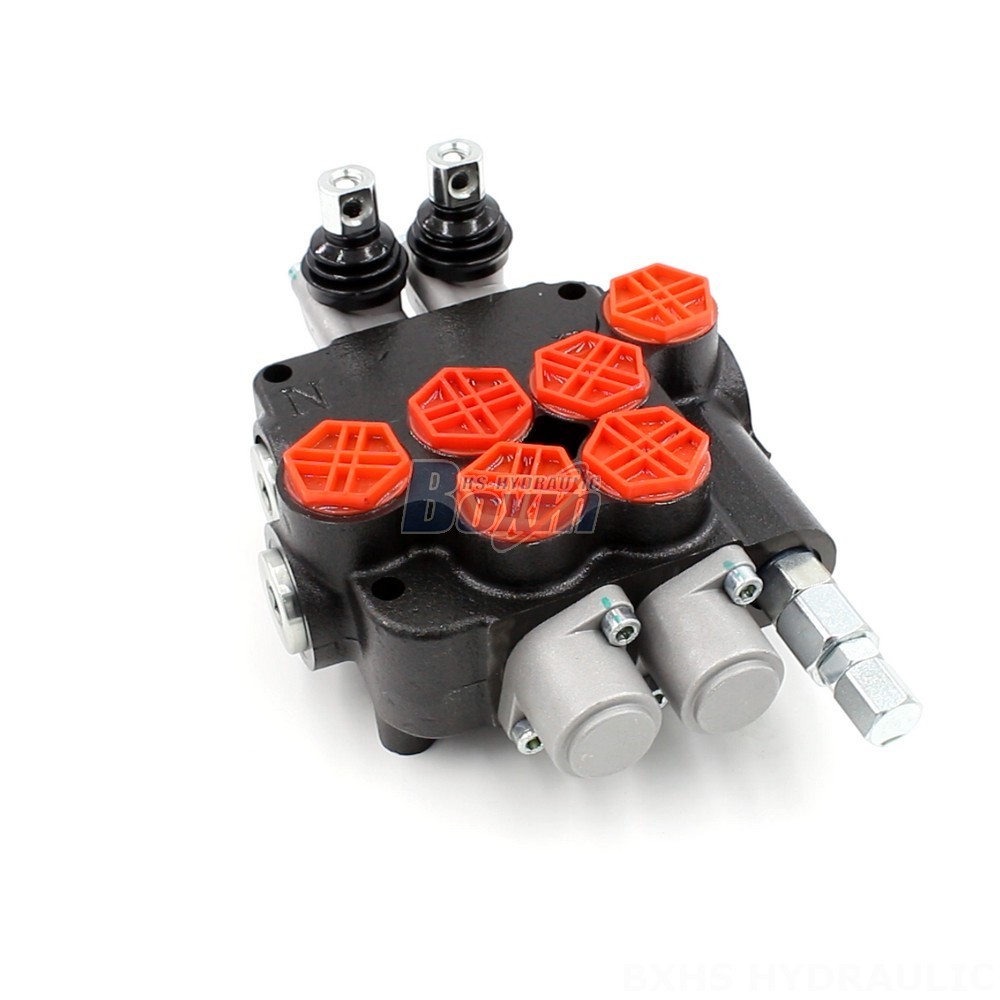

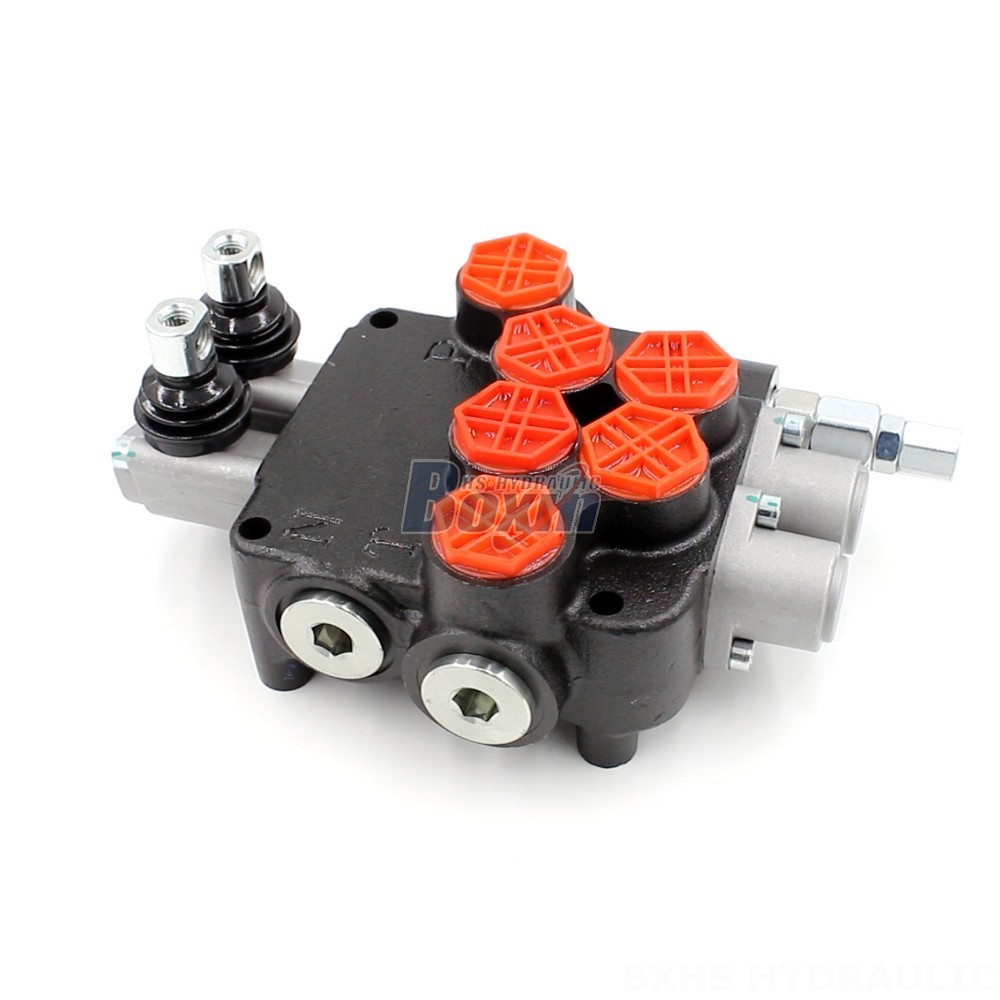

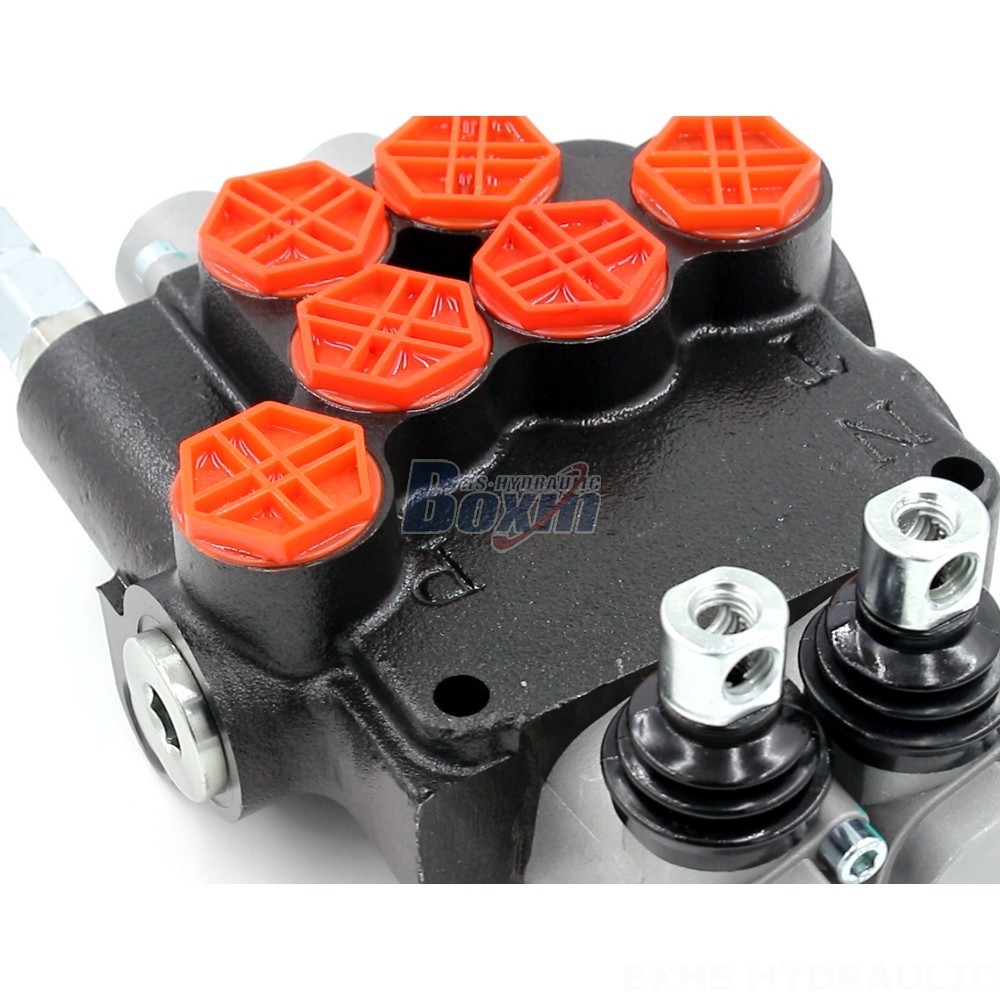

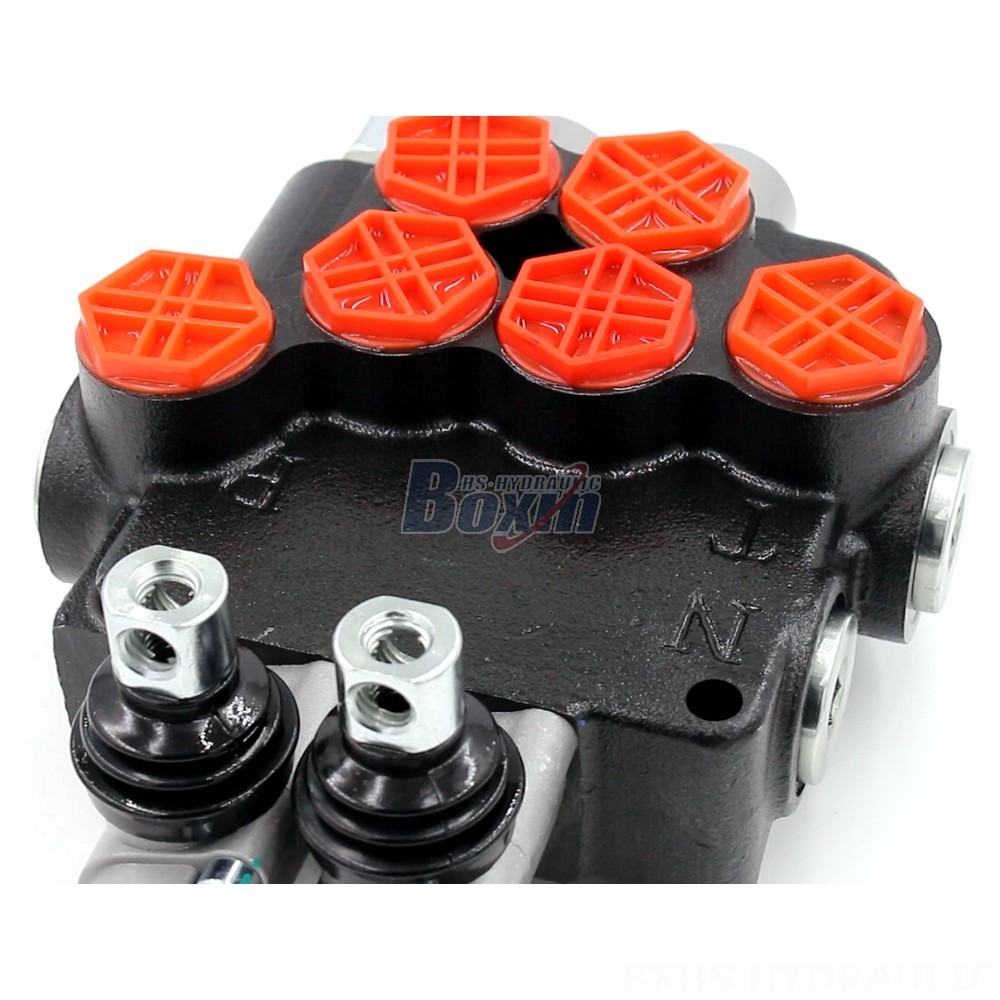

2 Spool Hydraulic Valve P80-G34-2OT

2 Spool Hydraulic Valve P80-G34-2OT

2 Spool Hydraulic Valve P80-G34-2OT drawing image

The P80-G34-2OT is a 3-Sectional Proportional Hydraulic Distributor with 2 Spools, designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This high-performance hydraulic valve from our P80 series is a 2-section, monoblock valve with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). Its manual control method and 2 spool design provide precise and reliable operation. The P80-G34-2OT is suitable for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. It operates in a wide temperature range of -40°C to +80°C (-40°F to +176°F) and handles viscosity ranges from 15 to 75 mm²/s (15 cSt to 75 cSt). We offer this valve as a manufactured product, OEM, private label, customized solution, and wholesale option. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
