2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

Metode Kontrol:Selenoid

Spul:2 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:200 bar (2900 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:37*18*11

Kelas kotor:9.50 kg

Ketersediaan: Tersedia

1151 Pandangan Mencari Produk Ini

2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable drawing image

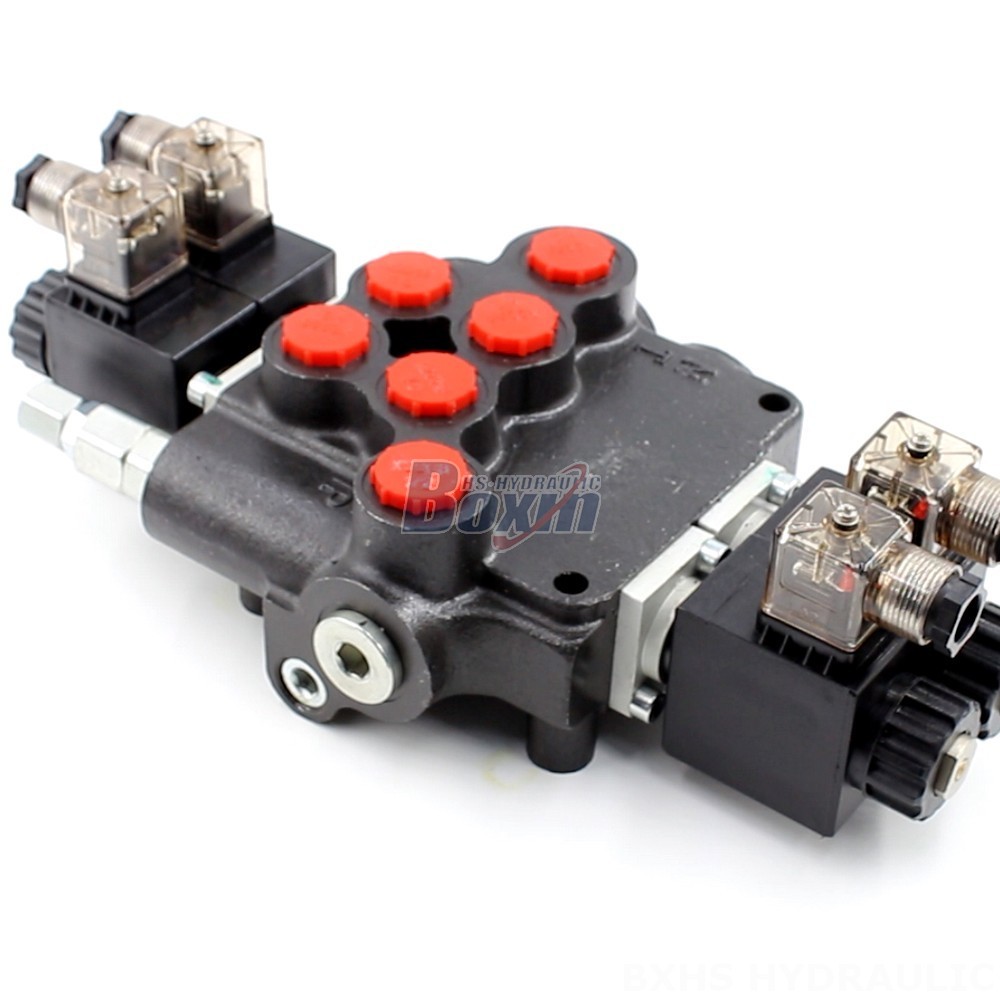

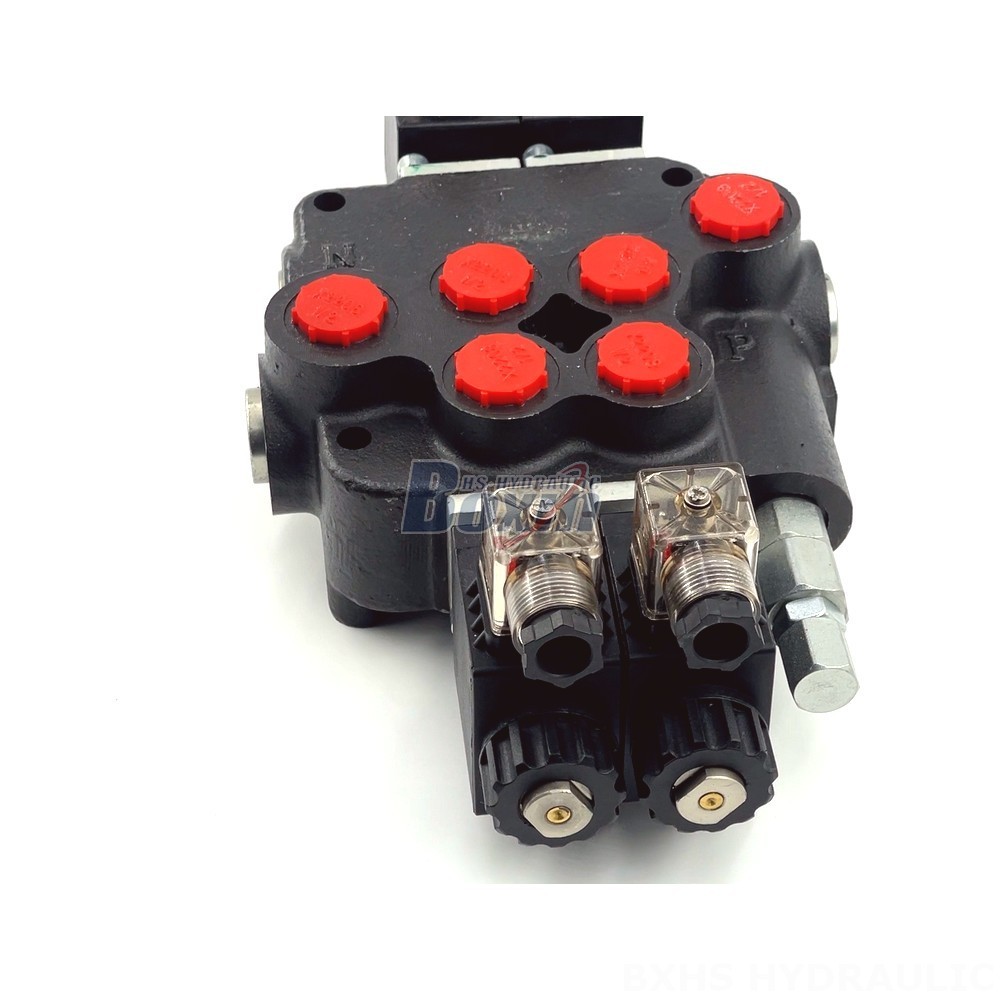

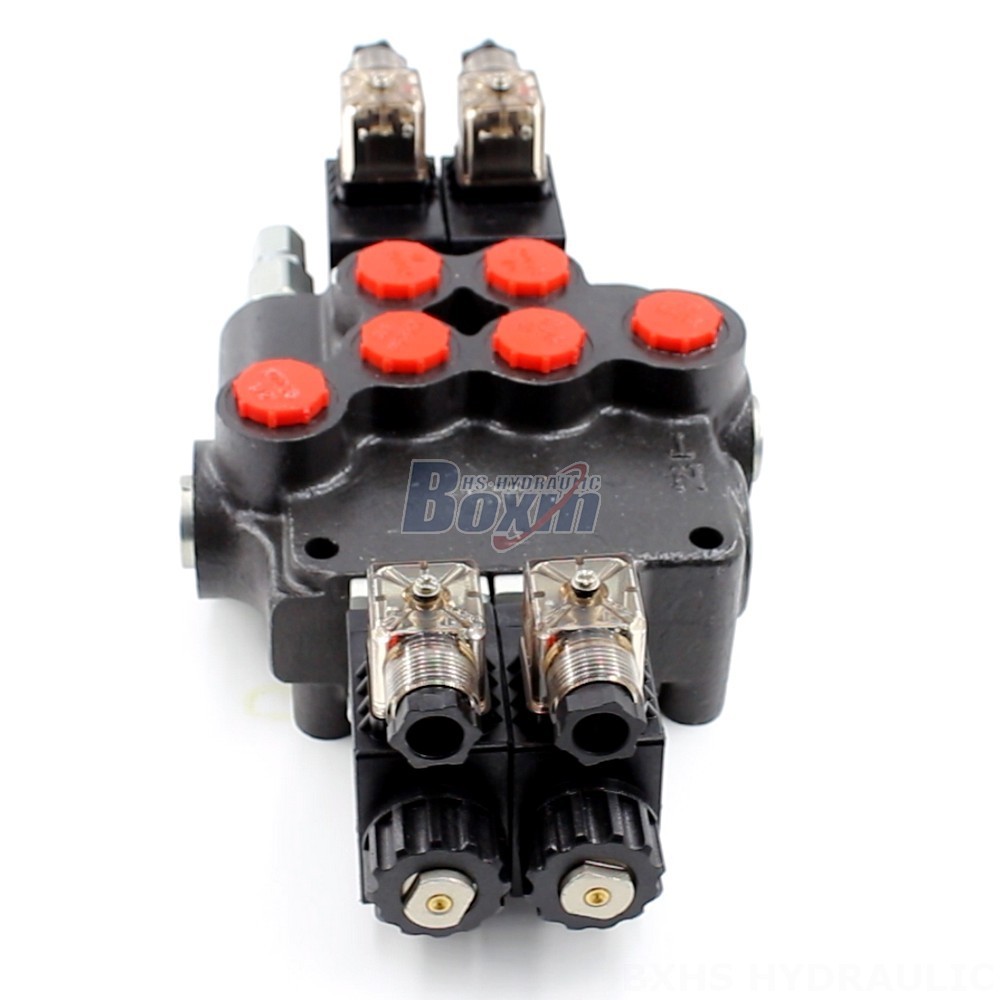

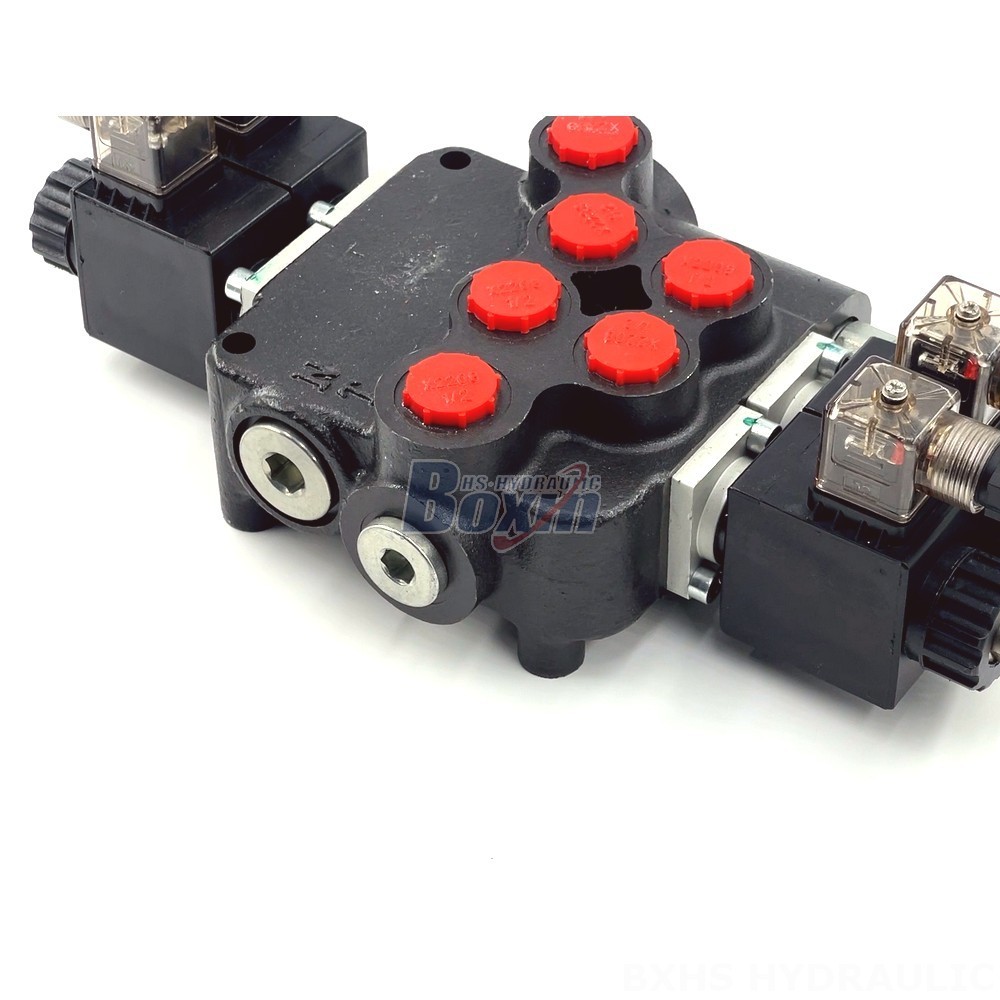

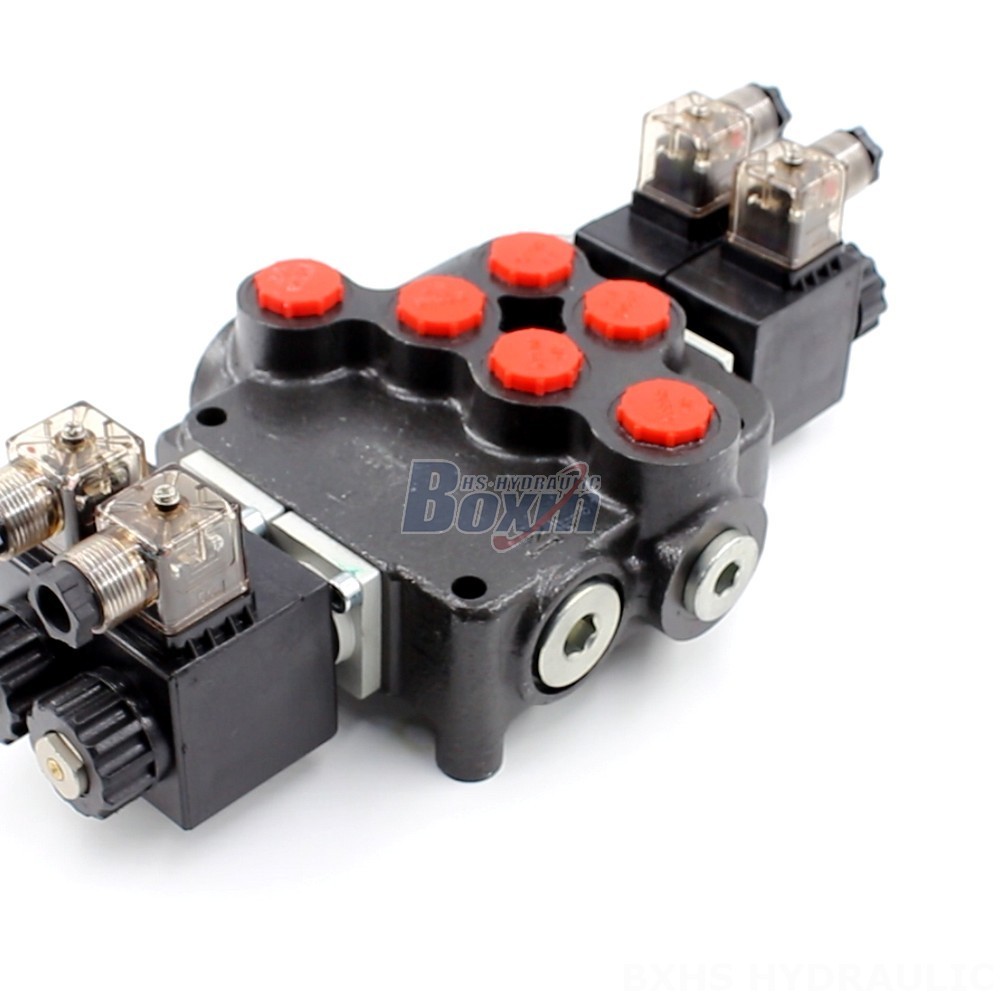

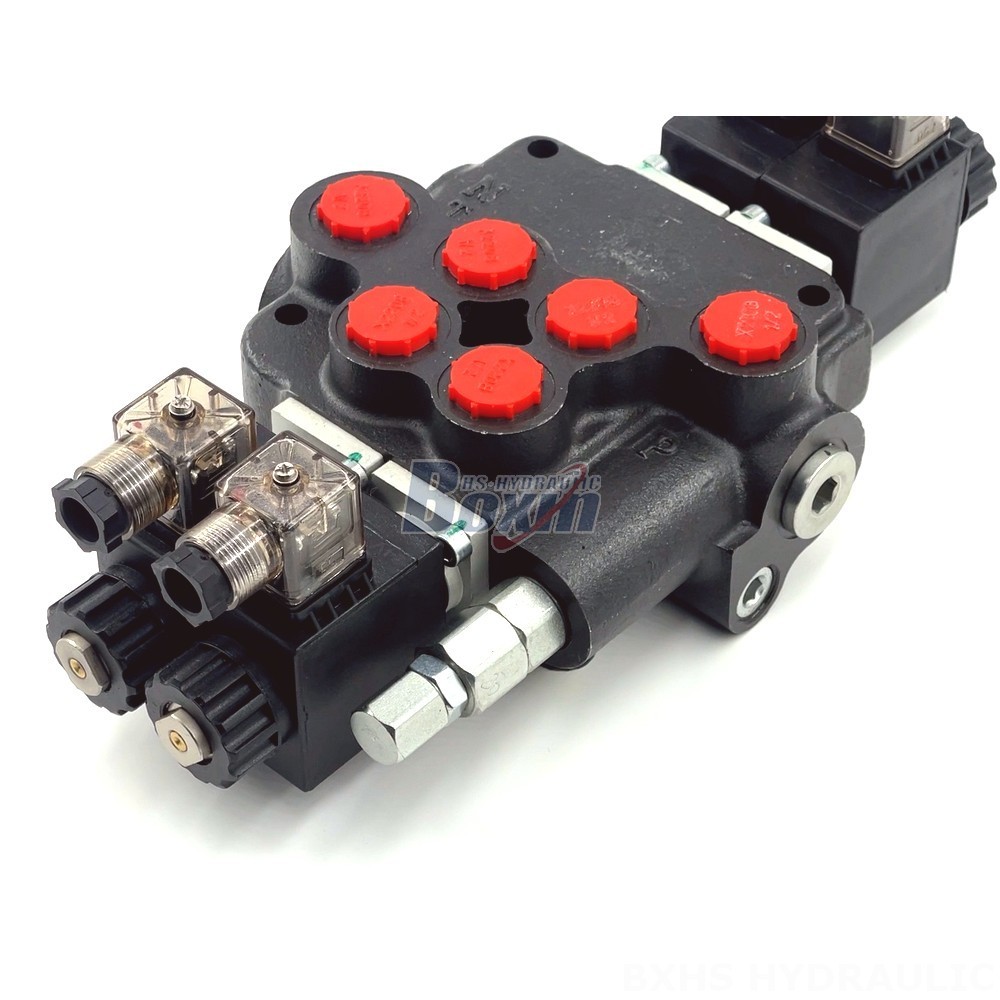

Our P80 model Two Output Hydraulic Levers is a 2-spool, monoblock hydraulic valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. It features a high flow rate and pressure capacity, making it suitable for demanding operations. The valve is available in a variety of configurations and can be customized to meet your specific requirements.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 model Two Output Hydraulic Levers is a powerful and versatile hydraulic valve, featuring a 2-spool design and a robust monoblock construction. This valve delivers a high flow rate of 80 L/min (21.2 US gpm) and can withstand pressures up to 250 bar (3600 psi), making it suitable for heavy-duty applications. It's designed for use in a range of vehicles and equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. The valve's solenoid control system offers precise and reliable operation. It's also built to withstand extreme temperatures, operating reliably in environments from -40°C to +80°C (-40°F to +176°F). Our P80 model is available directly from the factory and can be customized to meet your specific needs. Contact us today for more information about this powerful and reliable hydraulic valve.
