Introducing our P80 Model 3-Spool Electro-hydraulic Valve, a robust and versatile solution for demanding hydraulic systems. Manufactured with precision and customizable to your specifications, this valve offers exceptional performance and reliability.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

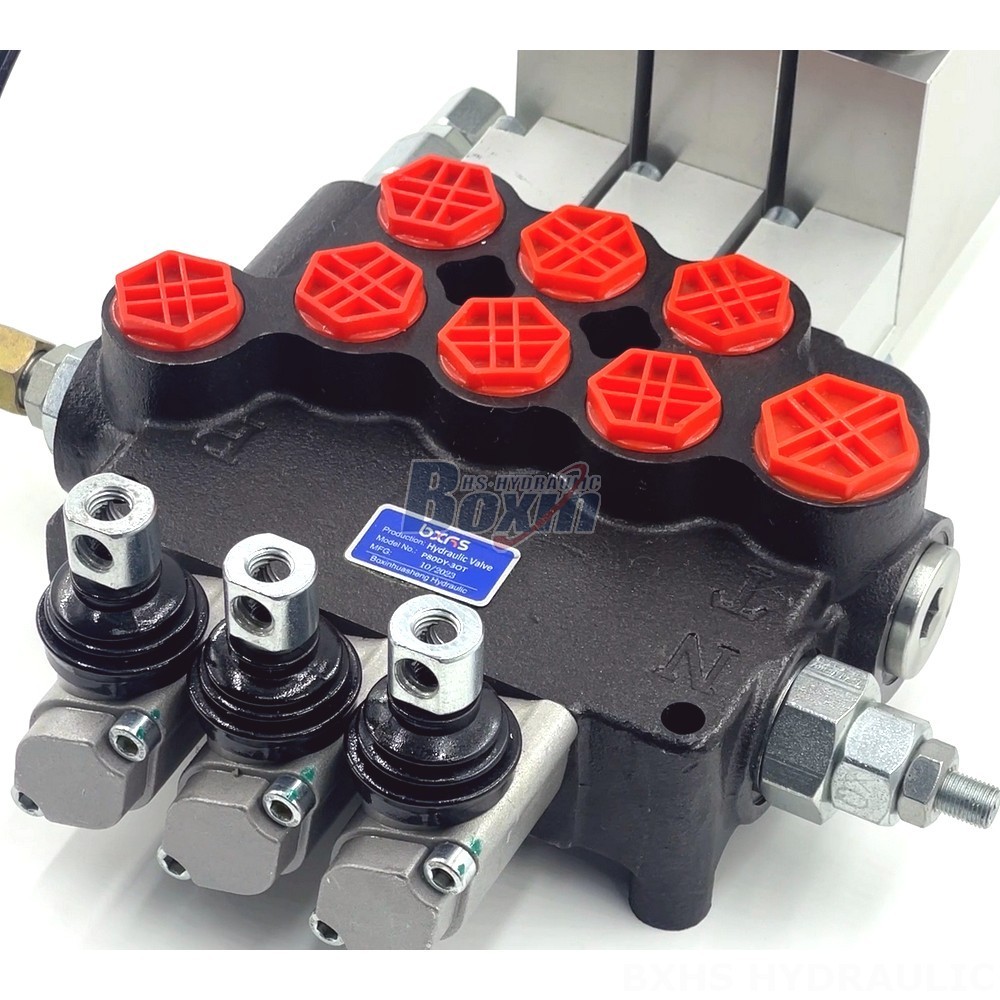

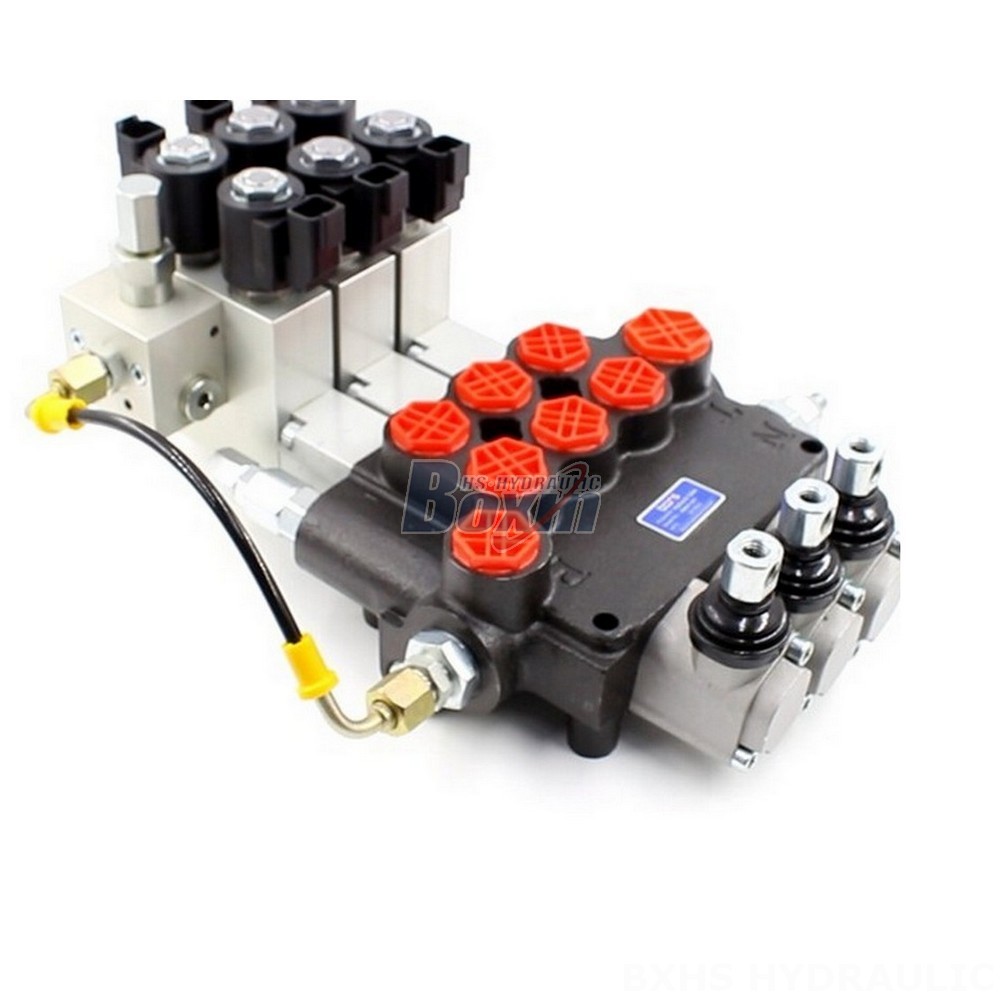

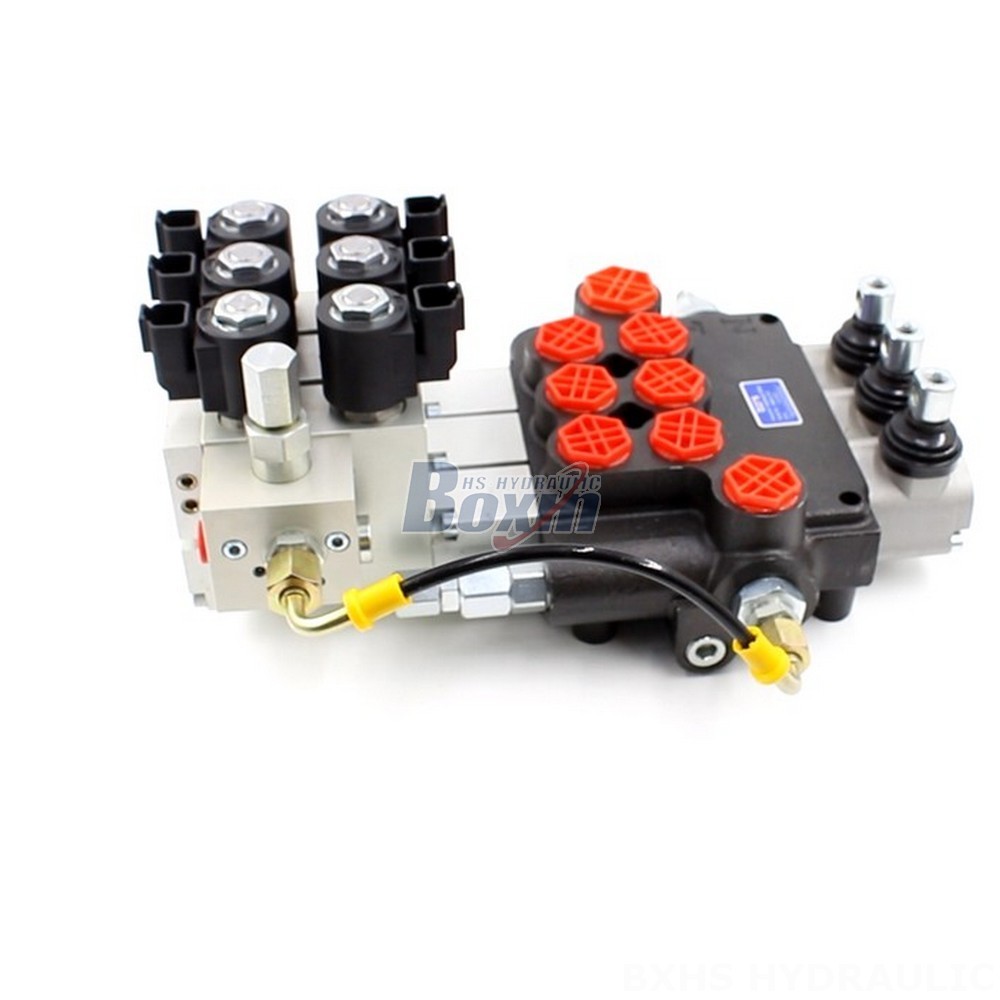

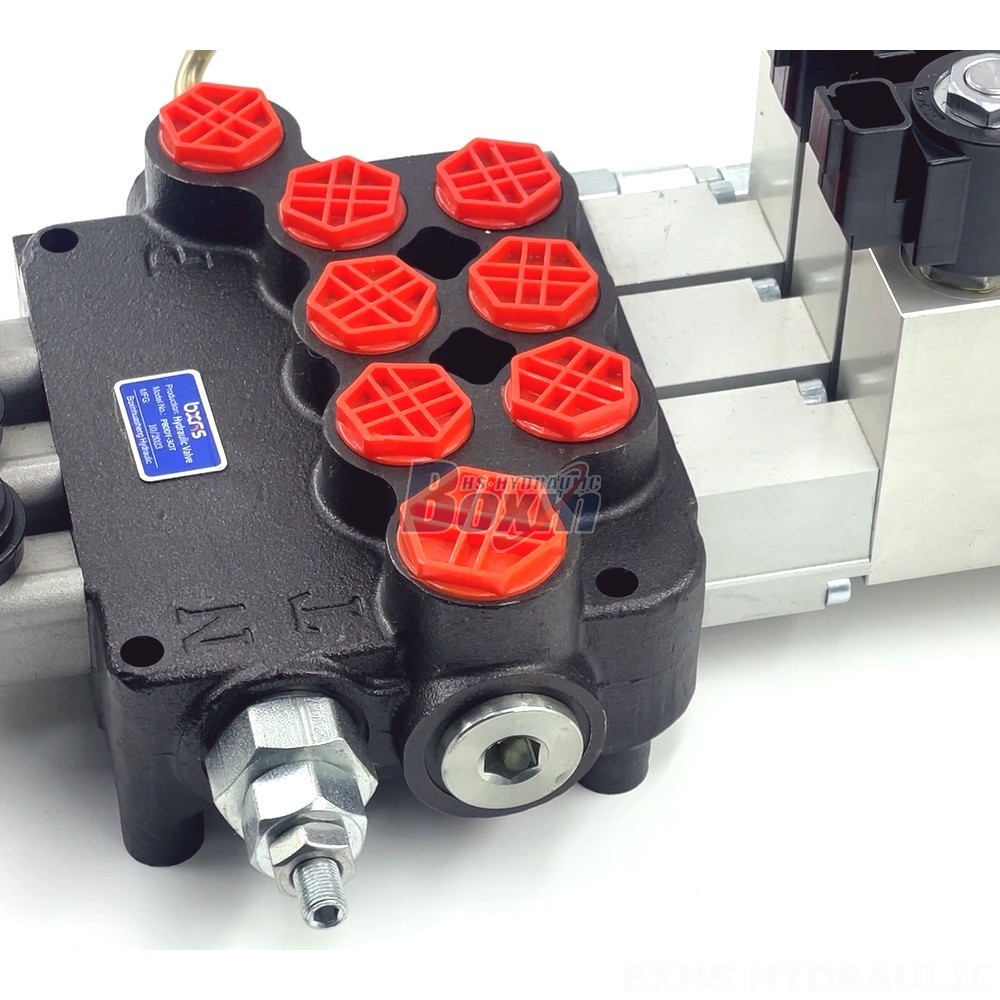

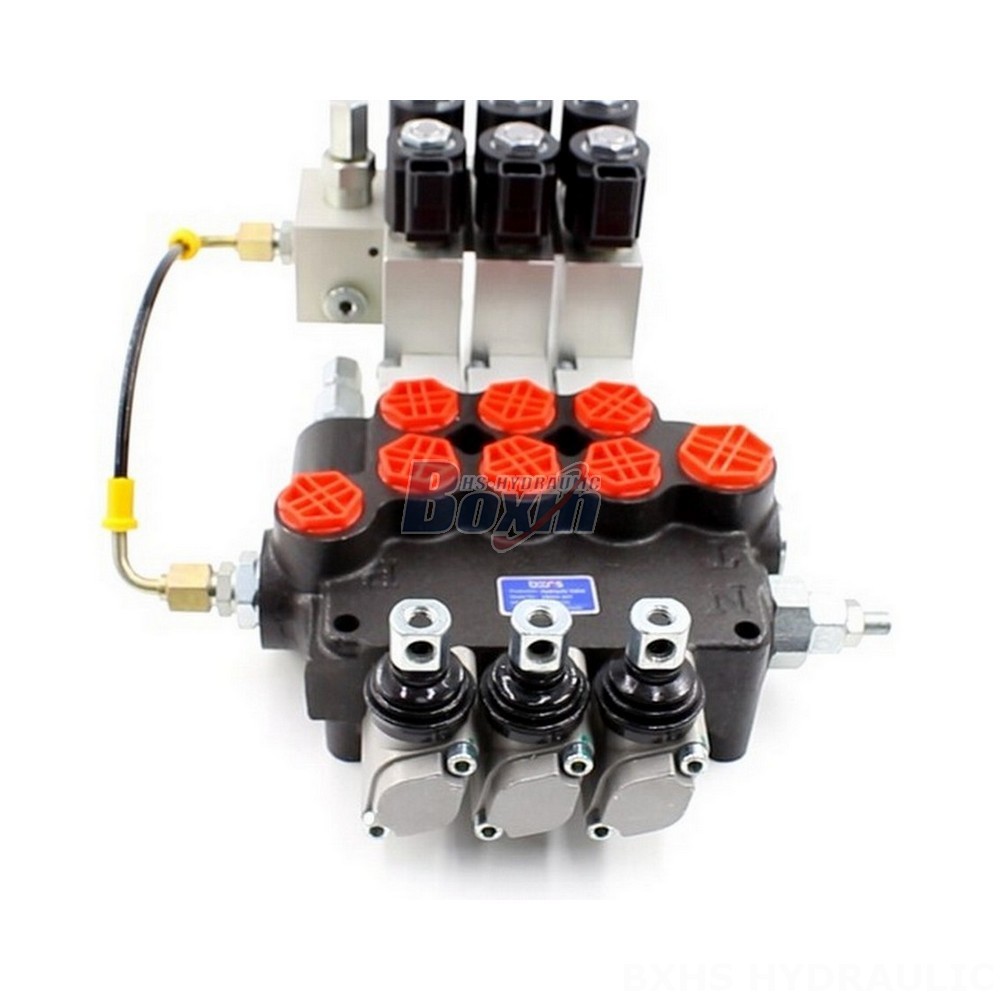

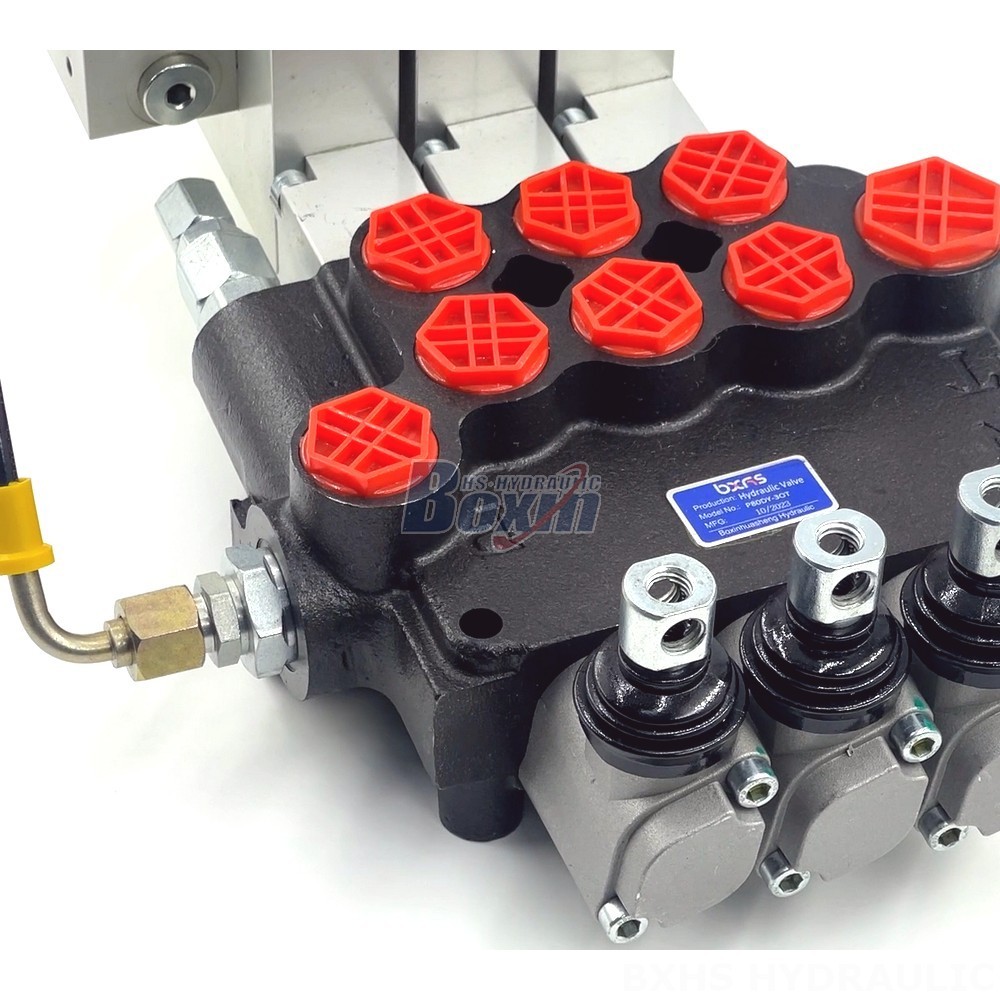

**P80 Model 3-Spool Electro-hydraulic Valve**
**Key Features:**
- Electro-hydraulic control for precise and responsive operation
- 3-section monoblock design for compact and efficient installation
- Rated flow of 80 L/min (21.2 US gpm) for high-flow applications
- Maximum pressure capacity of 250 bar (3600 psi) for demanding hydraulic systems
- Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in extreme environments
- 3 spool configuration for versatile control of multiple hydraulic functions
- Part of the P80 Series, known for durability and reliability
**Applications:**
- Material handling equipment (e.g., forklifts, telehandlers)
- Construction and earth-moving machinery (e.g., excavators, skid steer loaders)
- Agricultural machinery (e.g., tractors, combines)
- Industrial vehicles (e.g., aerial platforms, motor graders)
