High-quality and reliable 3 Spool Hydraulic Directional Valve with solenoid control, monoblock structure, 40 L/min rated flow, and 250 bar max pressure. Suitable for various applications including material handling, construction, agriculture, and industrial vehicles.
| P40-DKL Series Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |

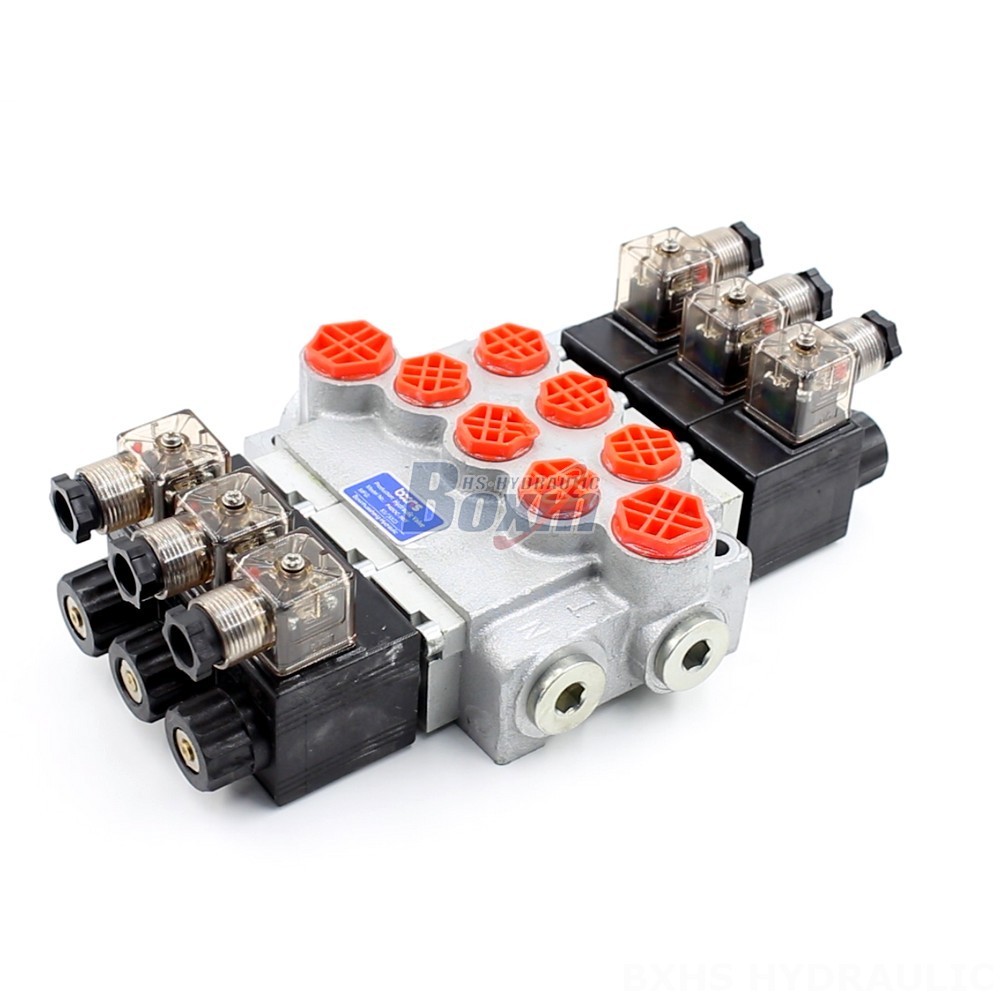

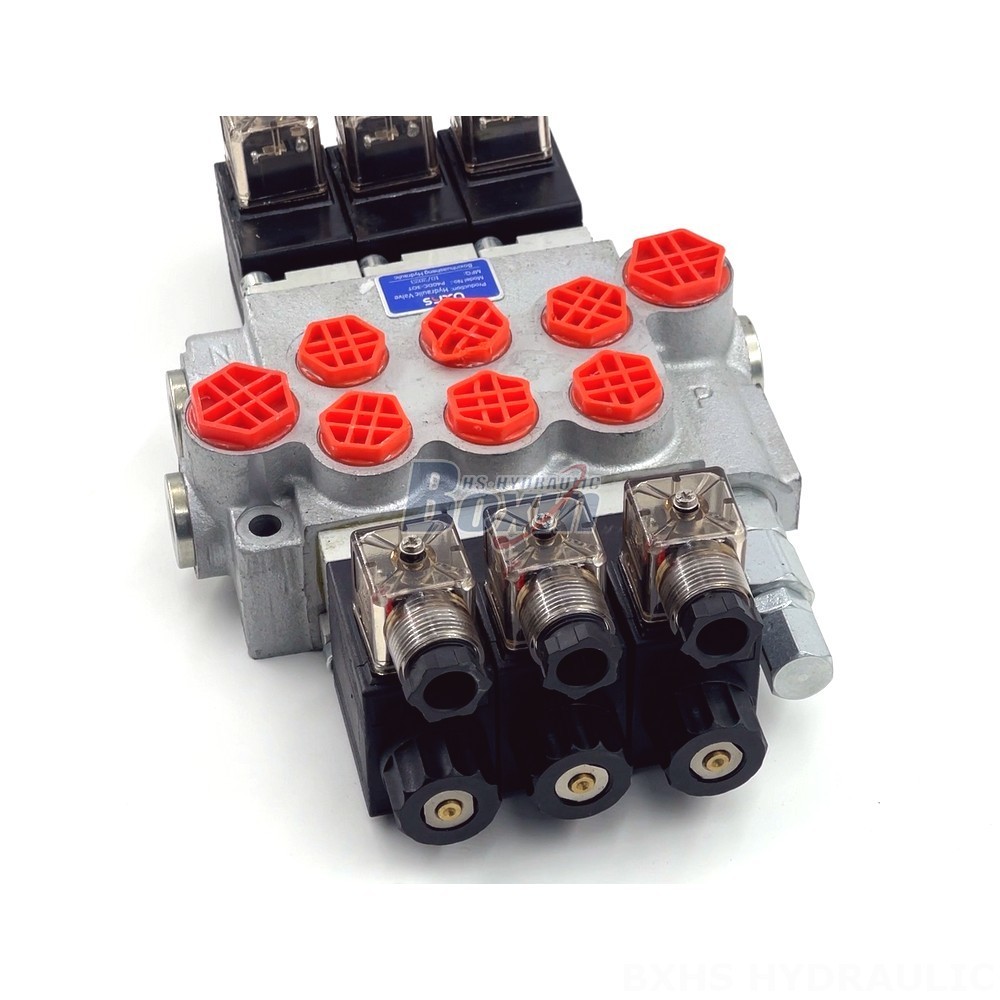

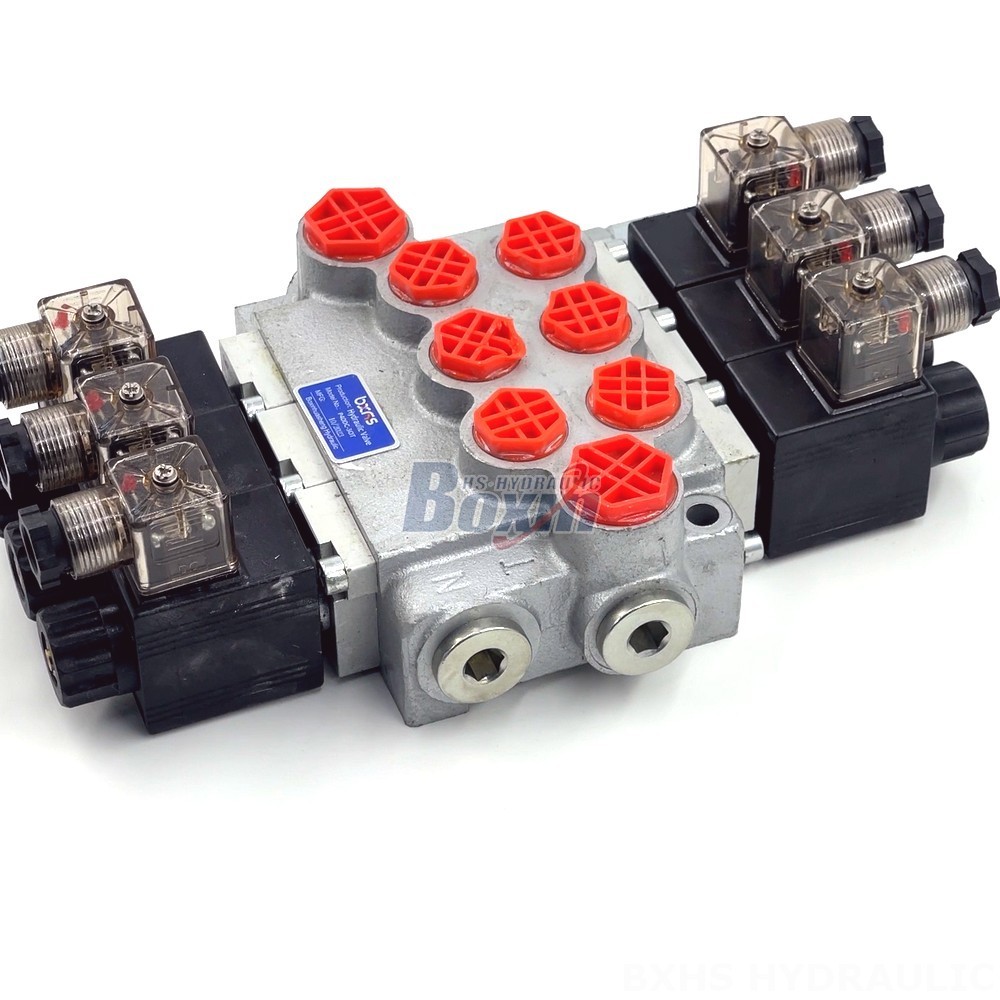

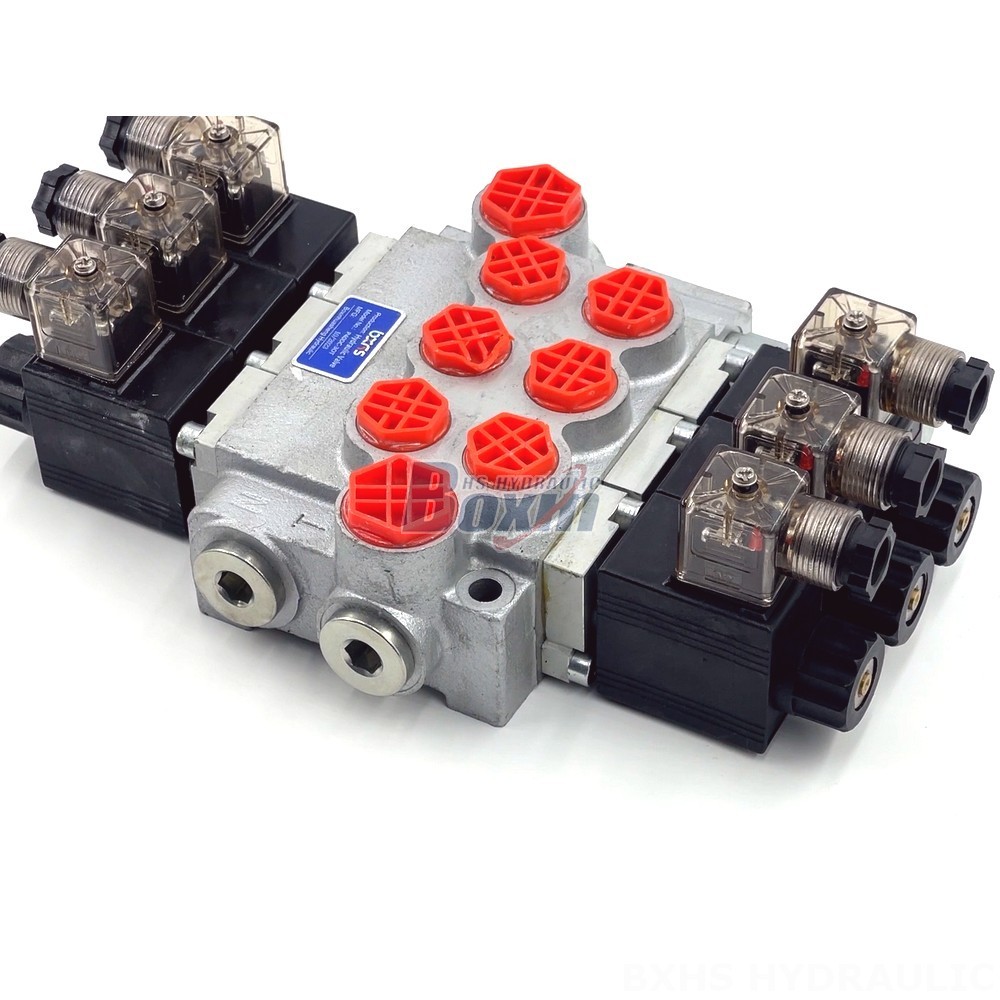

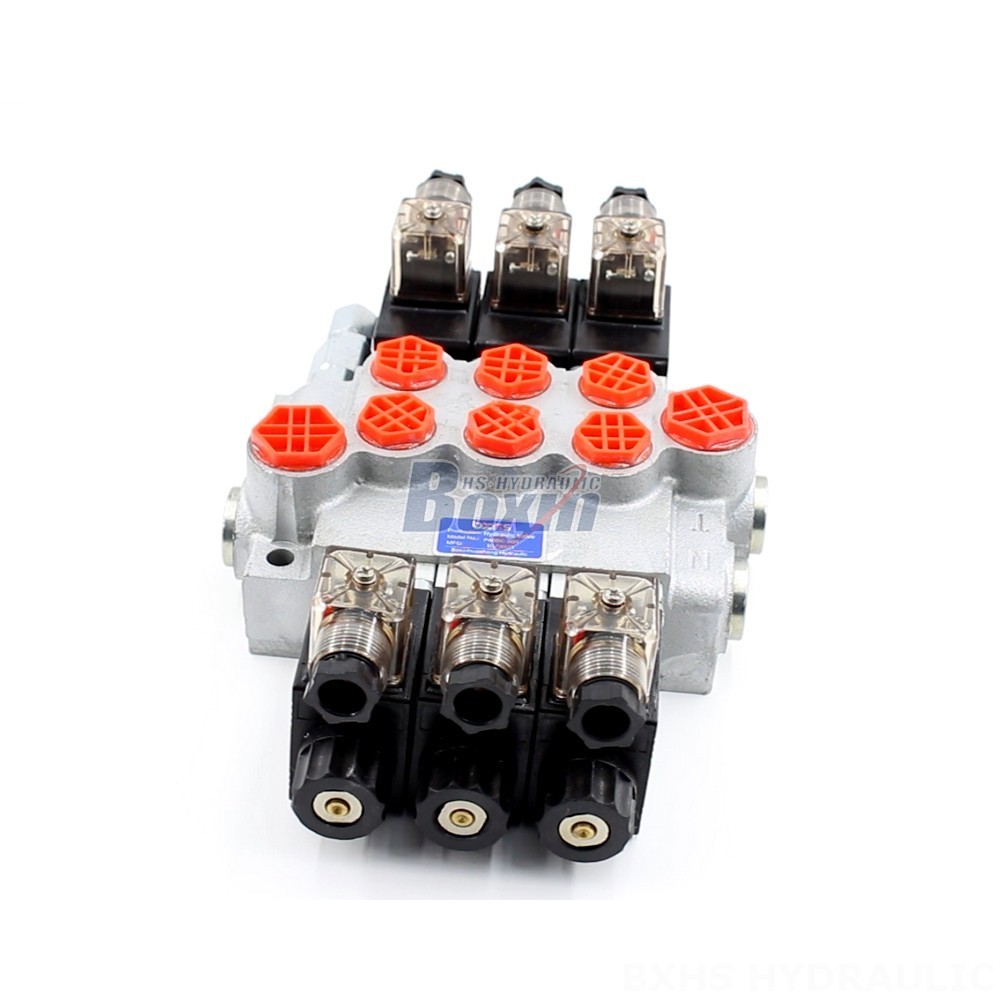

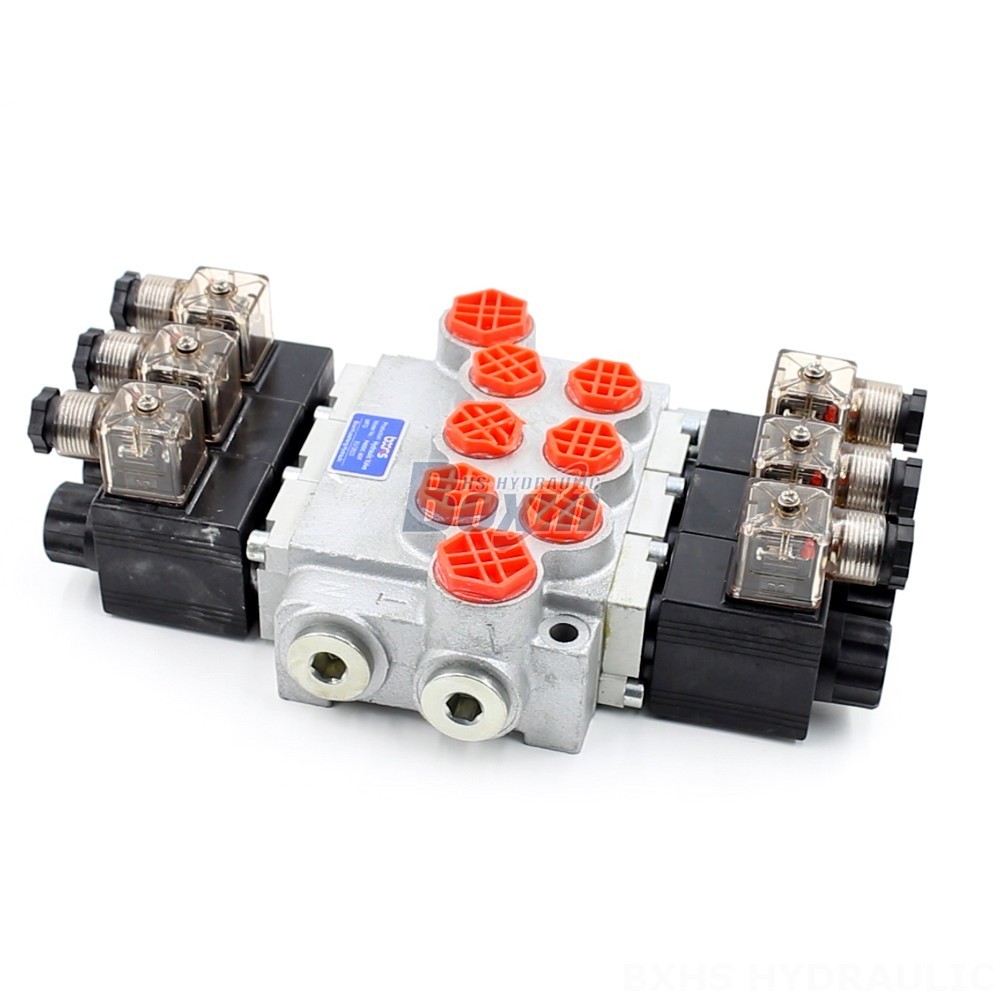

**3 Spool Hydraulic Directional Valve**
**Control Method:** Solenoid
**Section:** 3 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 3 Spool
**Series:** P40-DKL Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
