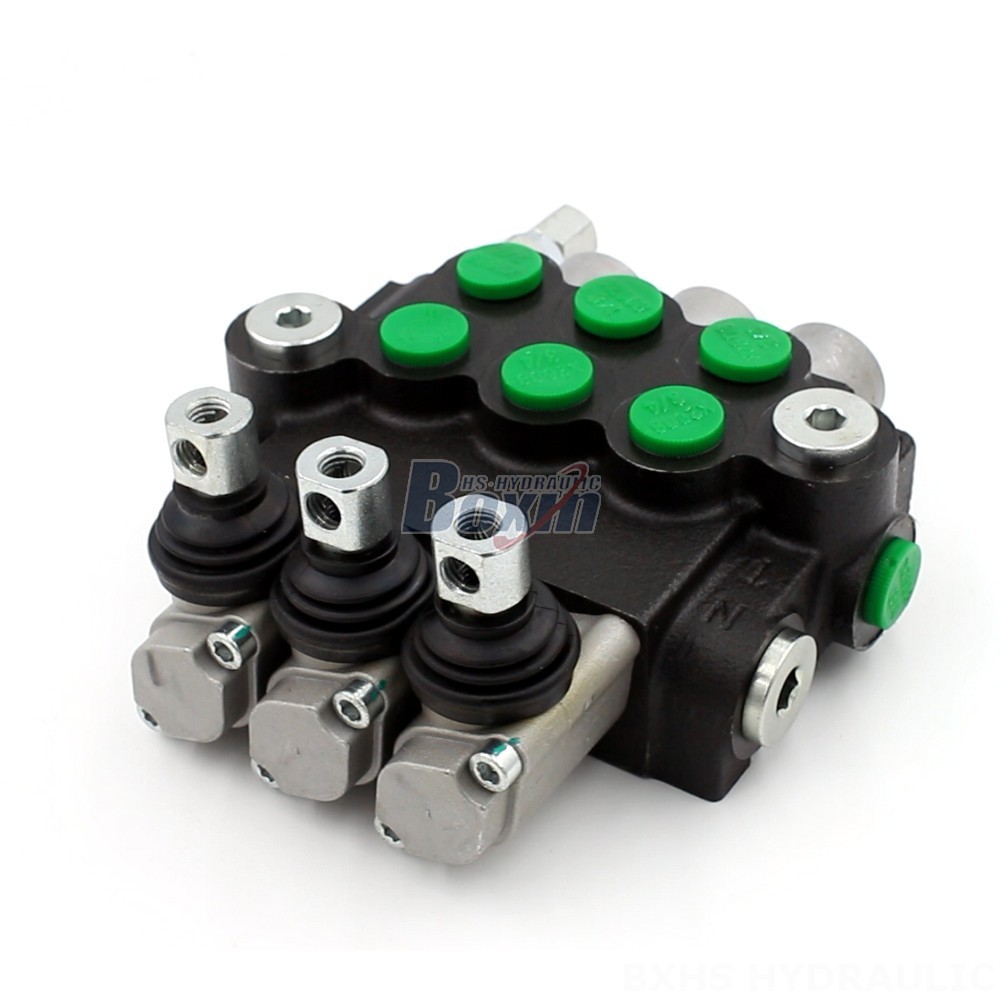

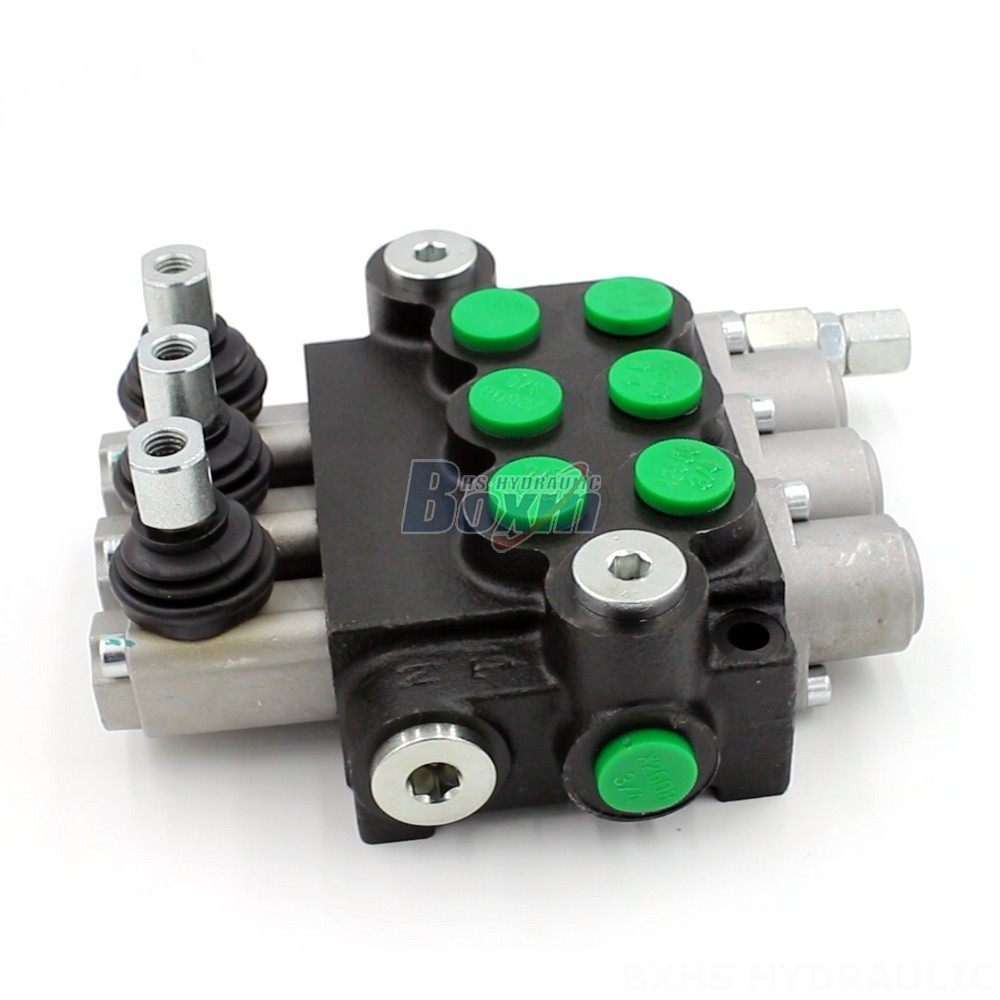

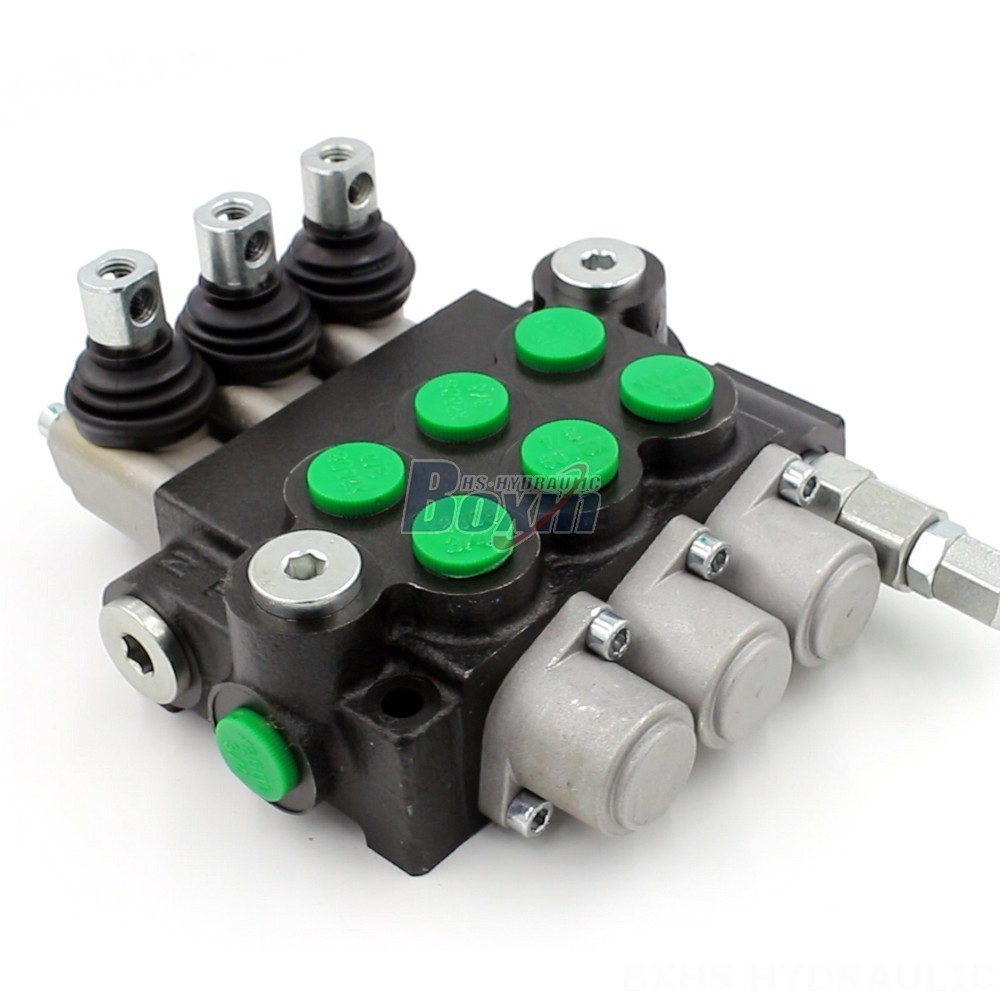

The 3-Spool Hydraulic Directional Valve - P40-U34-OT Series is a high-quality, durable valve designed for use in a wide range of applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for use in material handling, construction, agriculture, and industrial vehicle applications.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U34-OT Series 3-Spool Hydraulic Directional Valve is a monoblock valve with manual control. It has a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve is designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. Some of the specific applications include telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, and skid steer loaders.
