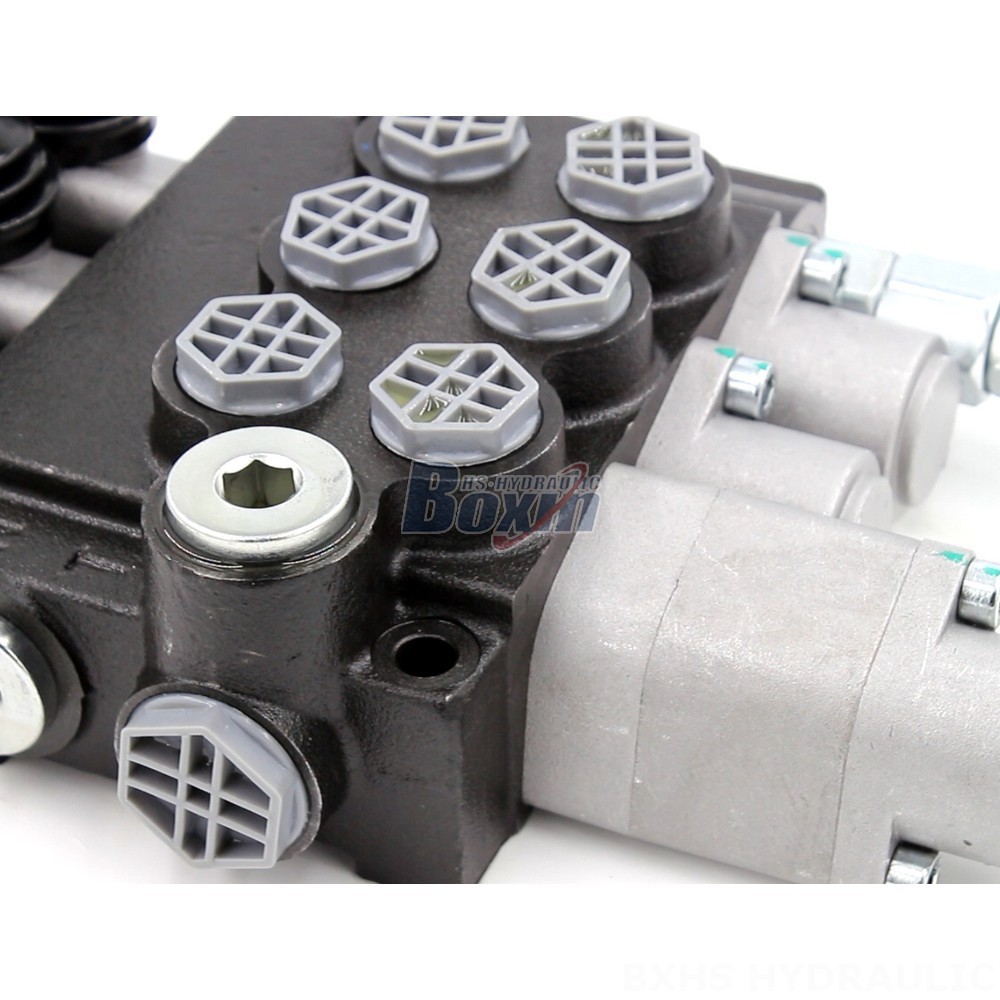

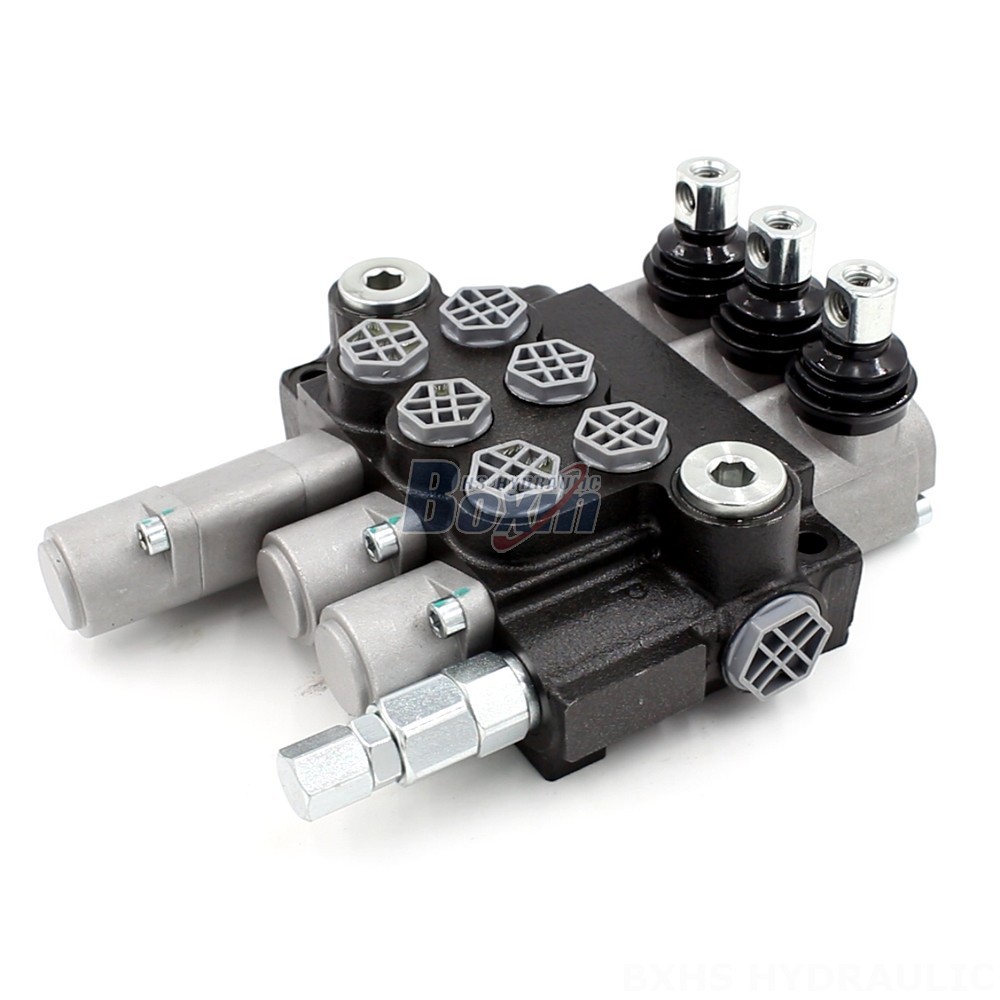

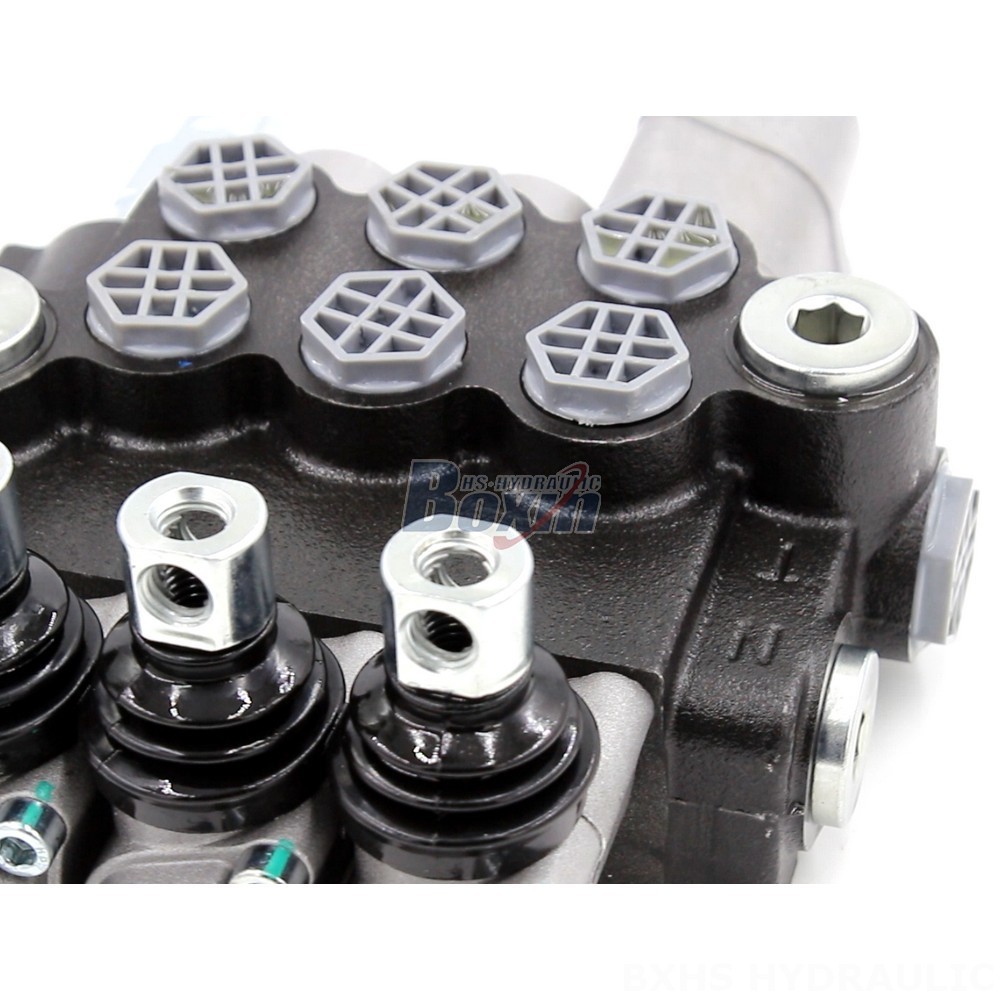

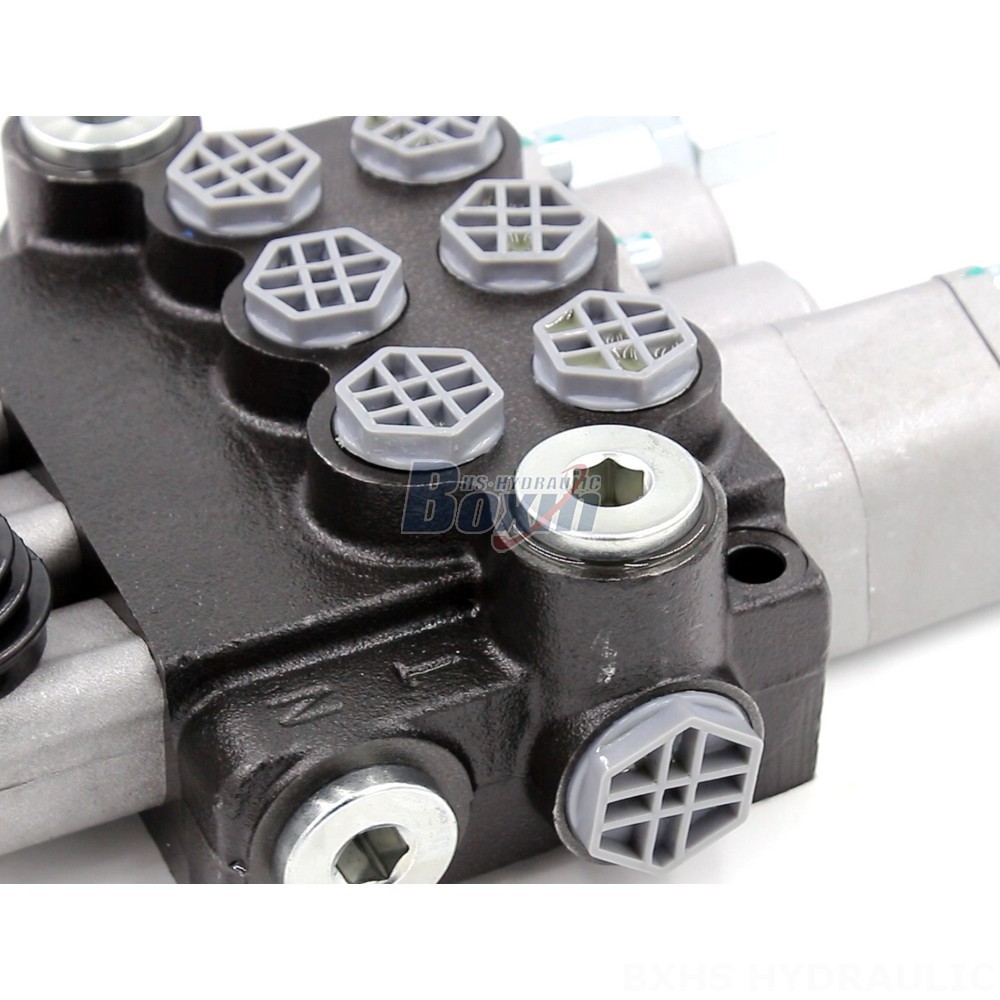

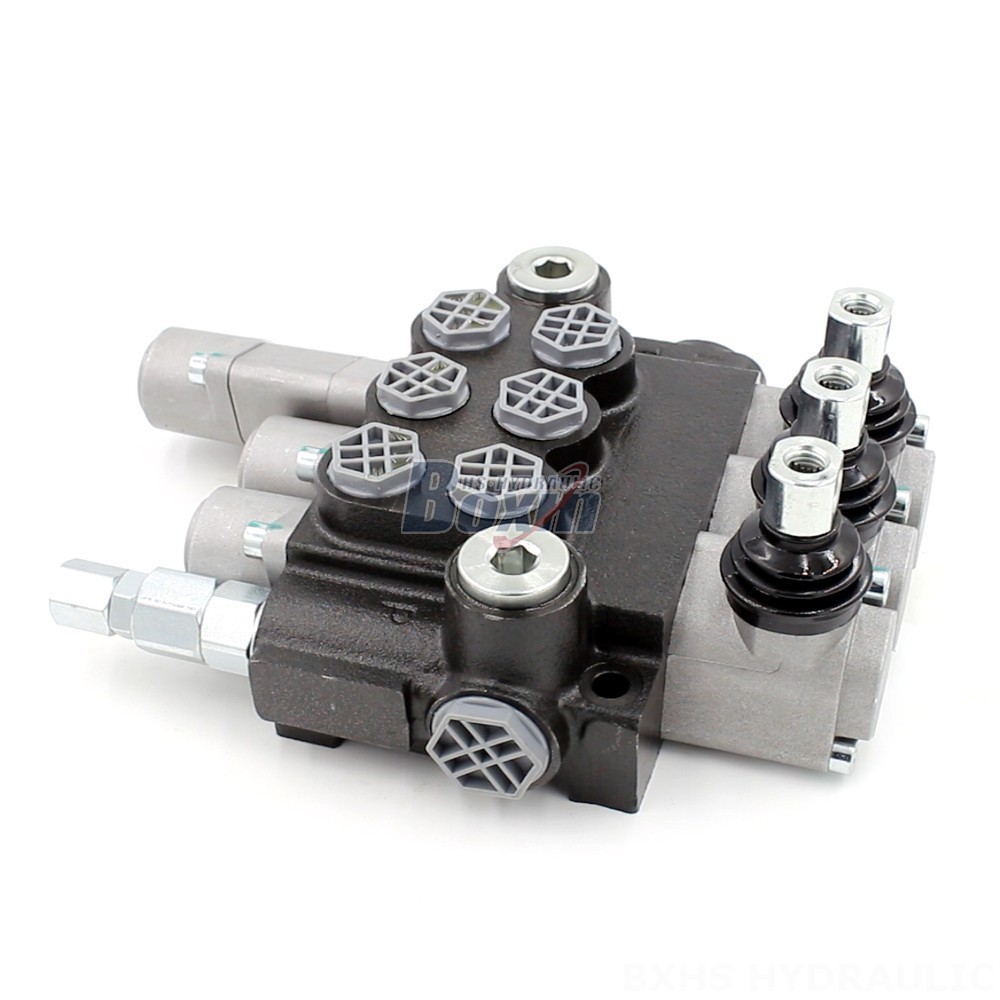

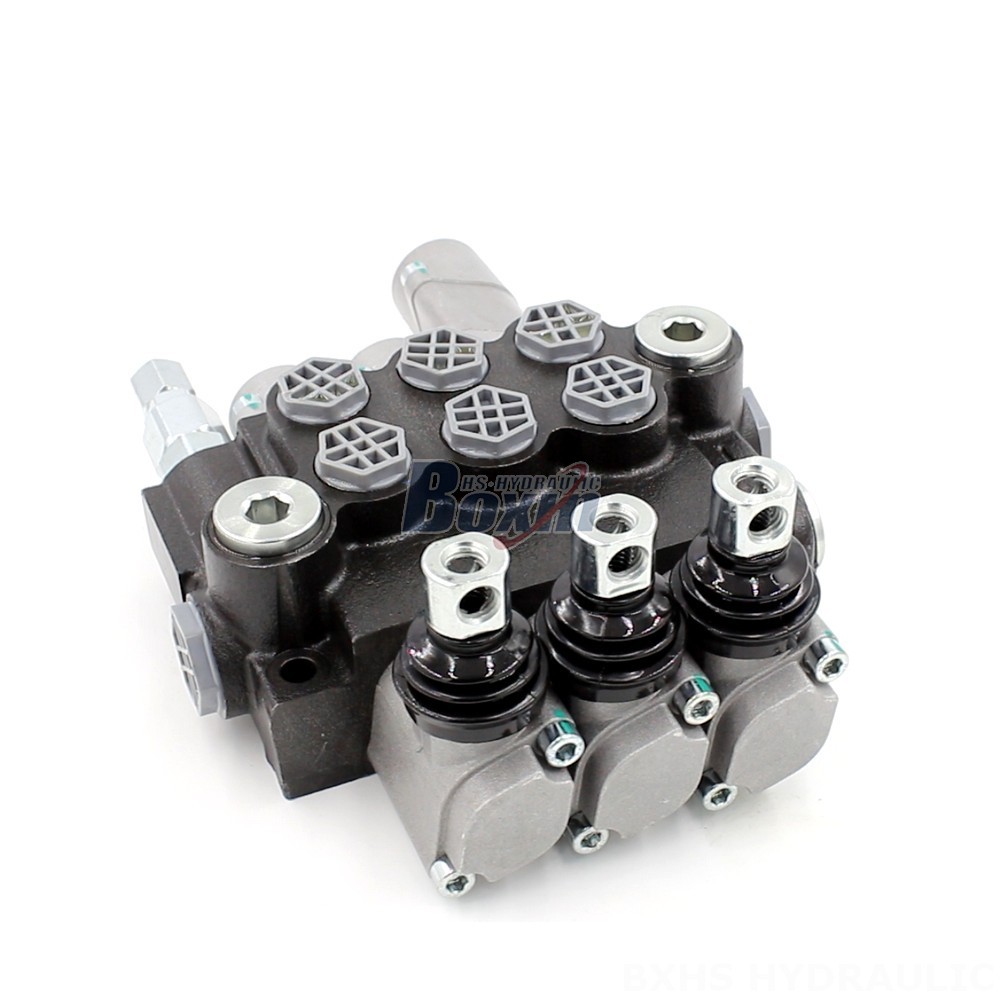

The Autocycle Hydraulic Valve 3 Spool Manual Directional Valve - P40-G12-G38 is a high-performance, reliable valve designed for use in a variety of applications, including material handling, construction, and agriculture. It features a 3-spool, monoblock design, a rated flow of 40 L/min, and a maximum pressure rating of 250 bar.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This manual directional valve is part of the P40 series and offers a robust solution for controlling hydraulic systems in various applications. The valve features a compact, monoblock construction with a 3-spool design, allowing for precise control of hydraulic flow. The P40-G12-G38 valve is rated for a maximum pressure of 250 bar (3600 psi) and a flow rate of 40 L/min (10.5 US gpm). It operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and is suitable for ambient temperatures from -40°C to +80°C (-40°F to +176°F). This versatile valve finds applications in a wide range of machines, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini and midi excavators, skid steer loaders, and compact wheel loaders.
