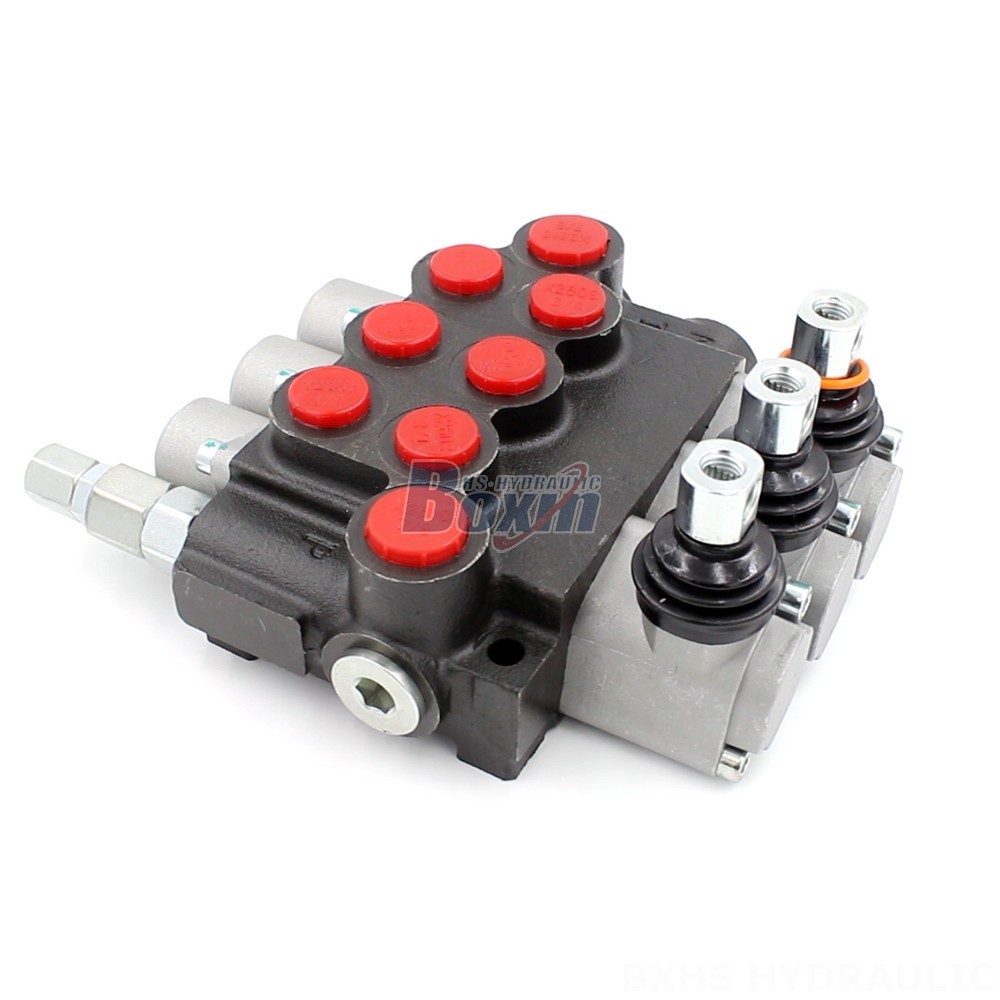

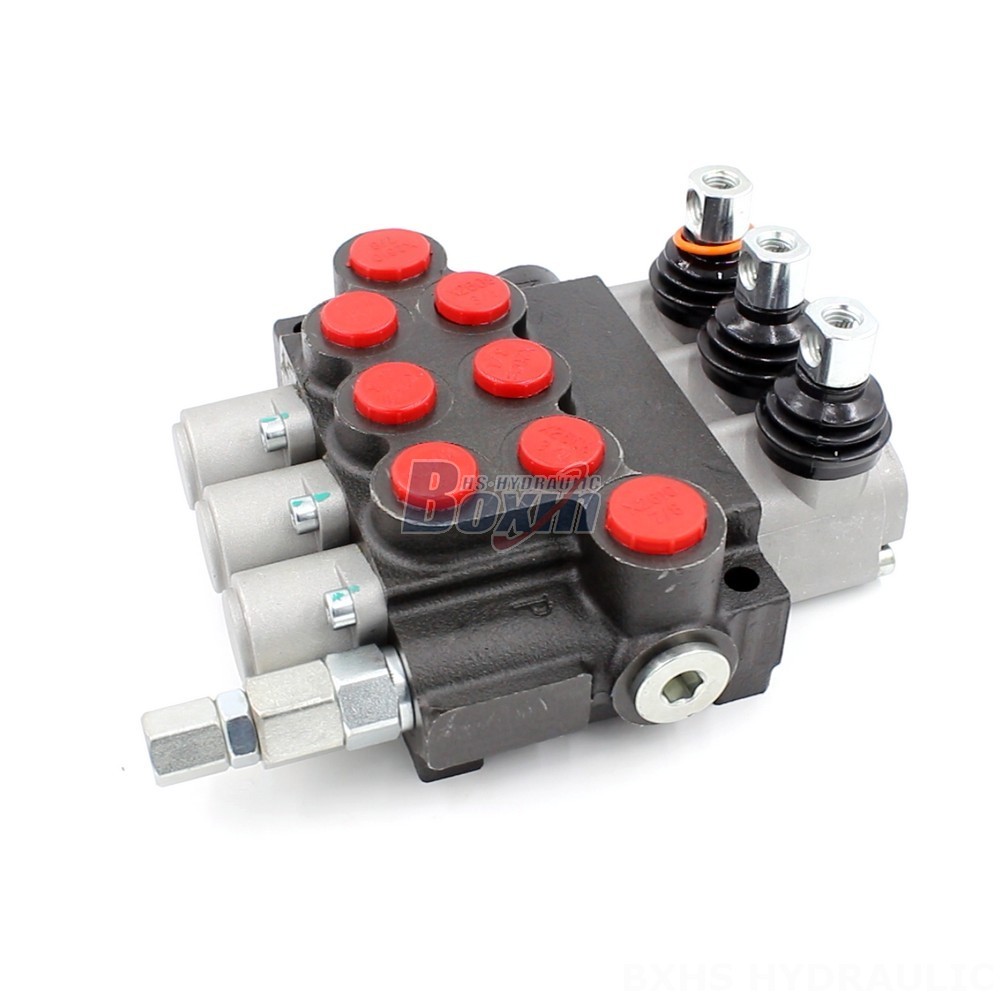

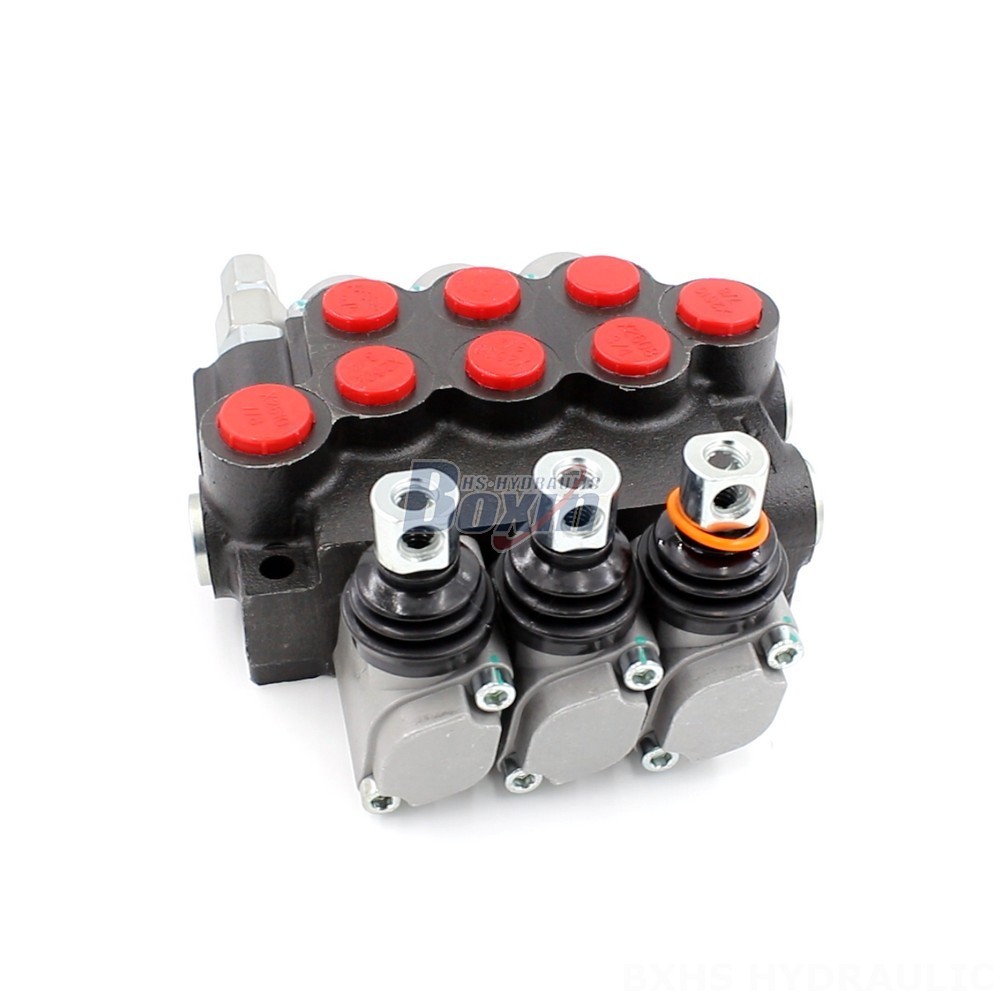

This 3-spool monoblock directional valve is designed for JCB 8065 telehandlers and other construction equipment. It features a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve is available for wholesale and OEM orders.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This high-quality hydraulic valve is specifically designed for use in JCB 8065 telehandlers and other similar applications. It features a robust monoblock construction with 3 spools, delivering precise control and reliable operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve can handle demanding hydraulic systems. It is suitable for a wide range of applications, including material handling, construction, earthmoving, agriculture, and industrial vehicles. This valve is available for both wholesale and OEM orders, allowing you to purchase the perfect solution for your specific needs. We also offer customized options to meet your exact specifications.
