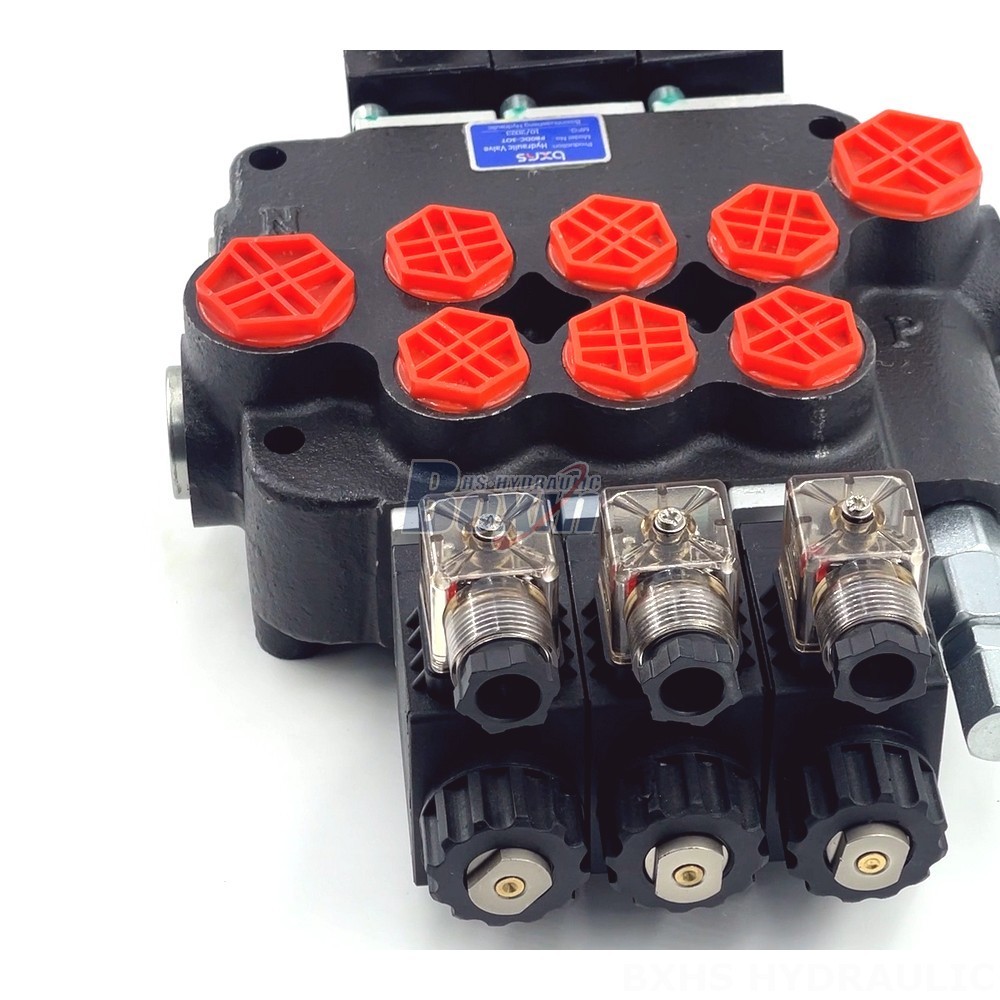

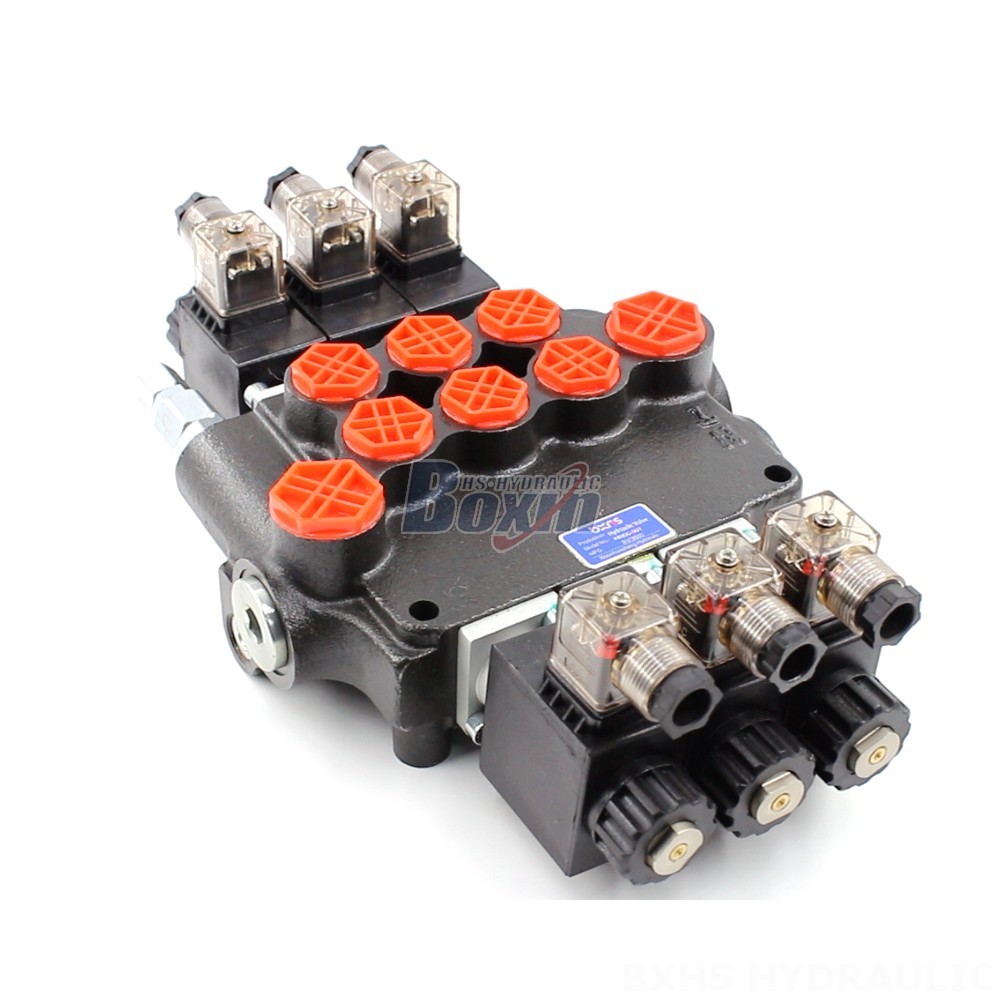

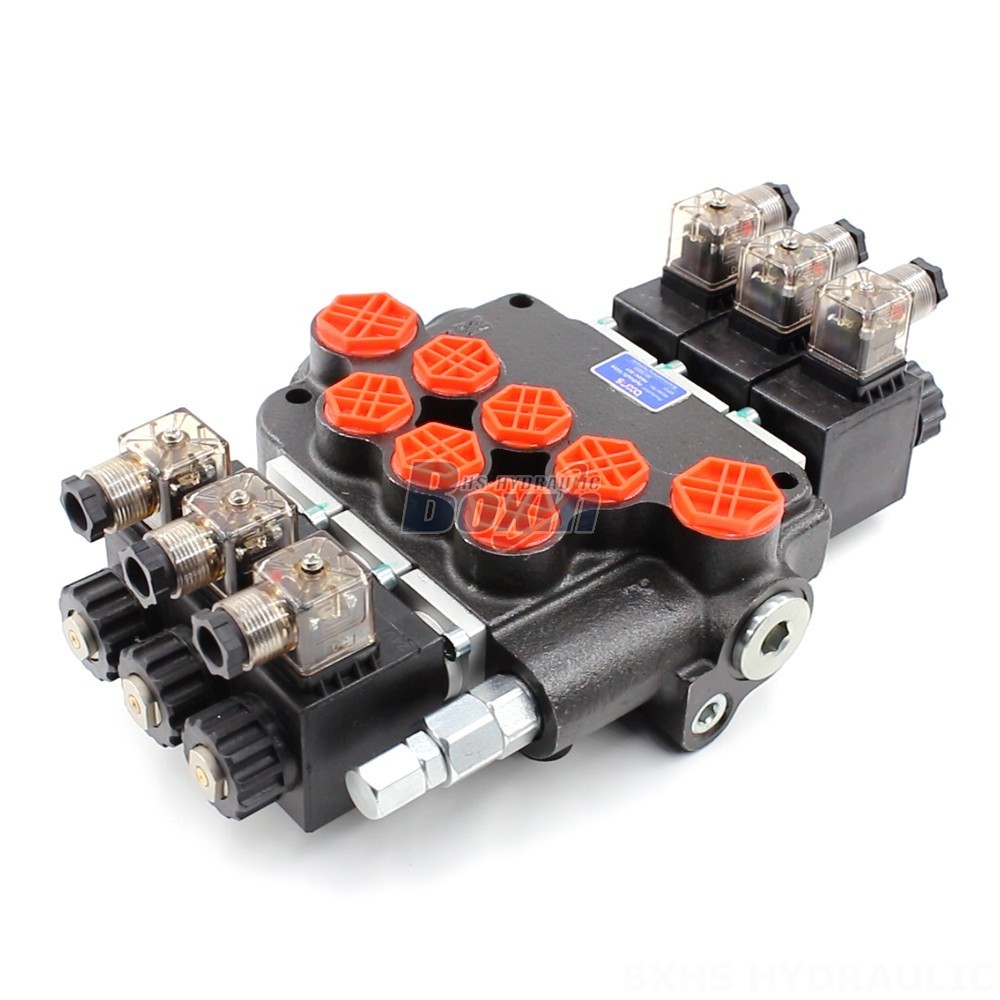

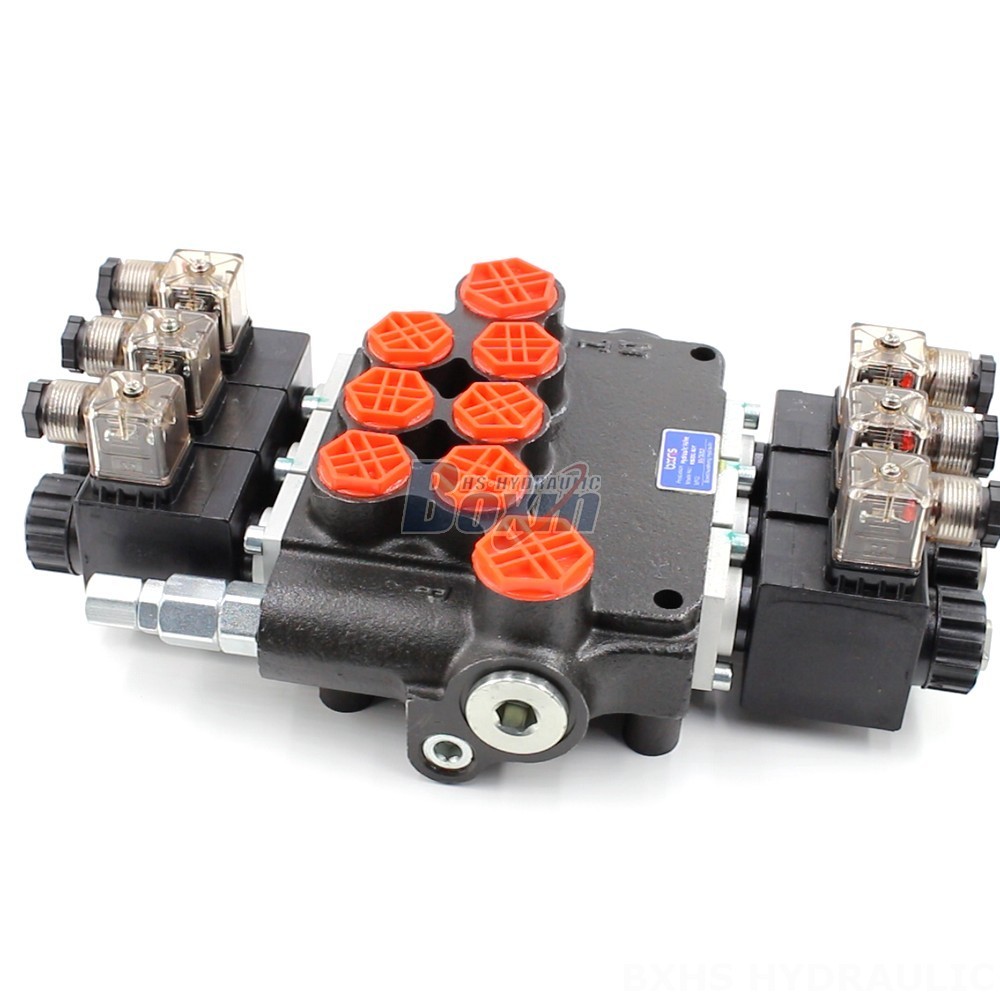

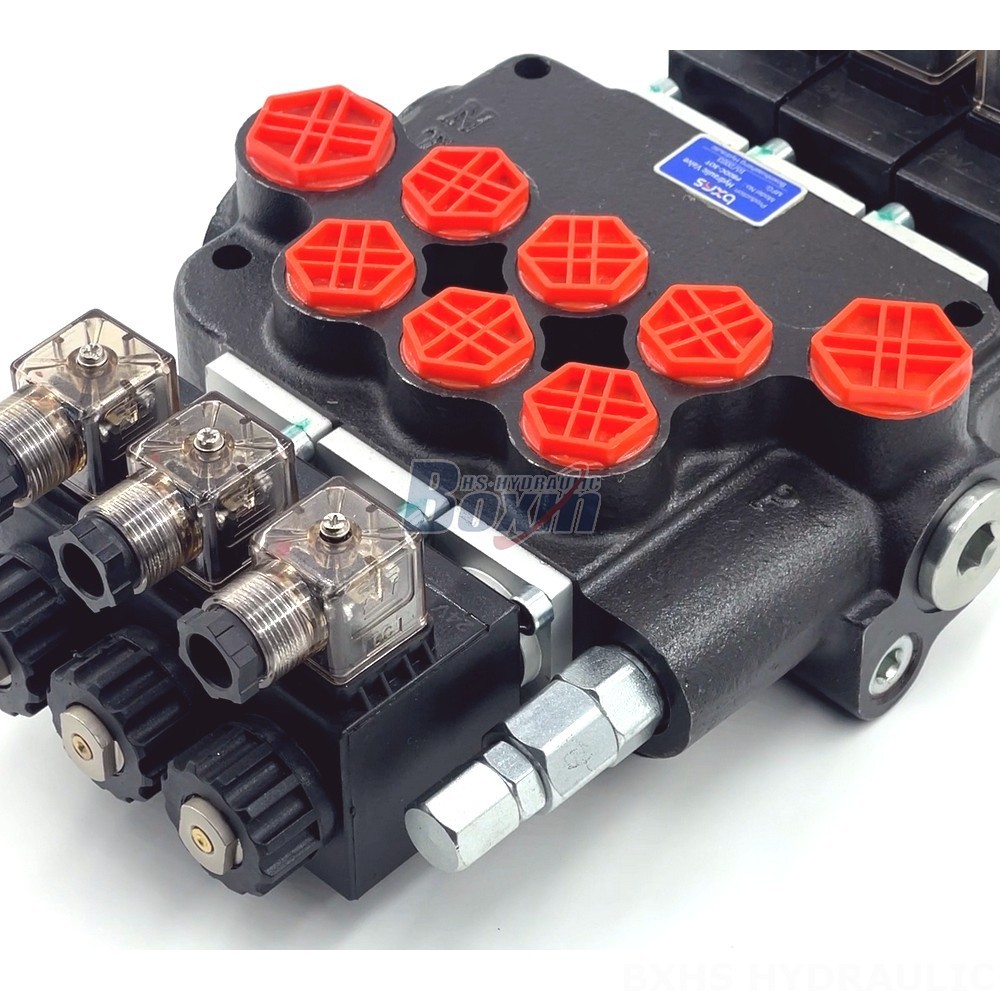

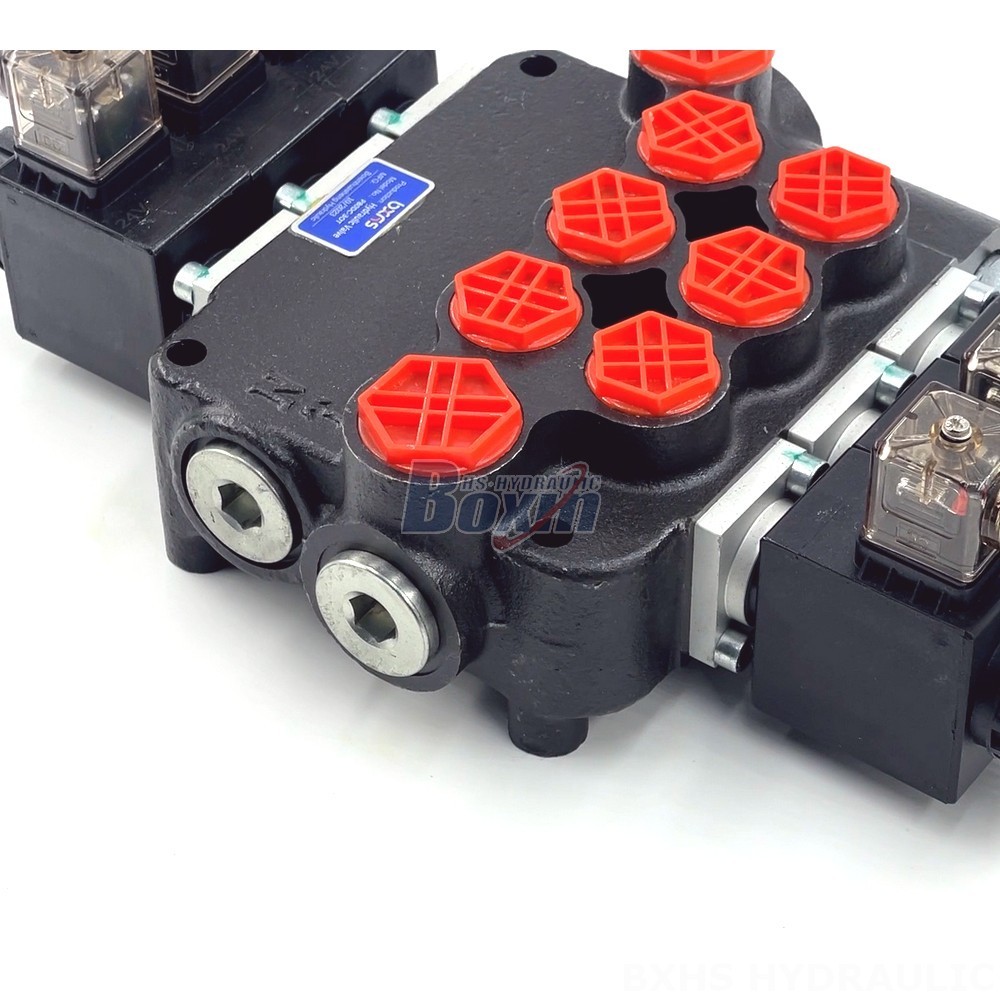

3-Spool Monoblock Valve | P80 Series | Factory Direct

Metode Kontrol:Selenoid

Spul:3 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:200 bar (2900 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:33*28*13

Kelas kotor:13.00 kg

Ketersediaan: Tersedia

1303 Pandangan Mencari Produk Ini

3-Spool Monoblock Valve | P80 Series | Factory Direct

3-Spool Monoblock Valve | P80 Series | Factory Direct

3-Spool Monoblock Valve | P80 Series | Factory Direct drawing image

The P80 Series 3-Spool Monoblock Directional Control Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This valve features a compact design, high flow rate, and durable construction, making it ideal for demanding applications.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 Series 3-Spool Monoblock Directional Control Valve is a powerful and versatile hydraulic component designed for demanding applications. It offers a high flow rate of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), making it suitable for a wide range of heavy-duty machinery. The valve's compact monoblock design ensures robust performance and durability, while its solenoid control system provides precise and responsive operation. This valve is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. It is manufactured to meet the highest quality standards and is backed by a comprehensive warranty.
