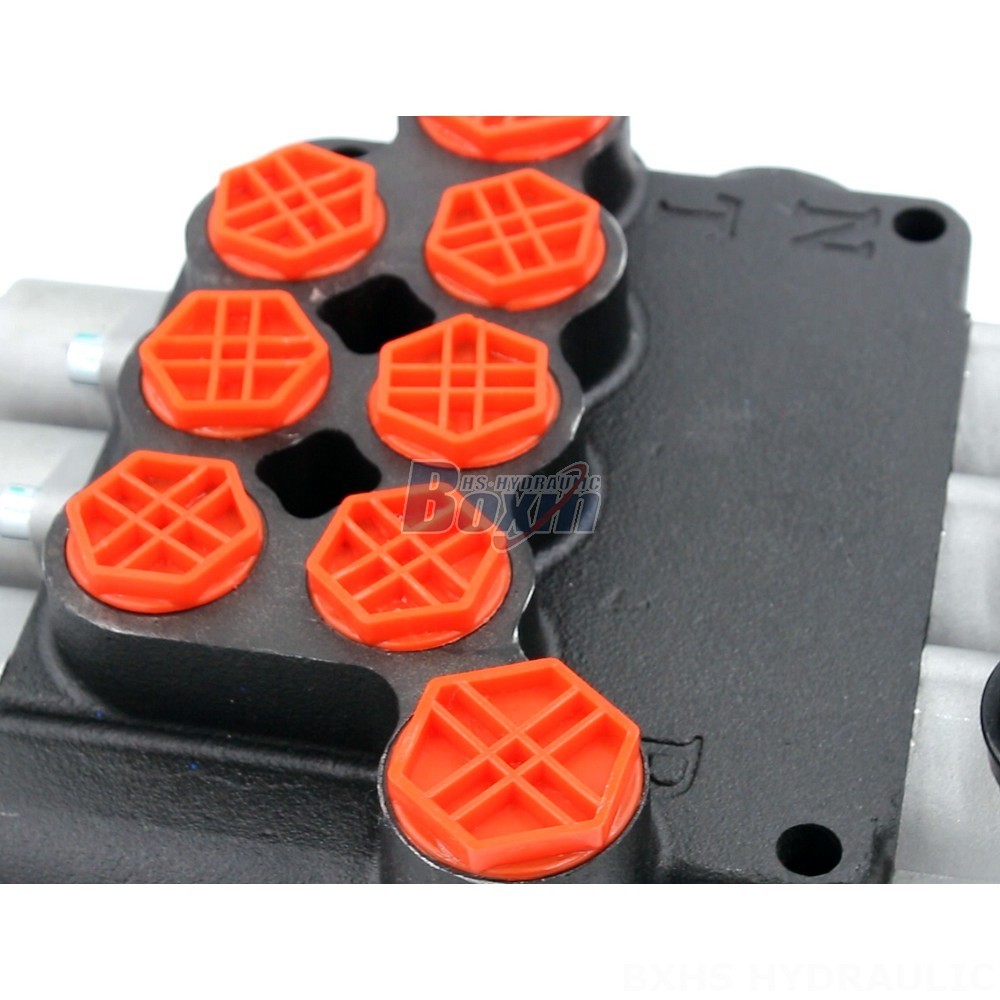

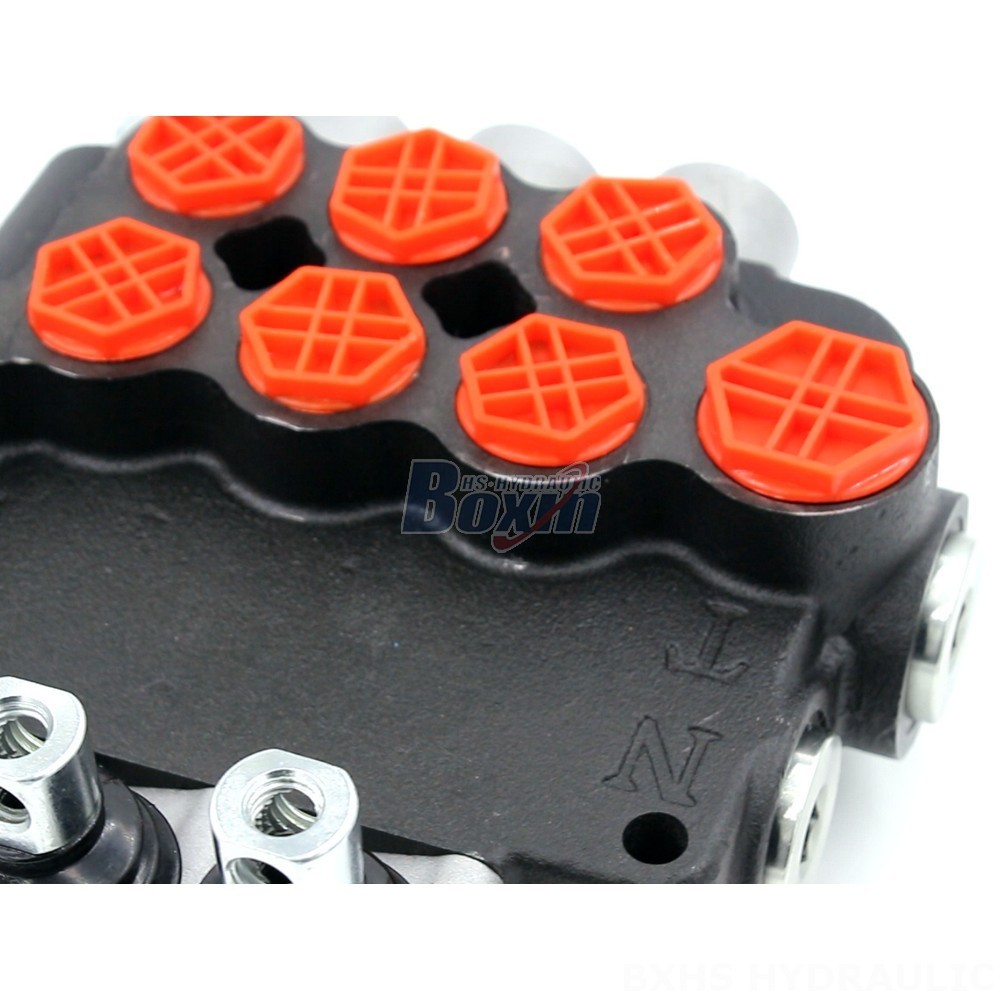

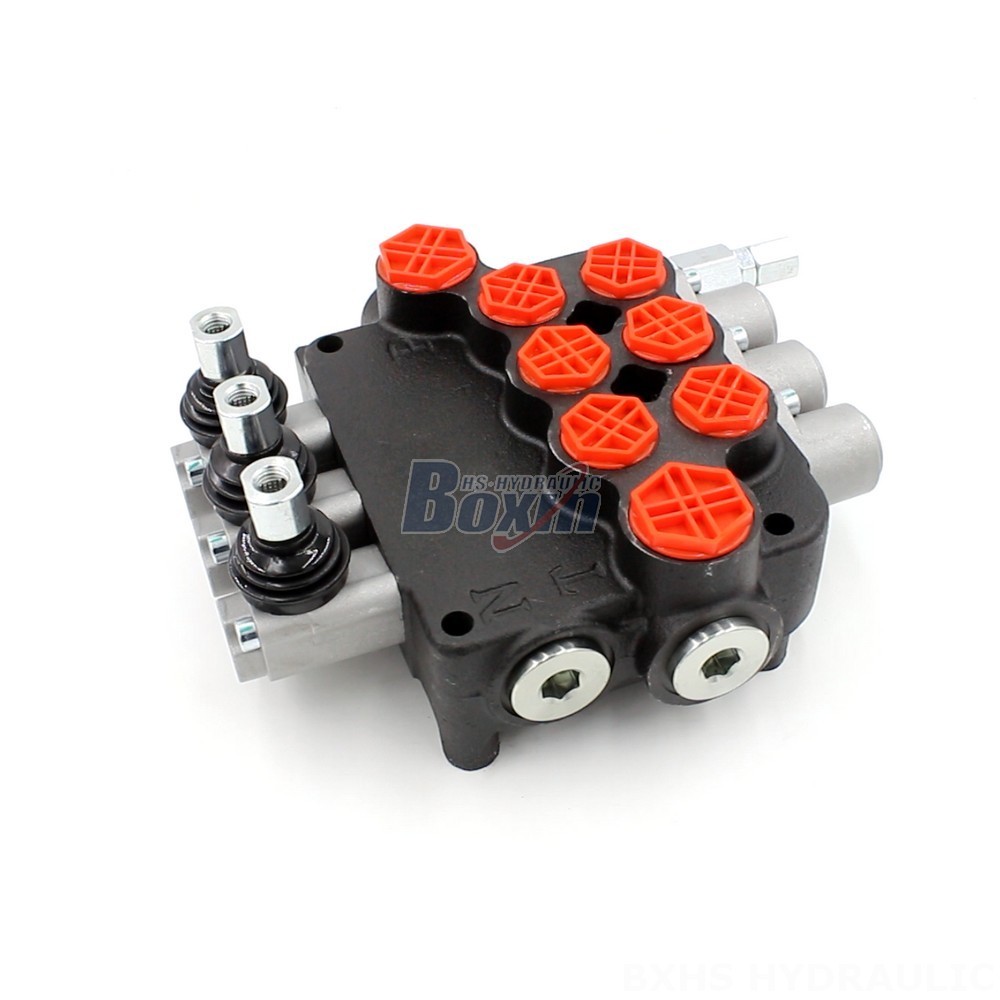

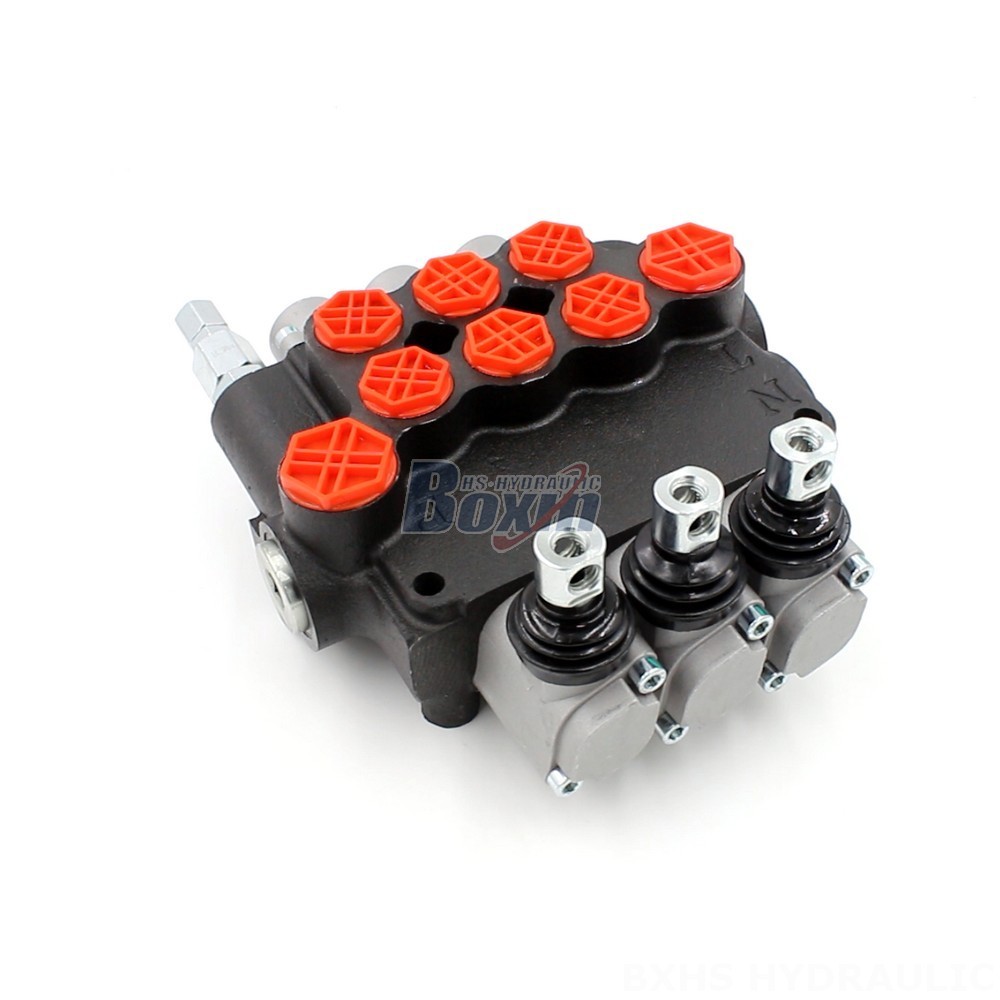

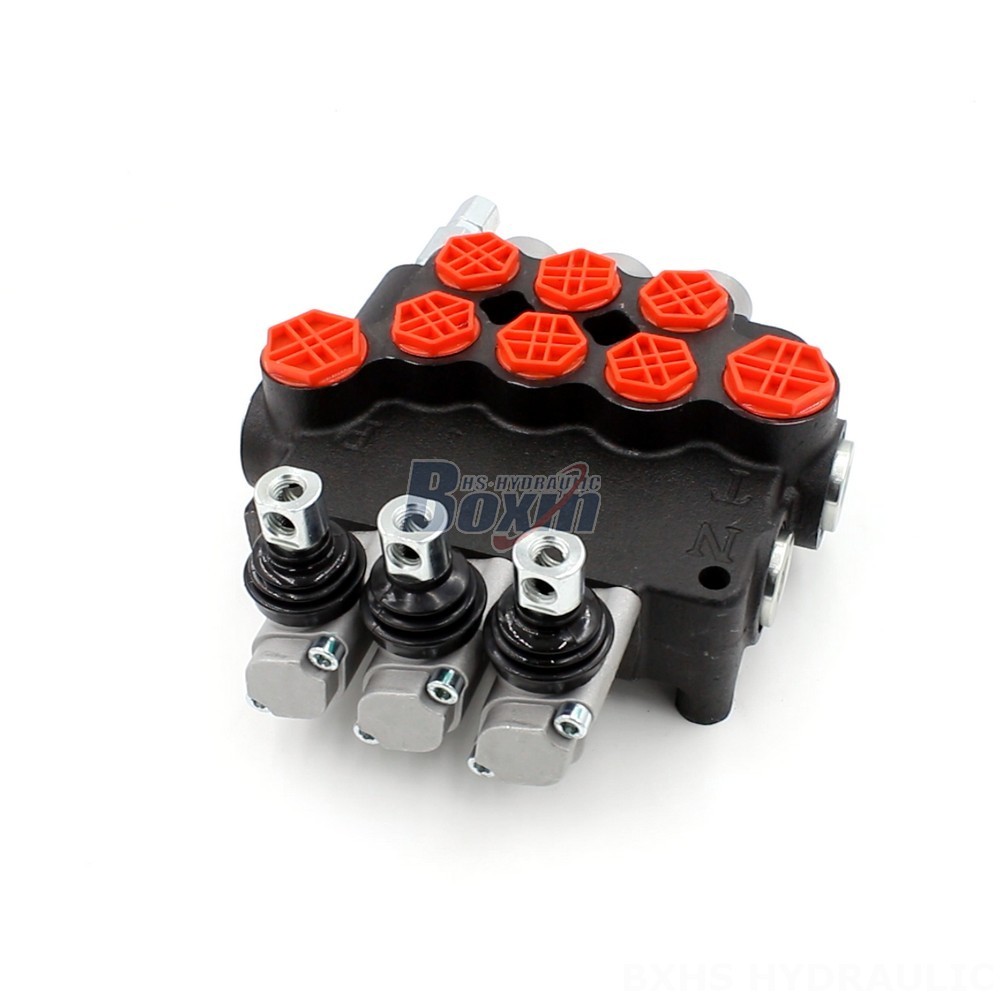

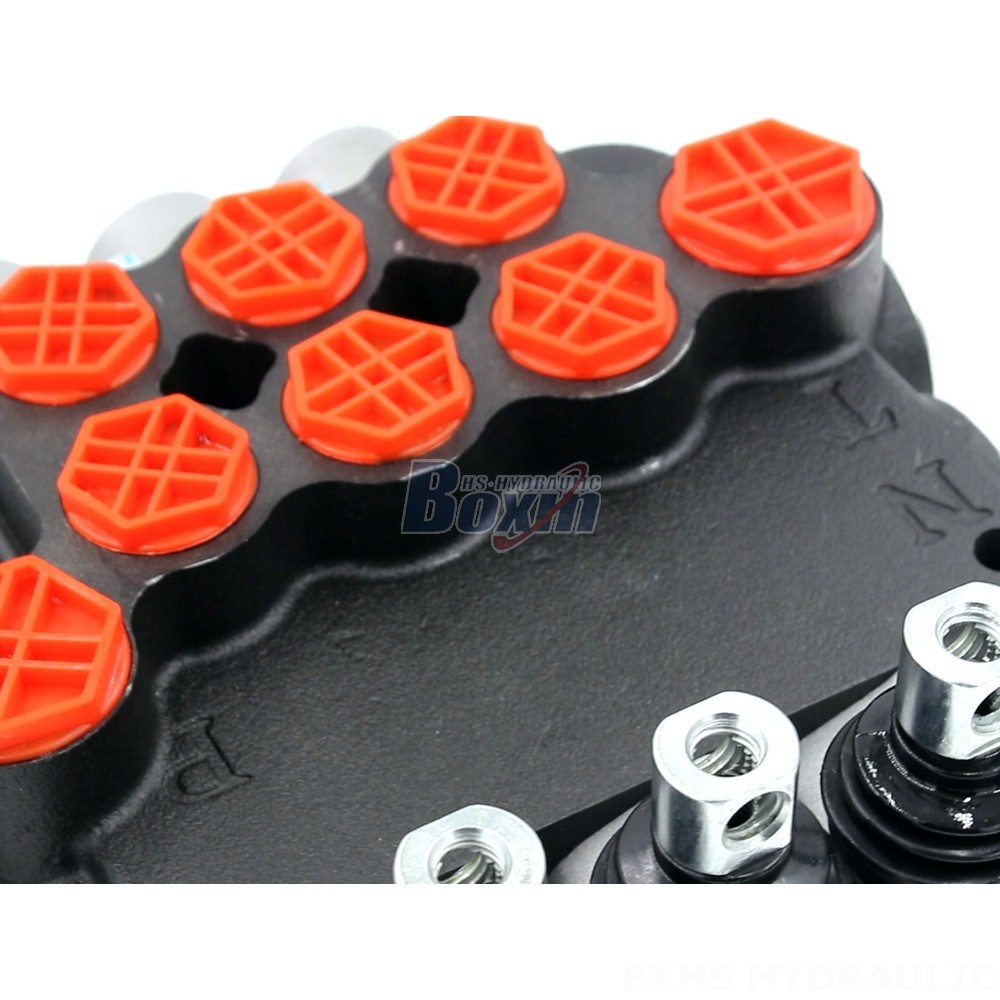

This 3-Spool P80A Monoblock Directional Control Valve is a high-performance hydraulic valve designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides precise and reliable control of hydraulic systems.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**3-Spool P80A Monoblock Directional Control Valve**
**Key Features:**
* Manual control for precise operation
* Monoblock construction for durability and compactness
* Rated flow of 80 L/min for high efficiency
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for versatility
* Ambient temperature range of -40°C to +80°C for harsh environments
* 3-spool design for increased functionality
* P80 Series for proven performance
**Applications:**
* Material Handling: Telehandlers, Forklifts
* Construction and Earth Moving: All Terrain Cranes, Stackers, Aerial Platforms
* Agriculture: Motor Graders, Mini-Excavators
* Industrial Vehicles: Skid Steer Loaders, Compact Wheel Loaders, Wheel Loaders
