The 4-Spool Hydraulic Distributor: CDBF20 Model is a high-performance hydraulic component designed for various industrial applications. It features a compact and modular design, allowing for easy integration into existing systems. With a rated flow rate of 100 L/min and a maximum pressure of 315 bar, this distributor can handle demanding hydraulic operations. Its wide operating viscosity range of 15 - 75 mm²/s ensures optimal performance in diverse operating conditions.
| Seri CDBF20 Distributor Hidrolik Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 100 L/menit (26,5 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4 |
| Port Keluar | G3/4, M22×1.5 |
| Ukuran Port | G1/2, G3/4, M20×1.5, M22×1.5 |

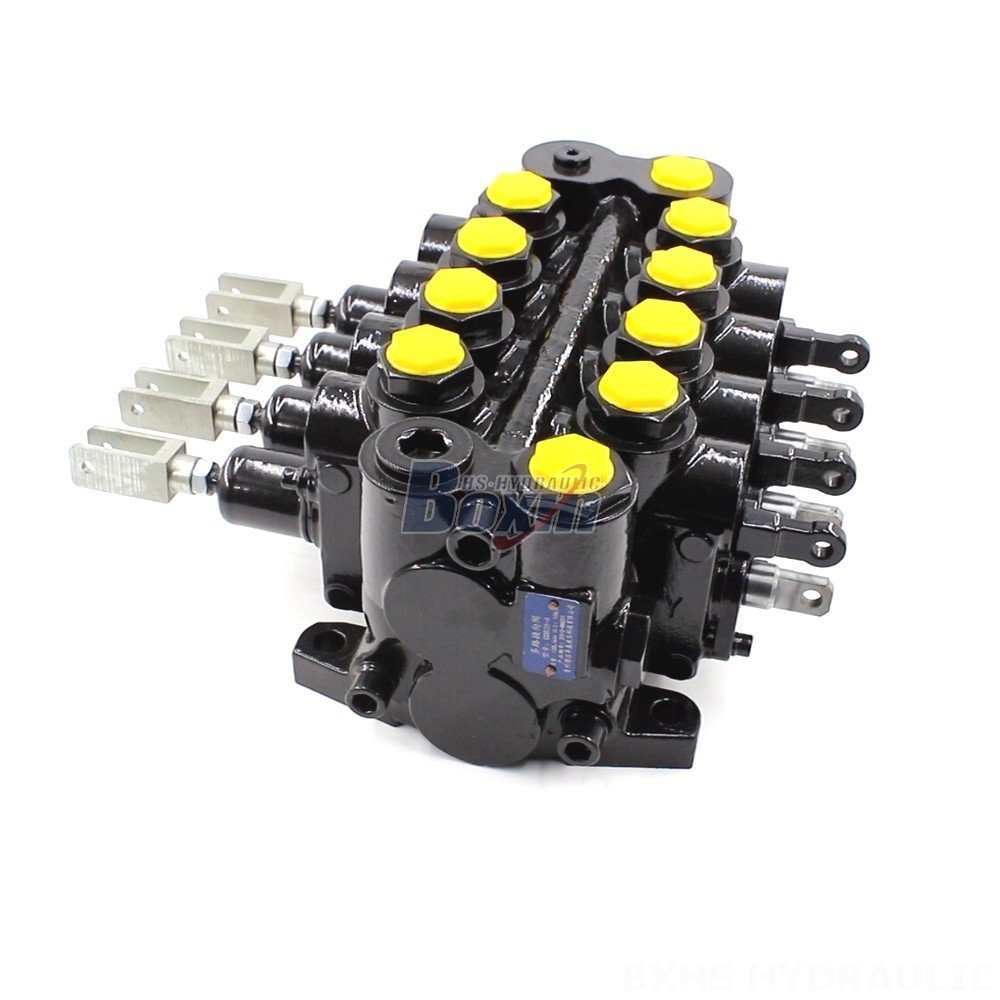

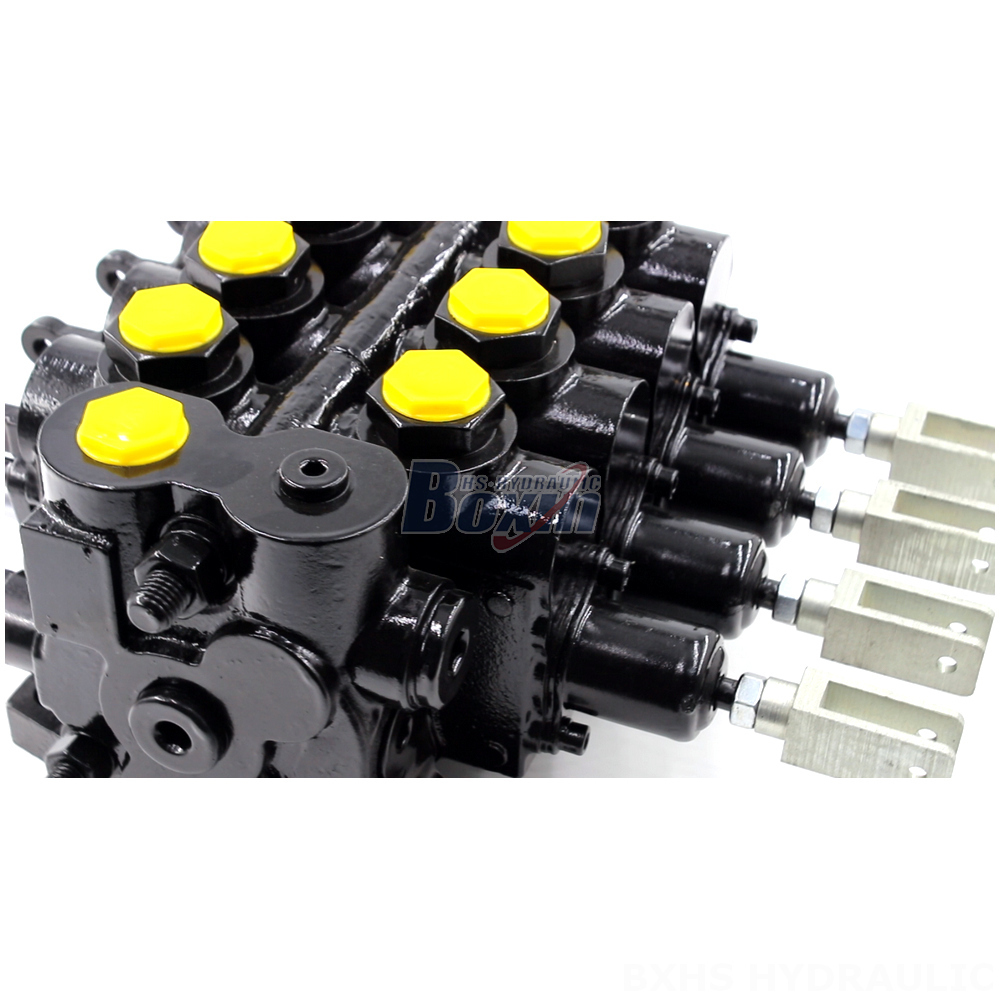

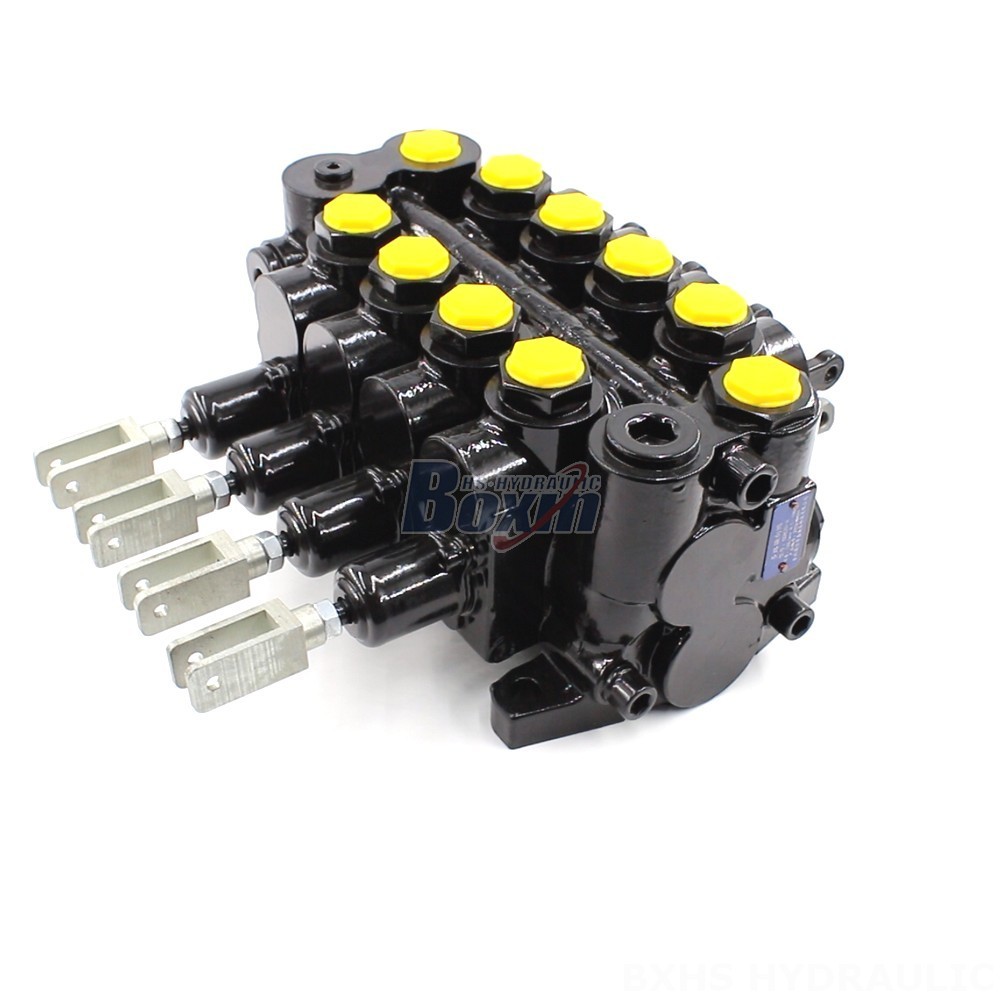

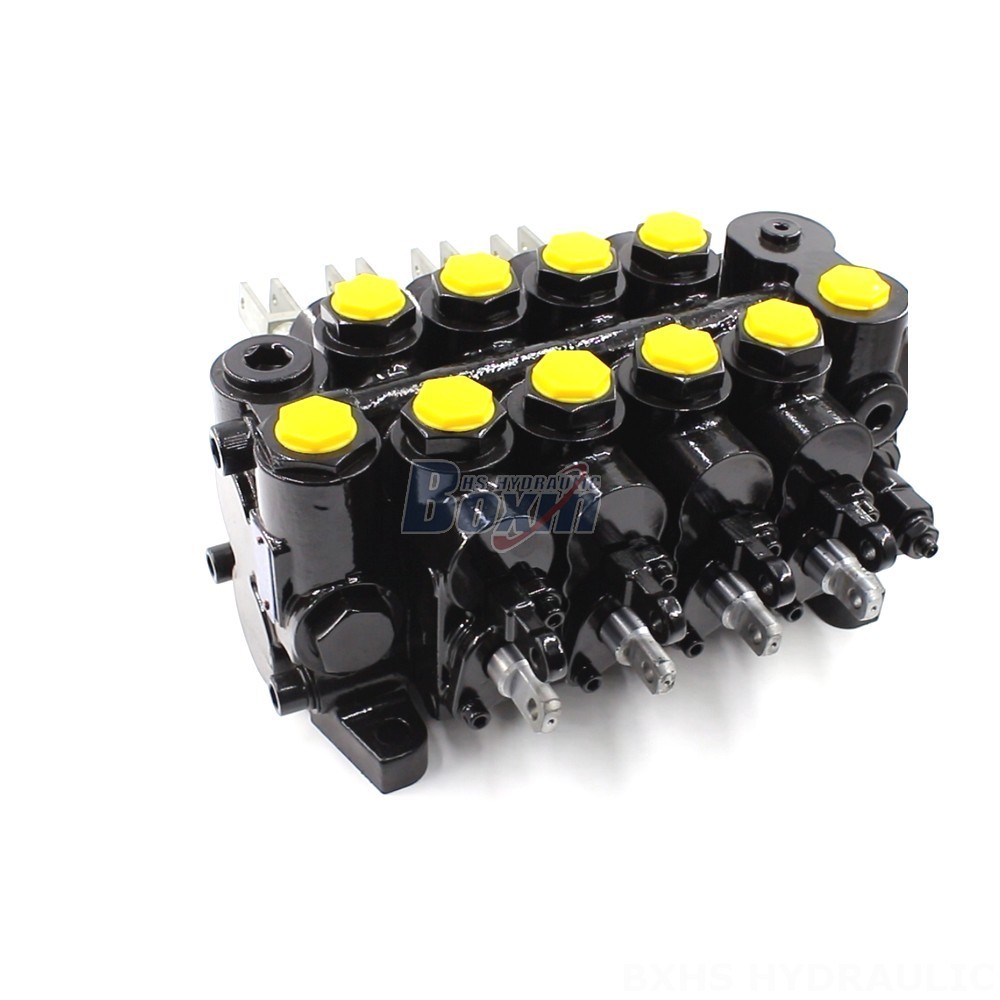

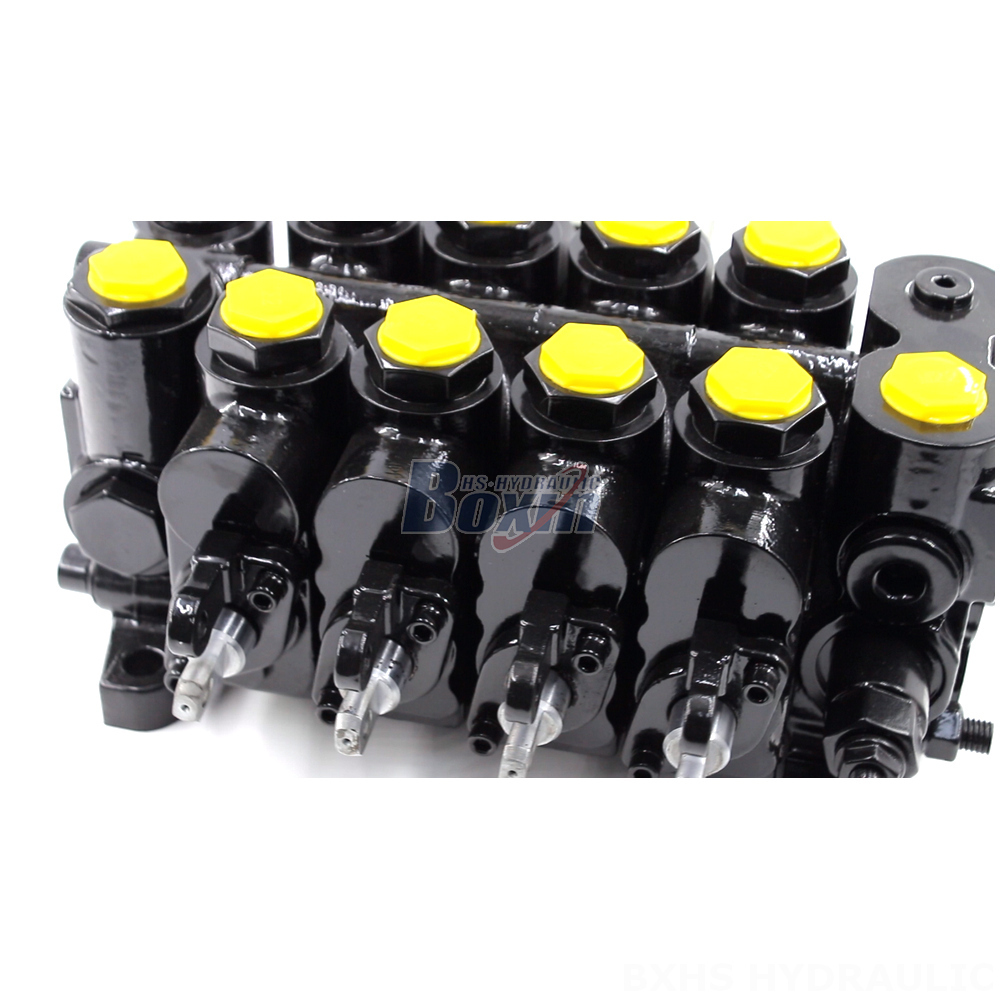

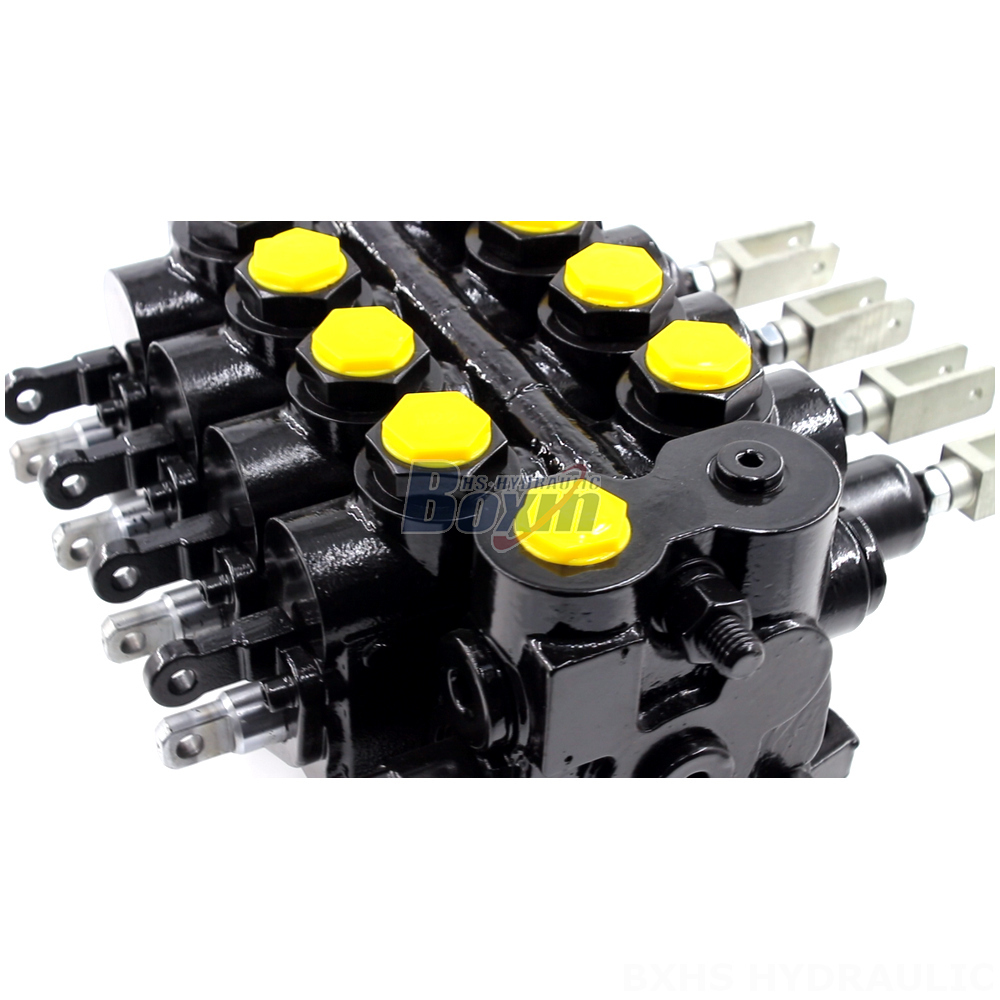

**CDBF20 4-Spool Hydraulic Distributor**
**Key Features:**
- Manual control for precise operation
- Sectional valve design for modularity and flexibility
- High flow rate of 100 L/min for efficient hydraulic power transmission
- Robust construction with a maximum pressure of 315 bar for demanding applications
- Wide operating viscosity range of 15 - 75 mm²/s for versatility in various conditions
- Suitable for ambient temperatures ranging from -40°C to +80°C for reliable operation in extreme environments
**Applications:**
The CDBF20 4-Spool Hydraulic Distributor finds applications in a wide range of industries, including:
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Specific Applications:**
- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
- Midi-Excavators
- Mini-Excavators
- Skid Steer Loaders
- Compact Wheel Loaders
