4 Spool P80 Series Pneumatic Directional Valve P80Q-G-4OT

Metode Kontrol:Pneumatik

Spul:4 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G3/4

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:34*25*13

Kelas kotor:15.00 kg

Ketersediaan: Tersedia

97 Pandangan Mencari Produk Ini

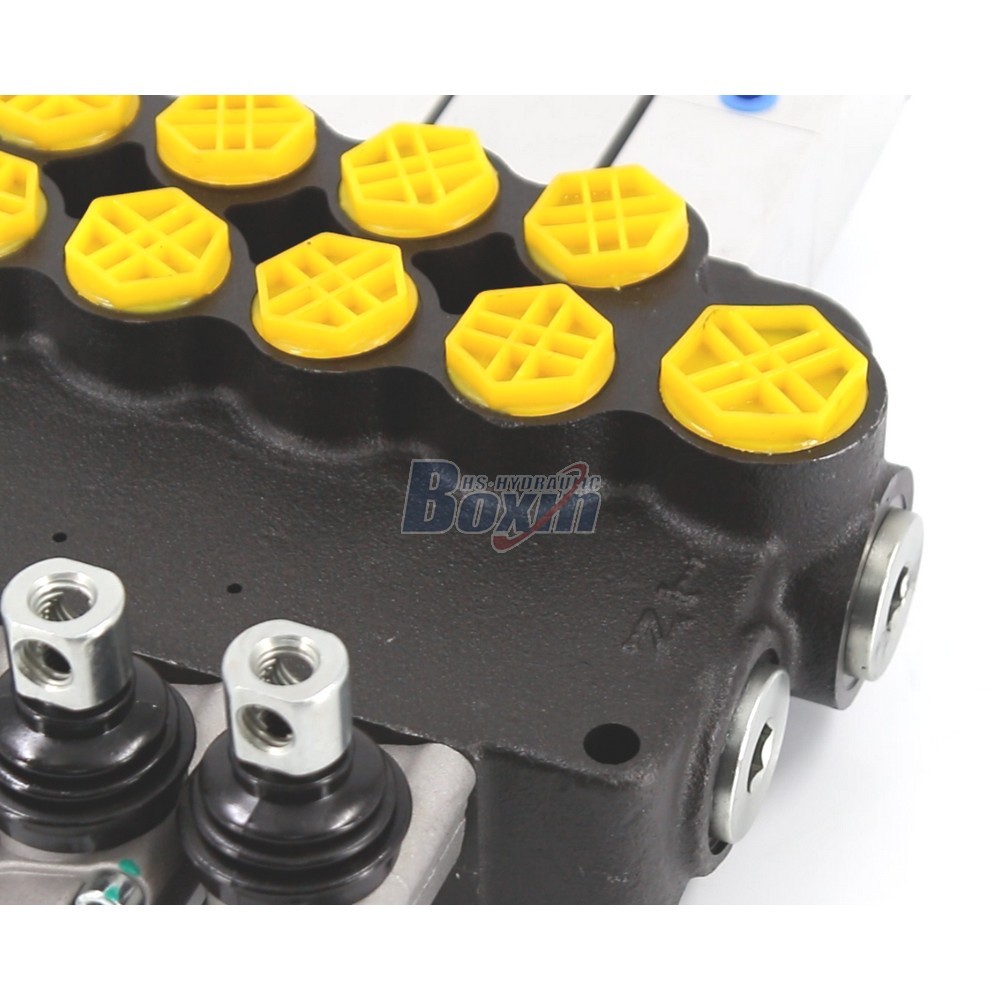

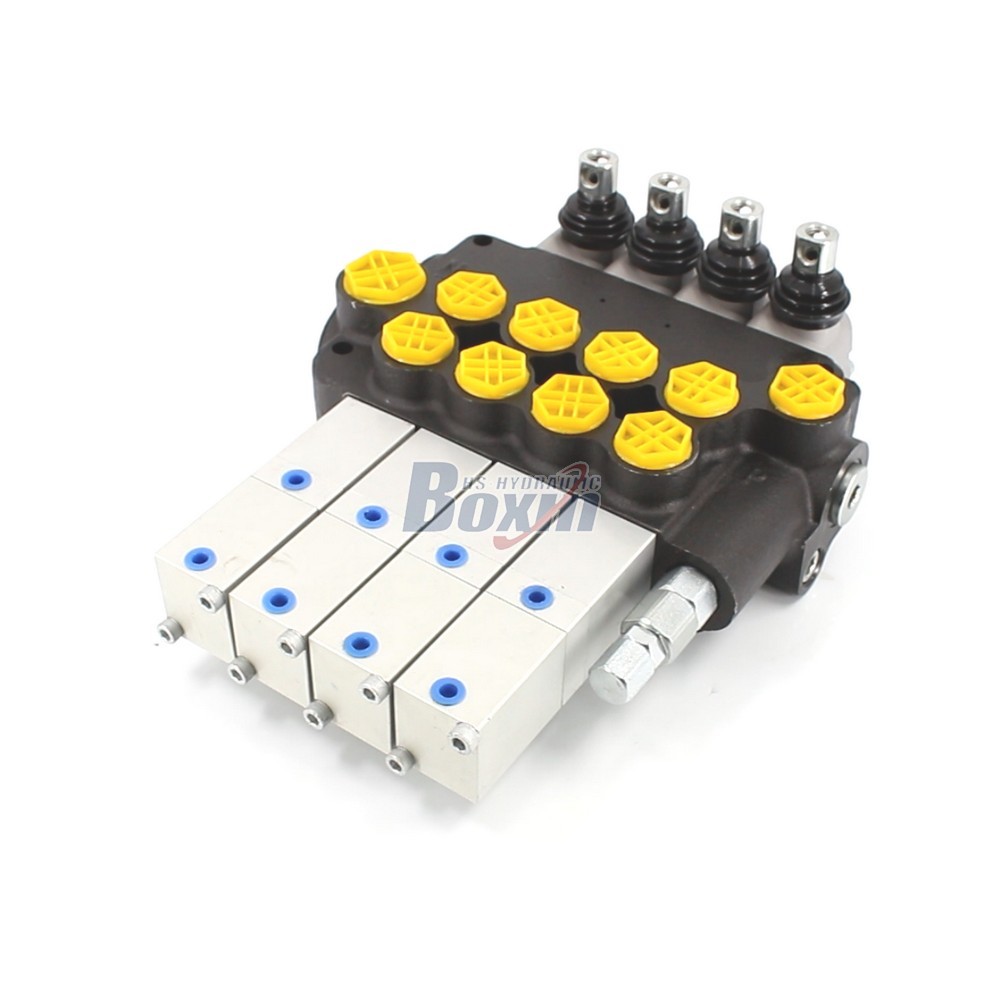

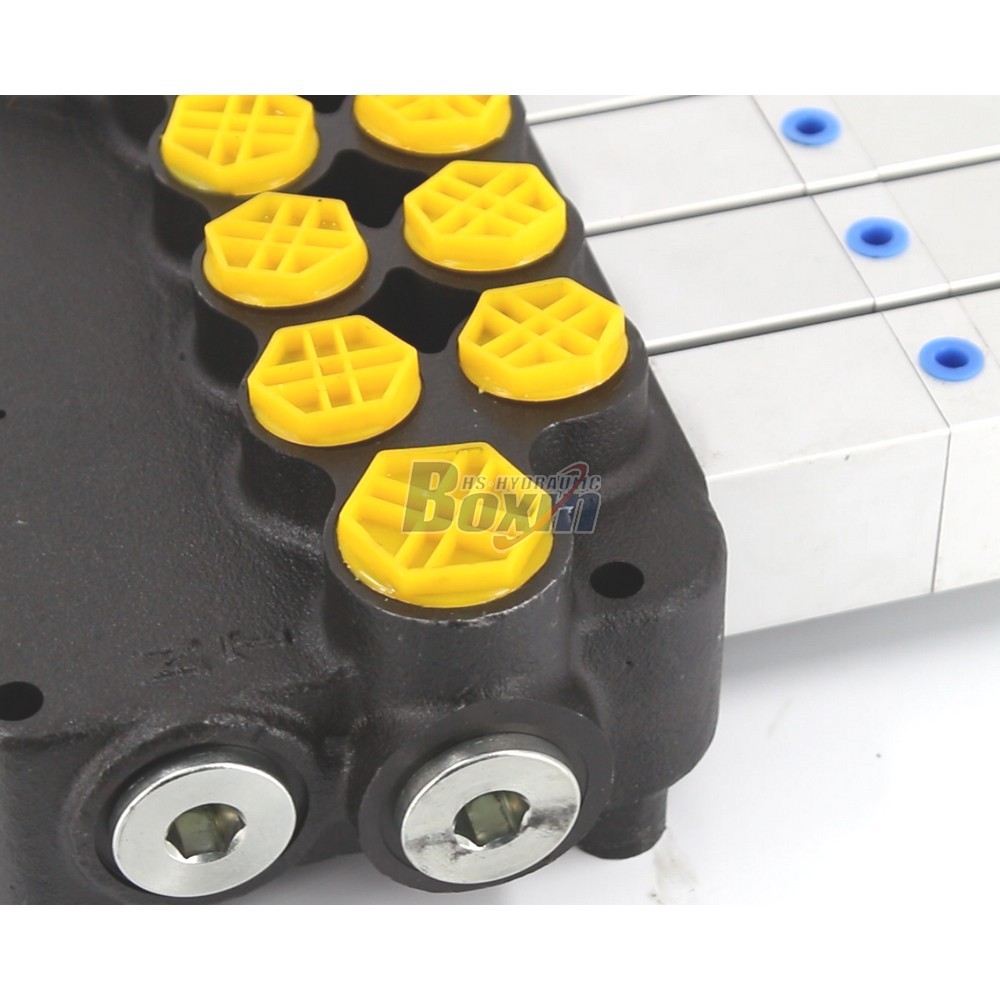

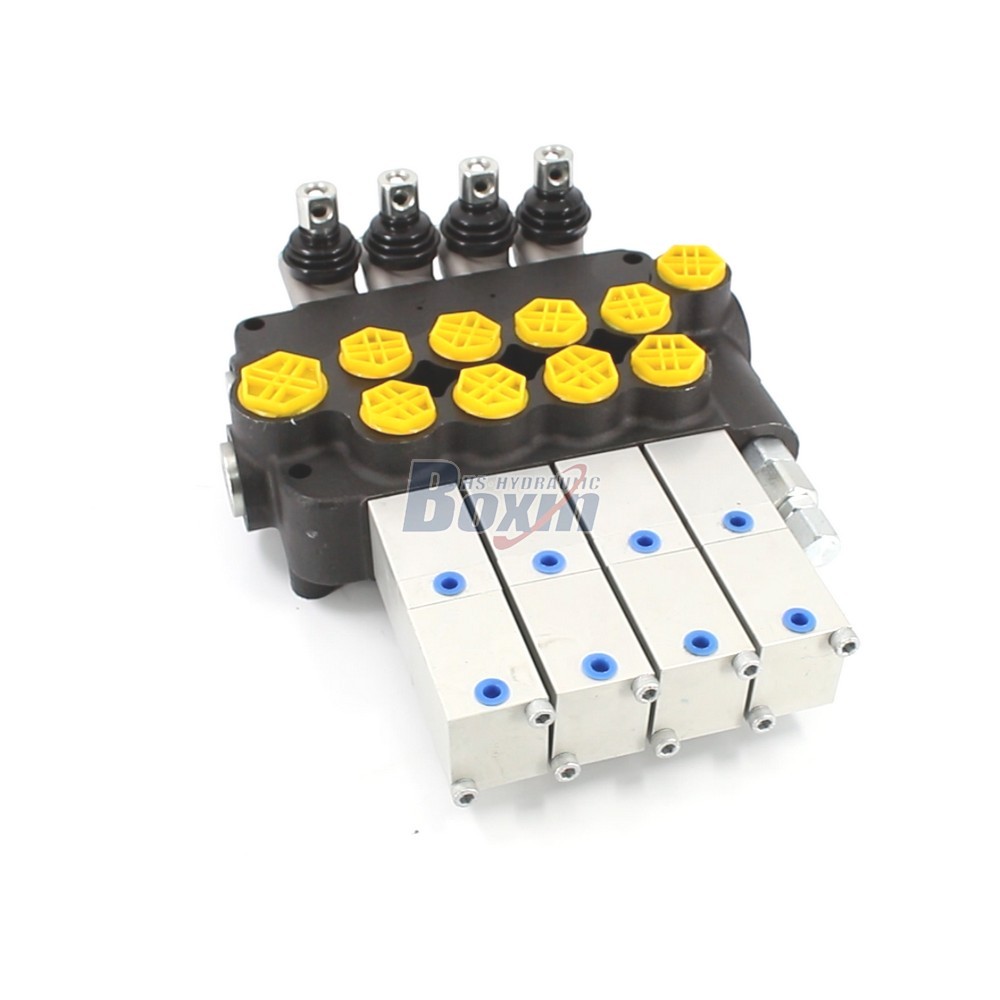

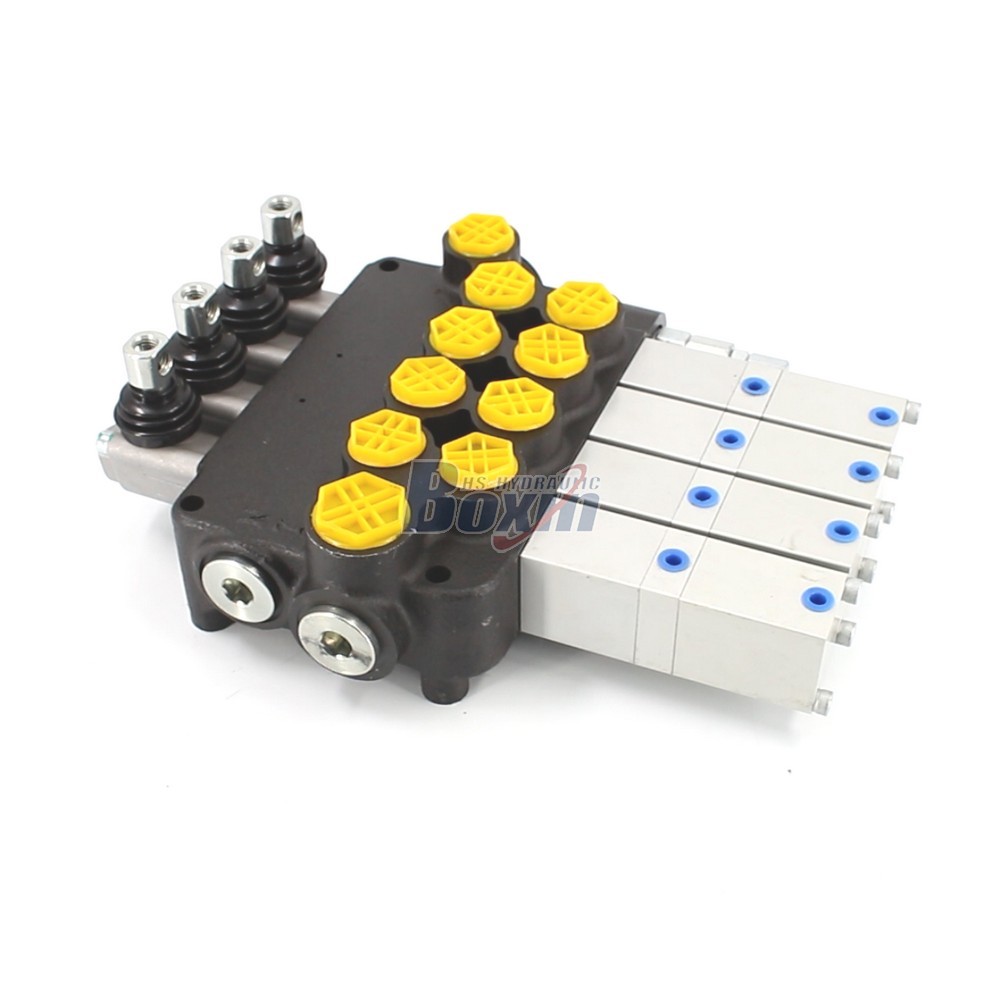

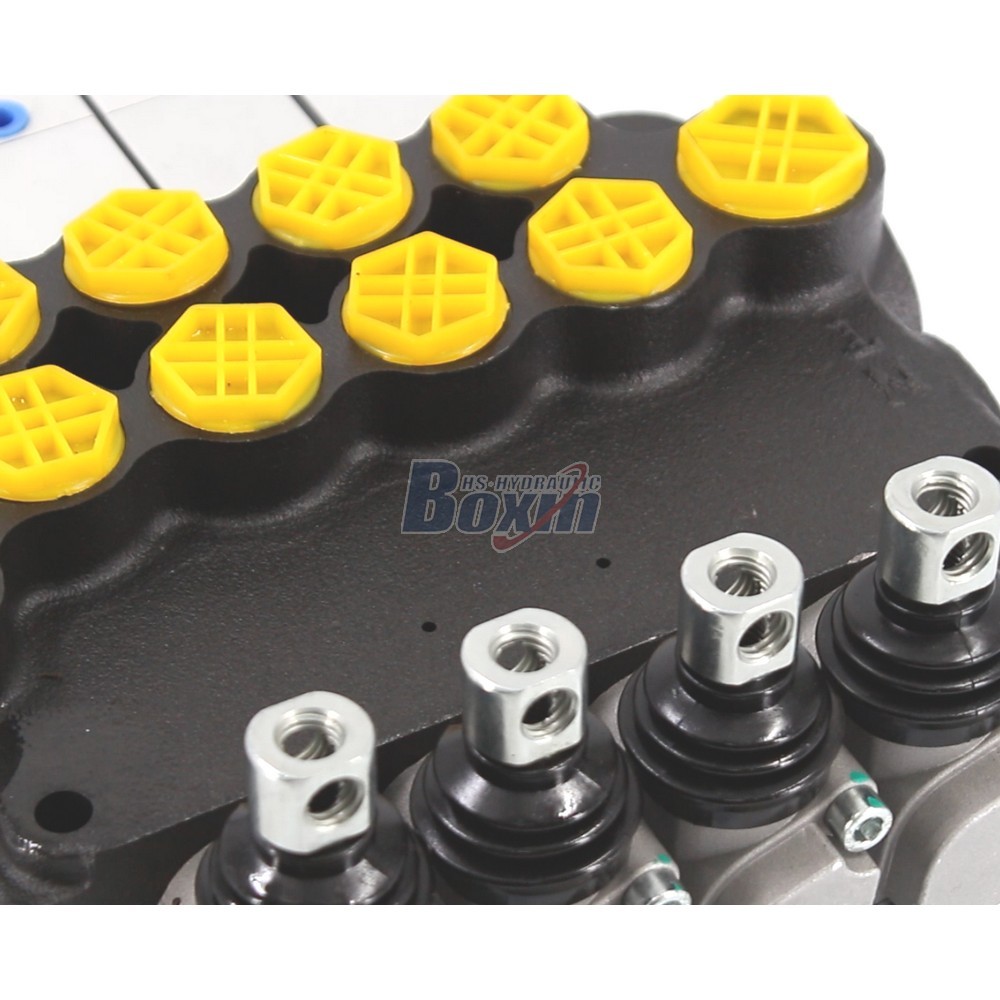

4 Spool P80 Series Pneumatic Directional Valve P80Q-G-4OT

4 Spool P80 Series Pneumatic Directional Valve P80Q-G-4OT

4 Spool P80 Series Pneumatic Directional Valve P80Q-G-4OT drawing image

High-performance P80 Series 4-spool pneumatic directional control valve featuring an 80 L/min flow rate and 250 bar maximum pressure for heavy-duty applications. Designed for precise pneumatic remote operation in construction, agricultural, and industrial machinery.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

Our factory is a professional manufacturer specializing in high-quality hydraulic solutions for the global market. The P80Q-G-4OT is a 4-spool pneumatic directional valve engineered for reliability and precision. Featuring a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure capacity of 250 bar (3600 psi), it is optimized for equipment such as skid steer loaders, tractors, forklifts, and excavators. We provide comprehensive manufacturing services including OEM, ODM, and custom branding to meet your specific technical requirements. As a direct factory supplier, we offer competitive wholesale pricing and bulk supply stability. We are actively seeking global business partners, including distributors, wholesalers, agents, and traders to expand our international network. Whether you need reliable components for material handling or specialized agricultural machinery, our P80 series valves provide robust performance and versatile installation via G3/4 ports. Partner with us for professional hydraulic manufacturing and direct factory support.
