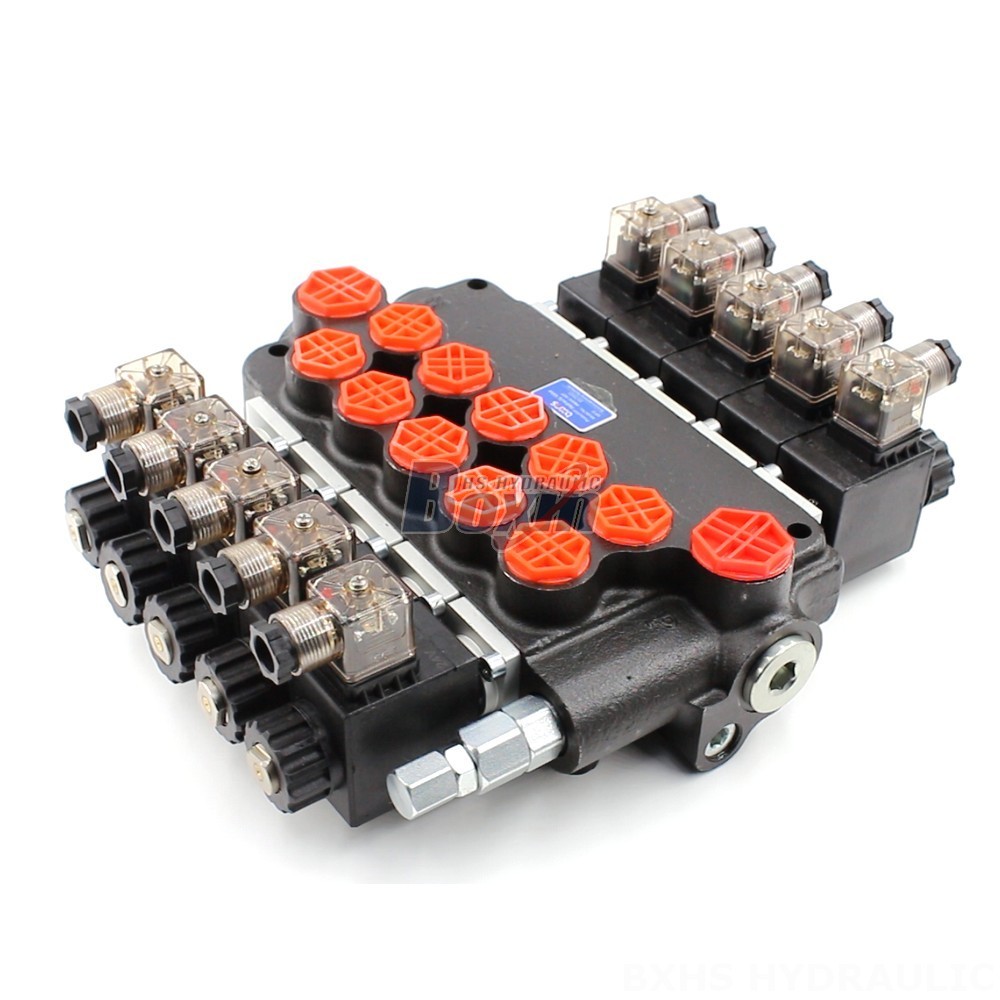

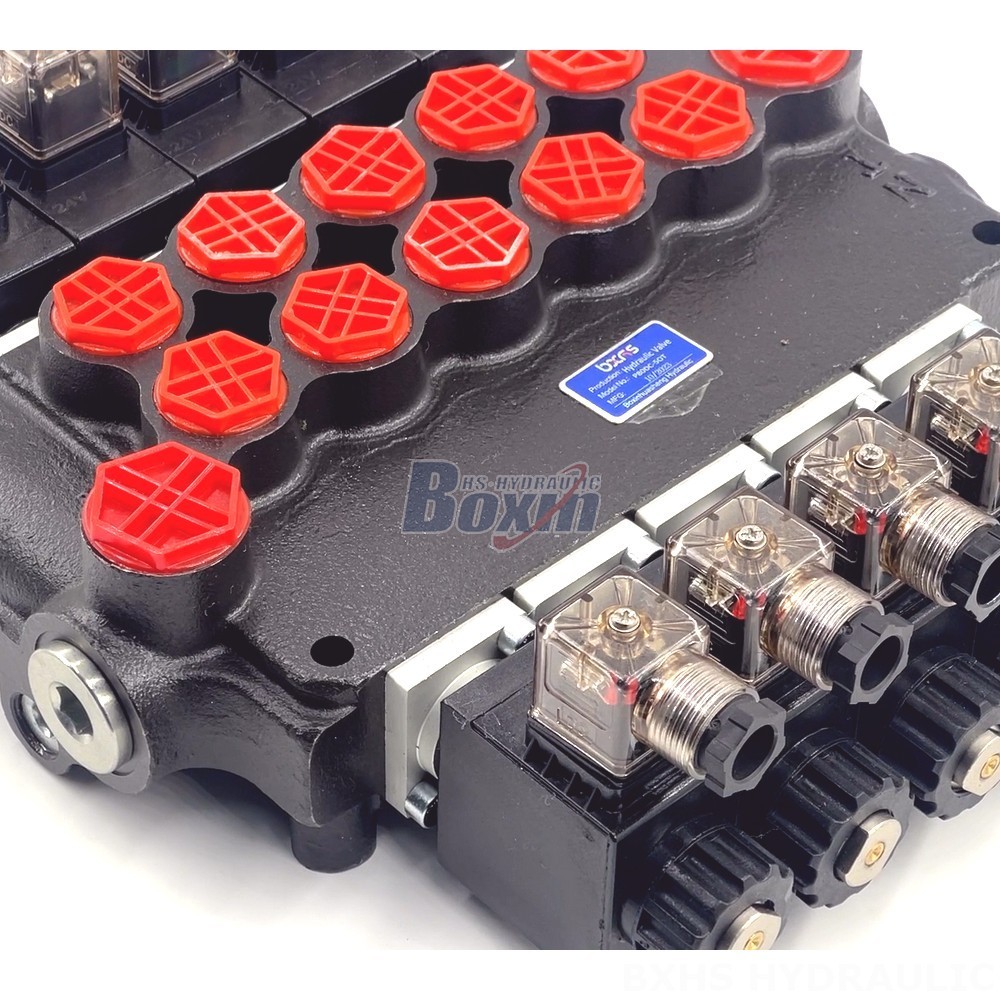

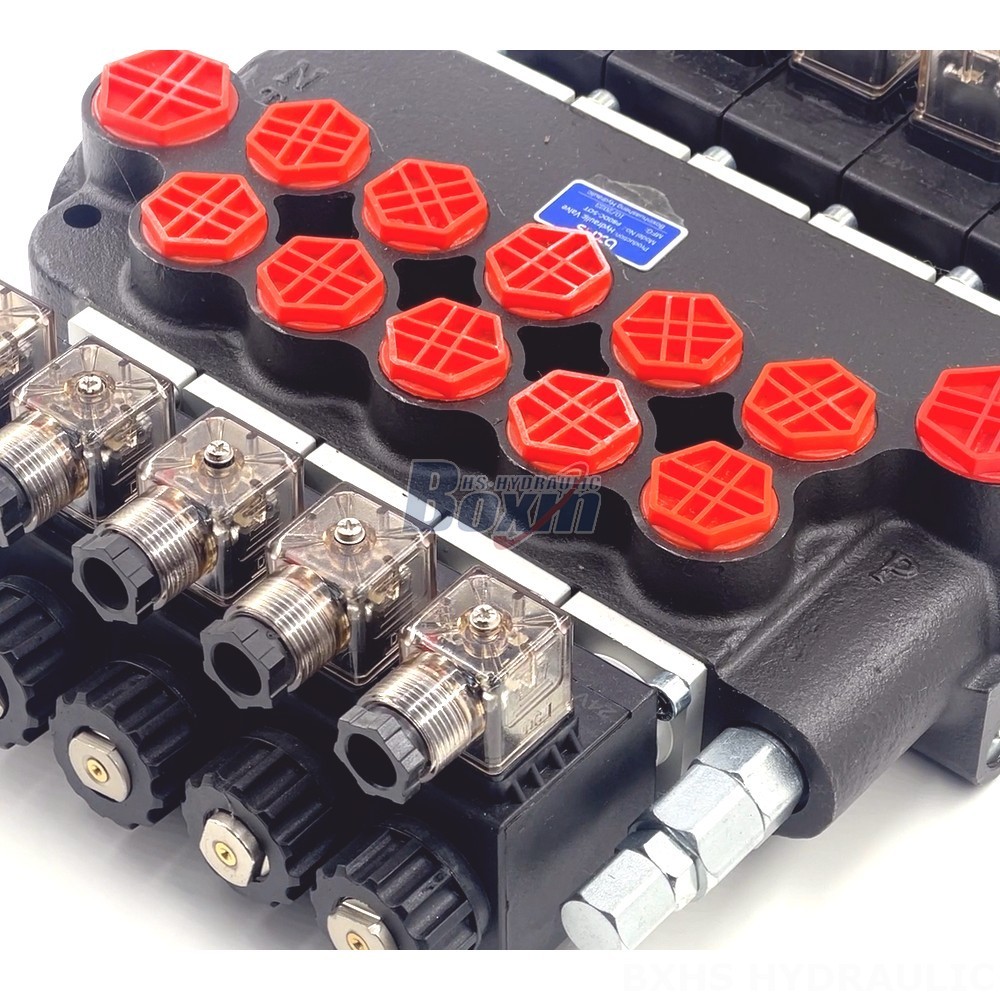

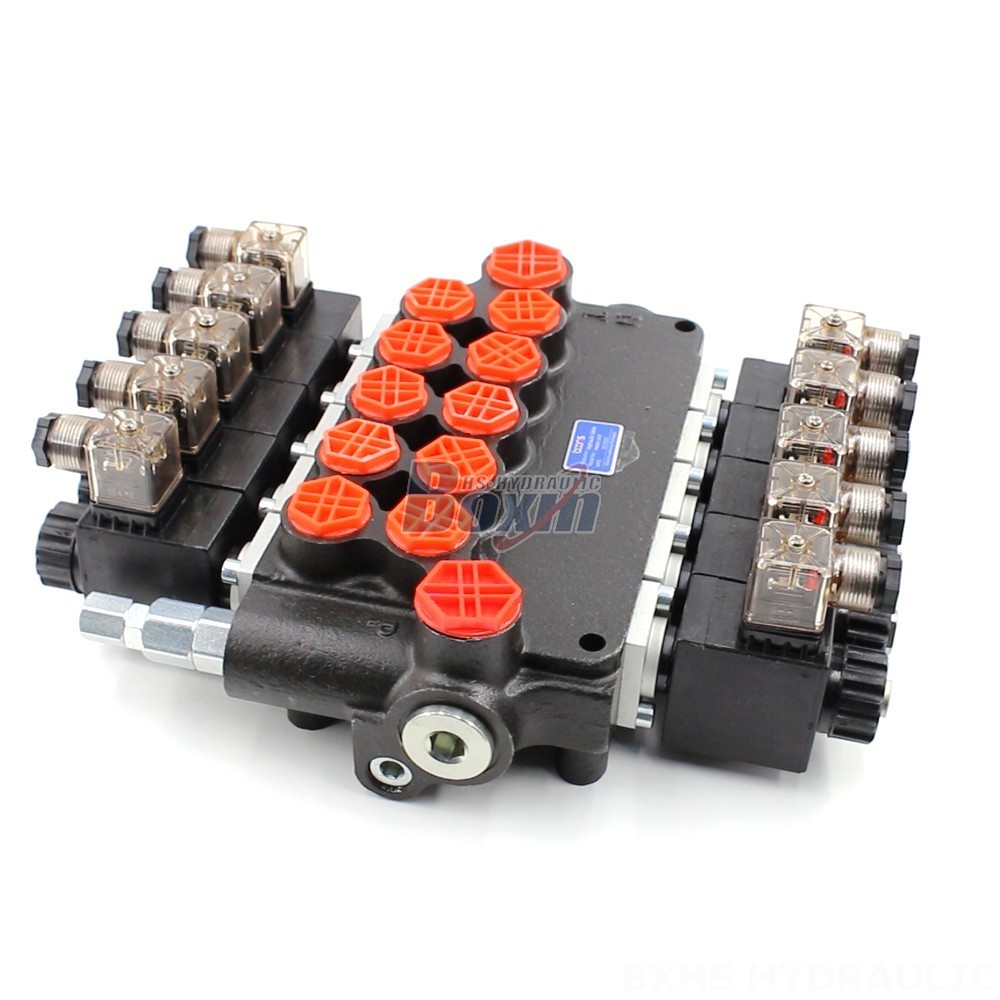

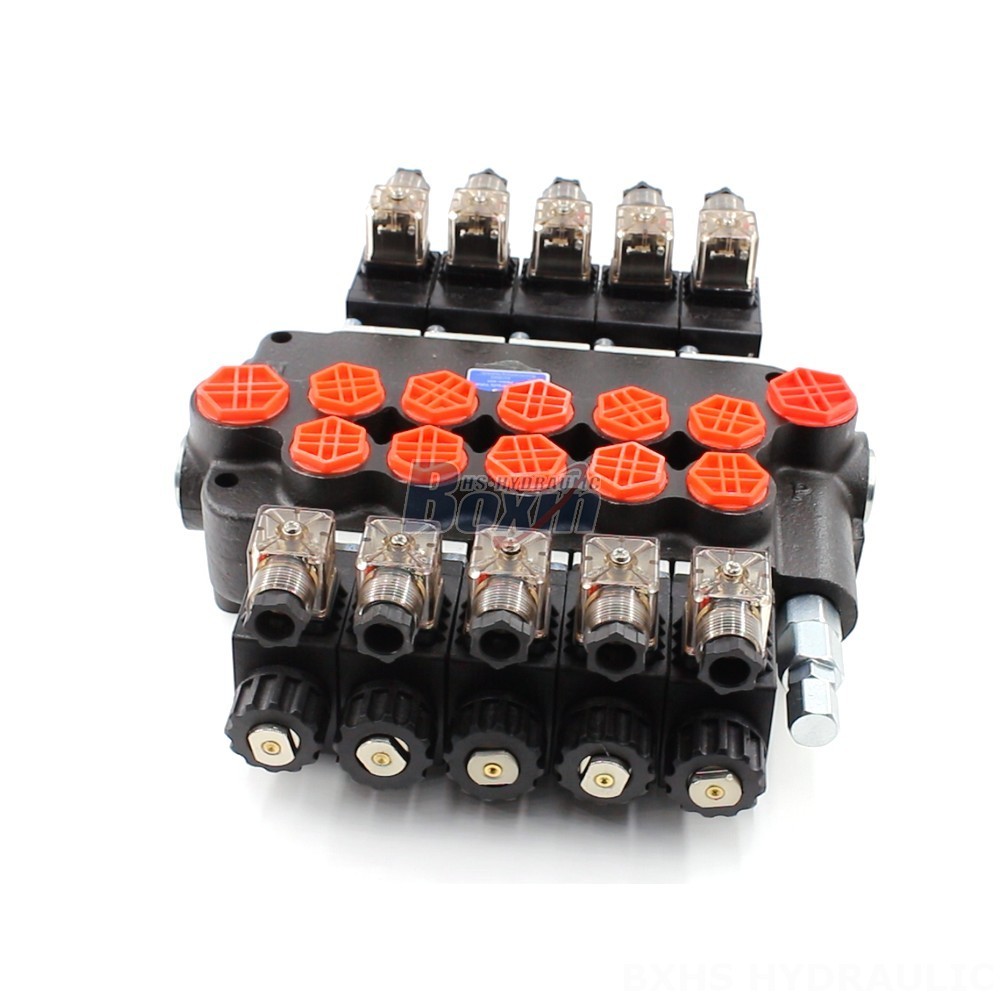

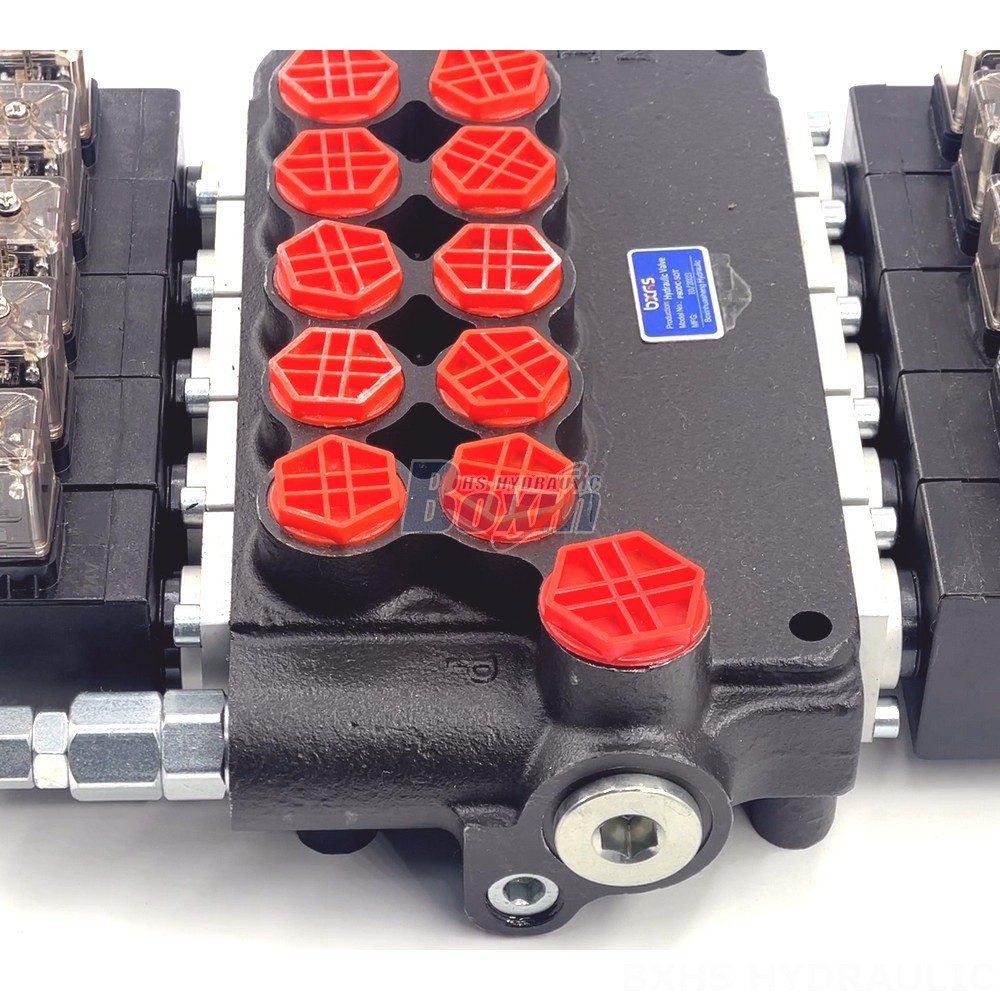

The P80 Series 5-Spool Hydraulic Valve is a high-performance, reliable valve designed for heavy-duty applications in construction, material handling, and industrial vehicles. This monoblock valve features a 5-section design with a rated flow of 80 L/min and a maximum pressure of 250 bar.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80 Series 5-Spool Hydraulic Valve is a robust and versatile solution for controlling hydraulic functions in a wide range of machines. Its compact monoblock design and 5-section configuration provide efficient and precise control. The valve features a solenoid control method, rated flow of 80 L/min, and a maximum pressure of 250 bar. It is compatible with a wide range of operating viscosity (15 - 75 mm²/s) and ambient temperature (-40°C to +80°C). This valve is ideal for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. Choose the P80 Series 5-Spool Hydraulic Valve for reliable performance and durability in demanding applications.
