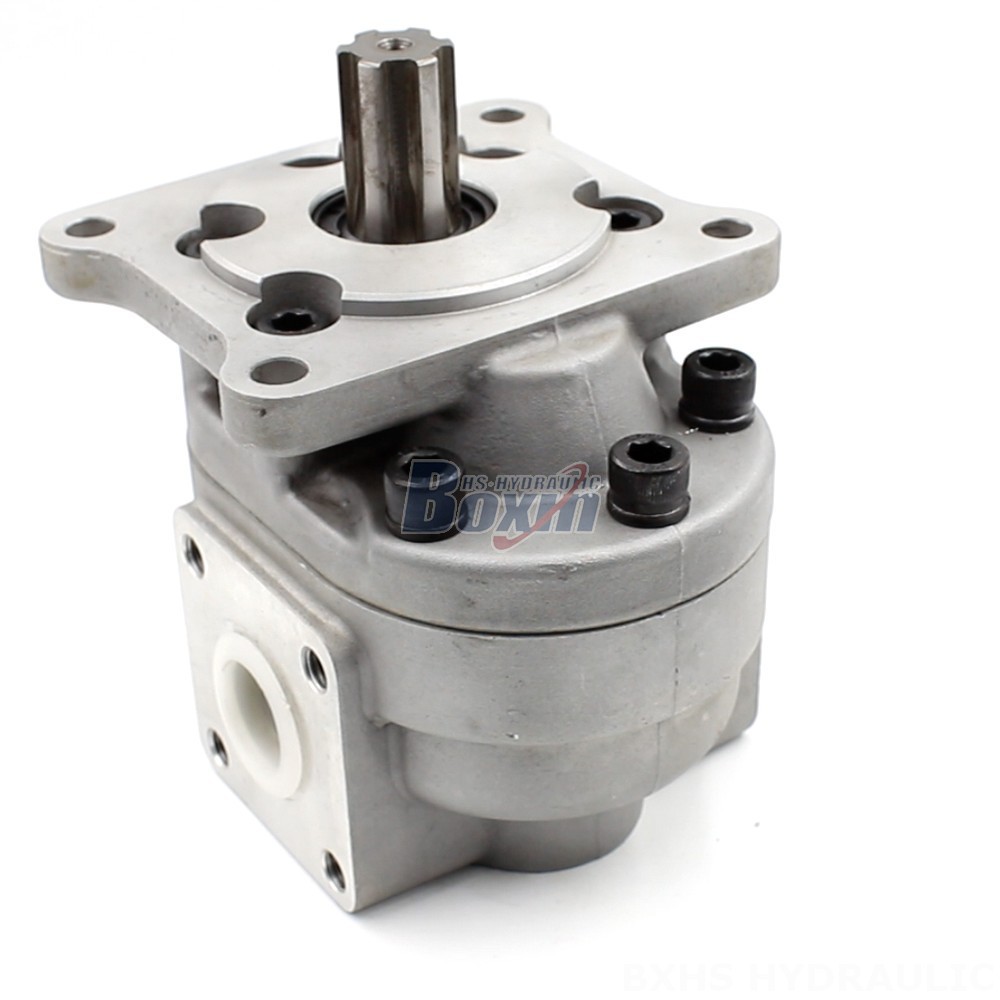

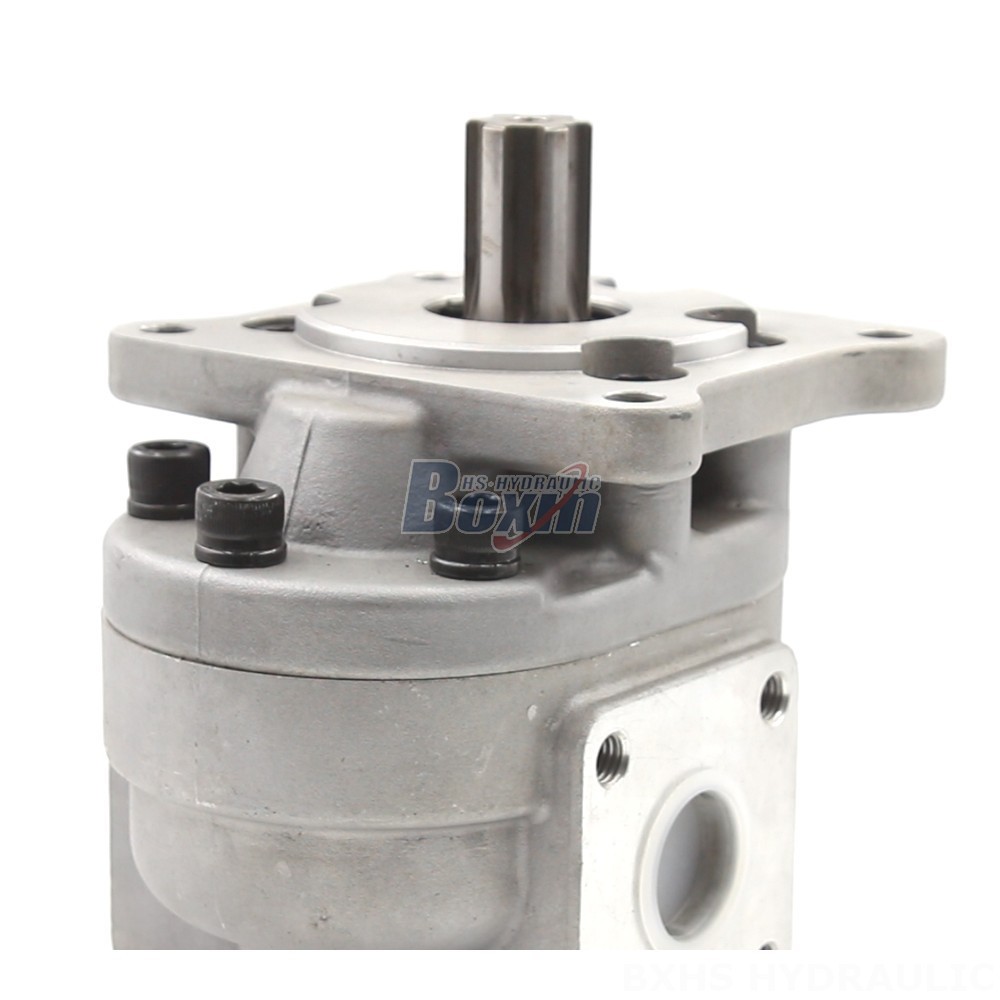

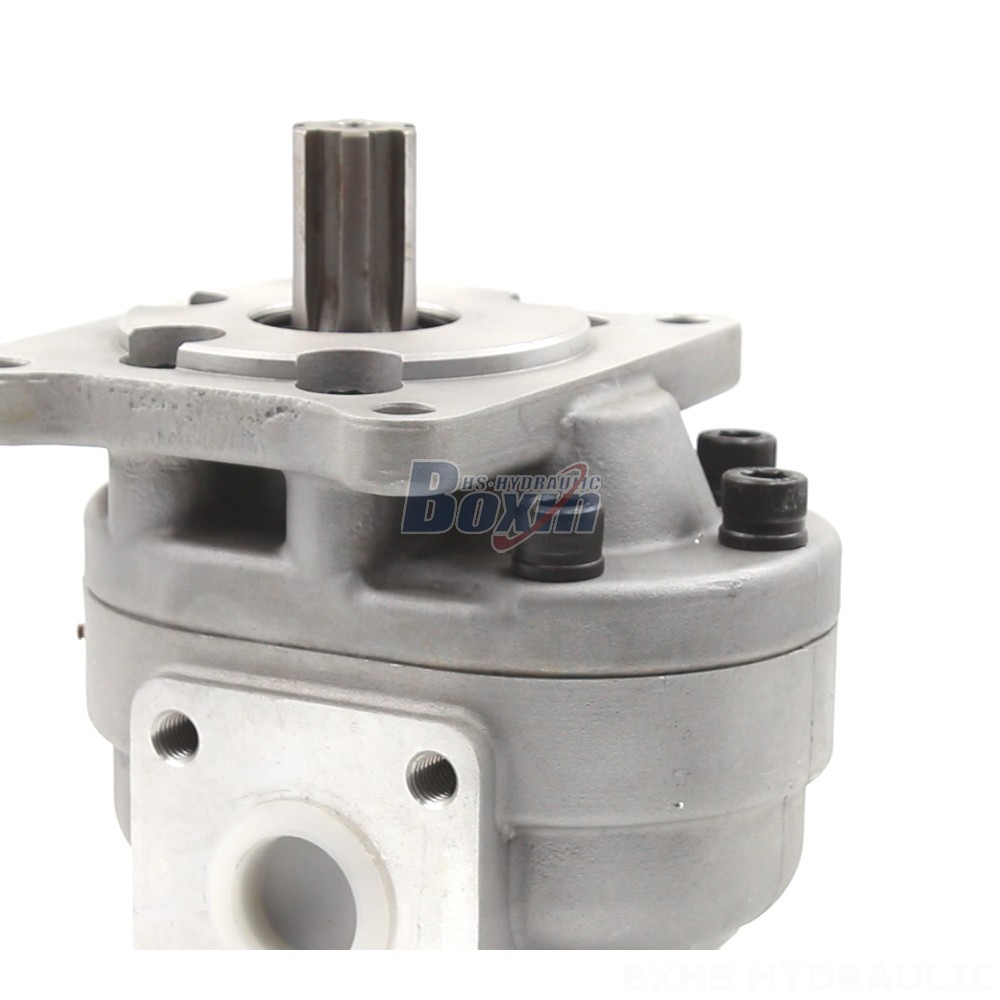

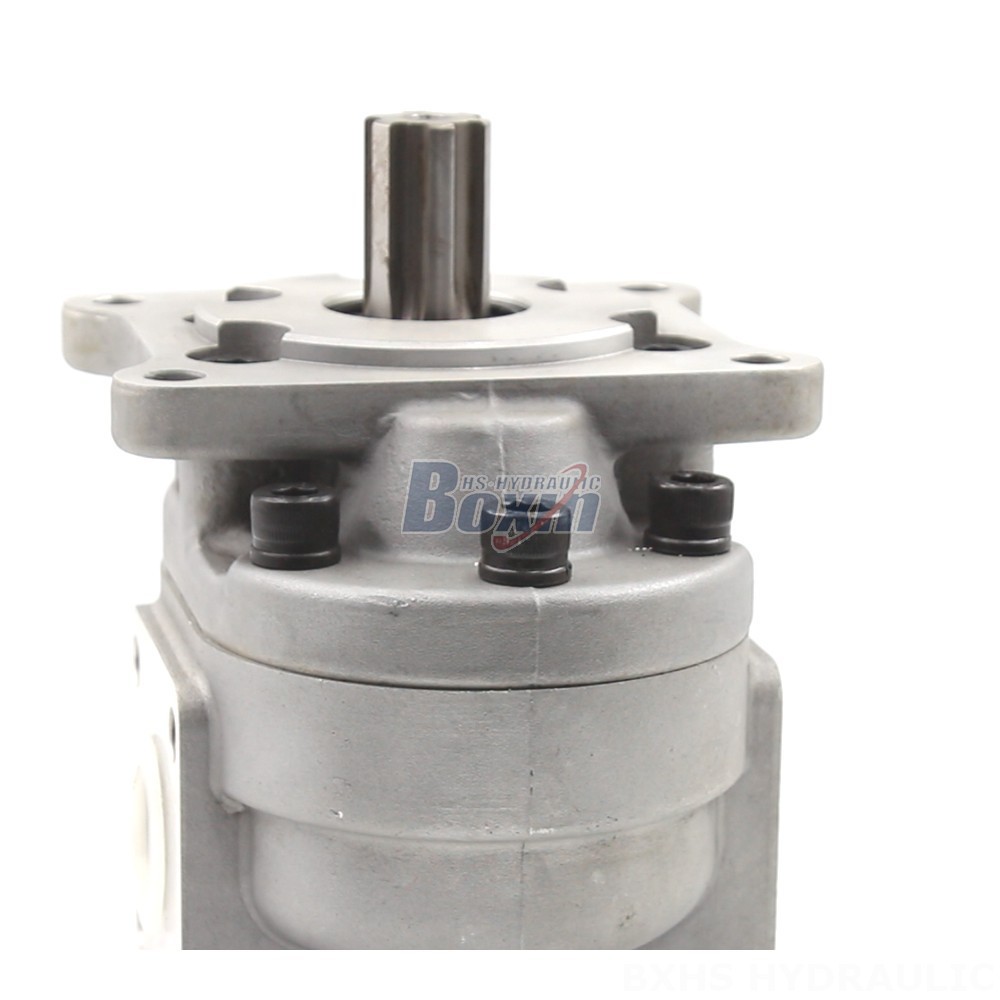

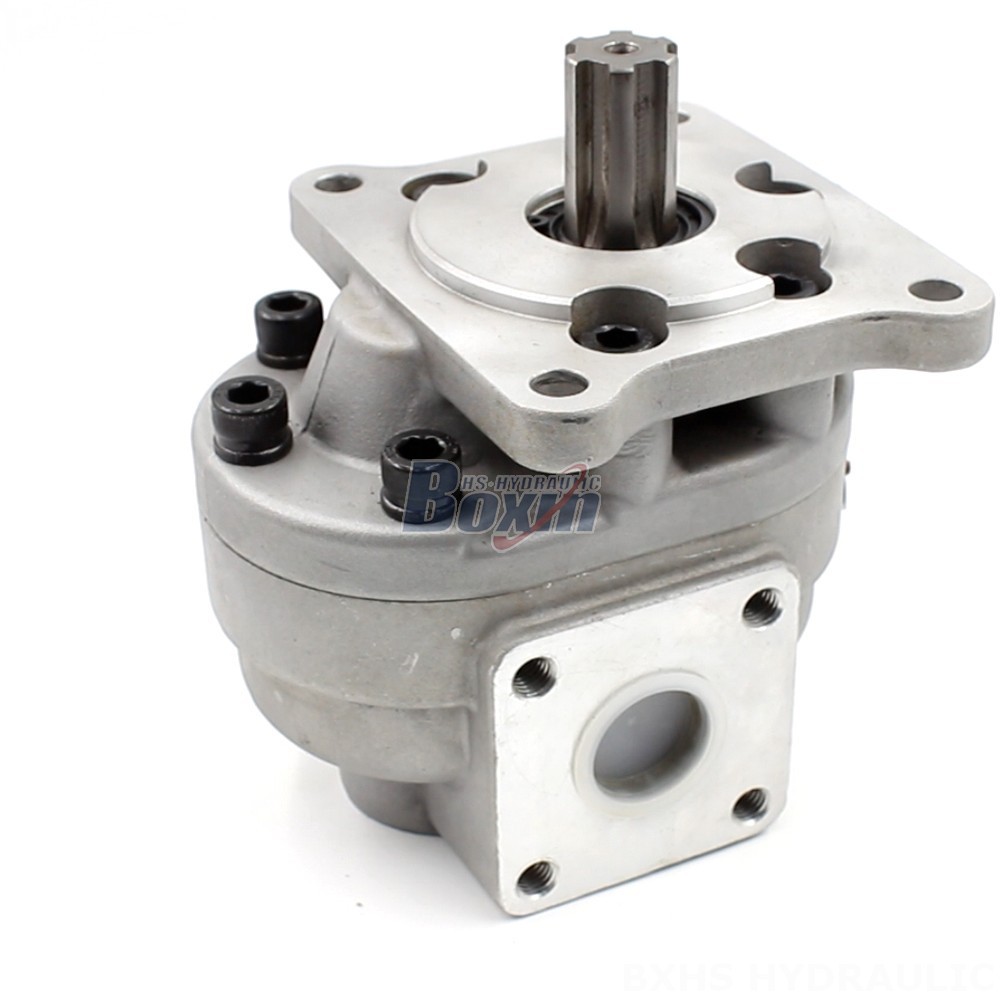

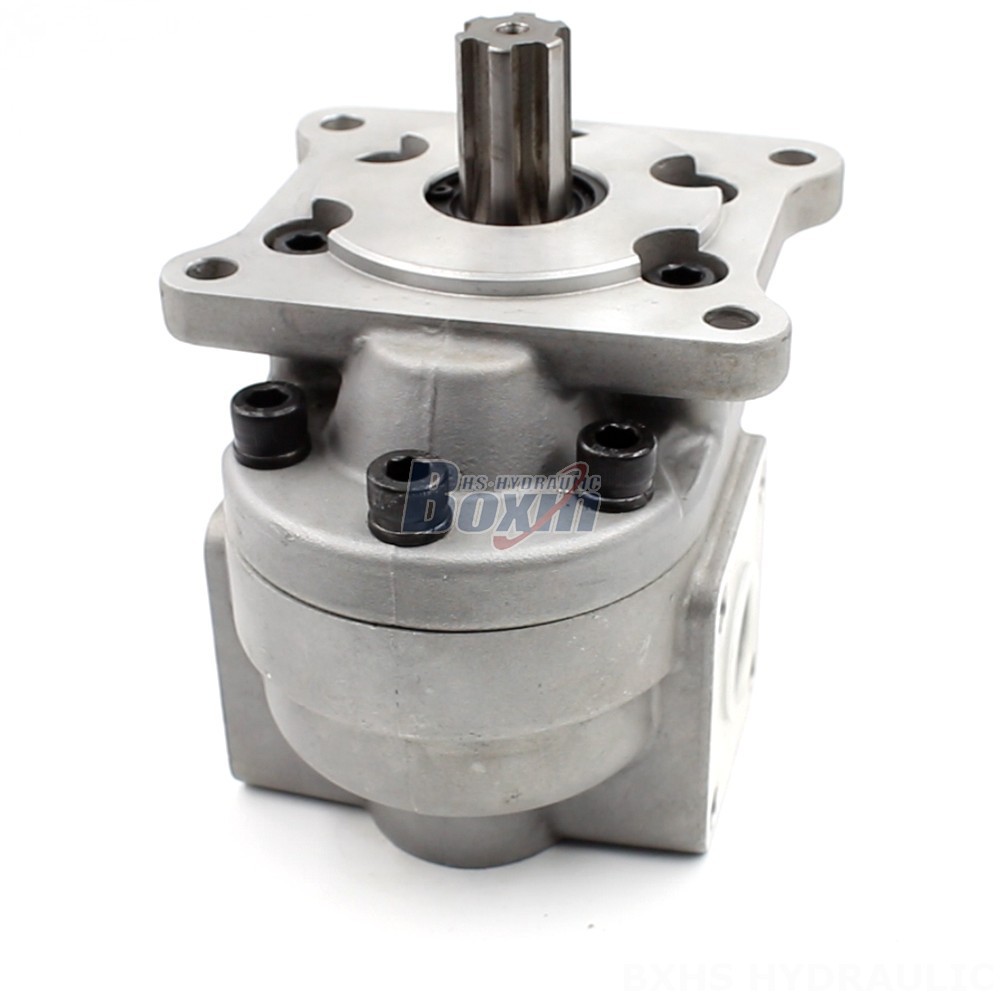

The CBHS-F550 Gear Pump is a high-performance hydraulic pump designed for demanding applications in various industries. With a displacement of 50 cc/rev and a rated pressure of 20 MPa, it delivers exceptional power and efficiency.
| CBHS-F5 Series Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 32 cc/putaran, 50 cc/putaran, 63 cc/putaran, 20 cc/putaran |
| Tekanan Terukur | 20 MPa (2900 psi) |
| Tekanan Maksimum | 25 MPa (3625 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 2500 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam), R: Kanan ( searah jarum jam) |
| Bahan | Besi Cor |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Flange Persegi-B |
| Tipe Poros | H: Spline Persegi Panjang, X: Spline Involute, P: Kunci Biasa |
**CBHS-F550 Gear Pump: Technical Specifications**
- Displacement: 50 cc/rev
- Rated Pressure: 20 MPa
- Rated Speed: 2000 r/min
- Max Speed: 2200 r/min
- Rotation: Left (counter-clockwise) or Right (clockwise)
- Structure: Internal Gear Pump
- Material: Cast Iron
- Flange Version: B-Square Flange
- Shaft Type: Plain Key, Rectangle Spline, or Involute Spline
**Applications:**
- Material Handling Equipment
- Construction and Earth Moving Machinery
- Agricultural Equipment
- Industrial Vehicles
**Applicable Models:**
- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
- Midi-Excavators
- Mini-Excavators
- Skid Steer Loaders
- Compact Wheel Loaders
