Produksi & Pengiriman
Waktu Produksi 15-30 Hari
2135 Pandangan Mencari Produk Ini

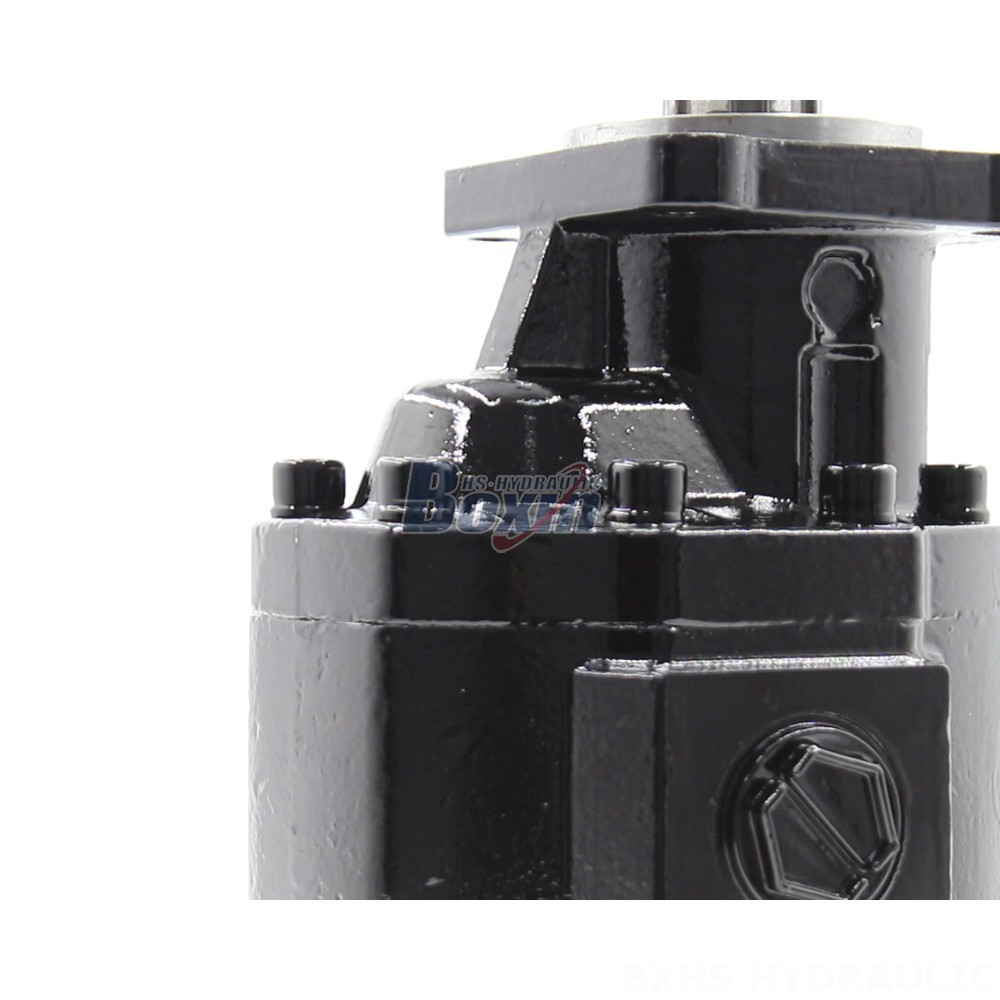

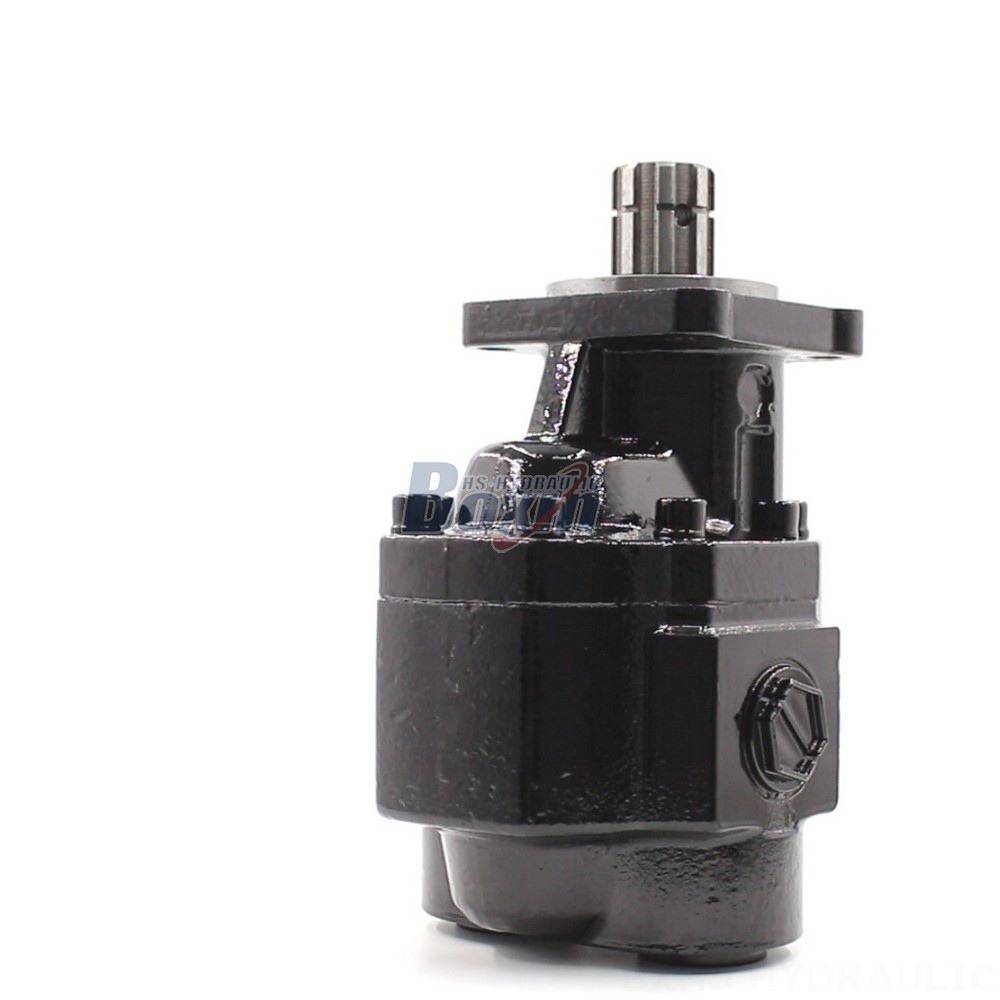

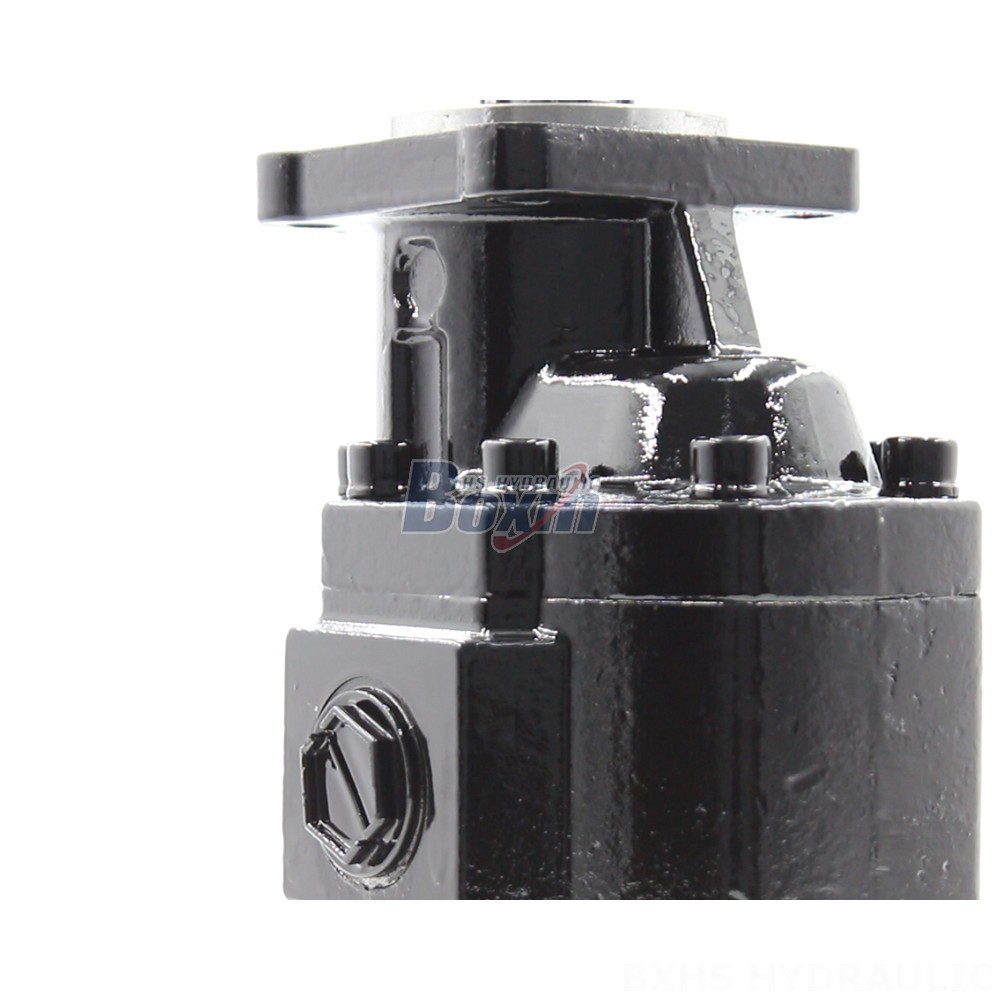

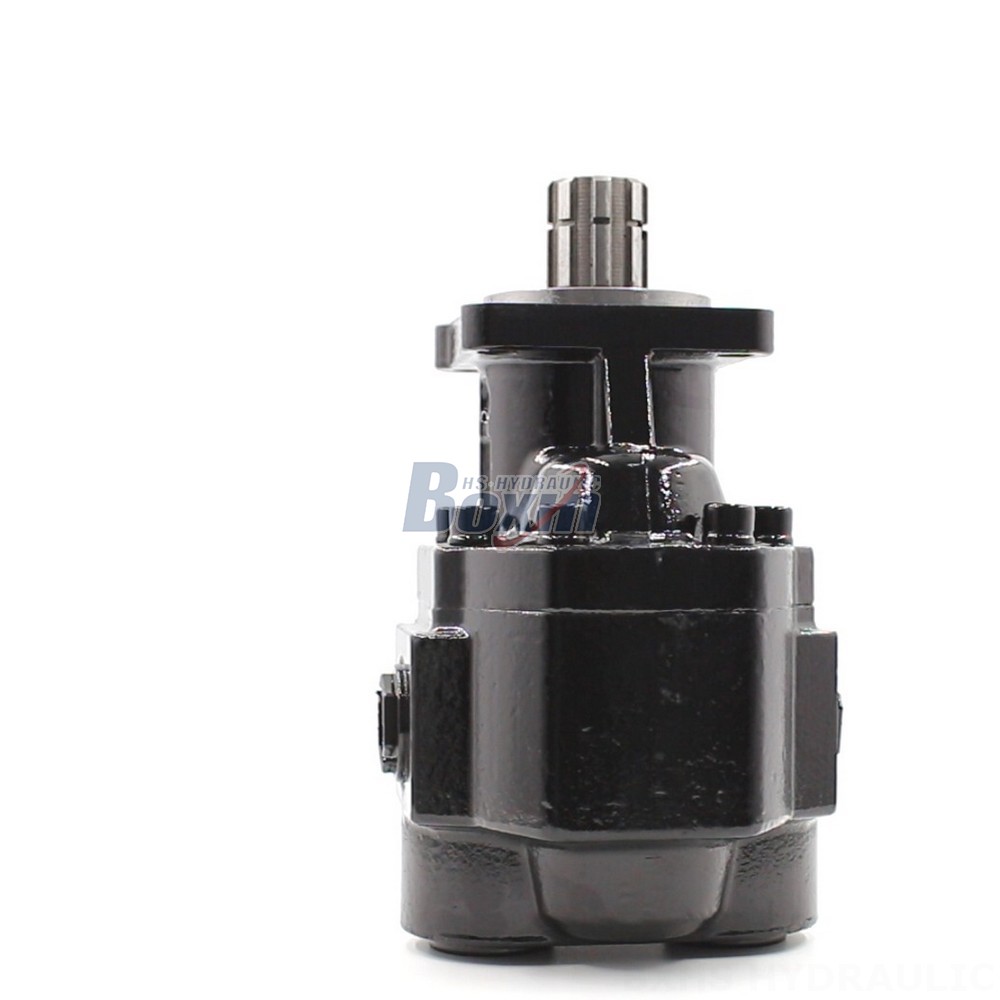

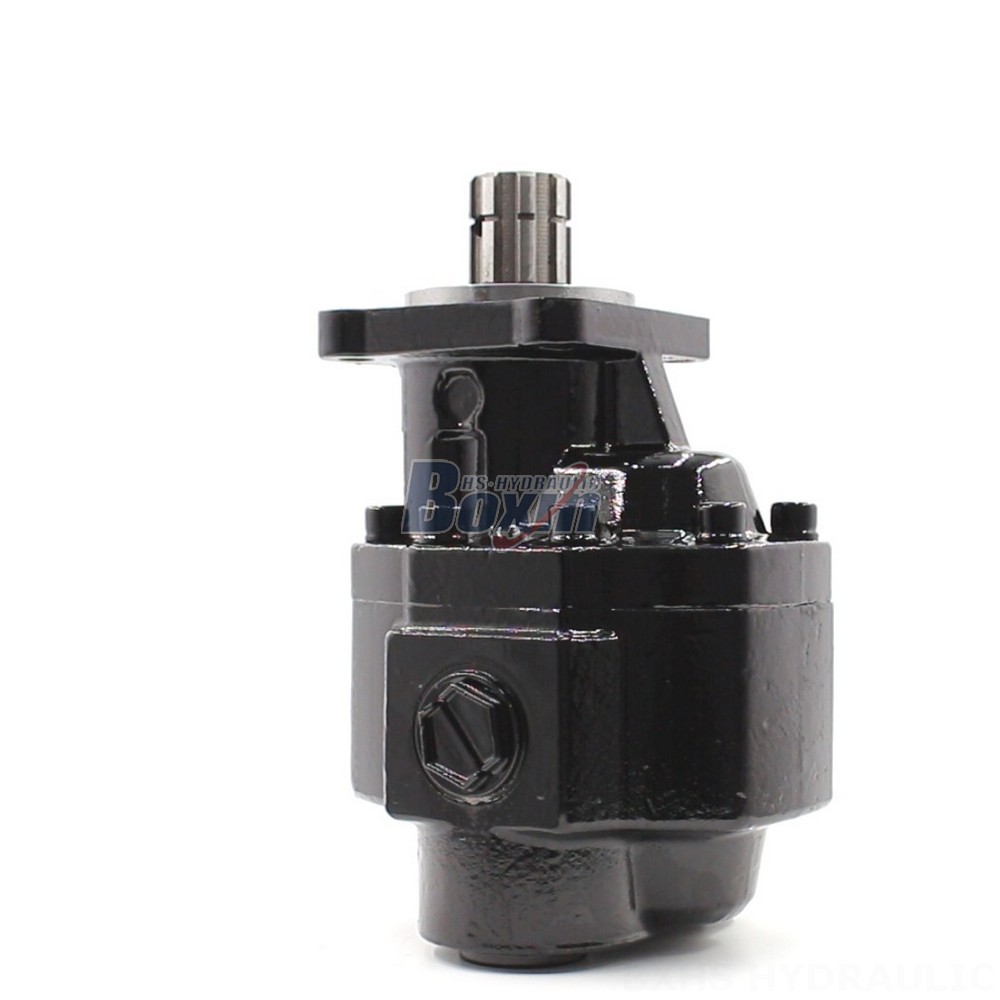

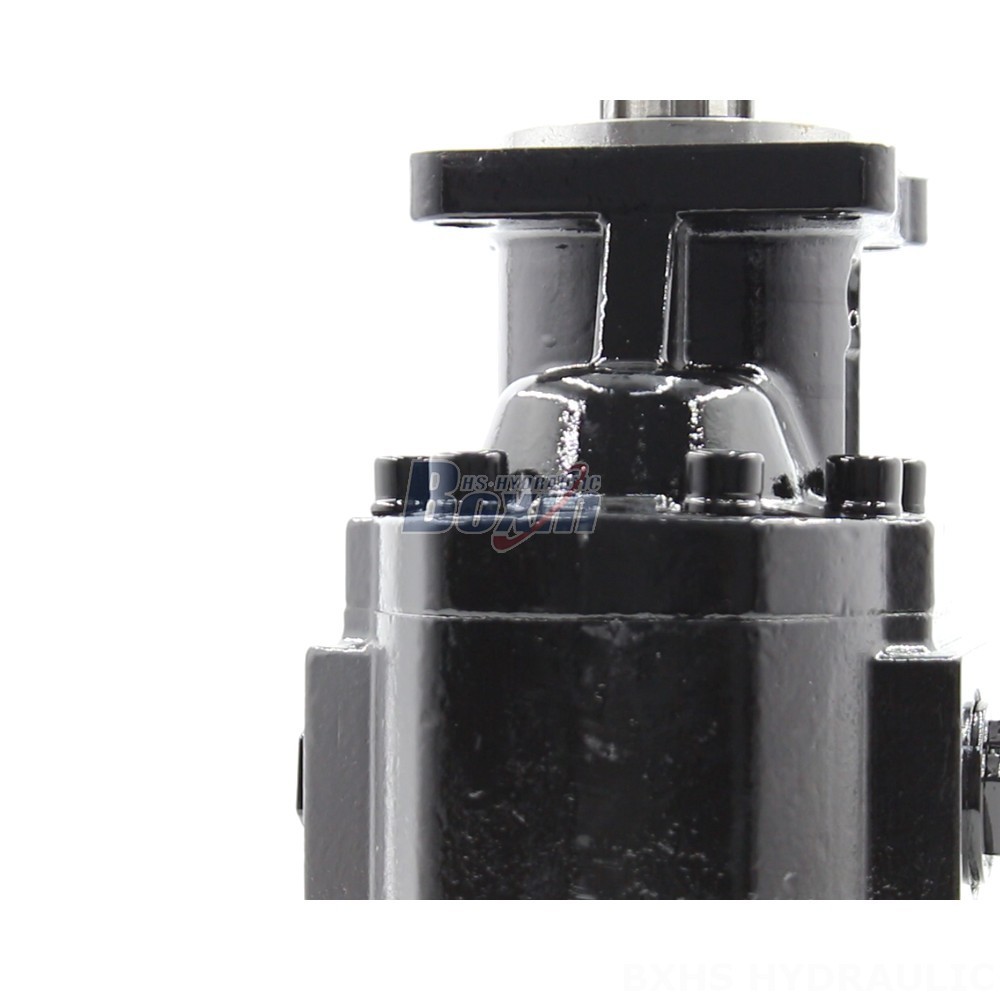

The CBHST1-ISO Series 63 cc/rev Hydraulic Gear Pump is a high-performance pump designed for various applications in industries such as material handling, construction, agriculture, and industrial vehicles. It features a robust cast iron construction, swashplate structure, ISO-4 mounting holes, and a rectangle spline shaft type.
| Seri CBHST1-ISO Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 50 cc/putaran, 63 cc/putaran, 80 cc/putaran, 100 cc/putaran, 110 cc/putaran, 34 cc/putaran, 43 cc/putaran, 90 cc/putaran, 120 cc/putaran, 82 cc/putaran |
| Tekanan Terukur | 20 MPa (2900 psi), 23 MPa (3335 psi), 25 MPa (3625 psi) |
| Tekanan Maksimum | 23 MPa (3335 psi), 25 MPa (3625 psi), 28 MPa (4061 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 2500 r/min |
| Putaran | Dua Arah |
| Bahan | Besi Cor |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Lubang Pemasangan ISO-4 |
| Tipe Poros | H: Spline Persegi Panjang |
**Product Name:** 63 cc/rev Hydraulic Gear Pump
**Displacement:** 32 cc/rev, 40 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 110 cc/rev
**Rated Pressure:** 23 MPa (3335 psi)
**Rated Speed:** 2000 r/min
**Max Speed:** 2500 r/min
**Rotation:** /: (Bidirectional)
**Structure:** Swashplate
**Material:** Cast Iron
**Flange Version:** ISO-4 Mounting Holes
**Shaft Type:** H: Rectangle Spline
**Series:** CBHST1-ISO Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
