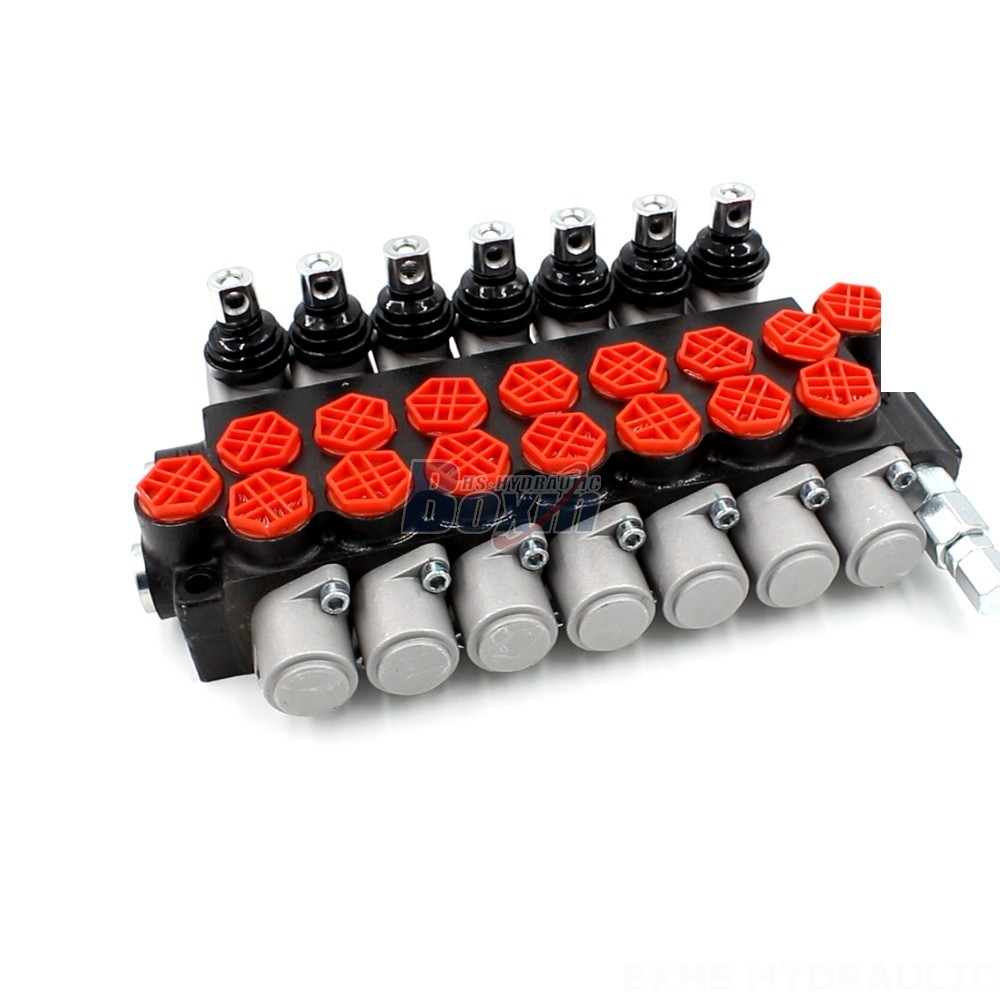

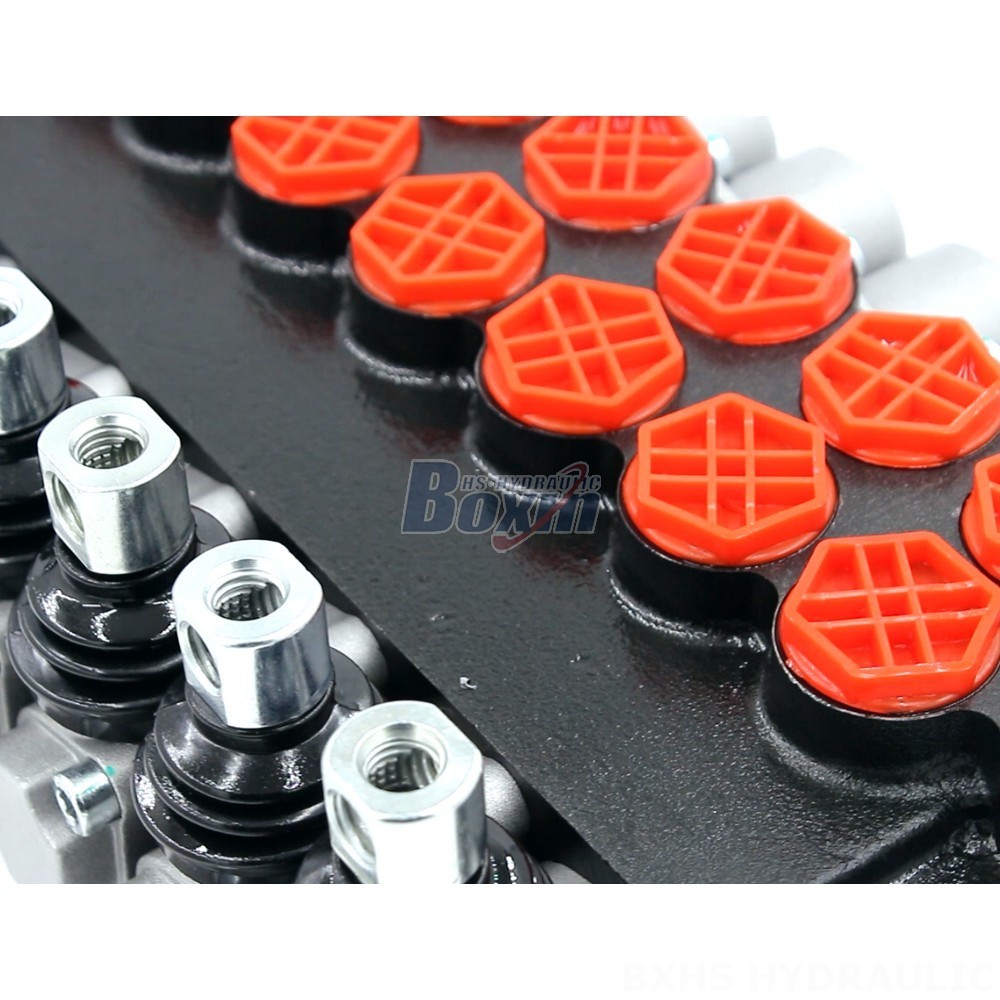

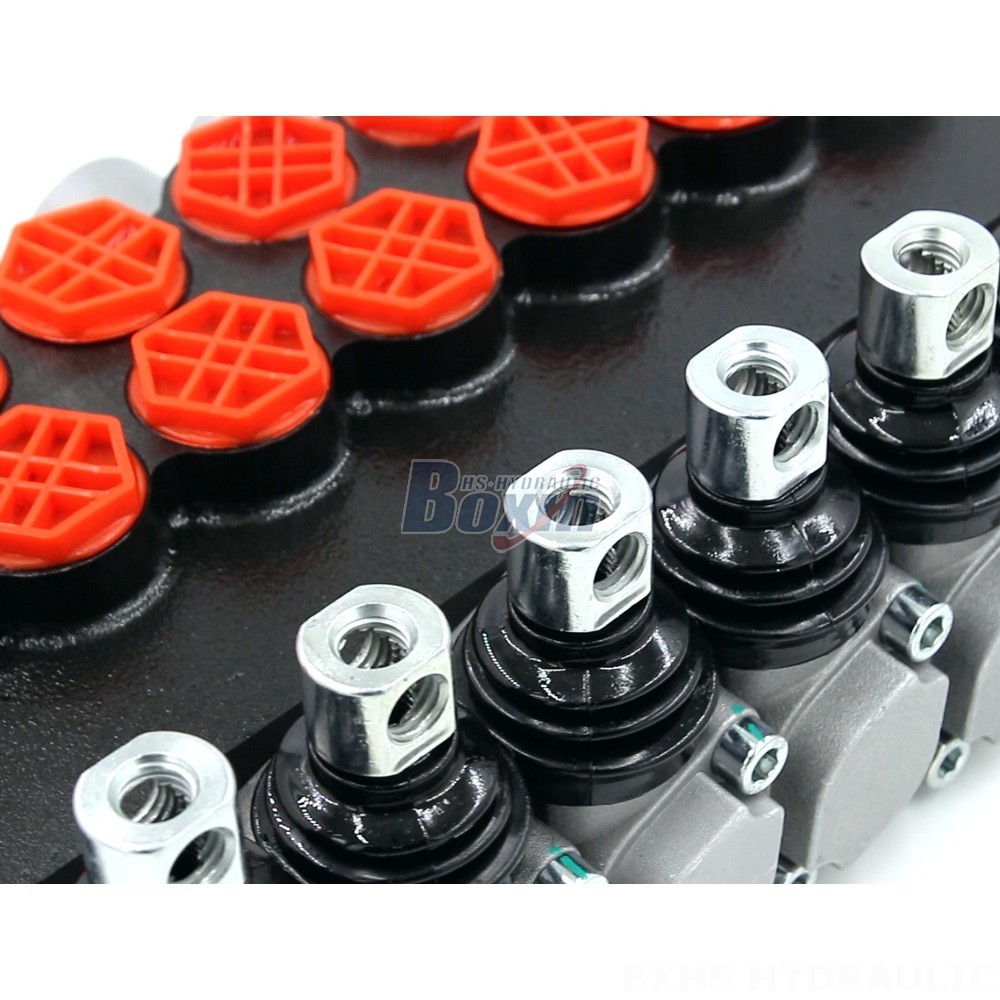

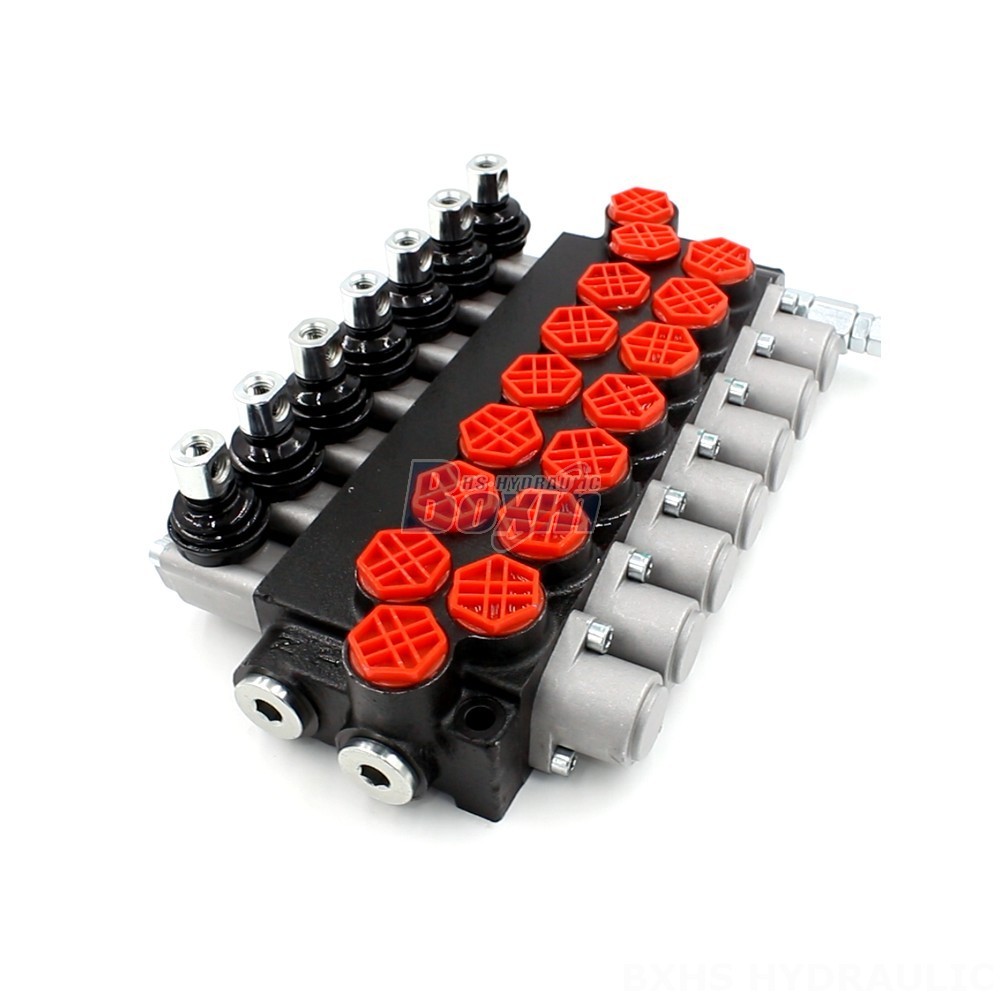

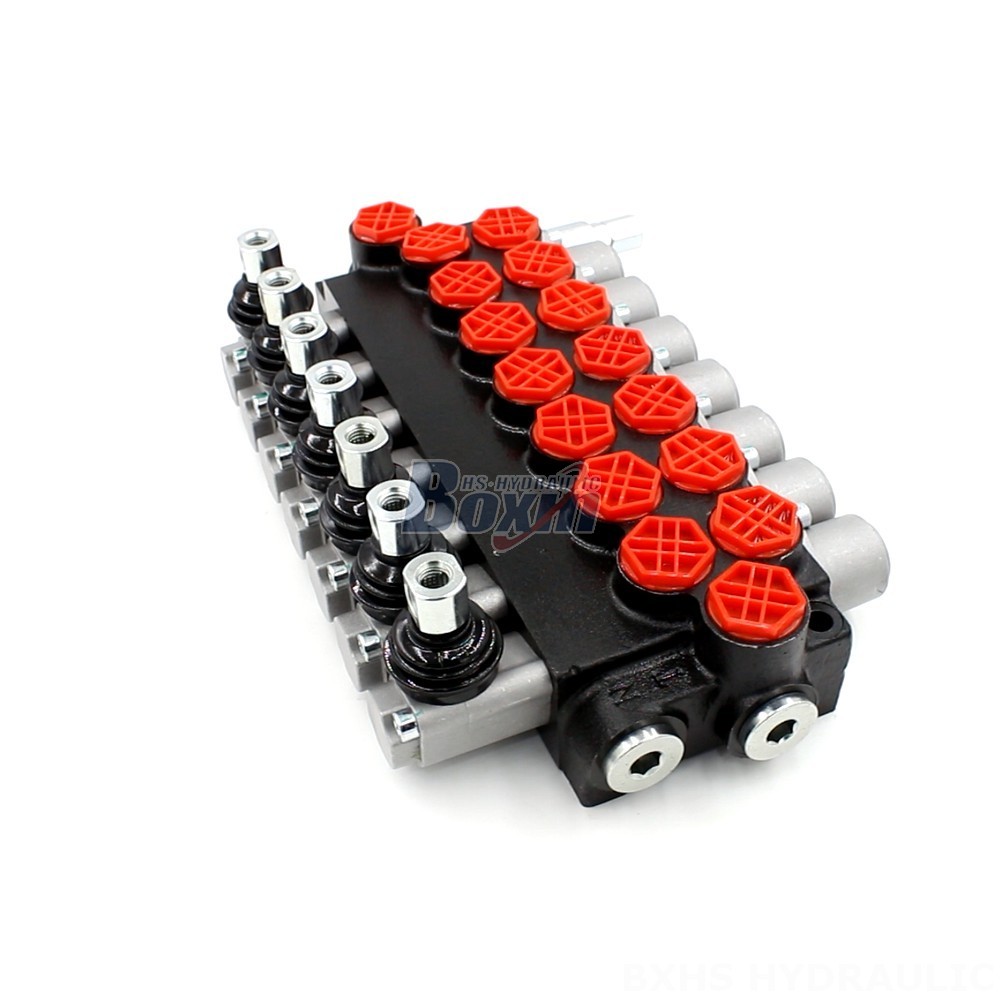

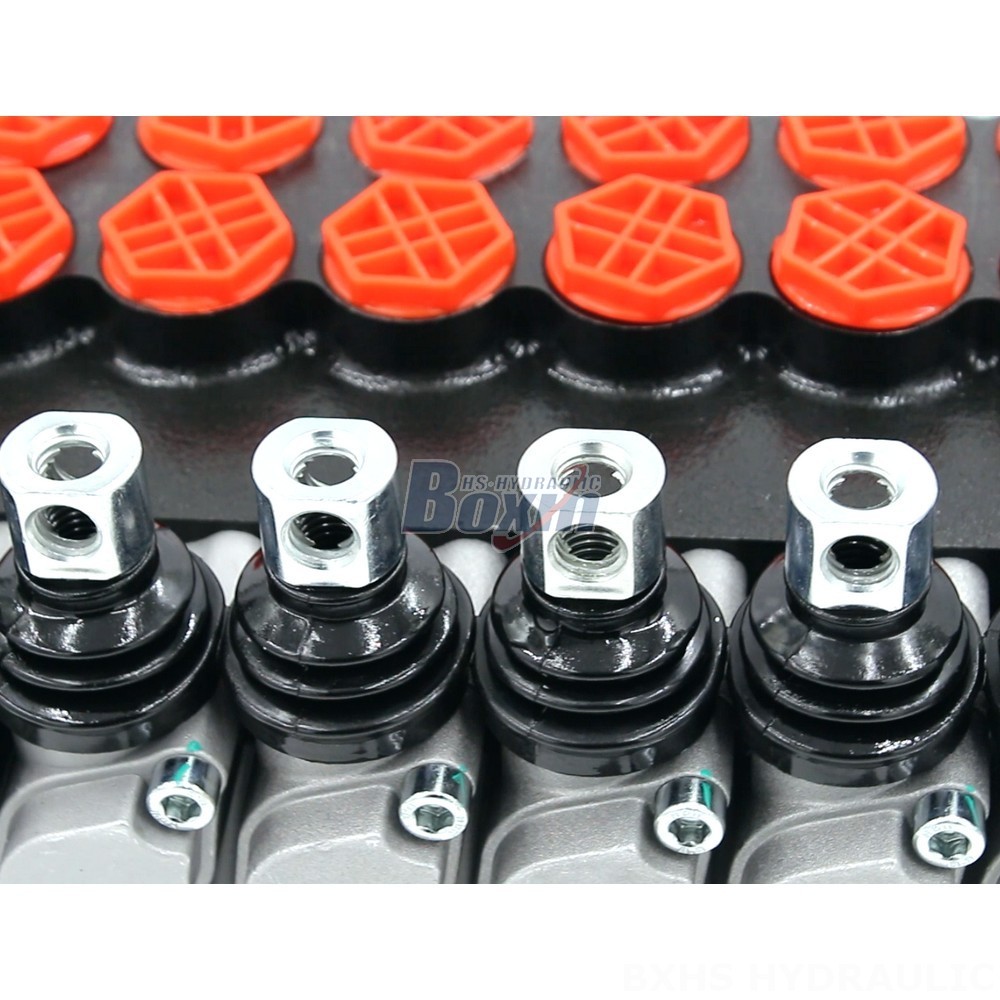

This high-performance 7-spool manual hydraulic directional valve is designed for demanding applications in material handling, construction, and agriculture. Featuring a monoblock structure and rated for 700 Bar (10,000 psi), this valve delivers precision control and exceptional efficiency. It's ideal for applications such as telehandlers, forklifts, and all-terrain cranes.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This robust 7-section manual hydraulic valve provides precise and reliable directional control for demanding applications. With a 40 L/min flow rate, 250 bar pressure rating, and wide operating temperature range, this valve is a reliable solution for various hydraulic systems. Designed for use in material handling, construction, and agricultural equipment, this P40 Series valve is ideal for applications such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders.
