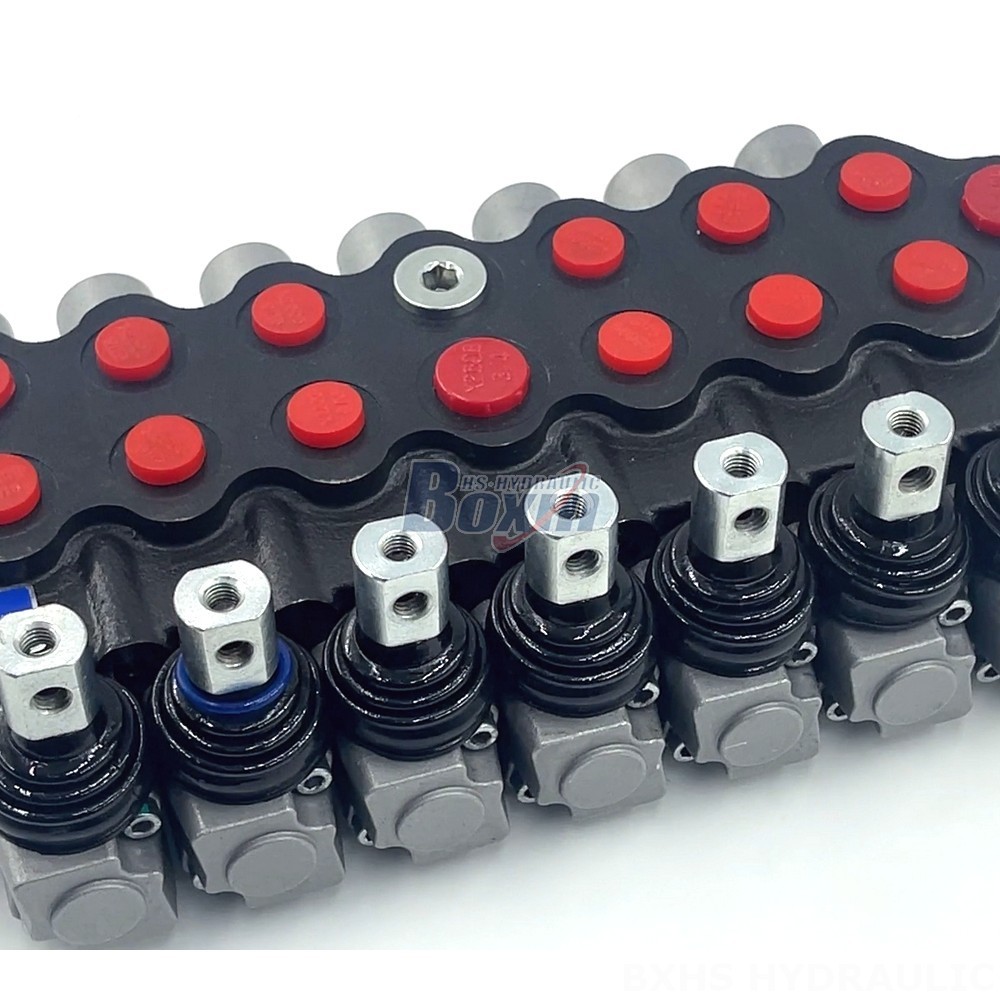

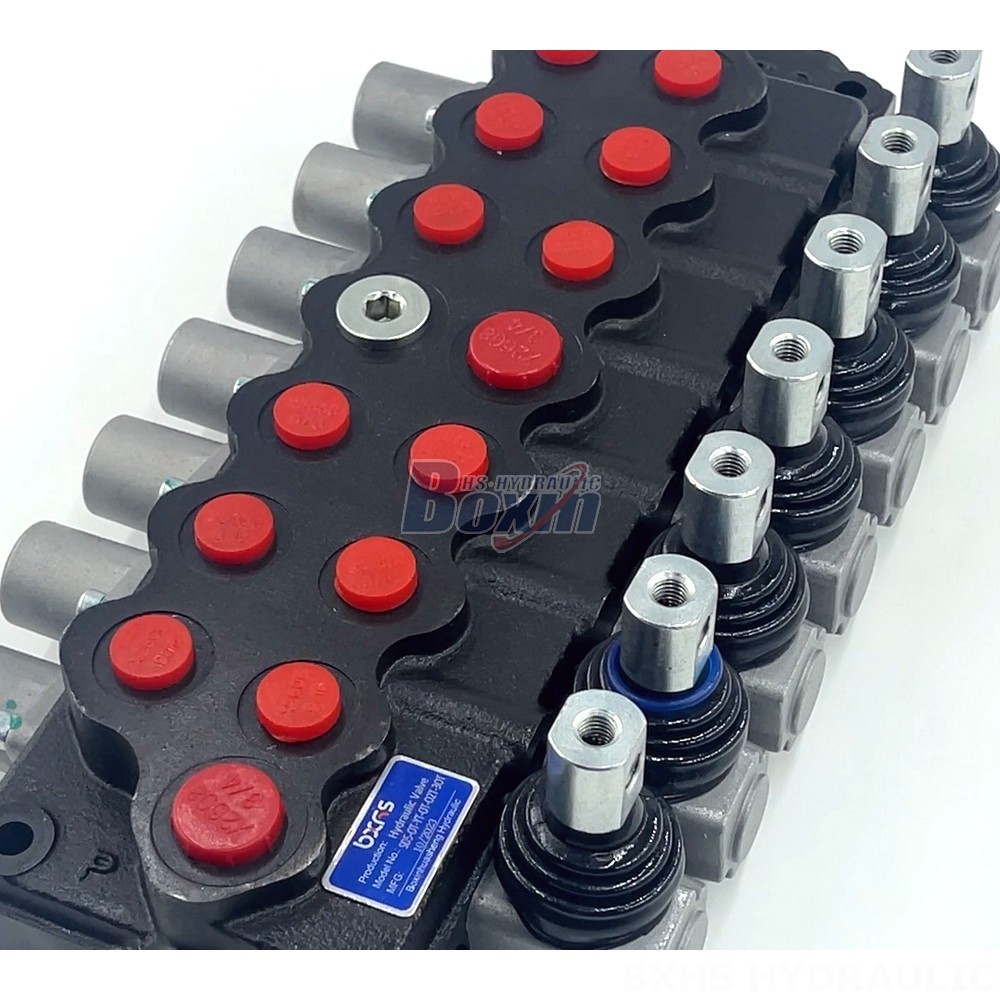

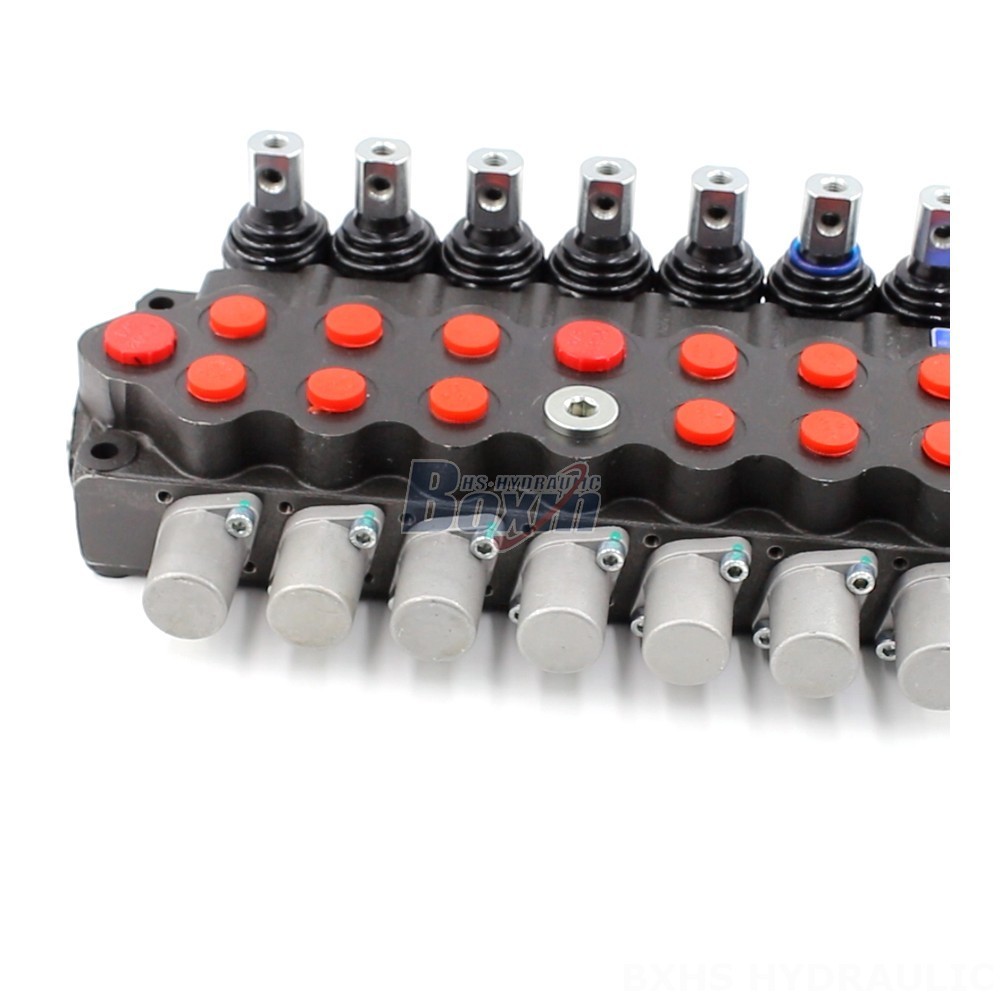

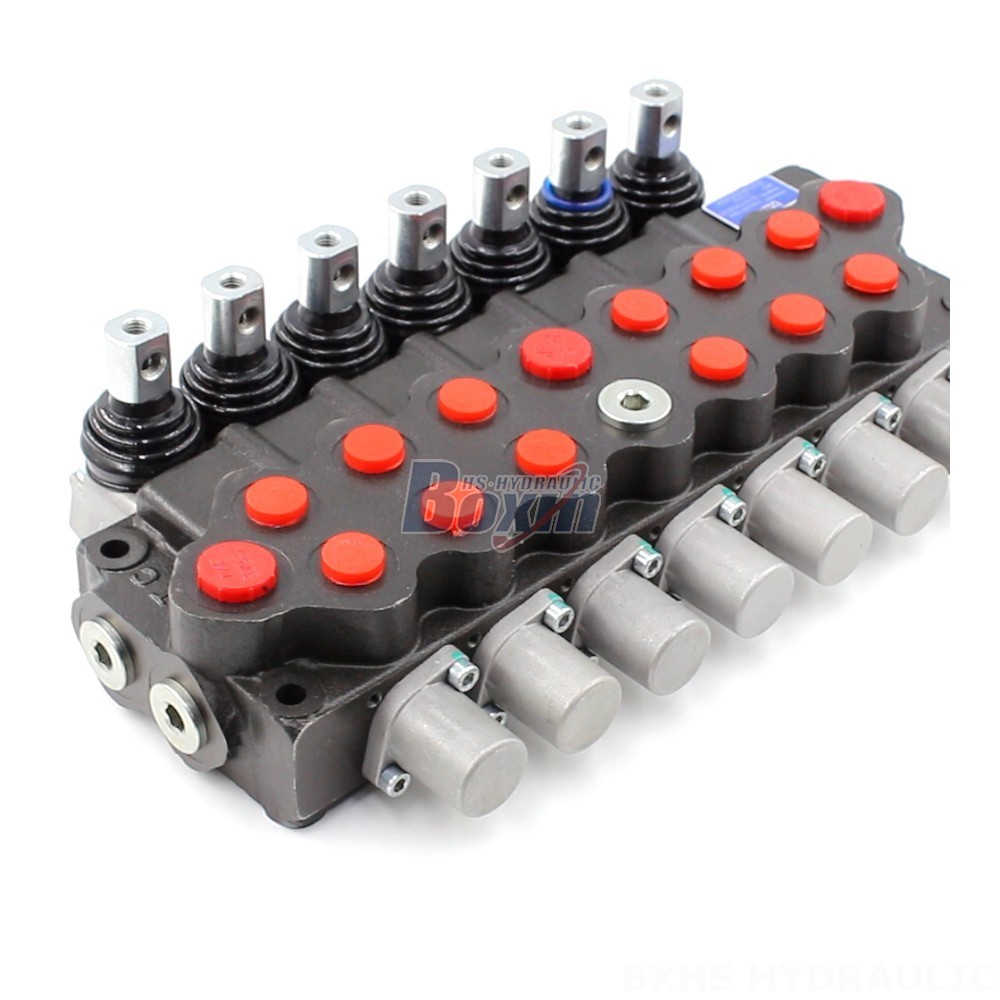

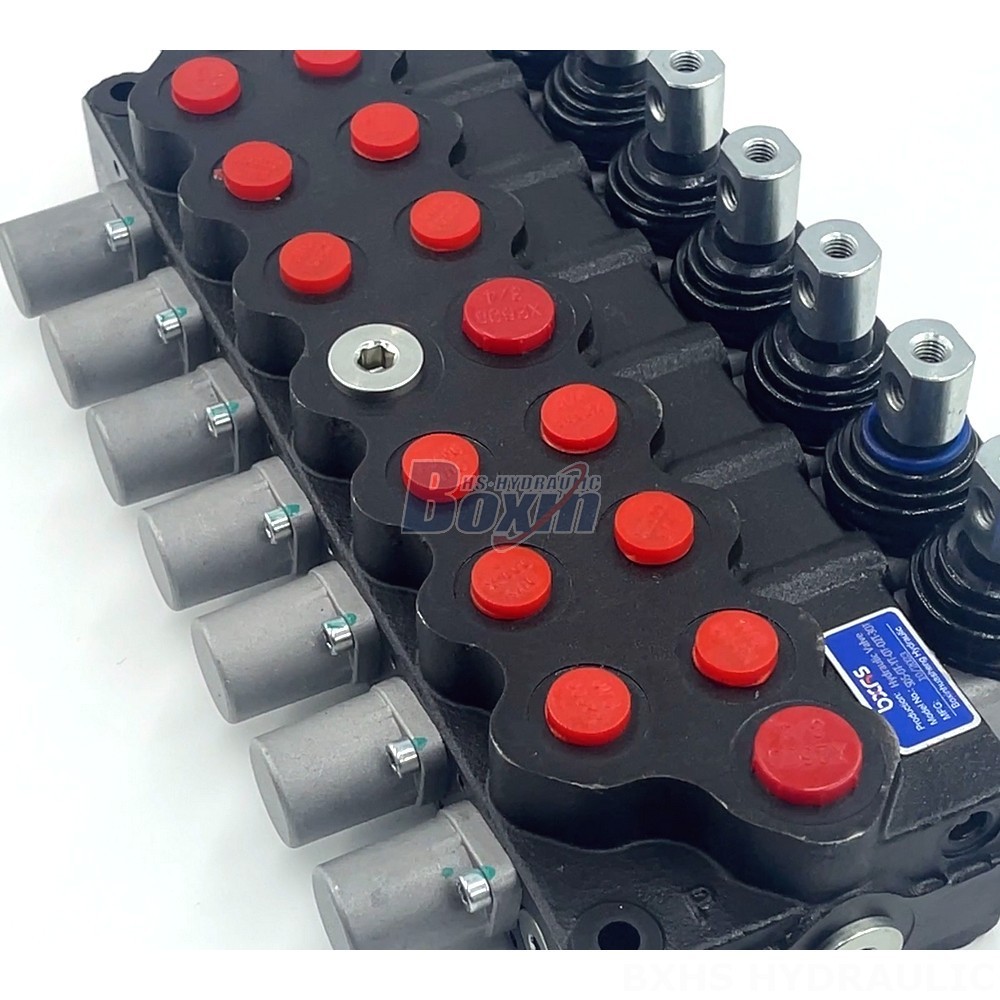

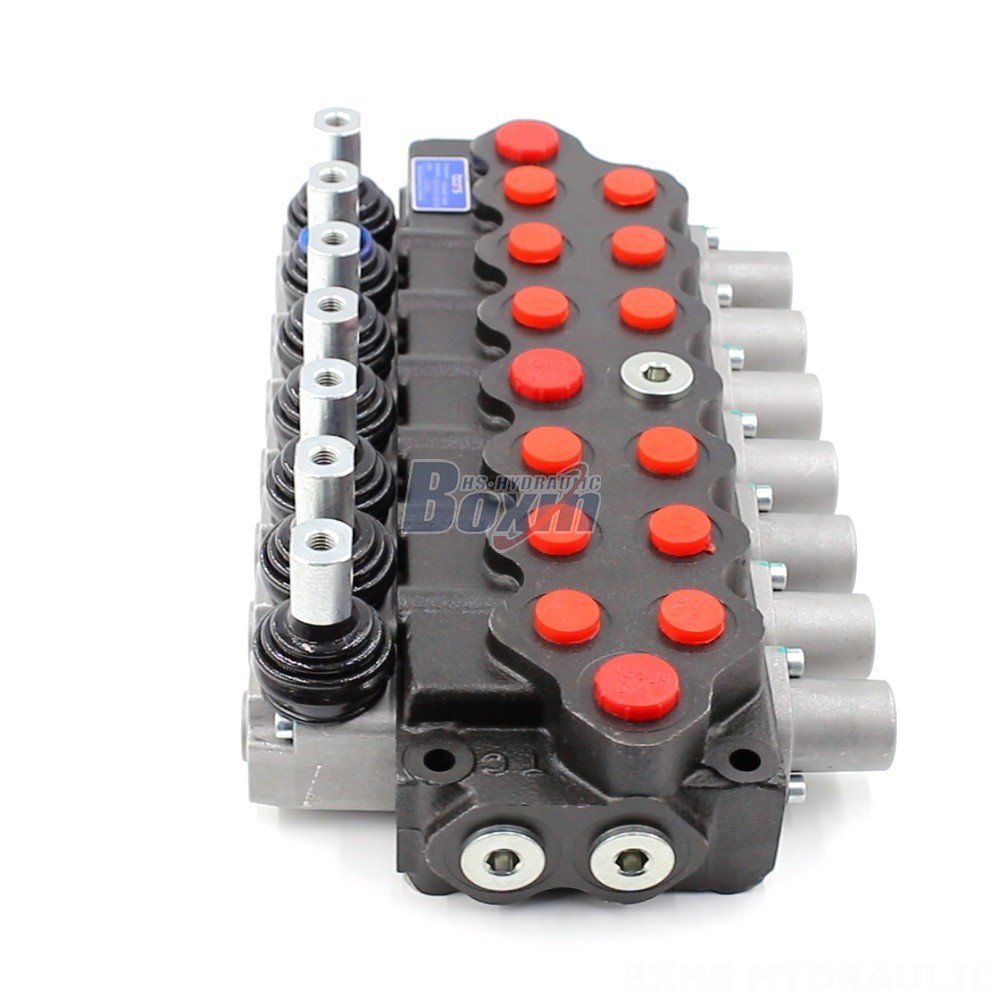

The SD5 Series 7-Spool Hydraulic Multiplier Valve is a high-performance, monoblock valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. With its 7 spools and rated flow of 40 L/min, it provides precise control and efficient operation.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This 7-Spool Hydraulic Multiplier Valve is built with a robust monoblock construction, providing exceptional durability and reliability. It features a rated flow of 40 L/min, a maximum pressure rating of 305 bar (4400 psi), and a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Designed for demanding environments, it operates within an ambient temperature range of -40°C to +60°C (-40°F to +140°F). With its manual control and 7 spools, this valve offers precise control for a variety of hydraulic functions. This Hydraulic Multiplier Valve is ideal for applications such as telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters.
