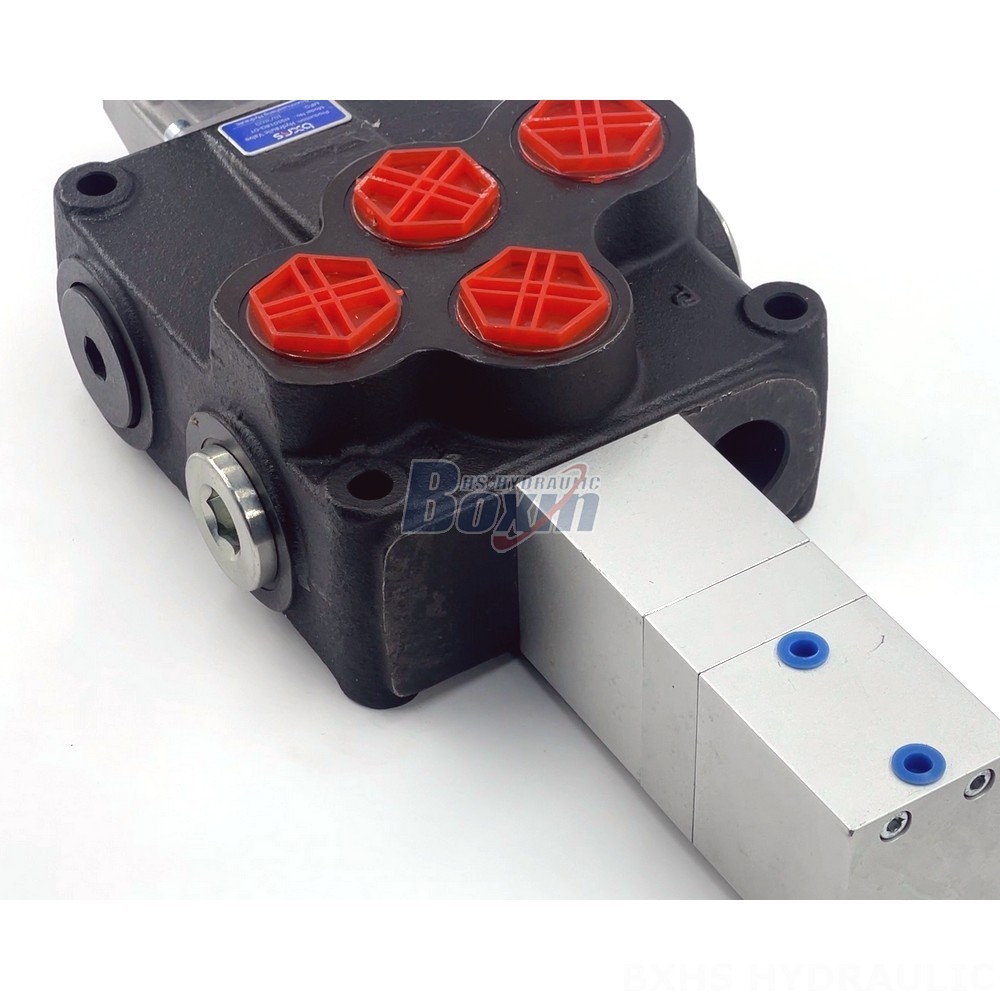

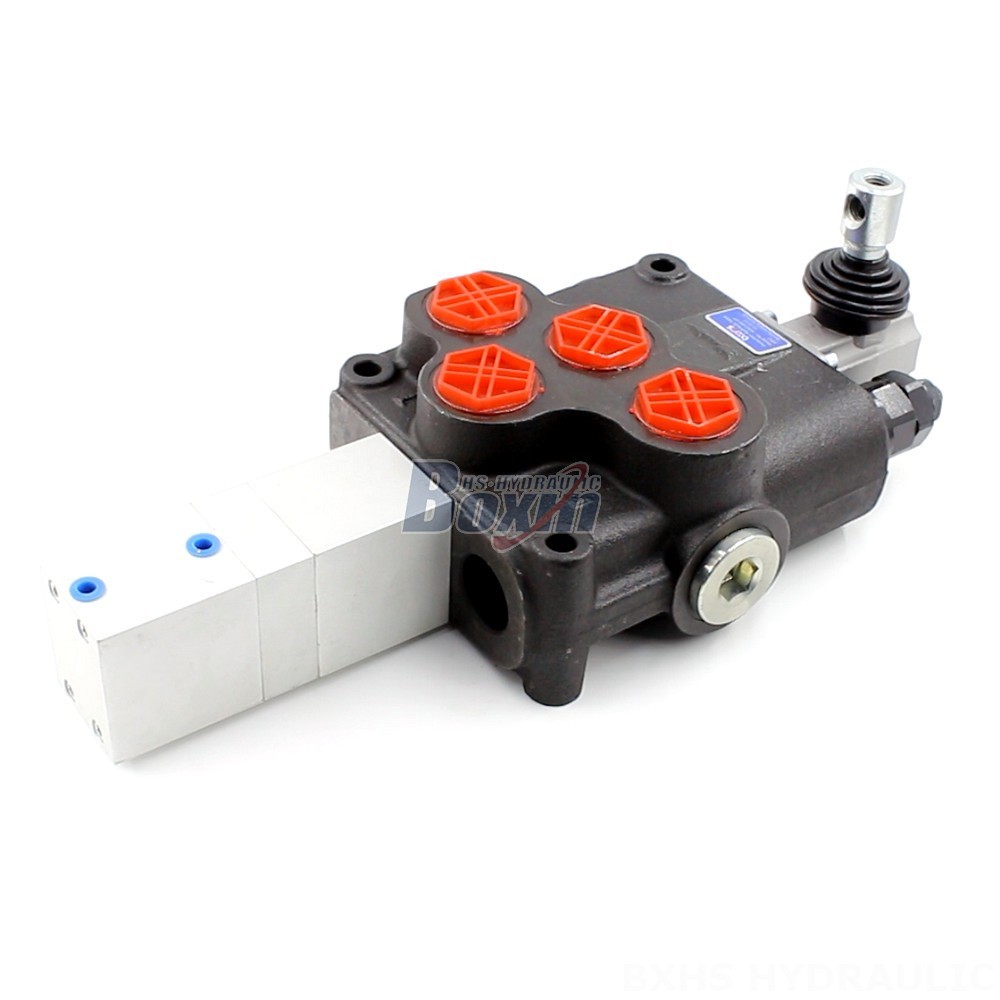

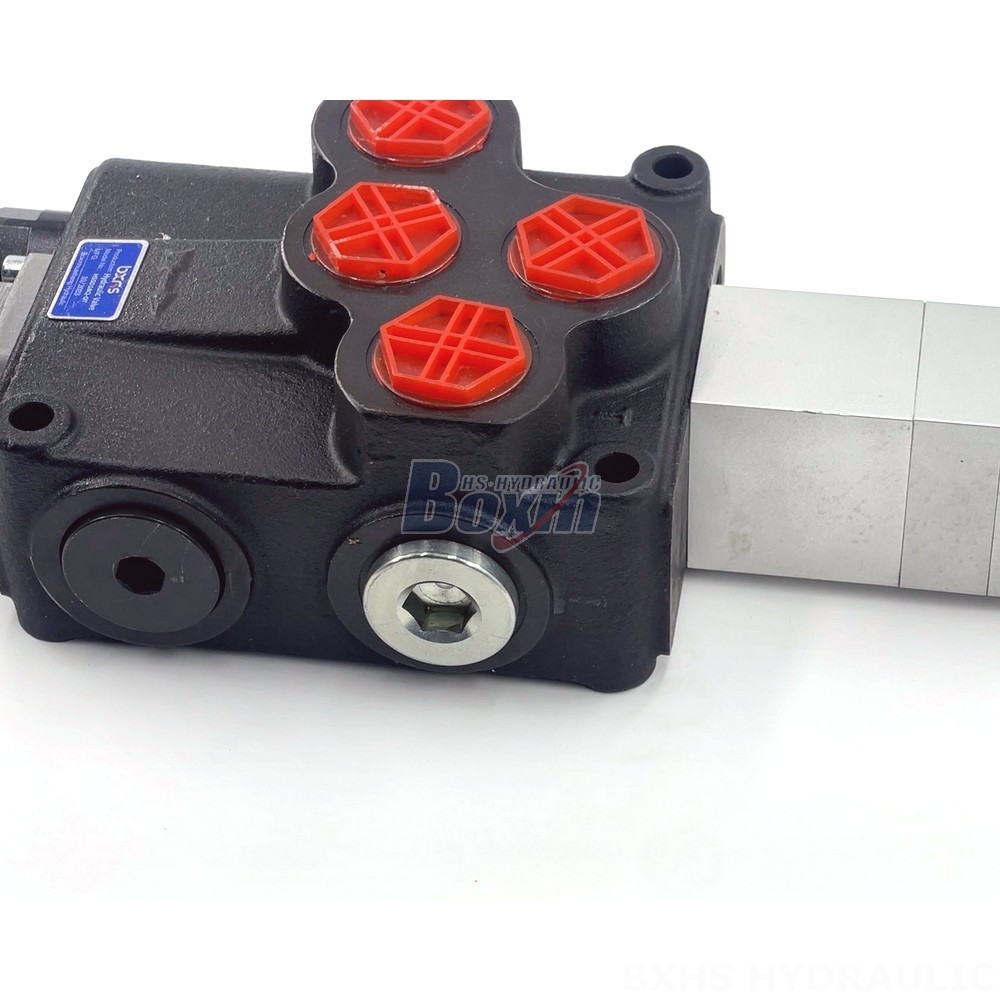

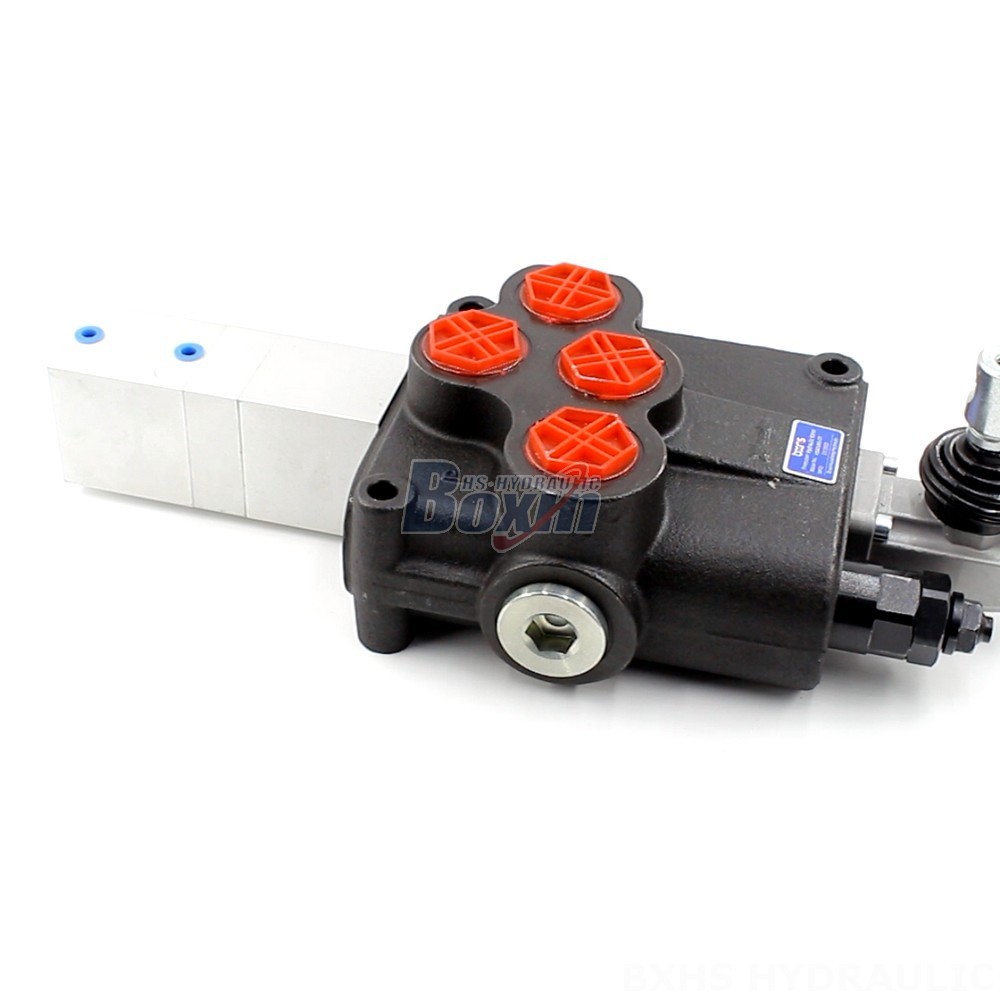

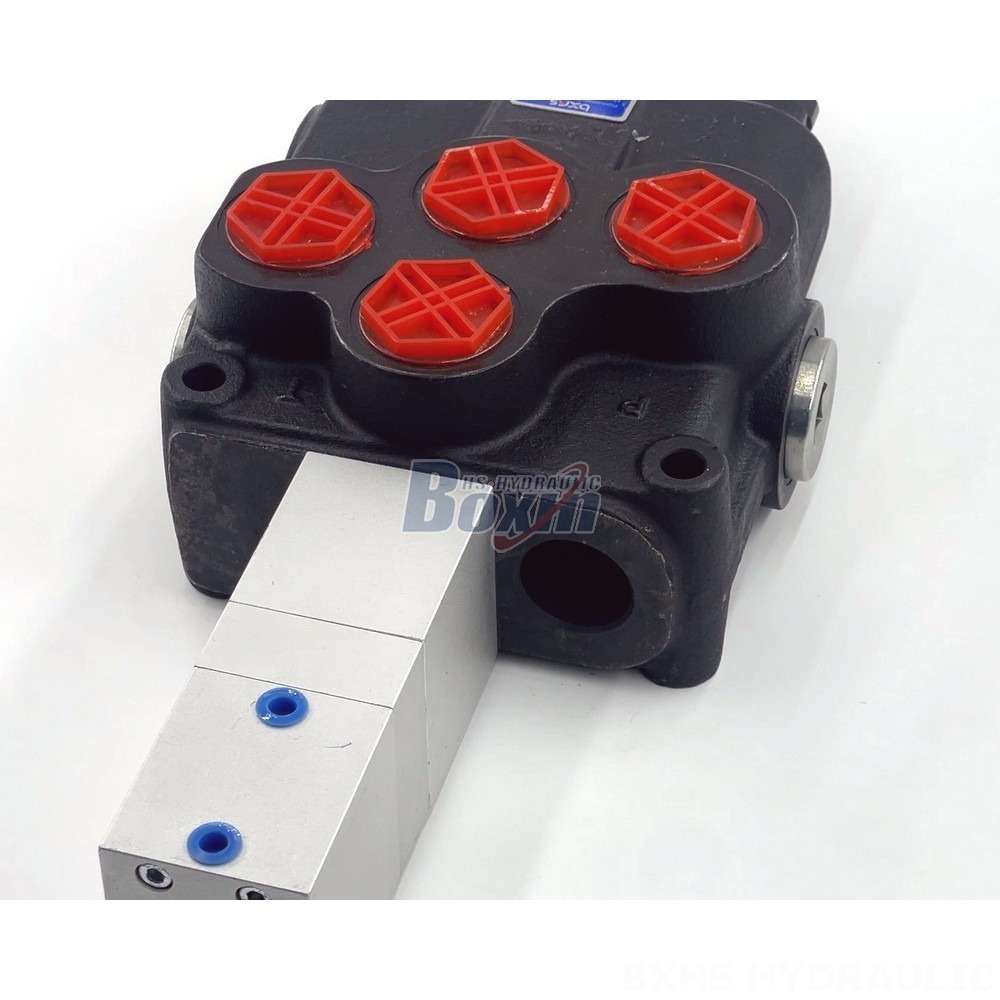

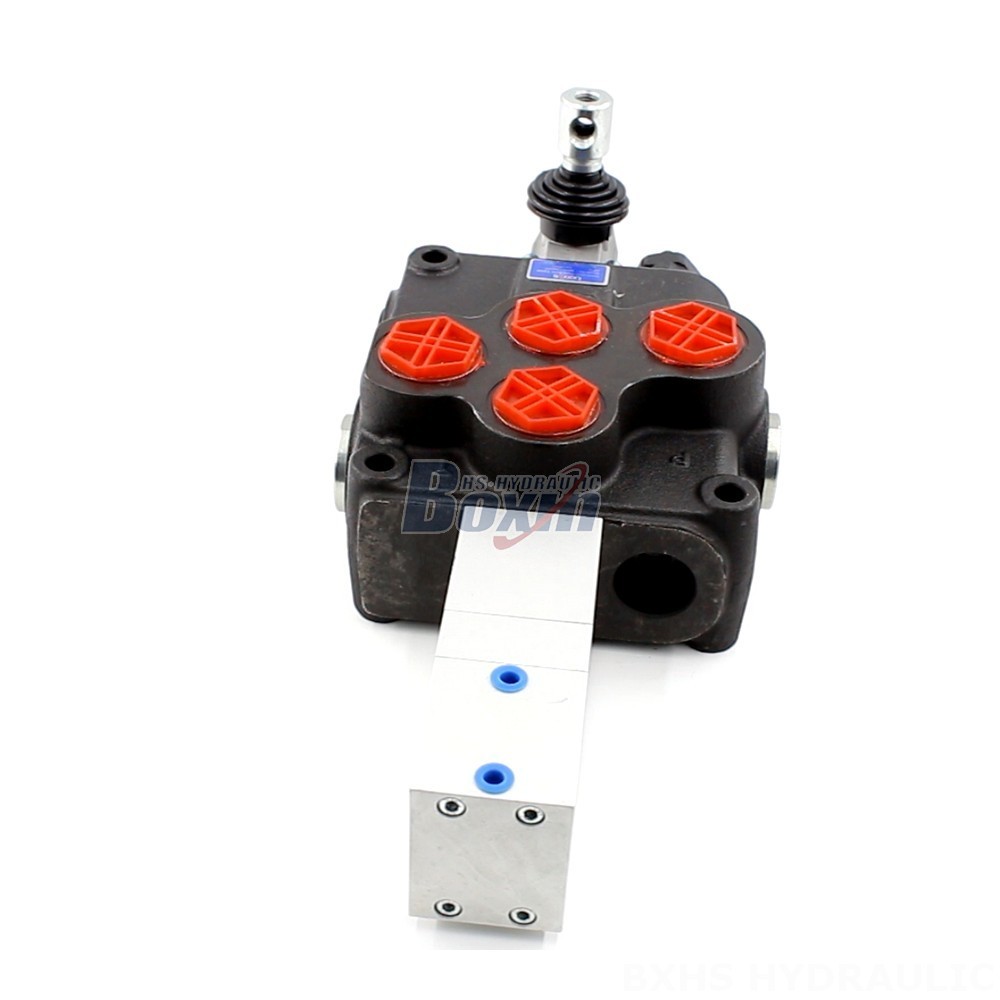

The Advanced Valve Technology SD18 Monoblock Directional Valve is a high-performance valve designed for demanding hydraulic systems. With its pneumatic control, monoblock construction, and impressive flow and pressure capabilities, this valve delivers reliable and efficient performance in various applications, including material handling, construction, agriculture, and industrial vehicles.
| Seri SD18 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 160 L/menit (42,2 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G1/2, G1, SAE 16 |
| Port Keluar | G1, SAE 16 |
| Ukuran Port | G1, SAE 16 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
**Key Features:**
- Pneumatic control for precise and responsive operation
- Monoblock construction for compact and robust design
- Rated flow of 120 L/min (31.7 US gpm) for efficient fluid handling
- Maximum pressure of 315 bar (4600 psi) for demanding applications
- Operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) for compatibility with various fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F), -40°C to +60°C (-40°F to +140°F) for operation in diverse environments
- Available with 1 spool for versatile control options
- Part of the SD18 Series, known for its durability and reliability
**Applications:**
- Telehandlers
- Forklifts
- All-terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Midi-excavators
- Mini-excavators
- Skid steer loaders
- Compact wheel loaders
