Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1083 Pandangan Mencari Produk Ini

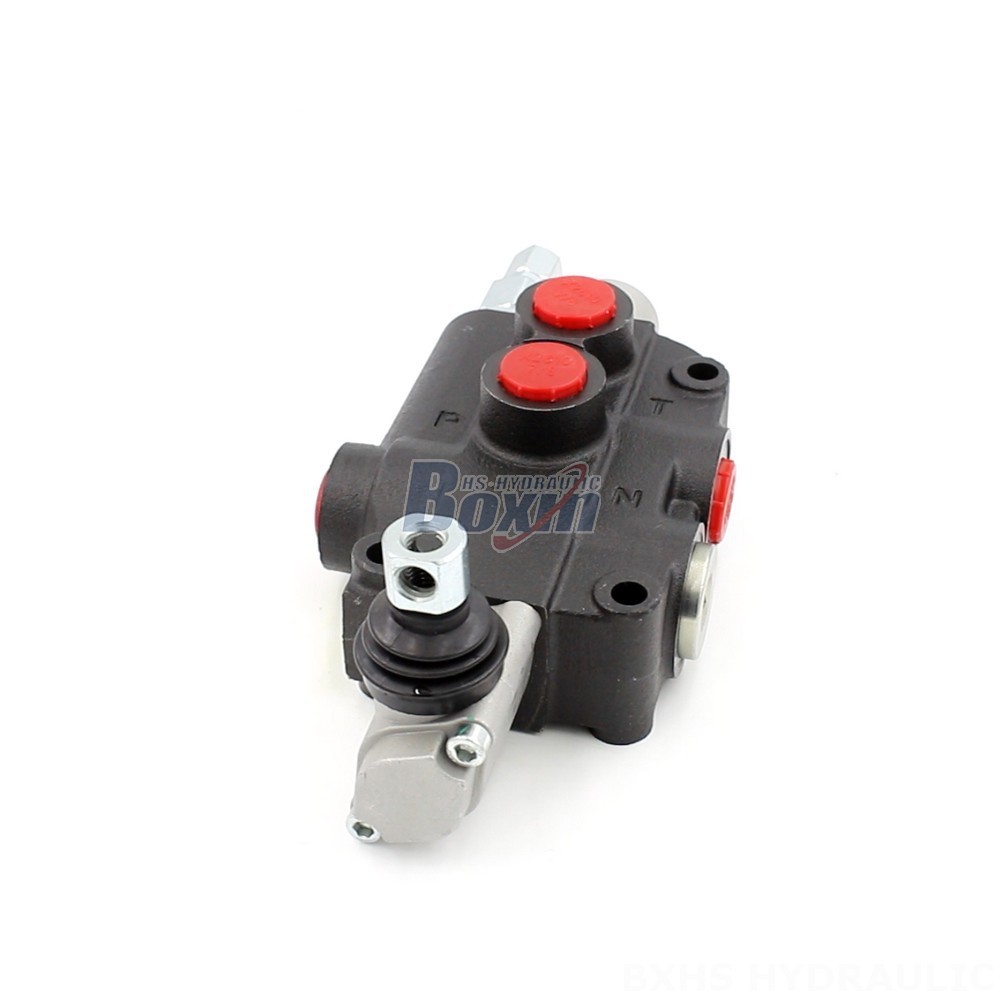

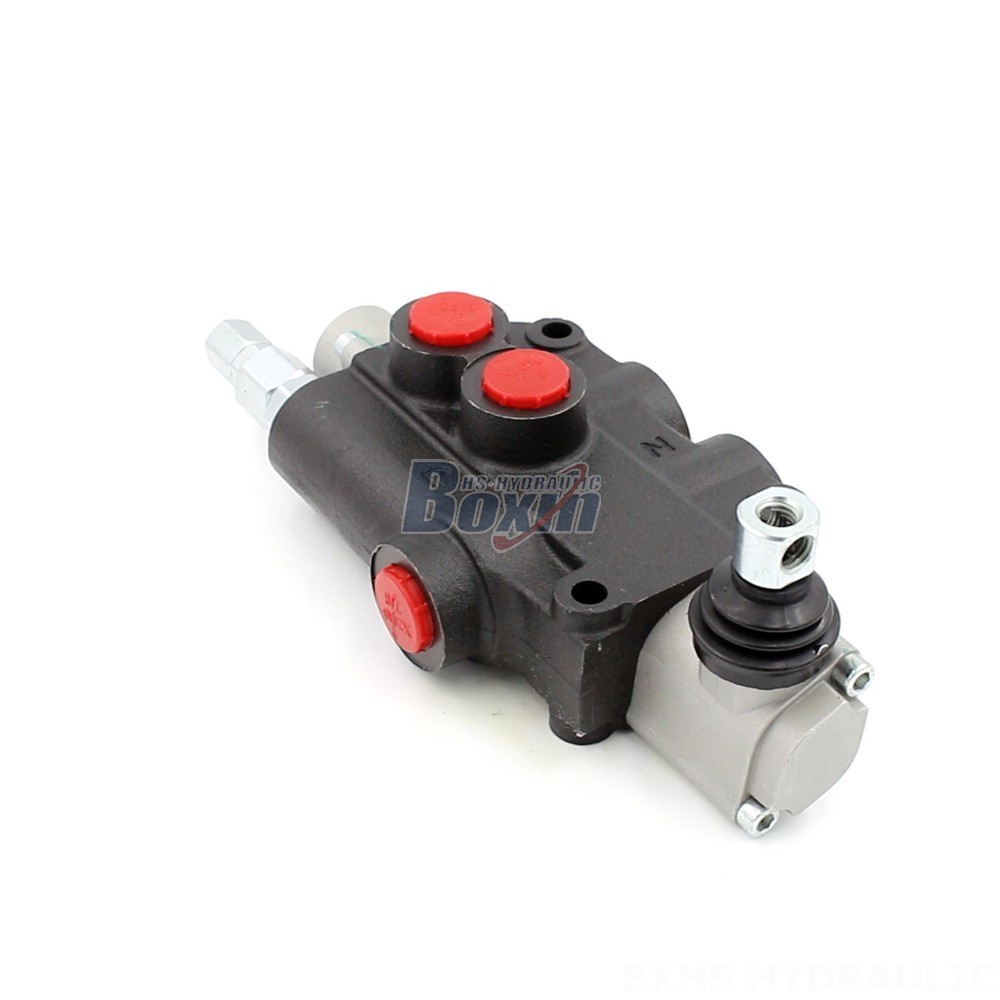

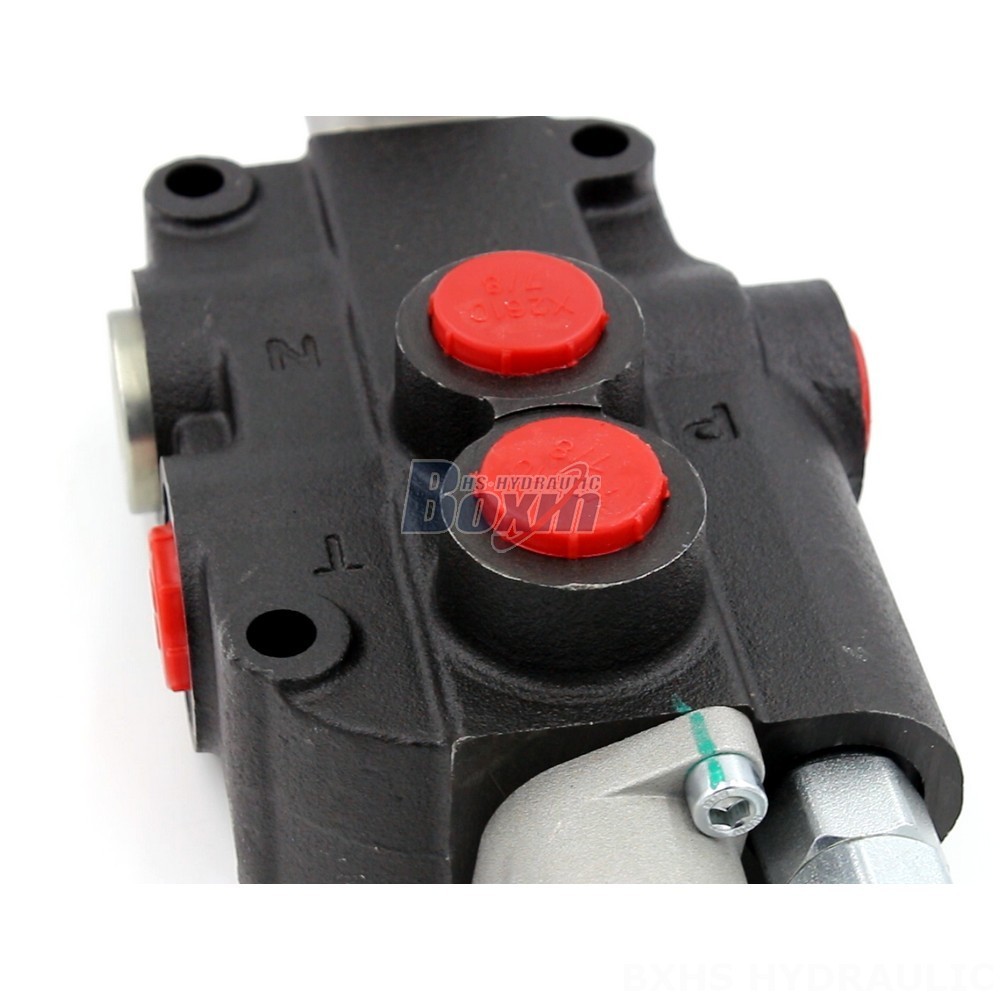

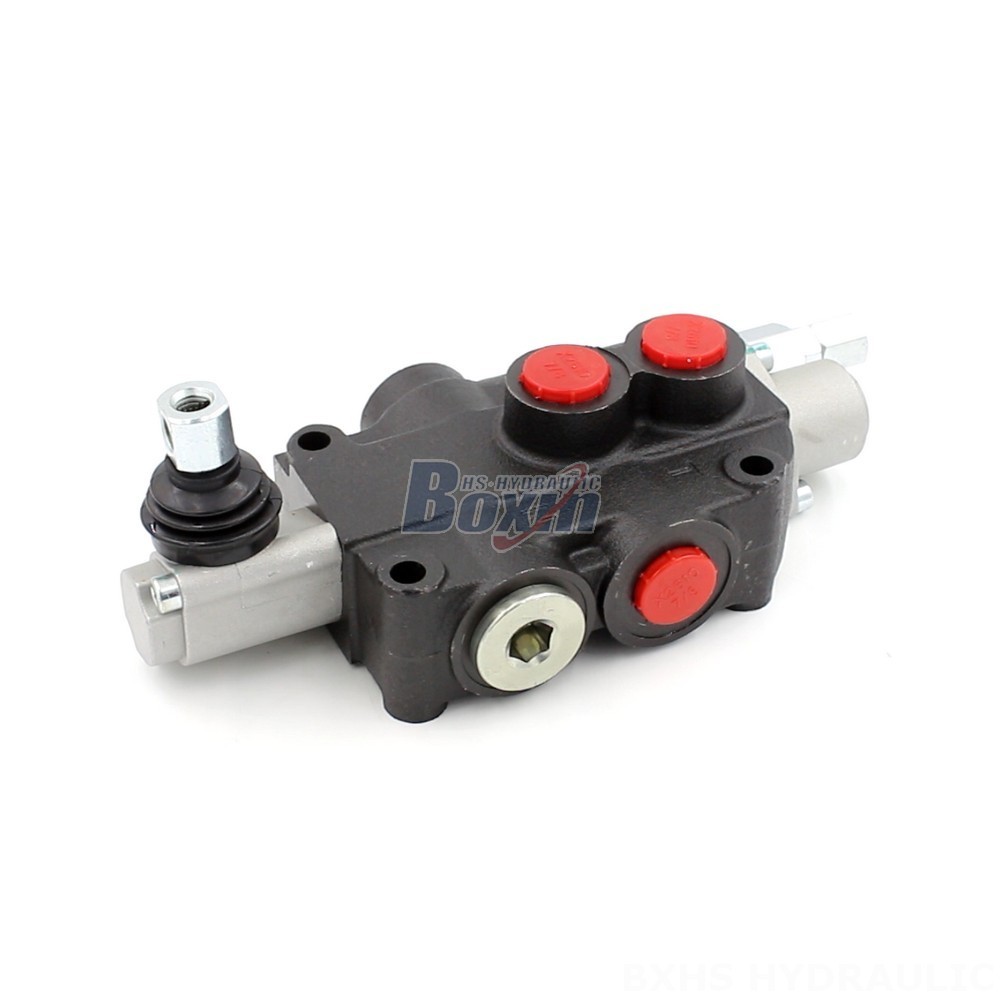

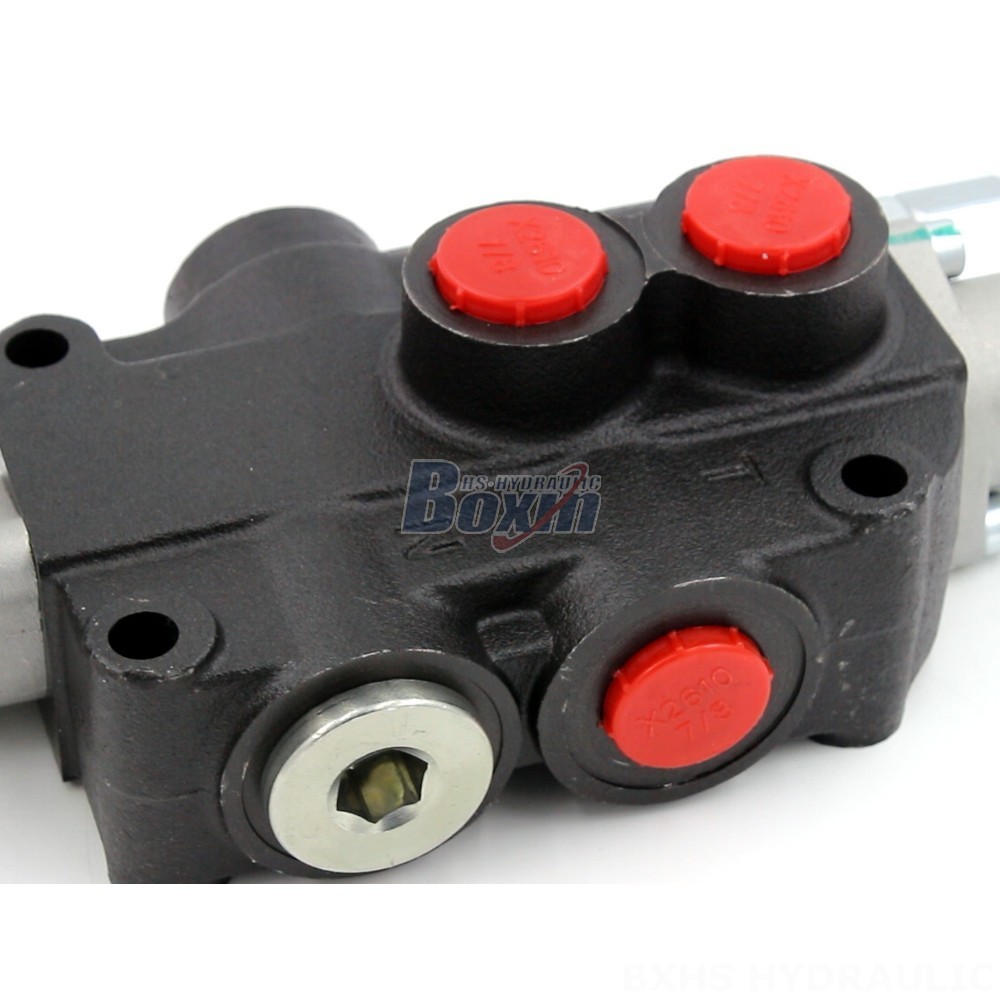

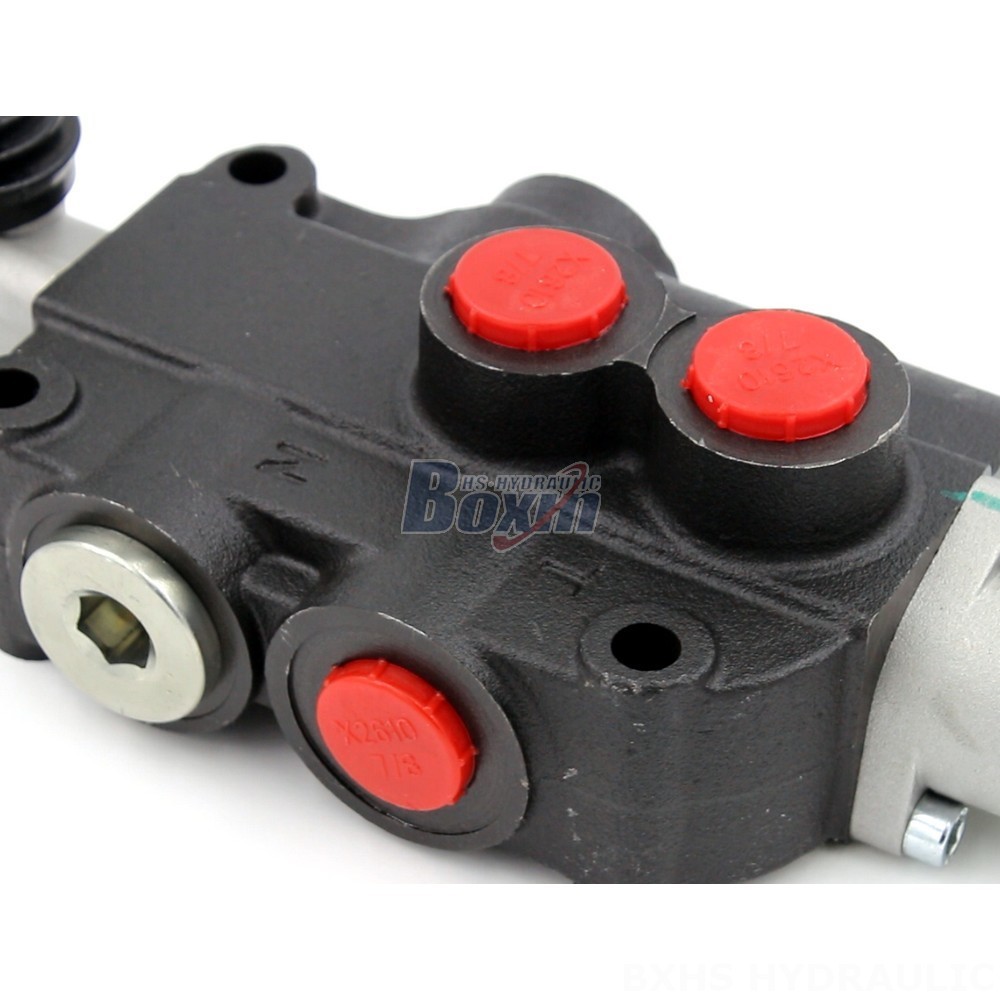

P80-U78-OT Directional Control Valves are bespoke hydraulic components designed to meet specific application requirements. With a manual control method, monoblock valve structure, 80 L/min (21.2 US gpm) rated flow, and 250 bar (3600 psi) max pressure, these valves are ideal for MATERIAL HANDLING applications, particularly in FORKLIFTs.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
Our bespoke hydraulic components offer a range of benefits, including:
* **Customization:** We can tailor our products to your specific requirements, ensuring a perfect fit for your application.
* **OEM and ODM services:** We offer both OEM (Original Equipment Manufacturing) and ODM (Original Design Manufacturing) services, providing flexibility in product development.
* **High quality:** Our products are manufactured to the highest standards, ensuring reliability and durability.
* **Global distribution:** We have a network of distributors, wholesalers, agents, and traders worldwide, ensuring easy access to our products.
P80-U78-OT Directional Control Valves are just one example of our bespoke hydraulic component offerings. Contact us today to discuss your specific requirements and how we can provide a customized solution for your application.
