Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1198 Pandangan Mencari Produk Ini

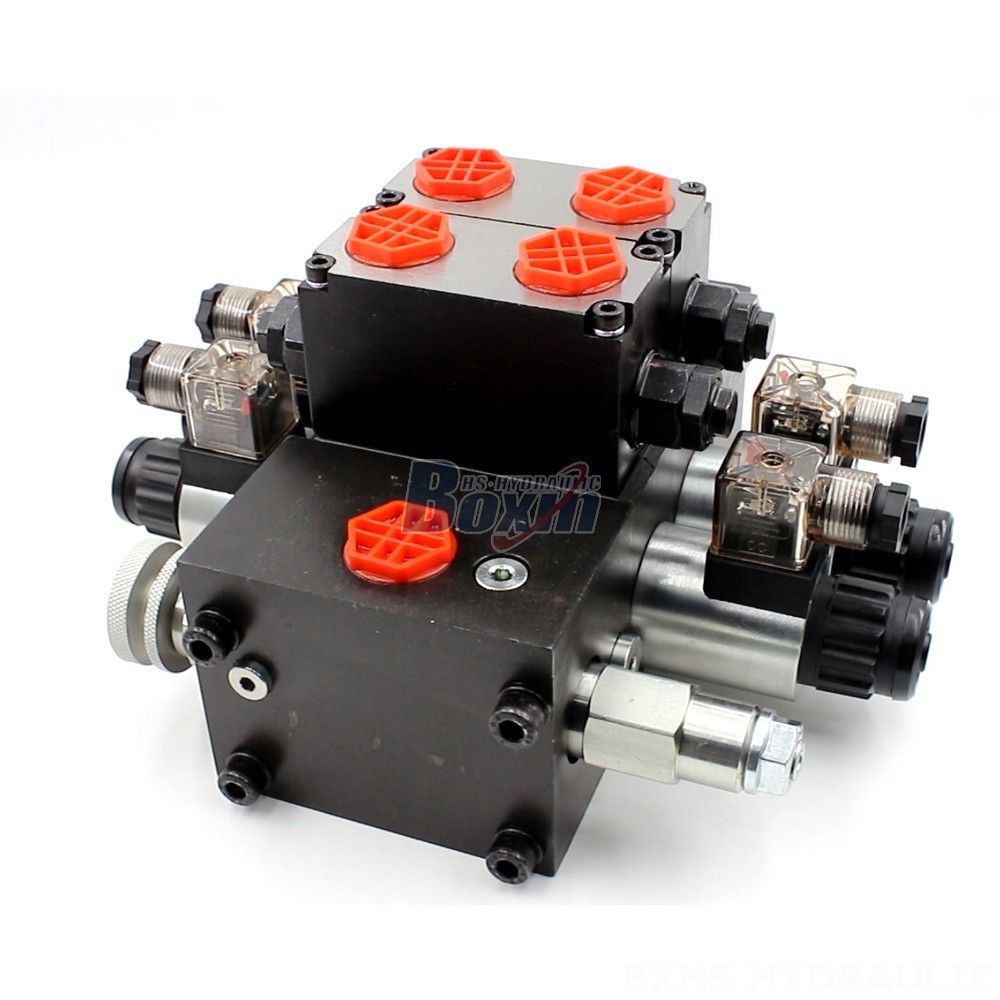

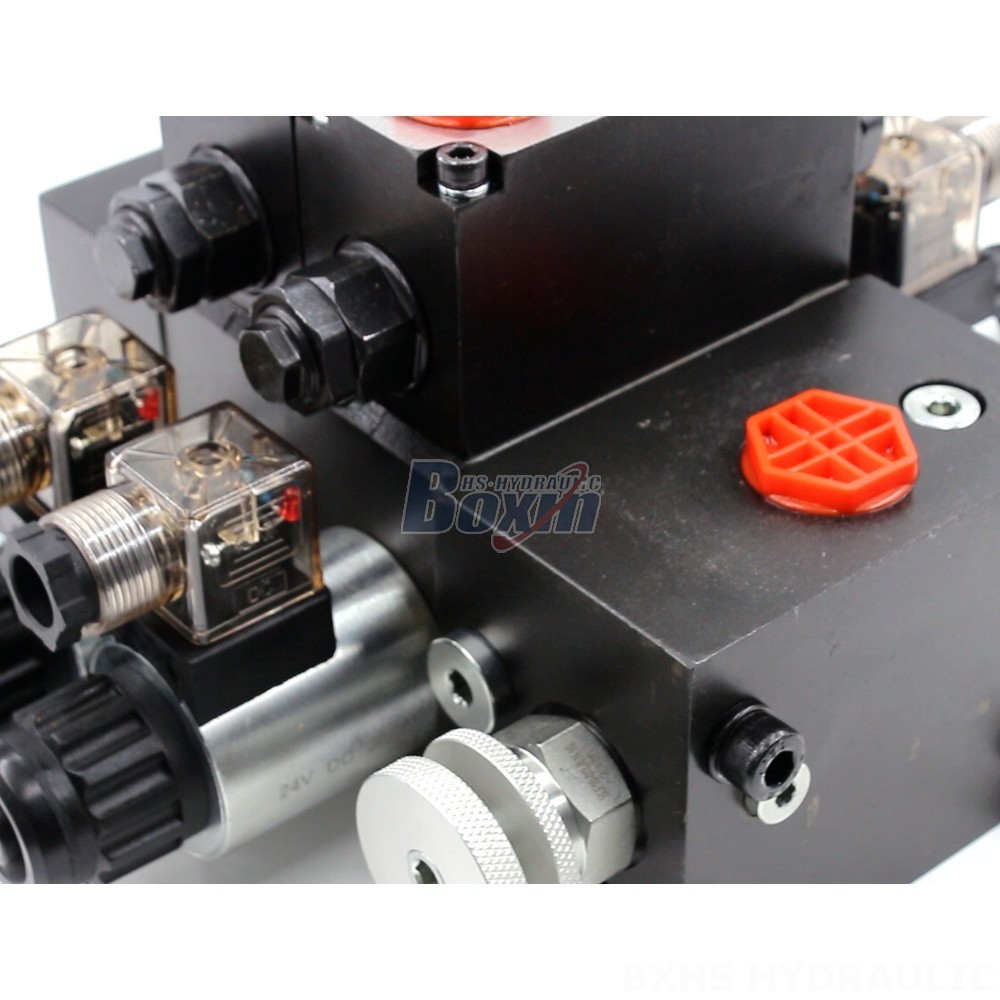

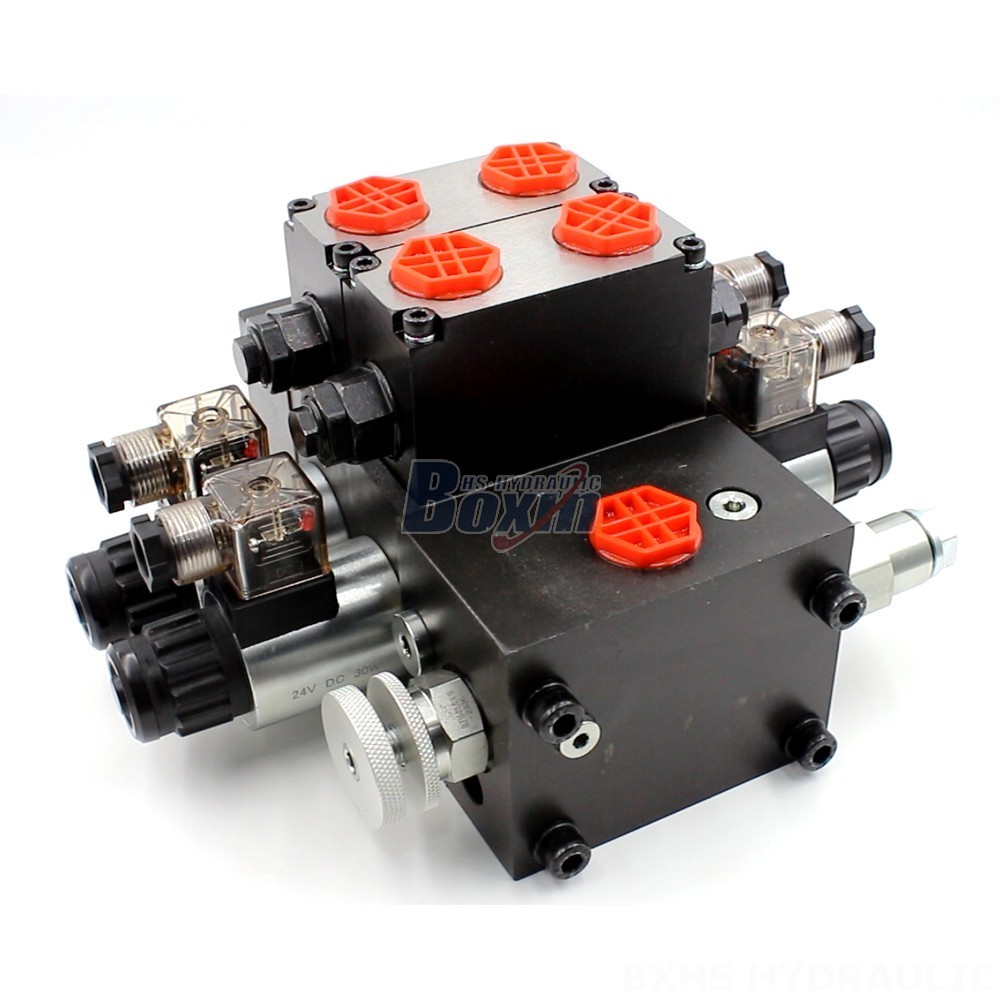

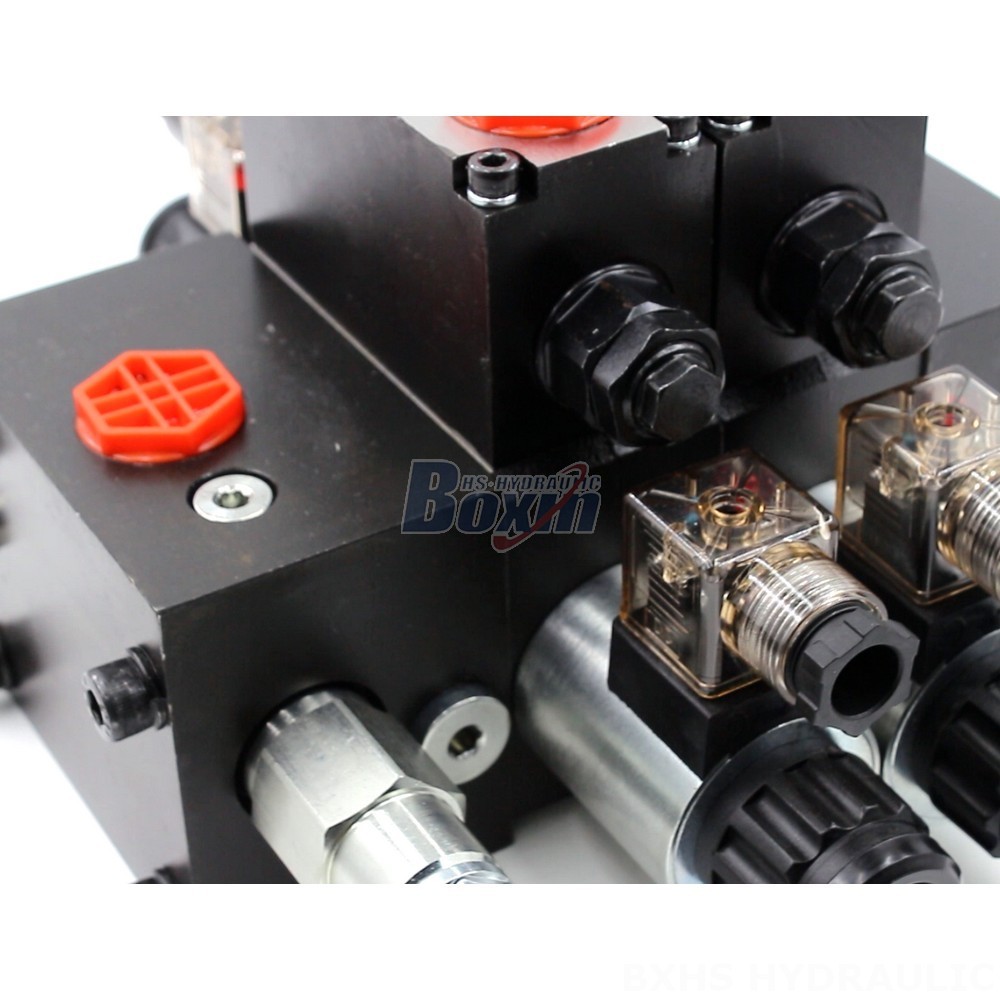

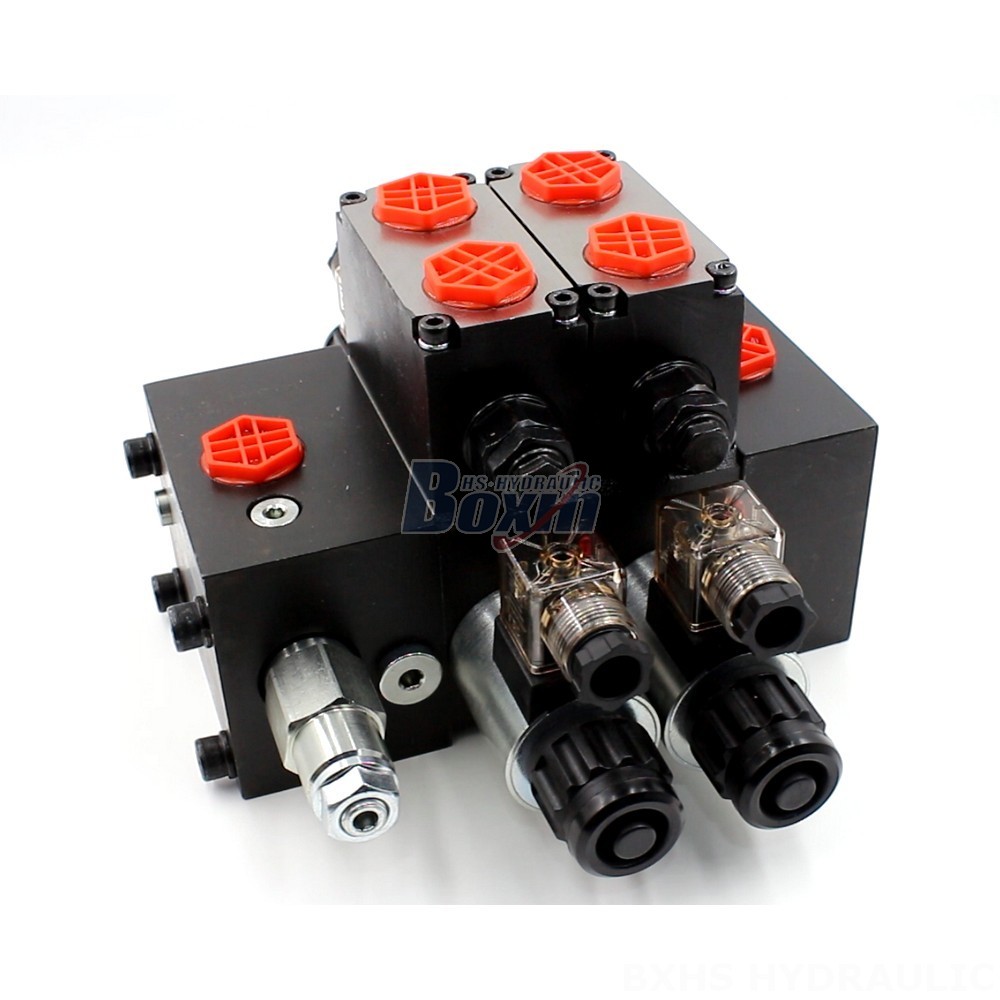

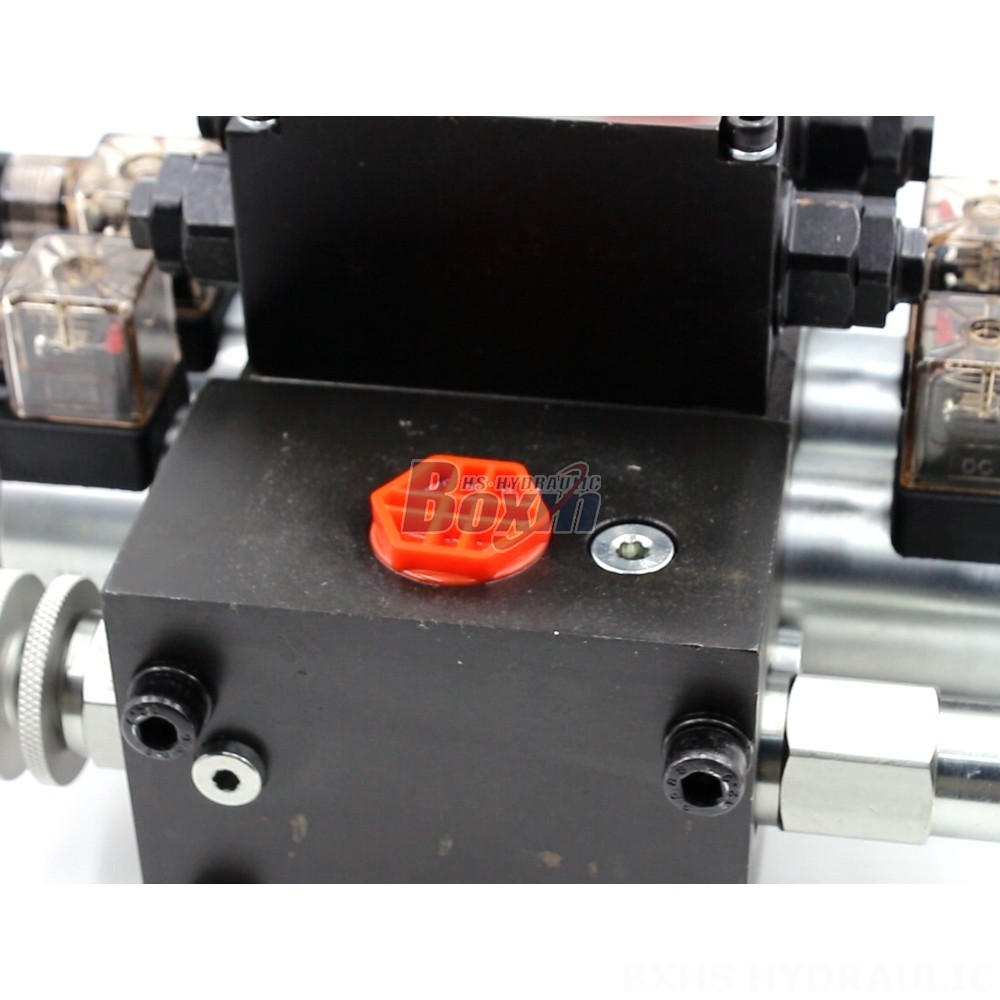

Bespoke Hydraulic Solutions offers customizable DCV58F directional control valves designed to meet specific hydraulic system requirements. These valves feature solenoid control, a 2-section sectional valve design, and a rated flow of 60 L/min (15.8 US gpm) at a maximum pressure of 350 bar (5100 psi).
| Seri DCV58F Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Selenoid, Solenoid dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 350 bar (5100 psi) |
| Port Masuk | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Port Keluar | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Ukuran Port | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Tipe Struktur | Katup penampang |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The DCV58F series is suitable for various applications in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini excavators, and skid steer loaders. With an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F), these valves ensure reliable performance in diverse operating conditions.
