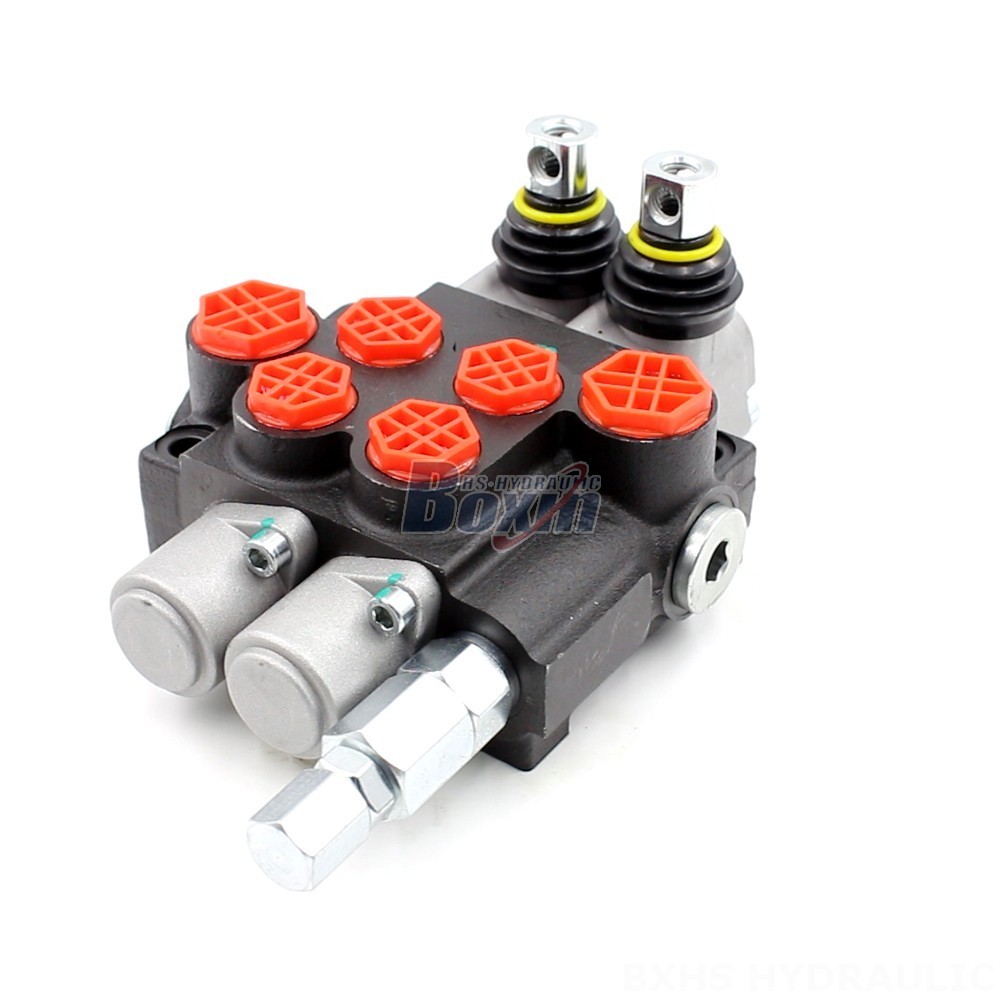

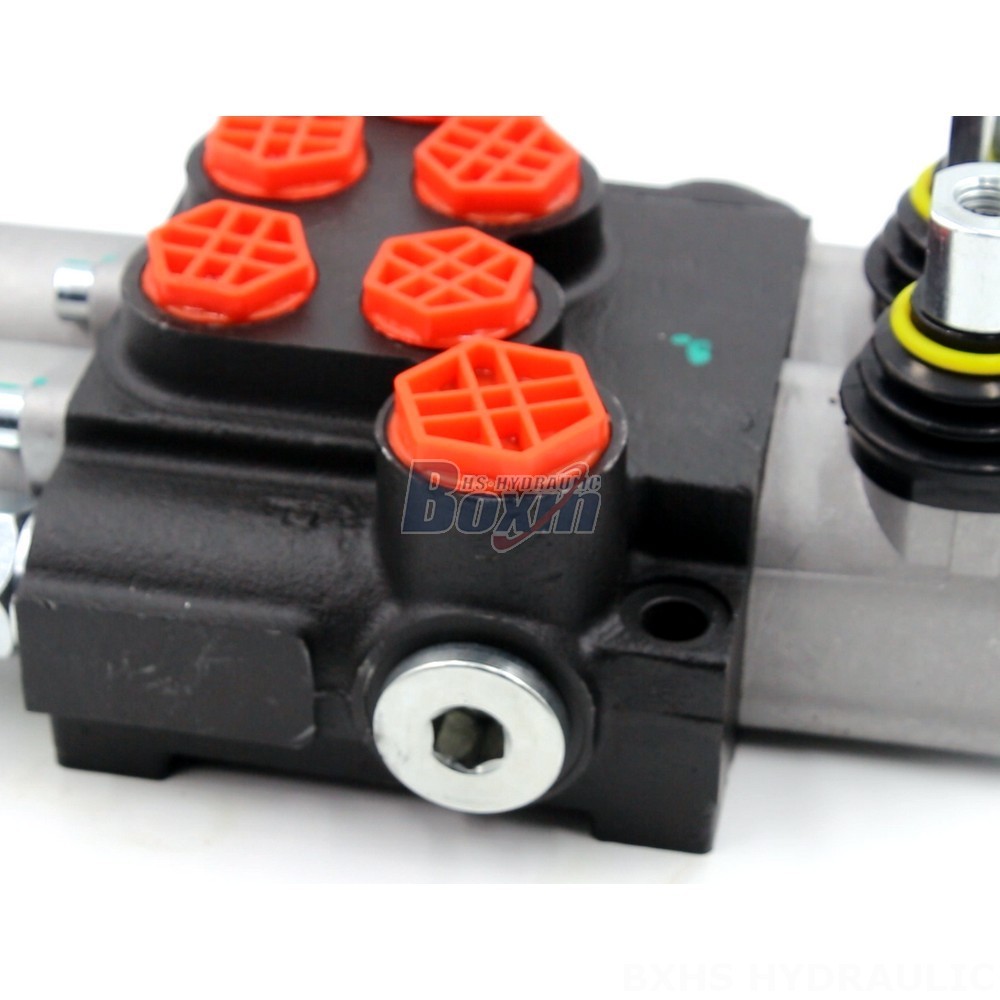

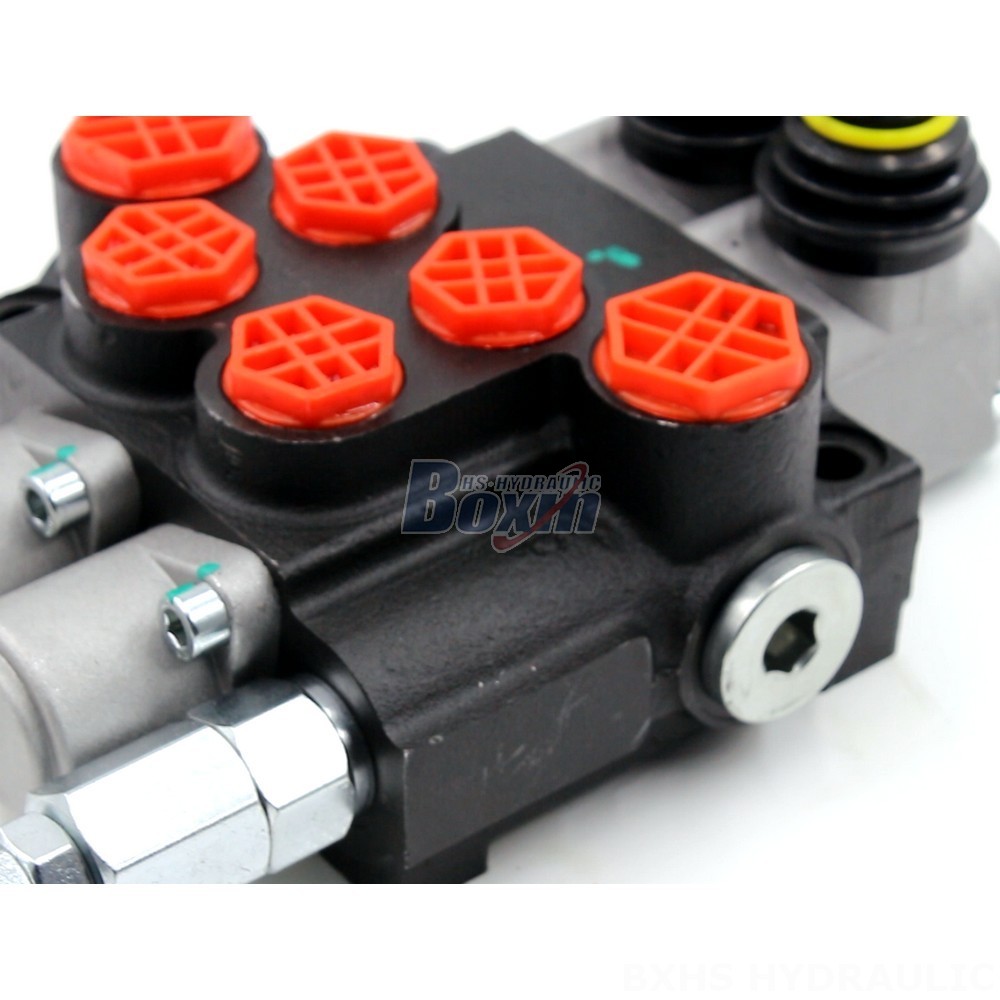

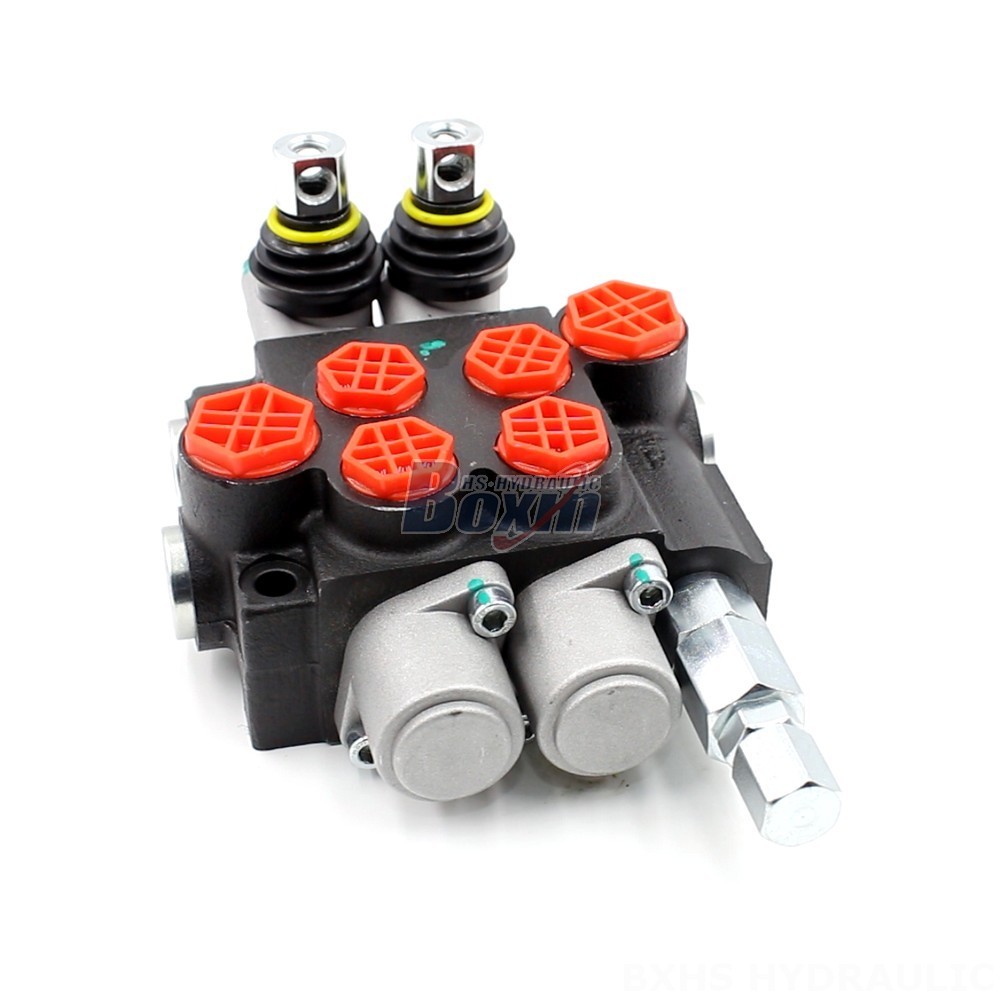

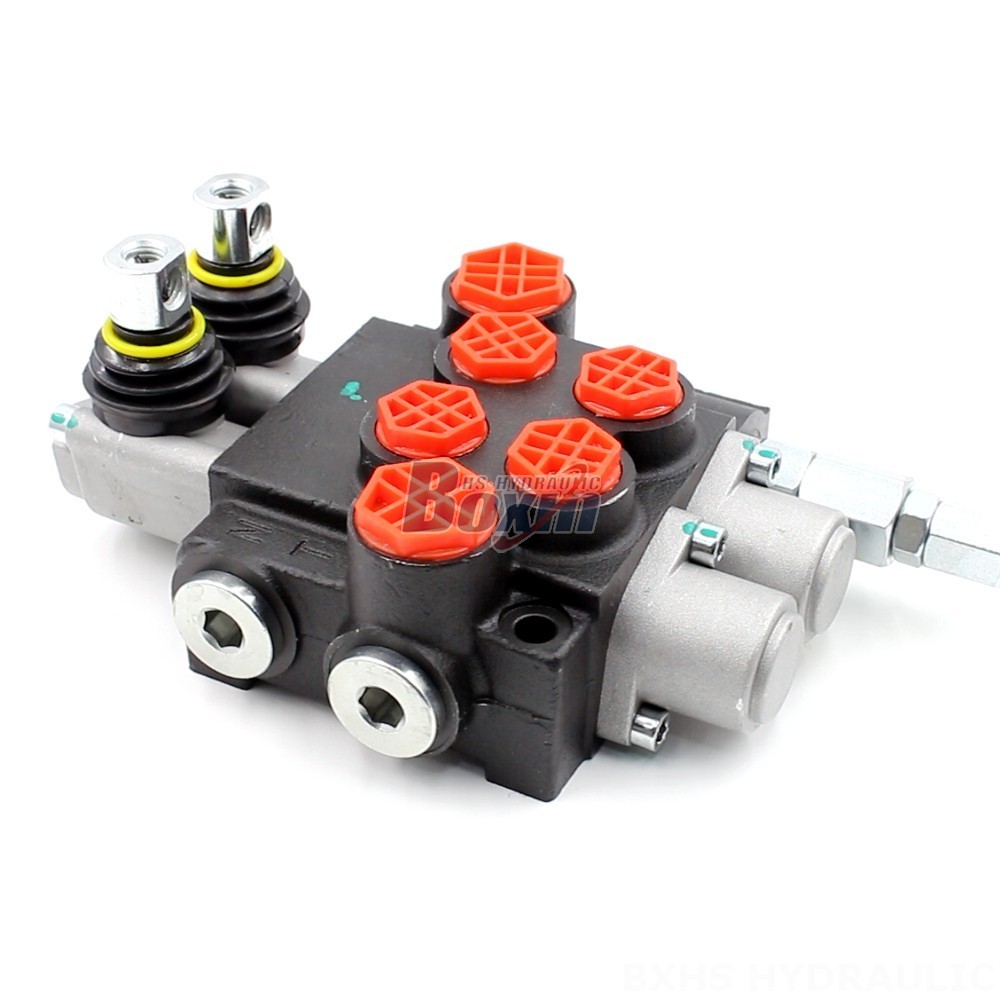

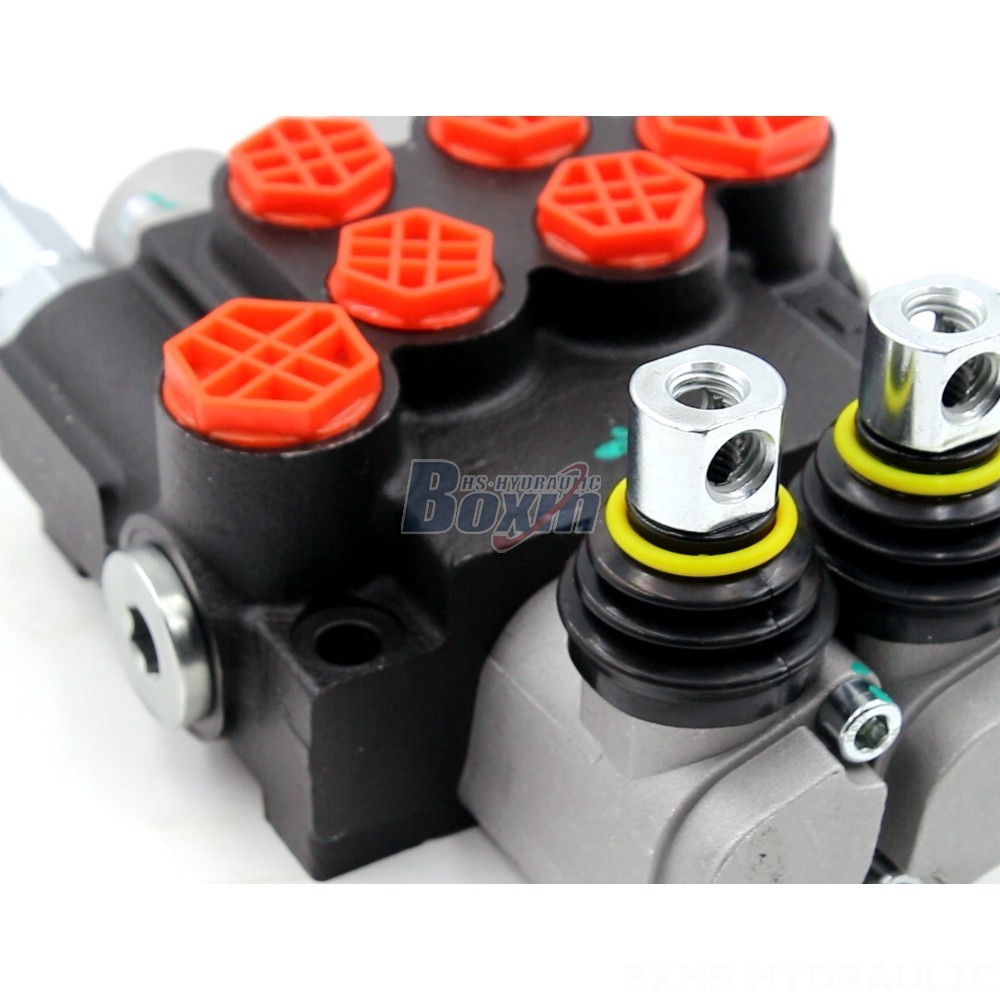

Our Bespoke Hydraulic Solutions: Customizable P40-G12-G38-OW Directional Control Valves are designed to meet your specific hydraulic system requirements. With a rated flow of 40 L/min and a maximum pressure of 250 bar, these valves are suitable for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
Our P40 Series directional control valves offer a high level of customization, allowing you to choose from various options to suit your specific needs. As a leading hydraulic product manufacturer, we provide OEM, ODM, and private labeling services to meet the unique requirements of our global customers. Our team of experienced engineers can work closely with you to design and manufacture hydraulic solutions tailored to your application. Whether you need custom spool configurations, pressure settings, or flow rates, we have the expertise to deliver the optimal solution for your hydraulic system.
