Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1885 Pandangan Mencari Produk Ini

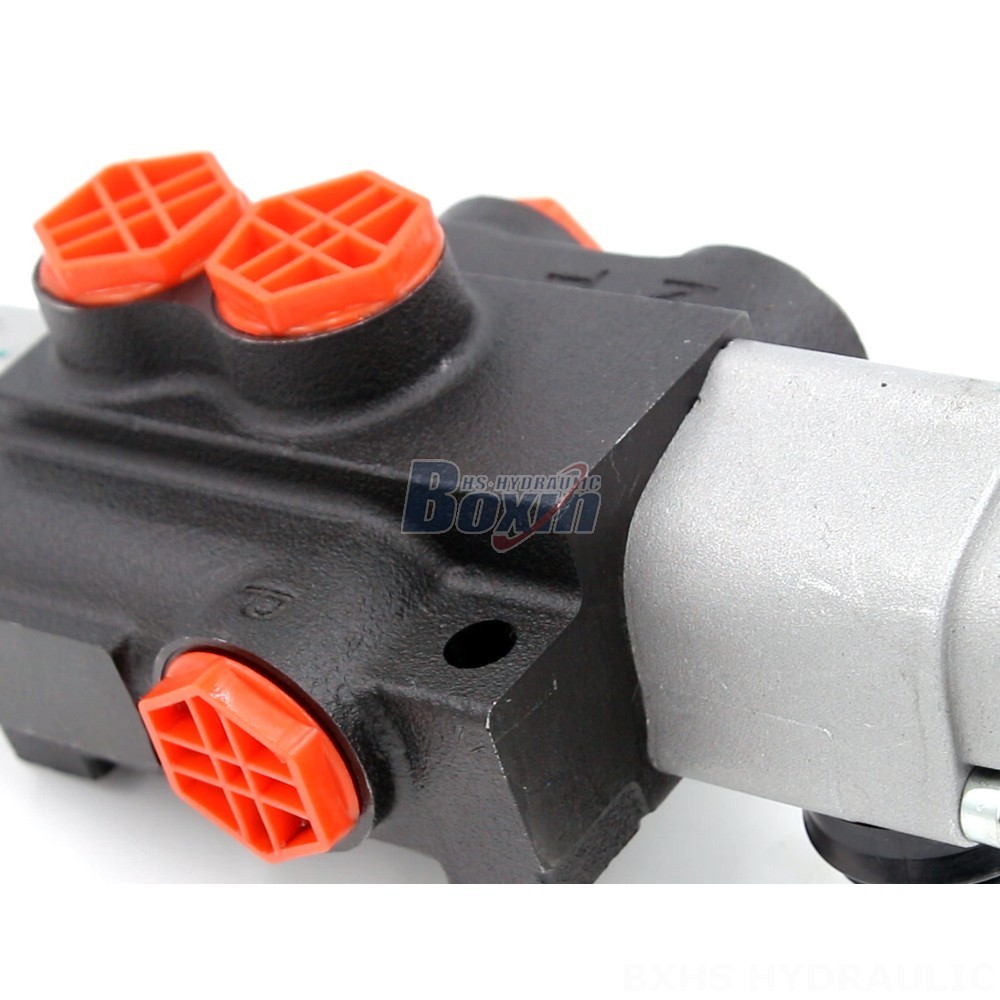

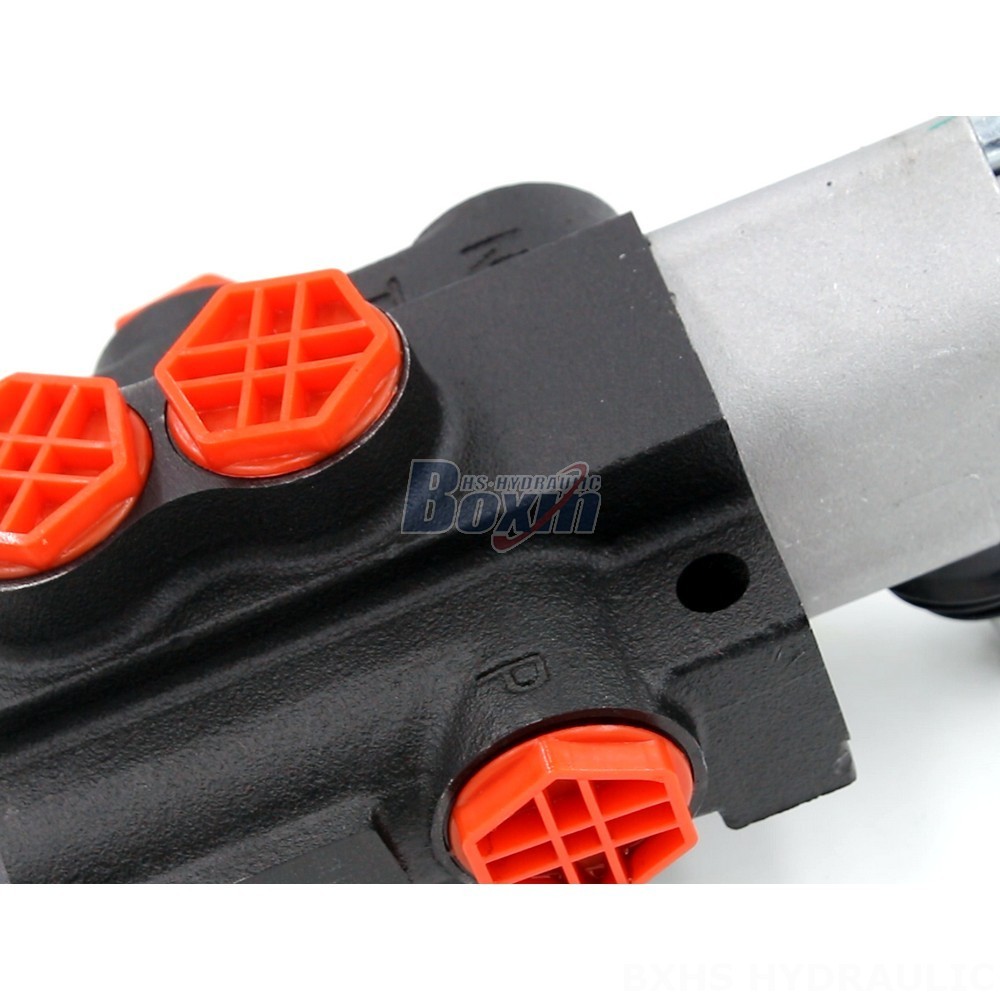

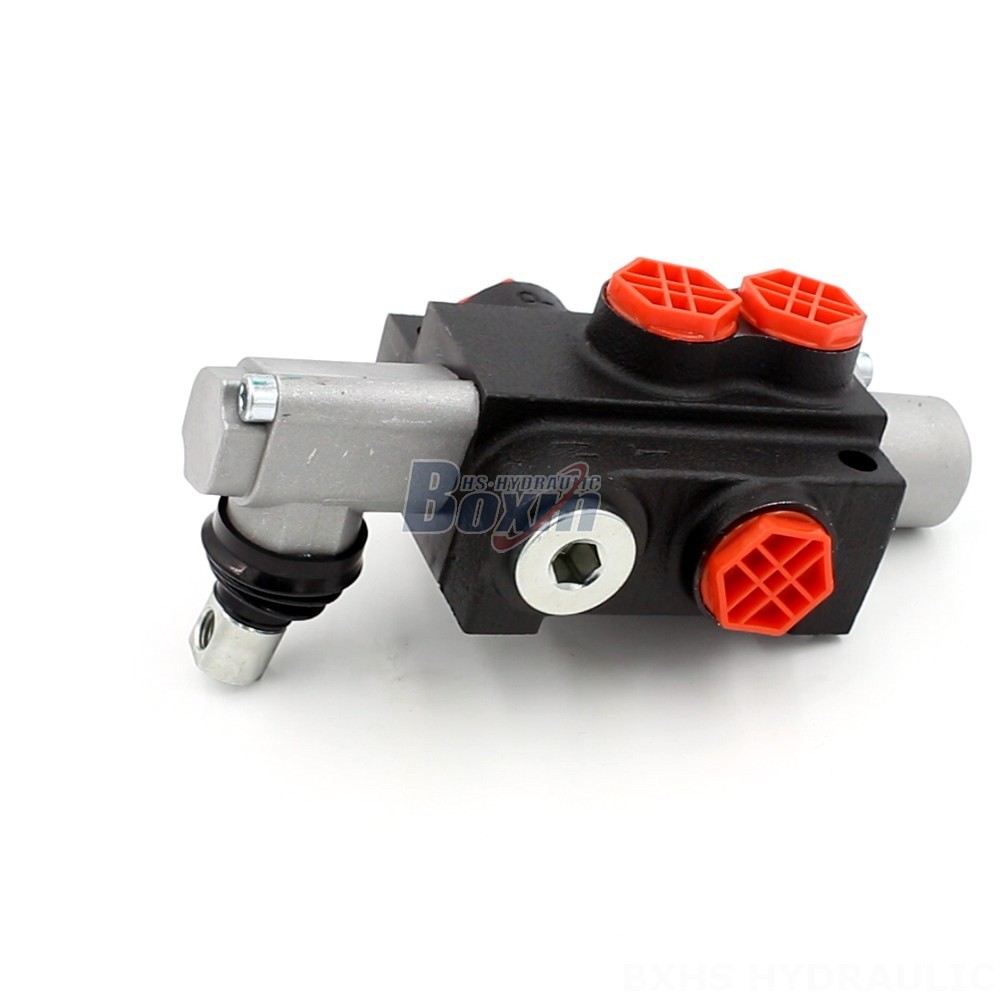

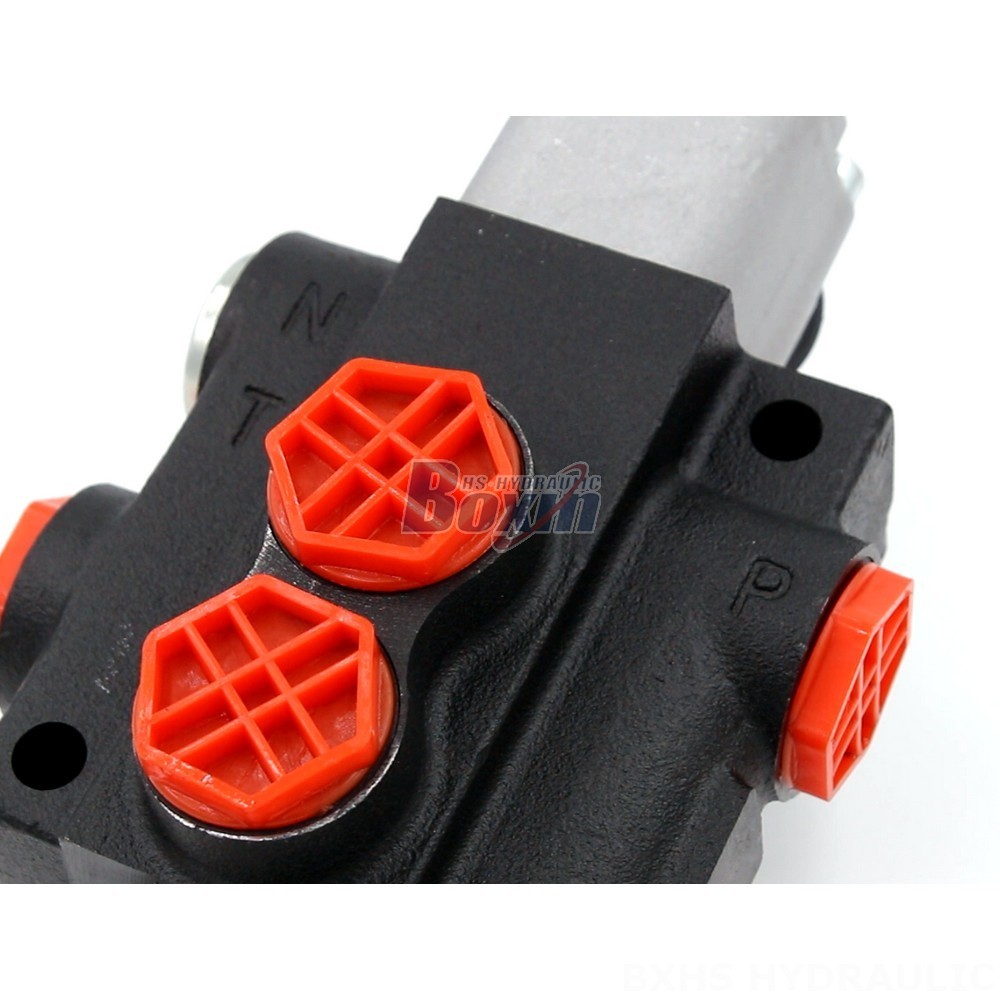

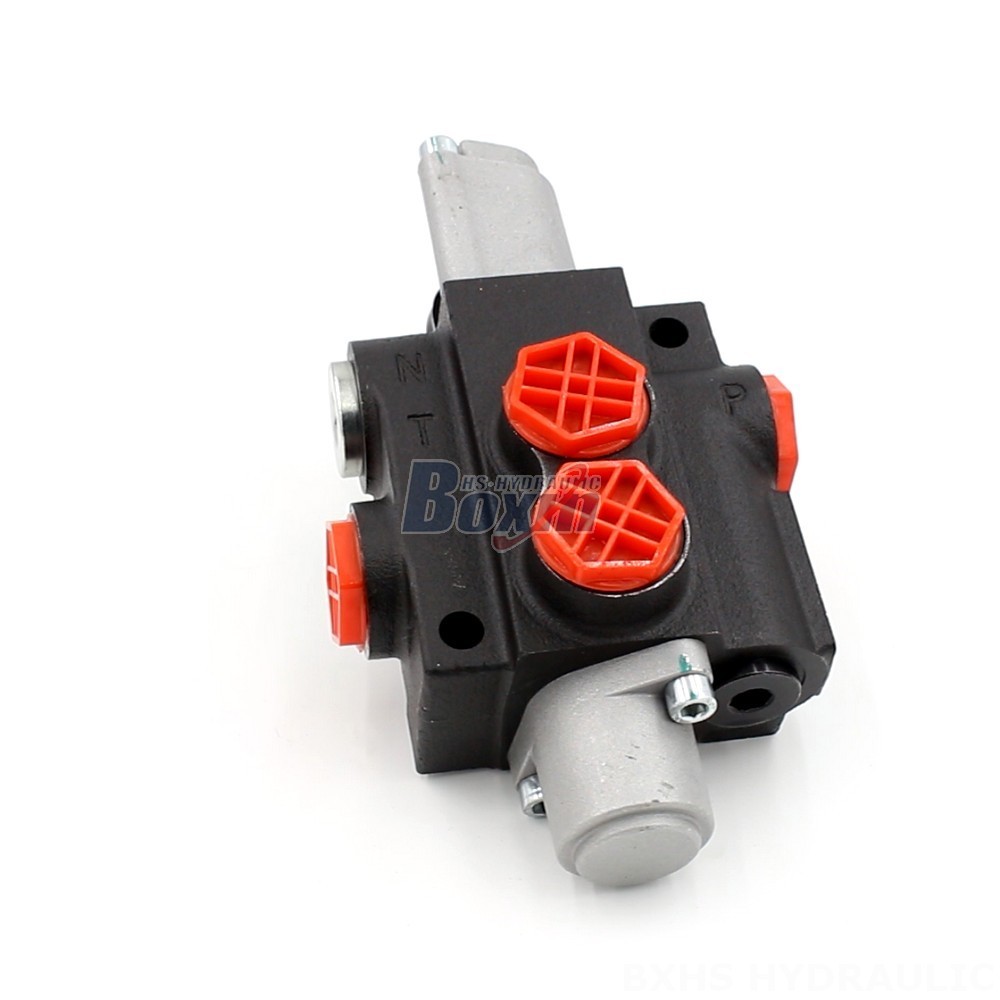

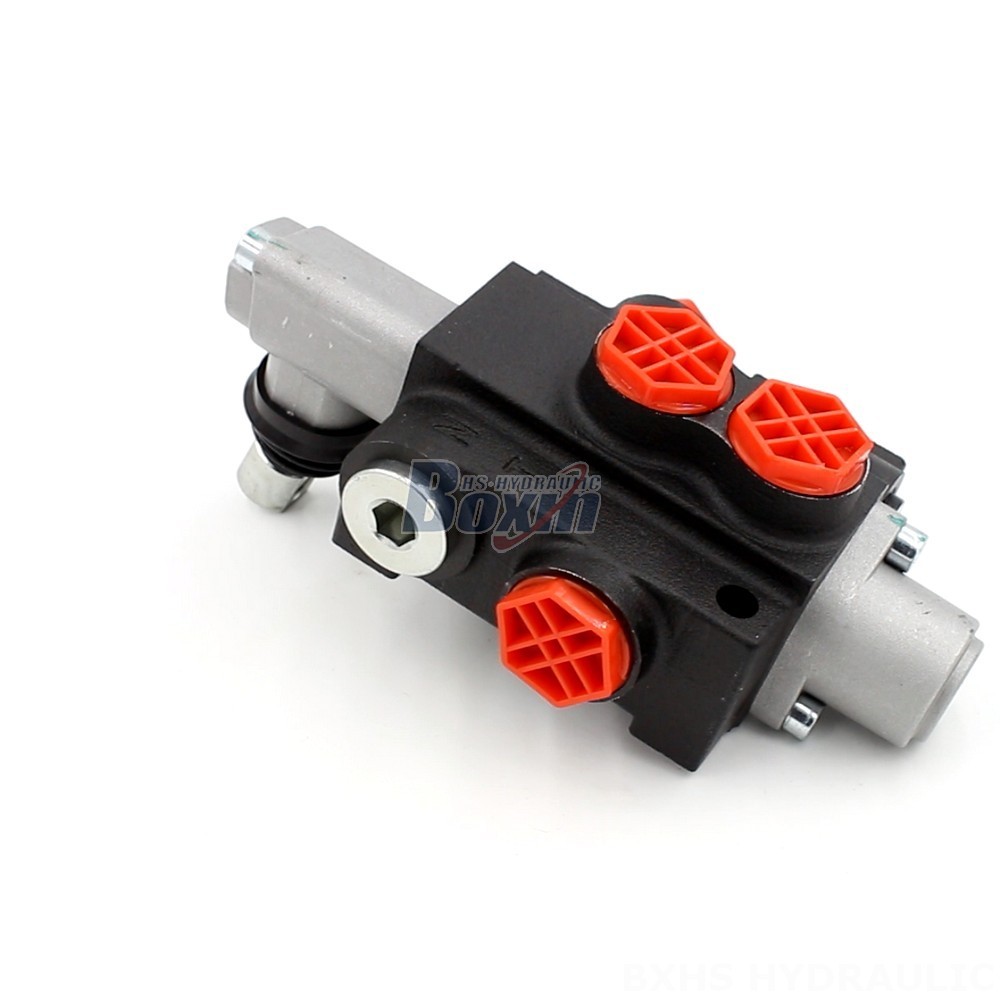

Introducing our Bespoke Hydraulic Solutions: P40-G12-OT Directional Control Valves, engineered to meet your unique hydraulic system requirements. These customizable valves offer manual control, a compact monoblock design, and exceptional performance with a rated flow of 40 L/min and a maximum pressure of 250 bar.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-G12-OT Directional Control Valves: Tailored Hydraulic Solutions**
Our P40-G12-OT Directional Control Valves are designed to provide precise fluid control in a wide range of hydraulic applications. With their customizable features and robust construction, these valves deliver reliable performance and enhanced system efficiency.
**Key Features:**
- Manual control for intuitive operation
- Monoblock valve design for compactness and durability
- Rated flow of 40 L/min (10.5 US gpm) to handle demanding flow requirements
- Maximum pressure of 250 bar (3600 psi) for high-pressure applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in extreme conditions
- Ideal for applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders
