Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1115 Pandangan Mencari Produk Ini

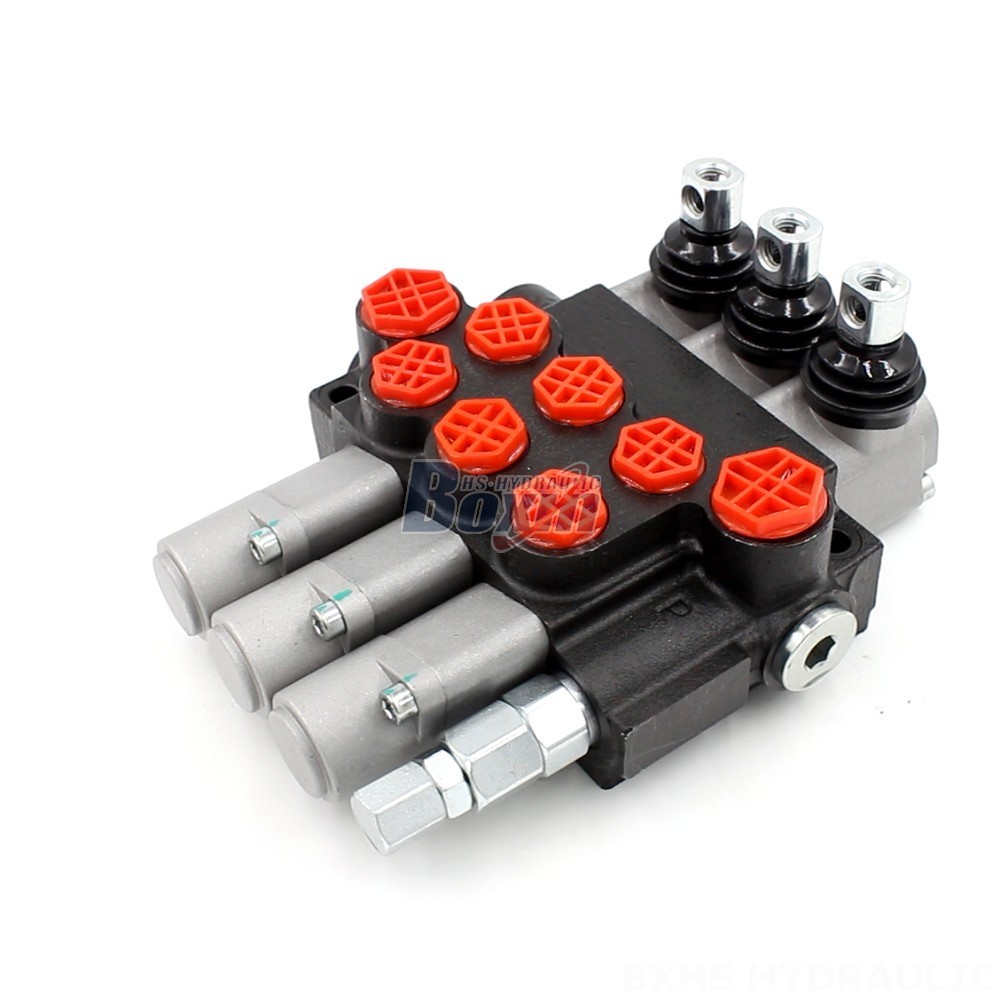

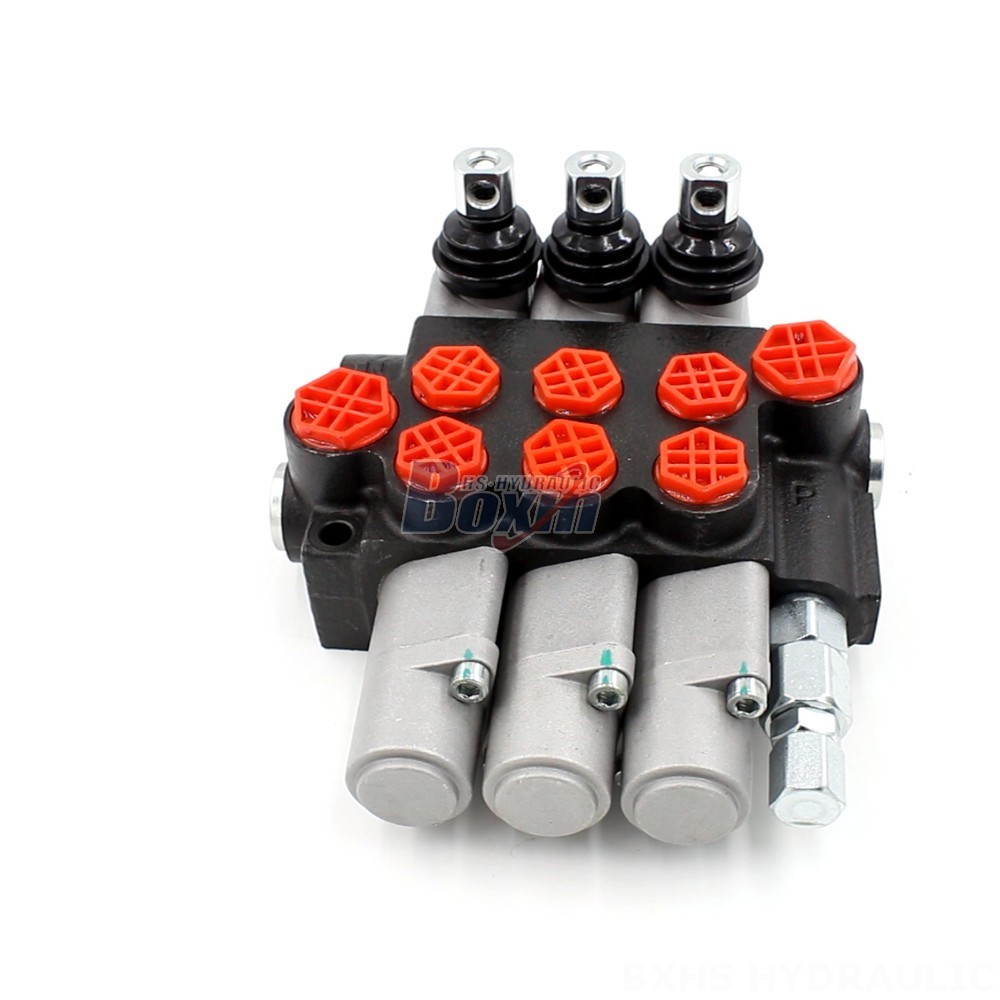

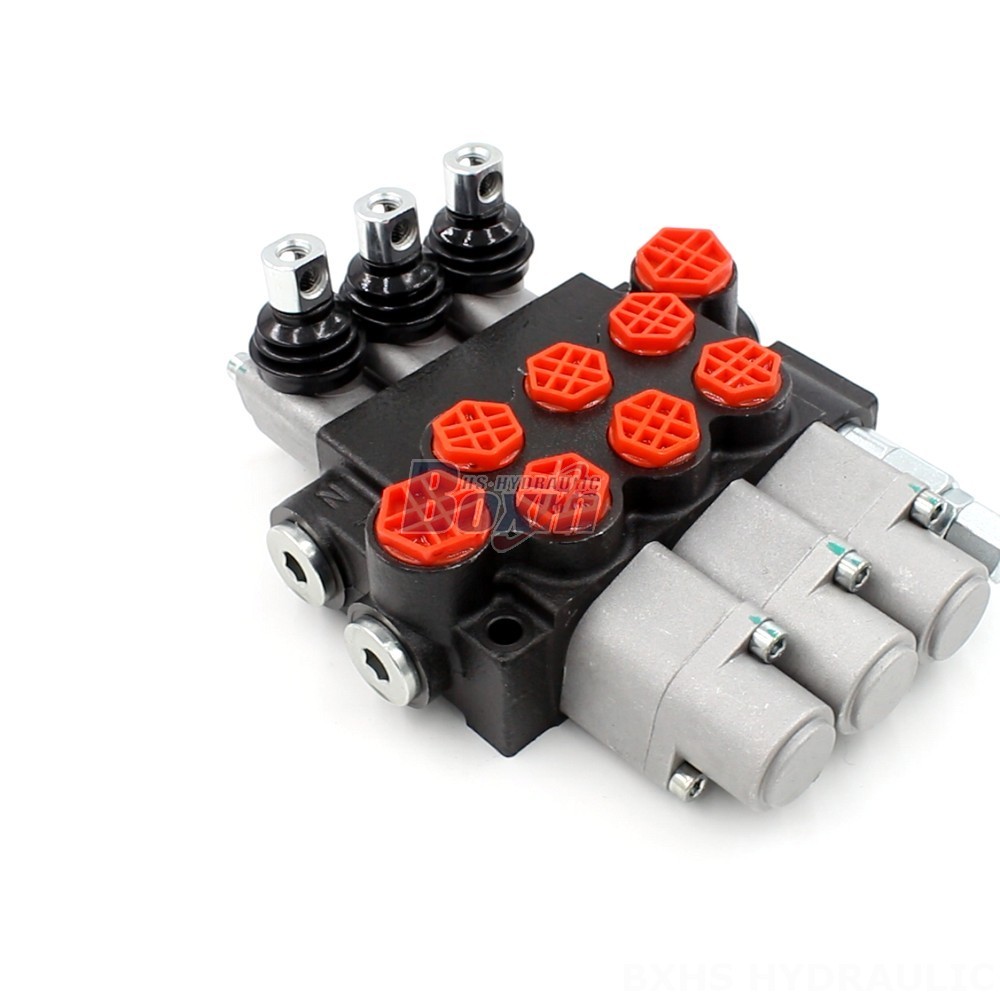

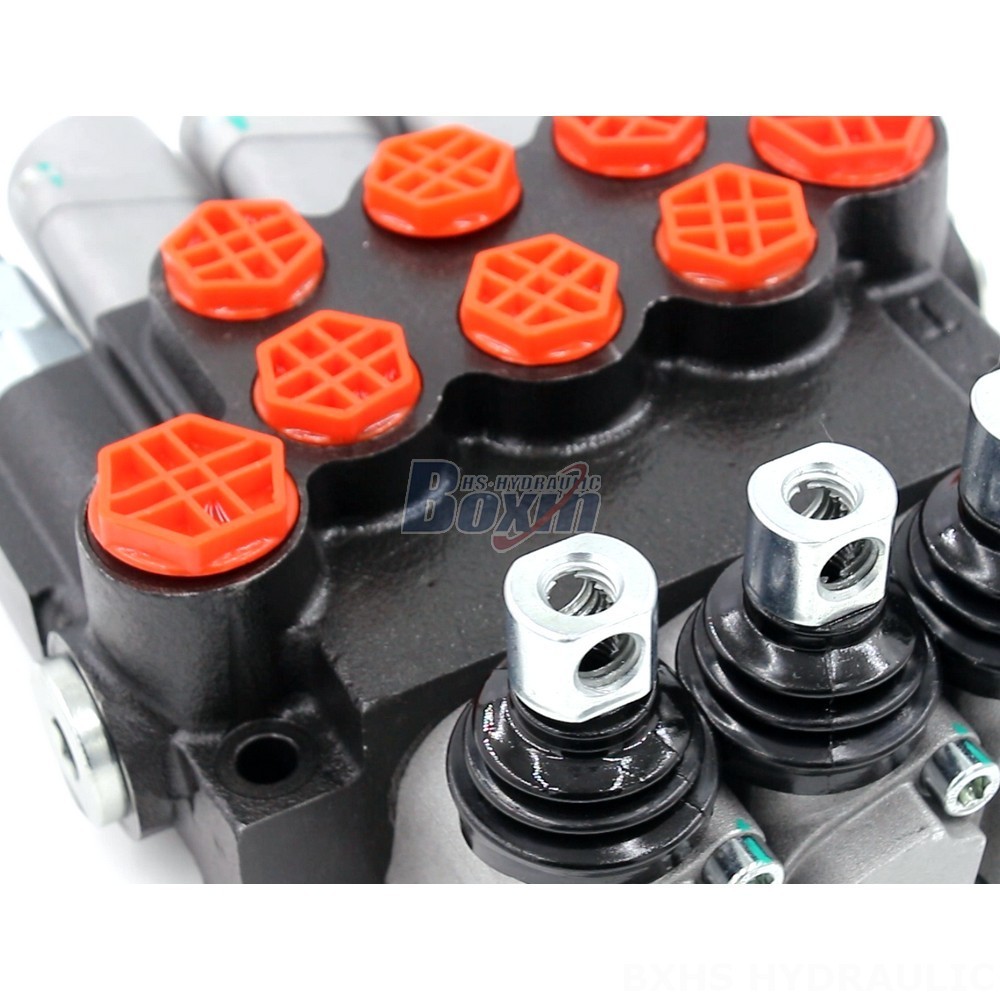

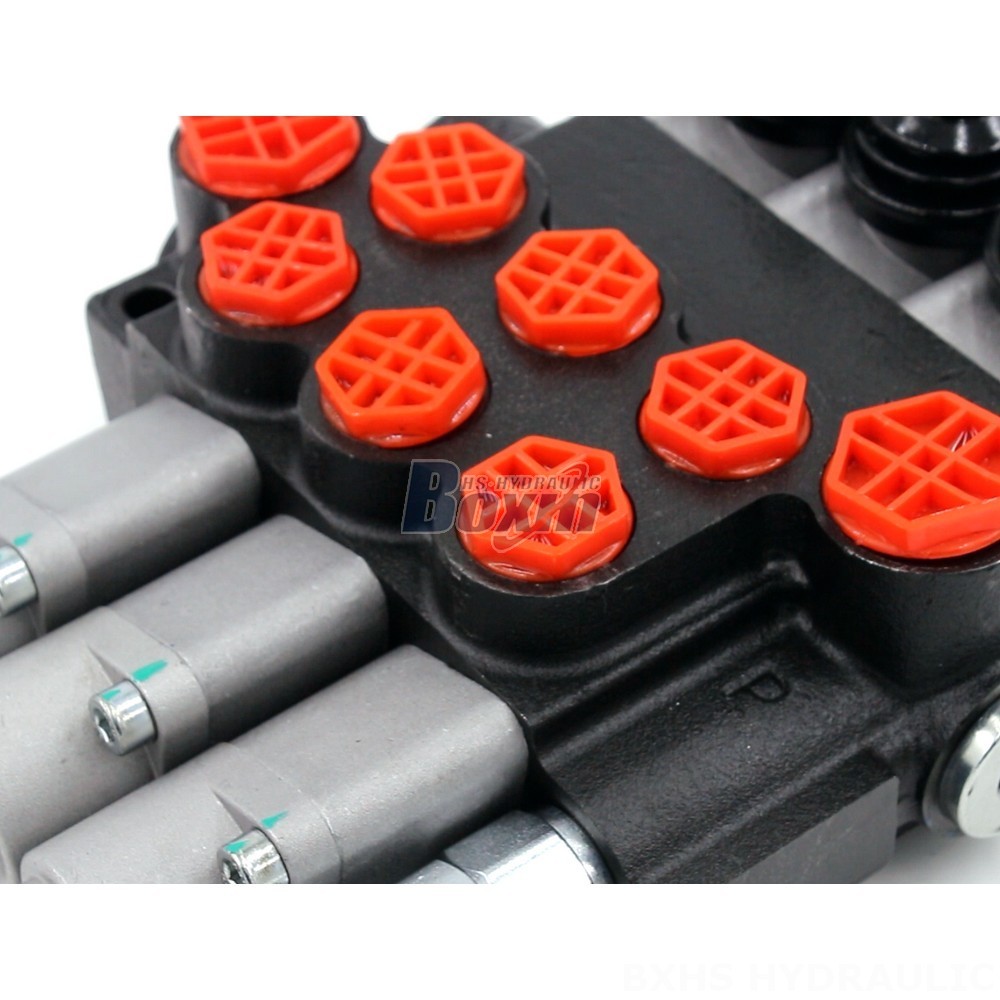

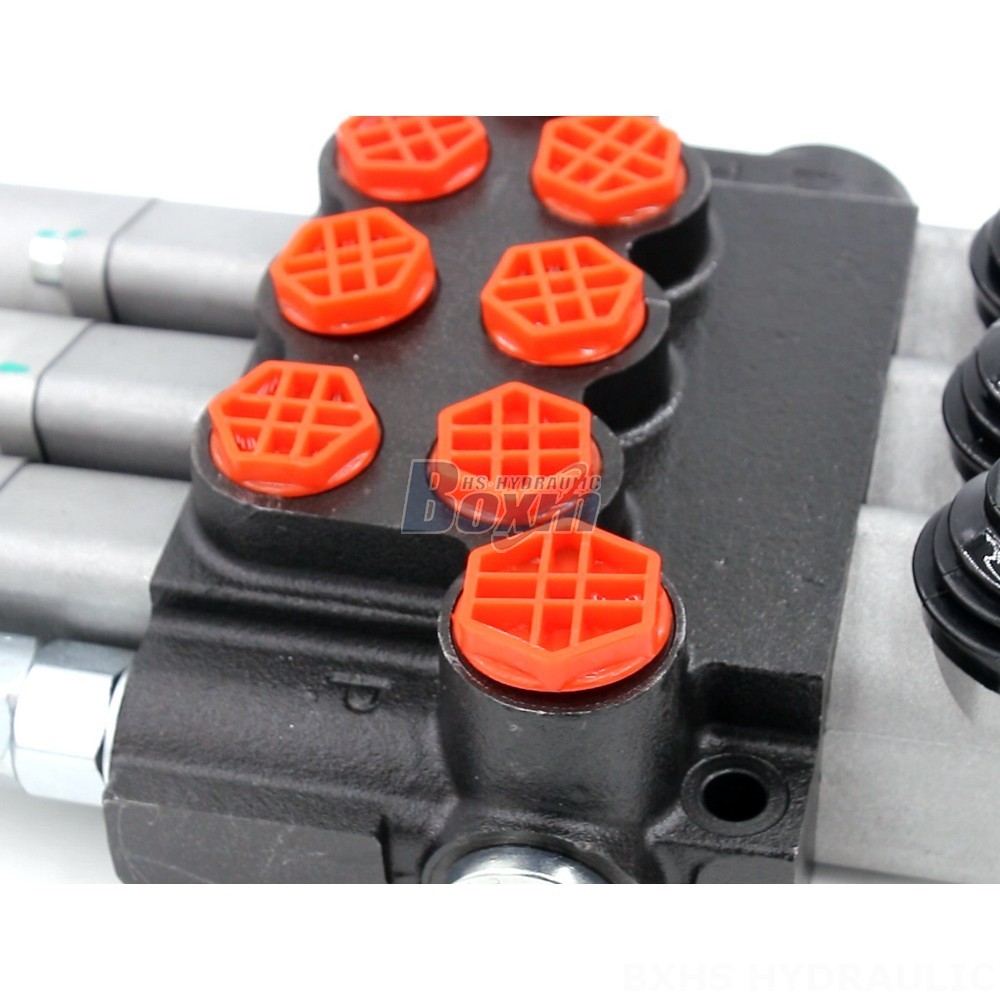

Our P40 Series Counter Balance Hydraulic Valve offers customizable solutions for various applications in material handling, construction, agriculture, and industrial vehicles. This high-quality, monoblock valve is available for OEM, ODM, and private label needs.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Counter Balance Hydraulic Valve is a robust and reliable solution for a wide range of applications. It is a 3-section, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve features a manual control method and operates within a viscosity range of 15 - 75 mm²/s. We offer bespoke hydraulic solutions with customizable options to meet your specific needs. Our manufacturing expertise allows us to provide OEM, ODM, and private label services to cater to diverse market requirements. Contact us today to discuss your specific needs and explore how our P40 Series Counter Balance Hydraulic Valve can enhance your machinery performance.
