Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1012 Pandangan Mencari Produk Ini
The SD5 Series Directional Control Valves are customizable hydraulic solutions designed for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. We offer OEM, ODM, and private label services to meet your specific needs.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |

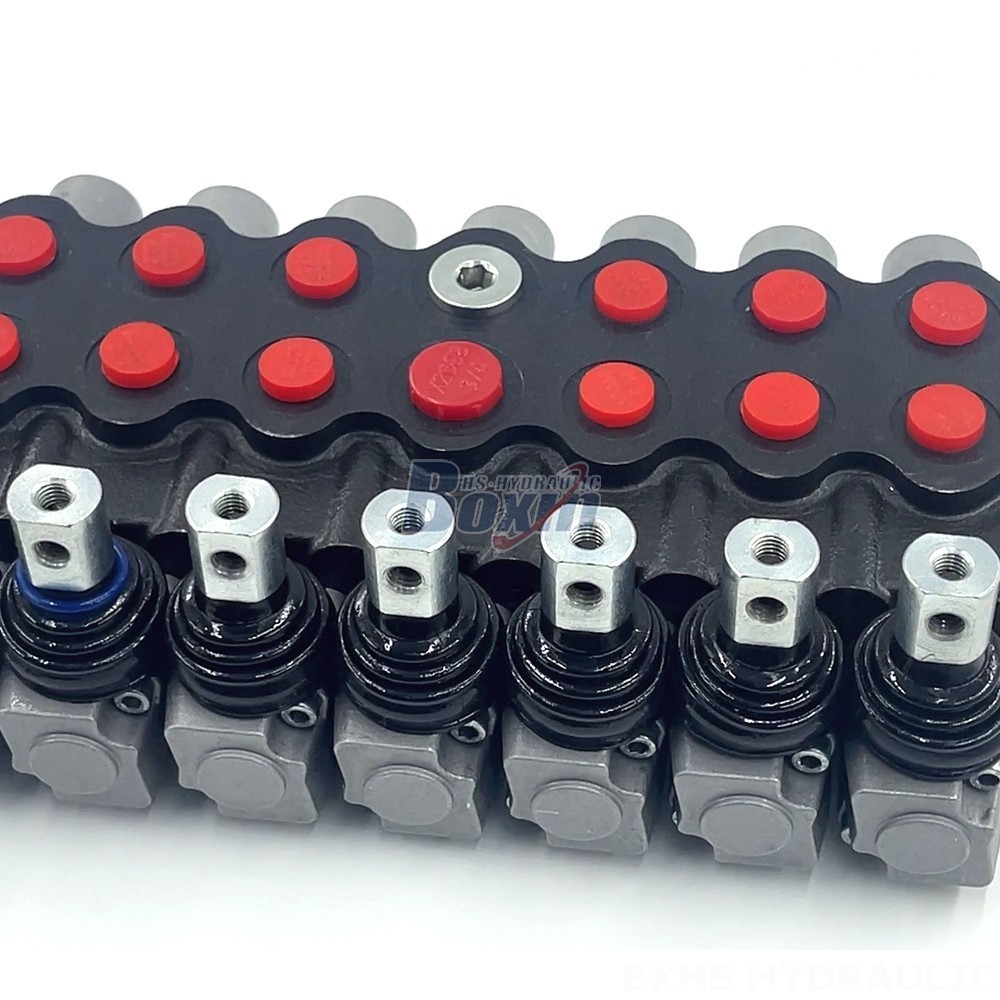

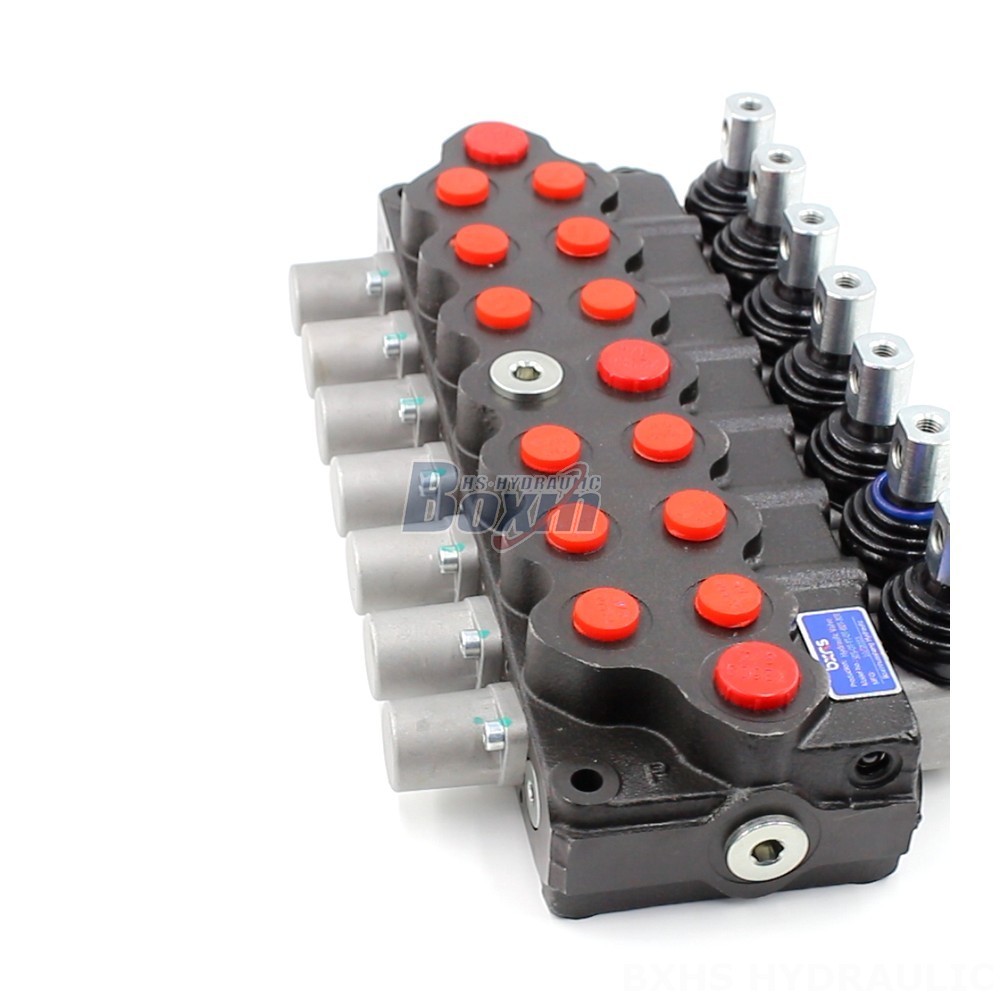

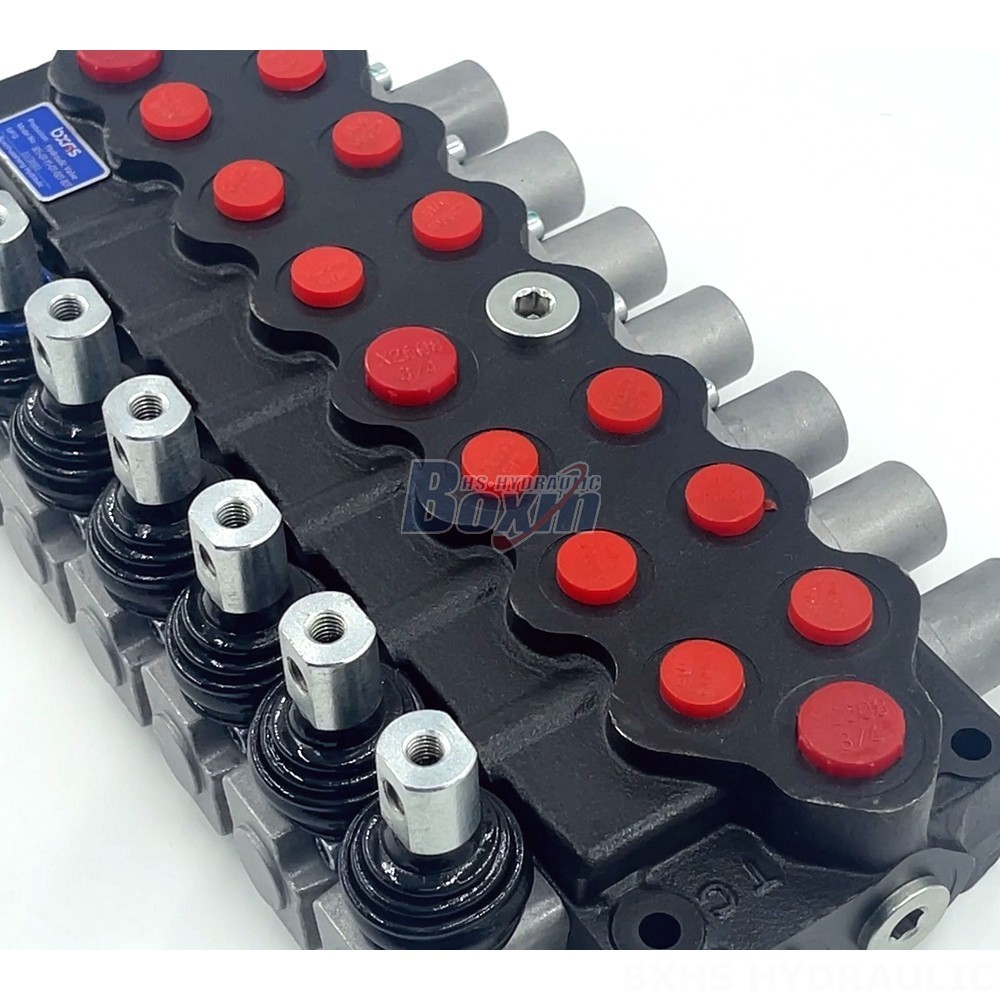

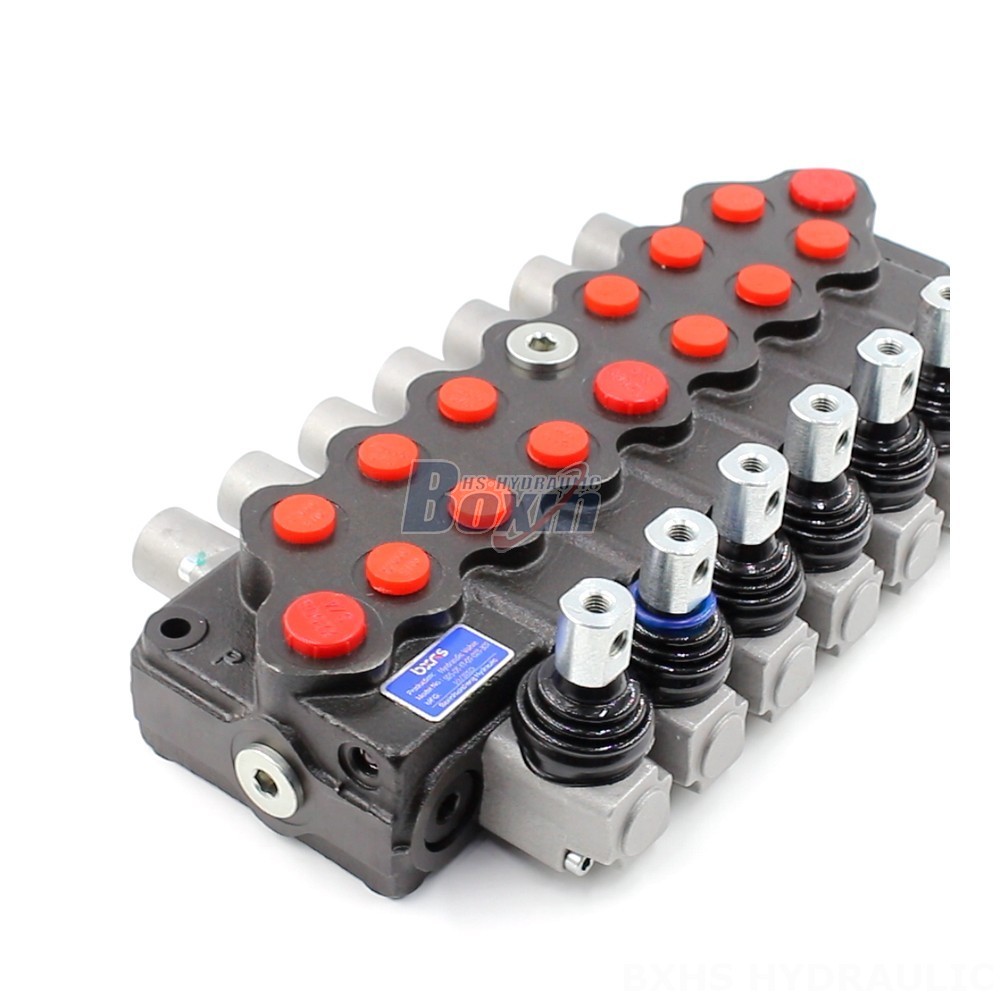

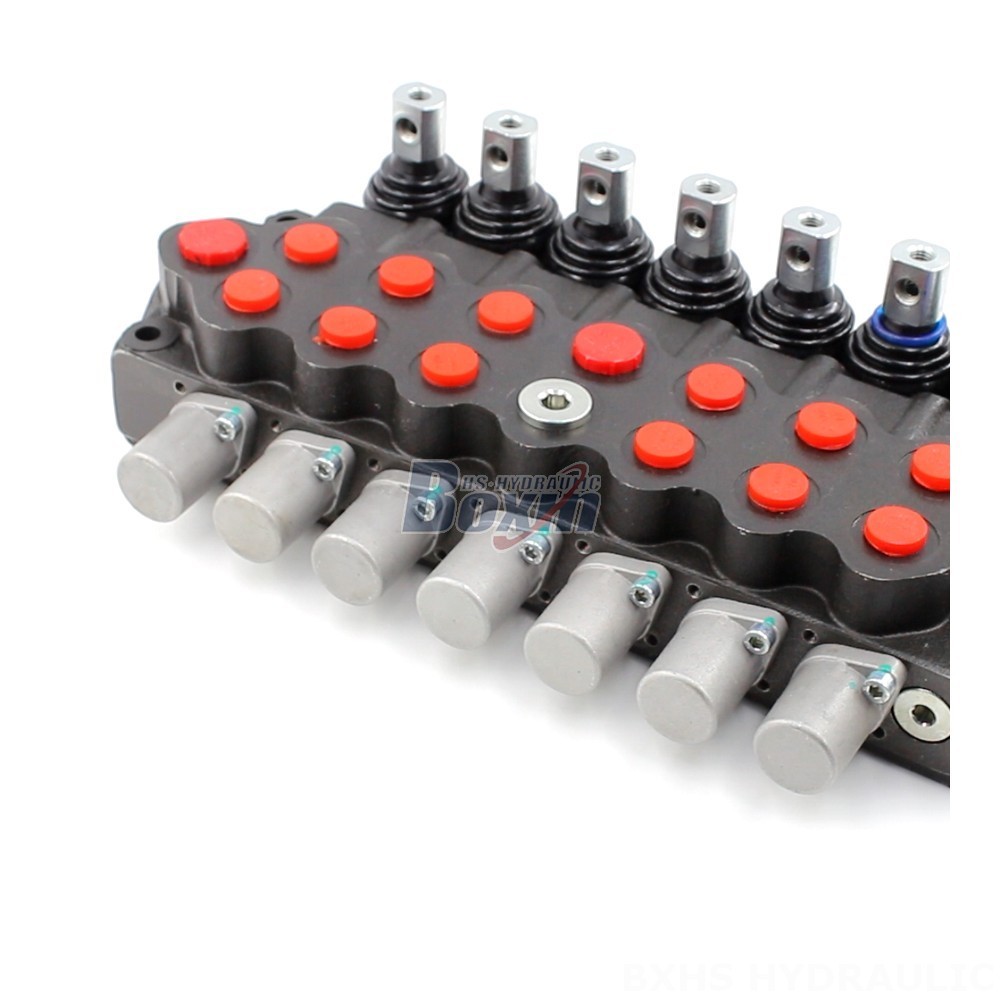

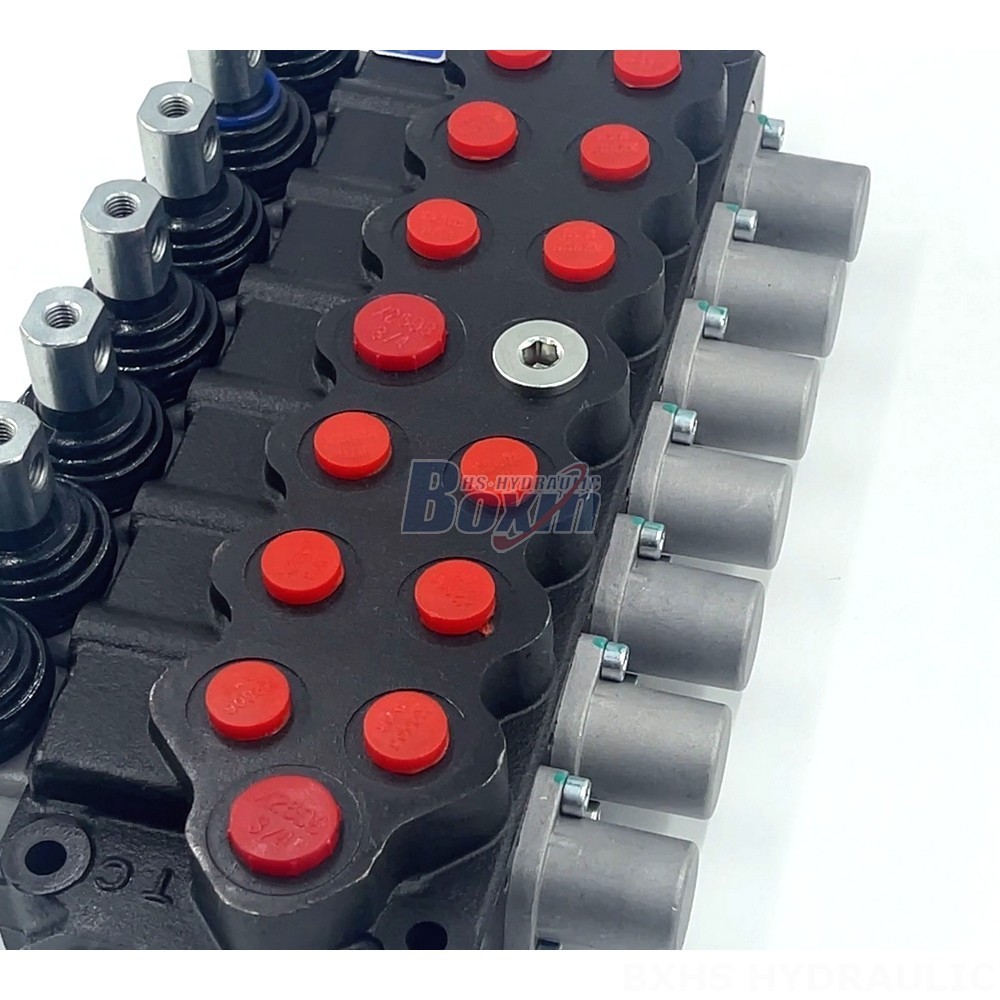

Our SD5 Series Directional Control Valves are high-performance, manual control valves built with a 7-section monoblock structure. Featuring a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi), these valves are suitable for diverse applications such as telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters. We offer bespoke solutions, customization options, and manufacturing services to suit your unique requirements. Whether you need OEM, ODM, or private label products, our team is ready to collaborate with you to deliver the perfect hydraulic solution for your project.
