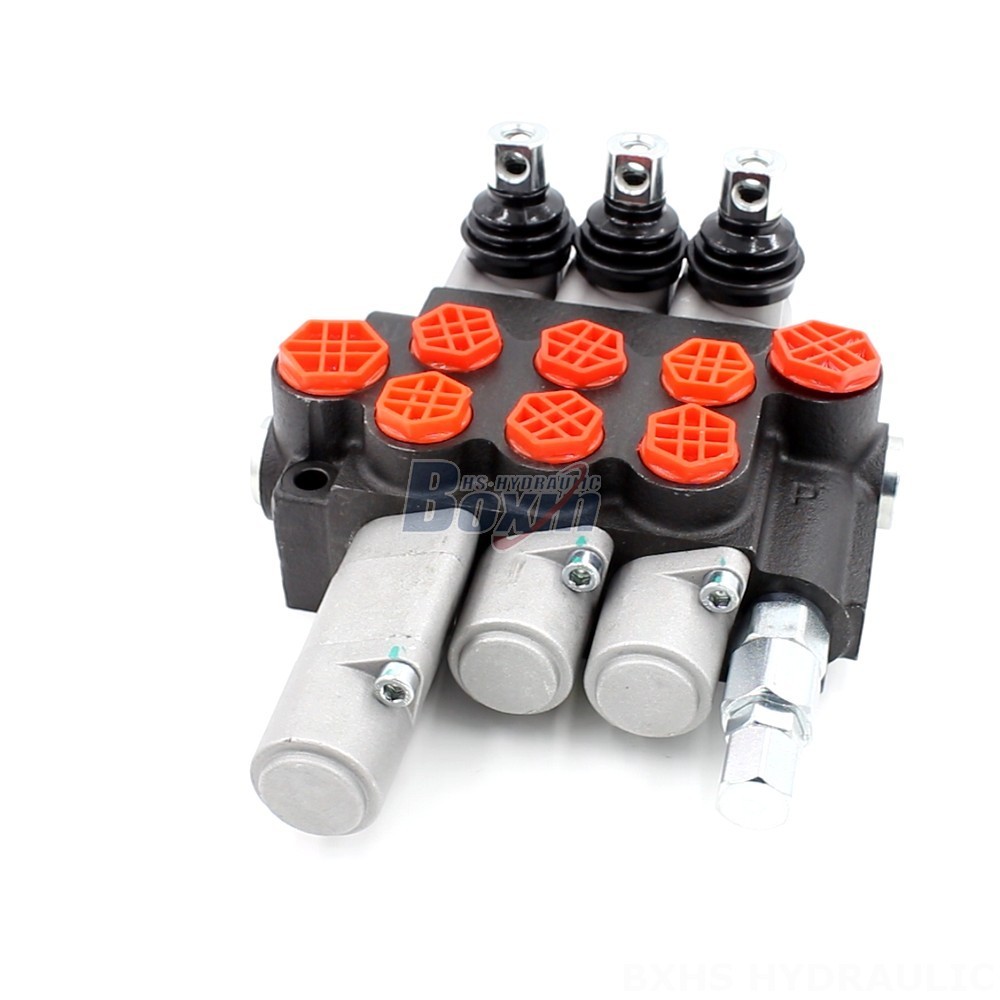

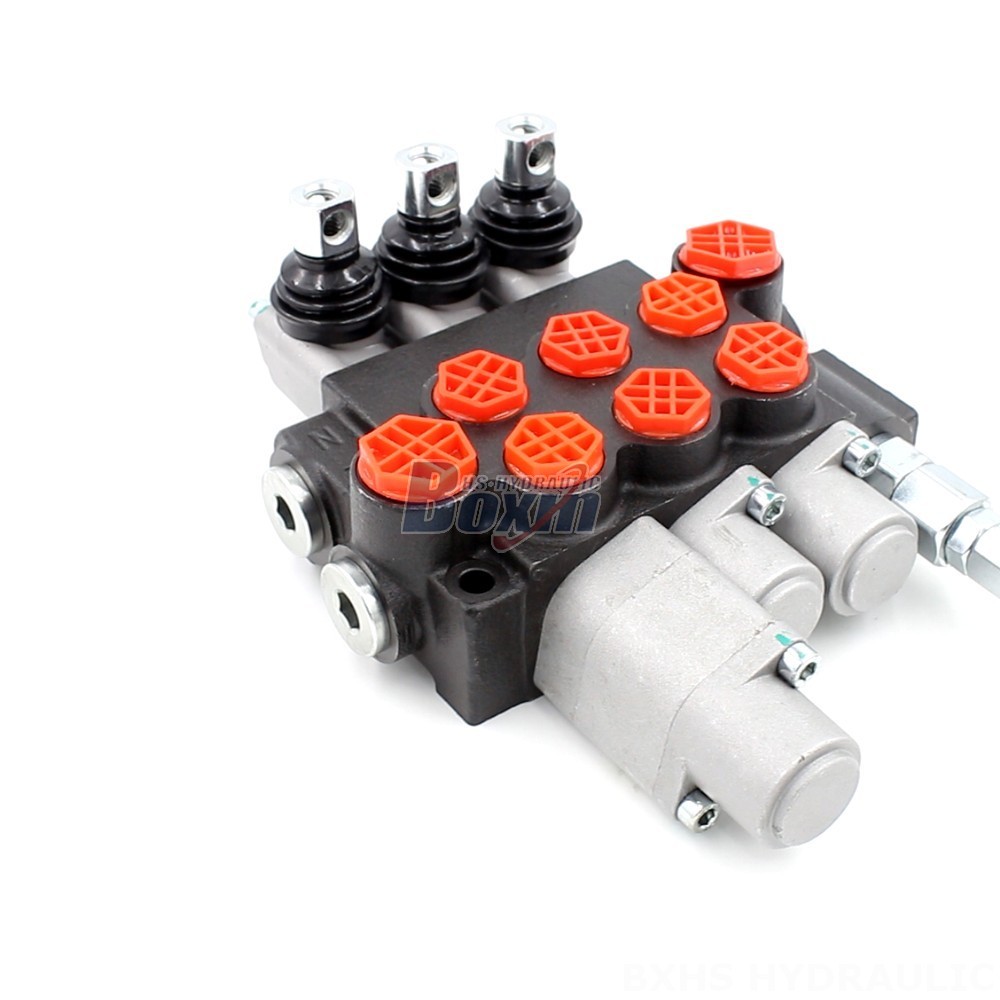

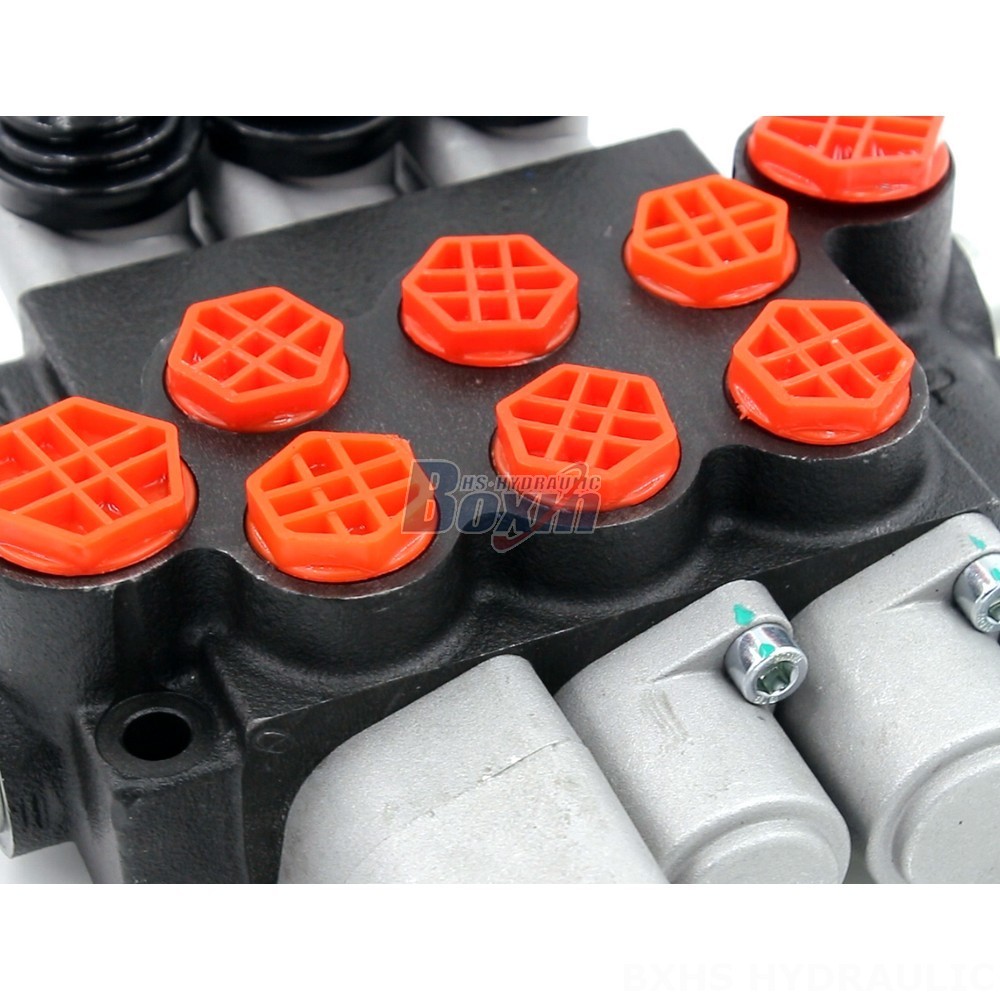

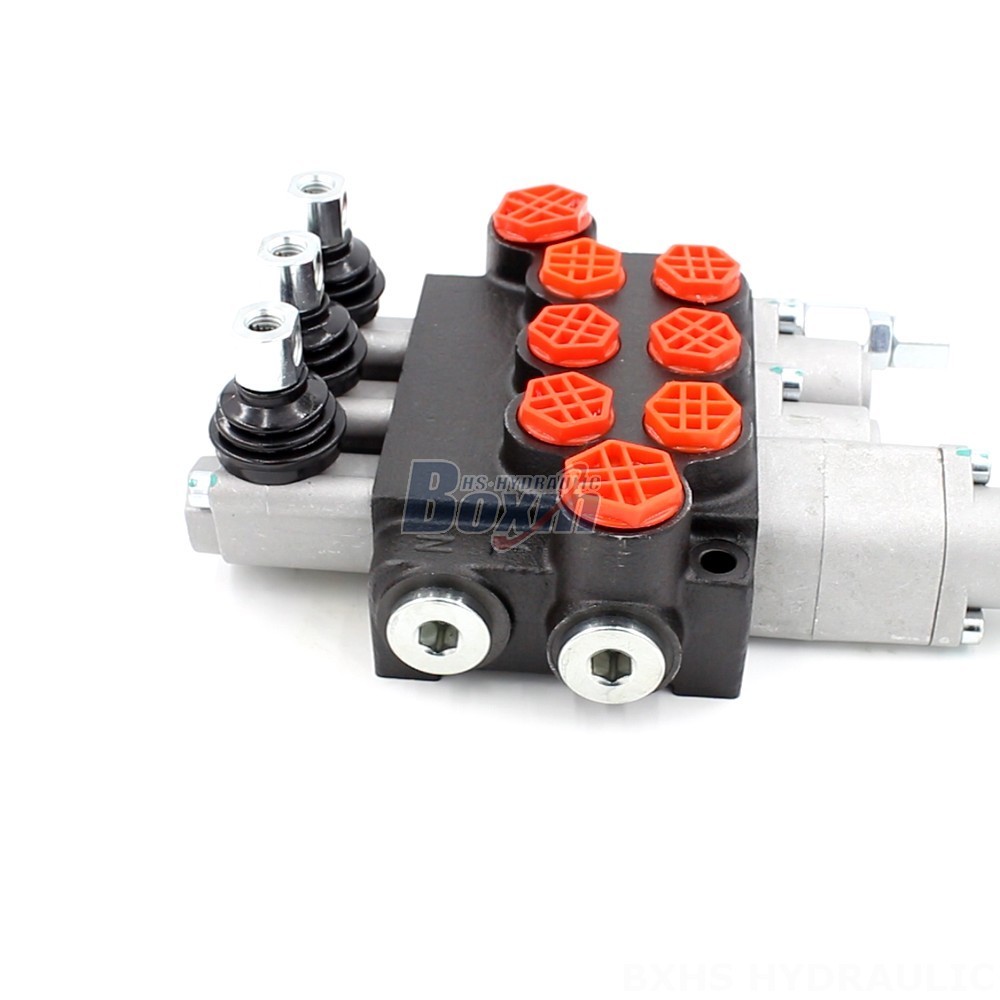

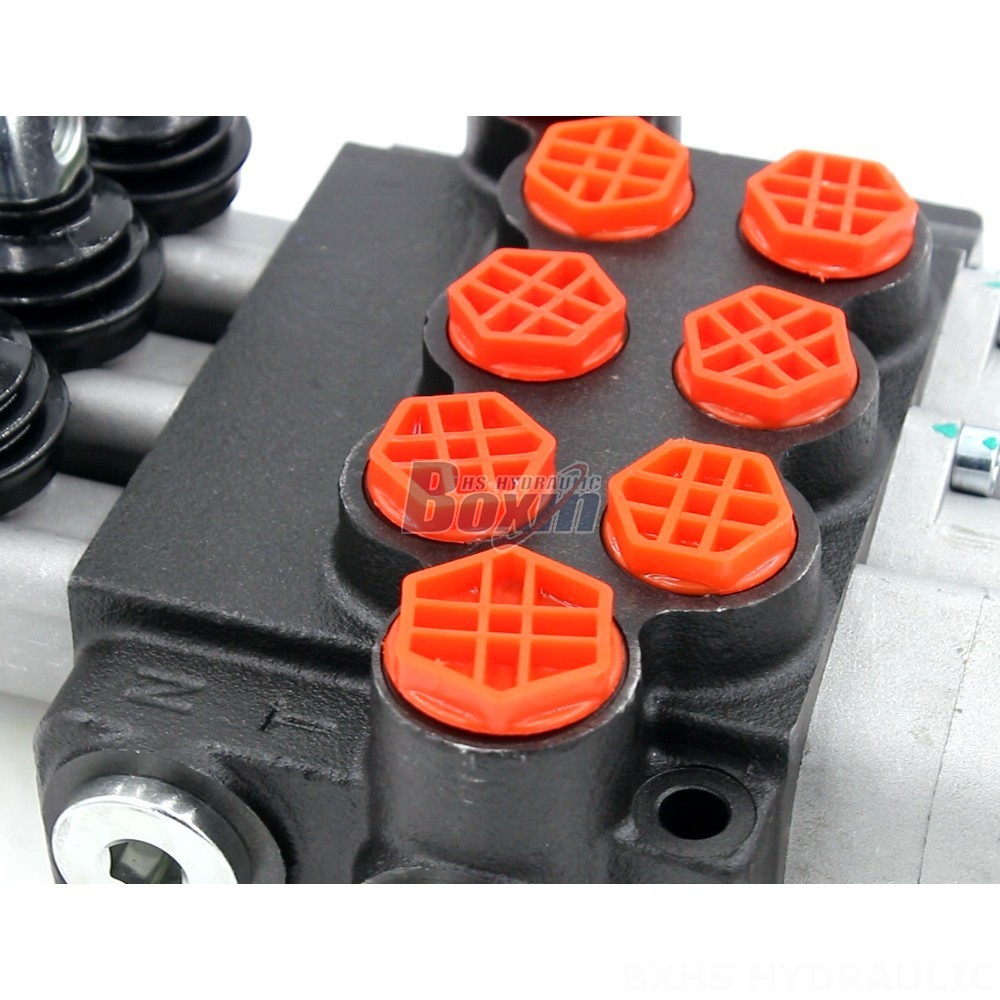

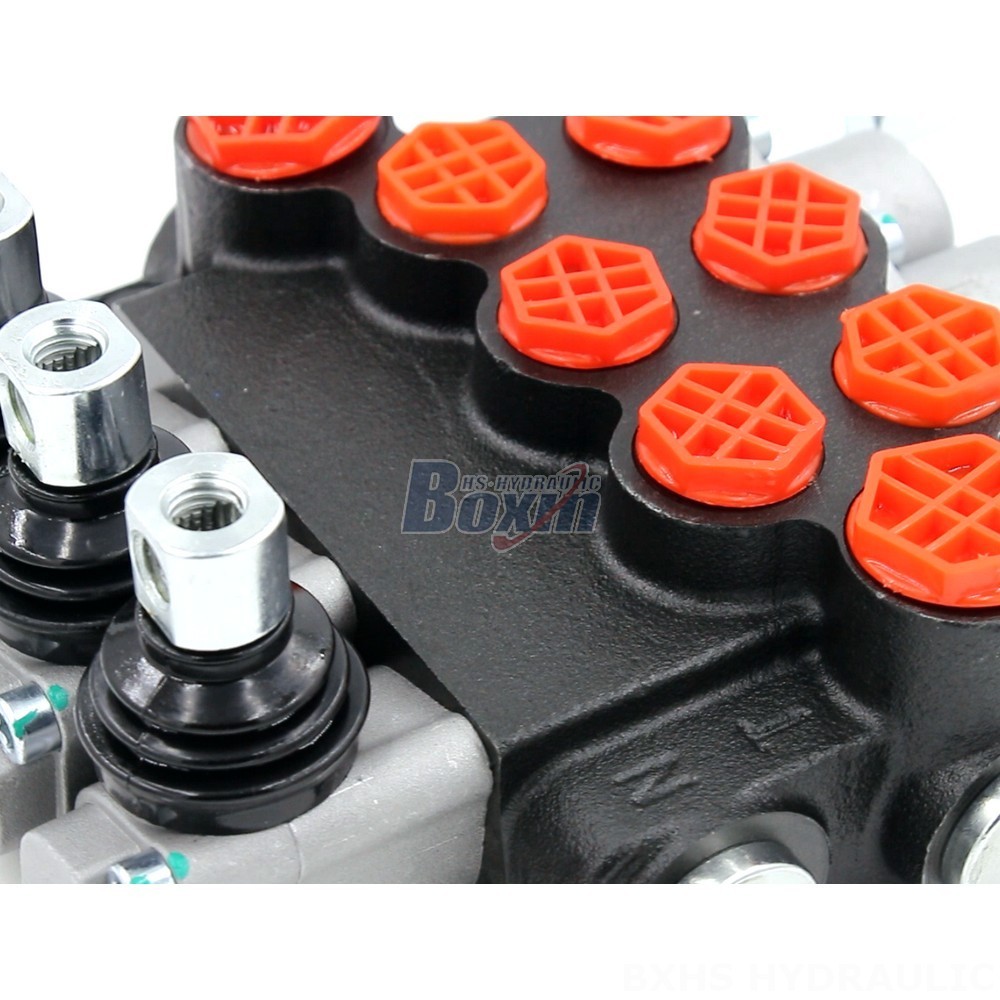

Bespoke Hydraulic Solutions: P40-G12-G38-2OT-QTW Valves for Unique Applications

Metode Kontrol:Buku Panduan

Spul:3 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:24*21*13

Kelas kotor:6.80 kg

Ketersediaan: Tersedia

1097 Pandangan Mencari Produk Ini

Bespoke Hydraulic Solutions: P40-G12-G38-2OT-QTW Valves for Unique Applications

Bespoke Hydraulic Solutions: P40-G12-G38-2OT-QTW Valves for Unique Applications

Bespoke Hydraulic Solutions: P40-G12-G38-2OT-QTW Valves for Unique Applications drawing image

Our Bespoke Hydraulic Solutions: P40-G12-G38-2OT-QTW Valves are custom-engineered to meet the unique demands of your applications. Featuring manual control, a 3-section monoblock design, and a rated flow of 40 L/min (10.5 US gpm), these valves deliver exceptional performance and durability in demanding environments.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

Our P40-G12-G38-2OT-QTW Valves are designed to provide precise control and reliability in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. With a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), these valves can withstand the toughest conditions. Their compact design and versatile mounting options make them suitable for integration into various systems, while their extended ambient temperature range of -40°C to +80°C (-40°F to +176°F) ensures optimal performance in extreme environments.

As a leading manufacturer of hydraulic products, we offer OEM, private label, and custom hydraulic solutions to meet your specific requirements. Our team of experienced engineers can work closely with you to design and develop the perfect hydraulic solution for your application. Whether you need a standard valve or a highly customized solution, we have the expertise and capabilities to deliver the results you demand.
