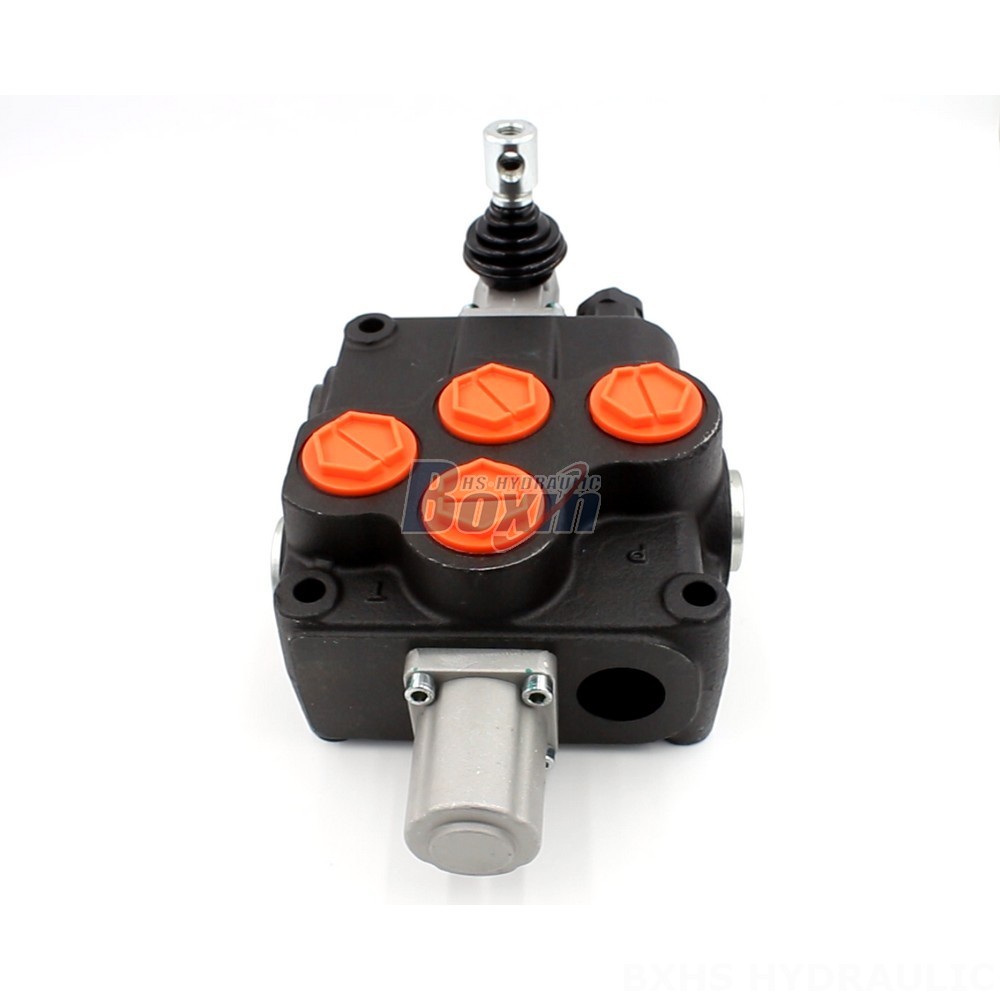

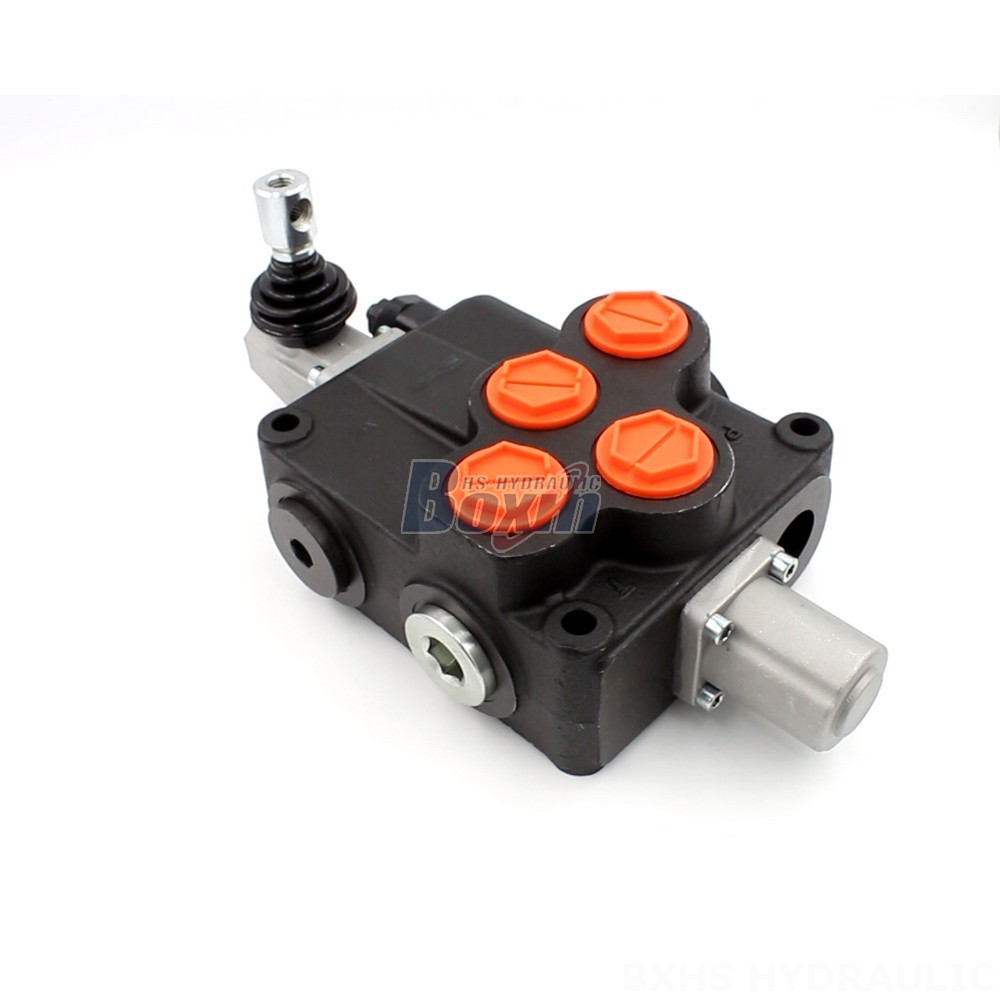

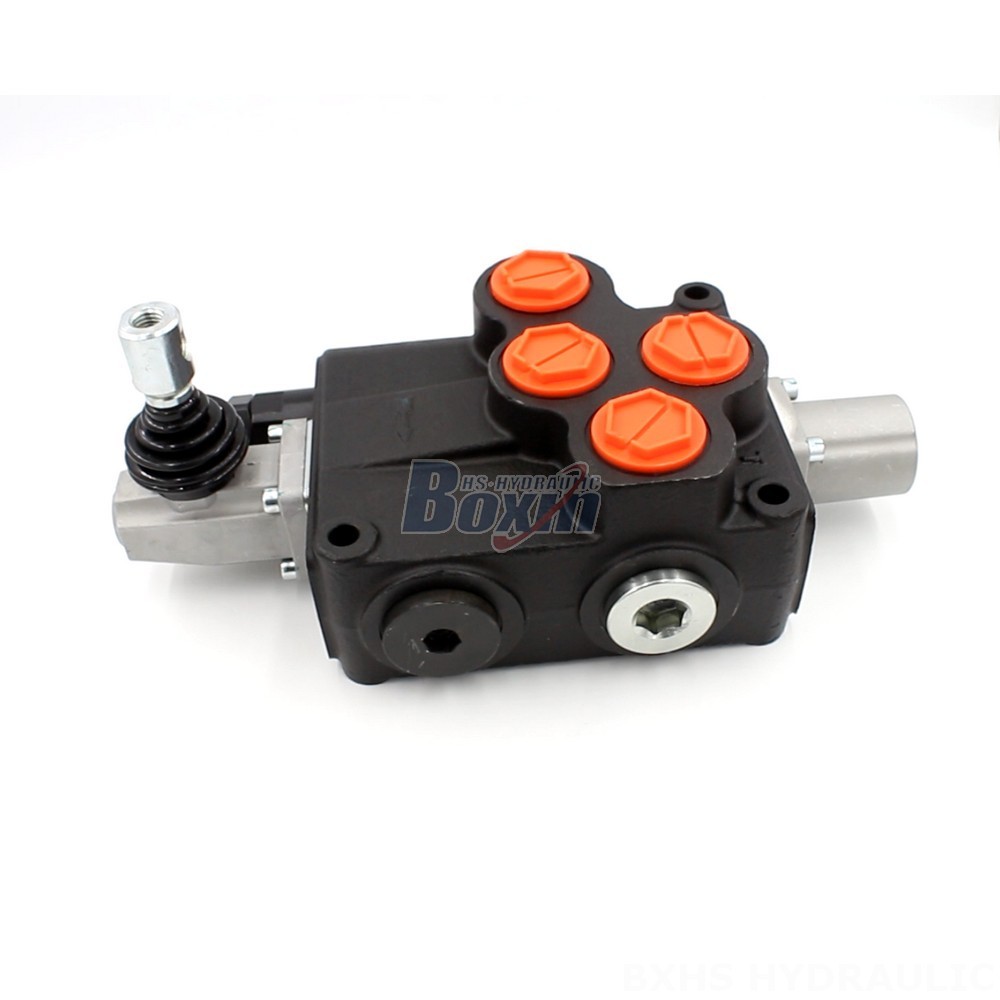

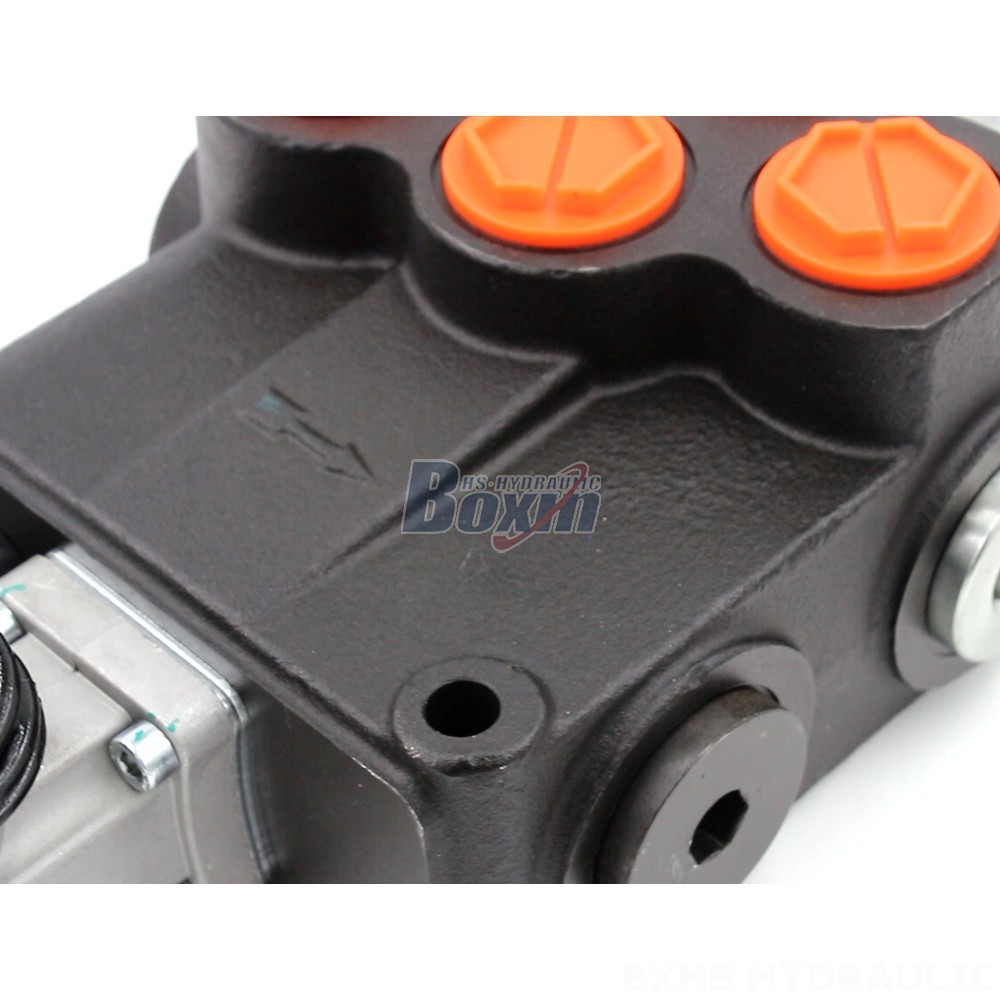

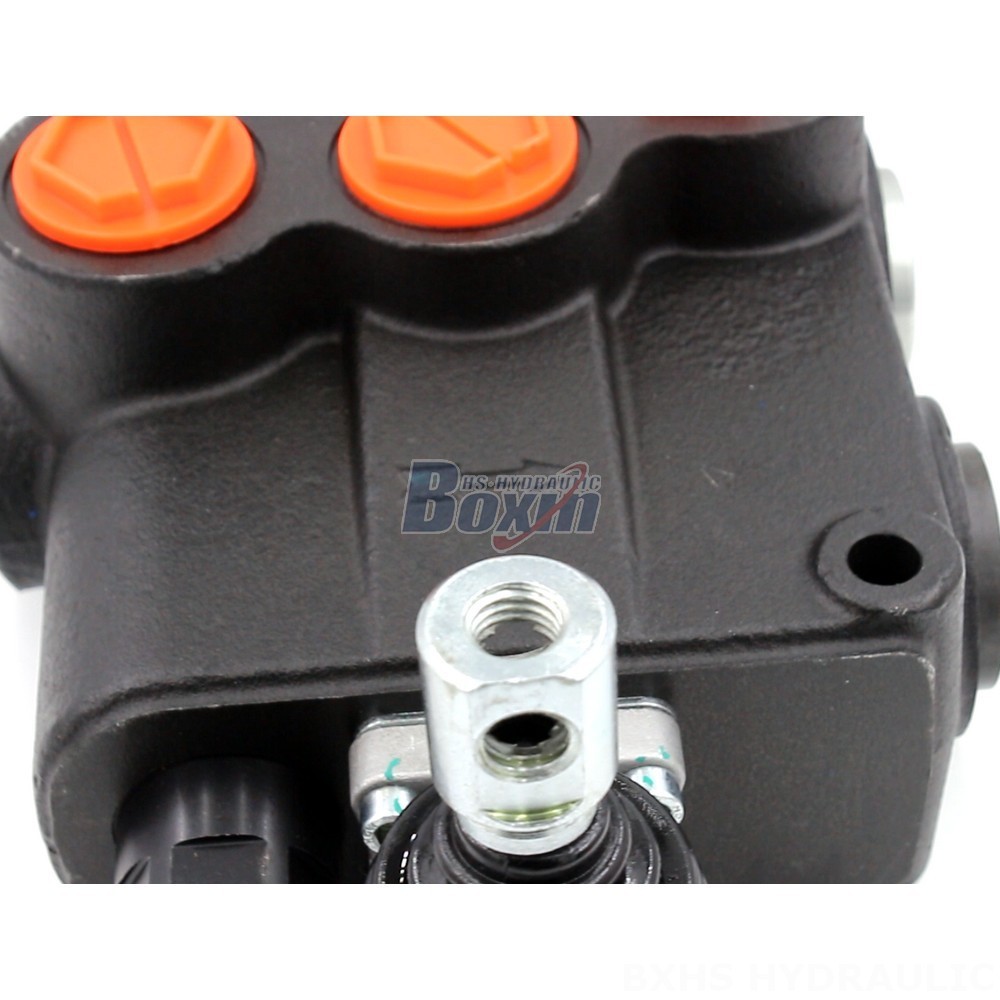

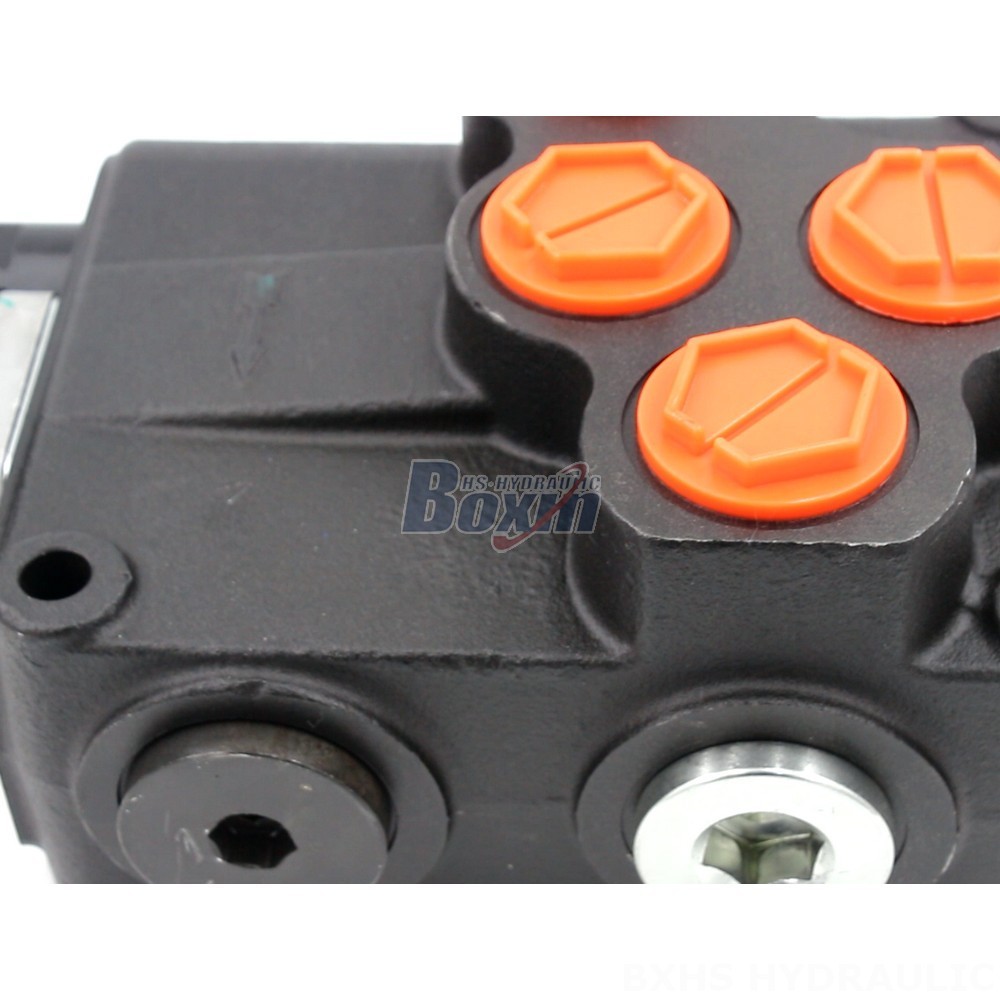

P120-G1-OT Directional Valve is a bespoke hydraulic valve tailored to your specific requirements. With a rated flow of 120 L/min and a max pressure of 250 bar, this valve is suitable for various applications in the material handling, construction, earth moving, agriculture, and industrial vehicles industries.
| Seri P120 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 120 L/min (31,7 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Port Keluar | G1, SAE 16, 1 NPT, M36×2 |
| Ukuran Port | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The P120-G1-OT Directional Valve is a monoblock valve with a single section and a single spool. It features manual control and is designed to operate within an ambient temperature range of -40°C to +80°C. The valve is suitable for applications requiring a rated flow of up to 120 L/min and a maximum pressure of 250 bar. **OEM, ODM, and customization services are available to meet your specific requirements.** The valve is widely used in various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, harvesters, bale wrappers, and seeding machines.
