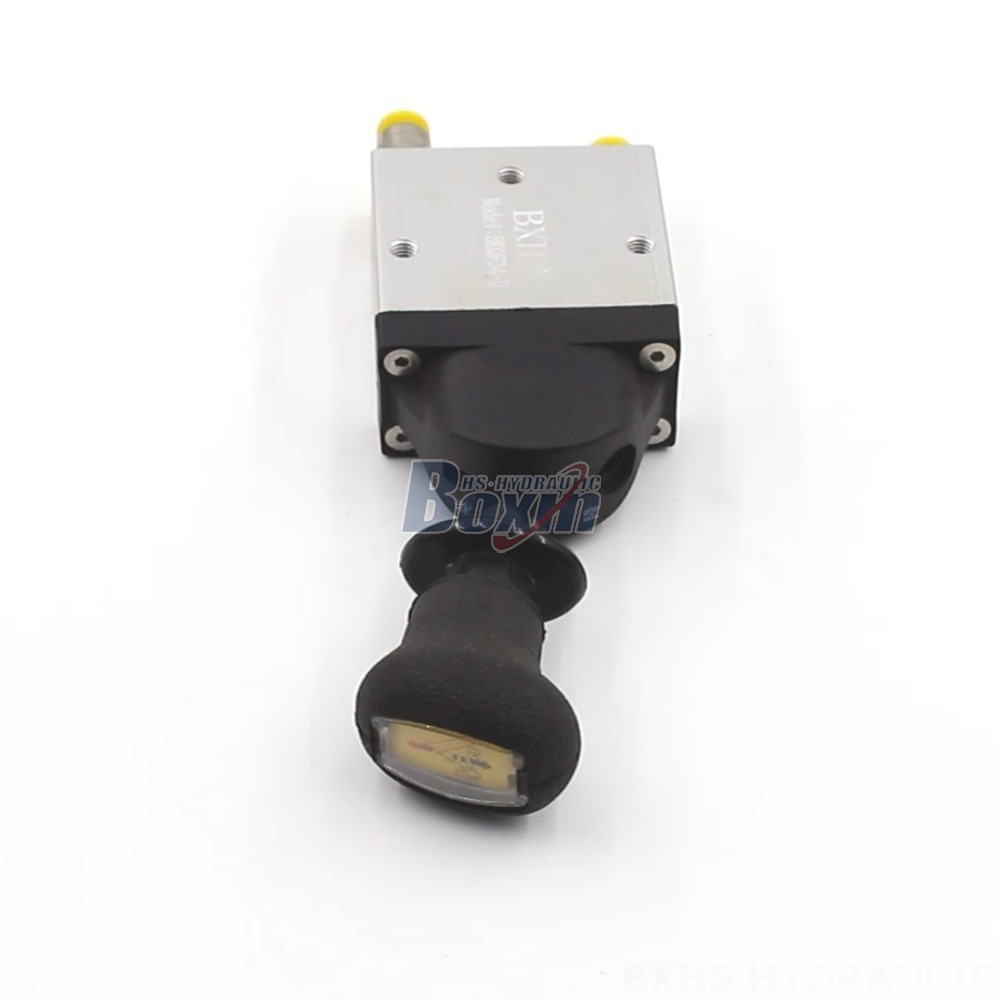

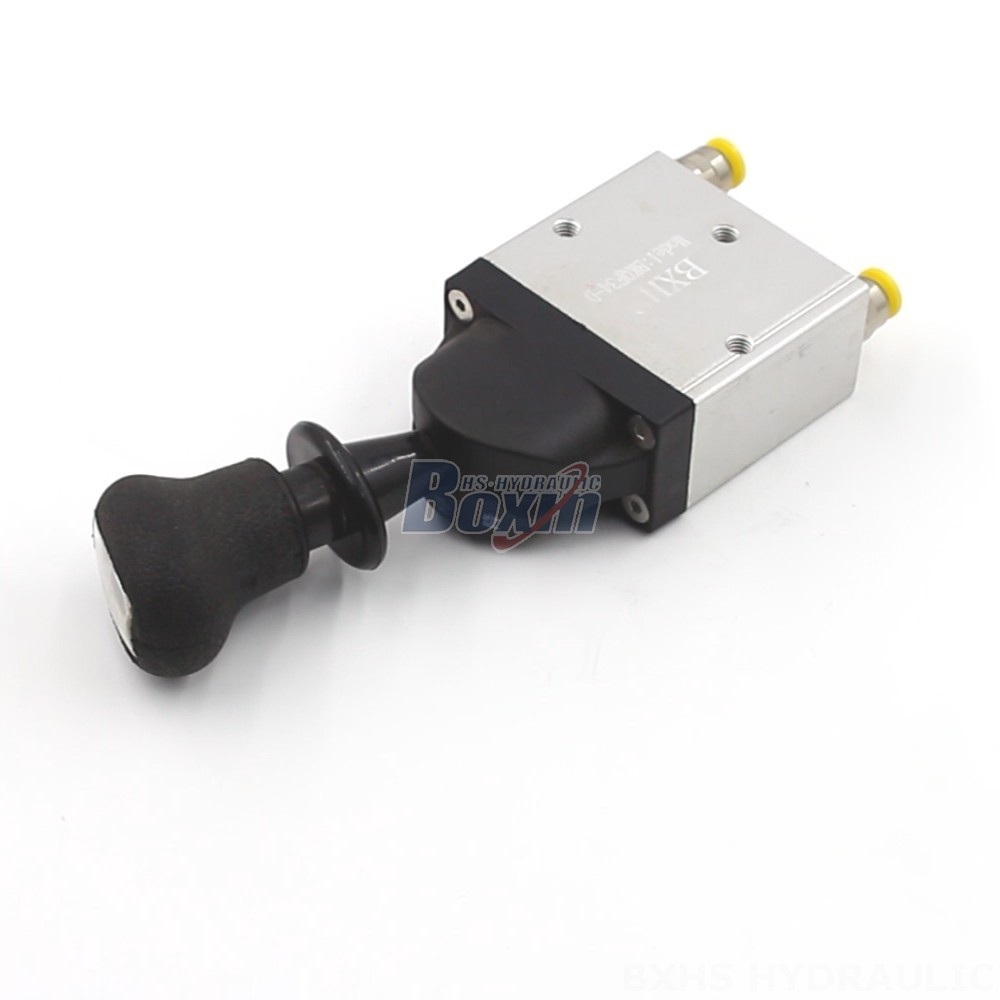

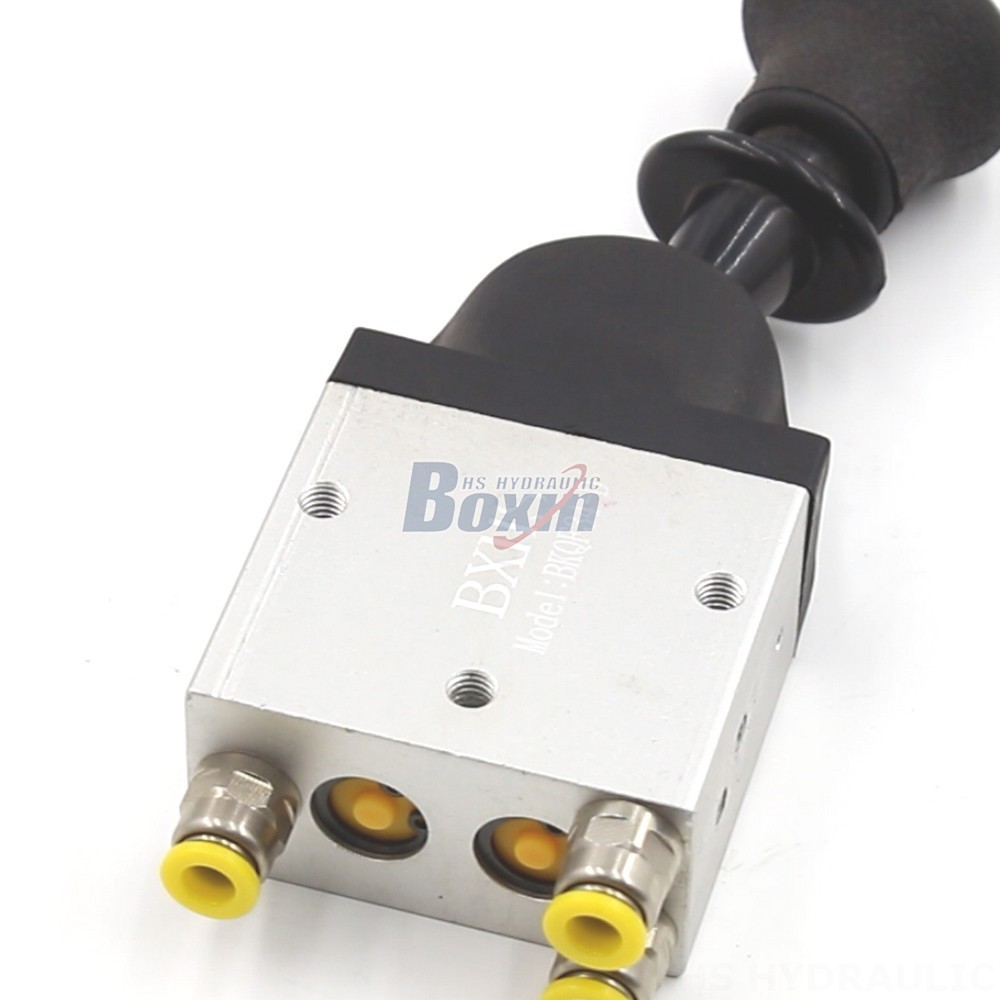

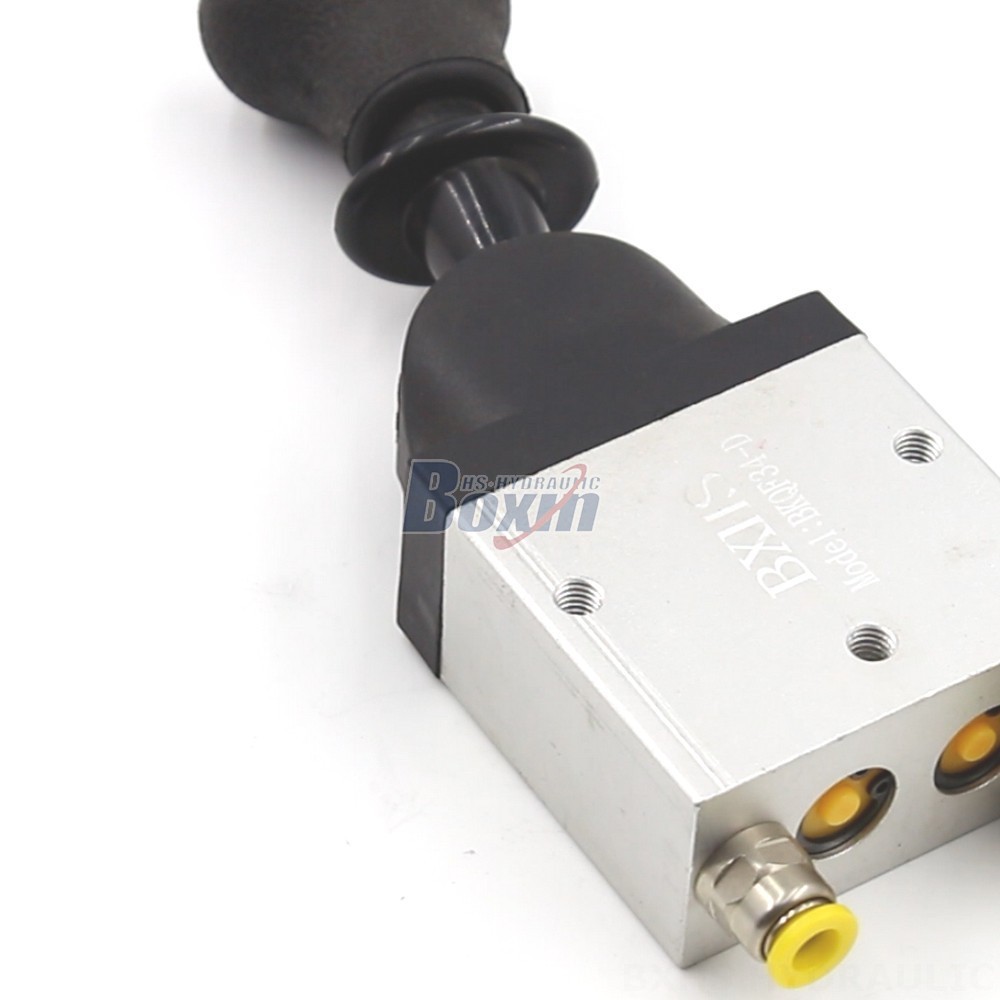

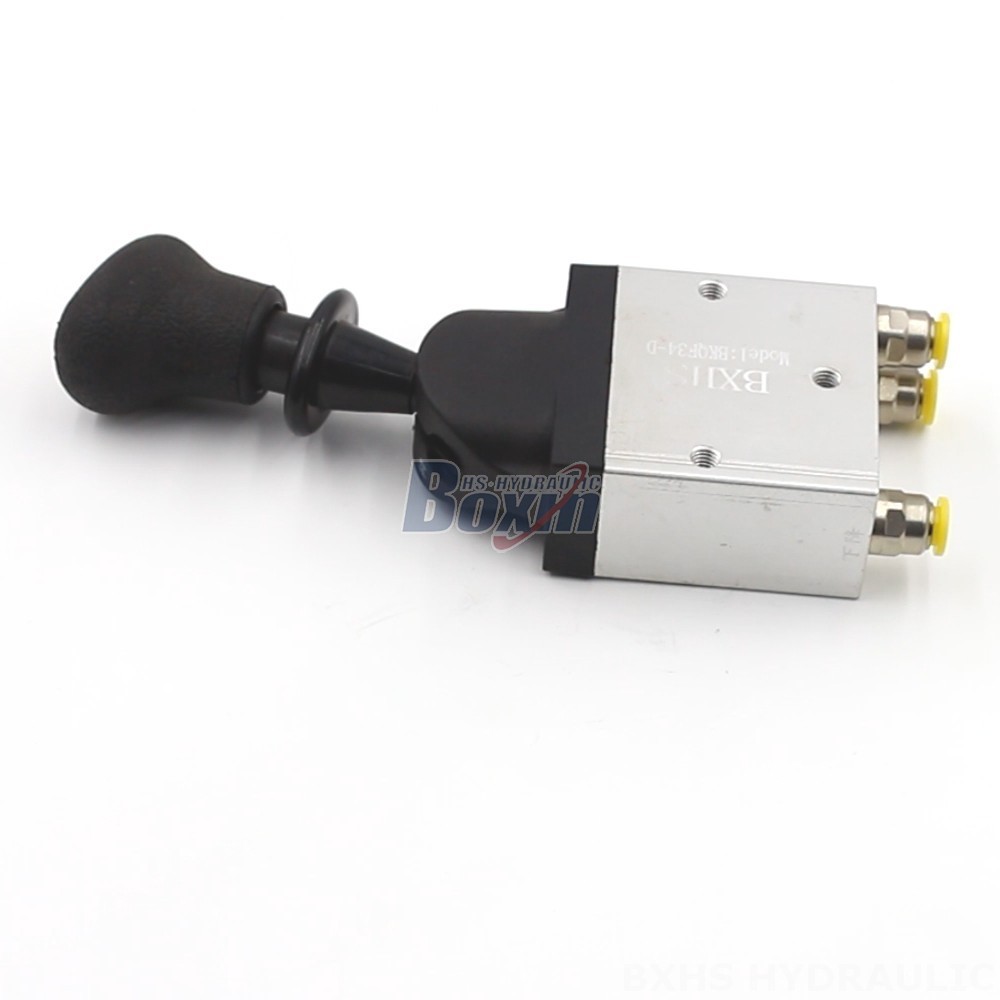

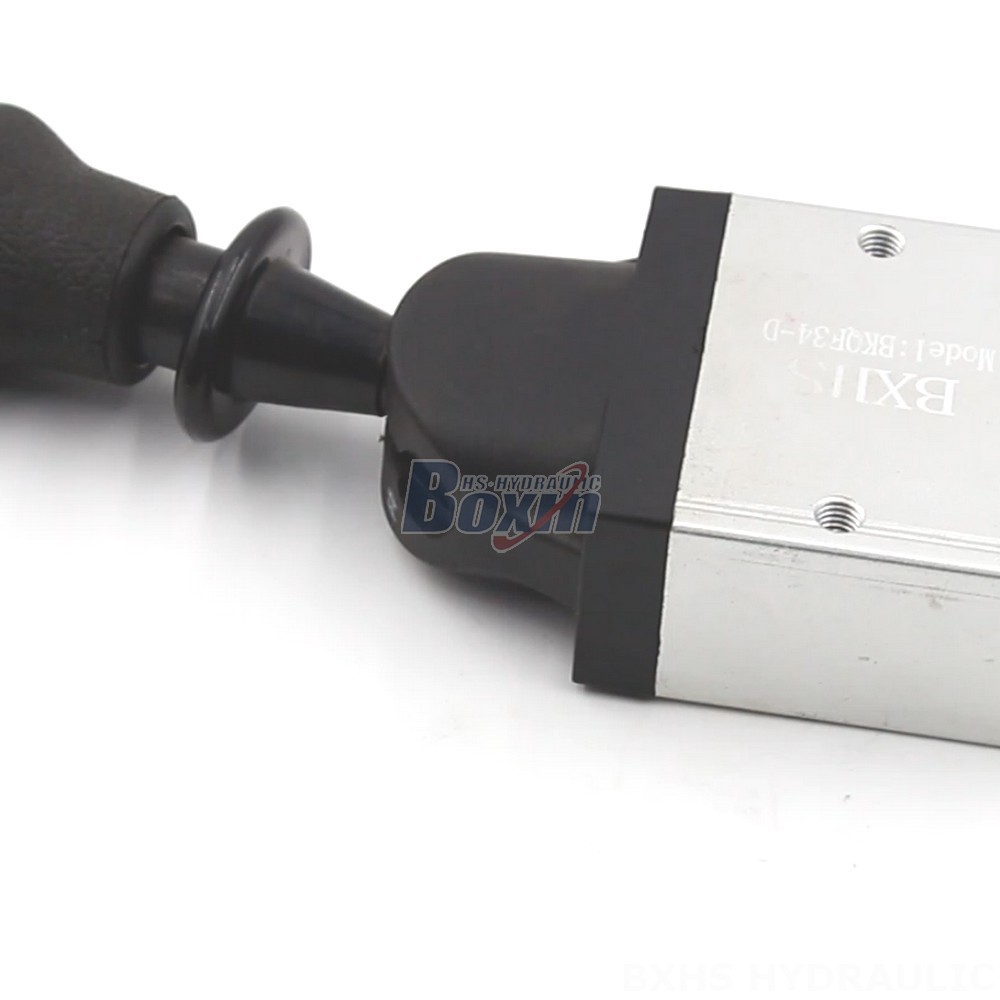

The BKQF34-D Pneumatic 1 Spool Monoblock Directional Valve is a high-performance valve designed for use in various applications, including material handling, construction, agriculture, and industrial vehicles. With its robust construction, it offers reliable operation in demanding environments.
| Seri BKQF34 Katup Kontrol Pneumatik Parameter | |
|---|---|
| Metode Kontrol | Pneumatik |
| Spul | 1 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | Tekanan Dinilai |
| Port Masuk | G1/4 |
| Port Keluar | G1/4 |
| Ukuran Port | G1/4 |
**Product Name:** BKQF34-D Pneumatic 1 Spool Monoblock Directional Valve
**Control Method:** Pneumatic
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 200 bar (2900 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Series:** BKQF34-D Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
