The HDCF50 Solenoid Valve is a high-quality and reliable hydraulic valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 50 L/min, a maximum pressure of 160 bar, and an operating viscosity range of 15 - 75 mm²/s, this valve is capable of handling a wide range of hydraulic fluids and operating conditions.
| Seri HDCF50 Solenoid Kontrol Katup Parameter | |
|---|---|
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Metode Kontrol | Selenoid |
| Ukuran Port | M22×1.5, SAE 8 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Port Keluar | M18×1.5, M22×1.5, SAE 8 |
| Tekanan Maksimum | 160 bar (2300 psi) |
| Aliran Terukur | 50 L/menit (13,2 US gpm) |
| Tipe Struktur | Katup penampang |
| Port Masuk | M18×1.5, M22×1.5, SAE 8 |

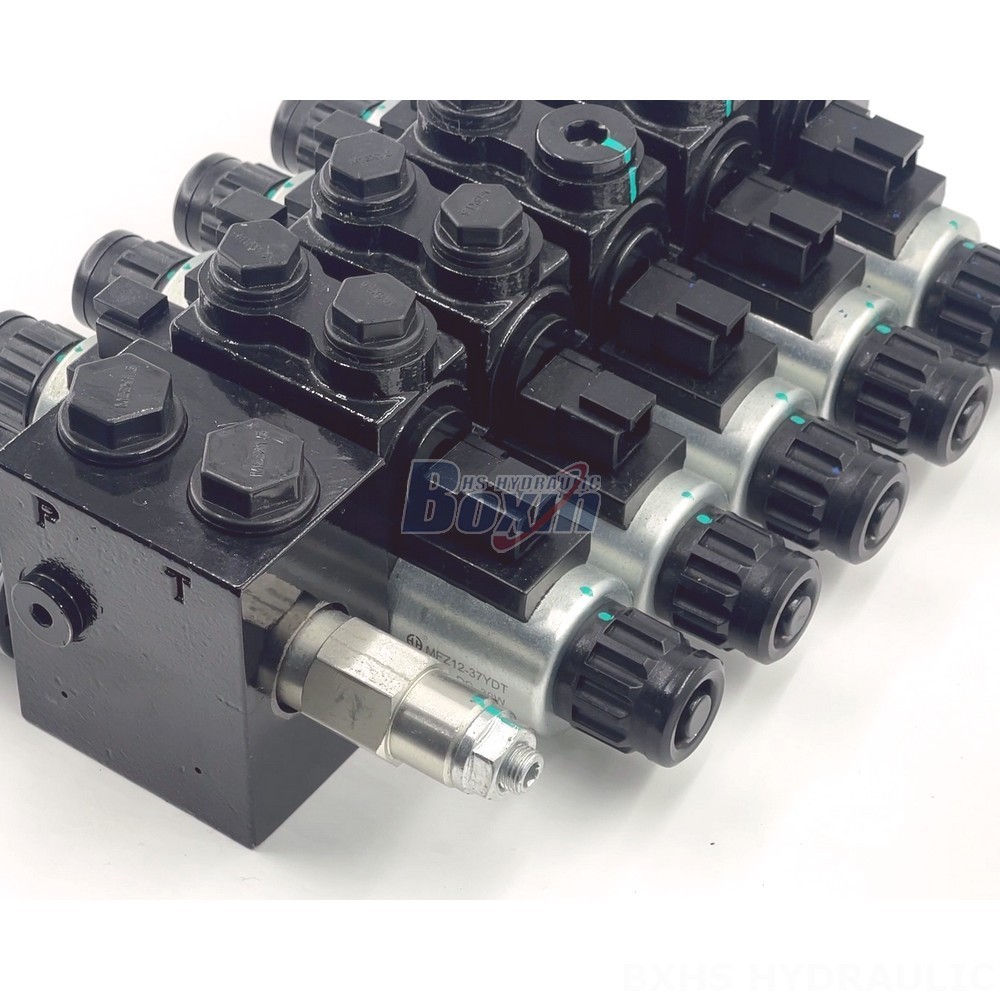

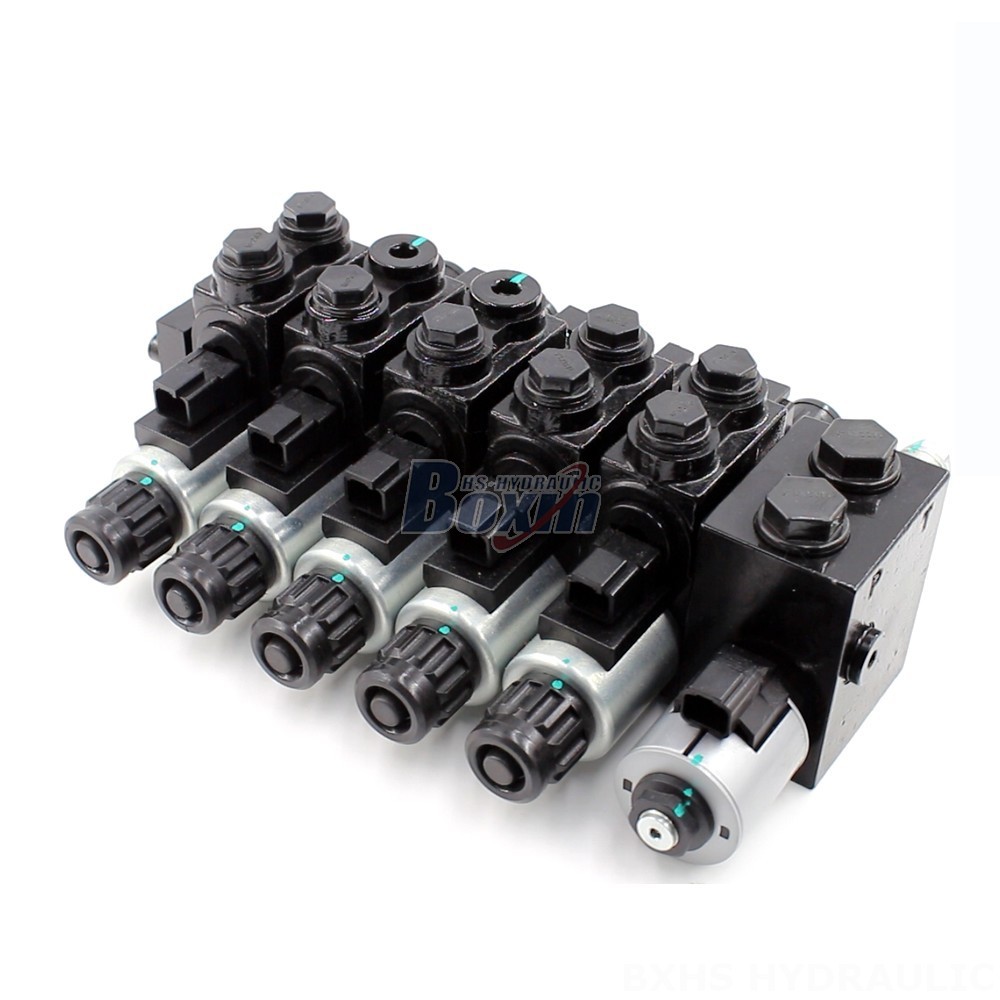

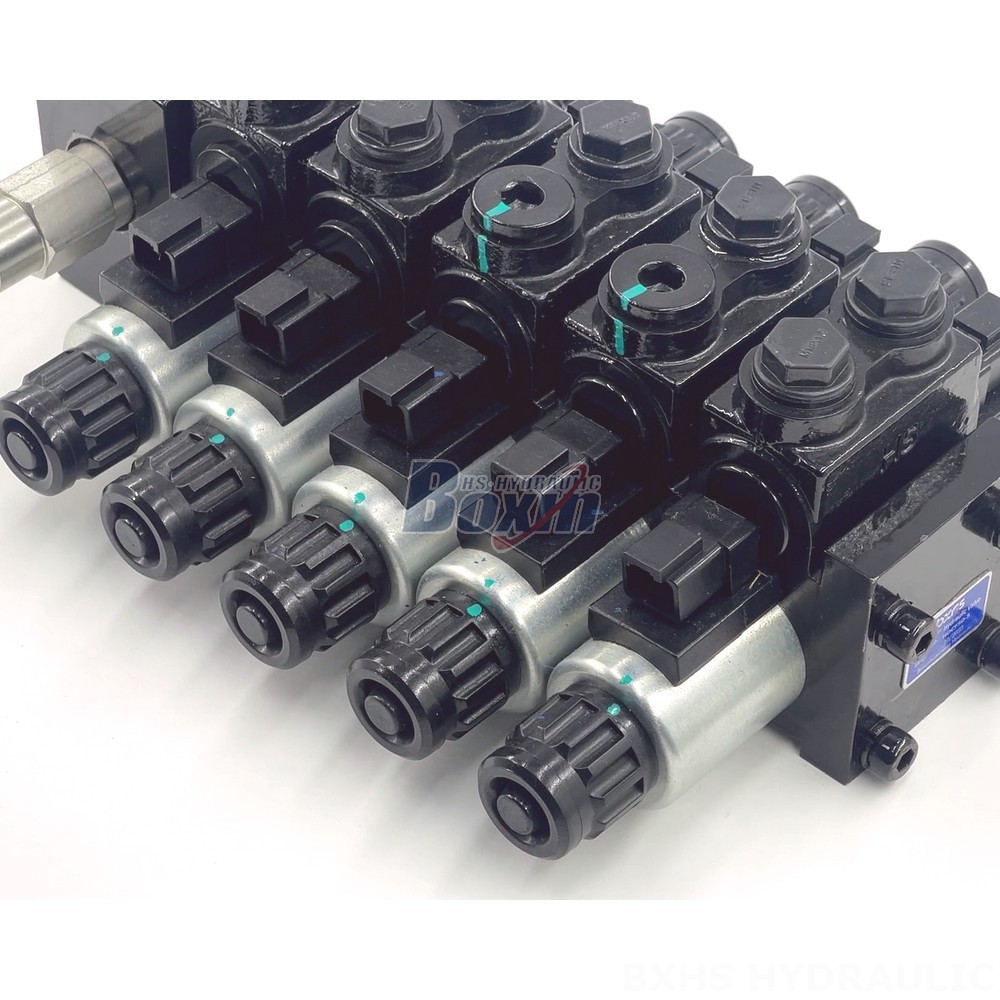

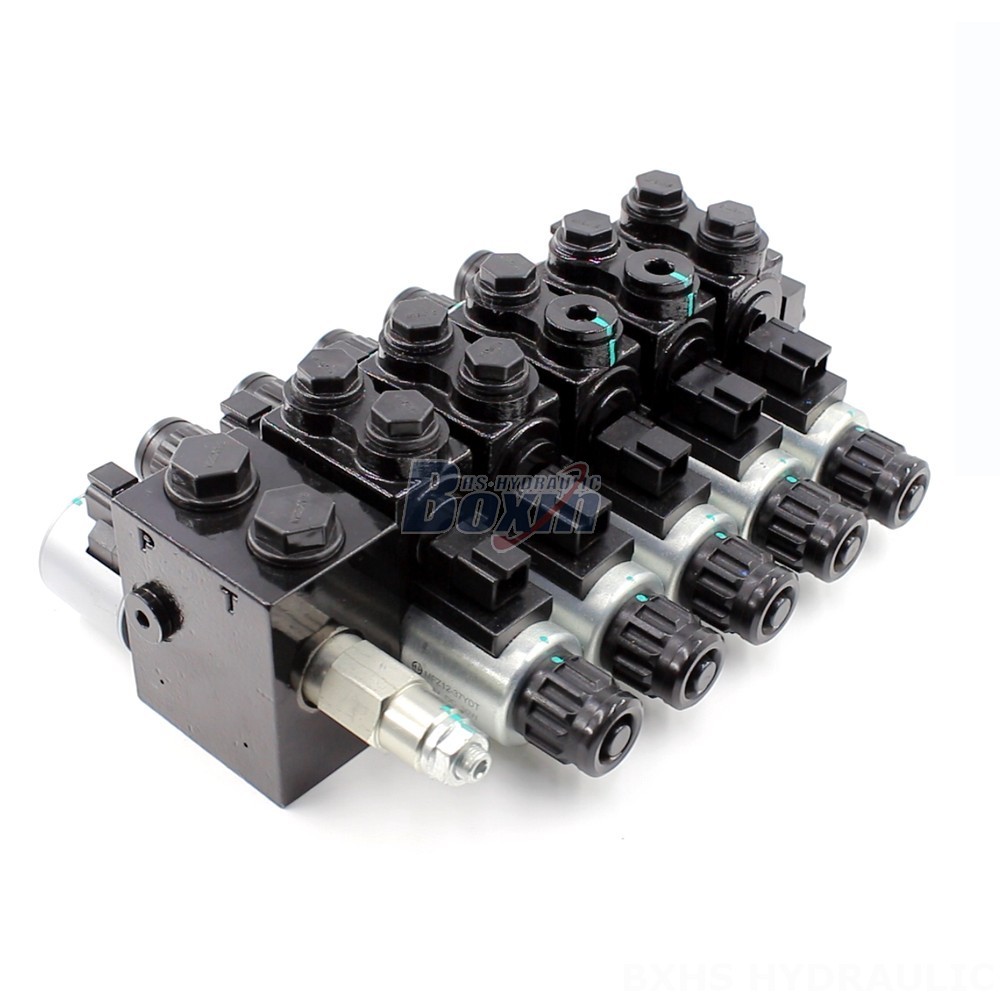

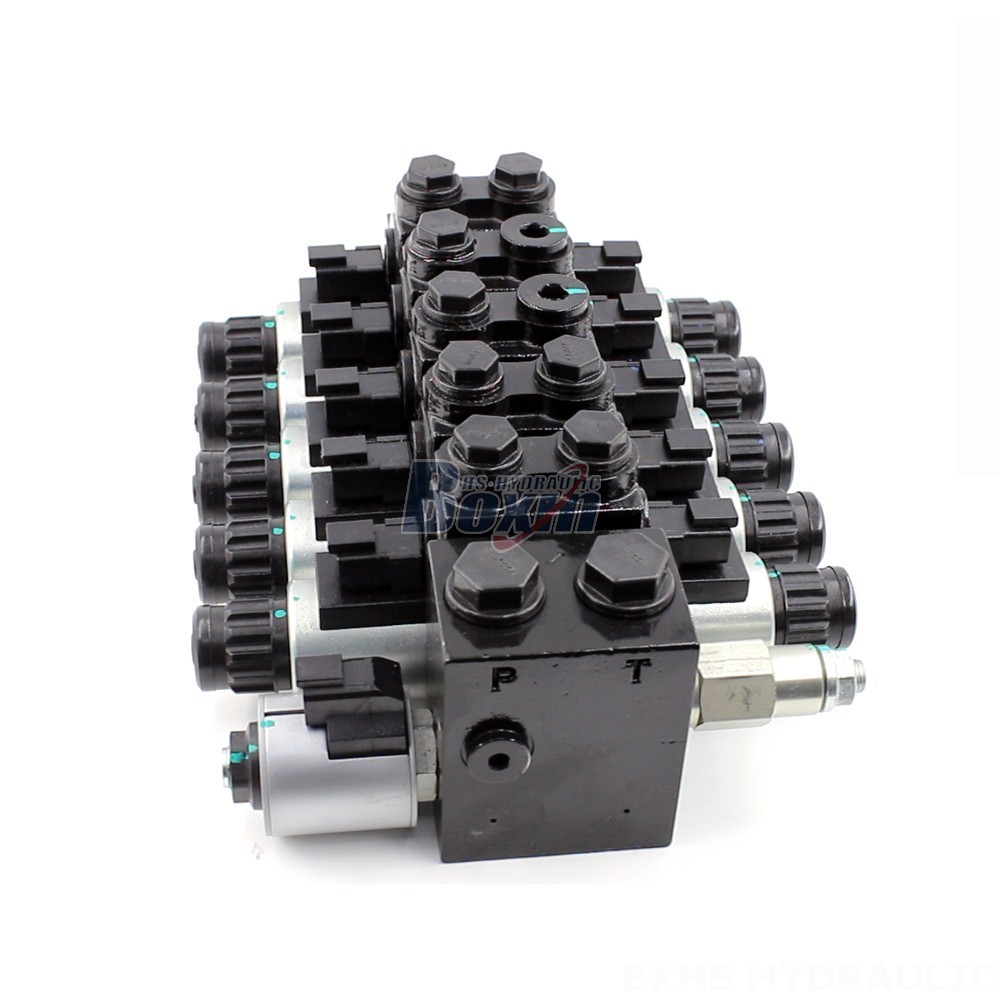

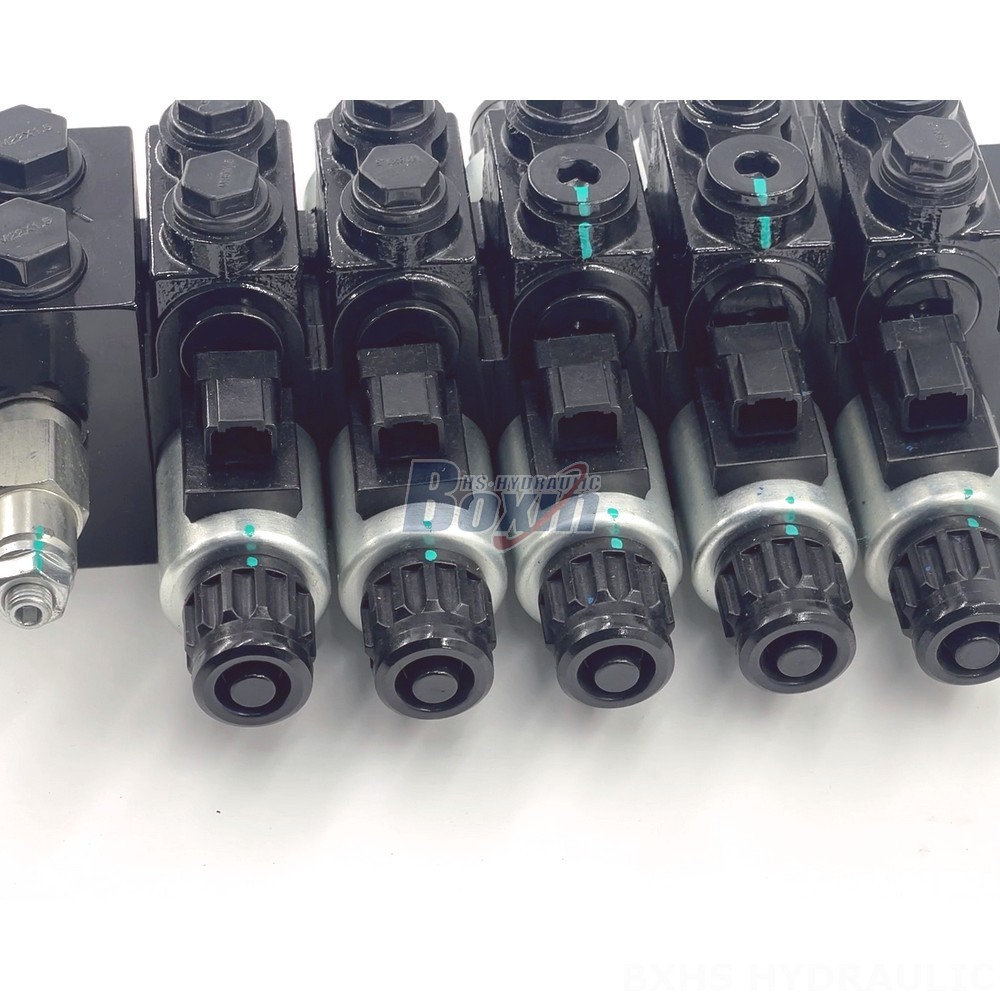

The HDCF50 Solenoid Valve is a sectional valve with 5 sections and 5 spools. It is available with a variety of voltage options, including 12V and 24V. This valve is manufactured to the highest standards of quality and is backed by a comprehensive warranty. As a leading manufacturer of hydraulic valves, we offer factory supply and factory wholesale prices on all of our products. Contact us today to learn more about the HDCF50 Solenoid Valve and to get a quote.
