Produksi & Pengiriman
Waktu Produksi 15-30 Hari

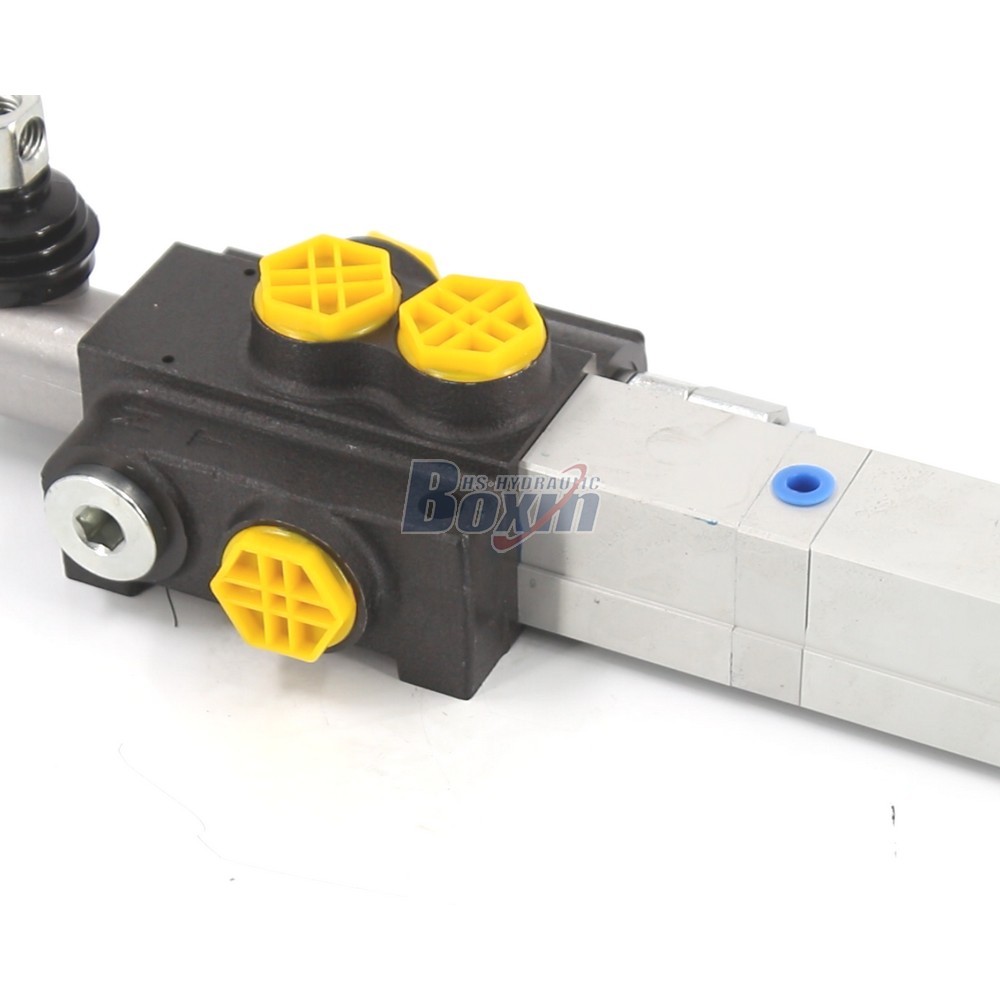

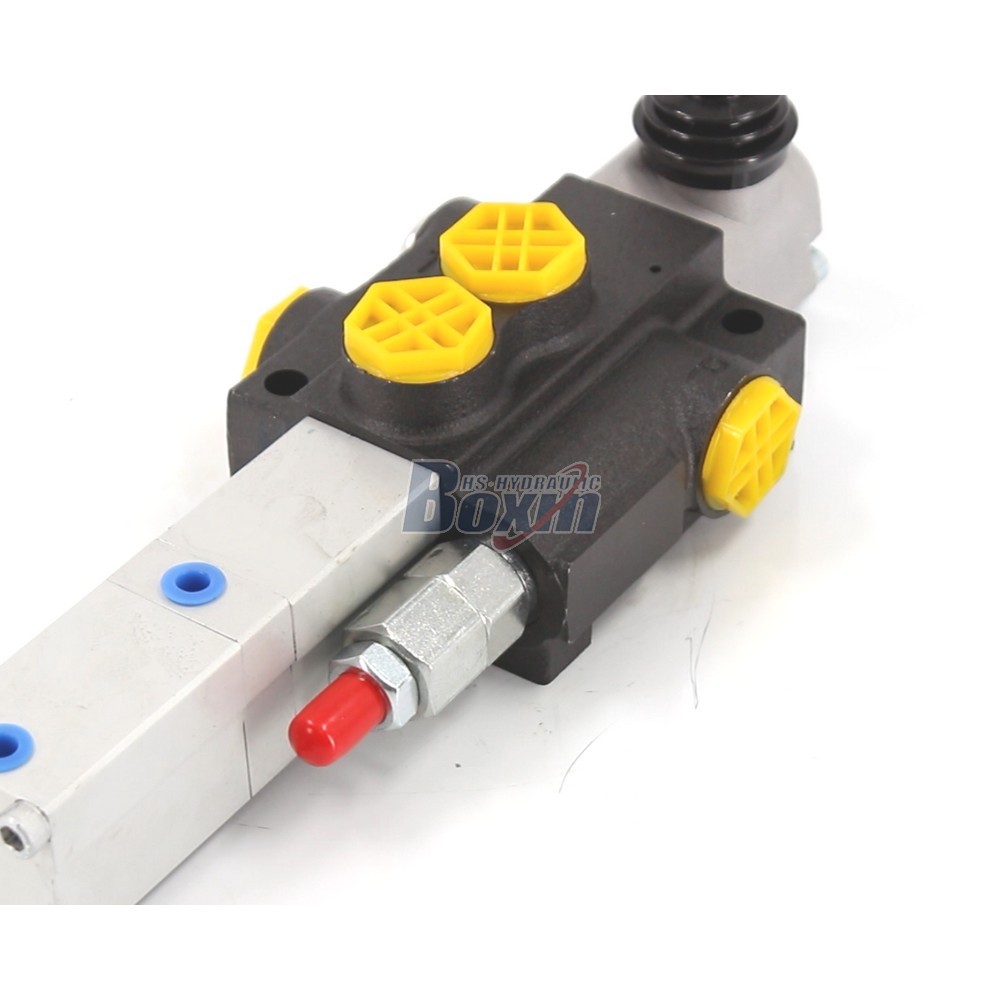

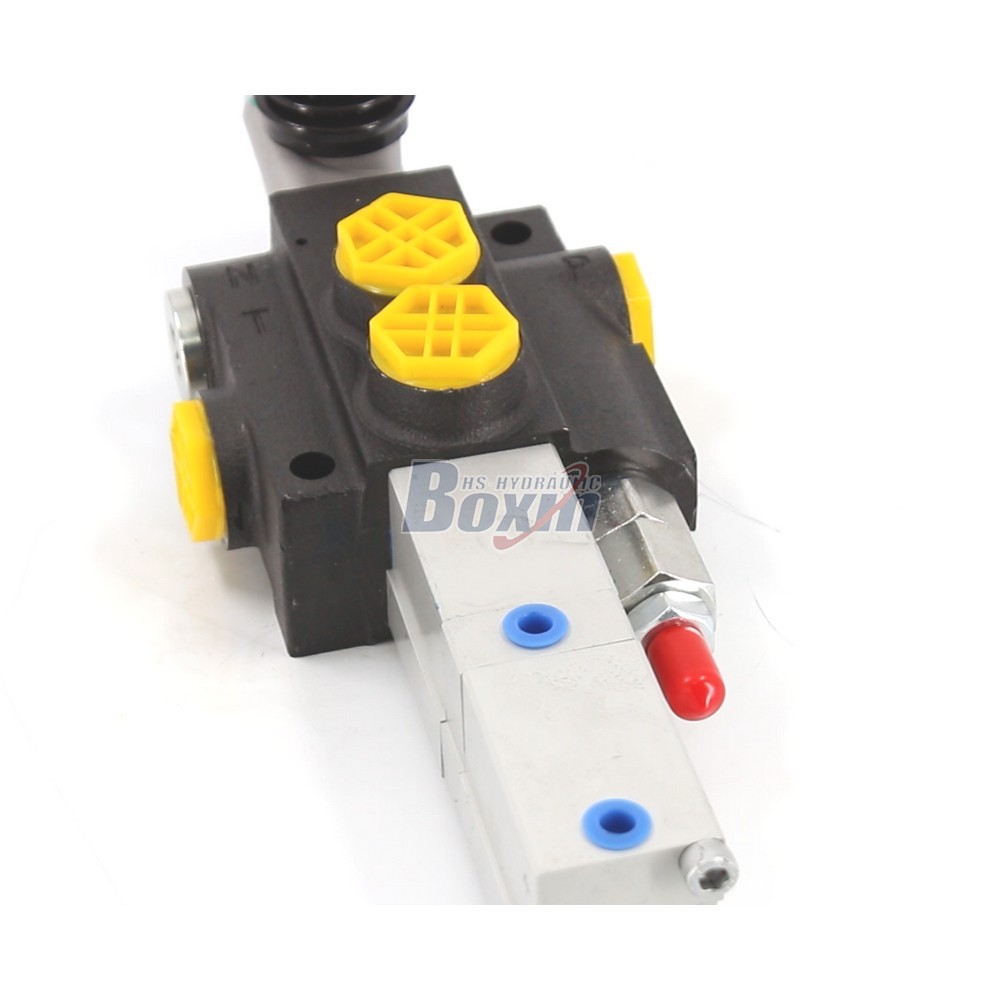

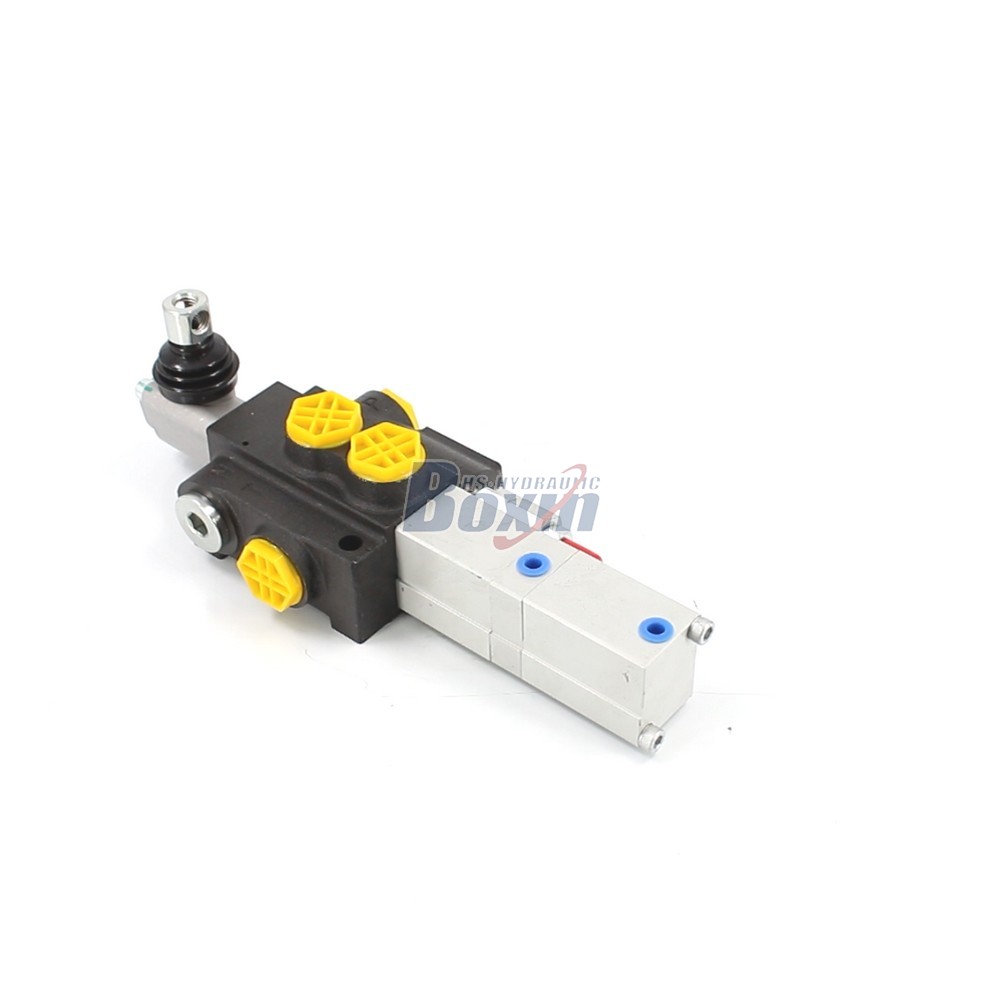

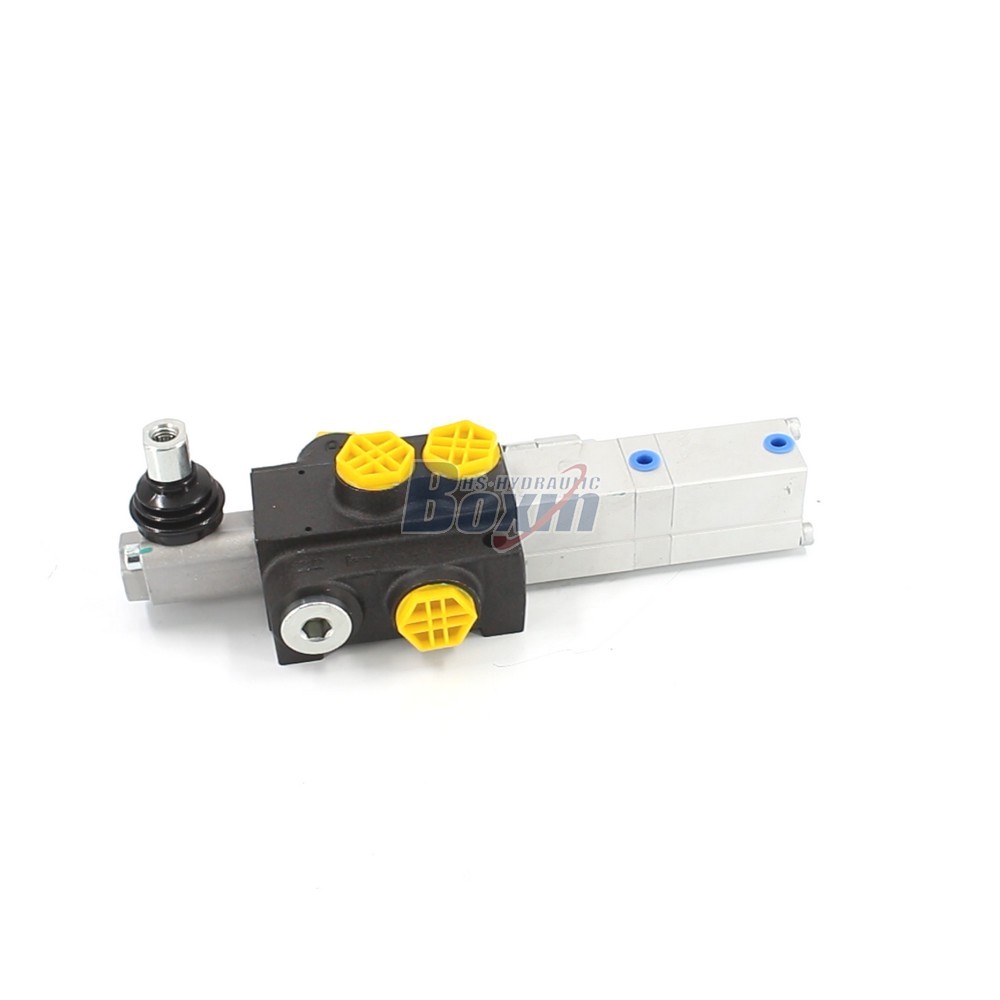

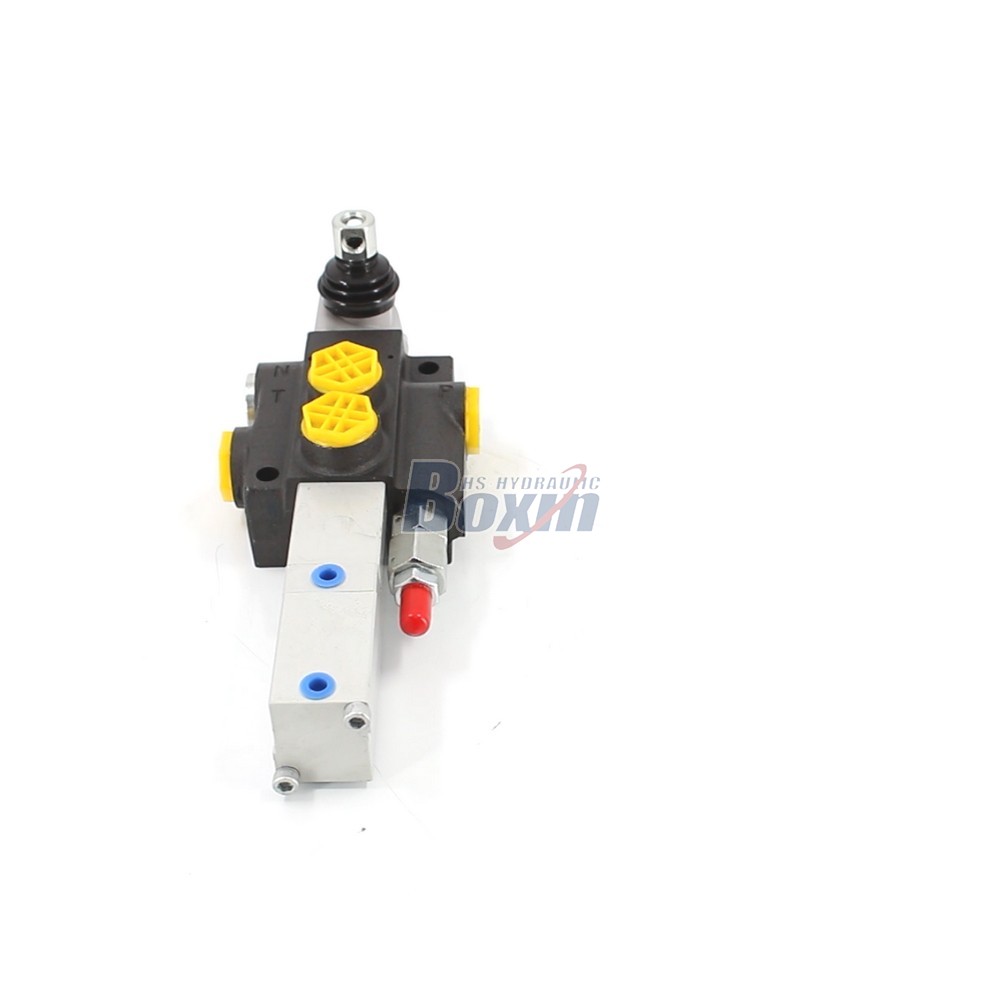

High-performance P40Q-OT pneumatic monoblock directional valve featuring 1 spool, 40 L/min flow capacity, and 250 bar maximum pressure, designed for versatile mobile and industrial hydraulic applications.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
As a leading manufacturer of premium hydraulic components, we offer the P40Q-OT series pneumatic monoblock directional valves to the global market. This 1-spool valve is engineered for efficiency with a rated flow of 40 L/min (10.5 US gpm) and a maximum operating pressure of 250 bar (3600 psi), featuring G1/2 inlet/outlet ports and G3/8 working ports. It is widely applied in agricultural machinery, material handling equipment, and construction vehicles such as forklifts, mini-excavators, tractors, and wood splitters. We provide comprehensive OEM and ODM services, supporting customized production and private labeling to meet specific brand requirements. Our factory supply chain is optimized for bulk wholesale, ensuring competitive pricing and reliable lead times. We are actively seeking long-term business partnerships with global distributors, wholesalers, regional agents, and international traders. By partnering with our factory, you gain access to high-quality manufacturing standards and a robust supply of hydraulic control solutions for diverse industrial sectors.
