Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1092 Pandangan Mencari Produk Ini

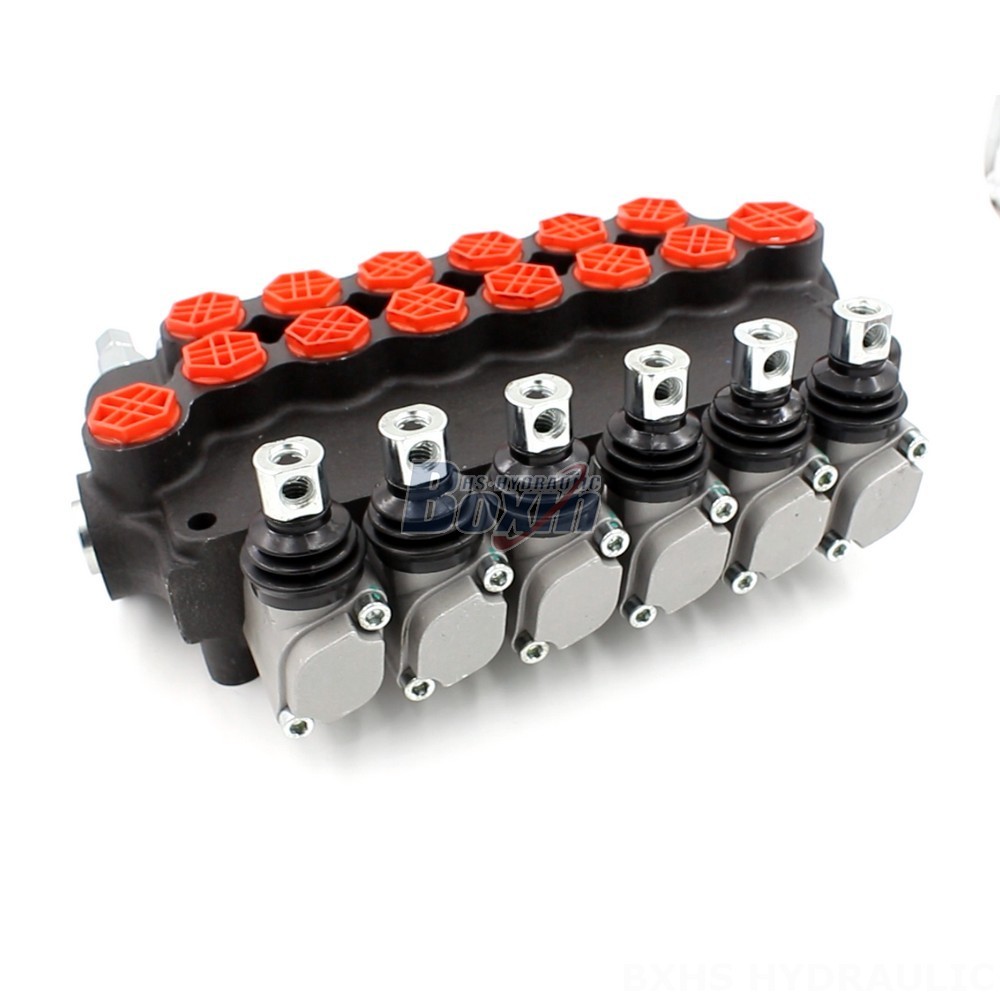

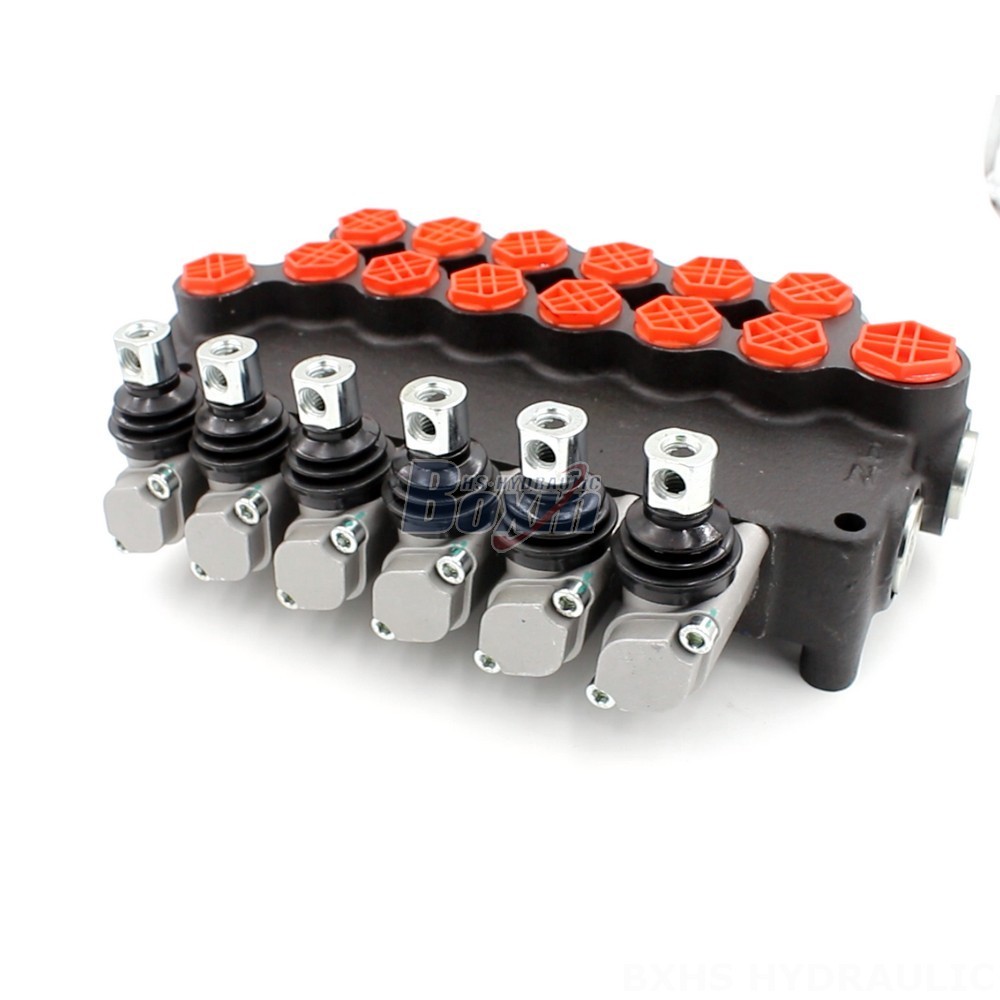

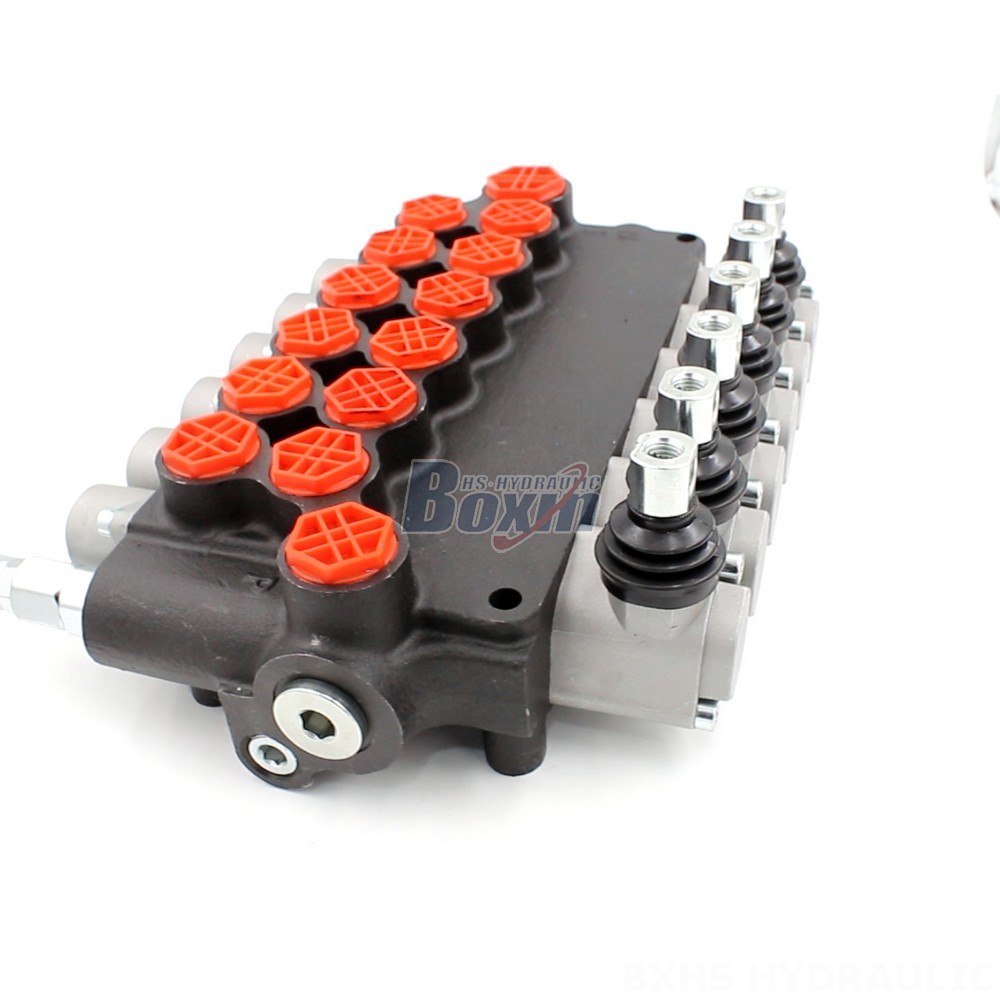

The P80-G12-G34-OT hydraulic emergency valve is a 6 section monoblock valve with manual control, designed for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 80 L/min, a max pressure of 250 bar, and a compact design for easy installation.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This high-performance hydraulic emergency valve is manufactured by our company and available for factory direct purchase. We offer a range of options including manufacturing, OEM, ODM, and wholesale distribution. The P80-G12-G34-OT valve is specifically designed for demanding applications in construction, agriculture, and industrial vehicles. It features a 6 section monoblock valve design with manual control for easy operation. The valve has a rated flow of 80 L/min and a max pressure of 250 bar, making it ideal for heavy-duty applications. We are committed to providing high-quality products and excellent customer service. Contact us today to discuss your specific requirements and explore the benefits of purchasing directly from the manufacturer.
