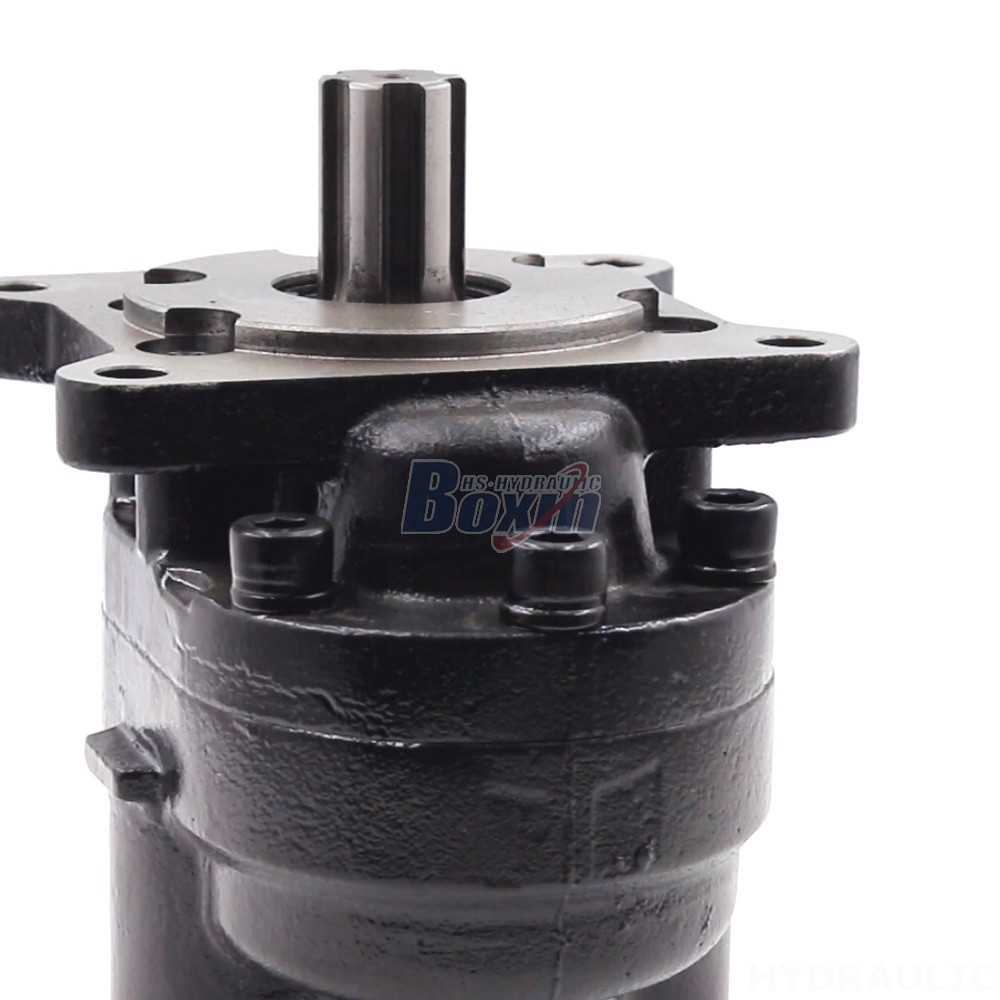

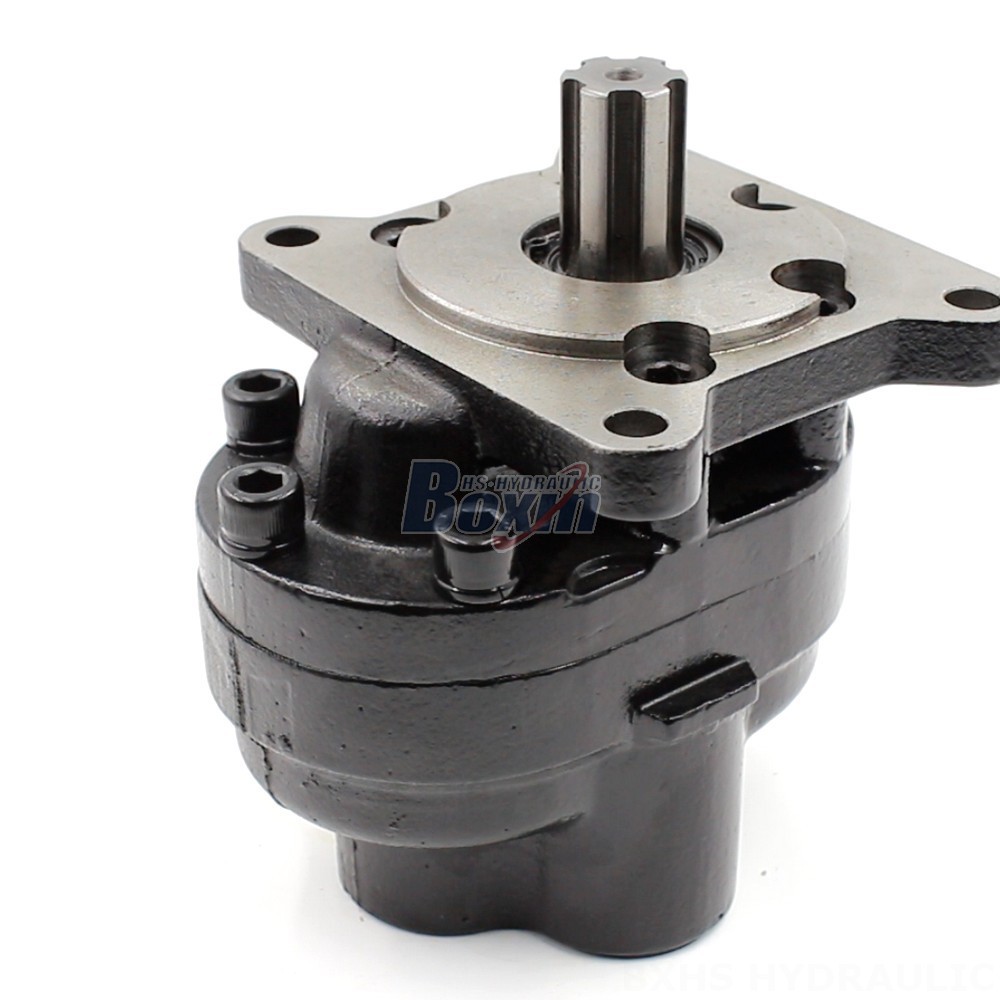

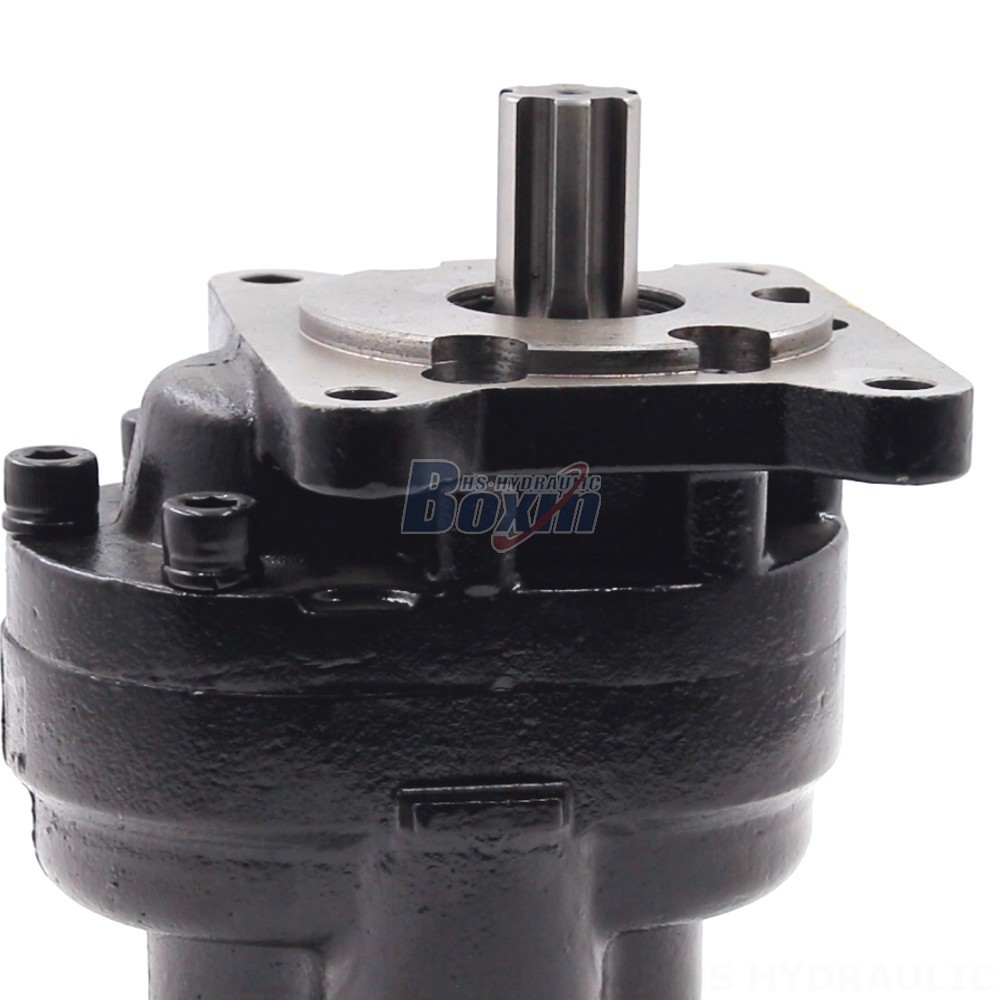

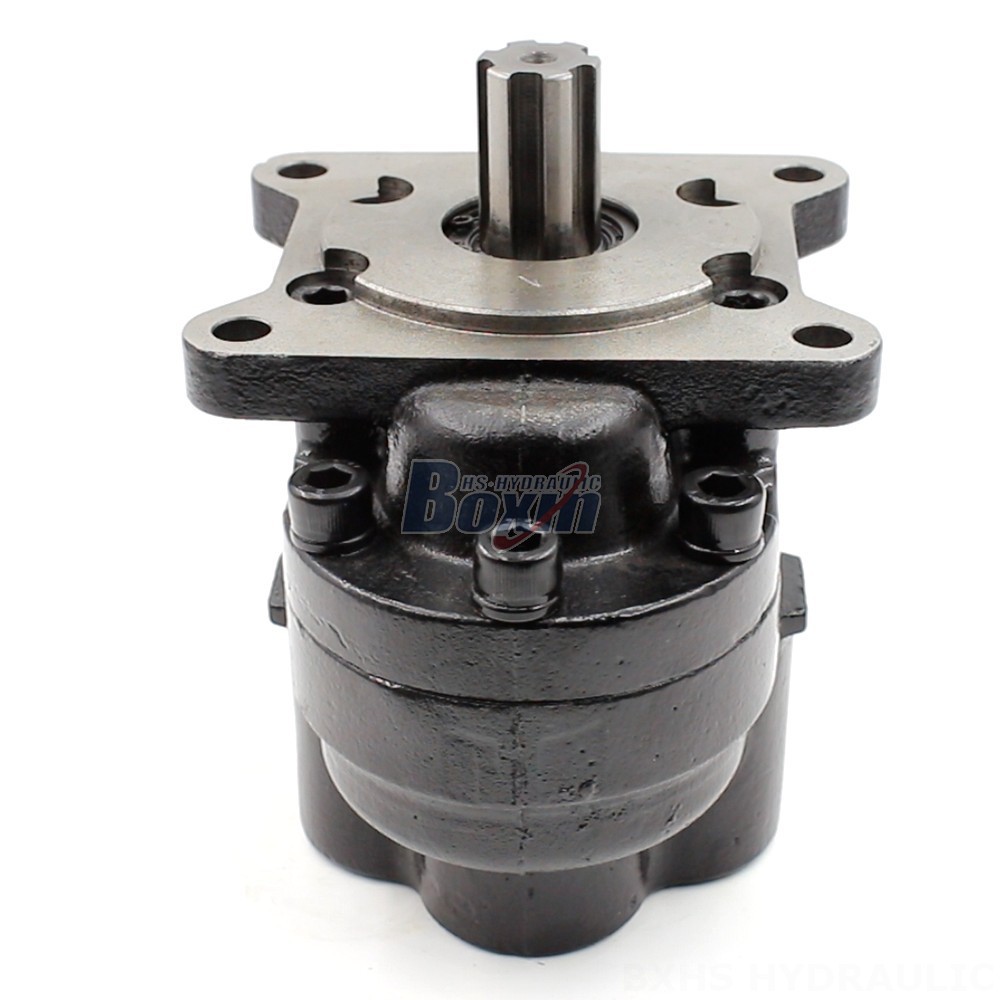

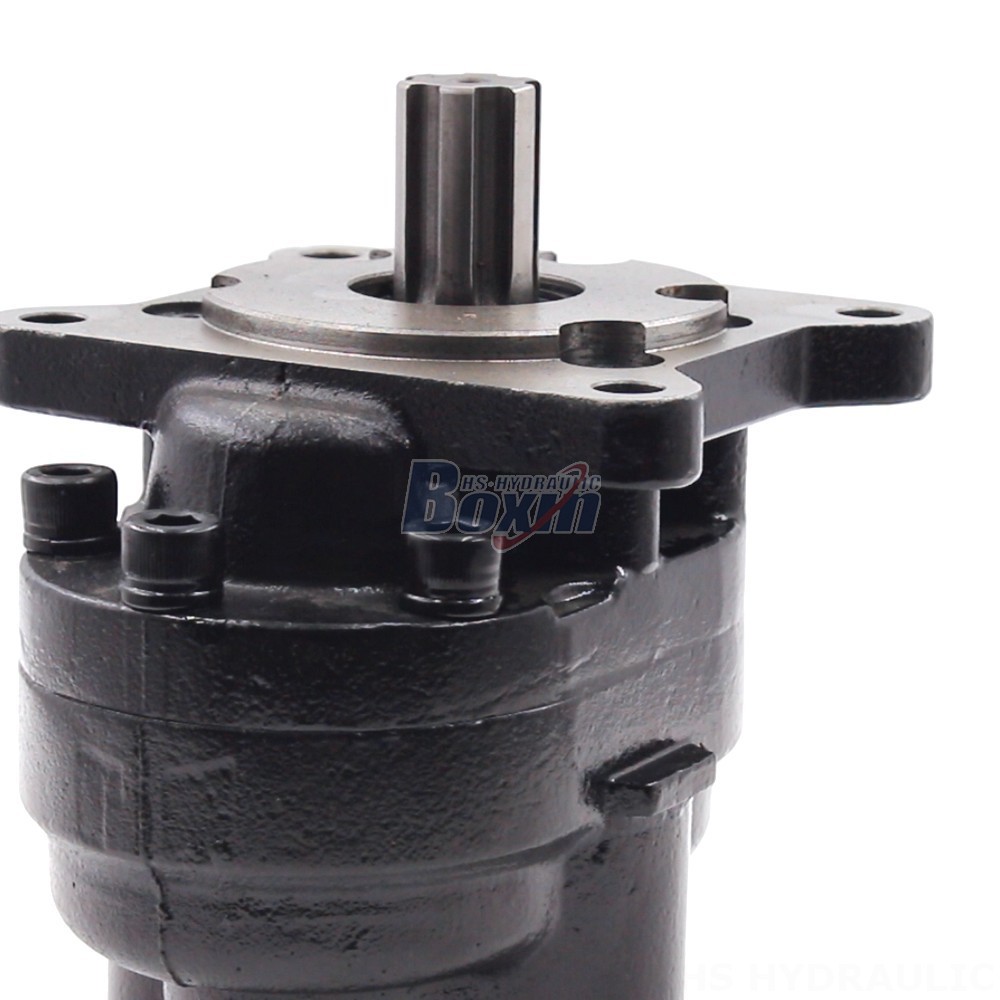

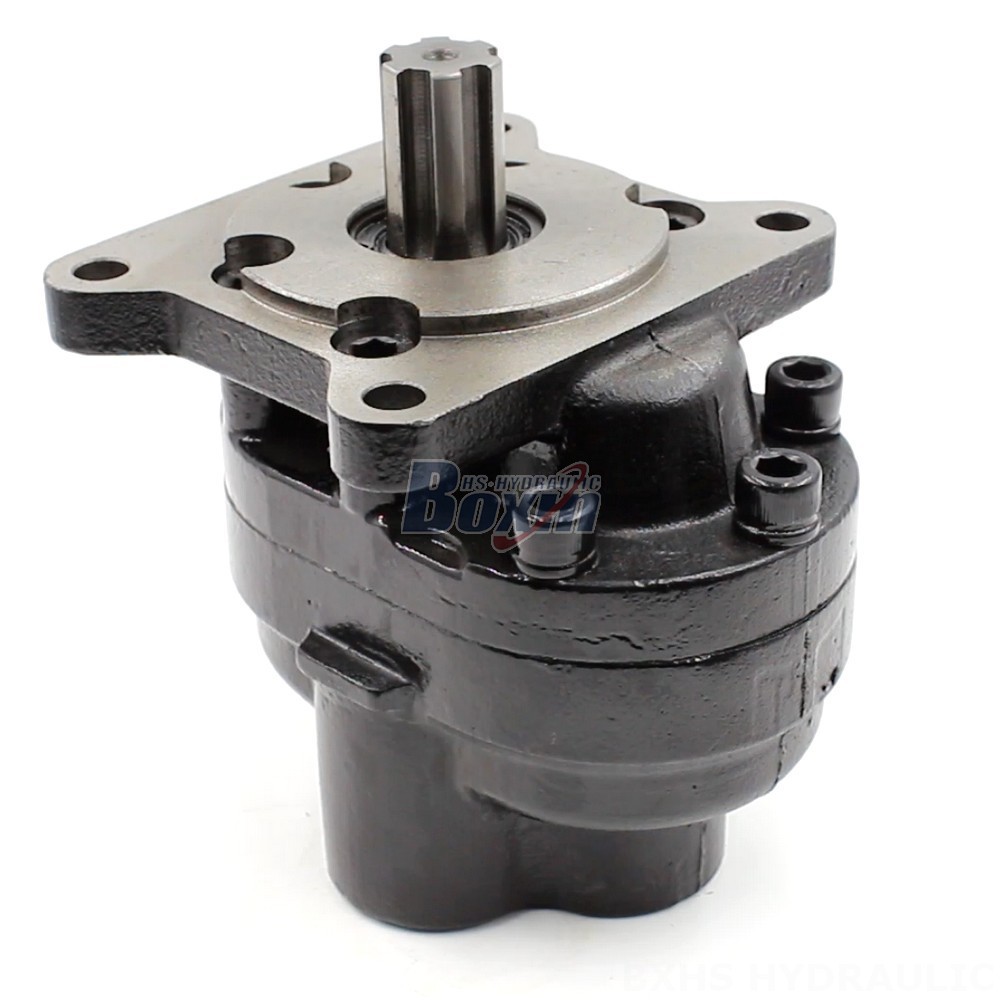

The CBHS-F532 Hydraulic Gear Pump is a high-performance pump designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. The pump features a displacement of 32 cc/rev, a rated pressure of 20 MPa, and a rated speed of 2000 r/min. The pump is constructed from cast iron and features a B-Square flange and a plain key shaft. The CBHS-F532 is part of the CBHS-F5 Series of hydraulic gear pumps.
| CBHS-F5 Series Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 32 cc/putaran, 50 cc/putaran, 63 cc/putaran, 20 cc/putaran |
| Tekanan Terukur | 20 MPa (2900 psi) |
| Tekanan Maksimum | 25 MPa (3625 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 2500 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam), R: Kanan ( searah jarum jam) |
| Bahan | Besi Cor |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Flange Persegi-B |
| Tipe Poros | H: Spline Persegi Panjang, X: Spline Involute, P: Kunci Biasa |
The CBHS-F532 Hydraulic Gear Pump is a high-performance pump designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
**Key Features**
* Displacement: 32 cc/rev
* Rated Pressure: 20 MPa (2900 psi)
* Rated Speed: 2000 r/min
* Max Speed: 2200 r/min
* Rotation: L: Left (counter-clockwise), R: Right (clockwise)
* Structure: Internal Gear Pump
* Material: Cast Iron
* Flange Version: B-Square Flange
* Shaft Type: P: Plain Key, H: Rectangle Spline, X: Involute Spline
* Series: CBHS-F5 Series
**Applications**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
* Compact Wheel Loader
