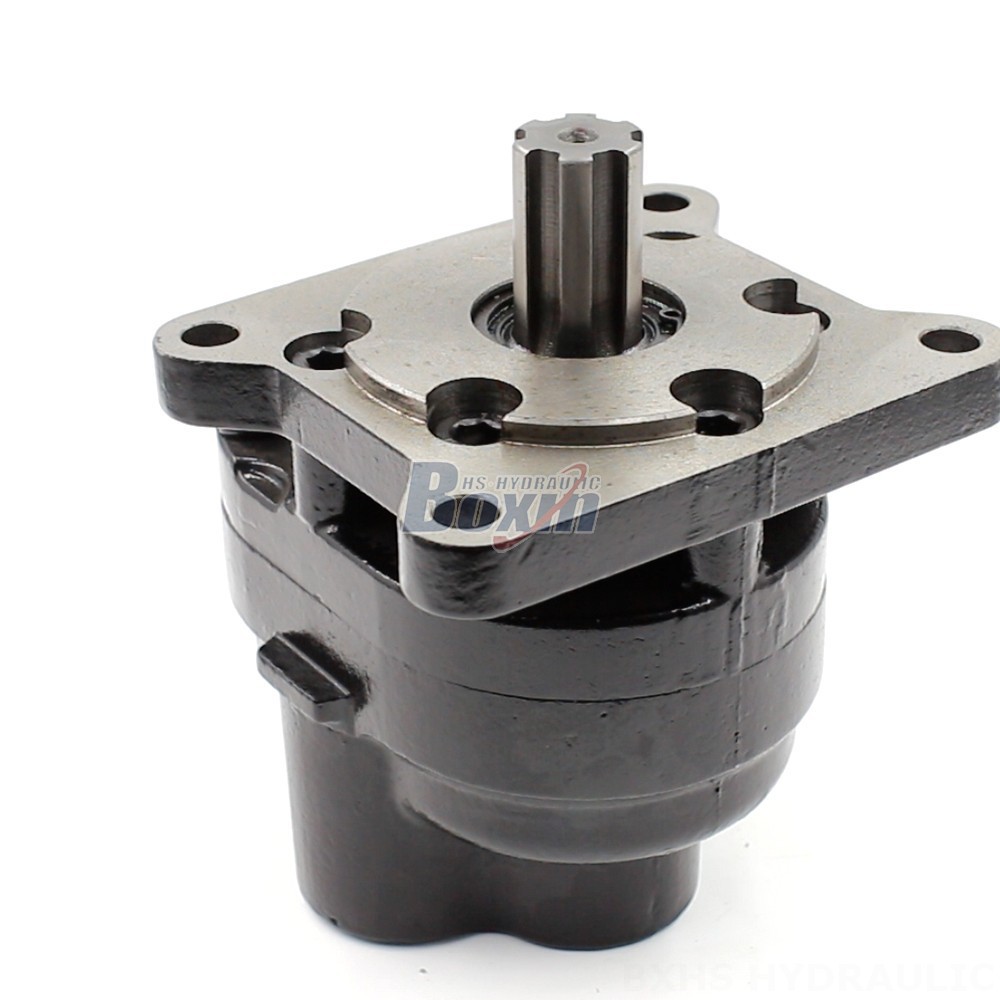

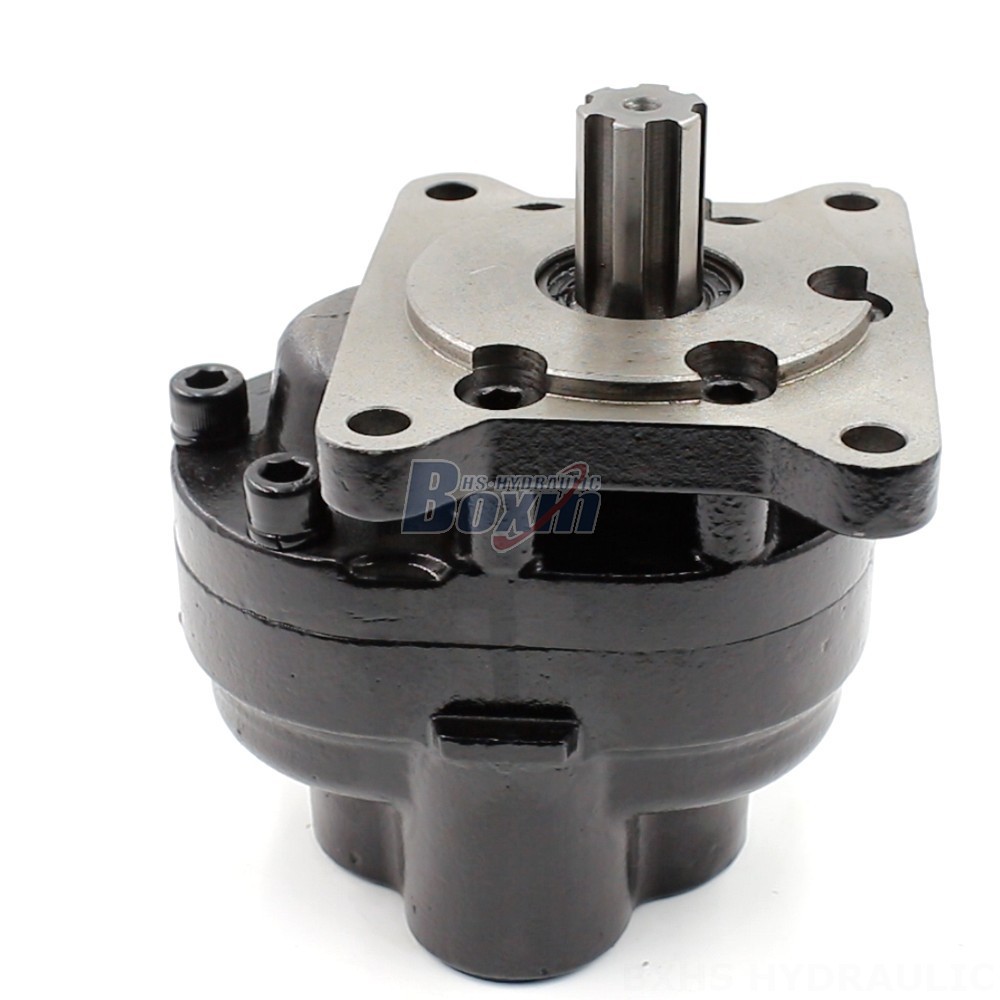

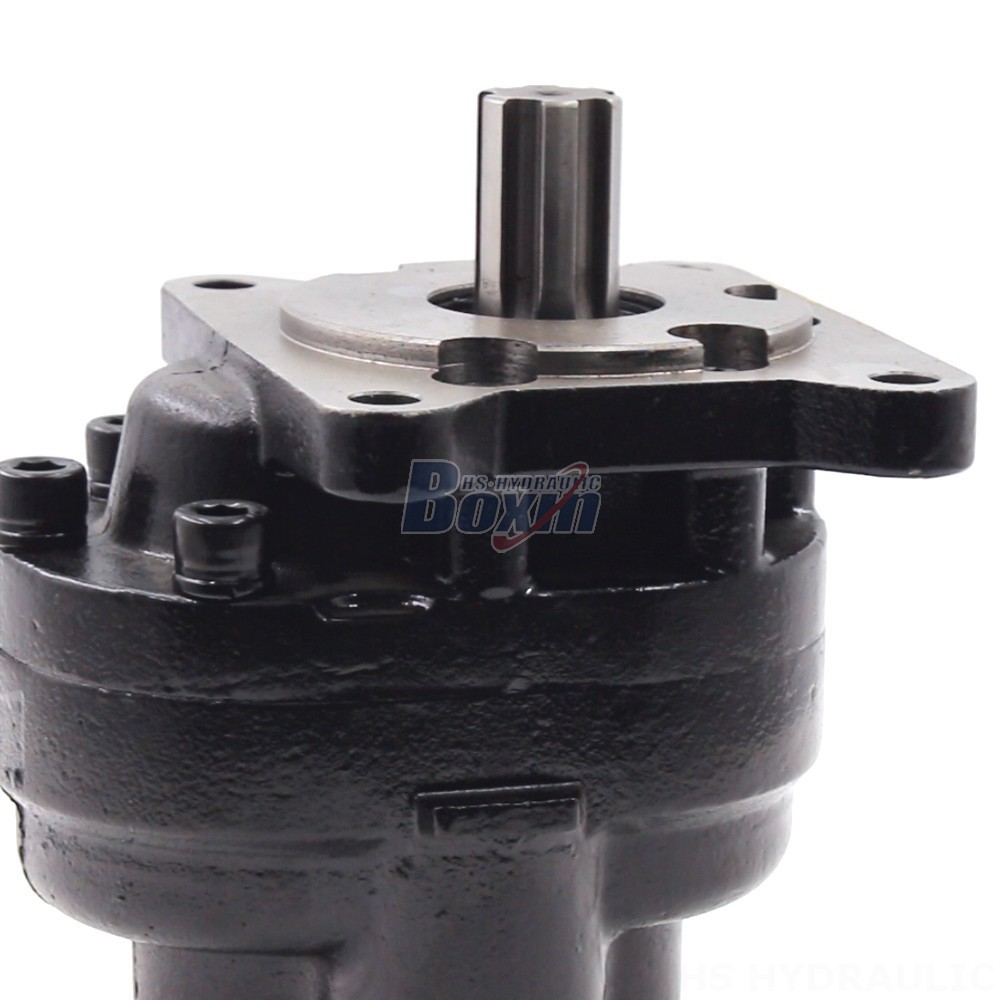

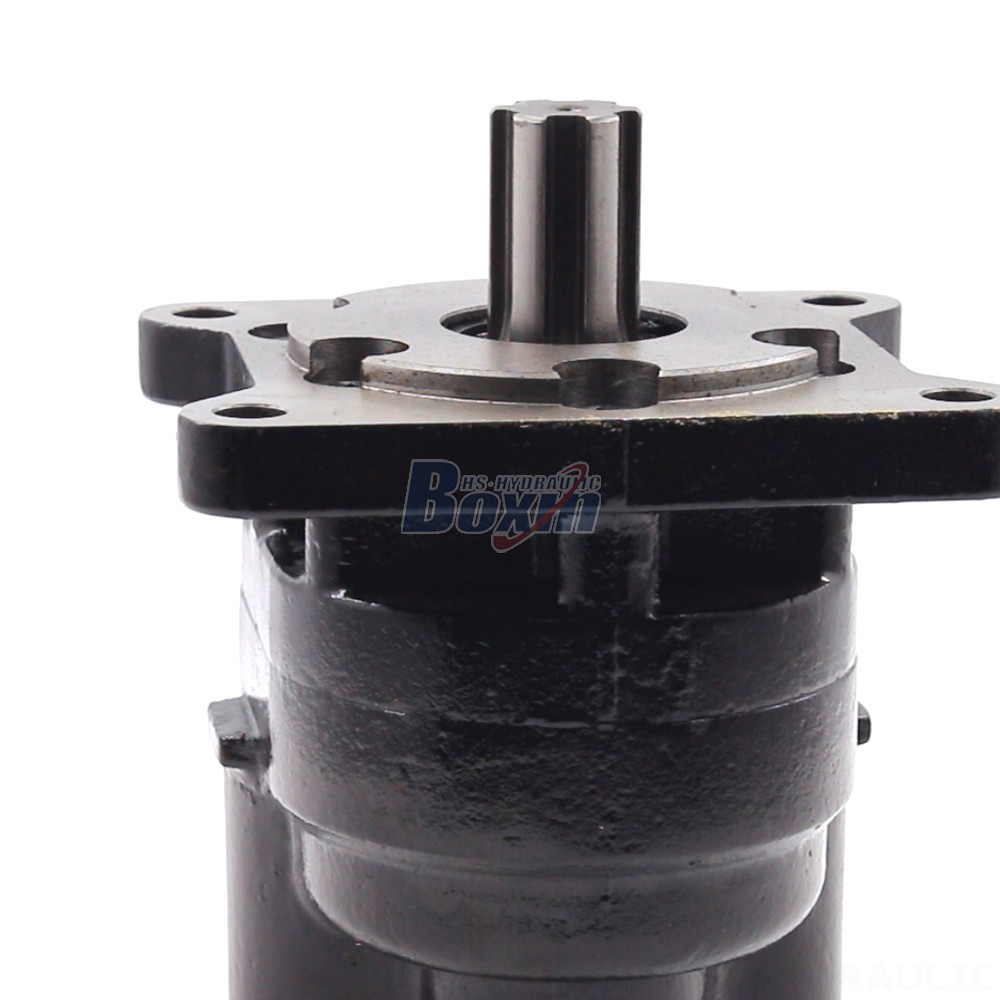

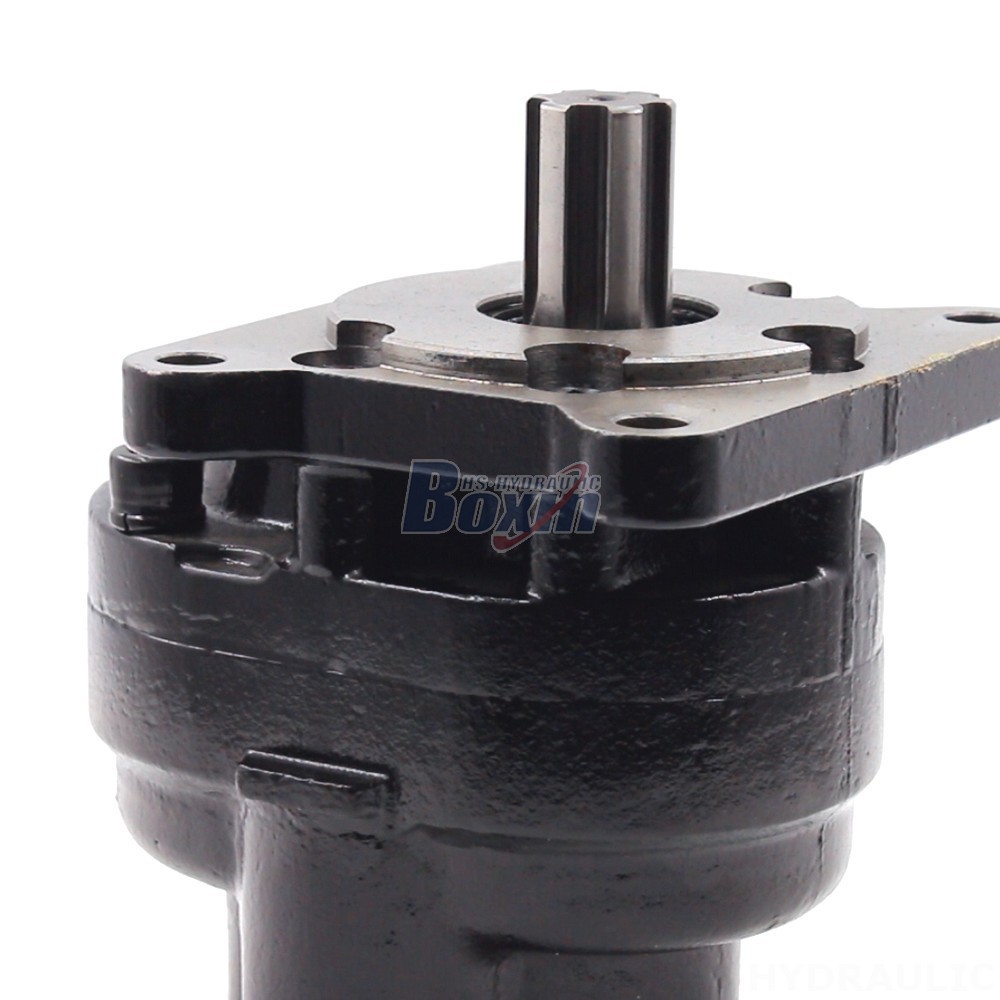

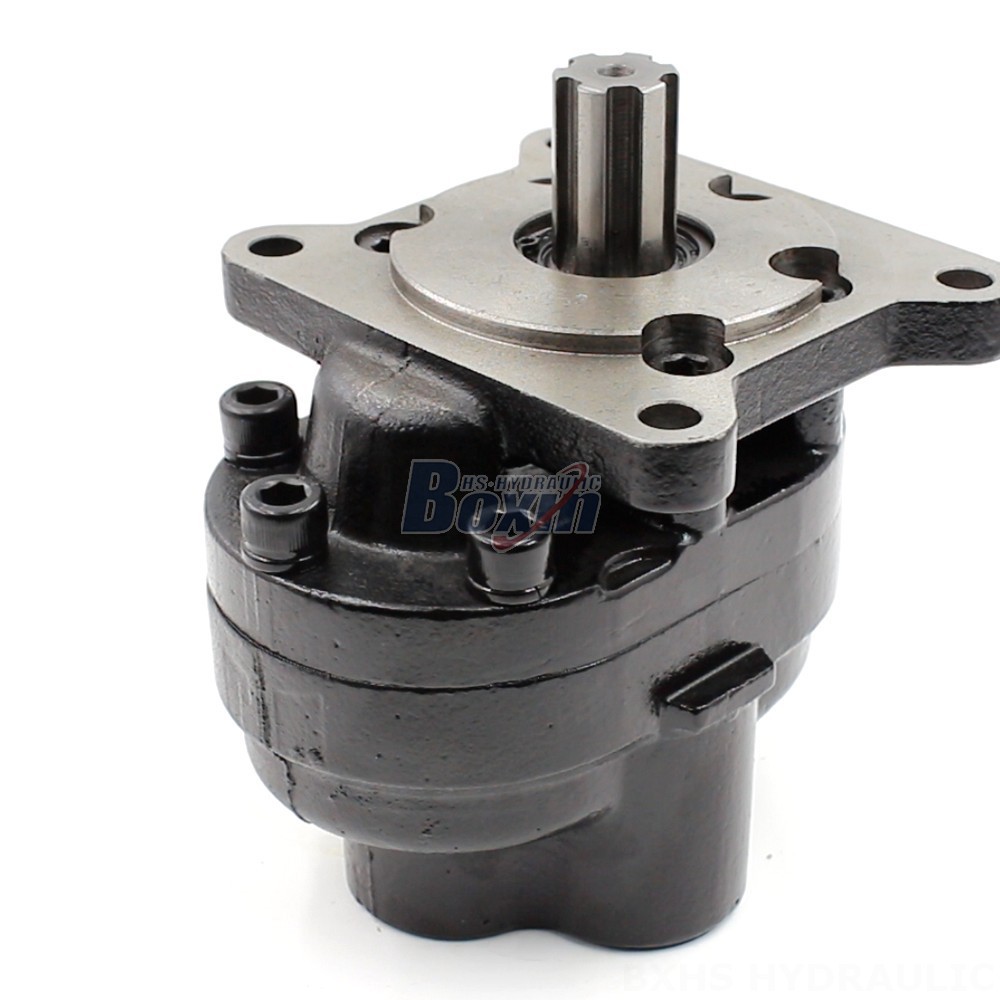

The CBHS-F532 Hydraulic Gear Pump is a customizable solution for diverse industries. With displacement options of 32 cc/rev, 50 cc/rev, and 63 cc/rev, it offers a wide range of flow rates to meet specific application requirements. The pump is rated for a pressure of 20 MPa (2900 psi), a speed of 2000 r/min, and a maximum speed of 2200 r/min. Its internal gear pump structure and cast iron material ensure durability and reliability. The B-Square flange version provides easy mounting, while the shaft type options (P: Plain Key, H: Rectangle Spline, X: Involute Spline) allow for compatibility with various drive configurations. The CBHS-F532 is suitable for applications in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| CBHS-F5 Series Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 32 cc/putaran, 50 cc/putaran, 63 cc/putaran, 20 cc/putaran |
| Tekanan Terukur | 20 MPa (2900 psi) |
| Tekanan Maksimum | 25 MPa (3625 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 2500 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam), R: Kanan ( searah jarum jam) |
| Bahan | Besi Cor |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Flange Persegi-B |
| Tipe Poros | H: Spline Persegi Panjang, X: Spline Involute, P: Kunci Biasa |
**CBHS-F532 Hydraulic Gear Pump: Customizable Solutions for Diverse Industries**
**Key Features:**
* Customizable displacement: 32 cc/rev, 50 cc/rev, 63 cc/rev
* Rated pressure: 20 MPa (2900 psi)
* Rated speed: 2000 r/min
* Max speed: 2200 r/min
* Rotation: L: Left (counter-clockwise), R: Right (clockwise)
* Structure: Internal Gear Pump
* Material: Cast Iron
* Flange Version: B-Square Flange
* Shaft Type: P: Plain Key, H: Rectangle Spline, X: Involute Spline
* Series: CBHS-F5 Series
**Applications:**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
* Compact Wheel Loader
The CBHS-F532 Hydraulic Gear Pump is a highly versatile and reliable solution for a wide range of hydraulic applications. Its customizable features and robust construction make it suitable for demanding environments and applications requiring precise flow control and high pressure capabilities.
