Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1007 Pandangan Mencari Produk Ini

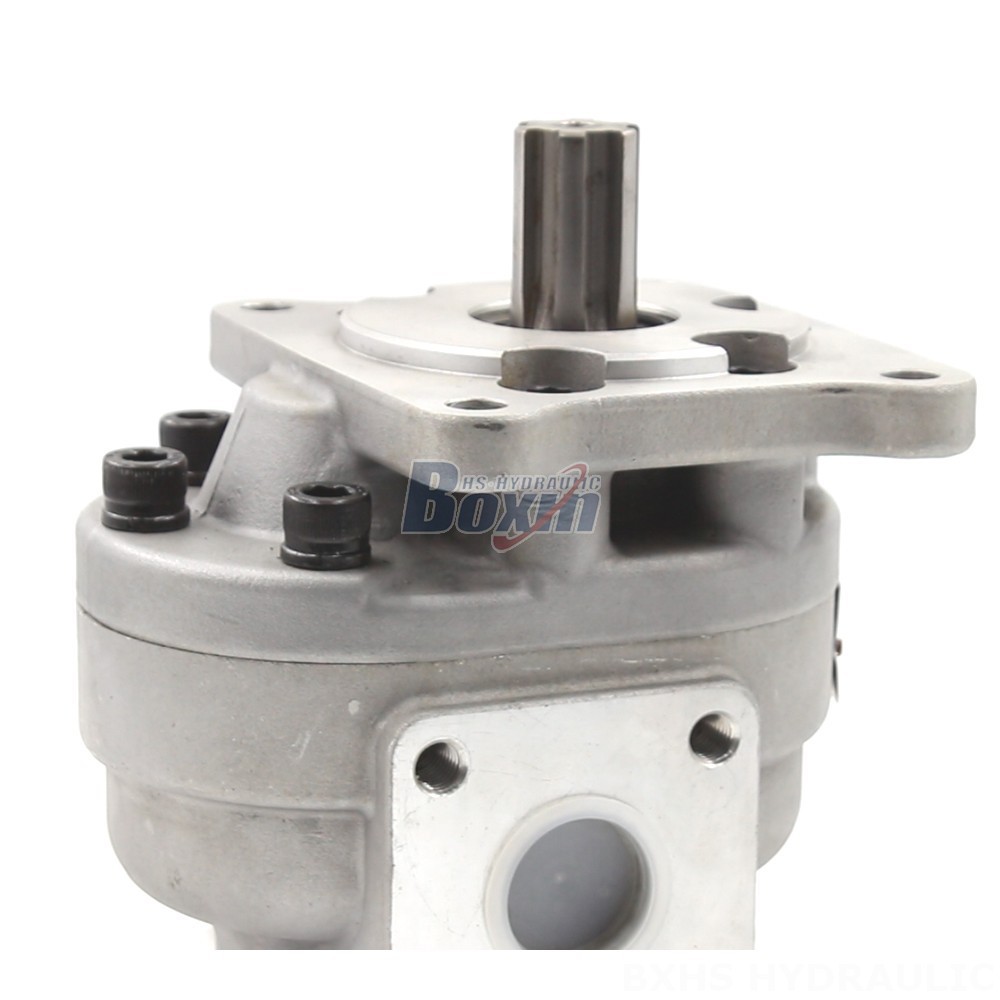

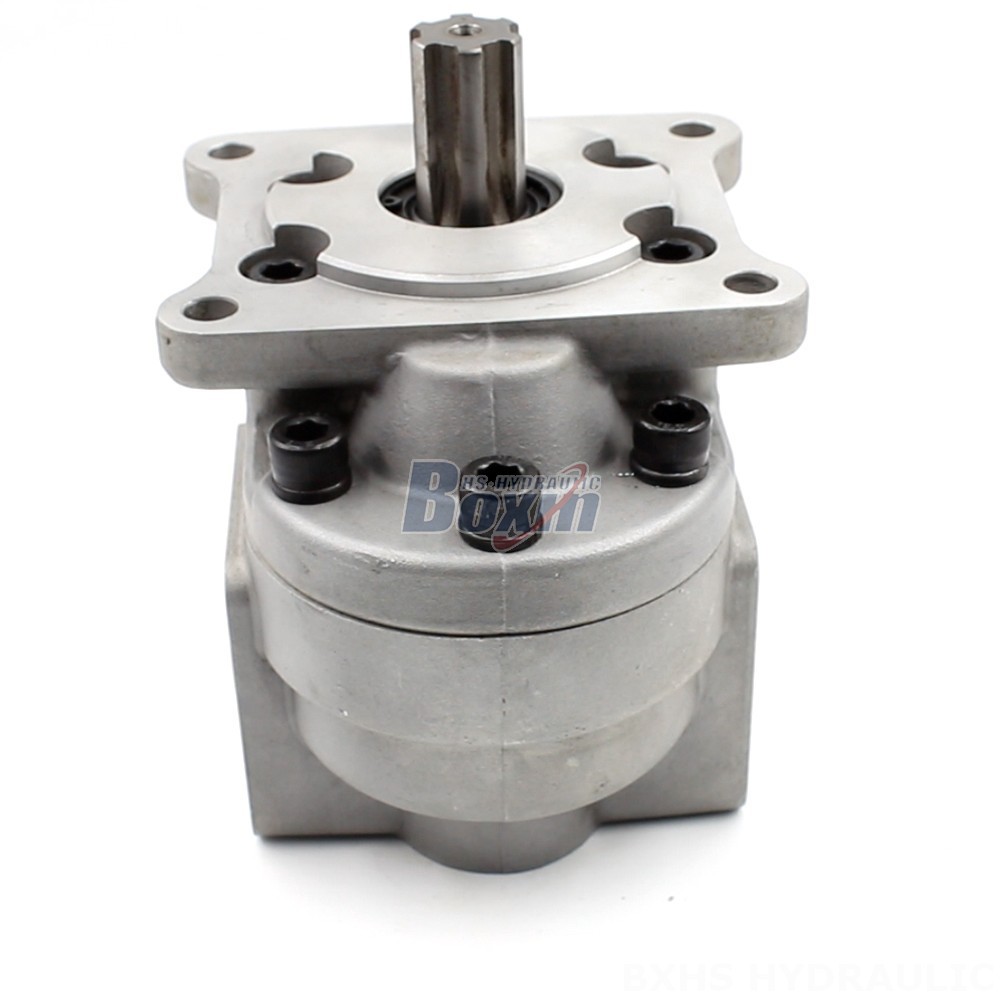

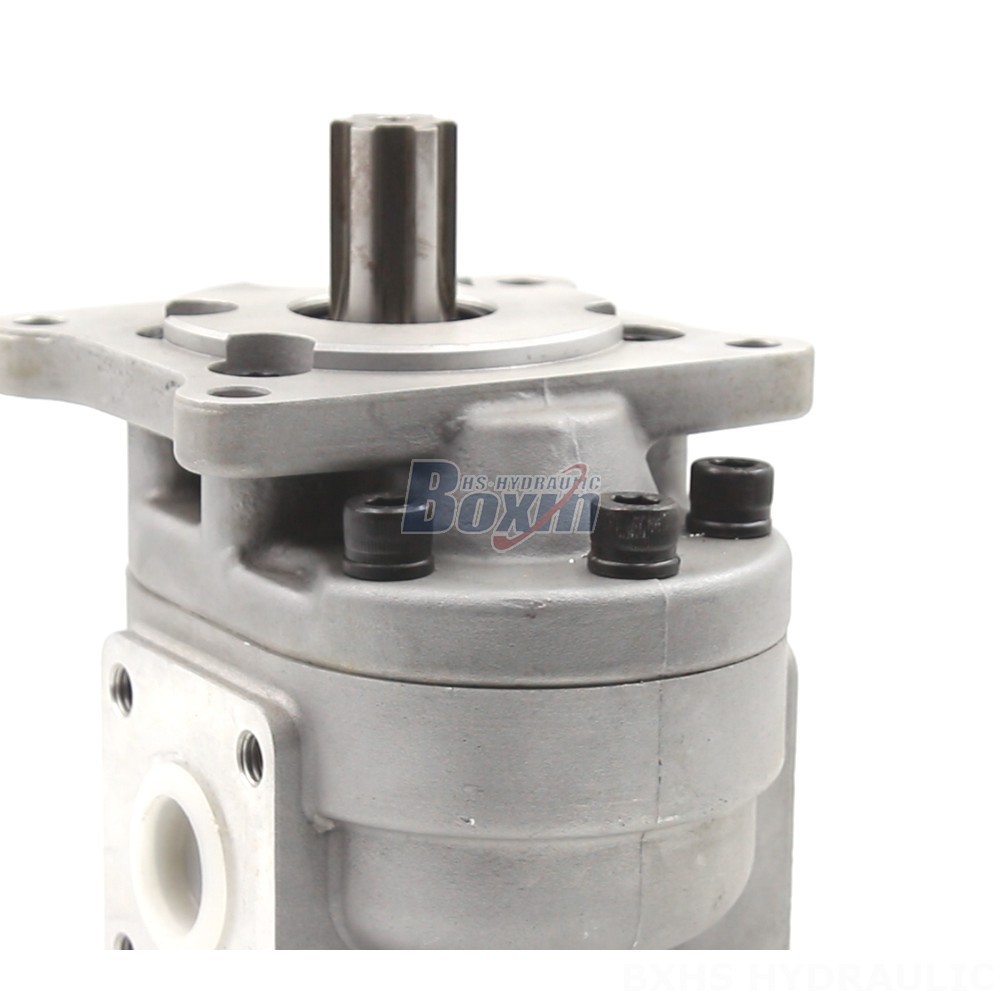

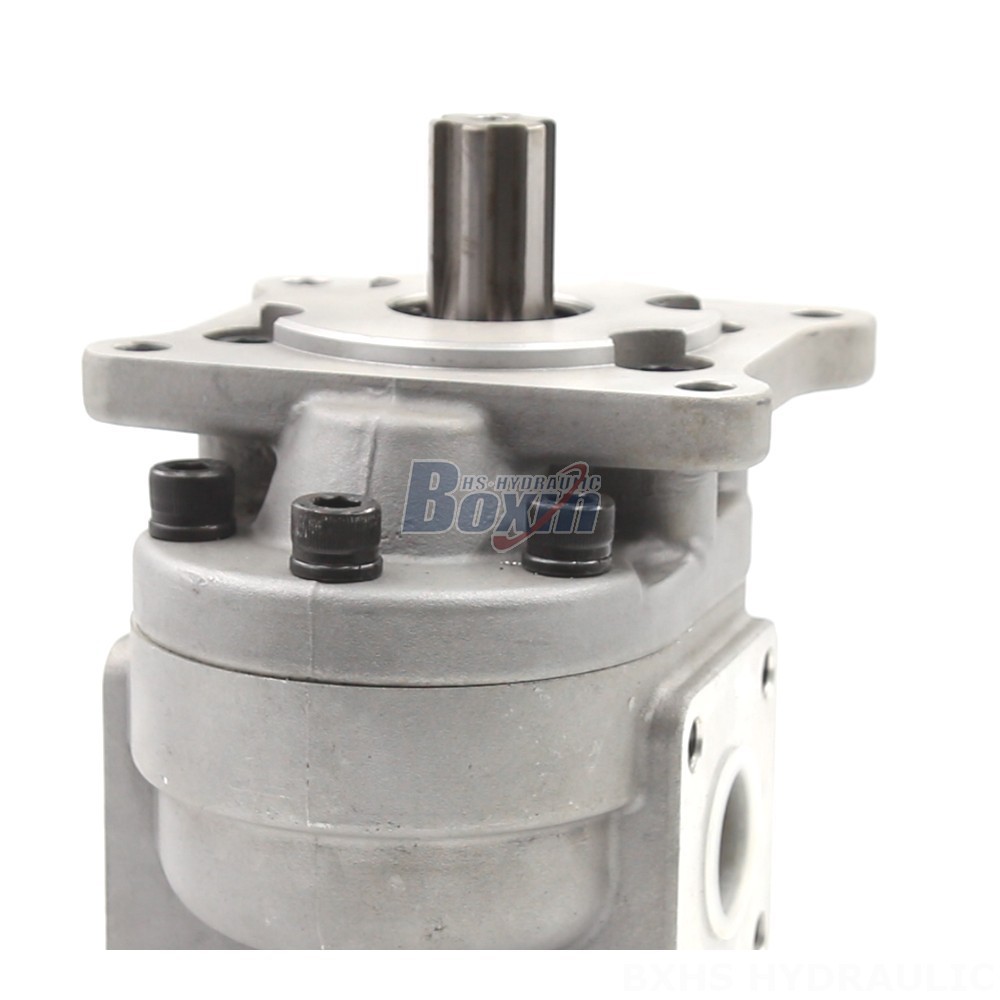

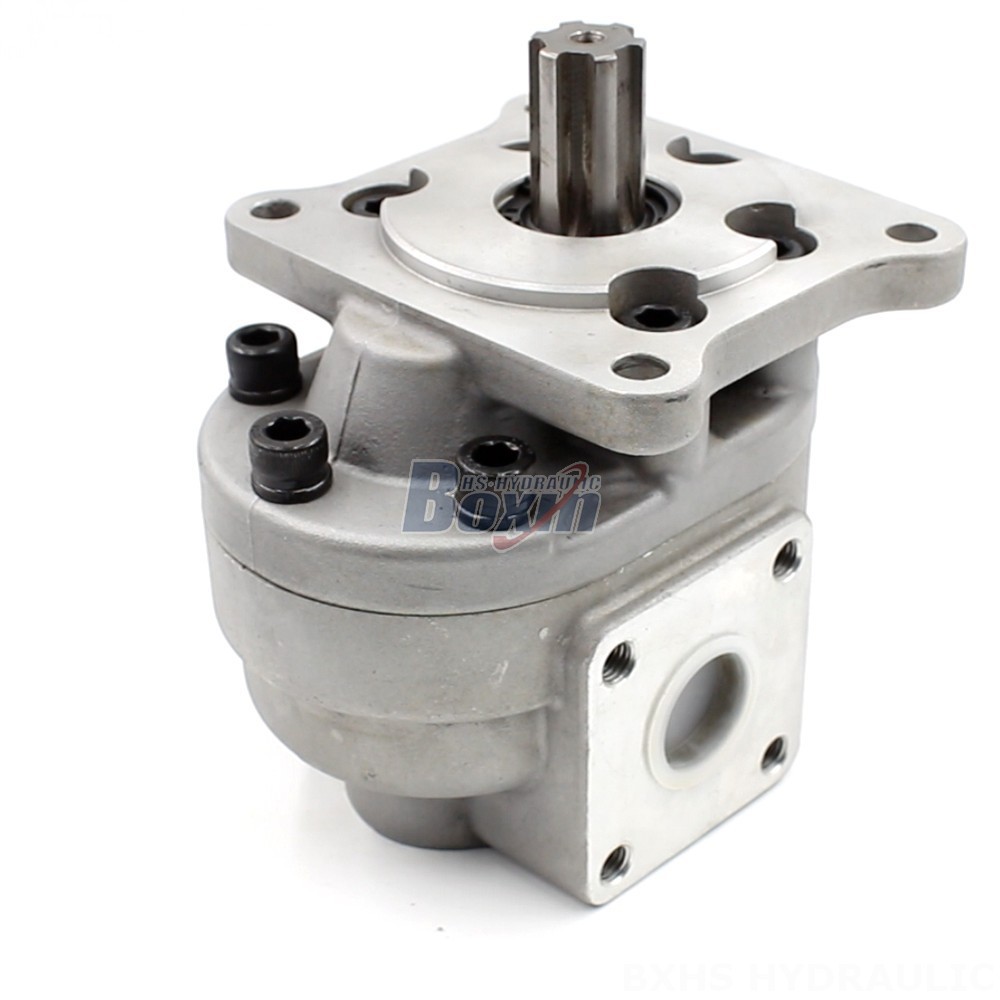

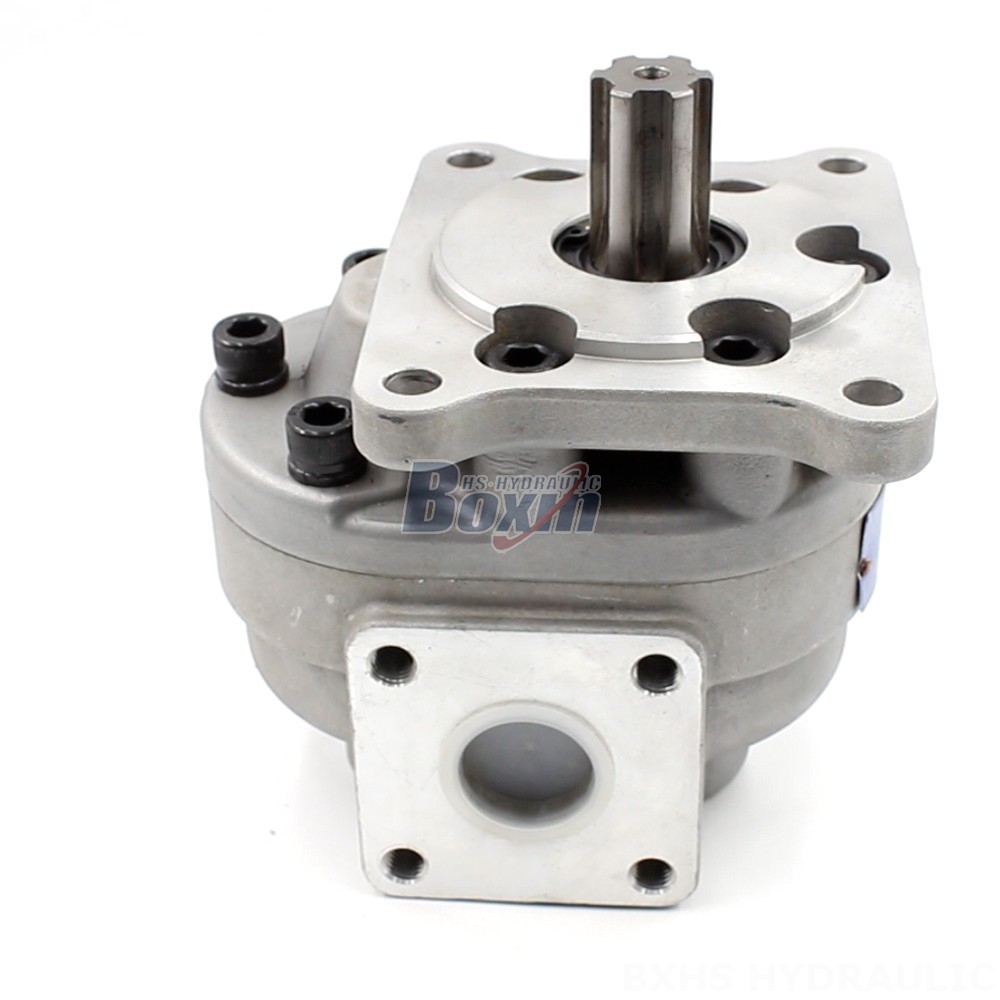

The CBHS-F550 Hydraulic Gear Pump, part of the CBHS-F5 Series, is a highly adaptable and efficient component designed for a wide range of applications in industries such as material handling, construction and earth moving, agriculture, and industrial vehicles. With a displacement of 32 cc/rev, 50 cc/rev, or 63 cc/rev, a rated pressure of 20 MPa (2900 psi), a rated speed of 2000 r/min, and a maximum speed of 2200 r/min, this pump delivers exceptional performance under various operating conditions.
| CBHS-F5 Series Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 32 cc/putaran, 50 cc/putaran, 63 cc/putaran, 20 cc/putaran |
| Tekanan Terukur | 20 MPa (2900 psi) |
| Tekanan Maksimum | 25 MPa (3625 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 2500 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam), R: Kanan ( searah jarum jam) |
| Bahan | Besi Cor |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Flange Persegi-B |
| Tipe Poros | H: Spline Persegi Panjang, X: Spline Involute, P: Kunci Biasa |
**Product Details of the CBHS-F550 Hydraulic Gear Pump:**
* **Displacement:** 32 cc/rev, 50 cc/rev, 63 cc/rev
* **Rated Pressure:** 20 MPa (2900 psi)
* **Rated Speed:** 2000 r/min
* **Max Speed:** 2200 r/min
* **Rotation:** Left (counter-clockwise), Right (clockwise)
* **Structure:** Internal Gear Pump
* **Material:** Cast Iron
* **Flange Version:** B-Square Flange
* **Shaft Type:** Plain Key (P), Rectangle Spline (H), Involute Spline (X)
* **Product Series:** CBHS-F5 Series
* **Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
* **Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
