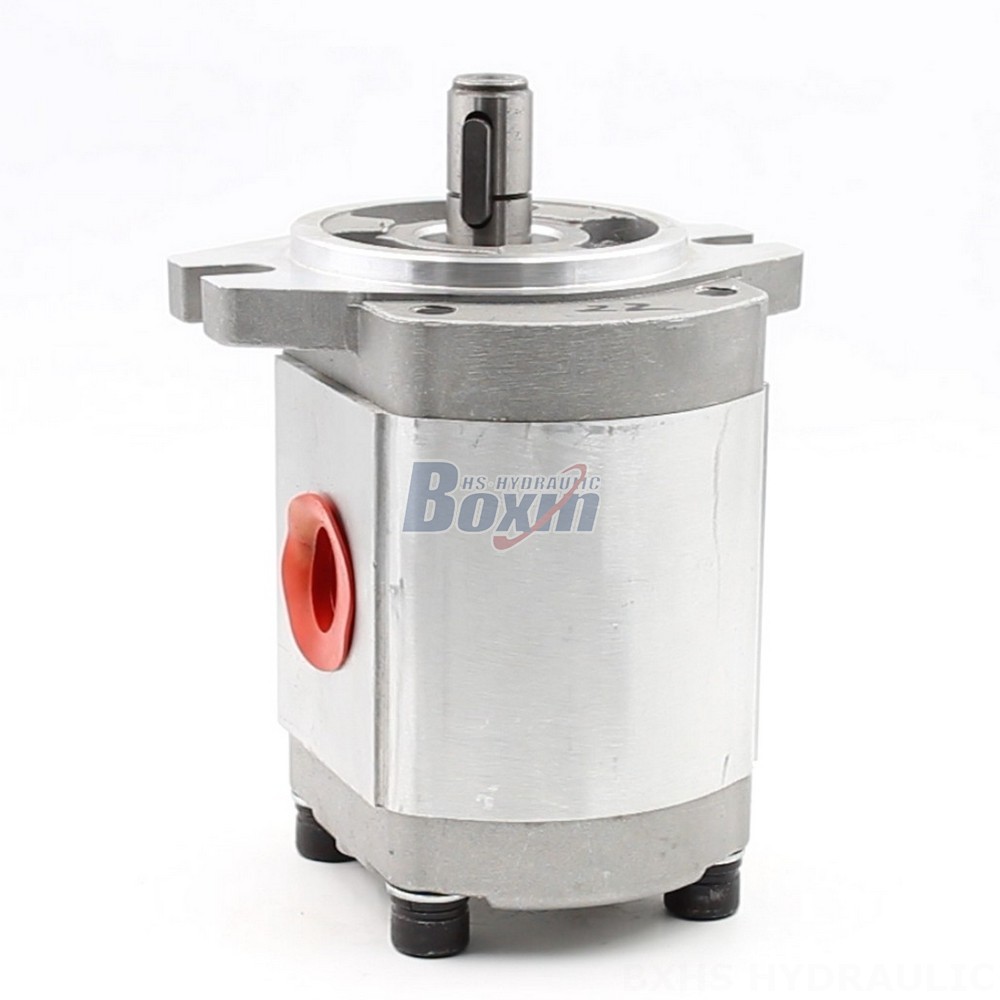

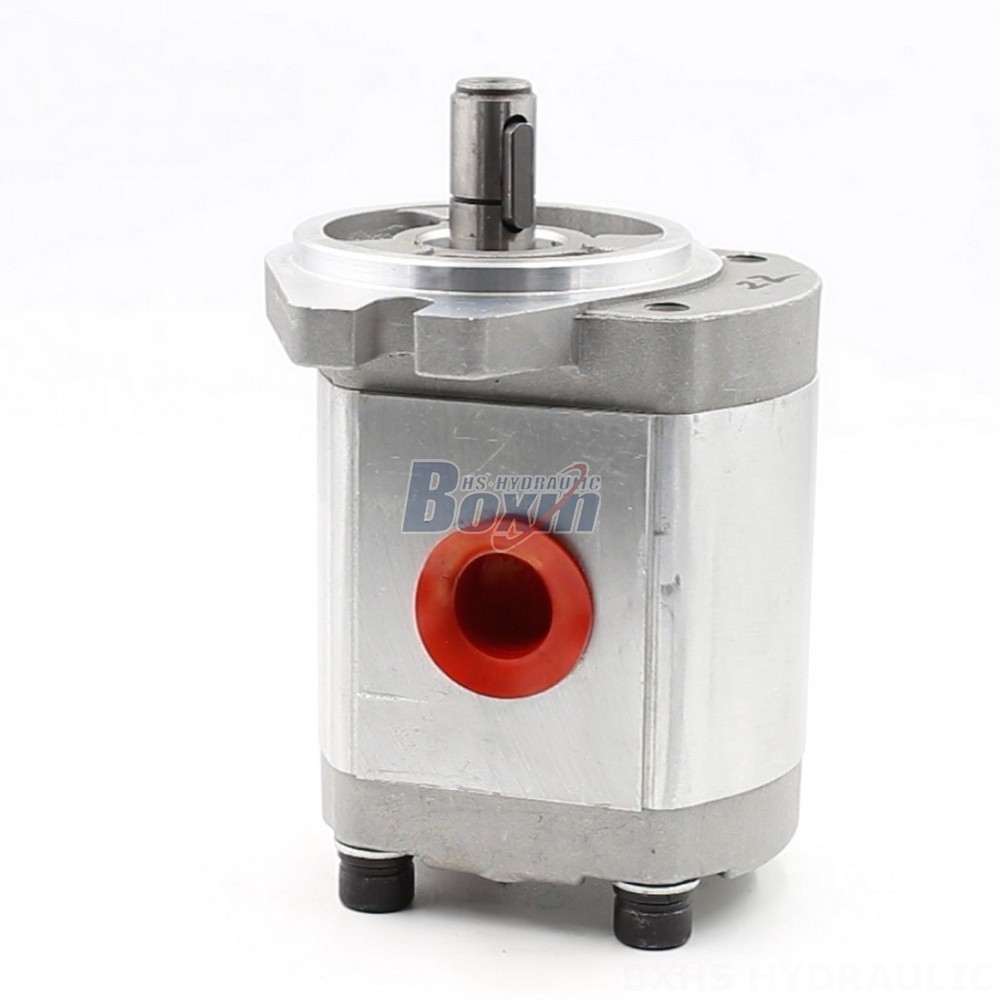

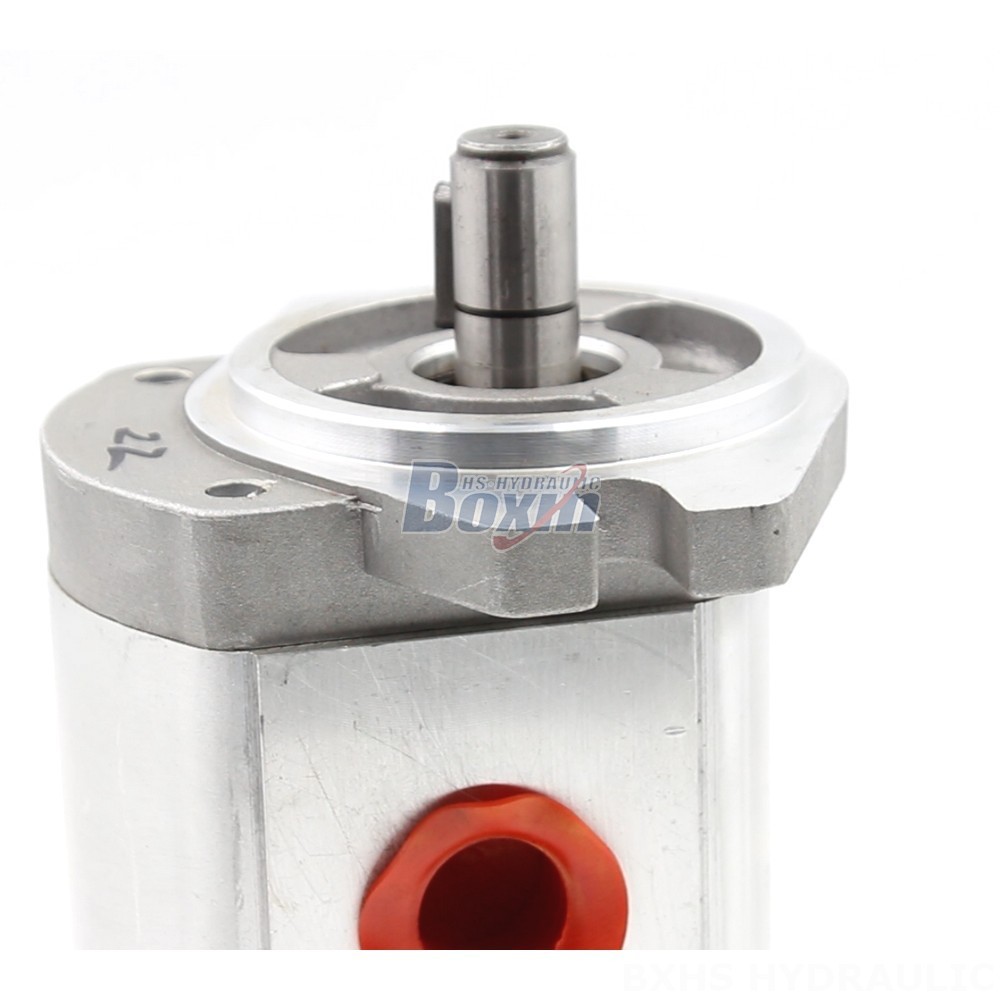

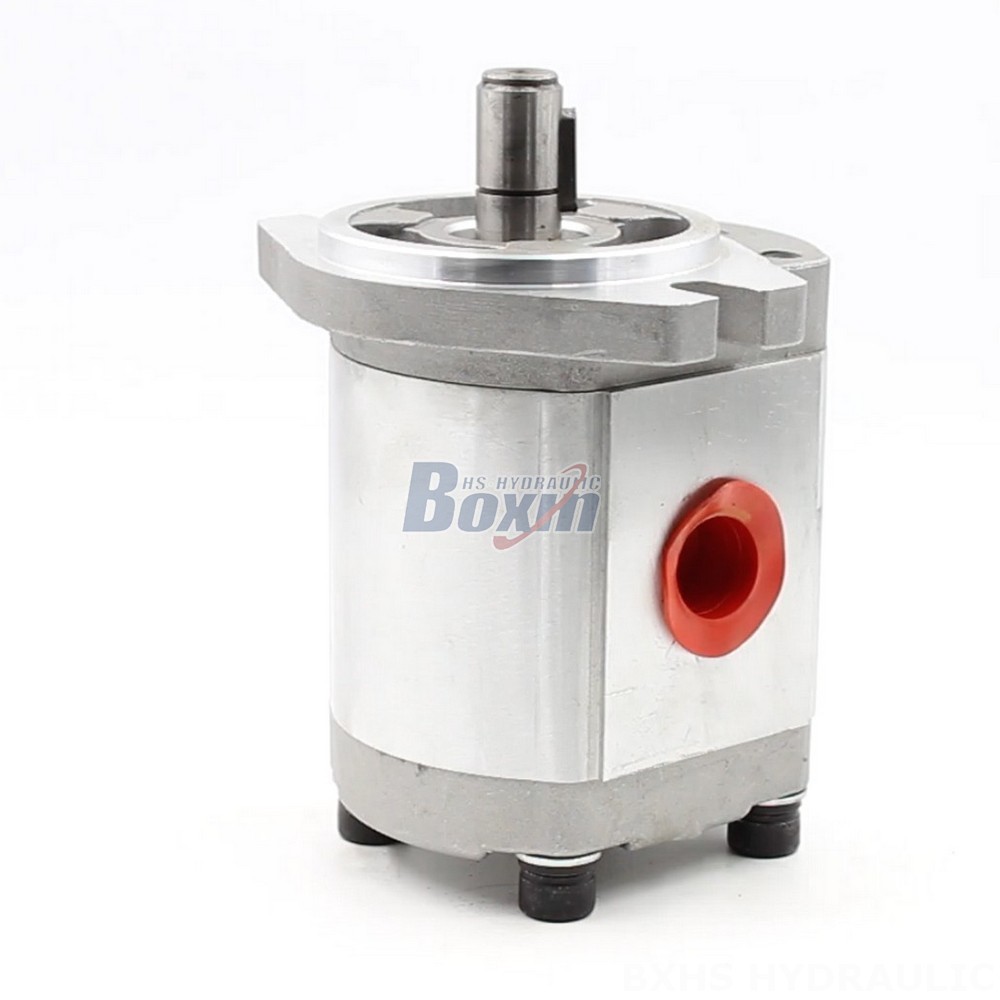

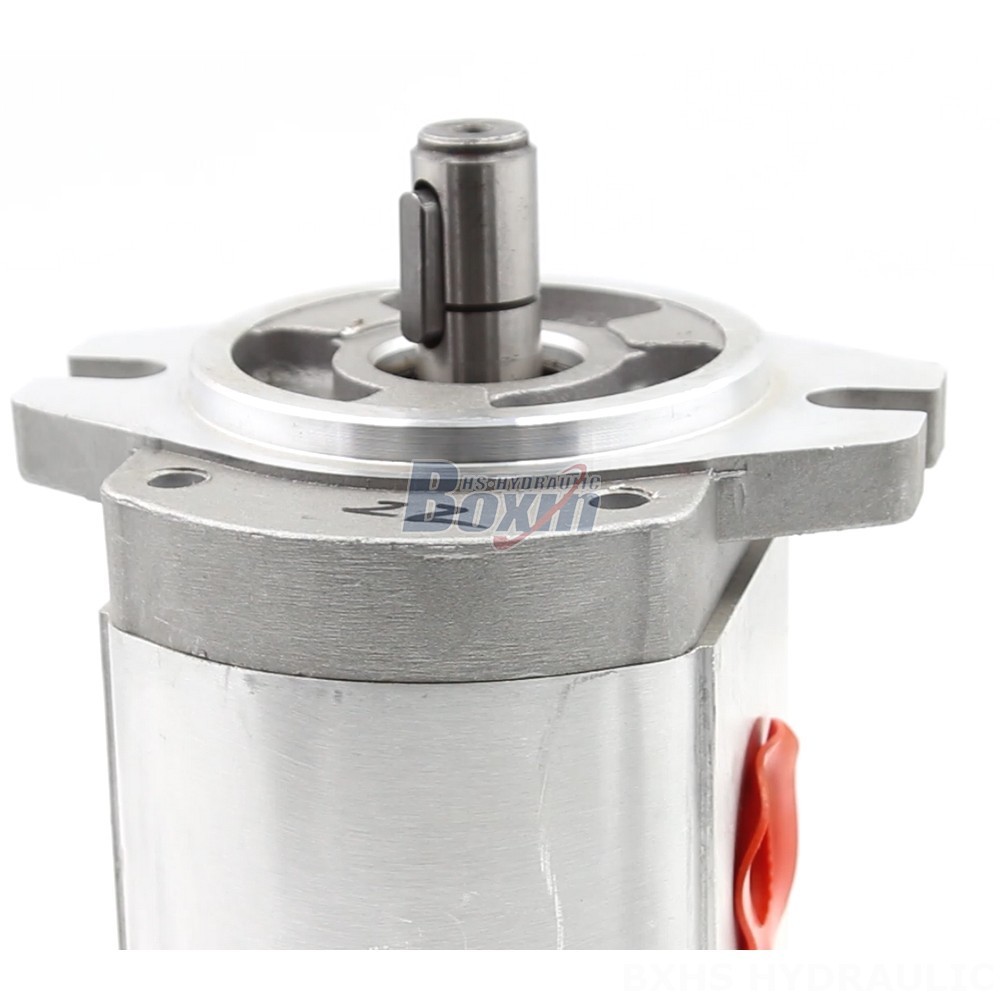

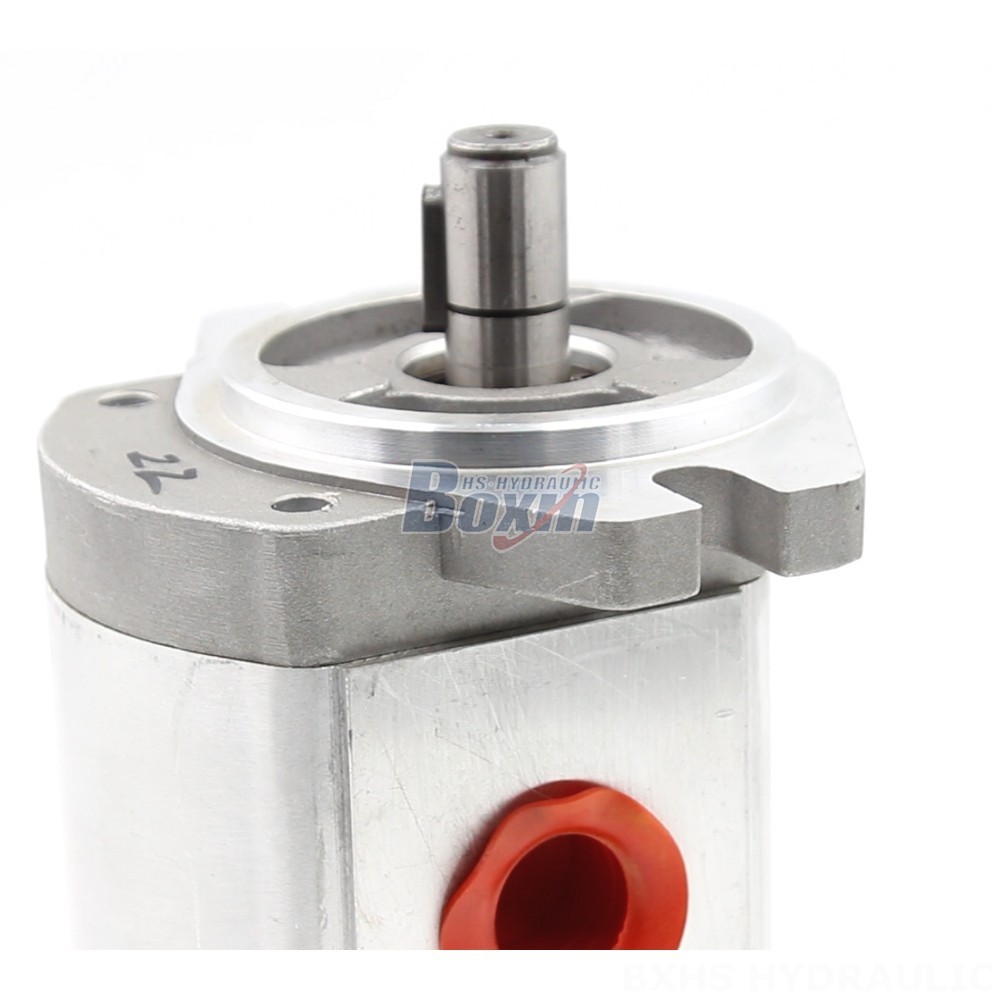

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance pump designed for a variety of applications in construction, agriculture, and industrial vehicles. With a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, this pump is built to handle demanding tasks with ease.
| Seri CBHS-FL3 Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 10 cc/putaran, 4 cc/putaran, 20 cc/putaran, 16 cc/putaran, 14 cc/putaran, 6 cc/putaran |
| Tekanan Terukur | 20 MPa (2900 psi) |
| Tekanan Maksimum | 25 MPa (3625 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 3000 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam), R: Kanan ( searah jarum jam) |
| Bahan | Aluminium |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Flange Oval-A |
| Tipe Poros | H: Spline Persegi Panjang, X: Spline Involute, P: Kunci Biasa |
The CBHS-FL304 is an internal gear pump made of aluminium with an A-Oval flange and a plain key shaft. It is part of the CBHS-FL3 Series and is designed for a wide range of applications, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. The pump has a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. The maximum speed is 3000 r/min. The pump is available in left (counter-clockwise) and right (clockwise) rotation configurations. This pump is manufactured and supplied globally, and we are looking for distributors, wholesalers, agents, and traders to join our network.
