Produksi & Pengiriman
Waktu Produksi 15-30 Hari
941 Pandangan Mencari Produk Ini

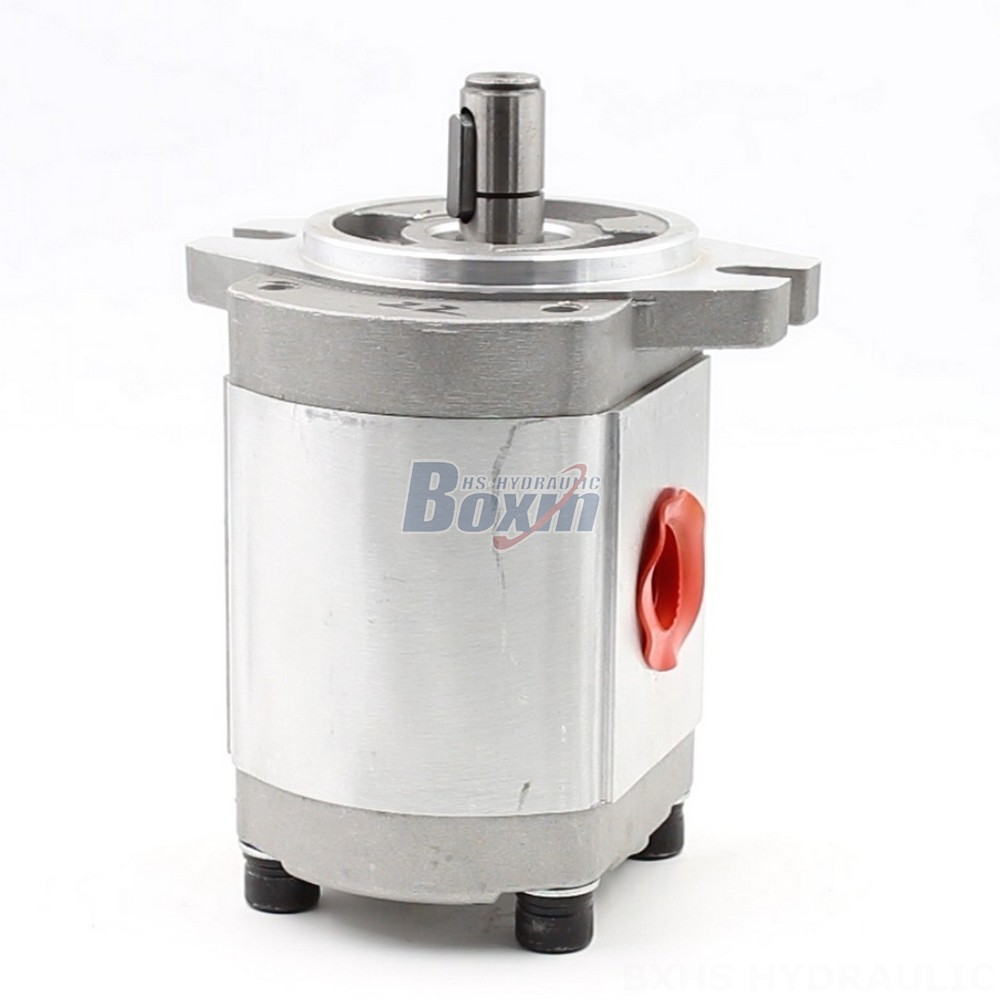

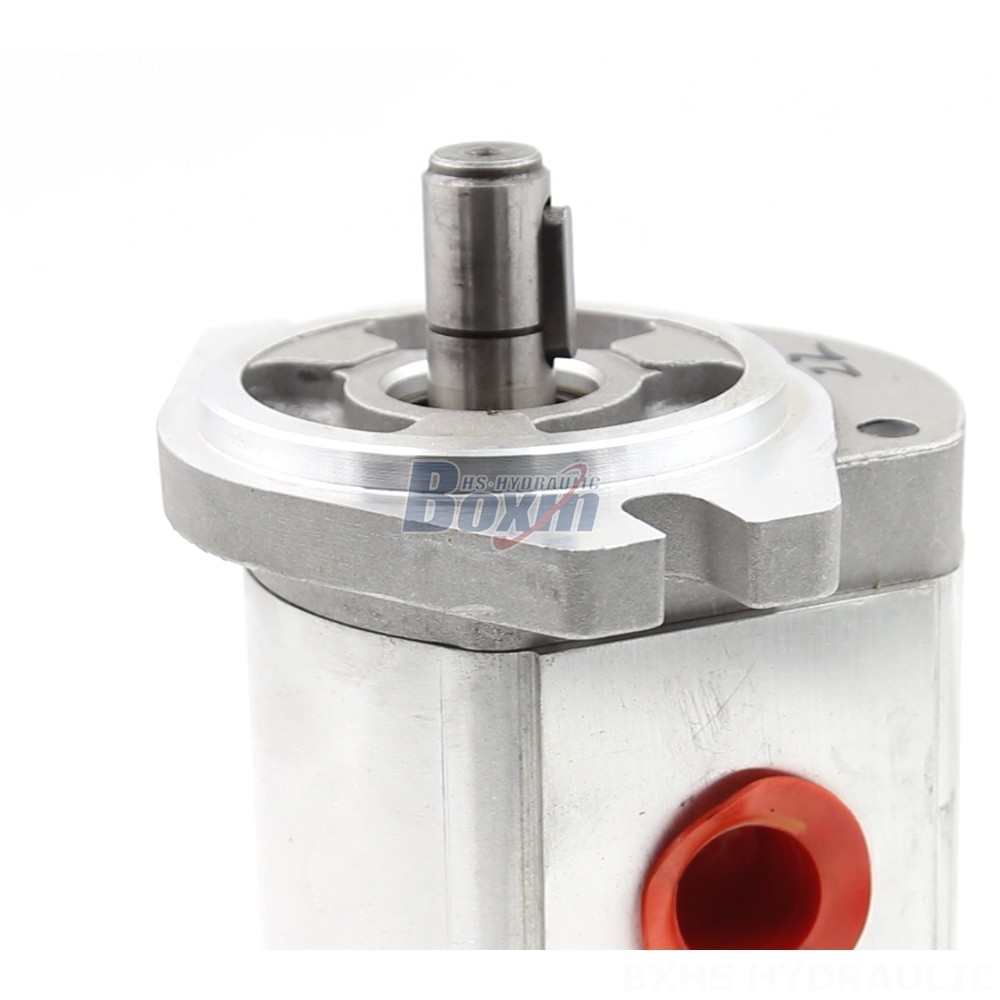

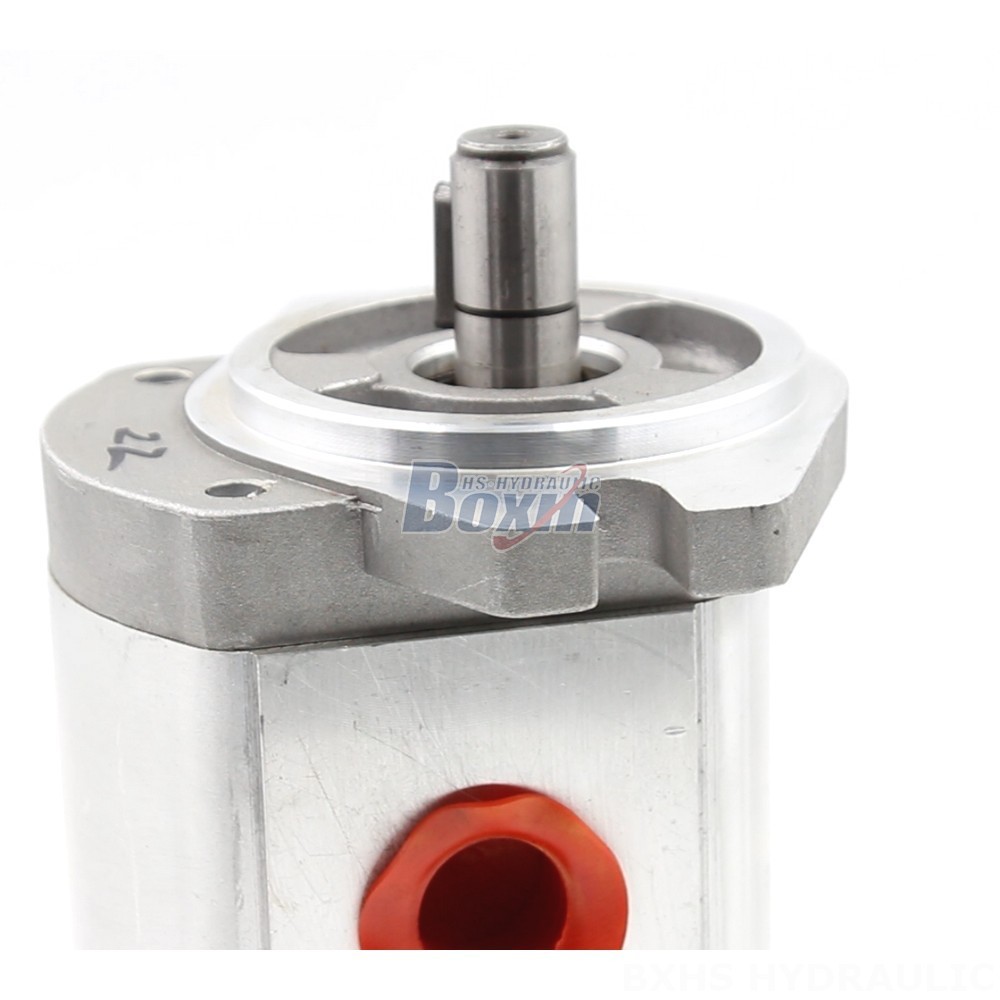

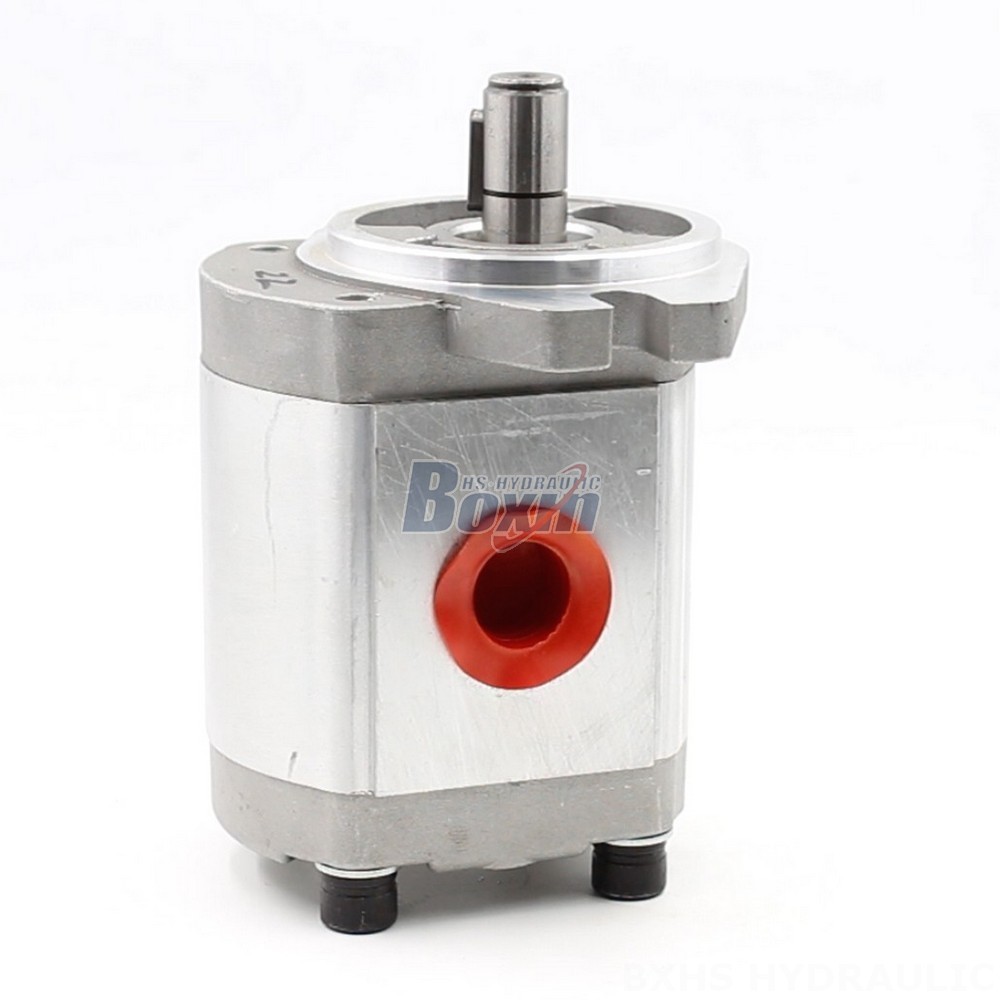

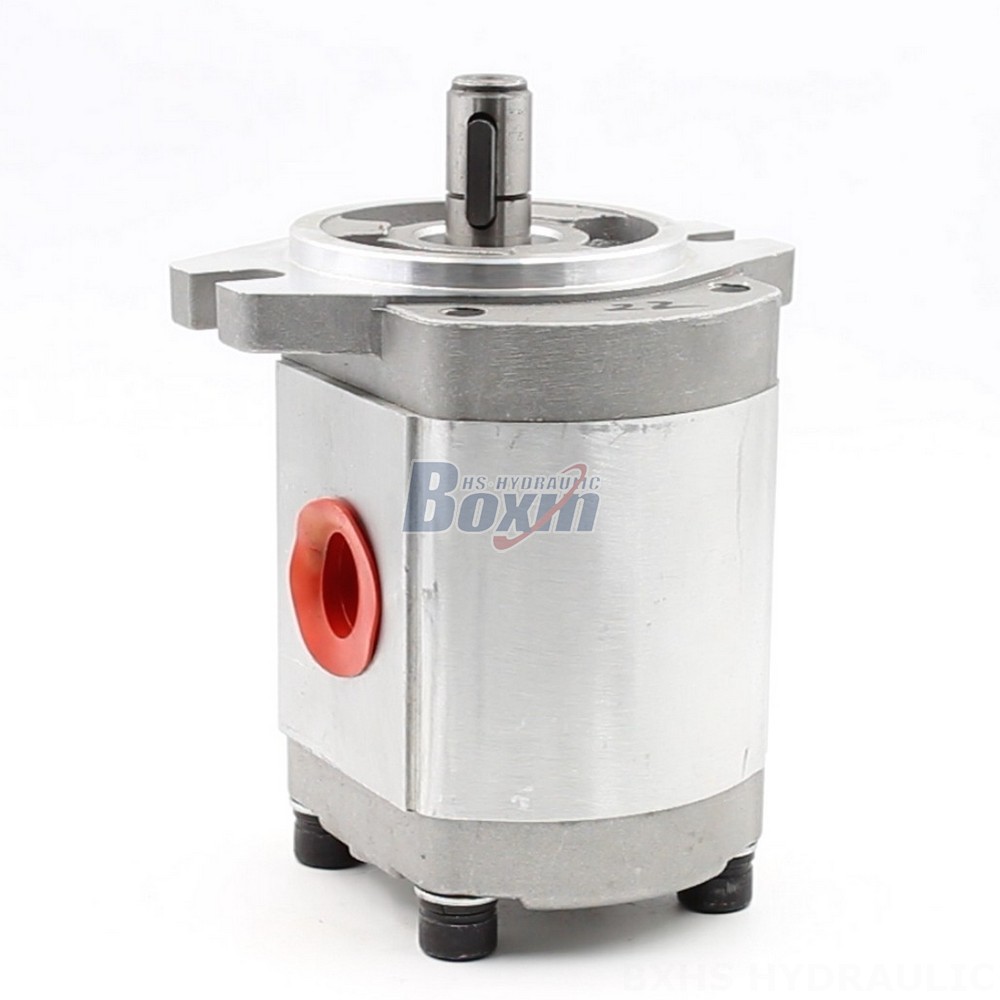

The CBHS-FL304 Hydraulic Gear Pump is a reliable and efficient pump designed for heavy-duty applications in various industries. It features a displacement of 10 cc/rev, a rated pressure of 20 MPa, and a rated speed of 2000 r/min, making it suitable for a wide range of construction and agricultural equipment.
| Seri CBHS-FL3 Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 10 cc/putaran, 4 cc/putaran, 20 cc/putaran, 16 cc/putaran, 14 cc/putaran, 6 cc/putaran |
| Tekanan Terukur | 20 MPa (2900 psi) |
| Tekanan Maksimum | 25 MPa (3625 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 3000 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam), R: Kanan ( searah jarum jam) |
| Bahan | Aluminium |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Flange Oval-A |
| Tipe Poros | H: Spline Persegi Panjang, X: Spline Involute, P: Kunci Biasa |
The CBHS-FL304 Hydraulic Gear Pump is a high-performance pump designed for demanding applications in construction, agriculture, and industrial vehicles. It features an internal gear pump design with an aluminum body, ensuring durability and efficiency. The pump has a displacement of 10 cc/rev and a rated pressure of 20 MPa, providing strong hydraulic power for a variety of tasks. Its rated speed is 2000 r/min, with a maximum speed of 3000 r/min. The CBHS-FL304 is available with both left and right rotation options. It features an A-Oval flange and a plain key shaft, making it compatible with various equipment. This pump is ideally suited for telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and balers.
