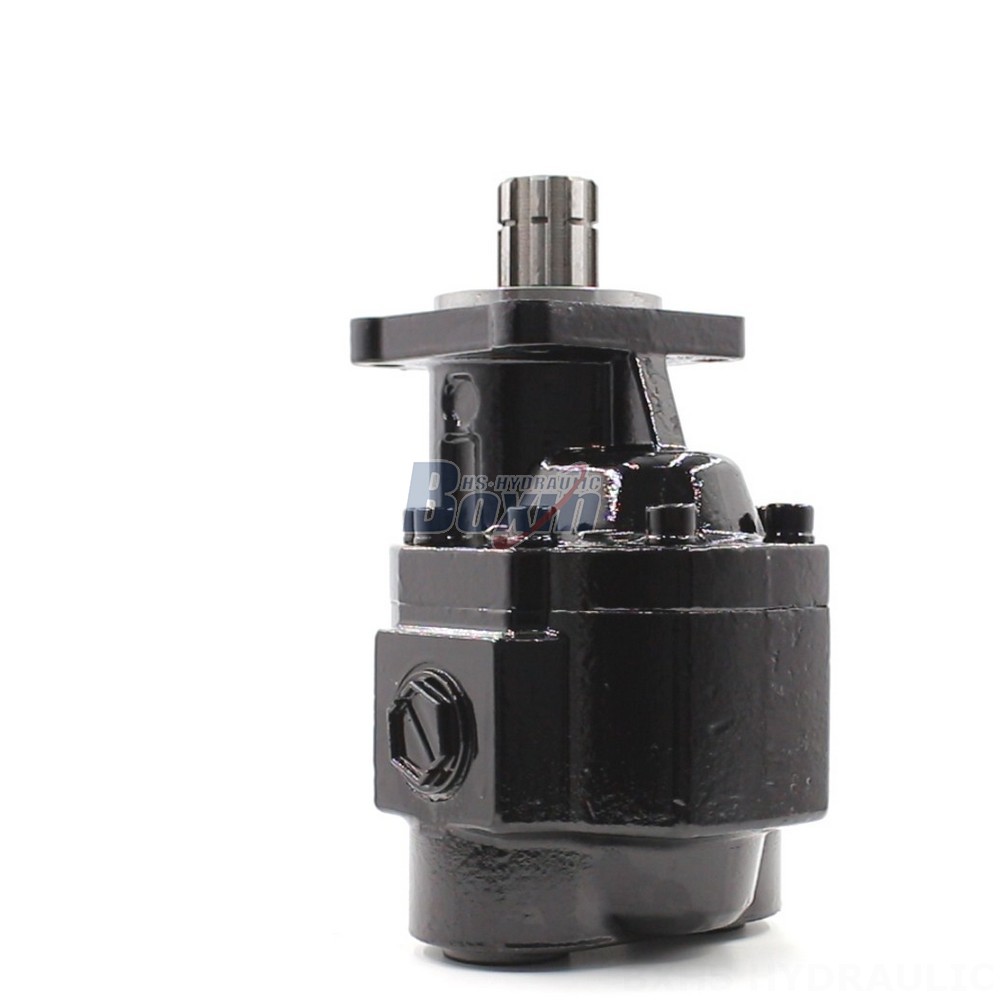

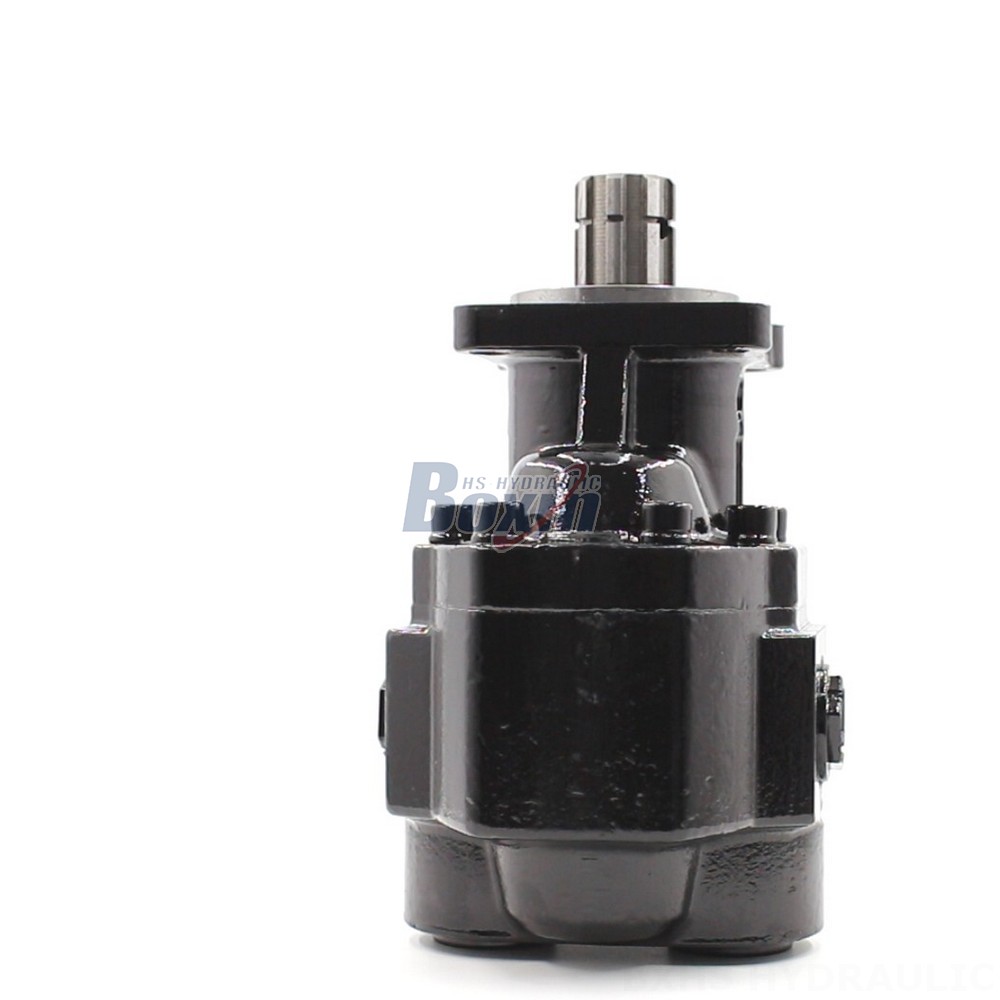

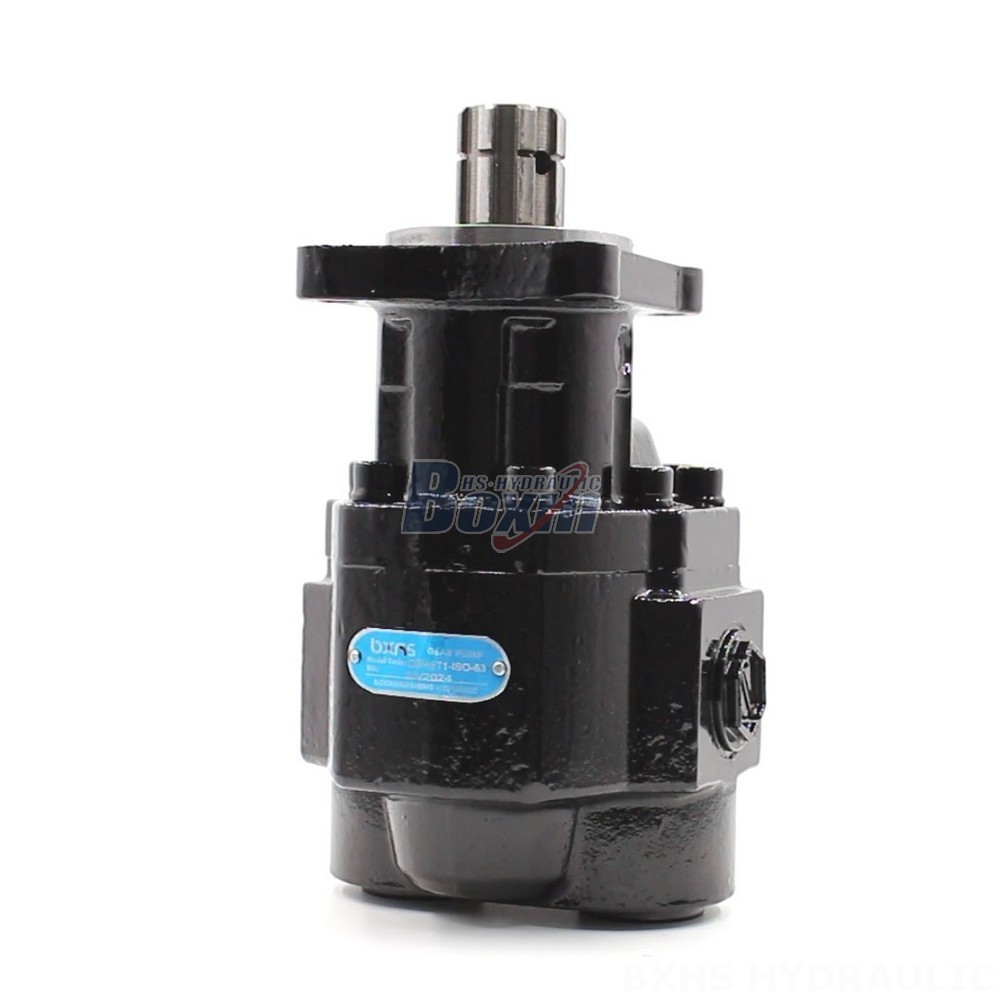

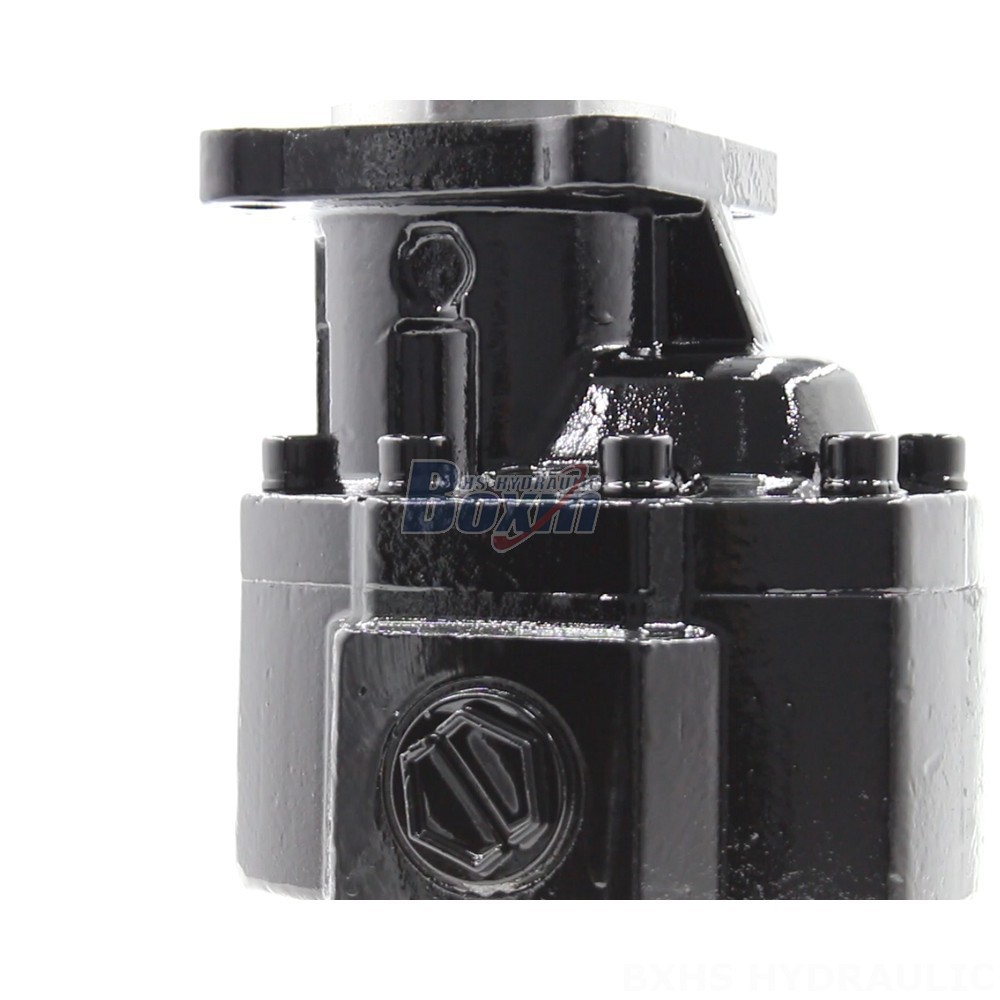

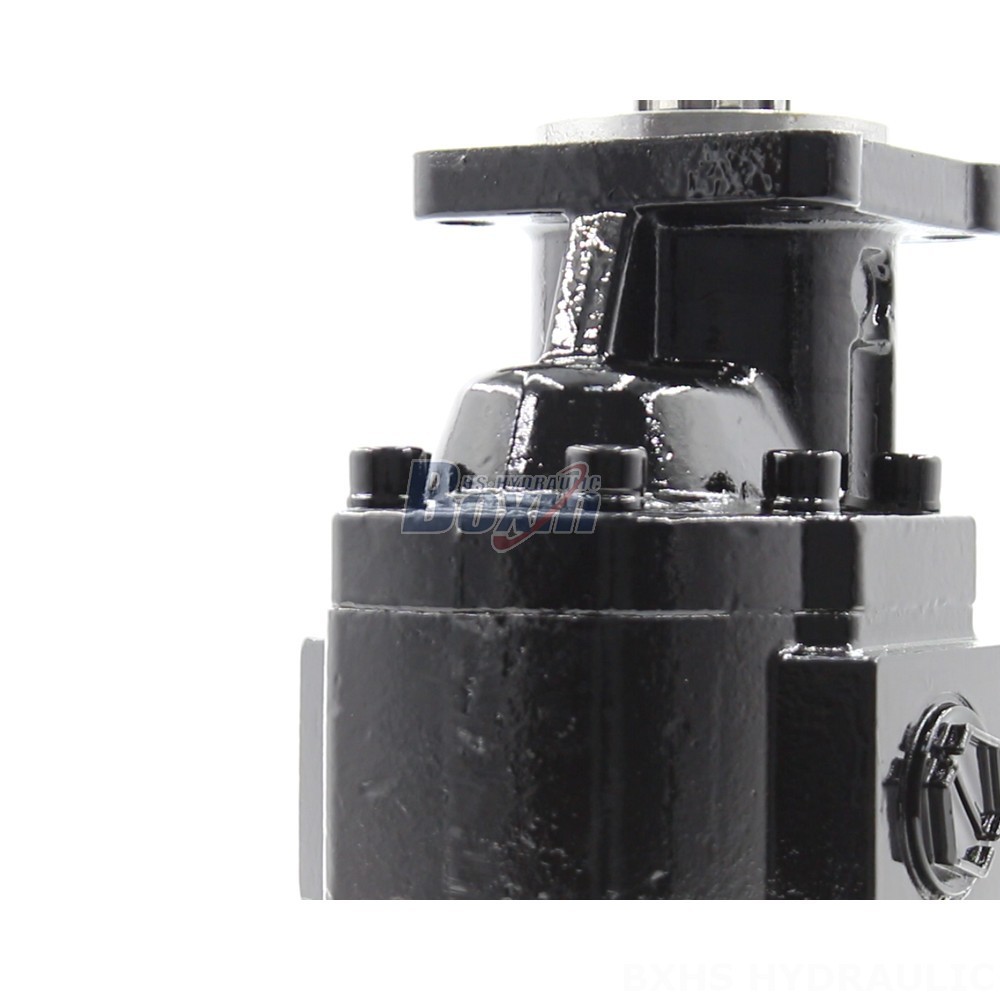

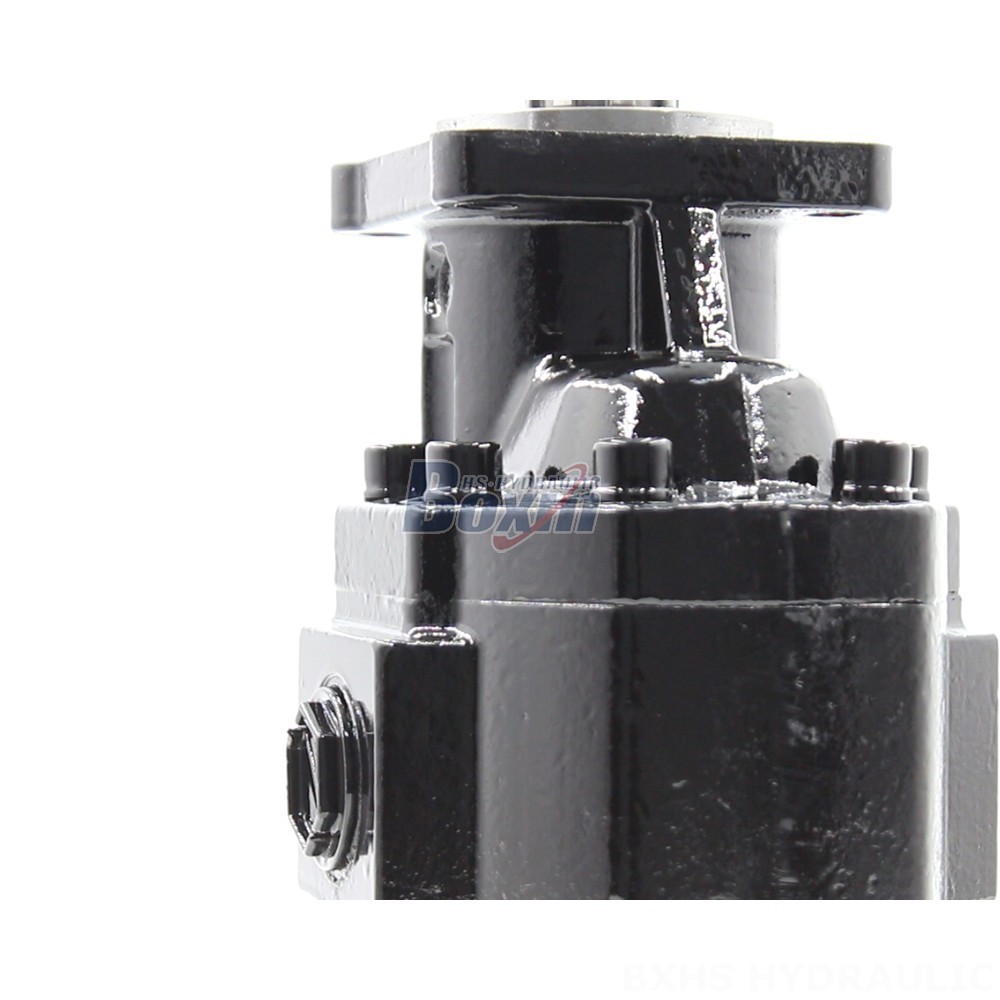

The CBHST1-ISO-63 Hydraulic Gear Pump is an advanced and globally renowned product designed for exceptional performance in various applications. With customizable displacement options ranging from 32 to 110 cc/rev, this pump delivers optimal flow rates for diverse hydraulic systems. Engineered with a robust cast iron construction, it withstands high pressures up to 23 MPa (3335 psi) and operates efficiently at speeds of up to 2500 r/min.
| Seri CBHST1-ISO Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 50 cc/putaran, 63 cc/putaran, 80 cc/putaran, 100 cc/putaran, 110 cc/putaran, 34 cc/putaran, 43 cc/putaran, 90 cc/putaran, 120 cc/putaran, 82 cc/putaran |
| Tekanan Terukur | 20 MPa (2900 psi), 23 MPa (3335 psi), 25 MPa (3625 psi) |
| Tekanan Maksimum | 23 MPa (3335 psi), 25 MPa (3625 psi), 28 MPa (4061 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 2500 r/min |
| Putaran | Dua Arah |
| Bahan | Besi Cor |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Lubang Pemasangan ISO-4 |
| Tipe Poros | H: Spline Persegi Panjang |
The CBHST1-ISO-63 Hydraulic Gear Pump boasts a bidirectional rotation, allowing for versatility in system design. Its swashplate structure ensures smooth and reliable operation, while the ISO-4 mounting flange and rectangle spline shaft type provide compatibility with a wide range of applications. This pump finds its applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
