China Factory Supply SD8-OTAMW 4 Spool Hydraulic Control Valve

Metode Kontrol:Buku Panduan

Spul:4 Spool

Aliran Terukur:90 L/menit (23,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri SD8 Kran Arah Bagian

Ukuran kemasan:34*34*15.5

Kelas kotor:18.50 kg

Ketersediaan: Tersedia

109 Pandangan Mencari Produk Ini

China Factory Supply SD8-OTAMW 4 Spool Hydraulic Control Valve

China Factory Supply SD8-OTAMW 4 Spool Hydraulic Control Valve

China Factory Supply SD8-OTAMW 4 Spool Hydraulic Control Valve drawing image

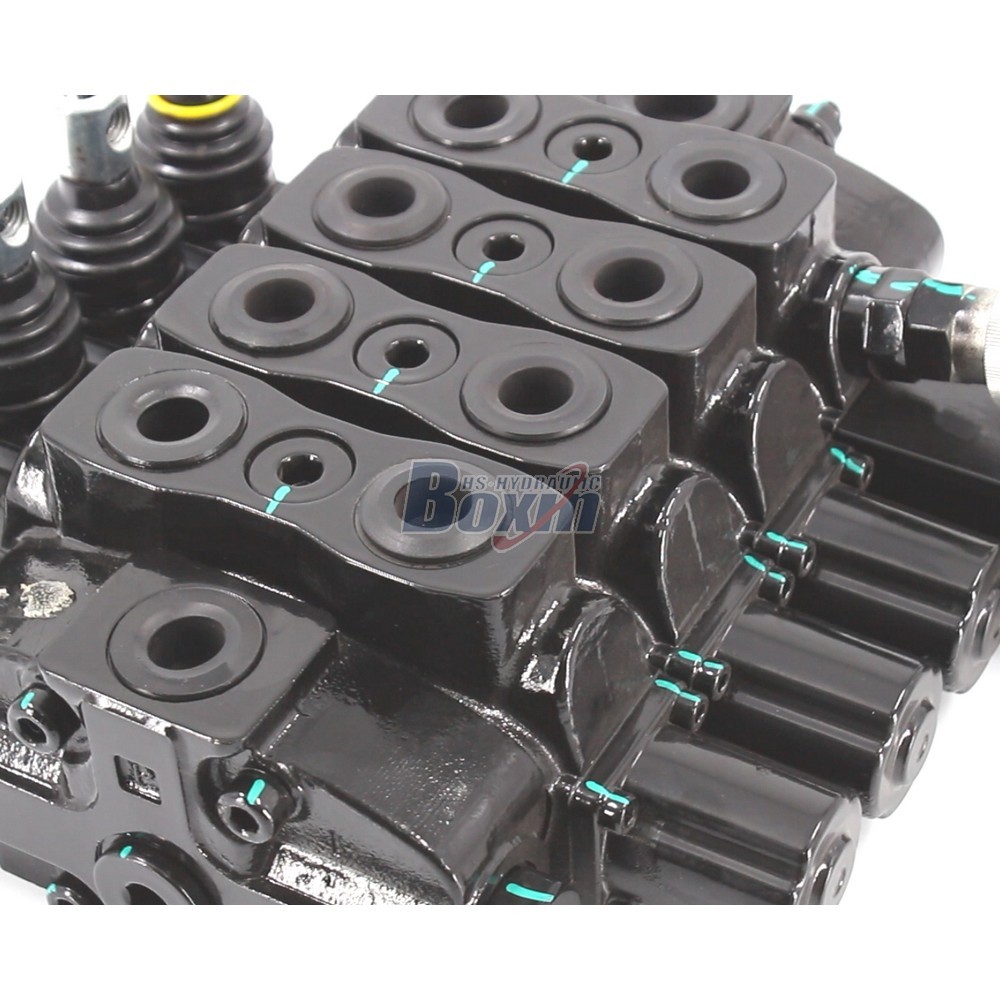

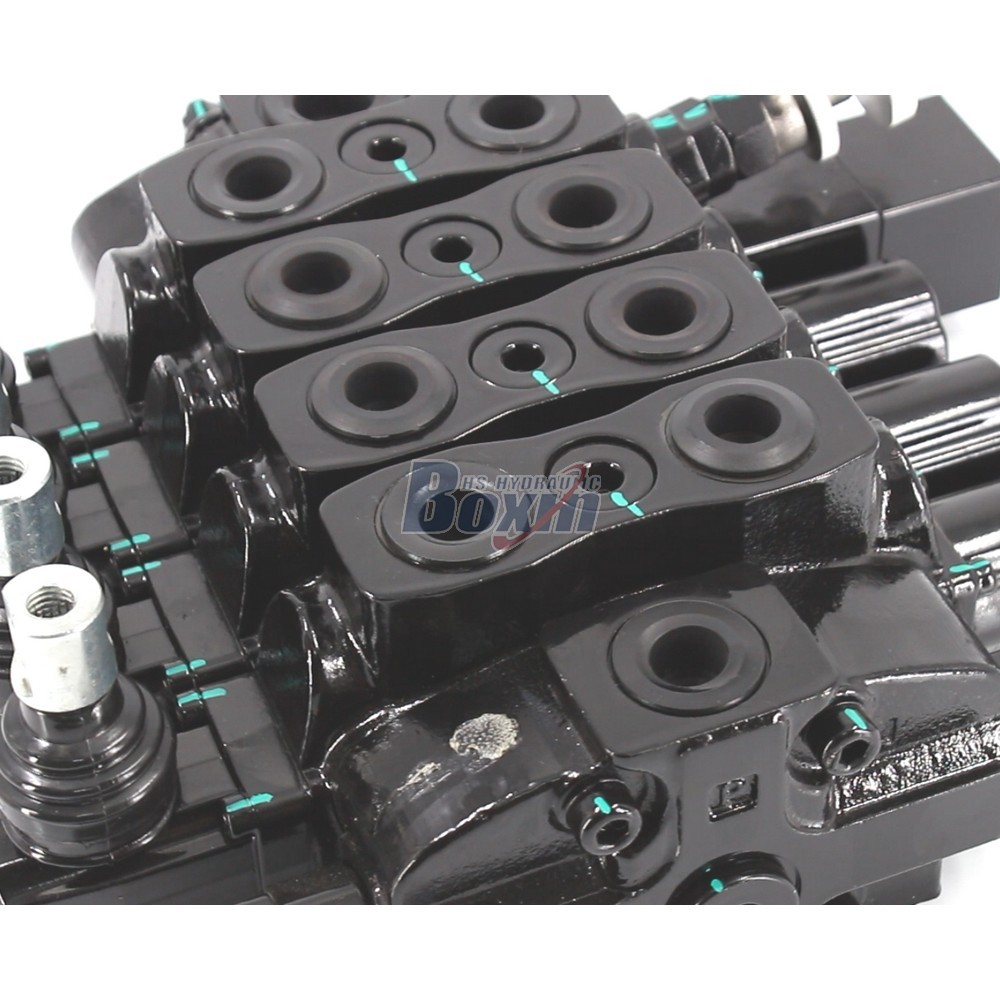

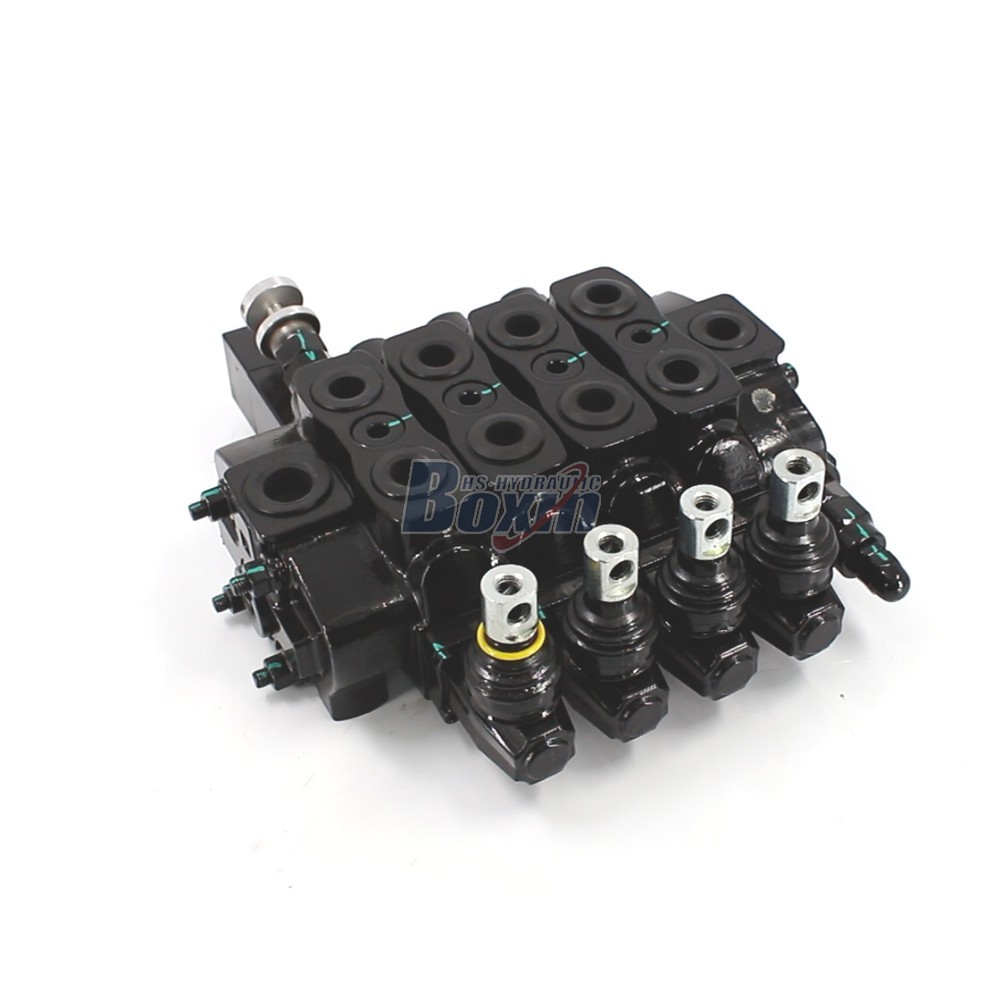

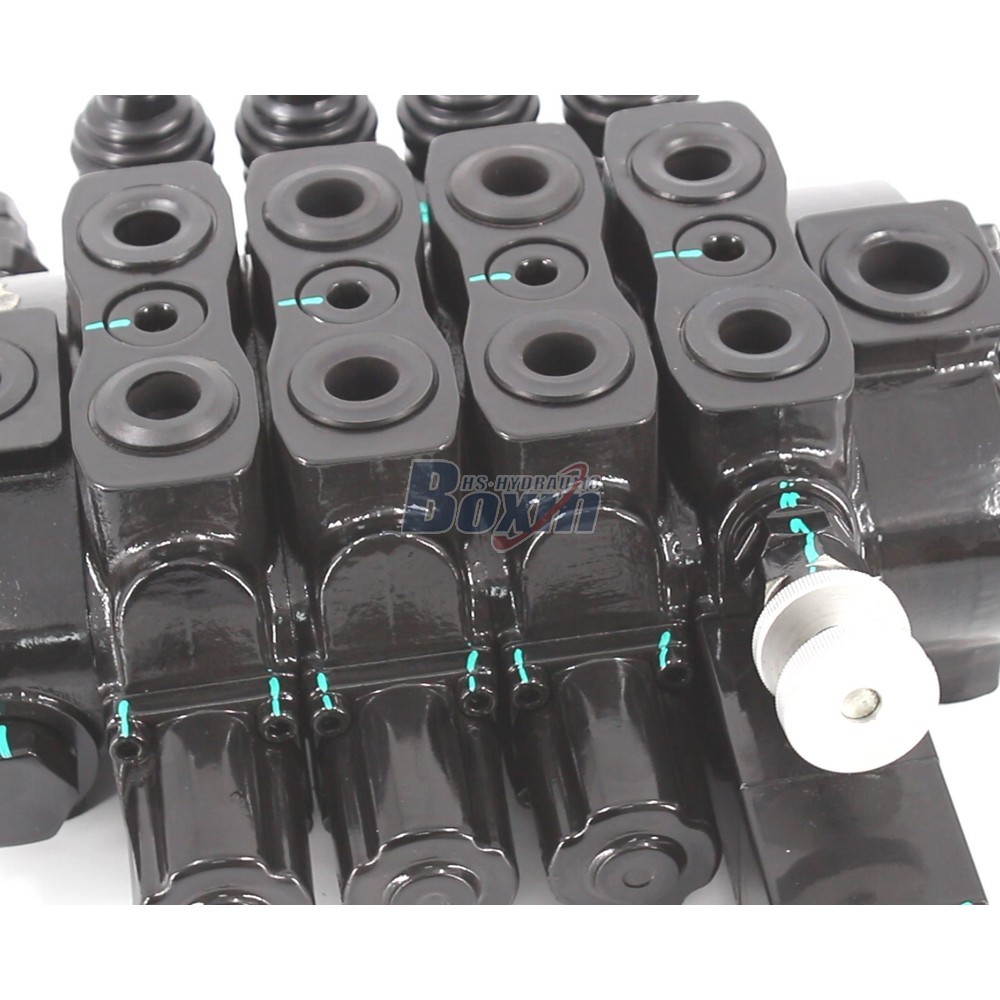

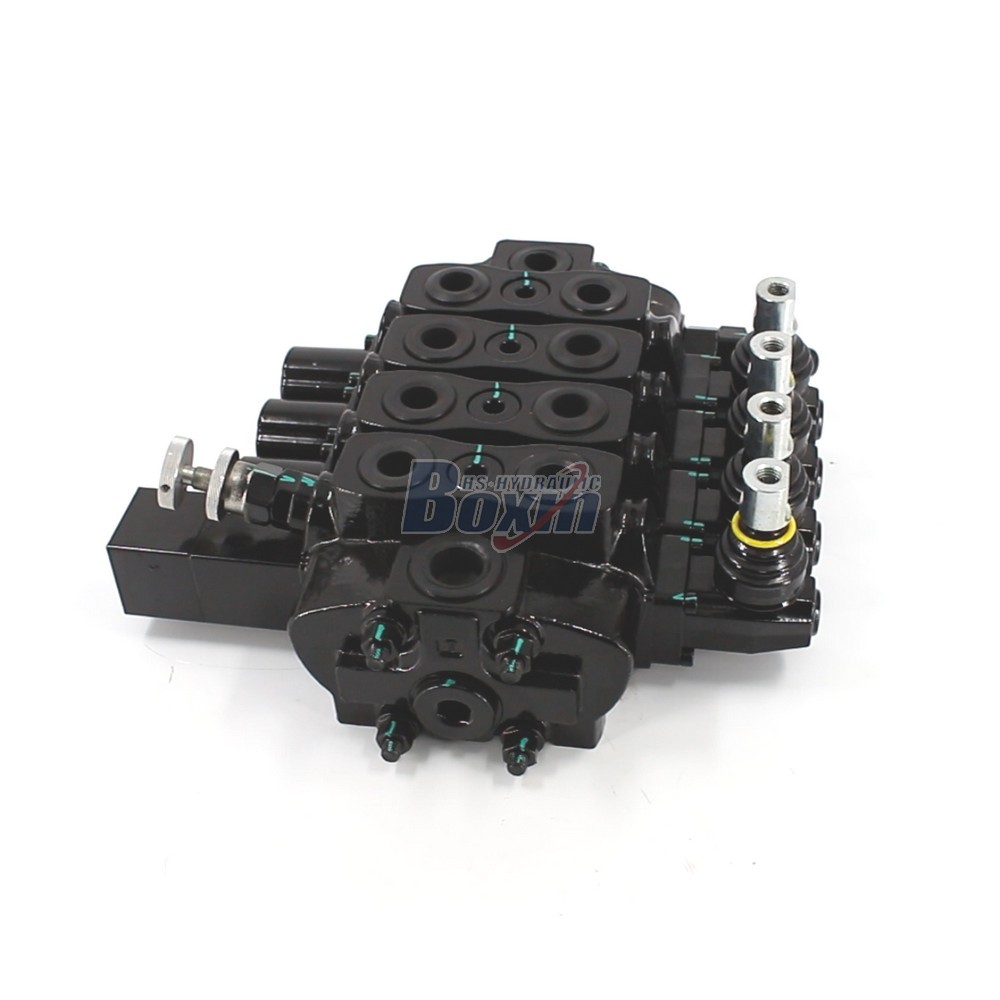

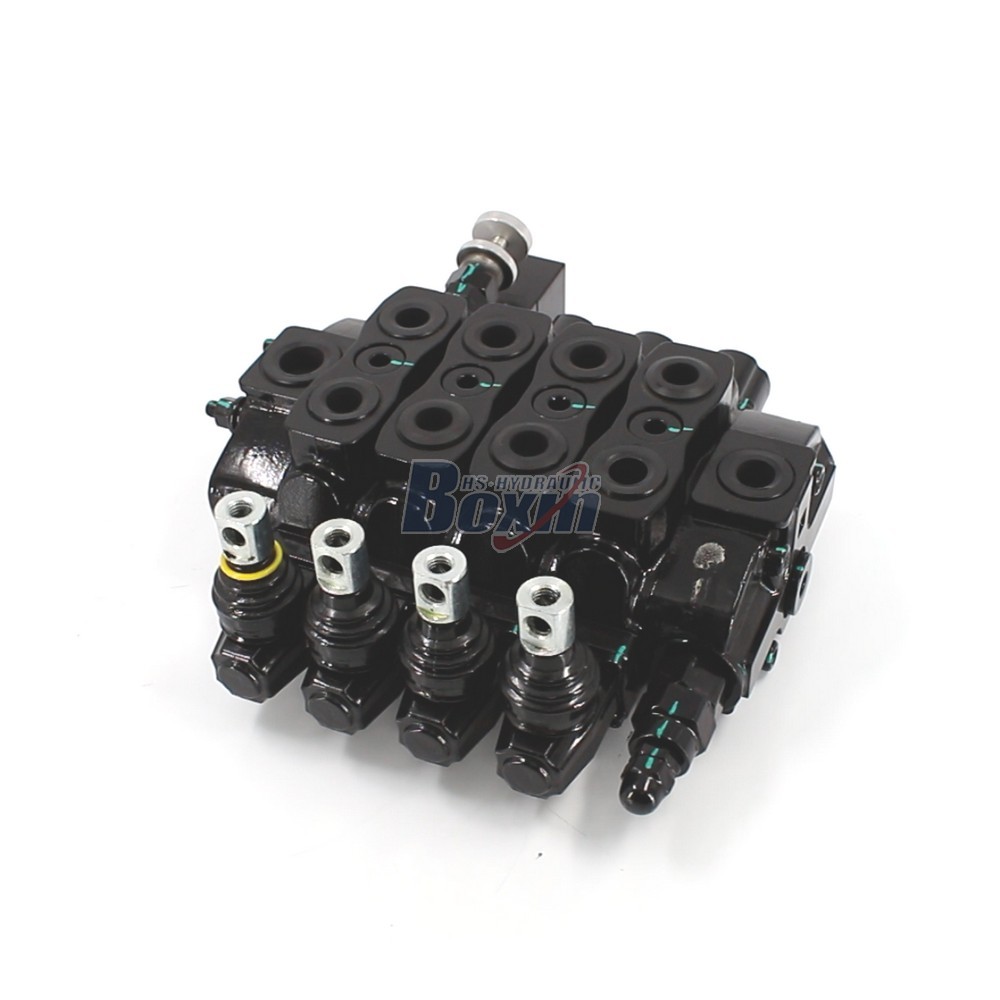

High-performance SD8-OTAMW 4-spool manual hydraulic control valve designed for demanding mobile applications, offering a rated flow of 80 L/min and tolerance up to 315 bar pressure. Ideal for construction, agriculture, and material handling equipment.

Seri SD8 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian
Kisaran Viskositas Operasional 12 - 400 mm²/dt (12 cSt hingga 400 cSt)
Aliran Terukur 90 L/menit (23,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, SAE 10
Port Keluar G1/2, G3/4, SAE 10, 3/4 NPT
Ukuran Port G1/2, SAE 10

Engineered by a leading hydraulic manufacturer, the SD8-OTAMW 4-spool hydraulic control valve delivers reliable performance for diverse machinery. As a China factory supply specialist, we offer factory wholesale opportunities and premium manufacturing services including OEM and ODM. This versatile valve features a manual control method, G1/2 inlet ports, and G3/4 outlet ports, making it suitable for mini-excavators, skid steer loaders, tractors, and forklifts. We are actively seeking global partners including distributors, wholesalers, agents, and traders to expand our international market presence. Our facility provides professional customization and private labeling options to meet specific technical requirements. Whether you are looking for bulk wholesale or specialized custom production, our SD8 series provides an efficient solution for material handling, earthmoving, and industrial vehicle systems.
