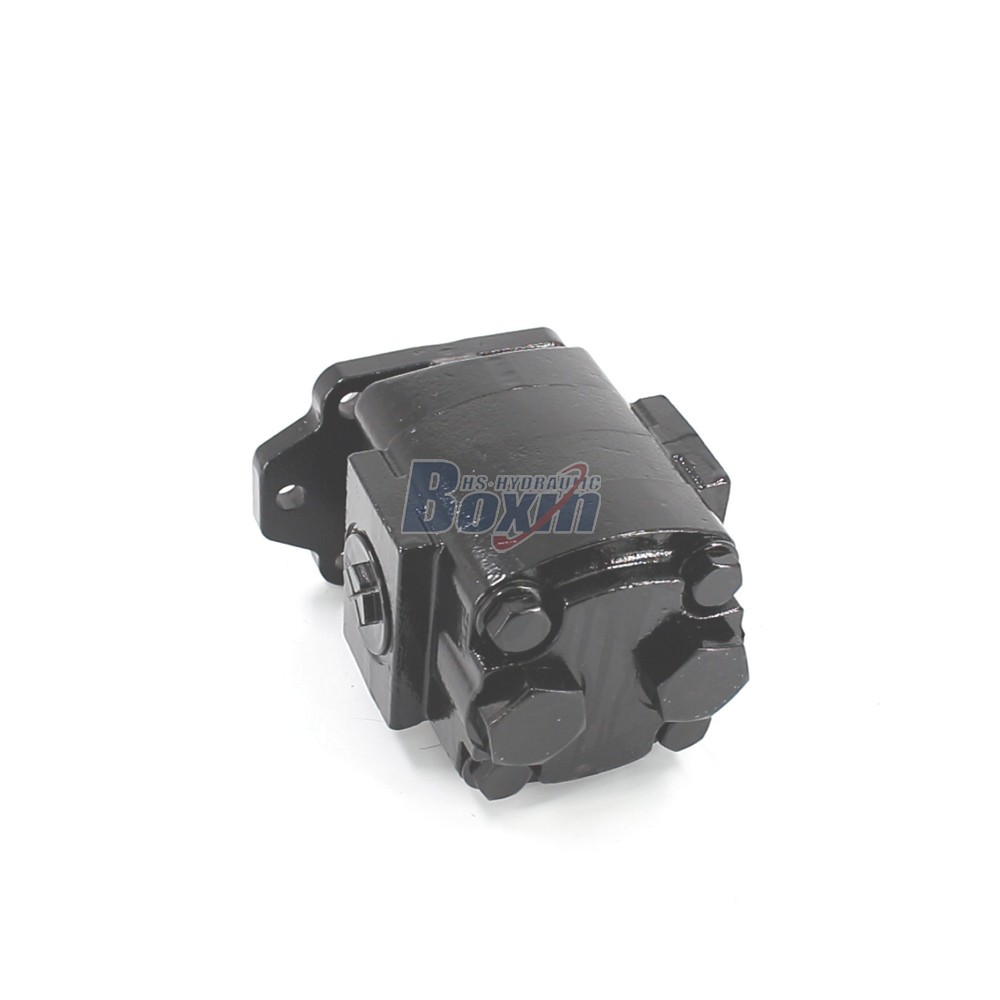

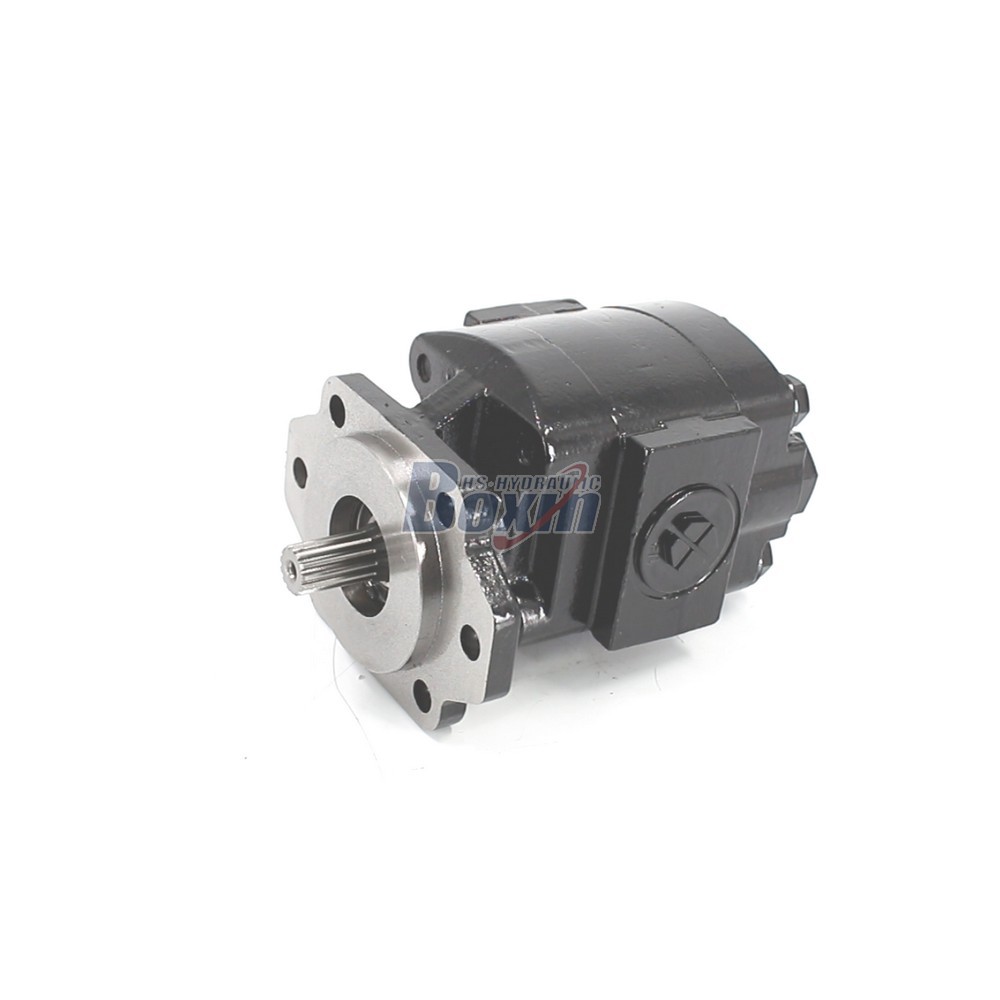

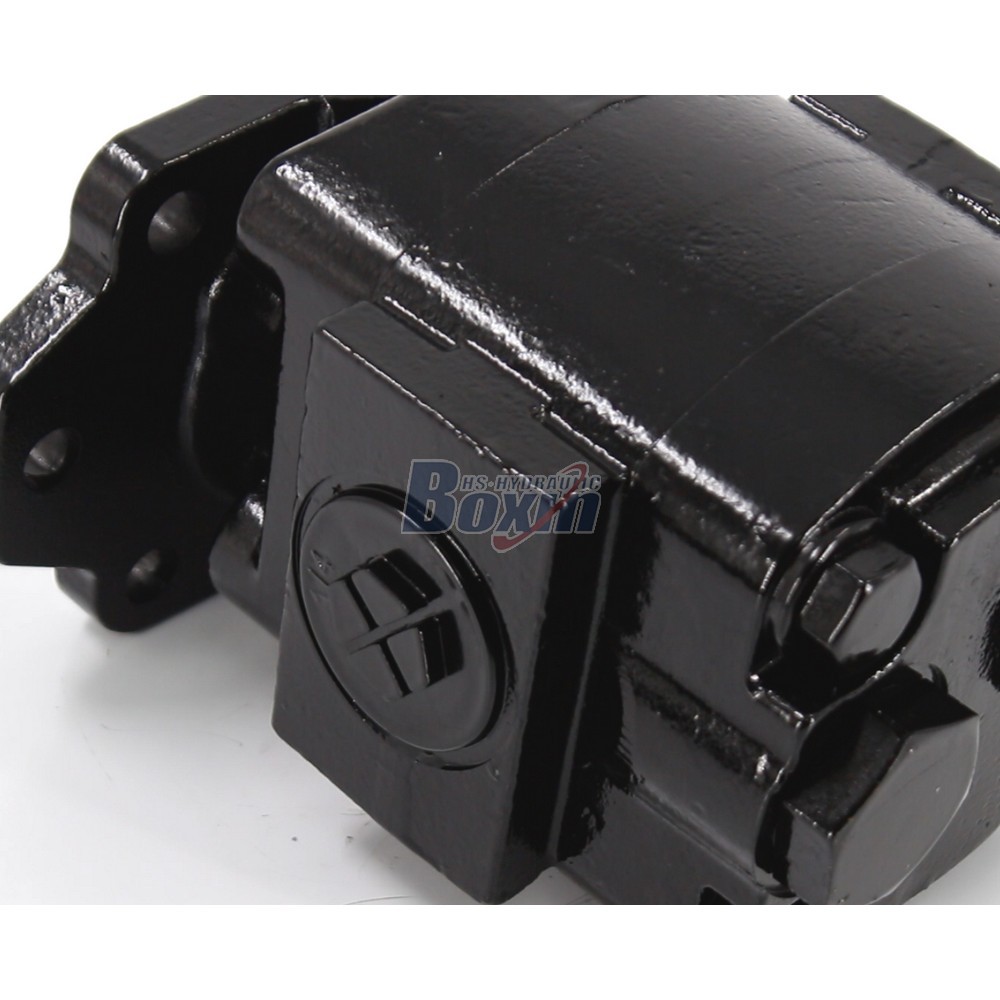

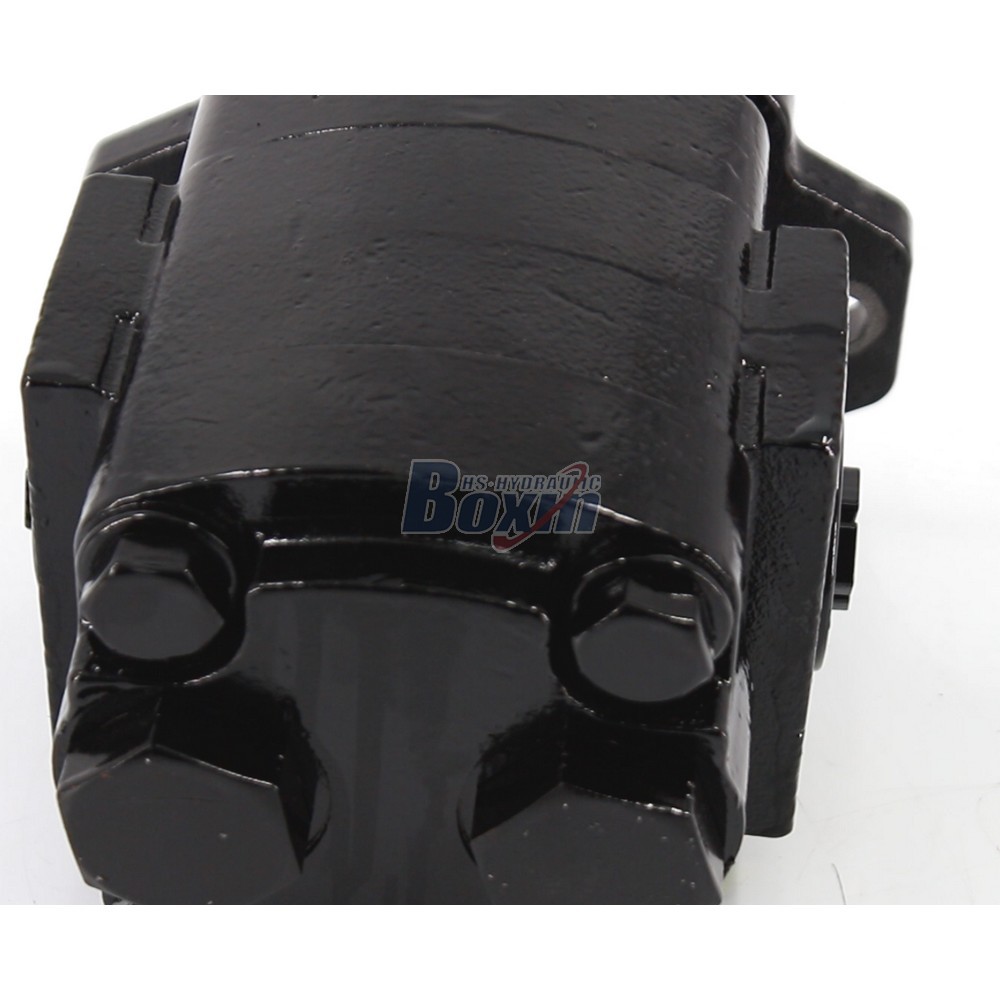

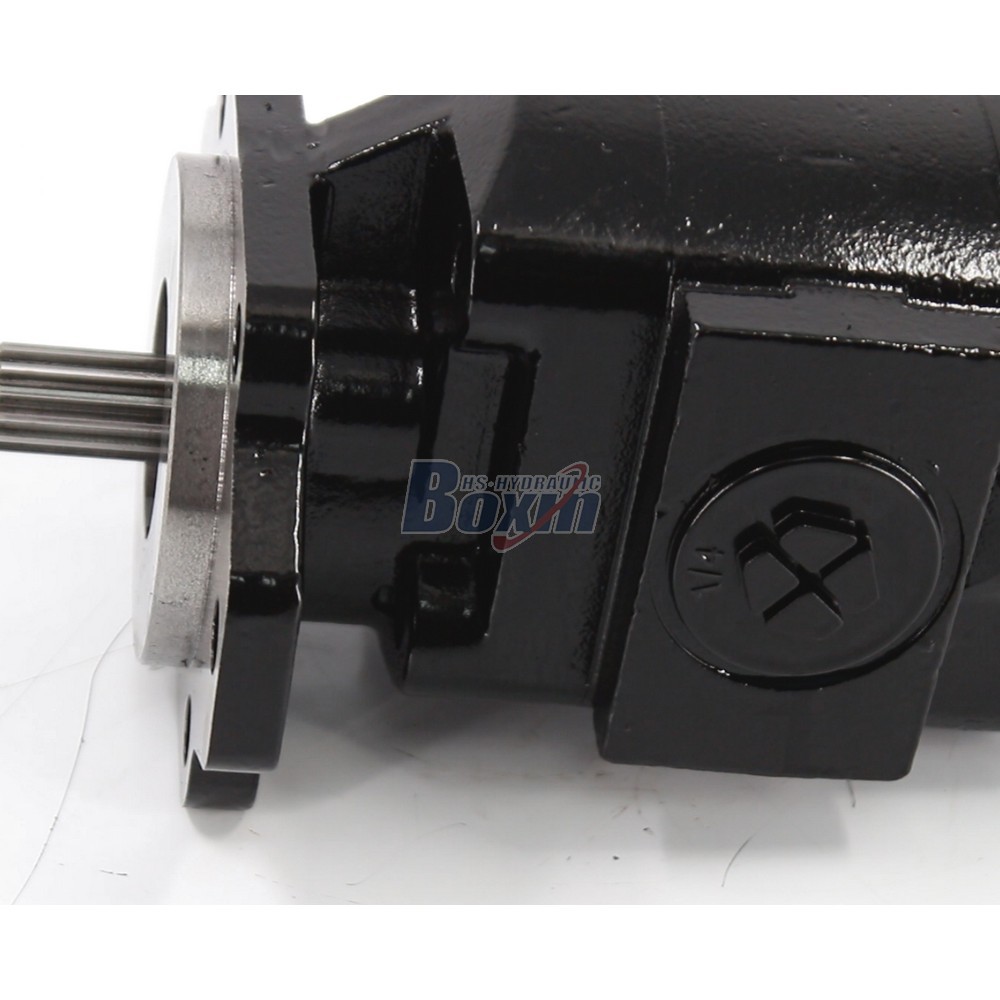

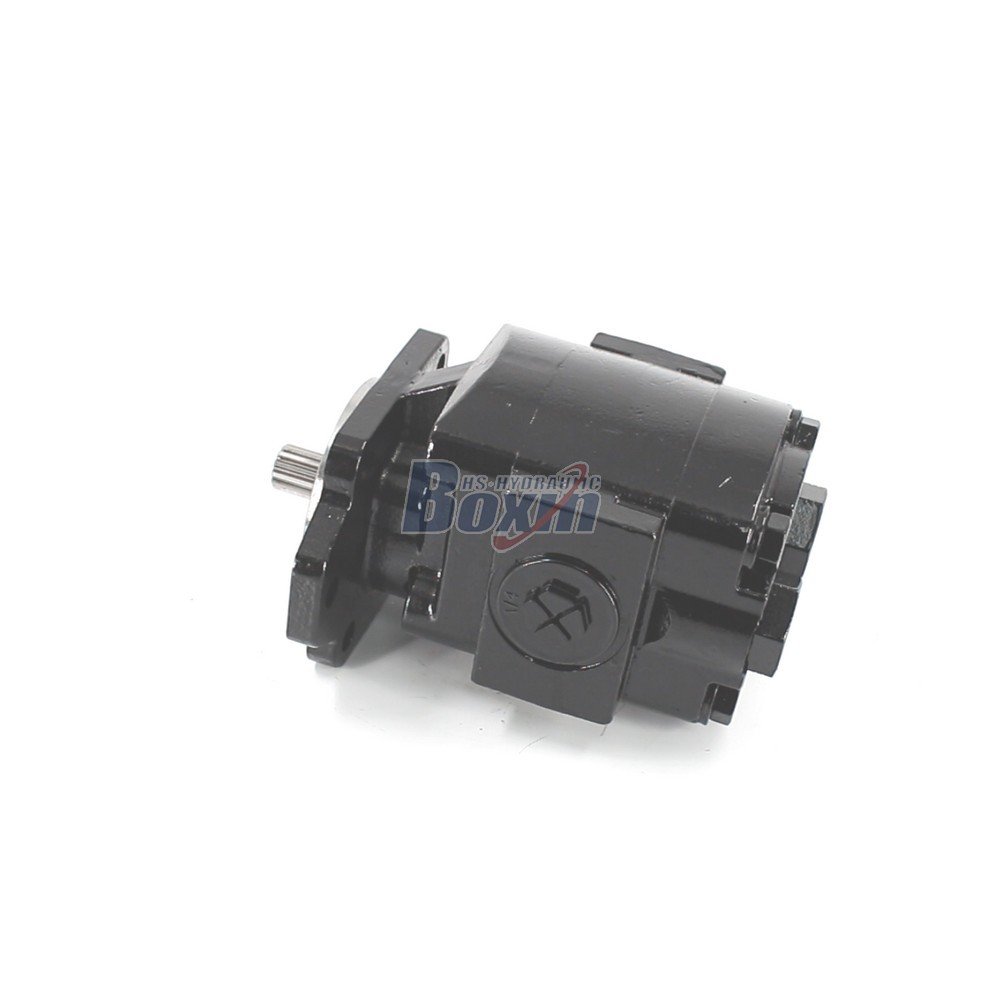

Competitive Price P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump by Manufacturer

Perpindahan:64.6 cc/putaran

Tekanan Terukur:16 MPa (2320 psi)

Tekanan Maksimum:17 MPa (2465 psi)

Kecepatan Maksimum:2400 r/min

Putaran:Dua Arah

Merek:BXHS

Tipe Produk:Pompa Roda Gigi Hidrolik

Seri Produk:Seri P21 Pompa Roda Gigi Hidrolik

Ukuran kemasan:45*25*18

Kelas kotor:16.00 kg

Ketersediaan: Tersedia

154 Pandangan Mencari Produk Ini

Competitive Price P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump by Manufacturer

Competitive Price P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump by Manufacturer

Competitive Price P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump by Manufacturer drawing image

This P21 Series Hydraulic Gear Pump features a 64.6 cc/rev displacement and 16 MPa rated pressure, engineered for wheel loaders and excavators. Backed by a 25-year Professional Manufacturer with IATF 16949 certification, it ensures reliable bidirectional performance and OEM compatibility for global B2B buyers.

Seri P21 Pompa Roda Gigi Hidrolik Parameter
Perpindahan 64.6 cc/putaran
Tekanan Terukur 16 MPa (2320 psi)
Tekanan Maksimum 17 MPa (2465 psi)
Kecepatan Terukur 600 r/menit
Kecepatan Maksimum 2400 r/min
Putaran Dua Arah
Bahan Besi Cor
Struktur Pompa Roda Gigi Eksternal
Versi Flens Flange Oval-A, Flange Persegi-B, Lubang Pemasangan ISO-4, Lubang Pemasangan UNI-3, Flensa SAE
Tipe Poros X: Spline Involute

**1. High-Efficiency Hydraulic Gear Pump Specs**
- Delivers precise 64.6 cc/rev displacement with a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa.
- Operates smoothly at 2000 r/min rated speed (max 2400 r/min), ensuring stable flow for demanding hydraulic systems.

**2. Versatile P21 Series Gear Pump Applications**
- Specifically designed for construction and earth-moving machinery, including wheel loaders, backhoes, and skid steer loaders.
- Bidirectional rotation capability allows flexible integration into agricultural tractors, forklifts, and telehandlers.

**3. Reliable Construction Machinery Pump Quality**
- Manufactured in a 68,000 sqm facility with 260+ CNC machines, ensuring strict adherence to IATF 16949 standards.
- Every unit undergoes 100% bench testing for pressure, flow, and sealing, backed by CE compliance and SGS detection.

**4. Factory Direct Sales & Customization**
- As a China Wholesale source with 25+ years of experience, we offer full OEM/ODM services including logo laser marking.
- Our 35+ senior engineers support custom castings and appearances, making us a preferred partner for private label brands.

**5. Global Supply Chain & Compatibility**
- Exported Worldwide with heavy-duty wooden crate packaging to prevent rust and damage during long-distance transit.
- Perfectly compatible with international mainstream brands, offering a cost-effective Factory Direct Sales alternative for distributors.
