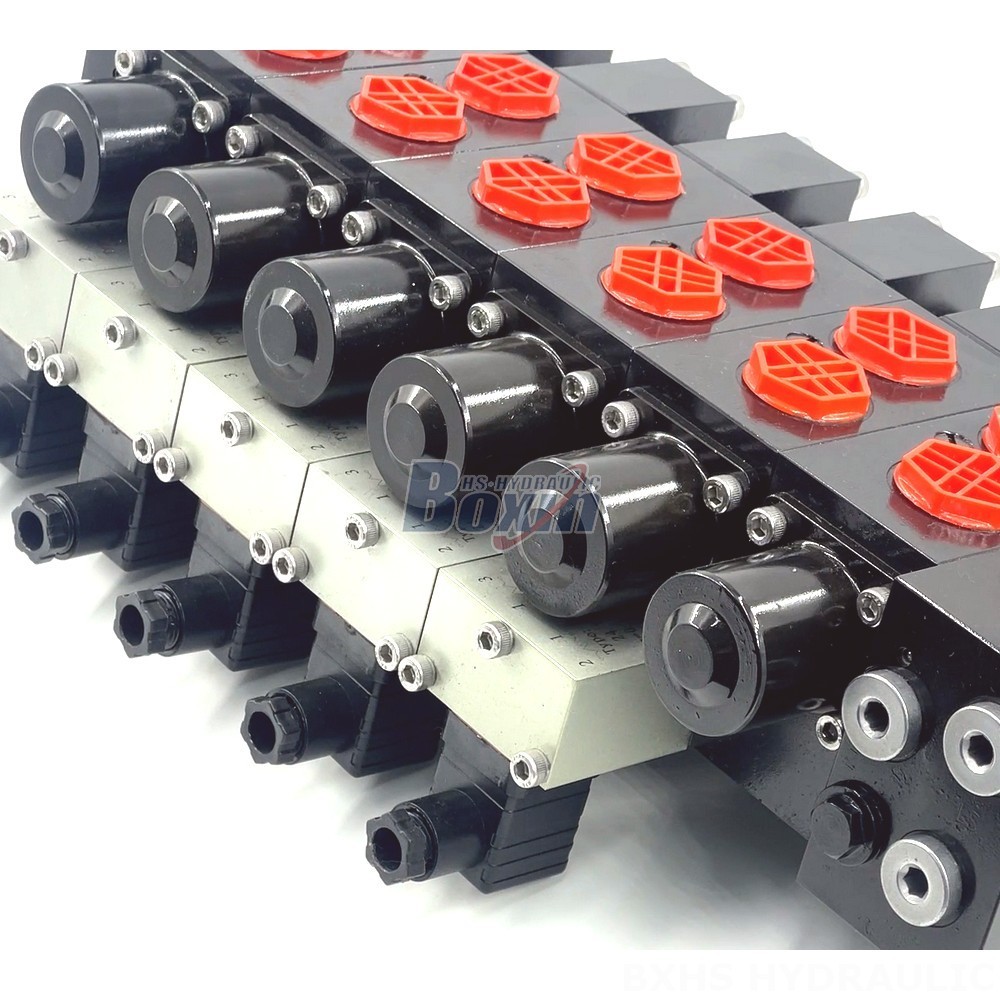

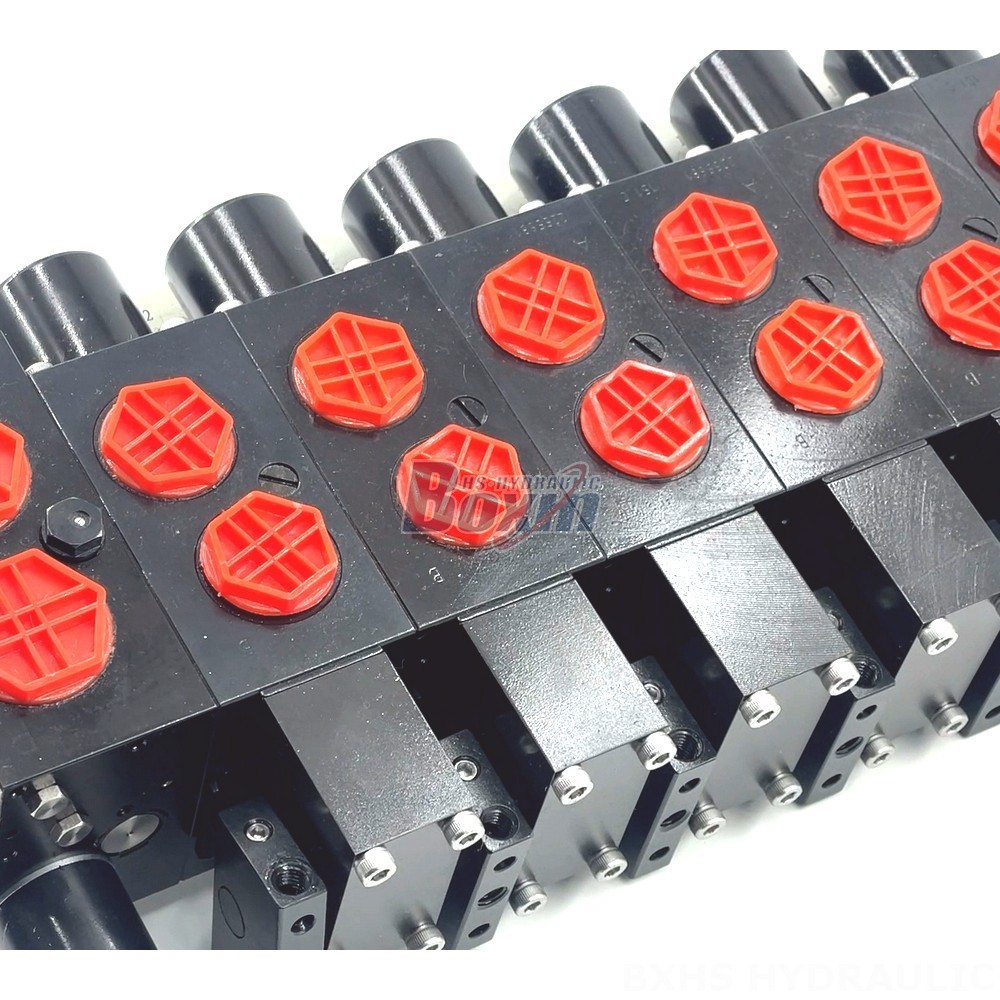

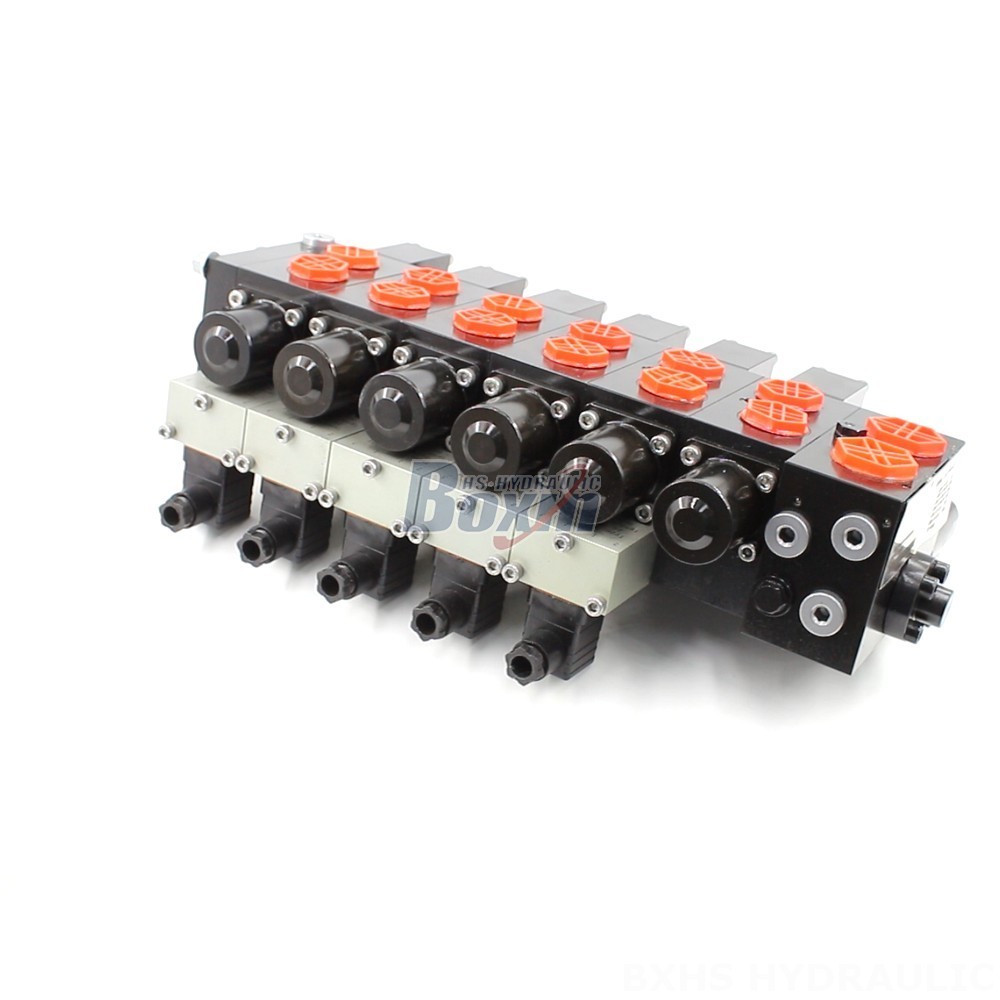

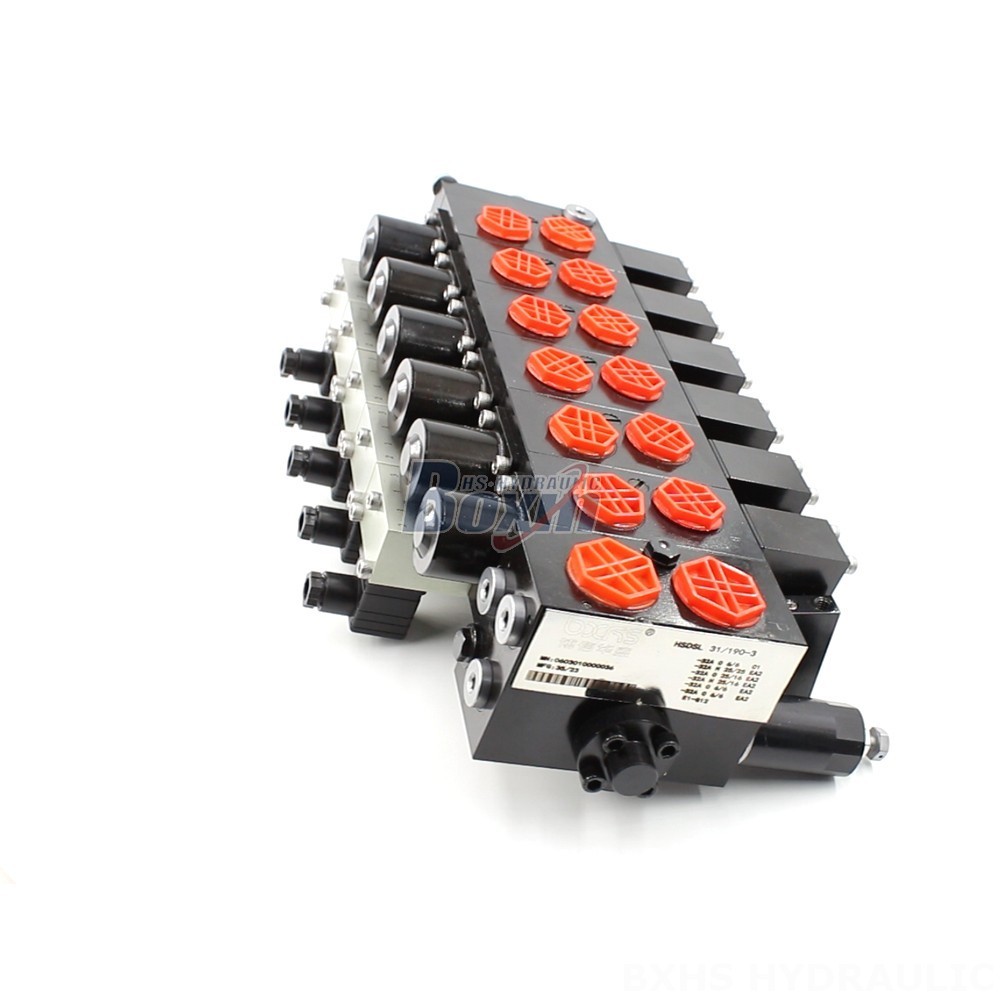

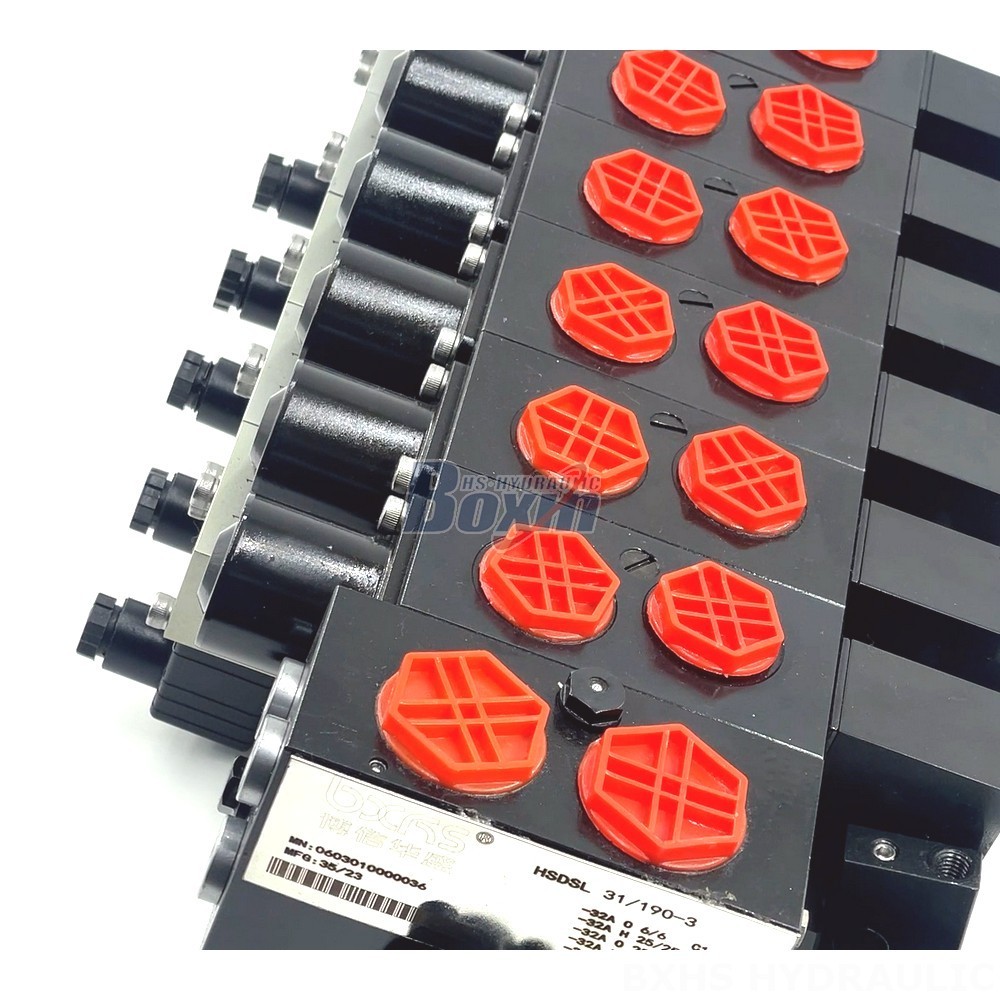

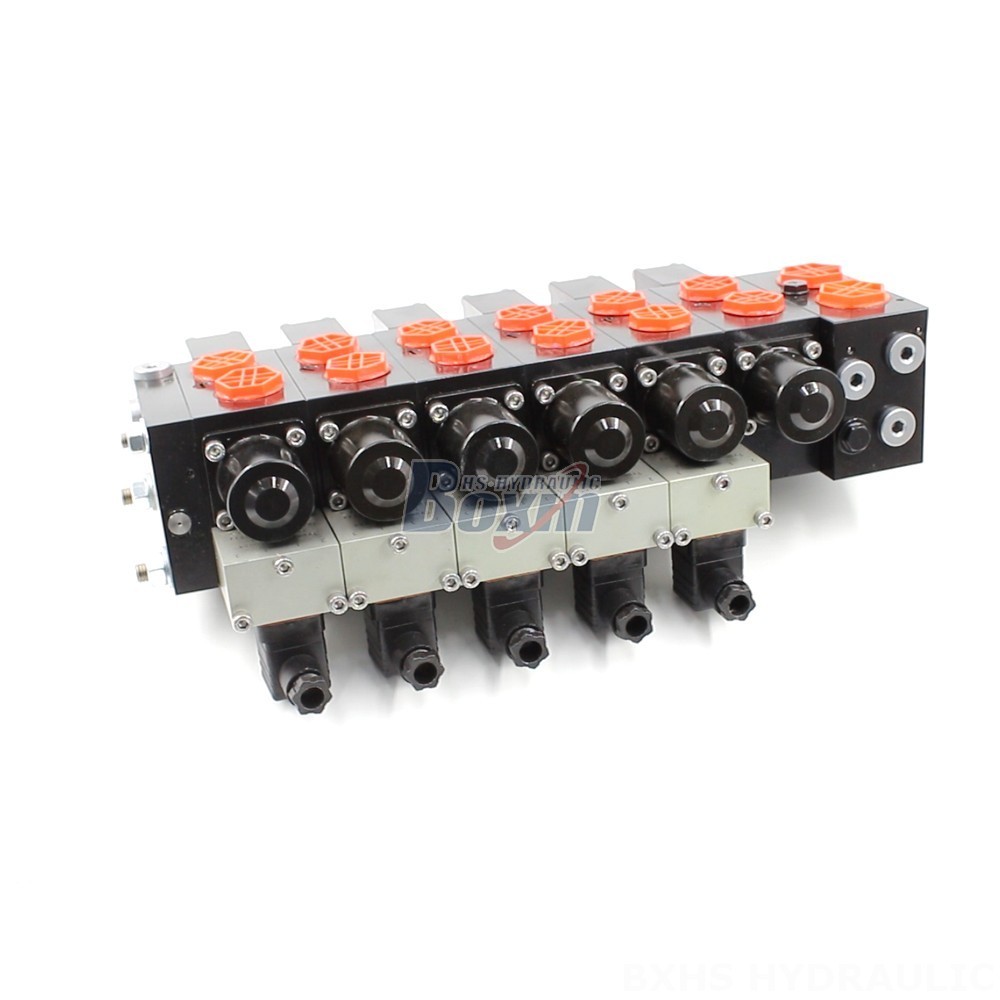

The HSDSL Series Directional Valve is a high-performance, sectional valve designed for demanding applications in construction, material handling, and industrial vehicles. It features both electric proportional and manual control options, offering versatility and reliability for various operating environments.
| Seri HSDSL Katup Kontrol Proporsional Parameter | |
|---|---|
| Metode Kontrol | Hidraulis, Hidraulik dan Manual, Proporsional listrik, Proporsional listrik dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Aliran Terukur | 140 L/menit (37 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/4 |
| Port Keluar | G3/4 |
| Ukuran Port | G1/2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Tipe Struktur | Katup penampang |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The HSDSL Series Directional Valve is a 6-section, high-flow, high-pressure valve capable of handling up to 140 L/min (37 US gpm) with a maximum pressure rating of 350 bar (5100 psi). It is suitable for a wide range of operating viscosities (15-75 mm²/s) and ambient temperatures (-40°C to +80°C). The valve features 6 spools, offering precise control of fluid flow. This series is ideal for various applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers.
